The RAB H22 Series is a family of precision die-cast UFO LED high bays engineered for the most demanding commercial and industrial environments — combining complete field-adjustability with the industry’s most rigorous washdown, impact, and food-safety certifications. Two models and two voltage options cover every facility from mid-size warehouses to the largest industrial plants: H22 (100–150W, up to 24,005 lm) and H22XL (150–240W, up to 36,461 lm), each available in 120–277V and 480V. Three parameters are field-selectable on every model — wattage, CCT (3000K / 4000K / 5000K), and beam angle (60° / 90° / 105°) — yielding 27 configurations per SKU. CRI 85 (4000K), IP69K high-pressure/high-temperature washdown rated, IK10 impact rated, NSF certified, UL listed for wet locations, and DLC Premium listed across the full family. 7-step MacAdam Ellipse color consistency. Rated life 100,000 hours. Backed by RAB’s 5-year limited warranty.

Model & Voltage Selection Guide

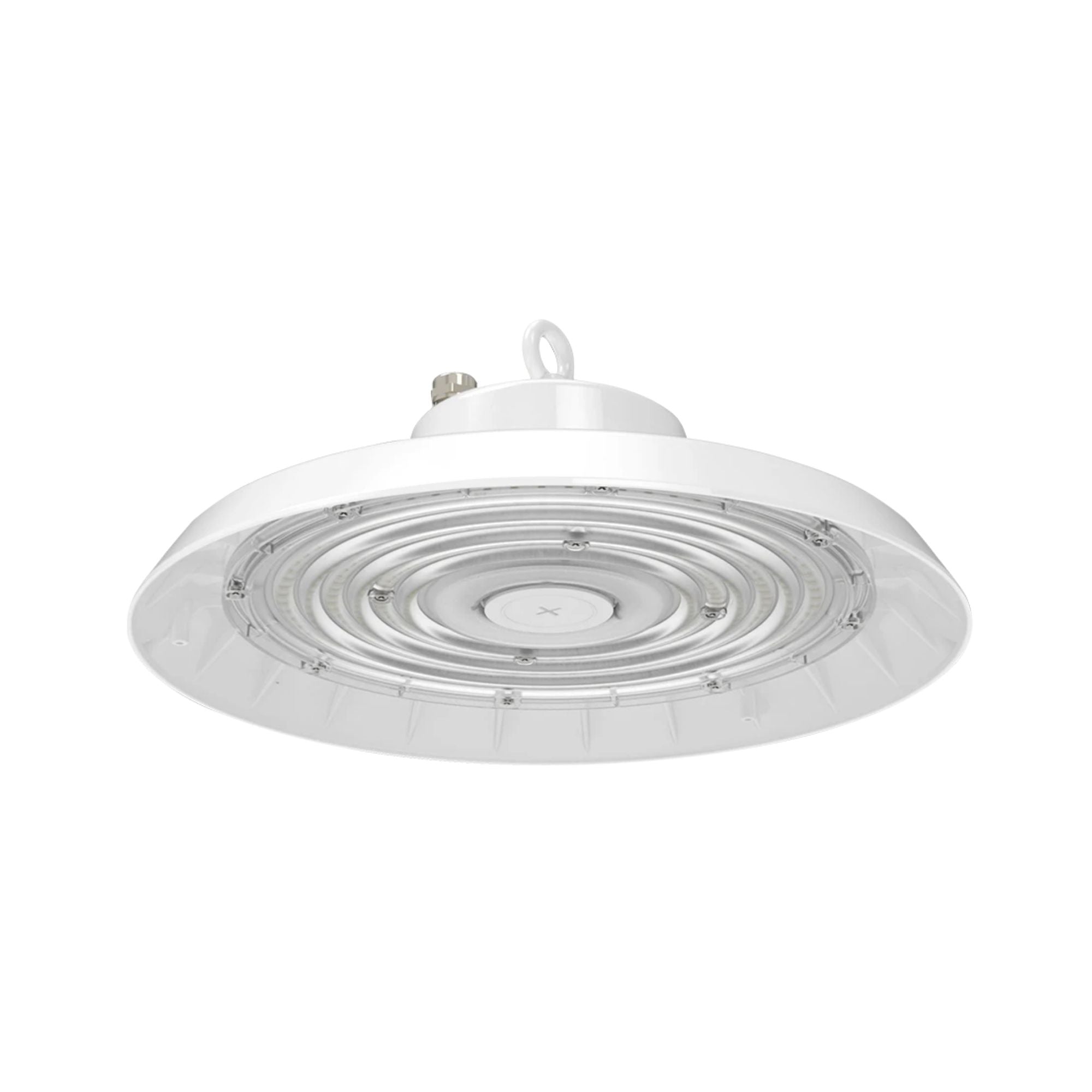

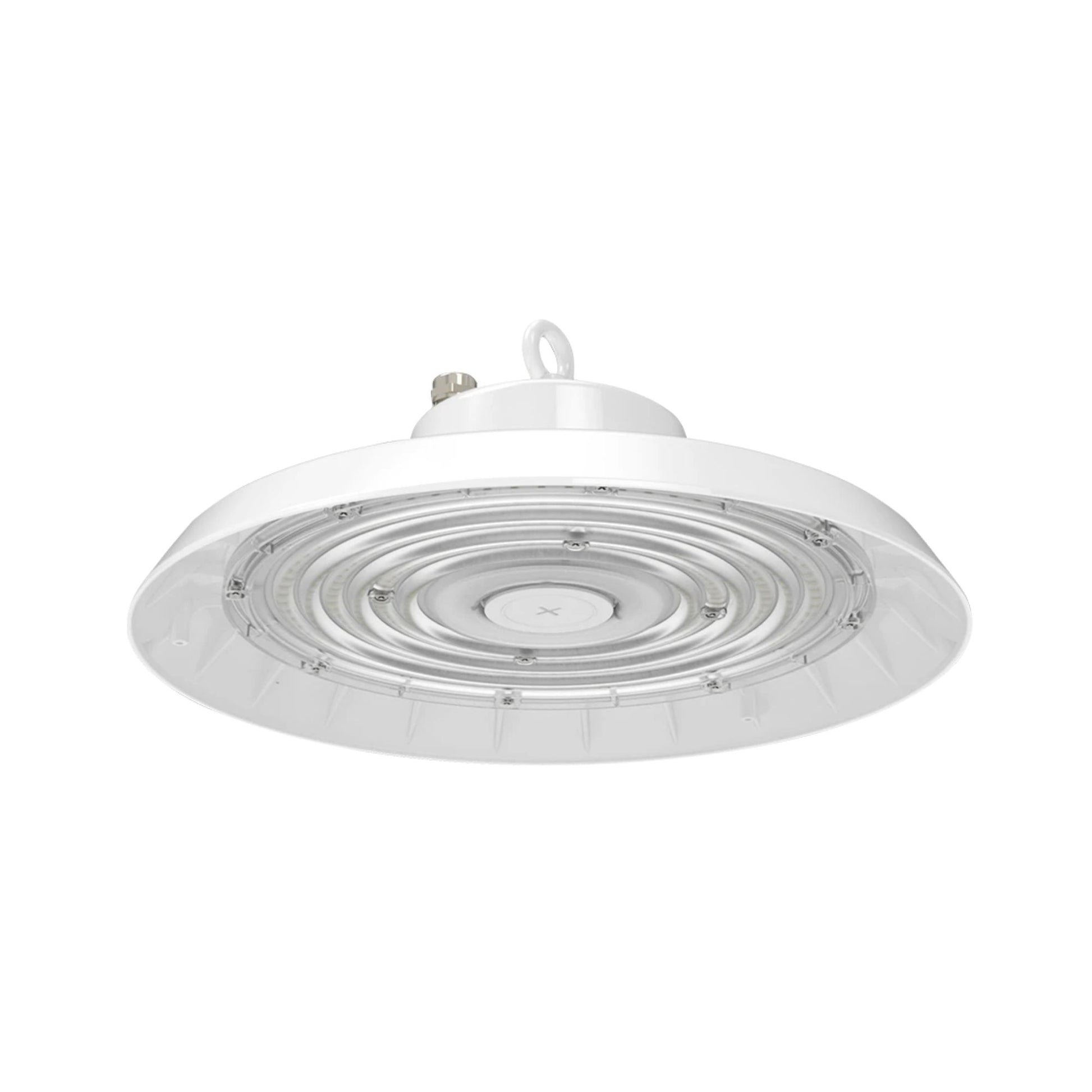

• H22 — 150W / 120W / 100W (120–277V): Up to 24,005 lm | Ø14-1/8" × 6-3/16"H | 5.56 lbs | DLC ID: S-13J0R4 | Max ambient: 50°C
• H22/480 — 150W / 120W / 100W (480V): Up to 24,005 lm | Ø14-1/8" × 6-3/16"H | 6.57 lbs | DLC ID: S-RCD0FC | Max ambient: 50°C

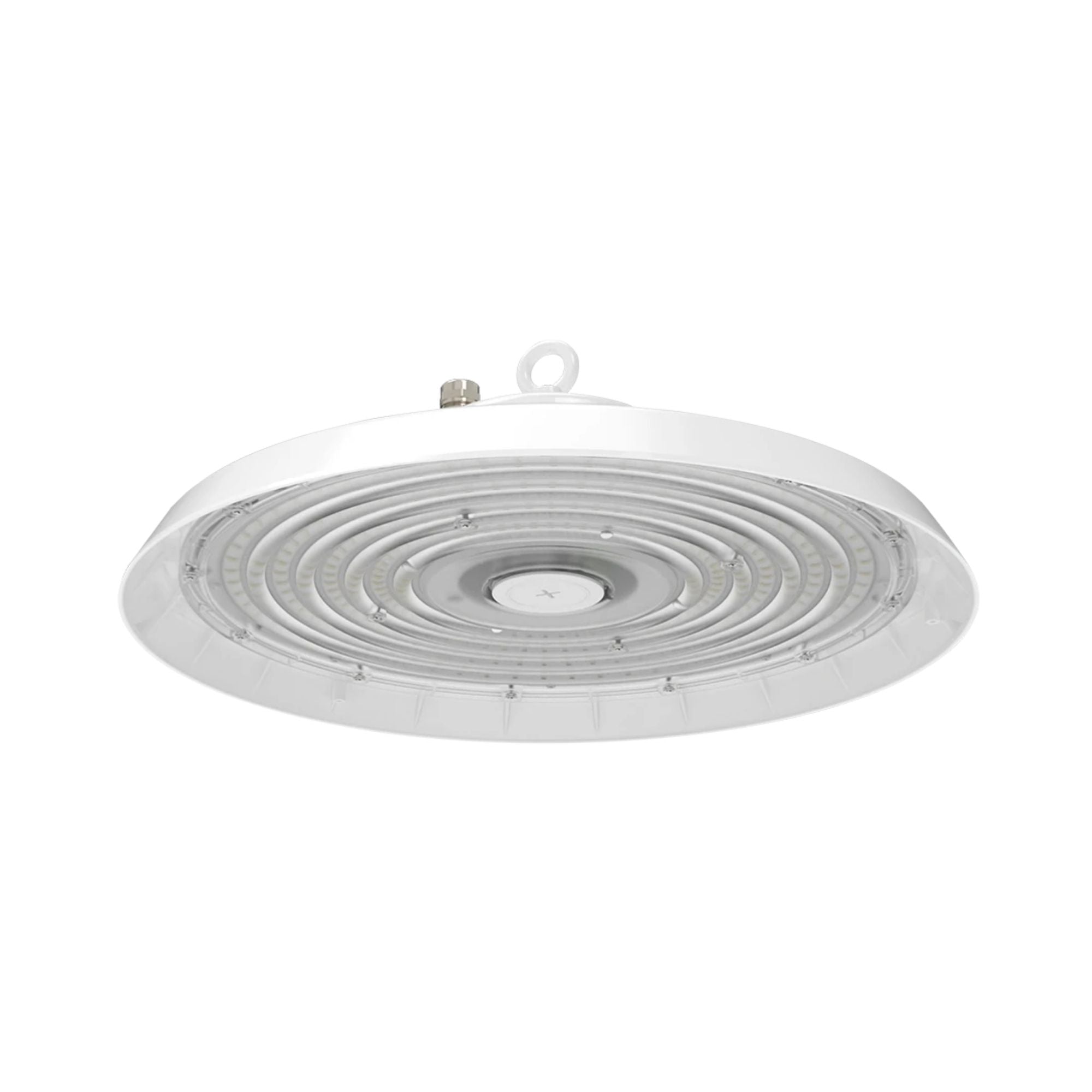

• H22XL — 240W / 200W / 150W (120–277V): Up to 36,461 lm | Ø16-1/2" × 6-3/16"H | 7.58 lbs | DLC ID: S-YBV36Y | Max ambient: 45°C
• H22XL/480 — 240W / 200W / 150W (480V): Up to 36,461 lm | Ø16-1/2" × 6-3/16"H | 8.64 lbs | DLC ID: S-0W2CS8 | Max ambient: 50°C

Key Features — All Models

• Field-Selectable Wattage: H22: 100W / 120W / 150W (default 150W) | H22XL: 150W / 200W / 240W (default 240W)
• Field-Selectable CCT: 3000K / 4000K / 5000K — factory default 4000K
• Field-Selectable Beam Angle: 60° / 90° / 105° — factory default 90° — 27 configurations per SKU
• CRI: 85 (4000K) | 84 (5000K) | 82 (3000K) — all models
• Color Consistency: 7-step MacAdam Ellipse binning
• Dimming: 0–10V dimmable driver standard (100% to 10% minimum)
• Voltage: 120–277V or 480V — select at time of order
• IP Rating: IP69K — high-pressure and high-temperature cleaning rated — all models
• IK Rating: IK10 — impact protection rated — all models
• NSF Certified: Public health and safety — all models
• Location Rating: UL listed for wet locations — all models
• Cold-Start Rated: -40°C (-40°F) standard | 0°C with battery backup
• Lens: Polycarbonate
• Rated Life: 100,000 hours (IES LM-80 / TM-21) — all models
• DLC Premium: All four variants listed — eligible for utility rebate programs
• Green Technology: Mercury and UV free, RoHS-compliant — all models
• Warranty: 5-year limited warranty — all models

Performance & Light Output

All lumen values at 90° beam angle (peak output angle), 4000K CCT (highest output per CCT). H22 at 150W: 24,005 lm / 168.9 lm/W. H22XL at 150W: 24,005 lm / 168.9 lm/W | at 200W: 30,772 lm / 164.3 lm/W | at 240W: 36,461 lm / 163.7 lm/W. Full beam angle × wattage × CCT matrix available on the RAB H22 family spec sheet. Rated life 100,000 hours per IES LM-80 / TM-21 projections. L70 lumen maintenance standard.

Smart & Control Features

All H22 family models support the Lightcloud Blue (LC Blue) wireless control ecosystem and plug-and-play sensor accessories via the standard sensor receptacle:

• MVS50: MVS 15M height IP65 occupancy sensor — sold separately
• MVS50/LCB: LC Blue controller with integrated MVS sensor — sold separately
• PIR40: PIR sensor, max 12M height, IP66 — sold separately
• PIR40/LCB: LC Blue controller with integrated PIR sensor — sold separately
• MSR1: Multi sensor remote, IP20 — sold separately

LC Blue accessories enable wireless group control, scheduling, and daylight harvesting without a separate gateway. One sensor SKU covers the entire H22 family across both wattage and voltage variants.

Electrical

Constant current, Class 1 driver. Available in 120–277V or 480V AC, 50/60 Hz. 0–10V dimming from 100% to 10% minimum. Battery backup (sold separately) operates the LED lamp for 90 minutes if power fails; wired for 120–277V (EMHB30 / EMHB30/LCB) or 277–480V (EMHB40/480). Cold-start: -40°C standard | 0°C with battery backup. Mercury and UV free, RoHS-compliant. Green Technology.

Construction

Precision die-cast aluminum housing with polycarbonate lens. IP69K rated — tested for high-pressure (80 bar) and high-temperature cleaning, exceeding standard IP65/IP66 washdown ratings. IK10 impact protection. Finish formulated for high durability and long-lasting color. H22: Ø14-1/8" × 6-3/16"H. H22XL: Ø16-1/2" × 6-3/16"H.

Installation & Mounting

All models come standard with a hanging hook and 6-foot cord. Heavy-duty 3/4"-14 NPT hook and 3/4"-14 pendant mount capable (pendant by others).

• Pendant Mount Kit: H22 PM KIT — sold separately, fits full H22 family
• Emergency Battery (120–277V): EMHB30 | EMHB30/LCB (with LC Blue) — sold separately
• Emergency Battery (480V): EMHB40/480 — sold separately
• Sensors: MVS50, MVS50/LCB, PIR40, PIR40/LCB, MSR1 — sold separately, compatible with all variants

Certifications & Rebates

All variants UL listed for wet locations. DLC Premium listed — H22 (S-13J0R4), H22/480 (S-RCD0FC), H22XL (S-YBV36Y), H22XL/480 (S-0W2CS8). Eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. NSF certified. IK10 impact rated. RoHS compliant.

Typical Applications

• Food Processing & Commercial Kitchens: IP69K + NSF certification makes the H22 family the spec-correct choice for washdown zones, food prep lines, and HACCP-compliant facilities across both voltage options
• Warehouses & Distribution Centers: H22 for mid-height racking (12–28 ft); H22XL for tall ceilings and high-cube facilities (18–35 ft)
• Large Industrial Facilities with 480V Distribution: H22/480 and H22XL/480 eliminate step-down transformers — drop-in for high-voltage panels
• Manufacturing & Heavy Industrial Facilities: IK10 impact rating and -40°C cold-start handle the full range of production floor environments
• Cold-Storage & Refrigerated Warehouses: -40°C cold-start rated — powers on at full output in freezer environments
• Gymnasiums & Recreation Facilities: CRI 85 and H22XL’s 36,461 lm handle large open-ceiling venues; adjustable beam angle optimizes coverage pattern

What's Included

• RAB H22 Series UFO LED High Bay (selected model and voltage) with integrated LED engine and driver
• Hanging hook with 6-foot cord (3/4"-14 NPT)
