RAB H17 Series — Field-Adjustable UFO LED High Bay — 60W to 500W
The RAB H17 Series is a complete family of field-adjustable UFO LED high bays spanning 60W to 500W and 9,205 to 79,203 lumens, designed for commercial and industrial applications from compact low-ceiling spaces to very high-ceiling industrial facilities. Every model in the family features field-selectable wattage, field-selectable CCT (3000K / 4000K / 5000K), integrated 0-10V dimming to 10%, UL Wet Location listing, IP65 ingress protection, DLC 5.1 Premium certification, and a cold weather start rating of -40°F (-40°C). Available in White and Black finish; select models available in 480V for industrial facilities with high-voltage distribution infrastructure.
Model Selection Guide

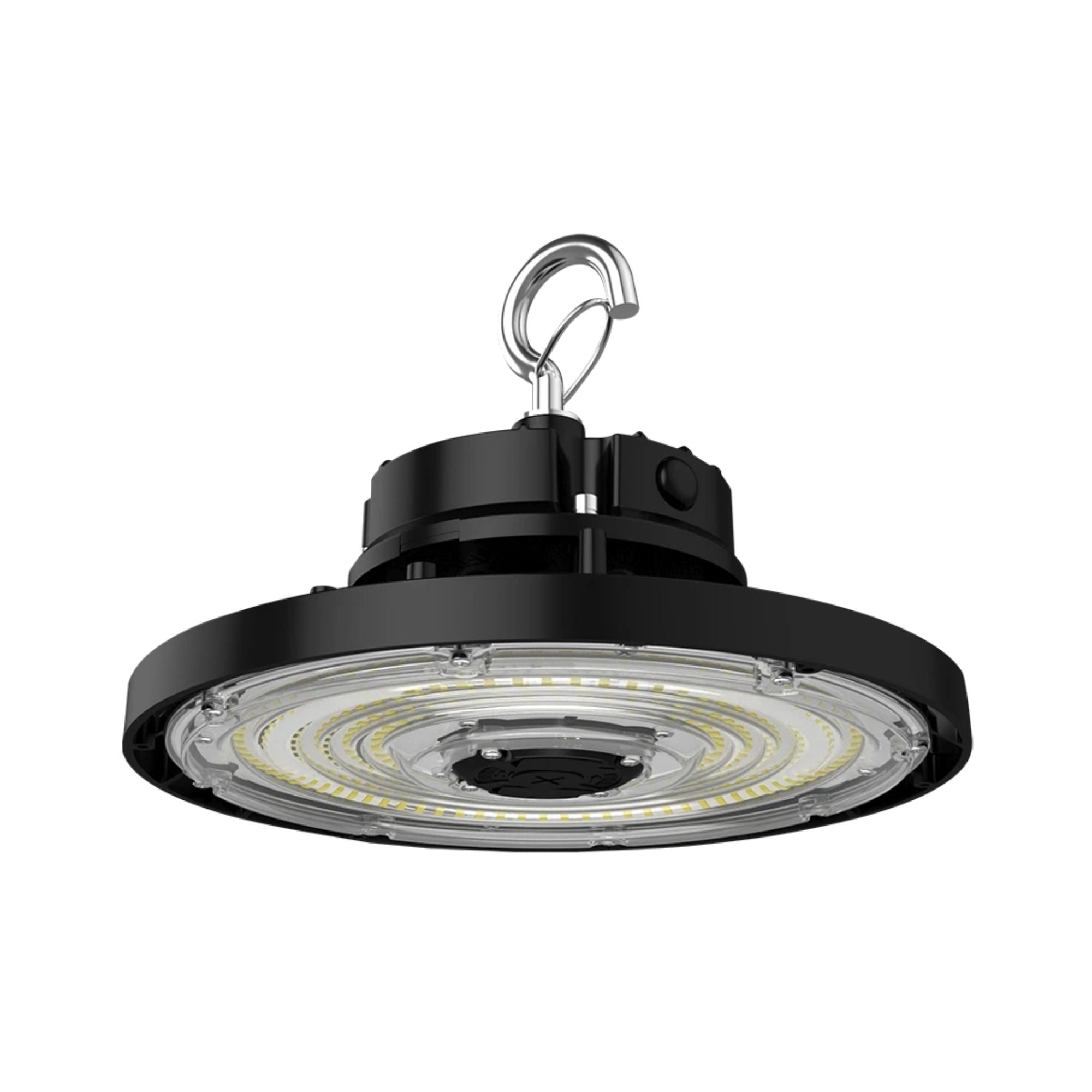

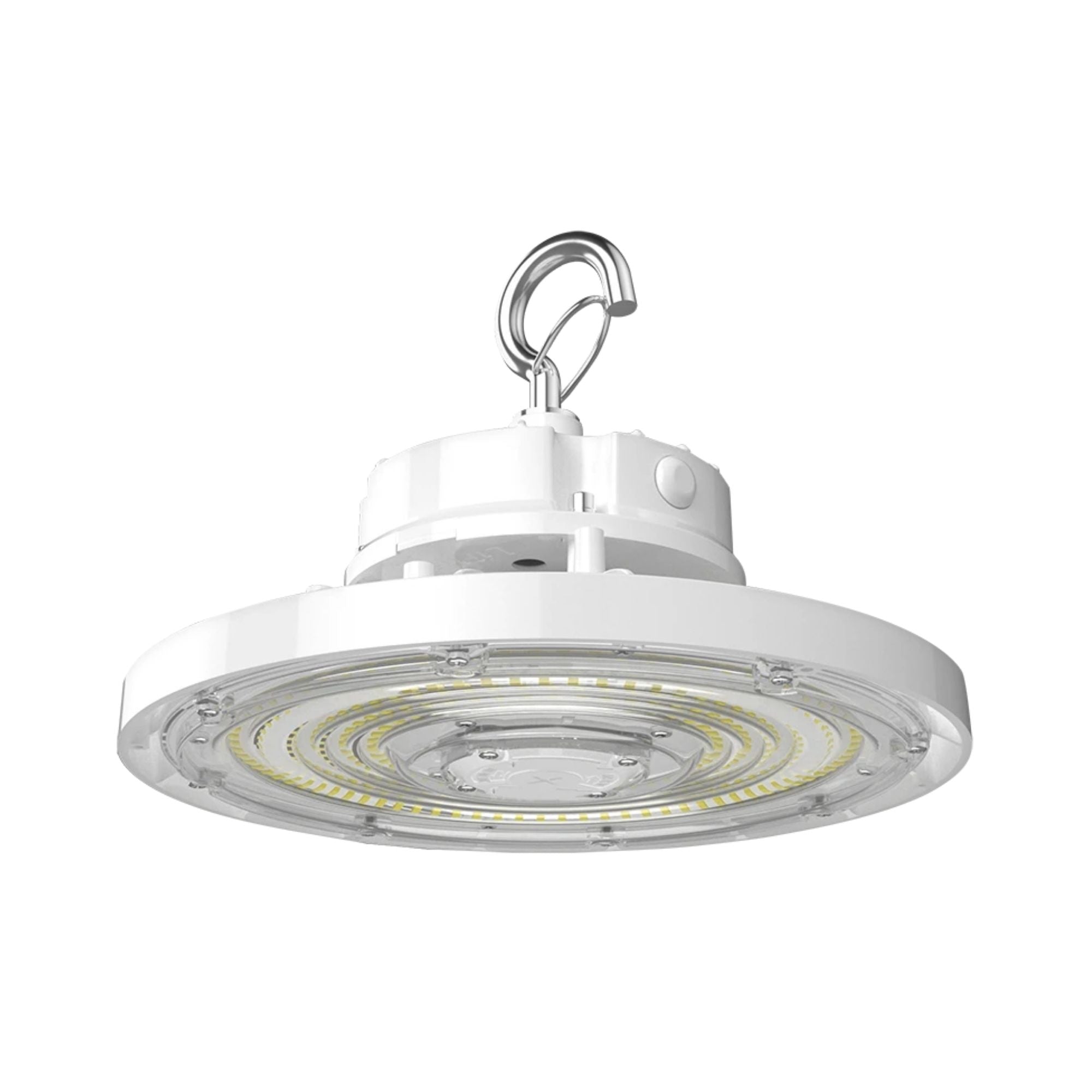

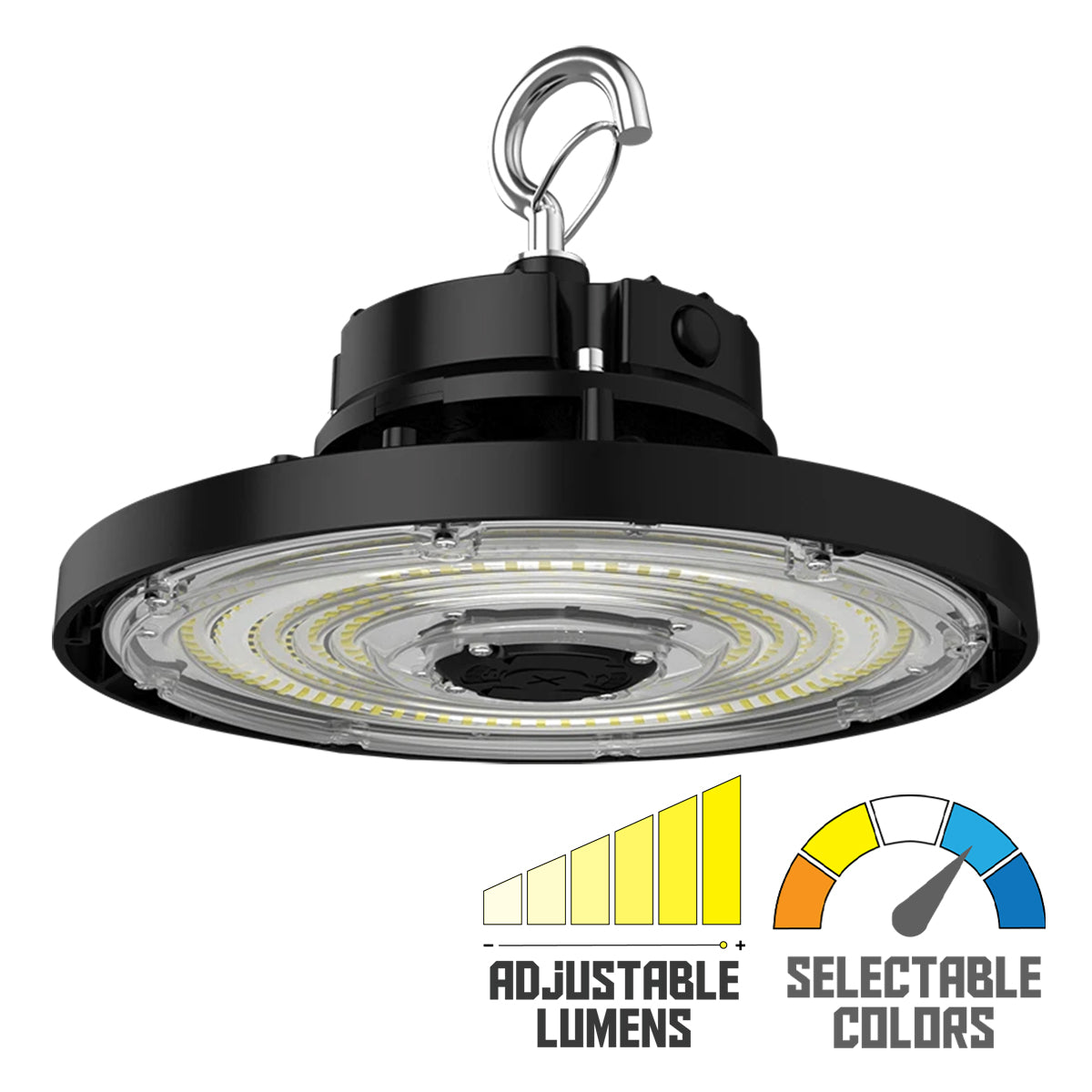

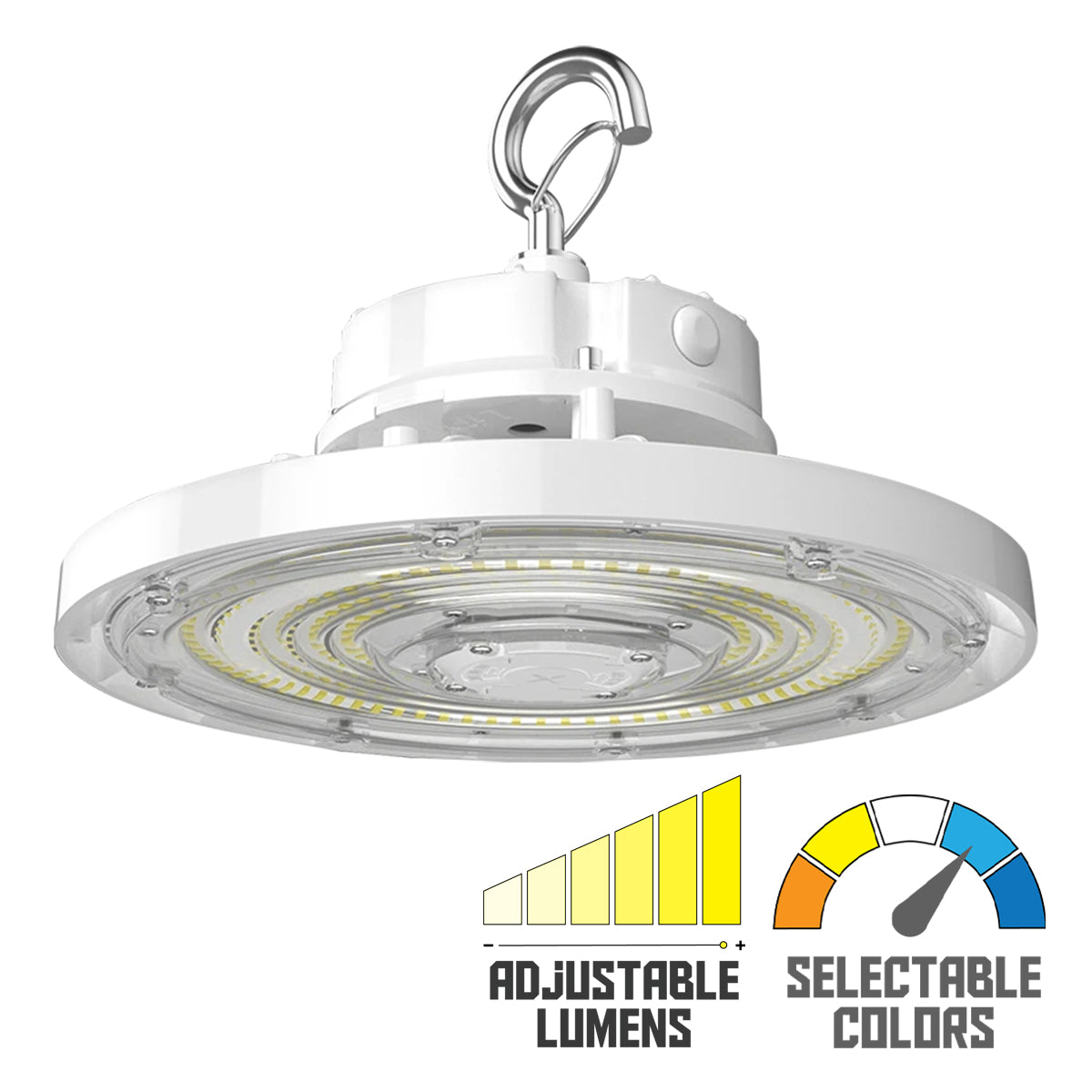

- H17S / H17SB — 100W / 80W / 60W: Up to 14,959 lm · Peak 169.9 lm/W · Compact 10¼" body · Ideal for 10–20 ft ceiling heights · Replaces up to 350W MH or 8×F32T8 fluorescent · DLC S-47I1ZQ

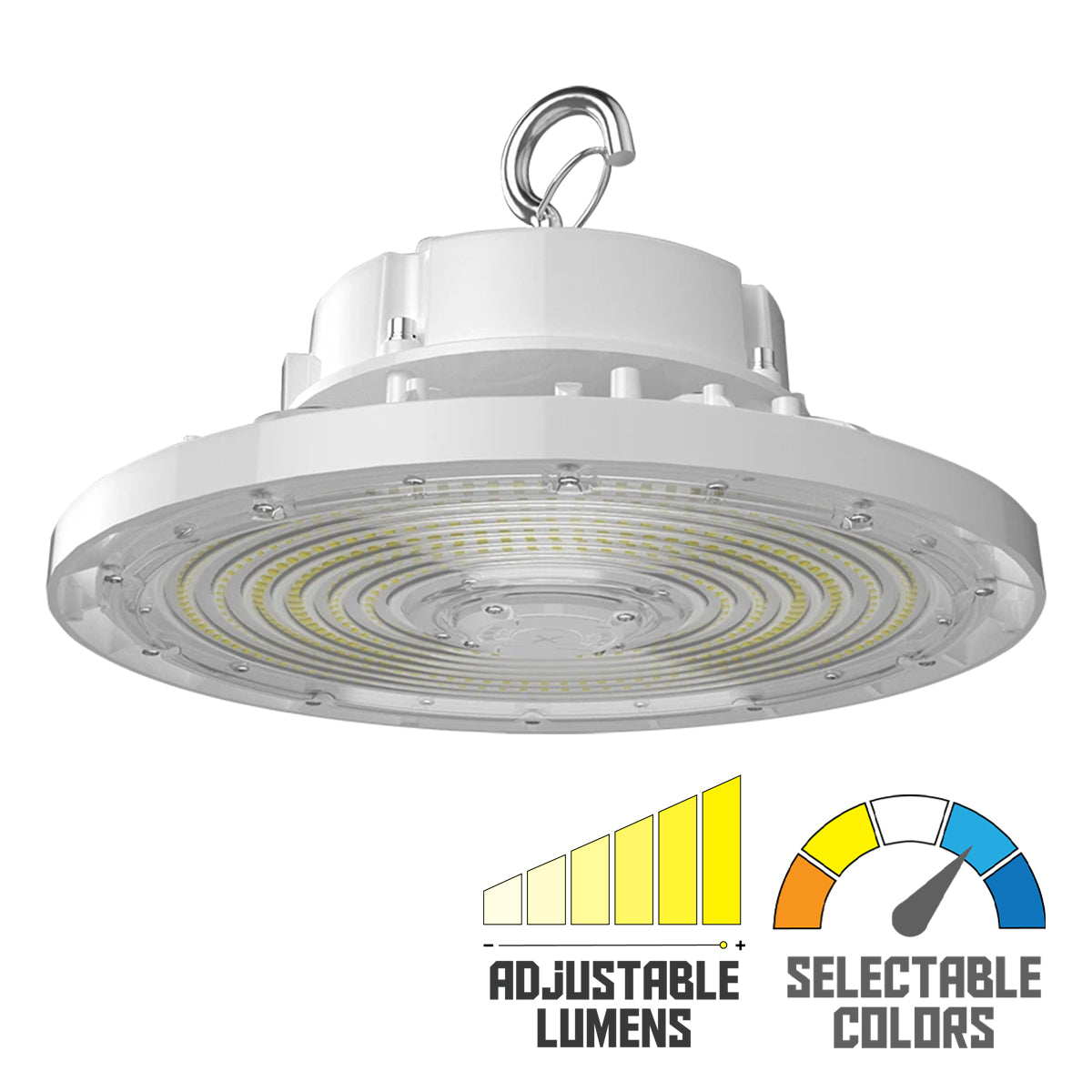

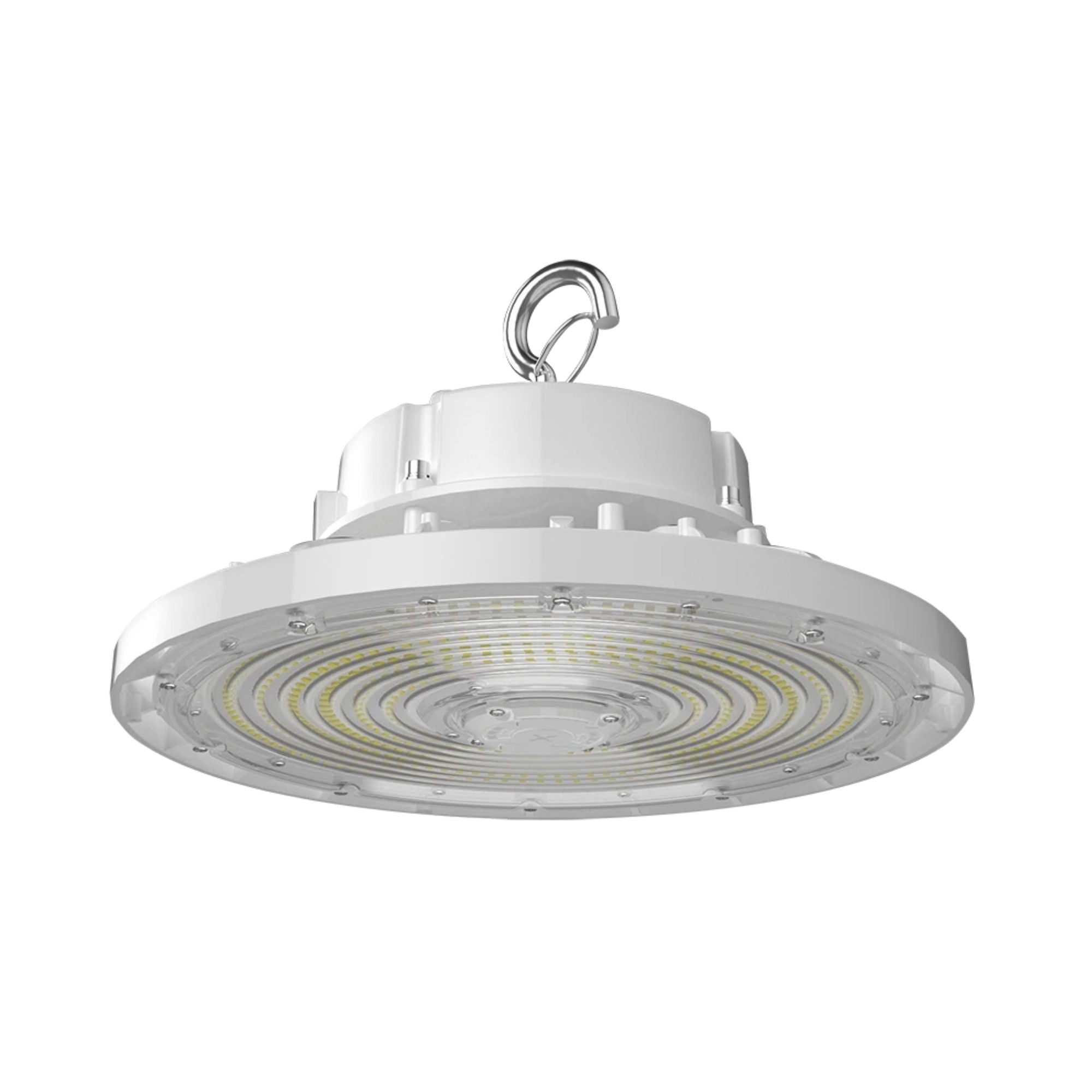

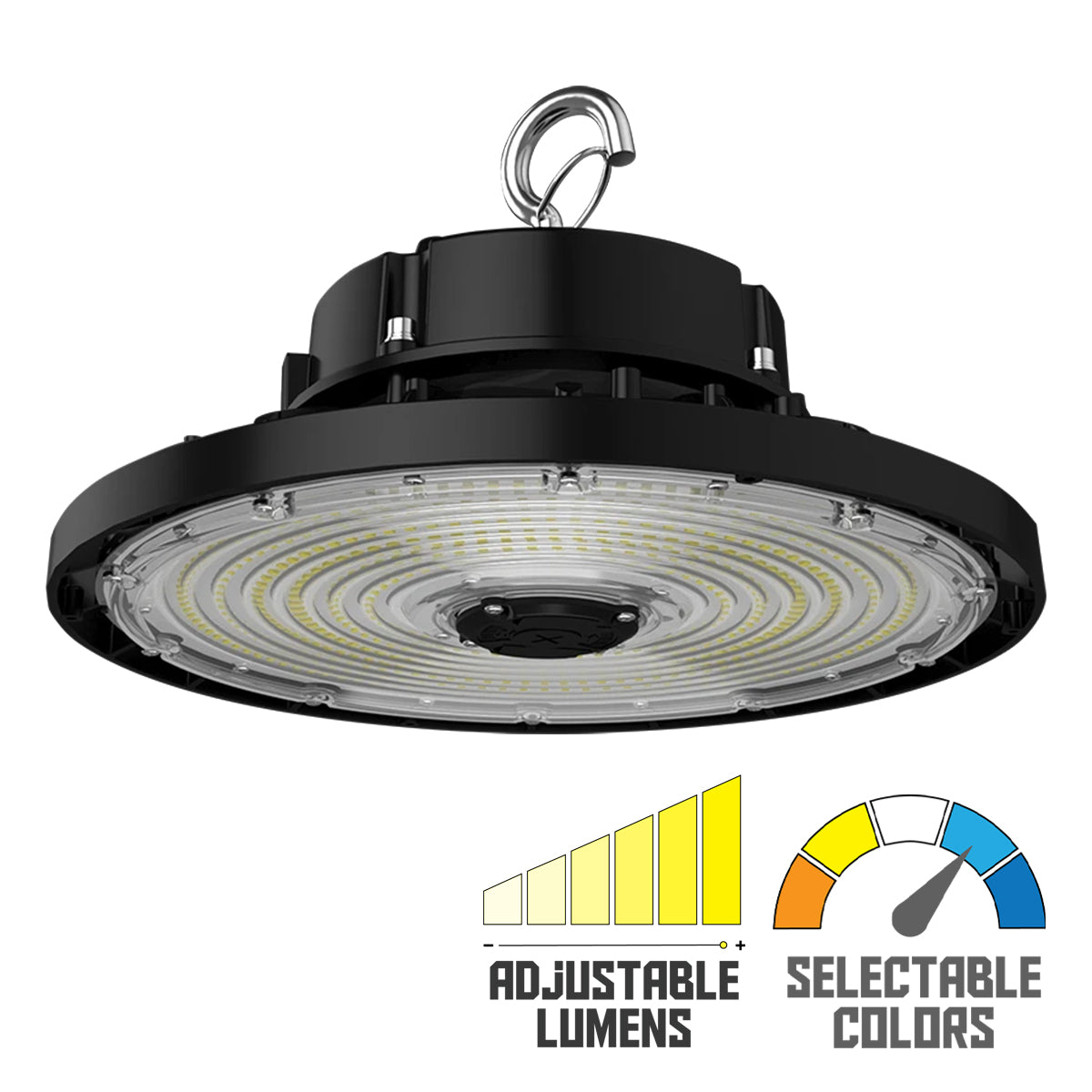

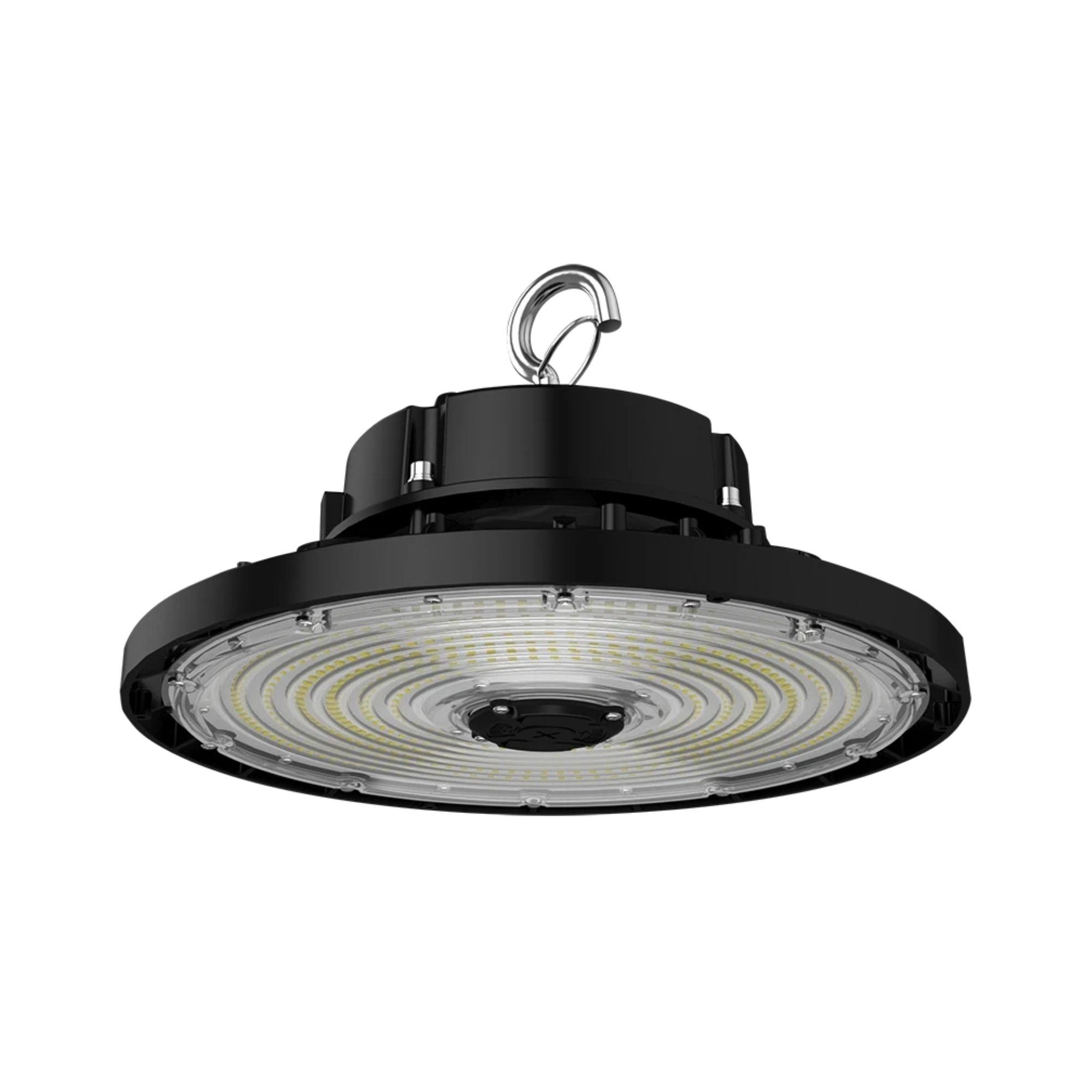

- H17XL / H17XLB — 240W / 200W / 150W: Up to 37,253 lm · Peak 168.4 lm/W · 12⅝" body · Ideal for 20–40 ft ceiling heights · Replaces up to 750W MH · DLC S-LED17S
- H17XL/480 / H17XLB/480 — 240W / 200W / 150W · 480V: Same output as H17XL · Dedicated 480V driver · Eliminates step-down transformers in high-voltage facilities · DLC S-Z168KT (480V variant — confirm separately at designlights.org)

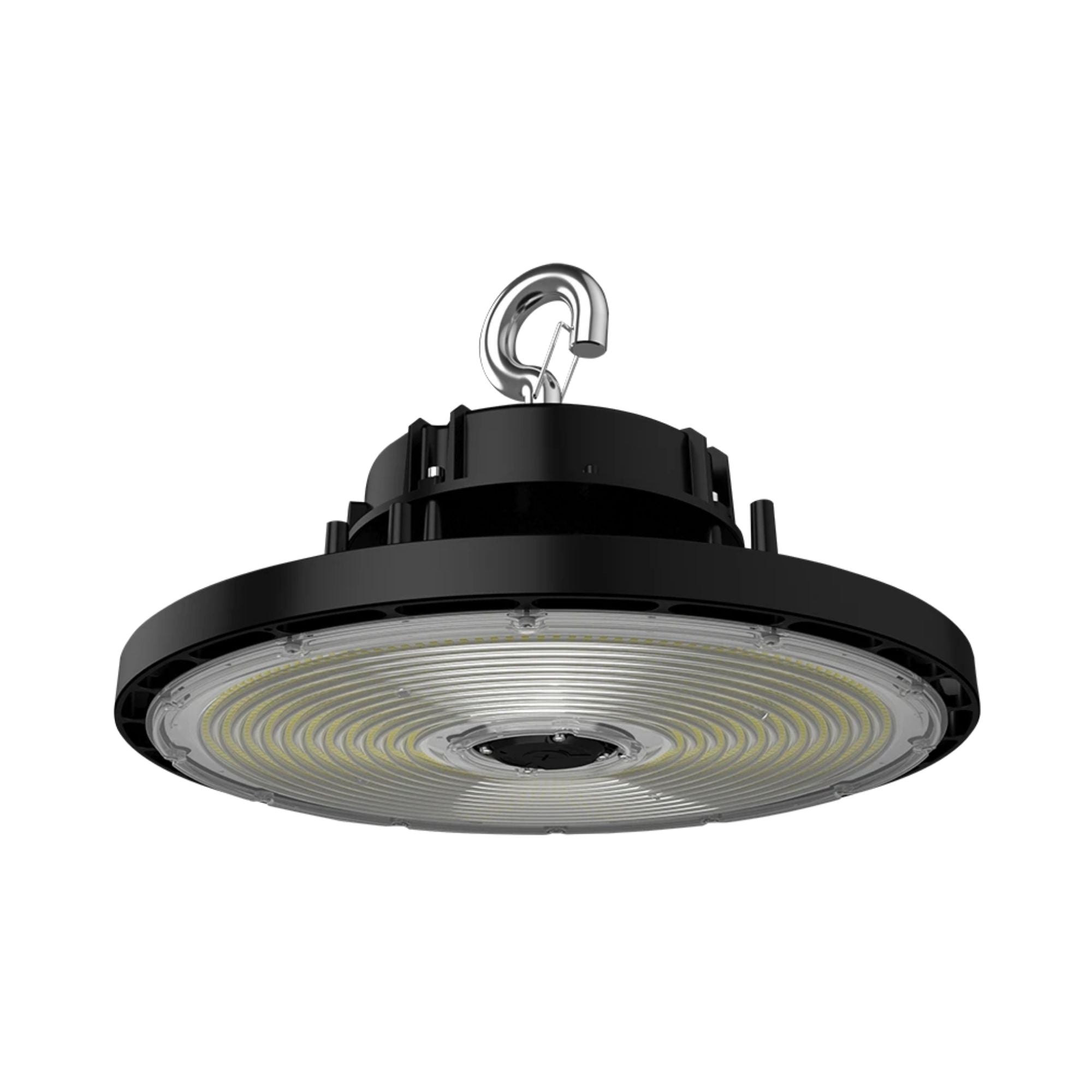

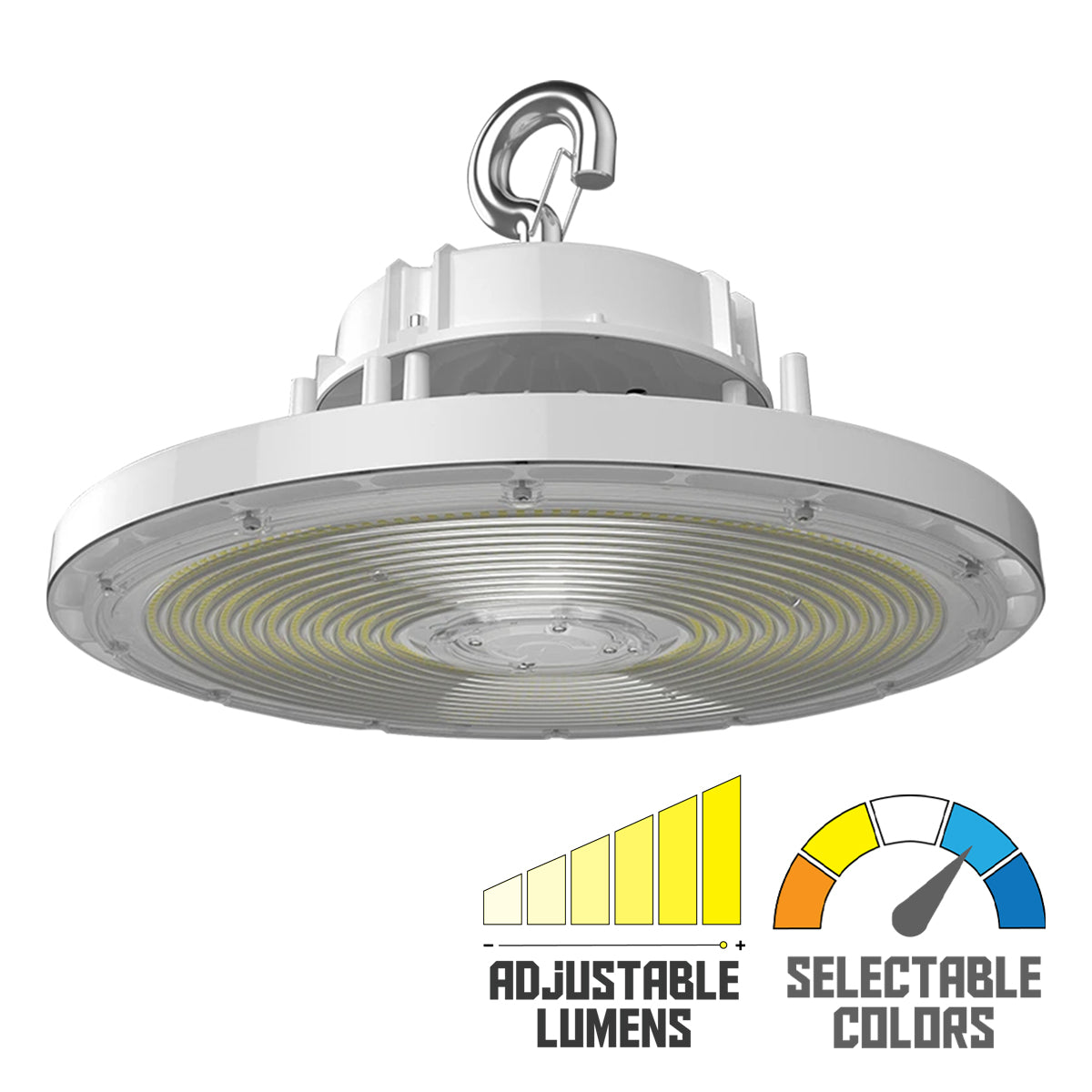

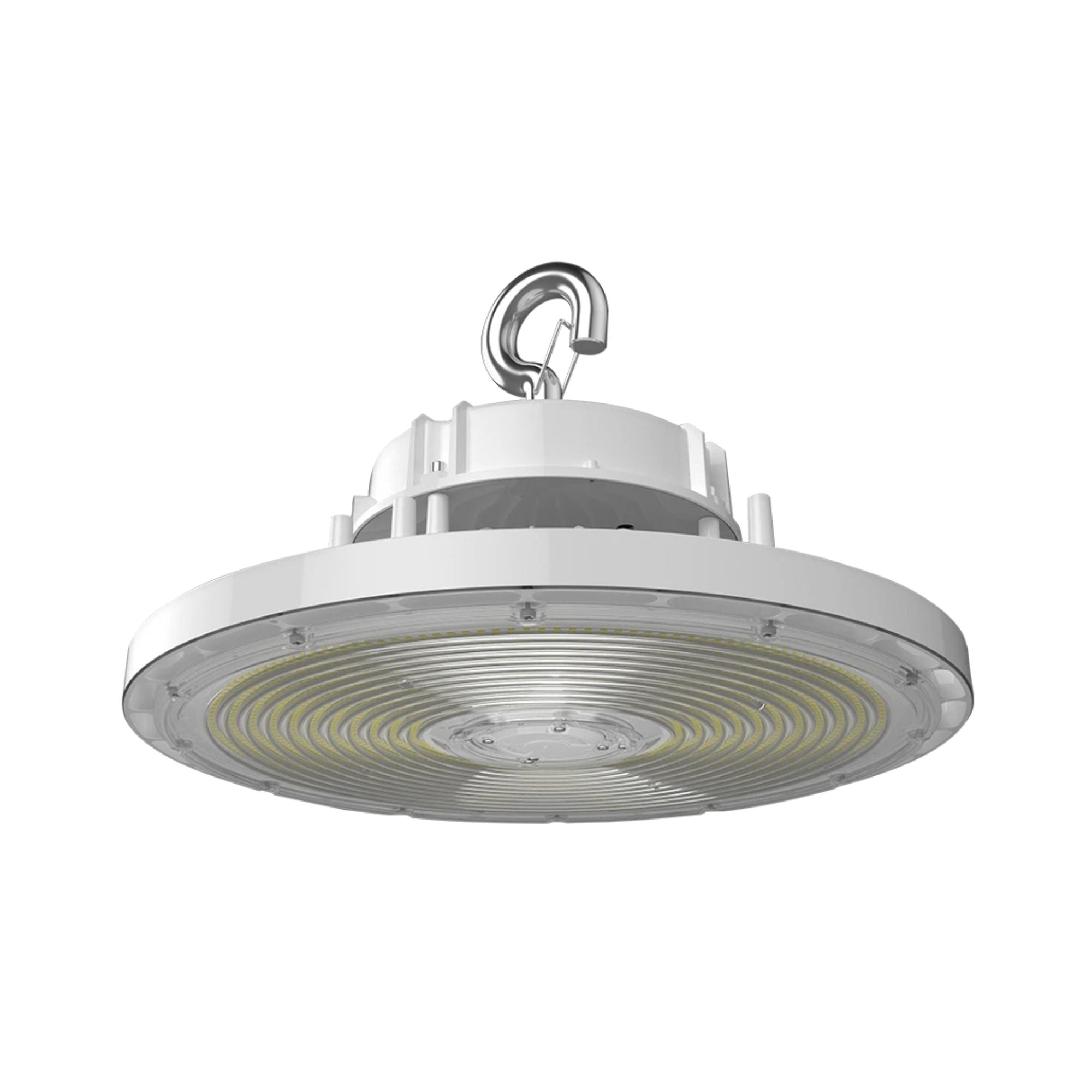

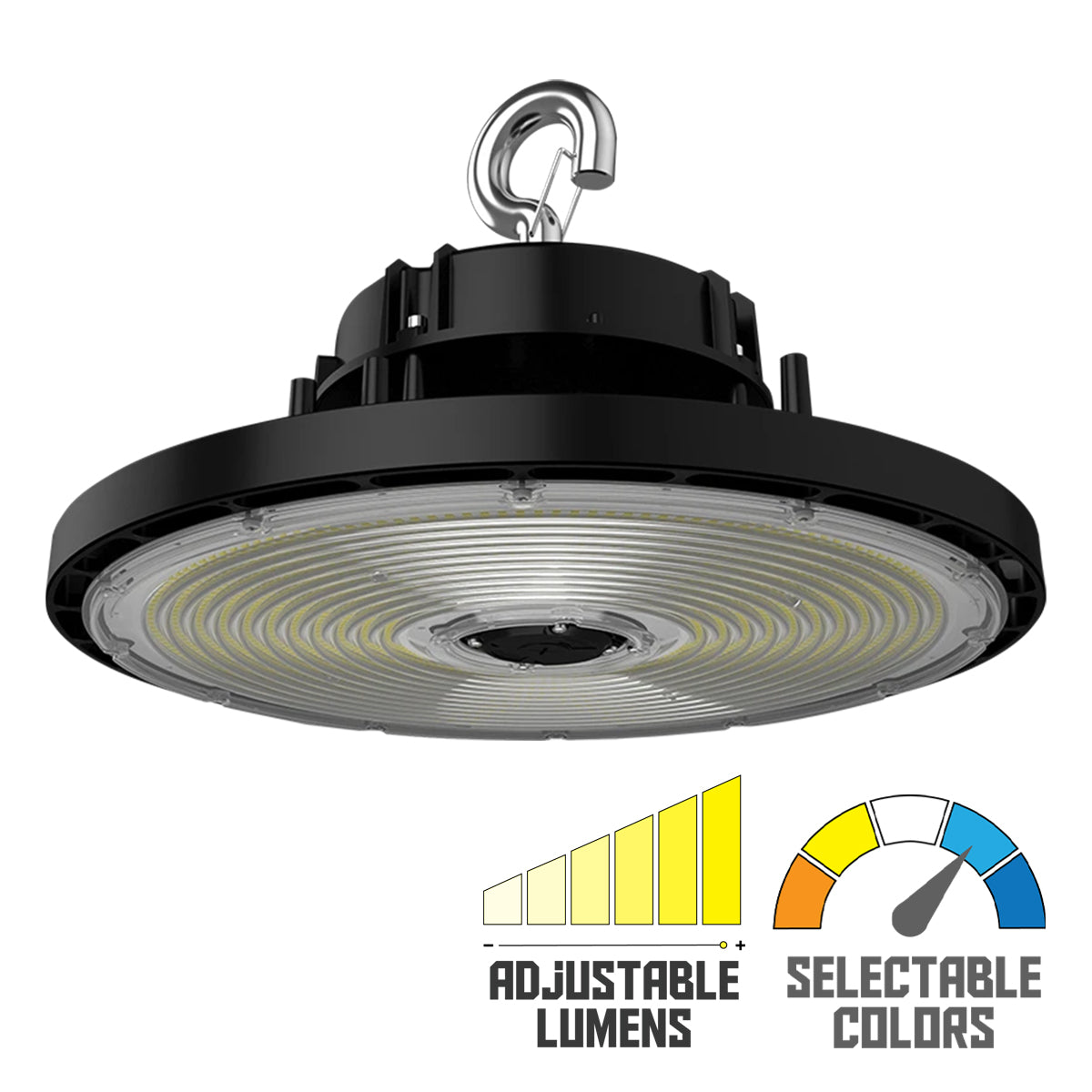

- H17XXL / H17XXLB — 500W / 400W / 300W: Up to 79,203 lm · Peak 178 lm/W · 16 9/16" body · Ideal for 35–50+ ft ceiling heights · Replaces up to 1500W MH · DLC S-YB69RP

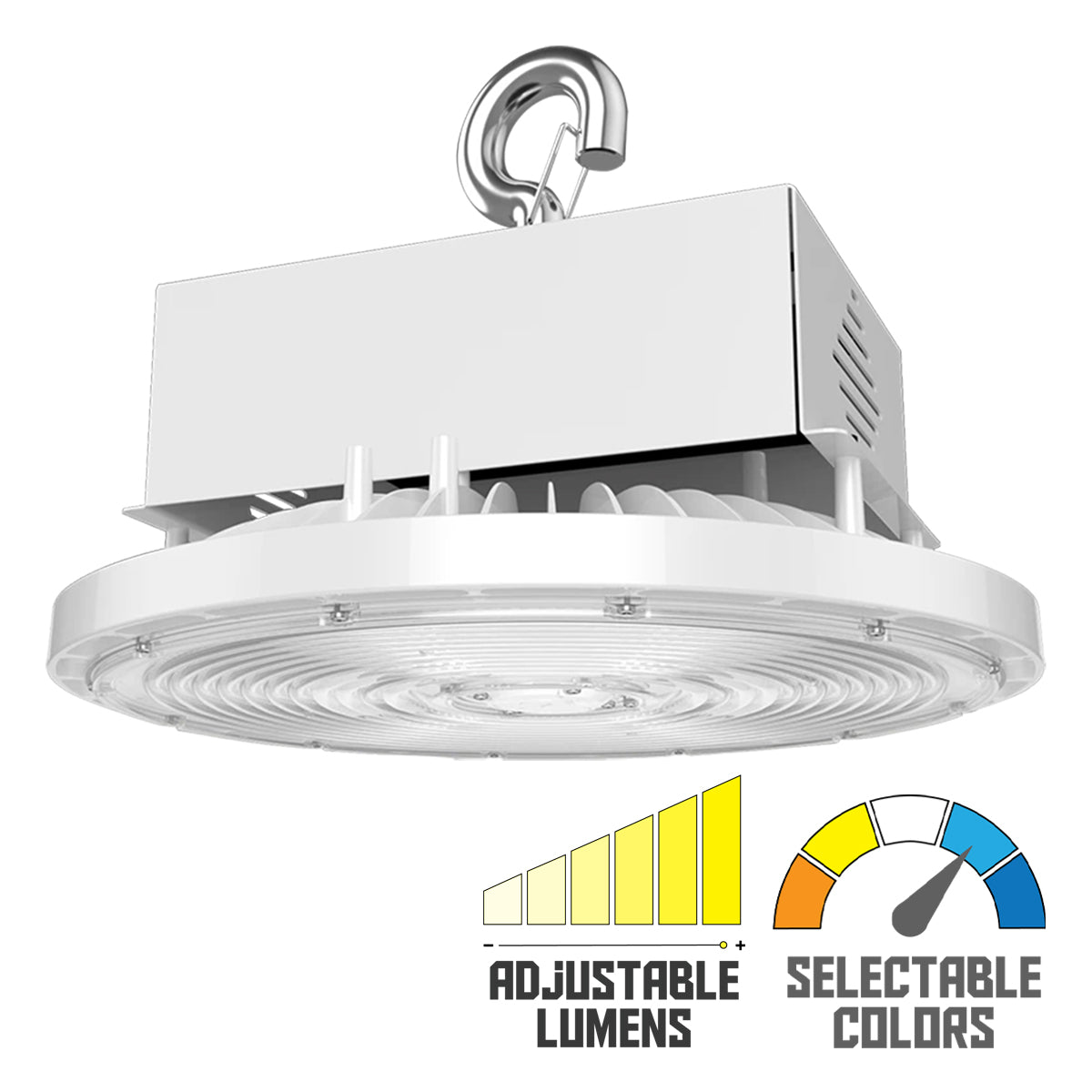

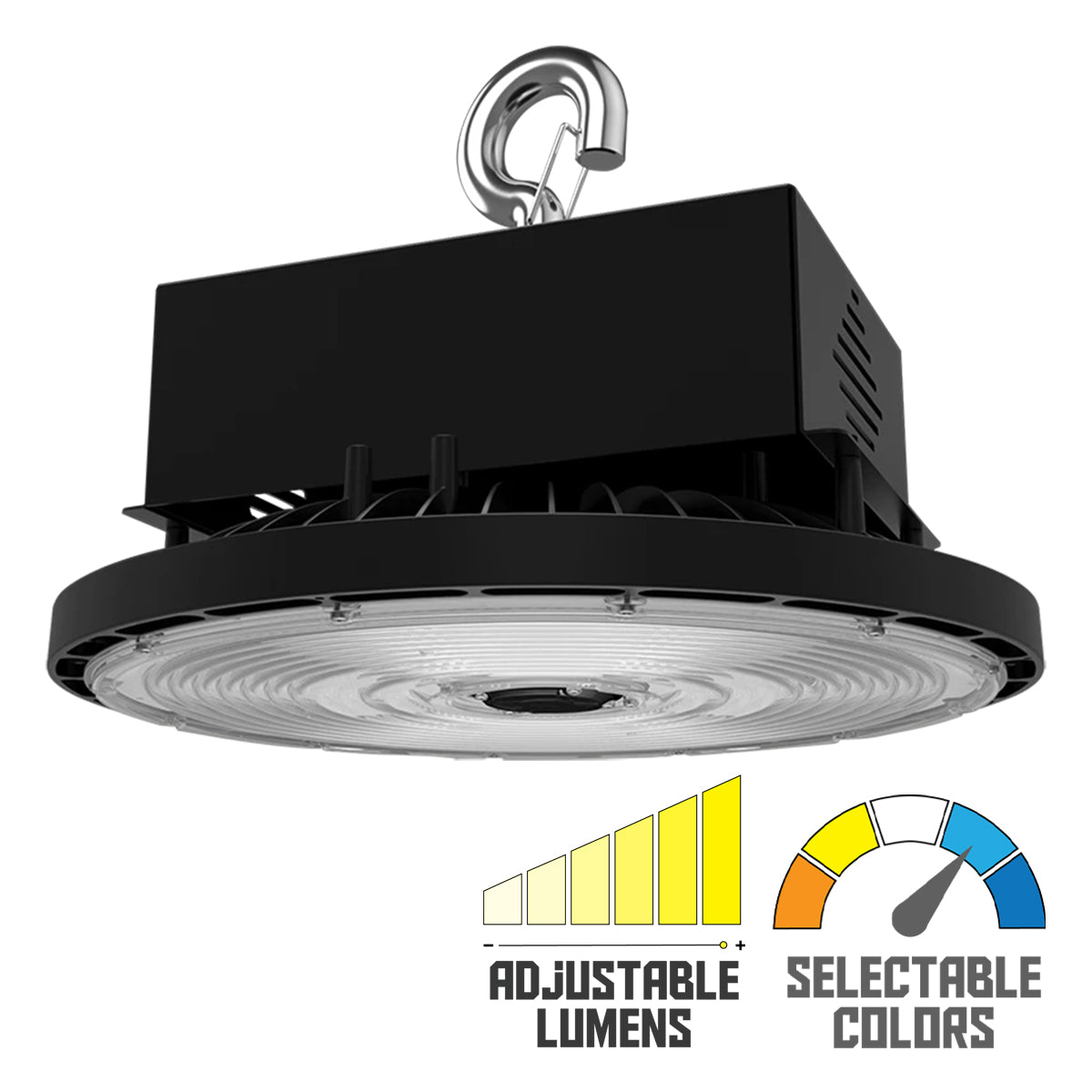

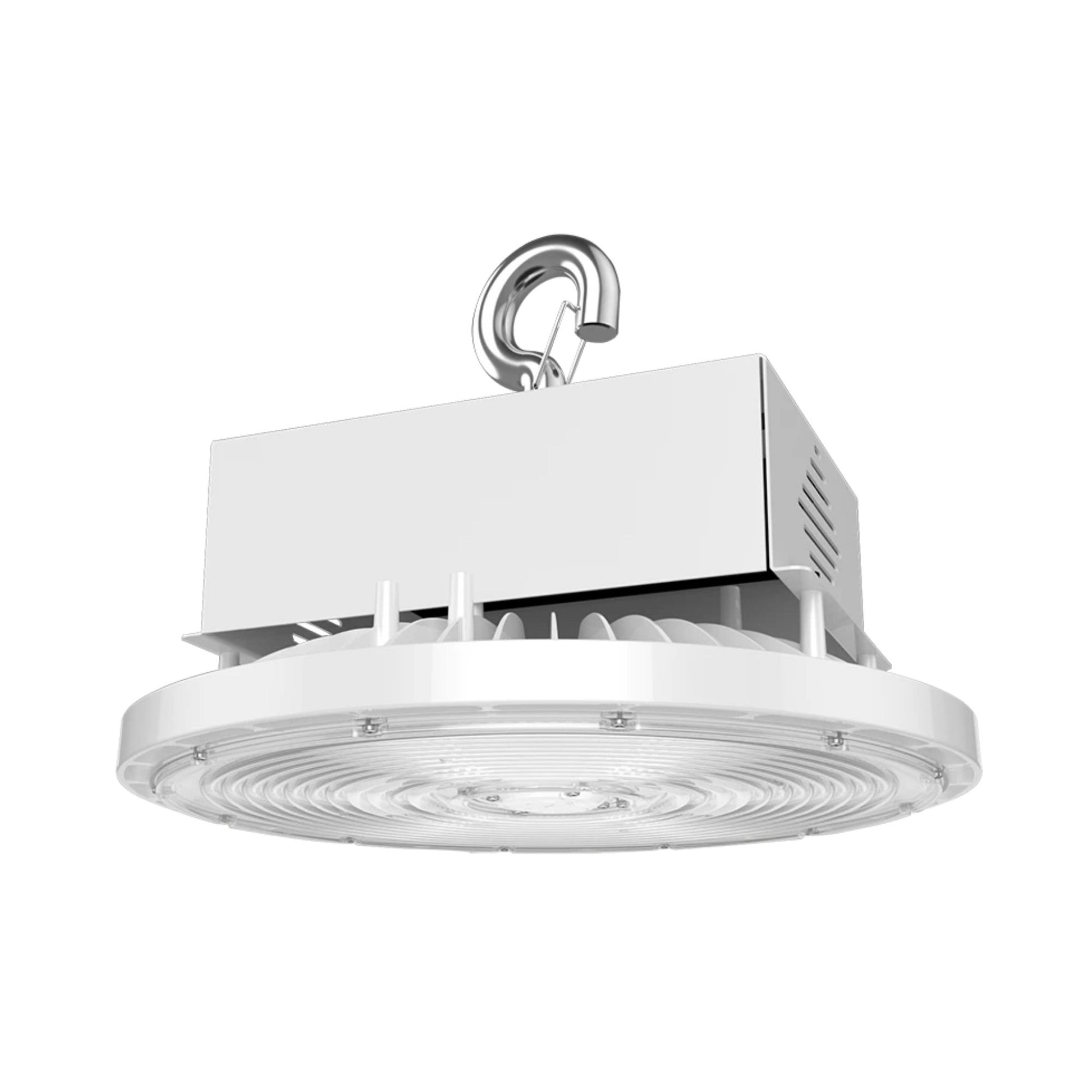

- H17XXL/480 / H17XXLB/480 — 500W / 400W / 300W · 480V: Up to 78,763 lm · Peak 177.5 lm/W · Dedicated 480V driver · DLC S-Z168KT
Shared Family Specifications
- CCT Options: 3000K / 4000K / 5000K — field-selectable on all models, factory default 4000K
- Dimming: 0-10V standard, dim to 10%; Dim to Off capable
- Location Rating: UL Listed for wet locations; IP65 rated for dust and water ingress
- Cold Weather Start: -40°F (-40°C) minimum starting temperature across all models
- Color Consistency: 7-step MacAdam Ellipse binning — ANSI C78.377-2017 compliant
- Rated Life: 100,000 hours L70
- Warranty: 5-year limited — covers light output, driver performance, and paint finish
- Certifications: DLC 5.1 Premium (model-specific codes), UL Wet Location, IES LM-79 & LM-80 tested, RoHS compliant
- BAA Compliant: Available on request for all models — contact RAB Lighting
- Finish: White or Black — precision die-cast aluminum housing, formulated for high durability
Smart & Control Features
All H17 Series models include integrated 0-10V dimming and are compatible with the RAB Lightcloud Blue wireless mesh sensor ecosystem. Add field-installable screw-in PIR or microwave sensor accessories for occupancy-based control without additional wiring. Sensor accessories available in high-ceiling (PIR40 · MVS50) and low-ceiling (PIR20 · MVS20) variants in White or Black finish, each with standard or Lightcloud Blue (/LCB) wireless mesh options. MSR1 remote accessory enables wattage and CCT field adjustment without ladder access. Emergency battery backup (EMHB30 / EMHB60 series) provides 90-minute runtime and is available in White and Black finish with standard or Lightcloud Blue options. Note: screw-in sensor accessories are not compatible with 480V variants.
Installation & Mounting
All models come standard with a heavy-duty hanging hook and 6-foot cord (3/4"-14 NPT hook; 3/4"-14 pendant mount capable). Optional accessories from the H17 Field-Adjustable High Bay Accessories family (sold separately):
- Reflectors: H17-RAL (Aluminum) | H17-RPC (Polycarbonate) — H17S, H17XL; H17XXL-RAL for H17XXL
- Drop Lens: H17-DDL (Clear Dome) | H17-RDL — H17S and H17XL
- Wire Guards: H17-WG (White) | H17B-WG (Black) — H17S/H17XL; H17XXL-DWG for H17XXL
- Pendant Mount Kits: H17-PM KIT (White) | H17B-PM KIT (Black); H17XXL-PM KIT for H17XXL
- Surface / Yoke Mount Kits: H17-SM KIT (White) | H17B-SM KIT (Black); H17XXL-SM KIT for H17XXL
- Emergency Battery: EMHB30 / EMHB30B (30W — H17S, H17XL) | EMHB60 / EMHB60B (60W — H17XXL) — with /LCB suffix for Lightcloud Blue variants
Certifications & Rebates
All H17 Series models are DLC 5.1 Premium Listed — qualifying for the highest tier of utility rebate programs from DLC Member Utilities. DLC product codes vary by model — verify eligibility for your specific model at designlights.org. RoHS compliant. UL Listed for wet locations. IES LM-79 and LM-80 tested. BAA-compliant versions available on request for all models.
Typical Applications
- Warehouses & Distribution Centers (all ceiling heights): H17S for 10–20 ft low-bay zones; H17XL for 20–40 ft mid-bay; H17XXL for 40+ ft very high-bay racking — one family covers the entire facility
- Manufacturing & Assembly Facilities: Field-selectable wattage and Lightcloud Blue sensor compatibility enable occupancy-based control across large production floors at any ceiling height
- Cold Storage & Freezer Warehouses: -40°F cold-start rating across all models ensures reliable performance in refrigerated distribution facilities regardless of wattage selection
- 480V Industrial Plants & Aircraft Hangars: H17XL/480 and H17XXL/480 variants eliminate step-down transformers for direct integration into high-voltage industrial distribution systems
- Covered Loading Docks & Car Washes: IP65 and UL Wet Location rating across all models handles direct moisture and dust exposure in demanding semi-outdoor environments
- Government & Municipal Facilities: DLC 5.1 Premium certification and BAA-compliant availability on all models support public sector procurement and utility rebate programs
What's Included
- RAB H17 Series UFO LED high bay fixture — selected model and finish (1)
- Heavy-duty hanging hook
- 6-foot cord
- Mounting hardware
