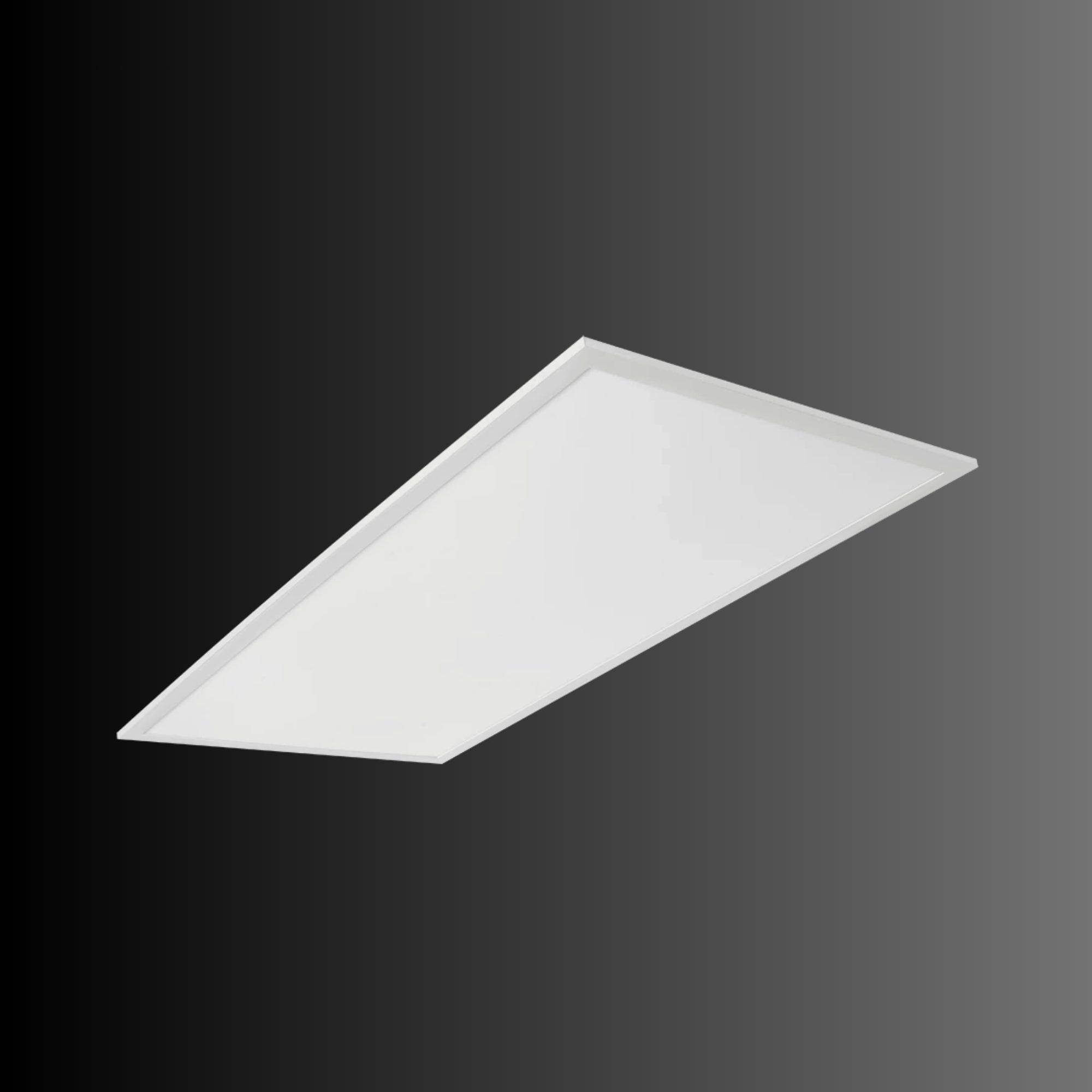

RAB EZP2X4 LED Flat Panel — 2×4 — 50/40/30W Selectable — 3500K/4000K/5000K — White
Available in stock (100)
About this item
About this item
- Selectable Wattage & Output: Field-select 50W, 40W, or 30W at the fixture — delivers 3,572 to 5,576 lumens, replacing 4-lamp F32T8 fluorescent troffers. No rewiring required. Ships at 50W default.
- 3500K/4000K/5000K CCT Selectable: Field-select color temperature at the fixture without tools — one SKU covers warm-to-daylight tuning for any 2×4 commercial application. Ships at 4000K default.
- Lightcloud Blue Ready: Compatible with RAB’s Bluetooth Mesh Lightcloud Blue (LCB) NLC ecosystem — PIR and microwave sensor options available, no gateway or hub required. Controls sold separately.
- DLC Premium Qualified: DLC ID S-4LR47P — qualifies for the highest tier of utility rebate programs in most U.S. markets. Visit designlights.org and search S-4LR47P to verify eligibility with your utility provider.
- Damp Location Rated: UL Listed for damp locations — suitable for restrooms, stairwells, covered walkways, and standard office and classroom environments. Battery backup option available (/E, sold separately, 90 min).
Description
Description
RAB EZP2X4 LED Flat Panel — 2×4 — 50/40/30W Selectable — 3500K/4000K/5000K — White
The RAB EZP2X4 is a 2×4 field-adjustable LED flat panel with field-selectable wattage (50W, 40W, or 30W) and field-selectable color temperature (3500K, 4000K, or 5000K). Maximum output is 5,576 lumens at 50W / 4000K. Supports 0–10V dimming to 10%, operates on 120–277V, and is rated for damp locations. Compatible with optional Lightcloud Blue wireless controls (Bluetooth Mesh, sold separately) and optional battery backup (sold separately, 90 min at 120–277V). DLC Premium Qualified. Backed by a 5-year limited warranty. Ships at 50W and 4000K default.
Key Features
- Selectable Wattage: Field-selectable between 50W, 40W, and 30W at the fixture. Ships at 50W. No rewiring required.
- Wattage Equivalency: Replaces 4-lamp F32T8 fluorescent troffers with significant energy savings across all three wattage settings.
- Maximum Lumen Output: 5,576 lumens at 50W / 4000K.
- CRI: 82–84. Color temperature selectable: 3500K, 4000K (default), 5000K.
- Dimming: 0–10V continuous dimming, dims to 10%. Requires separate 0–10V DC dimming circuit. Driver class: Class 2, Constant Current.
- Voltage: 120–277V, 50/60Hz. Surge protection: 2kV + 4kV.
- Location Rating: UL Listed — Damp Location Rated.
- Operating Temperature: −30°C to 40°C (−22°F to 104°F).
- Certifications: UL Listed — DLC Premium — IESNA LM-79 & LM-80 tested — RoHS. Mercury-free. UV-free.
- Rated Life: 100,000 hours (L70, IES LM-80 / TM-21).
- Warranty: 5-year limited warranty.
- Lightcloud Blue Compatible: Optional Lightcloud Blue (LCB) Bluetooth Mesh wireless NLC — field-installed, sold separately. No gateway or hub required. Configurable via Lightcloud Blue mobile app.
- Battery Backup Ready: Compatible with optional /E battery backup module — 90 minutes at 120–277V; min. starting temp with backup: 0°C (32°F). Sold separately.
- Microwave / PIR Sensor Ready: Compatible with optional MVS50+RAAS (microwave) and PIR40/LCB+RAAS (PIR) sensors — externally mounted via Right Angle Arm Support (RAAS). Sold separately.
Performance & Light Output
Lumen output at 4000K per spec sheet. LLF (Light Loss Factor) shown as measured.
| Wattage | Lumens | LLF |
|---|---|---|
| 50W | 5,576 lm | 28.07% |
| 40W | 4,591 lm | 34.09% |
| 30W | 3,572 lm | 43.81% |
CRI: 82–84. CCT selectable: 3500K / 4000K / 5000K. Rated life: L70 100,000 hours (IES LM-80 / TM-21). Tested per IESNA LM-79 & LM-80.
Smart & Control Features
The EZP2X4 supports 0–10V continuous dimming to 10%. It is compatible with optional Lightcloud Blue (LCB) — a Bluetooth Mesh wireless lighting control system configurable via the Lightcloud Blue mobile app. No gateway or hub required. Lightcloud Blue DLC system IDs: N1XMLOEATBA (Interior) / NHCZ2BIA17L (Exterior). Learn more at lightcloud.com. All controls and sensors are sold separately.
- EZP2X4/LCBS — Lightcloud Blue with PIR sensor (PIR40/LCB+RAAS). PIR detection: 40ft diameter at 40ft mounting height.
- EZP2X4/LCBS/MVS — Lightcloud Blue with Microwave sensor (MVS50+RAAS). MVS detection: 50ft diameter at 50ft mounting height.
Sensor default settings: Motion sensitivity High — Brightness when triggered 100% — Hold time 20 min — Standby dim 20% — Standby time 1 min — When vacant Off — Daylight Disabled. Adjustable via Lightcloud Blue app or MSR1 Remote (sold separately).
Electrical
Input voltage: 120–277V, 50/60Hz. Driver: Class 2, Constant Current. Dimming: 0–10V, dims to 10% — requires separate 0–10V DC dimming circuit. Surge protection: 2kV + 4kV. Operating temperature: −22°F to 104°F (−30°C to 40°C). Mercury-free. UV-free. RoHS-compliant components.
Construction
Housing: Aluminum and iron construction.
Lens: Polystyrene (PS) lens. Reflector: TPET reflective paper.
Finish: White. High-durability finish formulated for long-lasting color stability.
Environmental & Safety: UL Listed — Damp Location Rated.
Dimensions: 47¾″ L × 23¾″ W × 1⅛″ H (panel: 45⅝″ × 21⅝″). Net weight: 13.4 lbs.
Installation & Mounting
Standard Mounting: Integral T-bar clips secure fixture to T-bars and prevent T-system separation. Suitable for standard 2×4 T-bar grid ceiling installations.
Optional Mounting Accessories (Sold Separately):
- PMKEZPAN2X4 — EZPAN 2×4 Pendant Mounting Kit, White
- RMKPANEL2X4 — LPANEL 2×4 Recessed Mounting Kit, White
- SMKEZPAN2X4 — EZPAN 2×4 Surface Mounting Kit, White
Certifications & Rebates
- UL Listed — Damp Location Rated
- DLC Premium Qualified — DLC ID: S-4LR47P. Qualifies for the highest tier of utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search S-4LR47P.
- IESNA LM-79 & LM-80 Tested
- RoHS Compliant
Typical Applications
- Corporate offices and open-plan workspaces — field-selectable wattage and CCT allow on-site tuning between 30W and 50W and 3500K to 5000K without re-ordering
- Government and institutional facilities — DLC Premium qualification supports the highest tier of utility rebate returns; Lightcloud Blue compatible for wireless NLC without gateway
- Healthcare and clinical environments — damp location rated with CRI 82–84 providing consistent illumination for exam rooms, corridors, and restrooms
- Educational facilities — 2×4 format fits standard ceiling grids; selectable CCT supports varied classroom lighting needs; 0–10V dimming compatible
- Fluorescent retrofit projects — replaces 4-lamp F32T8 troffers; one SKU covers multiple wattage and CCT specs; 5-year warranty and L70 100,000-hour life
What’s Included
- RAB EZP2X4 LED flat panel fixture — 2×4 — White
- Integral T-bar clips
