RAB EZP2X2/E LED Flat Panel — 2×2 — 40/30/25W Selectable — 3500K/4000K/5000K — Battery Backup — White
Available in stock (100)
About this item
About this item
- Selectable Wattage & Output: Field-select 40W, 30W, or 25W at the fixture — delivers 2,989 to 4,400 lumens, replacing 2-lamp F32T8 fluorescent troffers. No rewiring required. Ships at 40W default.
- Integrated Battery Backup: Built-in 90-minute emergency battery backup at 120–277V — delivers 1,596 lm during power loss, providing code-compliant emergency illumination without a separate fixture.
- Lightcloud Blue Ready: Compatible with RAB’s Bluetooth Mesh Lightcloud Blue (LCB) NLC ecosystem — PIR and microwave sensor options available, no gateway or hub required. Controls sold separately.
- DLC Premium Qualified: DLC ID S-70LNZS — qualifies for the highest tier of utility rebate programs in most U.S. markets. Visit designlights.org and search S-70LNZS to verify eligibility with your utility provider.
- Damp Location Rated: UL Listed for damp locations — suitable for restrooms, stairwells, egress corridors, and standard office and classroom environments. 3500K/4000K/5000K CCT selectable; ships at 4000K default.
We process payments securely and do not store credit card information.
Description
Description
RAB EZP2X2/E LED Flat Panel — 2×2 — 40/30/25W Selectable — 3500K/4000K/5000K — Battery Backup — White

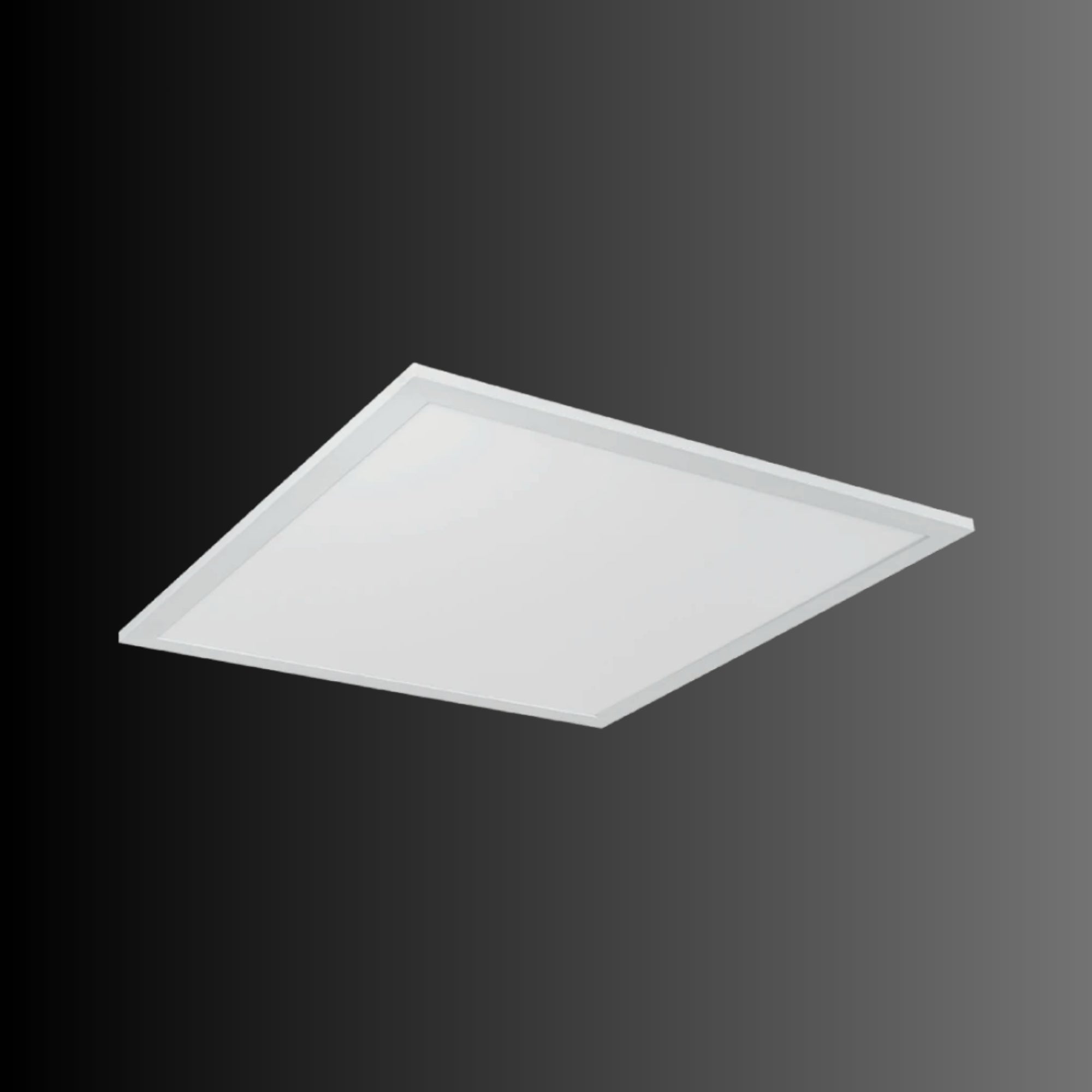

The RAB EZP2X2/E is a 2×2 field-adjustable LED flat panel with integrated 90-minute battery backup, field-selectable wattage (40W, 30W, or 25W), and field-selectable color temperature (3500K, 4000K, or 5000K). Maximum output is 4,400 lumens at 40W / 4000K; battery backup emergency output is 1,596 lumens at 30W. Supports 0–10V dimming to 10%, operates on 120–277V, and is rated for damp locations. Compatible with optional Lightcloud Blue wireless controls (Bluetooth Mesh, sold separately). DLC Premium Qualified. Backed by a 5-year limited warranty. Ships at 40W and 4000K default.
Key Features
- Battery Backup: Integrated 90-minute emergency battery backup at 120–277V. Emergency output: 1,596 lm at 30W. Minimum starting temperature with battery: 0°C (32°F).
- Selectable Wattage: Field-selectable between 40W, 30W, and 25W at the fixture. Ships at 40W. No rewiring required.
- Wattage Equivalency: Replaces 2-lamp F32T8 fluorescent troffers with significant energy savings across all three wattage settings.
- Maximum Lumen Output: 4,400 lumens at 40W / 4000K.
- CRI: 82–84. Color temperature selectable: 3500K, 4000K (default), 5000K.
- Dimming: 0–10V continuous dimming, dims to 10%. Requires separate 0–10V DC dimming circuit. Driver class: Class 2, Constant Current.
- Voltage: 120–277V, 50/60Hz. Surge protection: 2kV + 4kV.
- Location Rating: UL Listed — Damp Location Rated.
- Operating Temperature: −30°C to 40°C (−22°F to 104°F).
- Certifications: UL Listed — DLC Premium — IESNA LM-79 & LM-80 tested — RoHS. Mercury-free. UV-free.
- Rated Life: 100,000 hours (L70, IES LM-80 / TM-21).
- Warranty: 5-year limited warranty.
- Lightcloud Blue Compatible: Optional Lightcloud Blue (LCB) Bluetooth Mesh wireless NLC — field-installed, sold separately. No gateway or hub required.
- Microwave / PIR Sensor Ready: Compatible with optional MVS50+RAAS (microwave) and PIR40/LCB+RAAS (PIR) sensors. Sold separately.
Performance & Light Output
Lumen output at 4000K per spec sheet. Emergency (BB) lumen output shown where applicable. LLF (Light Loss Factor) shown as measured.
| Wattage | Lumens | BB Lumens | LLF |
|---|---|---|---|
| 40W | 4,400 lm | — | 36.27% |
| 30W | 3,462 lm | 1,596 lm | 46.10% |
| 25W | 2,989 lm | — | 53.40% |
CRI: 82–84. CCT selectable: 3500K / 4000K / 5000K. Rated life: L70 100,000 hours (IES LM-80 / TM-21). Tested per IESNA LM-79 & LM-80.
Smart & Control Features
The EZP2X2/E supports 0–10V continuous dimming to 10%. It is compatible with optional Lightcloud Blue (LCB) — a Bluetooth Mesh wireless lighting control system configurable via the Lightcloud Blue mobile app. No gateway or hub required. Lightcloud Blue DLC system IDs: N1XMLOEATBA (Interior) / NHCZ2BIA17L (Exterior). Learn more at lightcloud.com. All controls and sensors are sold separately.
- EZP2X2/E/LCBS — Lightcloud Blue with PIR sensor (PIR40/LCB+RAAS). PIR detection: 40ft diameter at 40ft mounting height.
- EZP2X2/E/LCBS/MVS — Lightcloud Blue with Microwave sensor (MVS50+RAAS). MVS detection: 50ft diameter at 50ft mounting height.
Sensor default settings: Motion sensitivity High — Brightness when triggered 100% — Hold time 20 min — Standby dim 20% — Standby time 1 min — When vacant Off — Daylight Disabled. Adjustable via Lightcloud Blue app or MSR1 Remote (sold separately).
Electrical
Input voltage: 120–277V, 50/60Hz. Driver: Class 2, Constant Current. Dimming: 0–10V, dims to 10% — requires separate 0–10V DC dimming circuit. Surge protection: 2kV + 4kV. Battery backup: 90 minutes at 120–277V; min. starting temp: 0°C (32°F). Operating temperature: −22°F to 104°F (−30°C to 40°C). Mercury-free. UV-free. RoHS-compliant components.
Construction
Housing: Aluminum and iron construction.
Lens: Polystyrene (PS) lens. Reflector: TPET reflective paper.
Finish: White. High-durability finish formulated for long-lasting color stability.
Environmental & Safety: UL Listed — Damp Location Rated.
Dimensions: 23¾″ L × 23¾″ W × 1⅛″ H (panel: 21⅝″ × 21⅝″). Net weight: 7.1 lbs.
Installation & Mounting
Standard Mounting: Integral T-bar clips secure fixture to T-bars and prevent T-system separation. Suitable for standard 2×2 T-bar grid ceiling installations.
Optional Mounting Accessories (Sold Separately):
- PMKEZPAN2X2 — EZPAN 2×2 Pendant Mounting Kit, White
- RMKPANEL2X2 — LPANEL 2×2 Recessed Mounting Kit, White
- SMKEZPAN2X2 — EZPAN 2×2 Surface Mounting Kit, White
Certifications & Rebates
- UL Listed — Damp Location Rated
- DLC Premium Qualified — DLC ID: S-70LNZS. Qualifies for the highest tier of utility rebate programs. To verify rebate eligibility with your utility provider, visit designlights.org and search S-70LNZS.
- IESNA LM-79 & LM-80 Tested
- RoHS Compliant
Typical Applications
- Exit corridors and egress paths — integrated 90-minute battery backup provides code-compliant emergency illumination without a separate emergency fixture
- Healthcare facilities — damp location rated; battery backup ensures continuous lighting in corridors and exam areas during power loss
- Government and institutional buildings — DLC Premium (S-70LNZS) supports highest-tier utility rebates; Lightcloud Blue NLC compatible
- Educational facilities — 2×2 grid-compatible; selectable CCT and wattage reduce SKU count across varied classroom lighting requirements
- Fluorescent retrofit projects — replaces 2-lamp F32T8 troffers; one SKU with battery backup covers emergency lighting compliance and energy efficiency
What’s Included
- RAB EZP2X2/E LED flat panel fixture with integrated battery backup — 2×2 — White
- Integral T-bar clips
