Description
Description

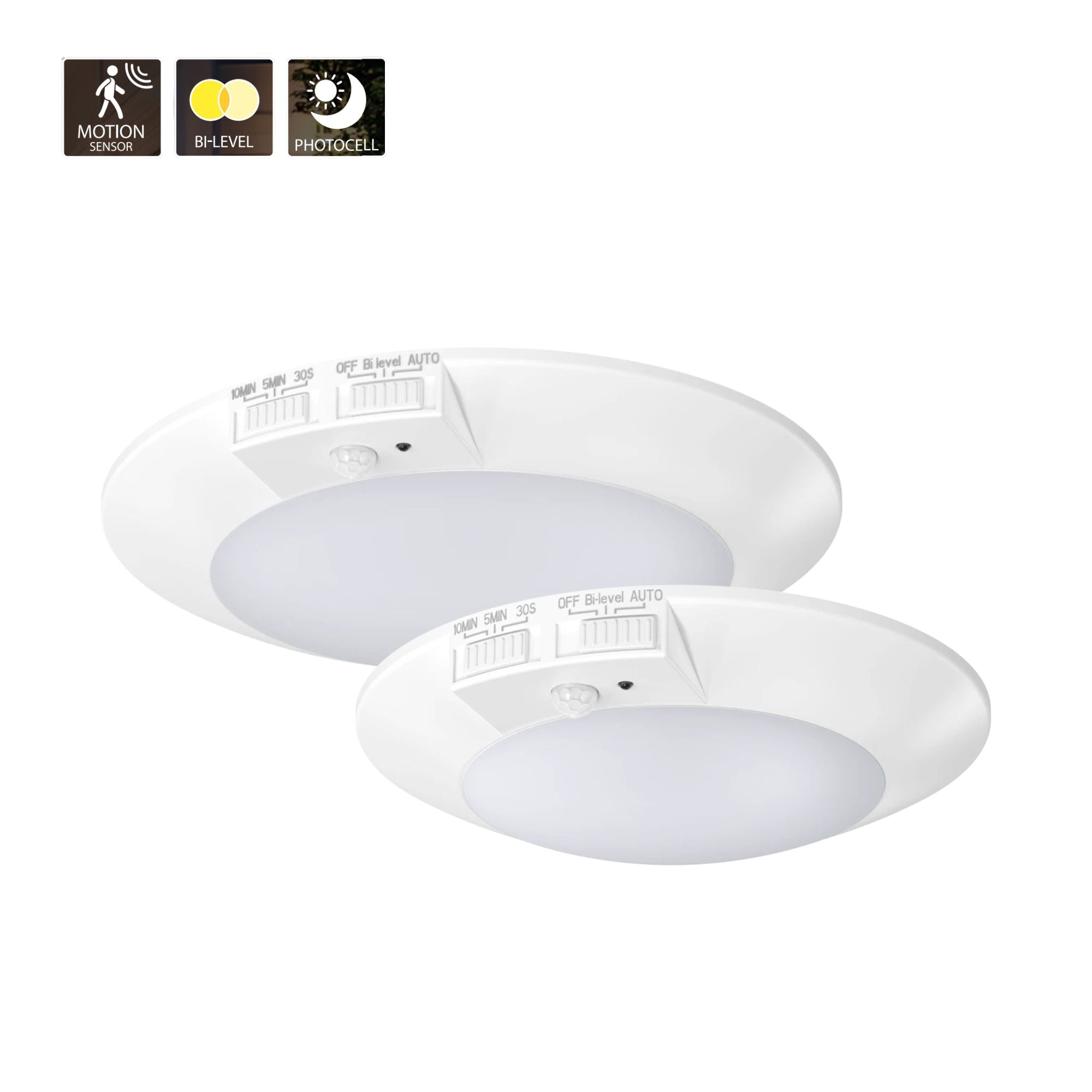

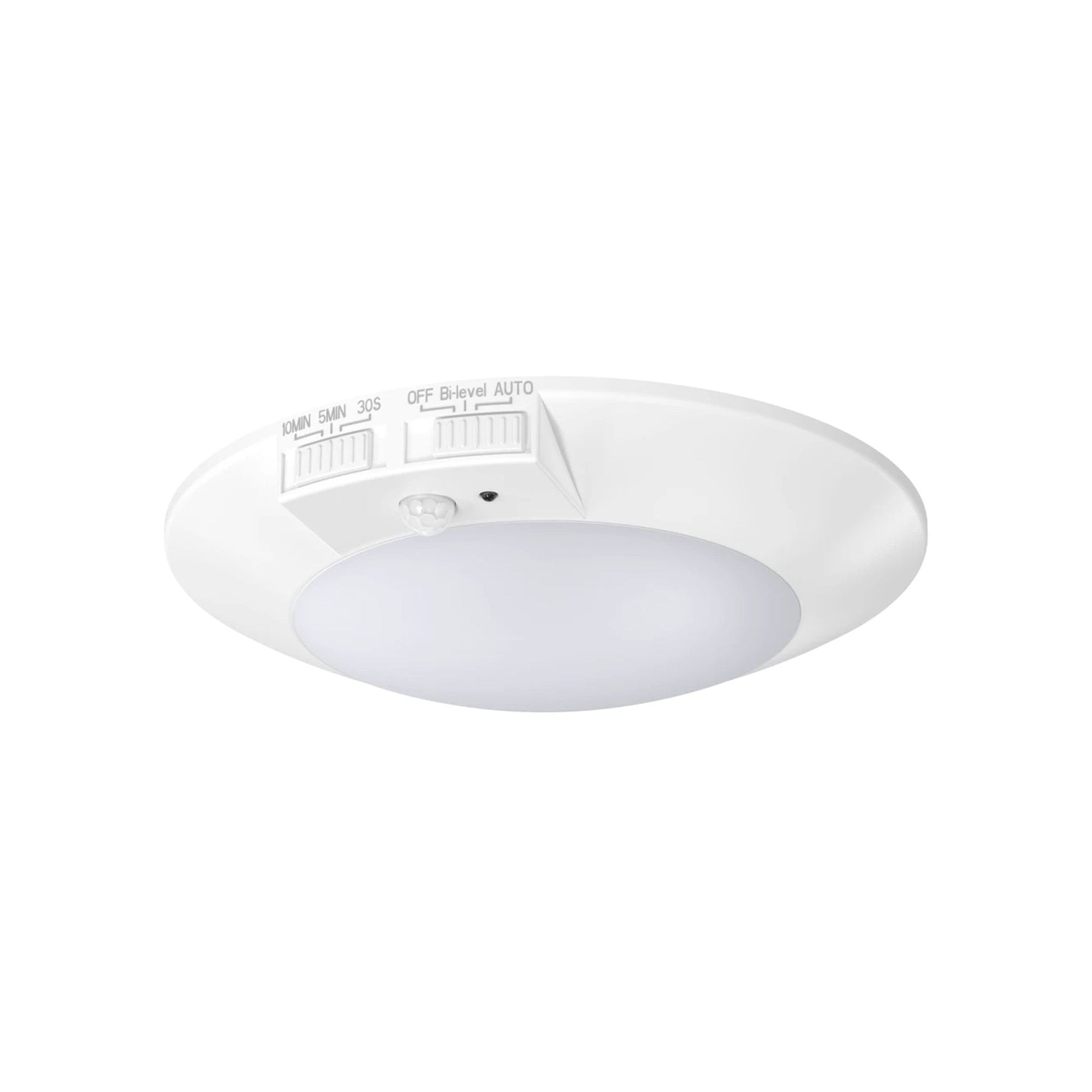

RAB DISK LED Flush Mount with PIR Motion Sensor — White, 4 and 6 in, 5CCT, 120V
The RAB DISK-4/PIR and DISK-6/PIR integrated LED surface mounts combine a PIR motion sensor and photocell with adjustable motion modes and hold times. Choose the 4 in nominal model with 700 lumens at 8W or the 6 in nominal model with 1,050 lumens at 12W. Both feature a white finish, frosted polycarbonate diffuser and five selectable color temperatures for soft, smooth indoor illumination.
Key Features
- 4 in Model: DISK-4/PIR; 8W, 700 lumens, 0.4 lb and 40W incandescent equivalency
- 6 in Model: DISK-6/PIR; 12W, 1,050 lumens, 0.5 lb and 60W incandescent equivalency
- Integrated Controls: Passive infrared motion sensing and photocell
- Motion Modes: Auto, Bi-Level and Off selected by DIP switches
- Hold Times: 30 seconds by default, 5 minutes or 10 minutes
- Detection: 13 ft diameter at 6.5 ft mounting height; maximum sensor mounting height 6.5 ft
- Selectable CCT: 2700K, 3000K, 3500K, 4000K or 5000K; default 3000K
- Light Quality: 90 CRI, R9 greater than 50, 88 lm/W and 110-degree beam with ±10-degree tolerance
- Electrical: Constant-current 120V, 60Hz drivers; power factor at least 0.9; flicker at most 30%; non-dimmable
- Construction: Plastic-and-metal round enclosure with smooth white trim and frosted polycarbonate diffuser
- Listings and Compliance: UL listed, ENERGY STAR certified, TAA compliant, RoHS-compliant components and FCC Part 15 compliant; sheets state suitability for conformity with Title 24 Part 6 requirements
- Life and Warranty: 50,000-hour L70 lifespan; indoor dry and damp use; -4°F to 104°F operating range; five-year RAB warranty
Construction & Design
Both models feature a low-profile round enclosure in white, combining plastic and metal with a frosted polycarbonate lens. The diffuser distributes light evenly for general illumination. The 4 in nominal model weighs 0.4 lb, while the 6 in nominal model weighs 0.5 lb.
Light Output & Performance
DISK-4/PIR delivers 700 lumens at 8W; DISK-6/PIR delivers 1,050 lumens at 12W. Both provide 90 CRI and R9 greater than 50 with a broad 110-degree beam, subject to ±10-degree tolerance. Set 2700K, 3000K, 3500K, 4000K or 5000K using the integrated DIP switches; 3000K is the default. Rated LED life is 50,000 hours at L70, and separate bulbs are not required.
Electrical & Installation
Both models use 120V, 60Hz constant-current drivers and surface-mount installation. They are not compatible with external dimmers. Select a mounting location within the 6.5 ft maximum sensor mounting height; the specified detection diameter is 13 ft at that height. Their low-profile design avoids a pendant drop, but the sensor-height limit must still guide placement. Use indoors in dry or damp environments, not wet locations.

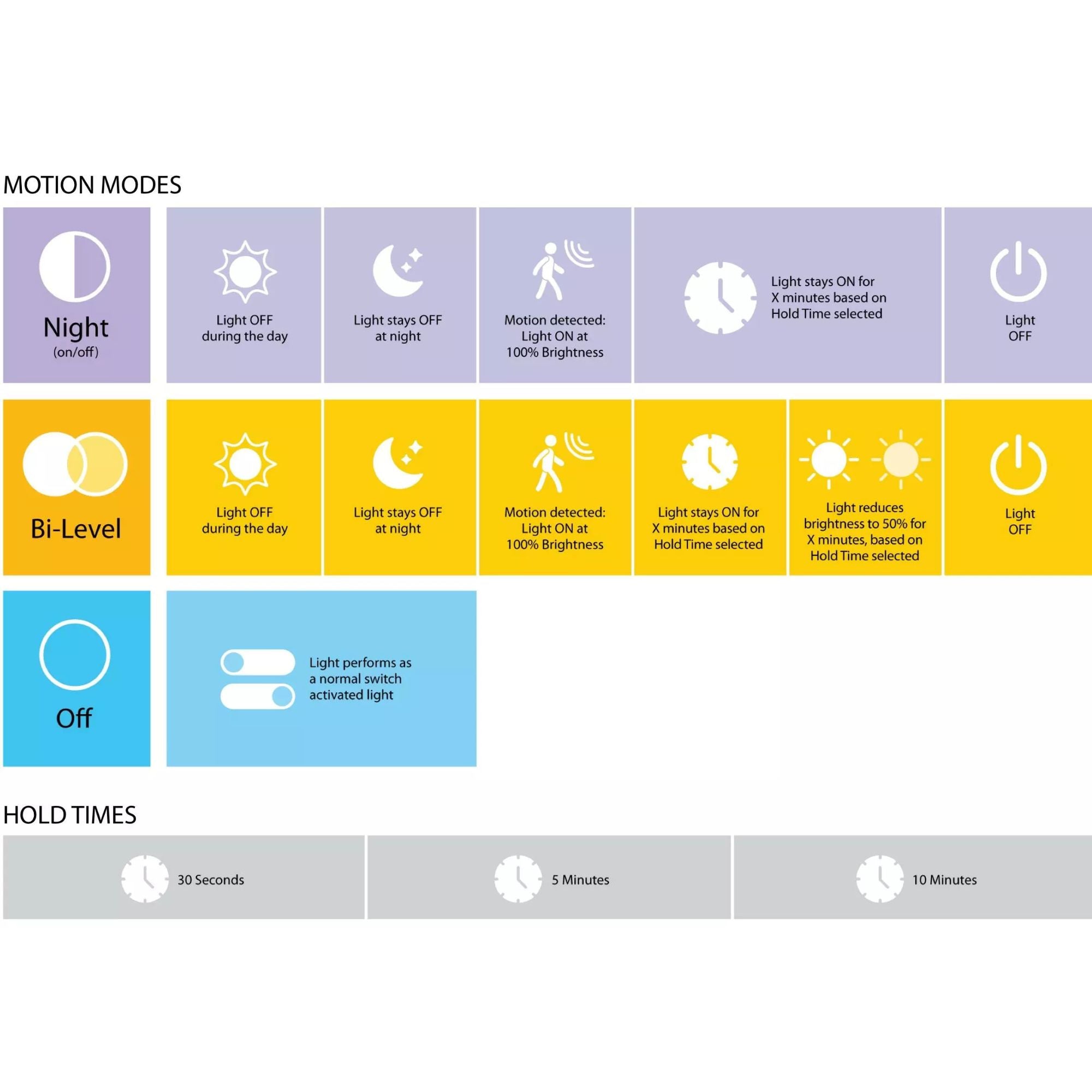

Auto mode keeps the light off during the day and turns it on at 100% brightness when nighttime motion is detected, switching off after the selected hold time. Bi-Level mode activates full brightness with nighttime motion, then reduces output to 50% after the first hold period before switching off after another selected hold period. Off mode disables motion detection. Choose a 30-second, 5-minute or 10-minute hold time. The internal 50% output stage does not provide external dimmer compatibility.
Typical Applications
- Low-height indoor circulation areas within the sensor mounting limit
- Utility and laundry areas
- Storage and pantry areas
- Indoor damp areas without direct water exposure
What's Included
- (1) RAB DISK-4/PIR or DISK-6/PIR white LED surface-mount fixture, according to the selected size, with integrated LED, PIR sensor and photocell
