RAB CR/E Field-Adjustable Commercial Downlight — 4 / 6 / 8 / 10 in | Selectable Wattage & CCT | Integrated Emergency Battery | 120-277V | White

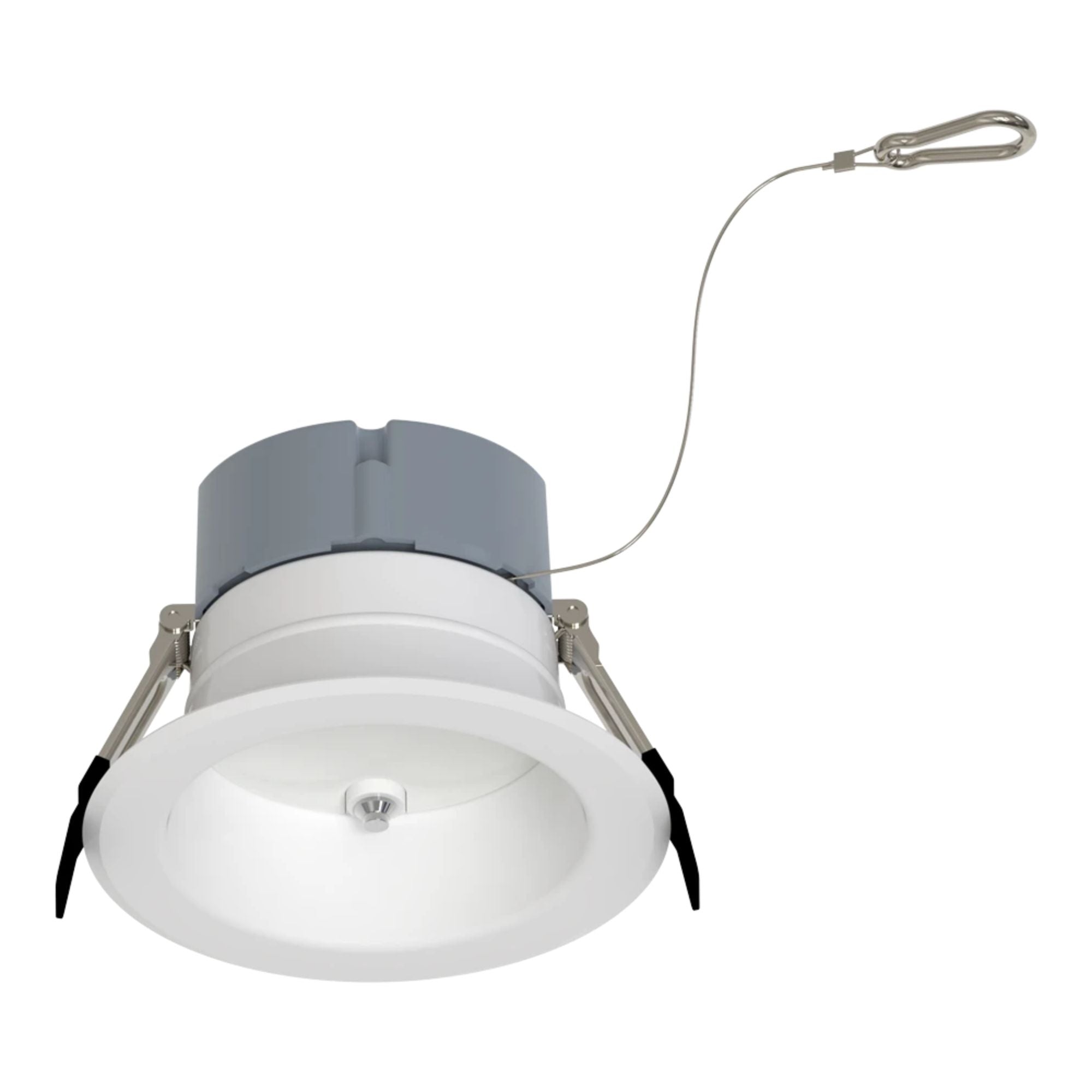

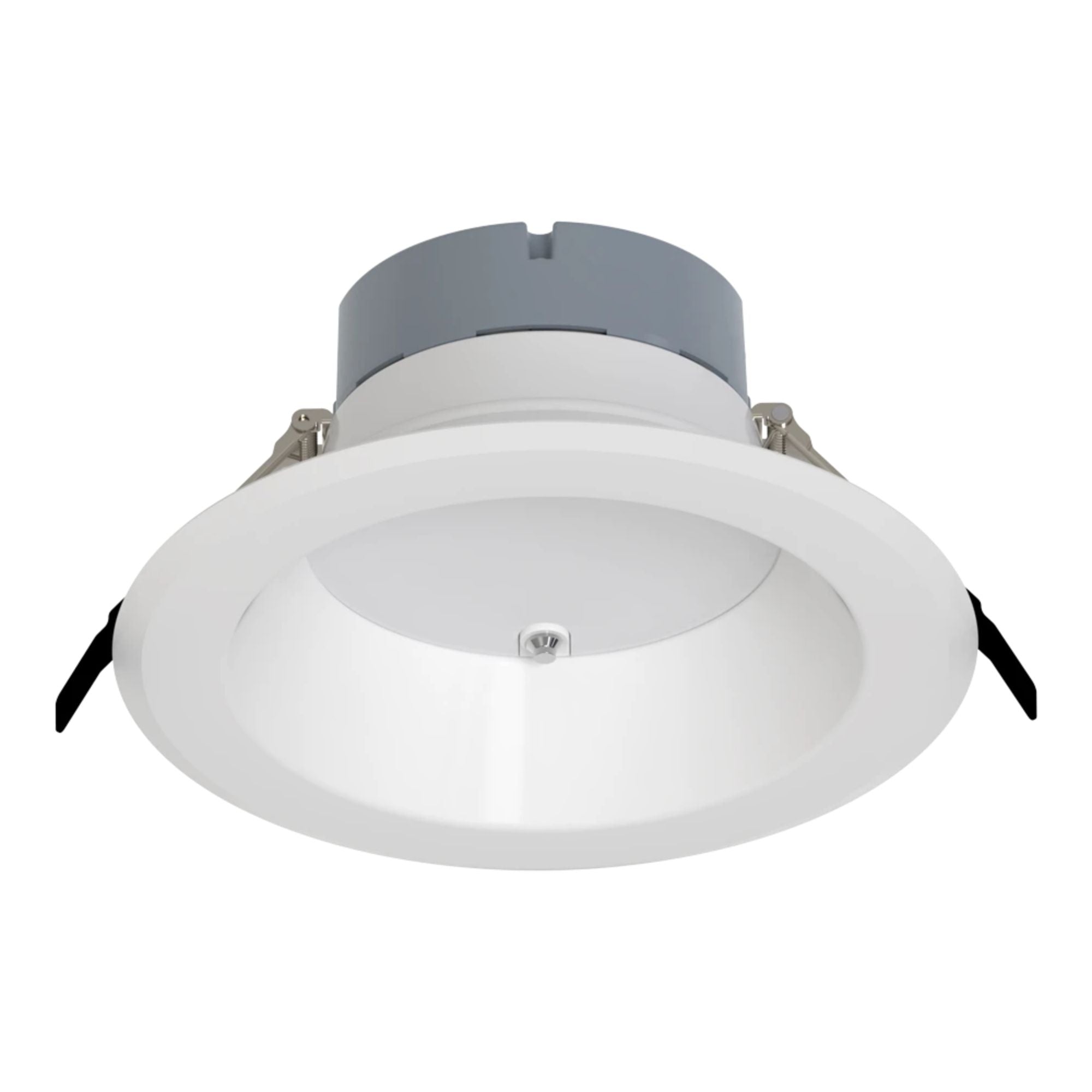

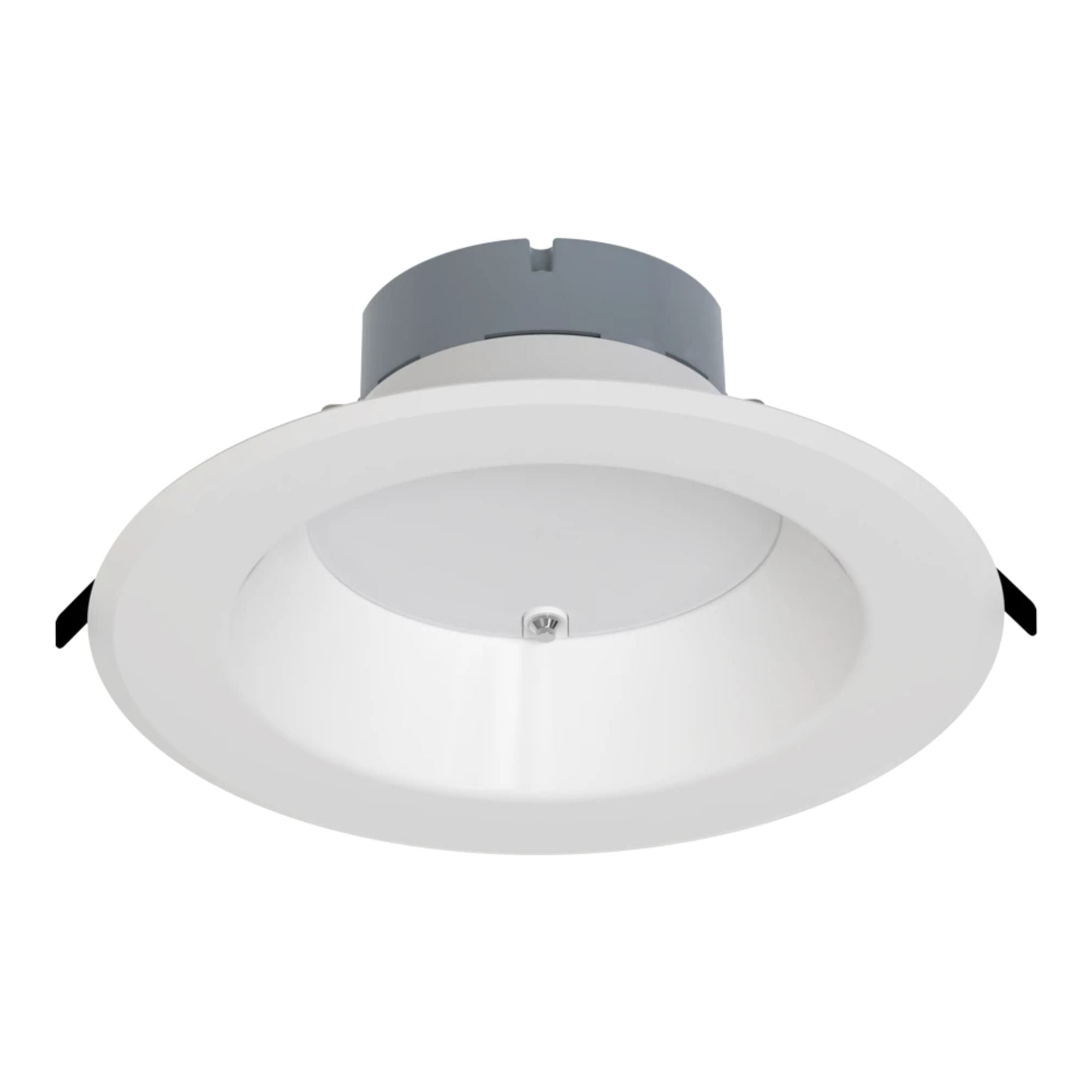

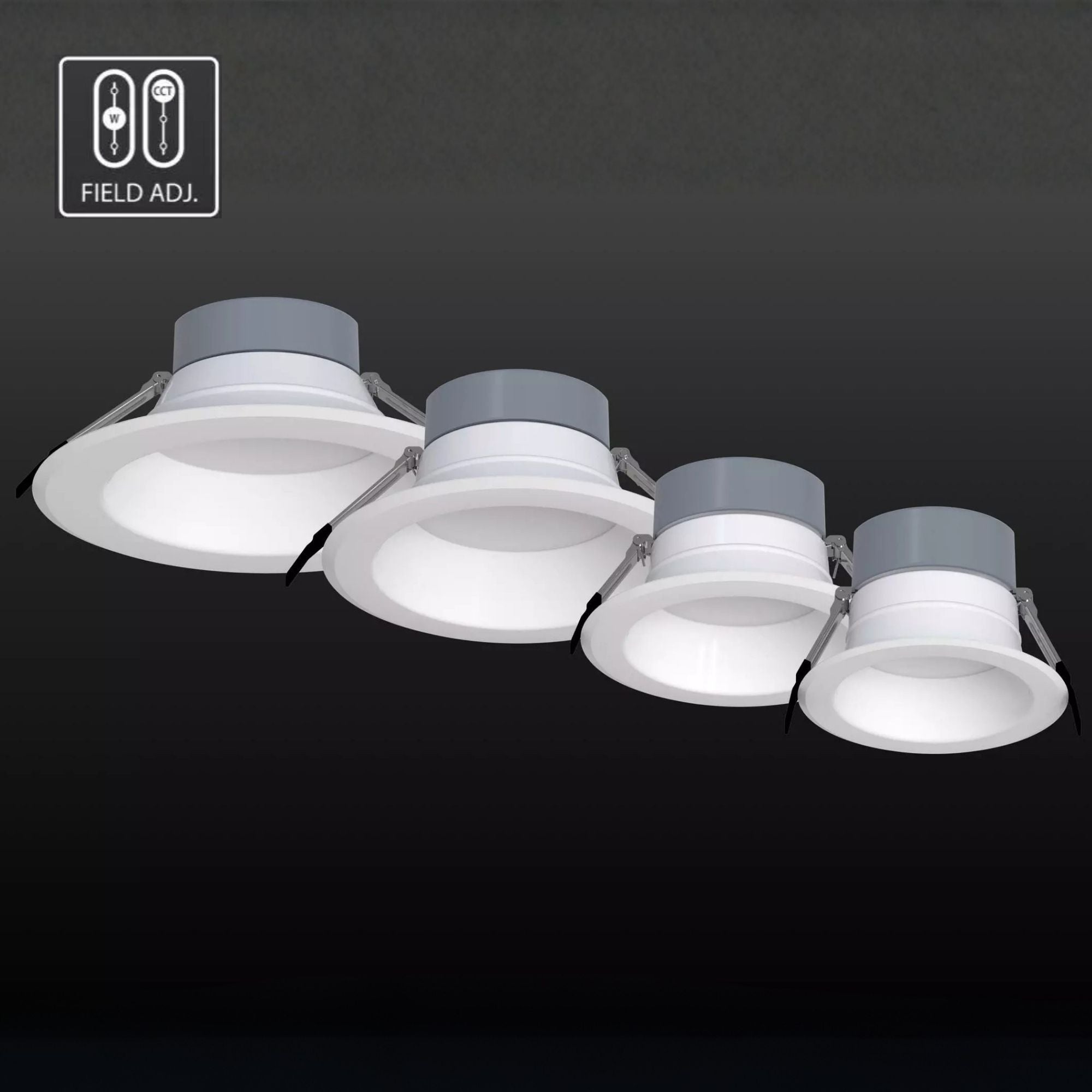

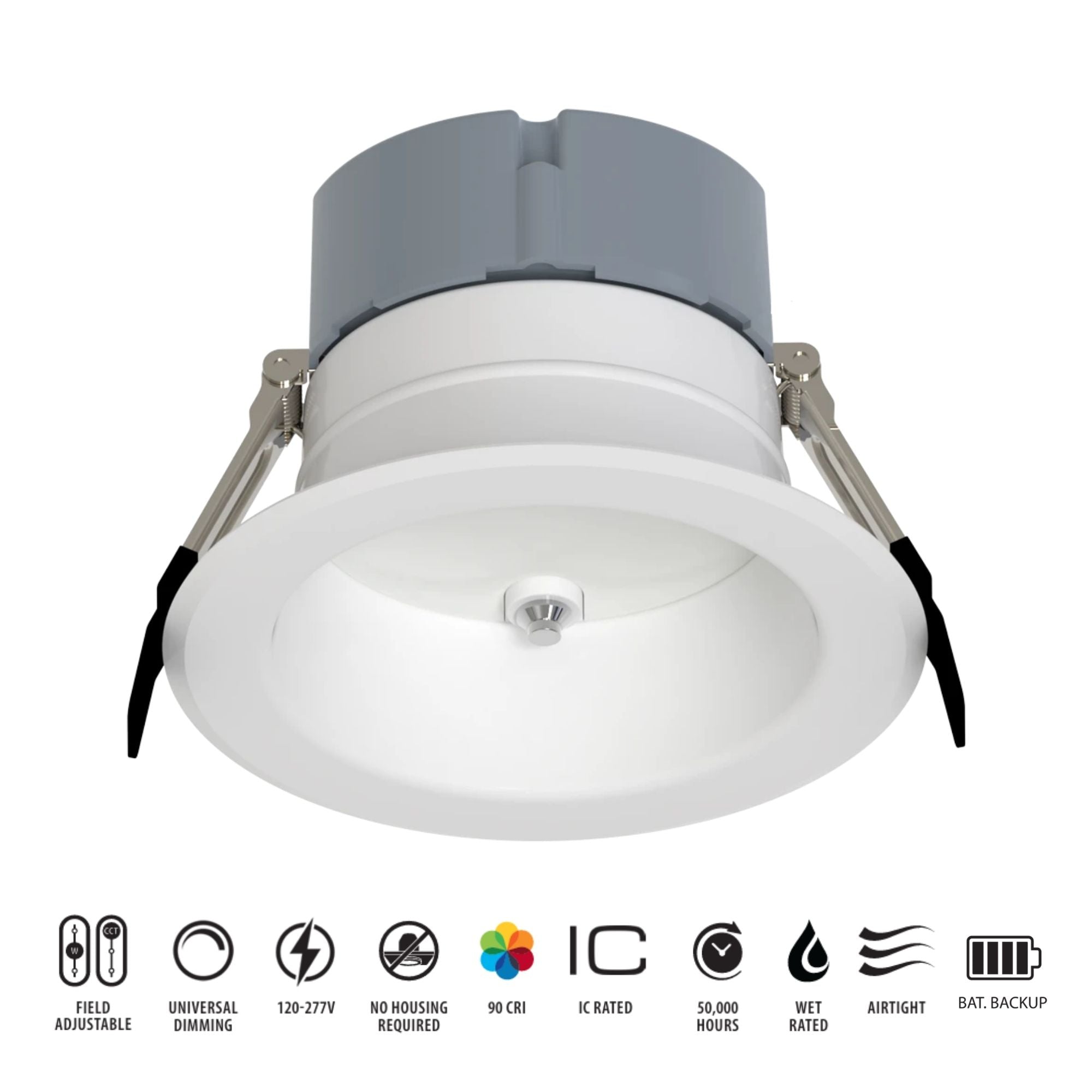

The RAB CR/E family is a field-adjustable commercial recessed downlight with an integrated quick-connect emergency battery, available in 4 in, 6 in, 8 in, and 10 in aperture sizes. Each size features field-selectable wattage and CCT (2700K–5000K) via integrated dipswitches, with universal 120-277V input and dual dimming compatibility (0-10V and TRIAC/ELV). The built-in battery backup provides 90 minutes of emergency operation with no separate bulk battery or additional wiring required. All sizes are IC rated, ENERGY STAR Version 2.2 certified, ETL listed, and airtight certified per ASTM E283.
Key Features
- Integrated Emergency Battery: Built-in quick-connect battery backup; 90 minutes emergency operation; 24-hour recharge time; no separate bulk battery required
- Field-Selectable Wattage: Choose wattage at installation via dipswitch — 4 in: 7/9/11W; 6 in: 11/18/22W; 8 in: 17/25/31W; 10 in: 25/31/38W
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K on all sizes; default 2700K
- Lumen Output by Size: 4 in up to 1,000 lm | 6 in up to 2,500 lm | 8 in up to 3,500 lm | 10 in up to 4,500 lm (all at peak wattage)
- CRI: 90 with R9 > 50 for high color accuracy
- Beam Angle: 85° ±10° for broad, even illumination
- Dimming: 0-10V dimmable to 10%; TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120-277V universal on all sizes

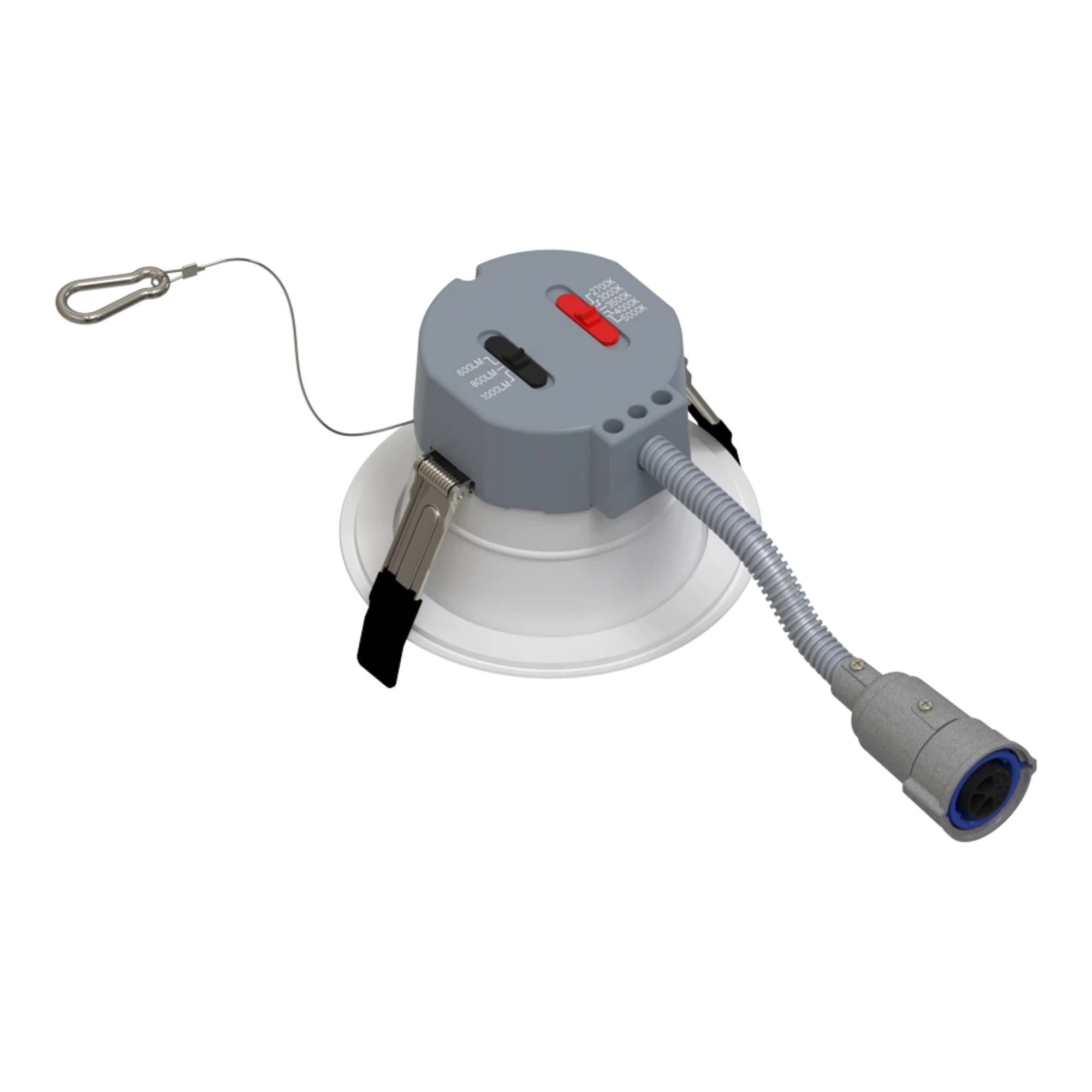

- Integrated Driver: Mounts on top of fixture; connects to junction box (not included) via MC Whip cable
- Enclosure: Spun aluminum for passive cooling; white finish on all sizes
- Installation: Spring clips, 1/2 in to 2 in ceiling; remodel direct mount or retrofit into existing commercial housings
- Trim: Spun aluminum smooth splay reflector with polycarbonate lens
- IC Rated: All sizes suitable for direct contact with air-permeable insulation; not for use with spray foam insulation (consult NEMA LSD57-2013)
- Certifications: ENERGY STAR Version 2.2, Title 24 JA8, ETL listed, RoHS compliant, NEC compliant (Sec. 410.16)
- Warranty: 5-year no-compromise warranty
Smart & Control Features
All CR/E sizes dim to 10% on compatible 0-10V and TRIAC/ELV dimming systems. Both wattage and CCT are field-adjustable via integrated dipswitches at installation. In emergency mode, the fixture activates automatically during power failure and operates for 90 minutes; the battery recharges fully within 24 hours.
Construction & Design

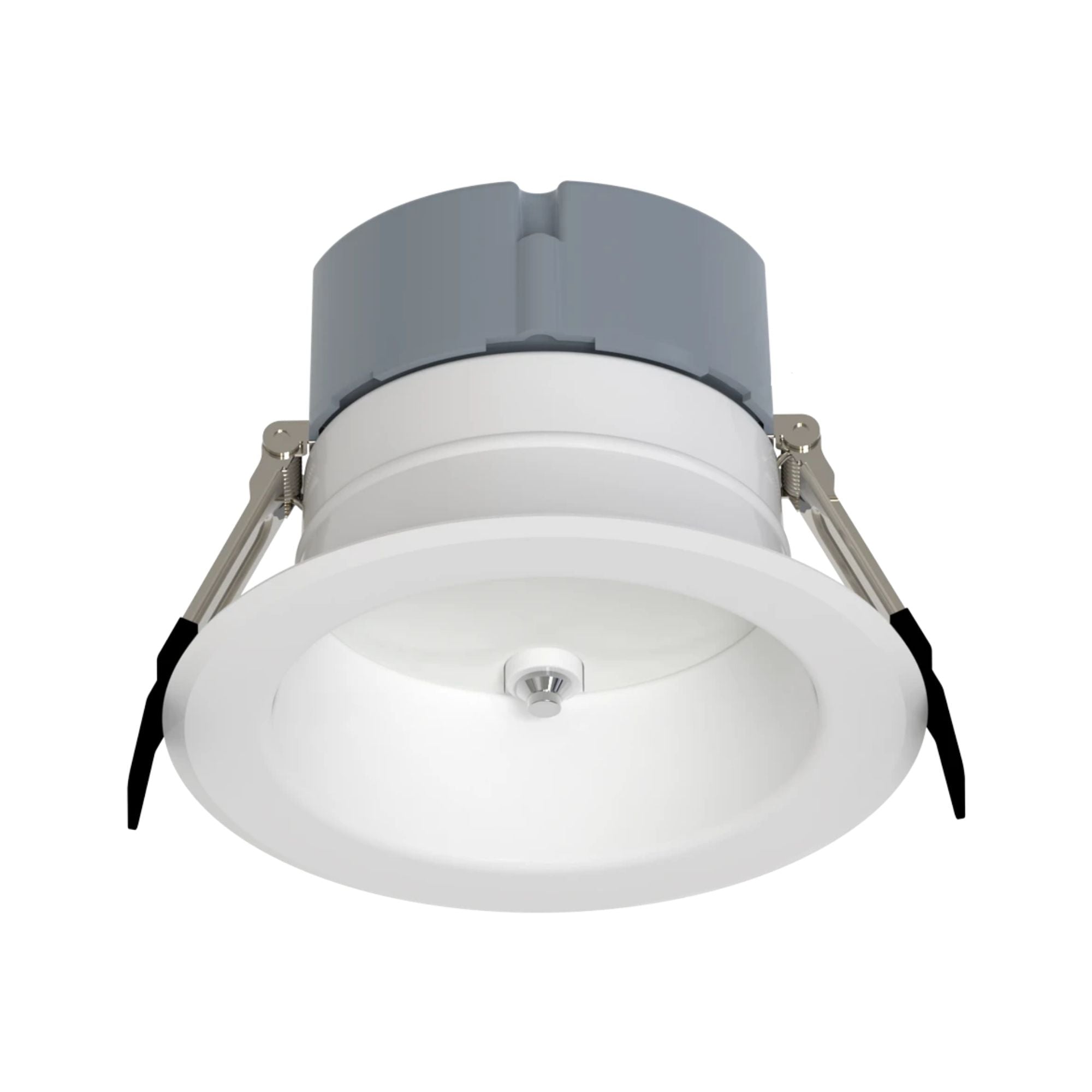

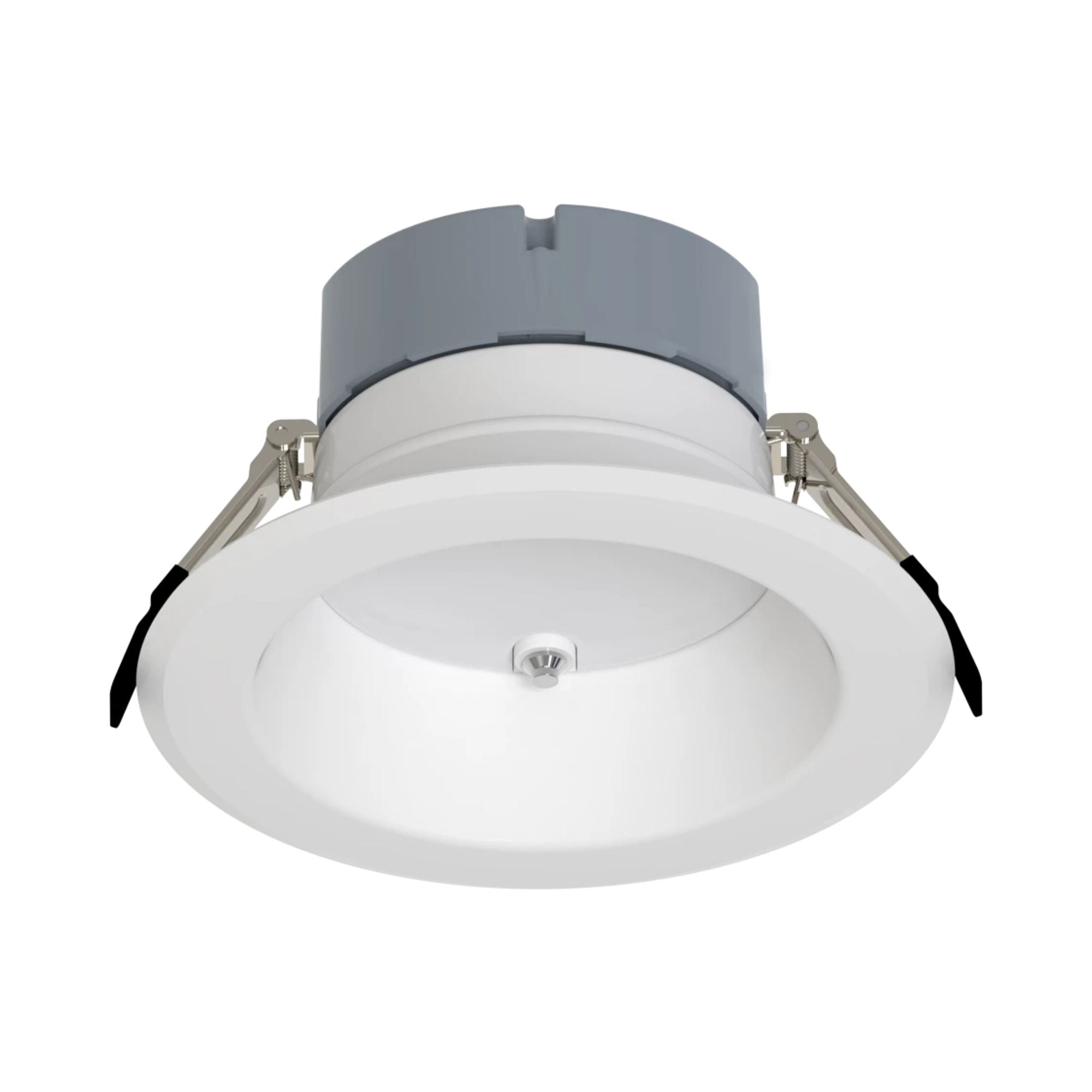

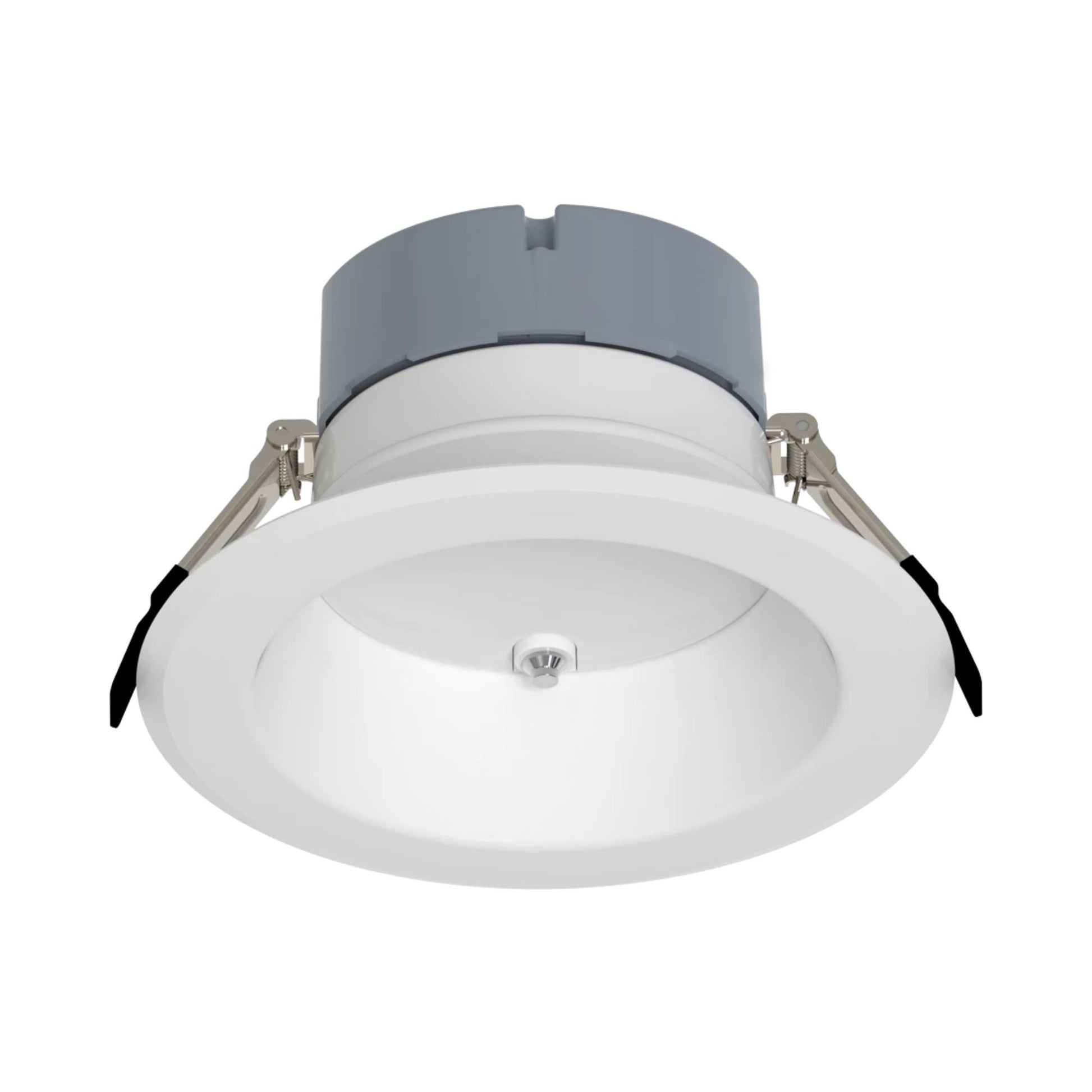

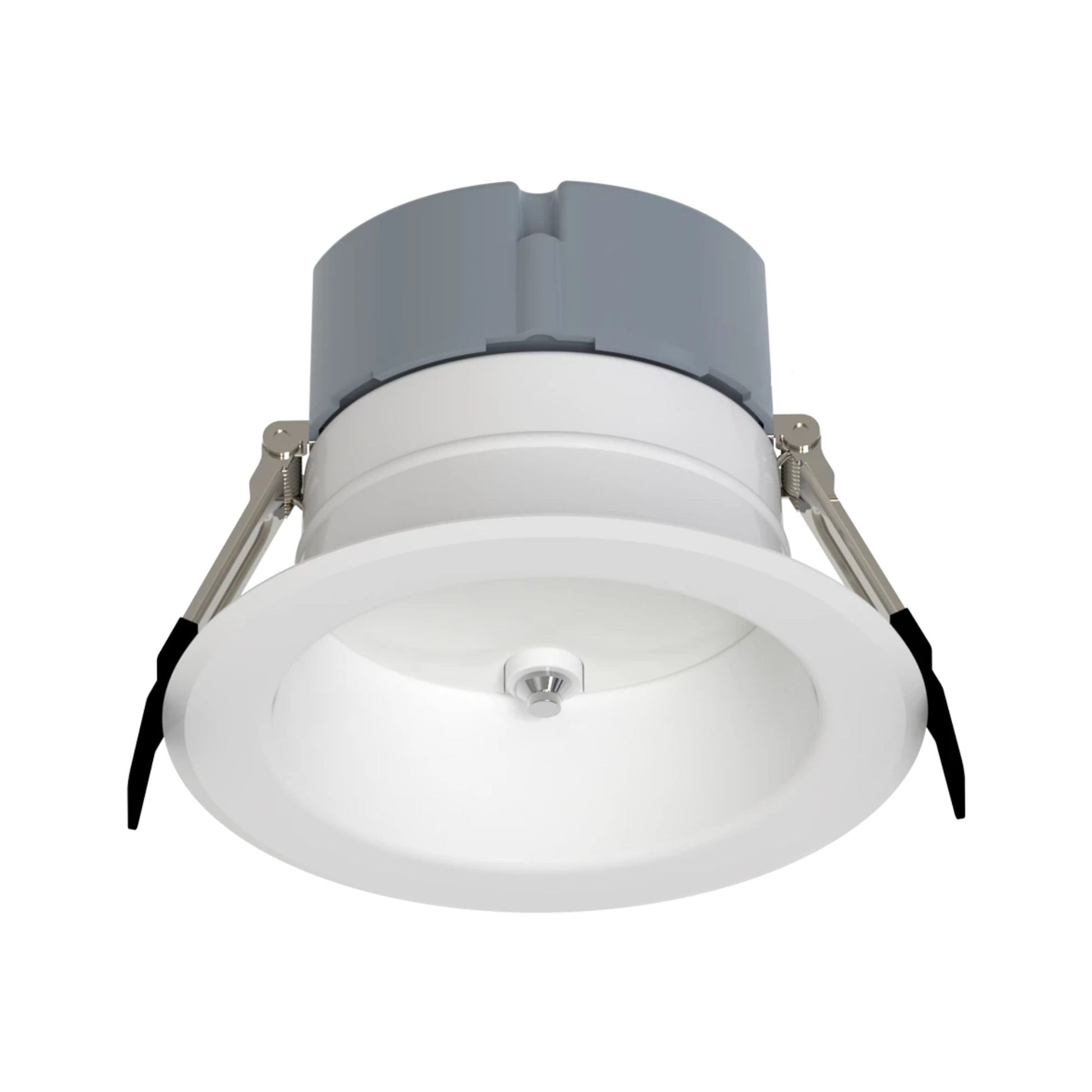

Each CR/E fixture features a spun aluminum enclosure that maximizes passive cooling for long fixture lifespan, with a spun aluminum smooth splay reflector in white finish and a polycarbonate light diffuser for even, smooth general illumination. Stainless steel spring action clips allow for quick, tool-free installation from 1/2 in to 2 in ceiling thickness.
Light Output & Performance by Size
- 4 in (7/9/11W): Up to 1,000 lm | Up to 91 lm/W | 23W CFL equiv. | Weight: 2.2 lbs
- 6 in (11/18/22W): Up to 2,500 lm | Up to 114 lm/W | 52W CFL equiv. | Weight: 2.6 lbs
- 8 in (17/25/31W): Up to 3,500 lm | Up to 113 lm/W | 75W CFL equiv. | Weight: 3.0 lbs
- 10 in (25/31/38W): Up to 4,500 lm | Up to 118 lm/W | 100W CFL equiv. | Weight: 3.1 lbs
All sizes: 90 CRI, R9 > 50, 85° beam angle, 50,000-hour L70 lifespan per IES LM-70.
Electrical & Installation

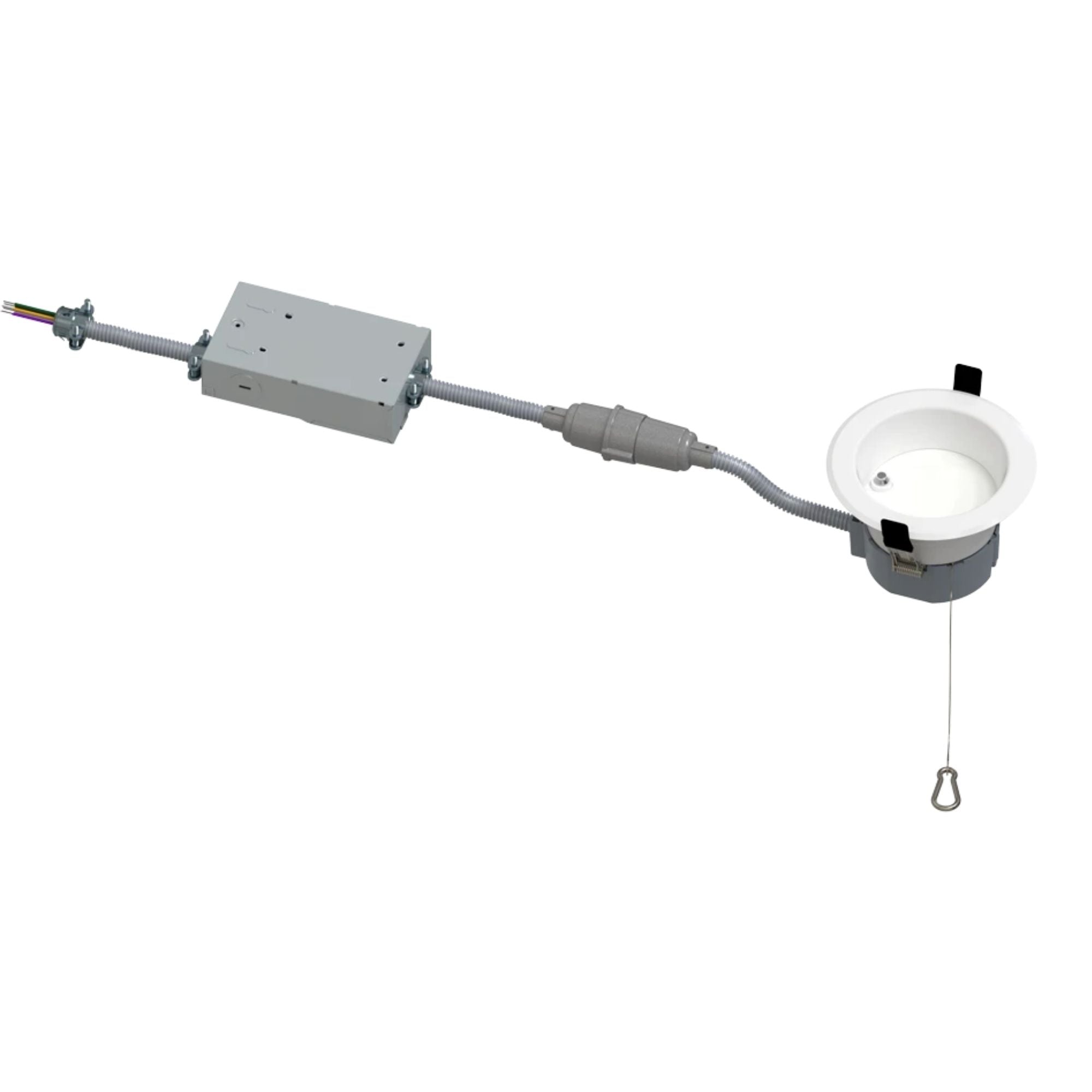

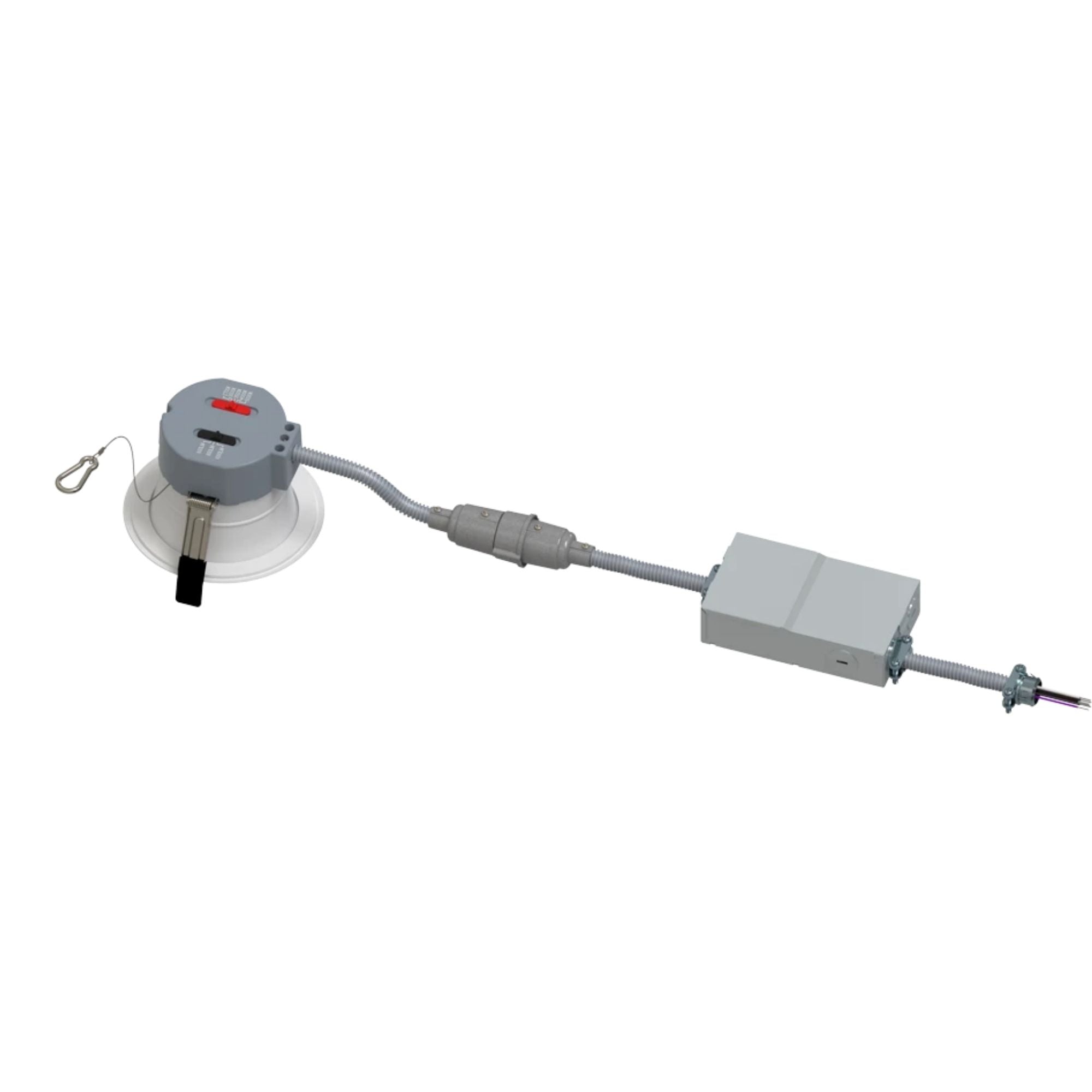

All sizes operate on 120-277V with a Constant Current, Class A driver integrated on top of the fixture. Connects to junction box (not included) via MC Whip cable. Dimmable to 10% via 0-10V or TRIAC/ELV systems. Spring action clips support ceiling thicknesses from 1/2 in to 2 in. Suitable for remodel direct mount or retrofit into existing commercial downlight housings. IC rated for direct contact with air-permeable insulation (not spray foam); airtight certified (ASTM E283). Operating temperature: -4°F to 104°F.
What’s Included
- RAB CR/E commercial downlight with integrated emergency battery (size per variant selected, white finish)
- Integrated driver (mounted on fixture)
- MC Whip cable
- Stainless steel spring action mounting clips
- Compatible accessories vary by size: size-specific goof rings, mounting frames and plates (4 in & 6 in), and emergency driver T20 (all sold separately)
