RAB CR-HW Field-Adjustable Commercial Downlight — 4 / 6 / 8 / 10 in | Selectable Wattage & CCT | 120-277V | Haze White

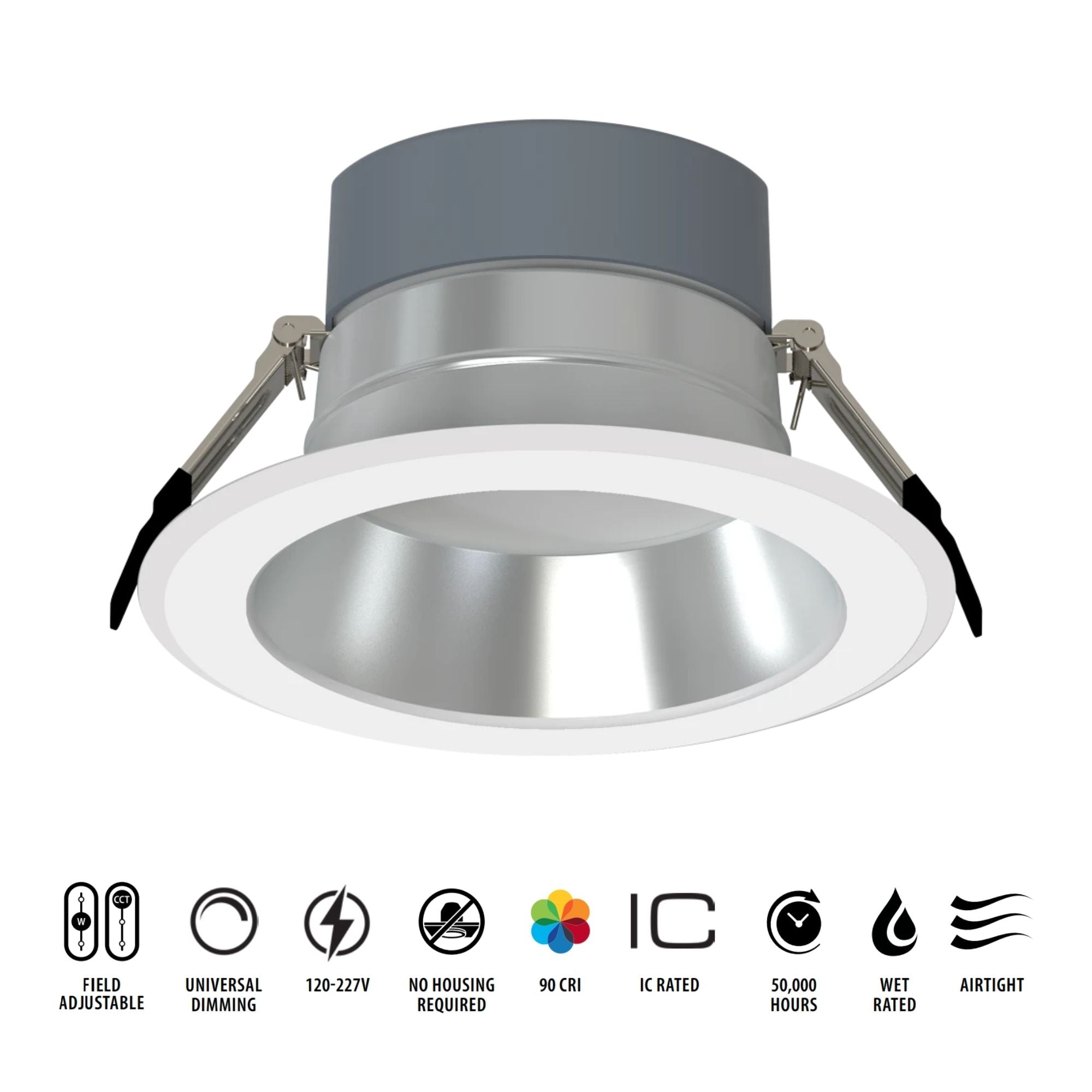

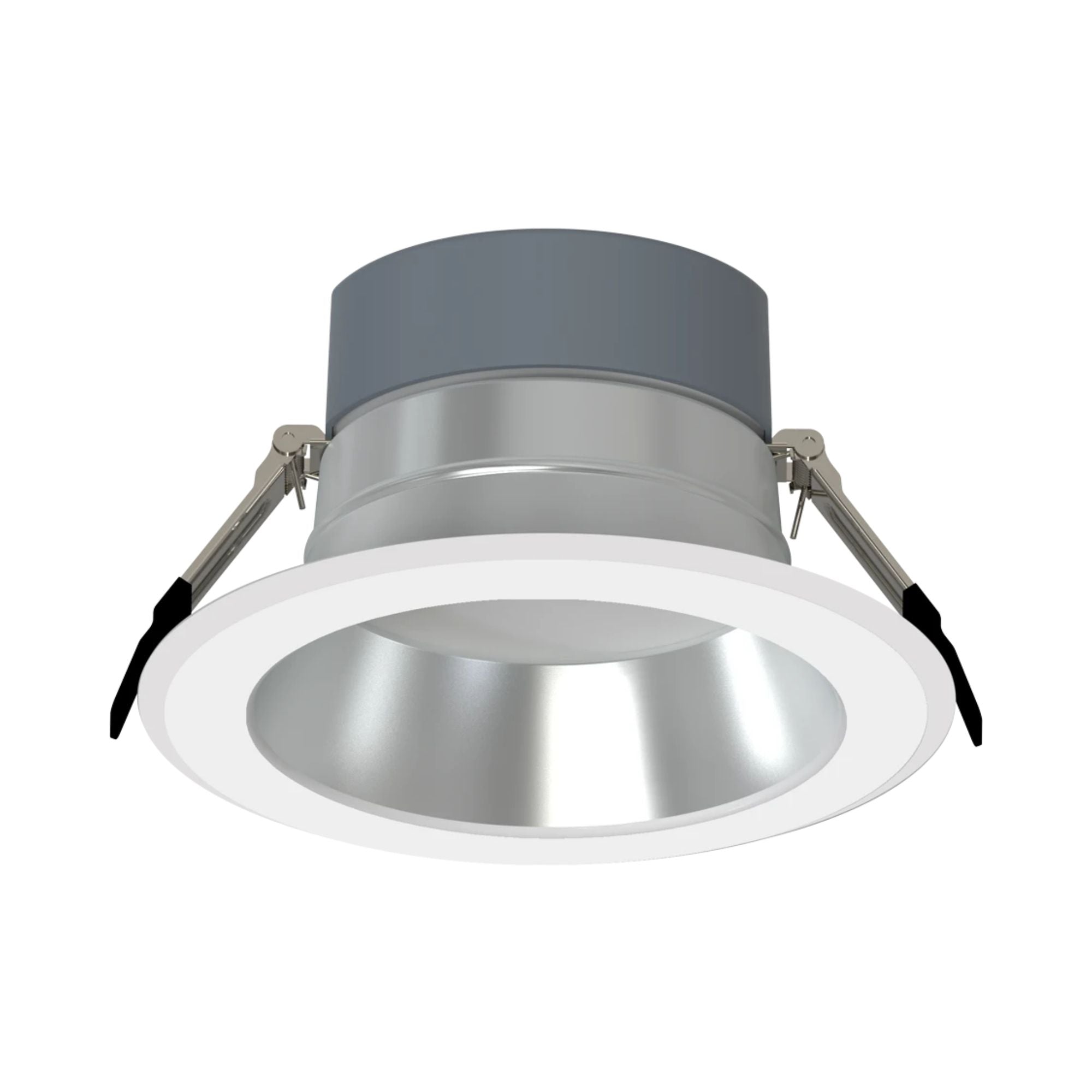

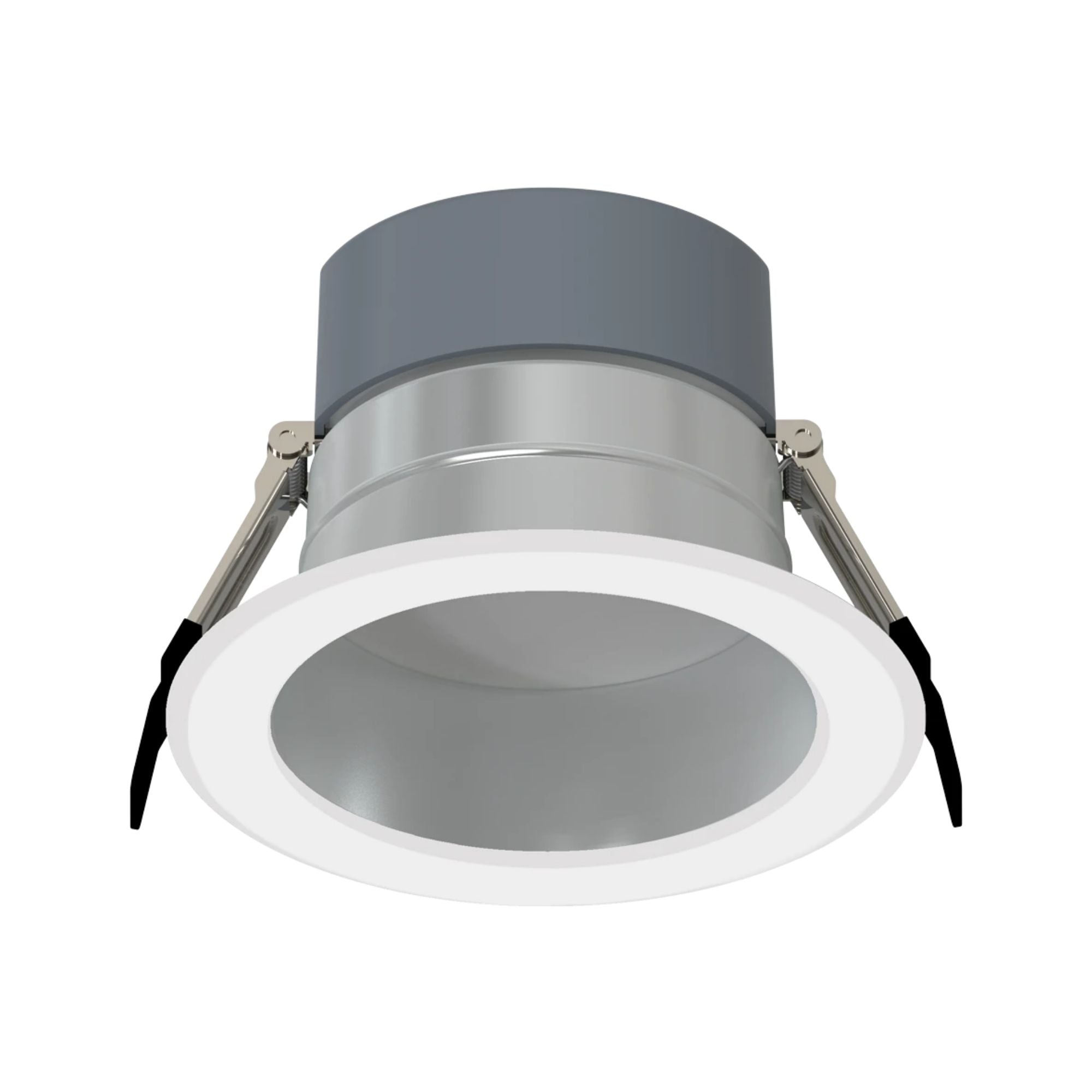

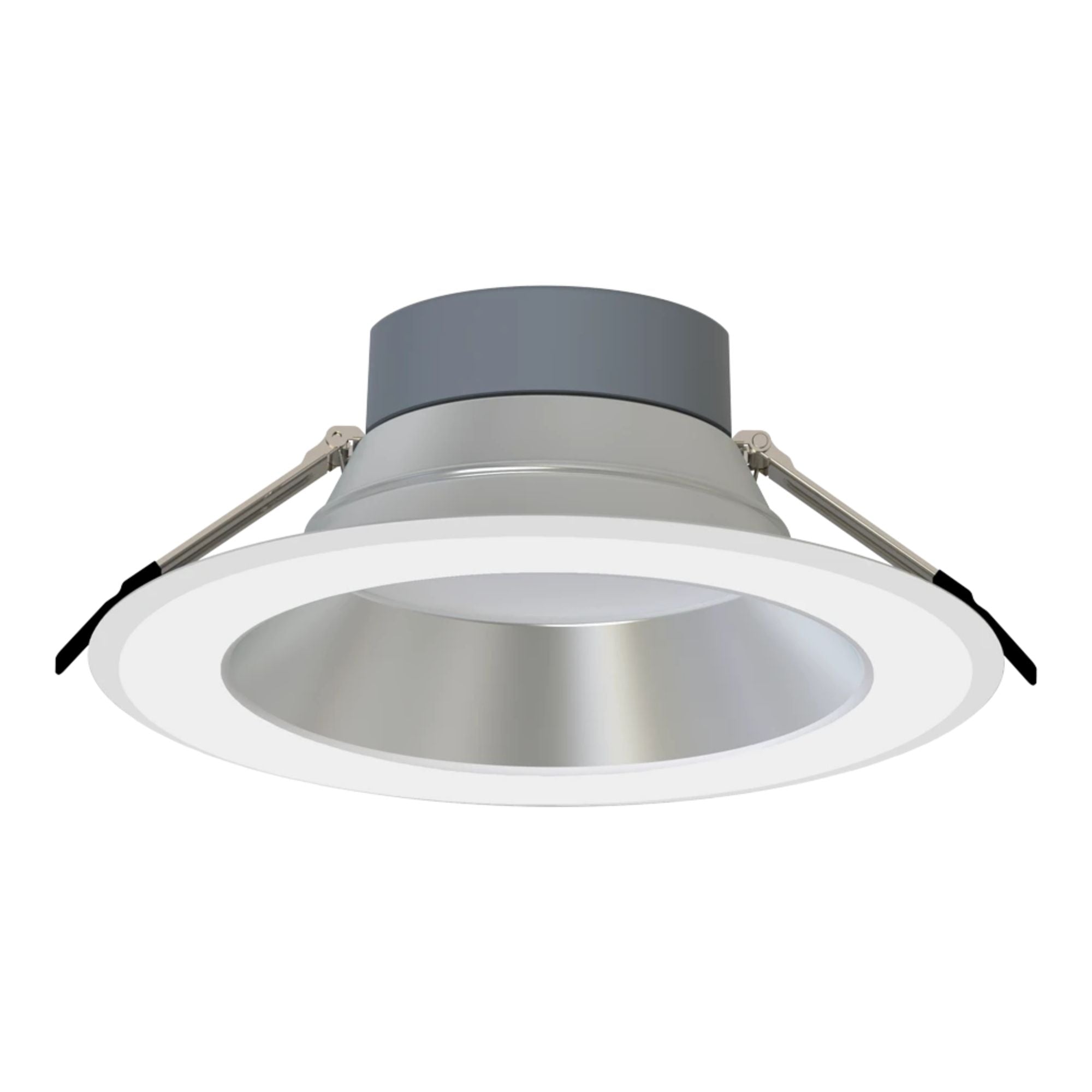

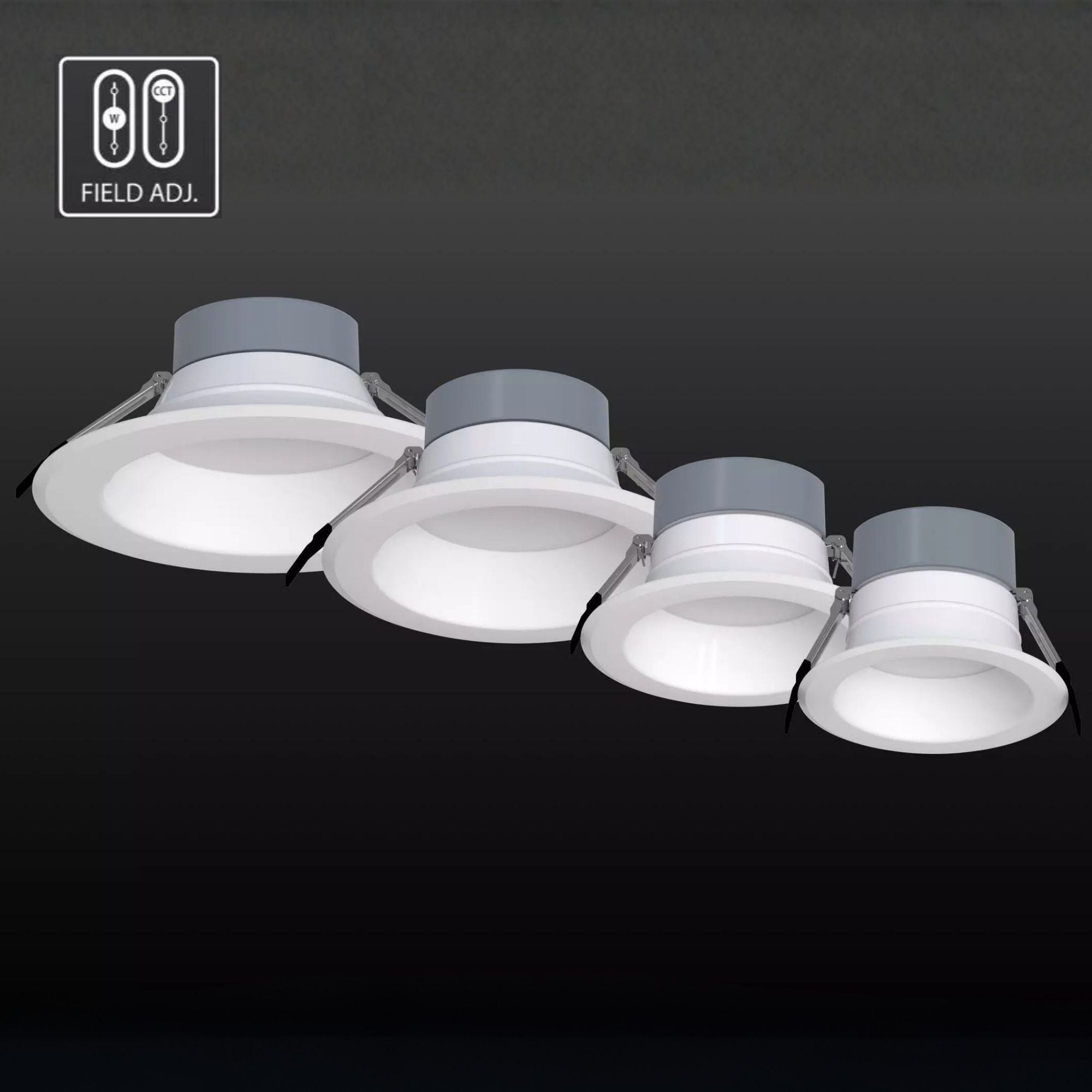

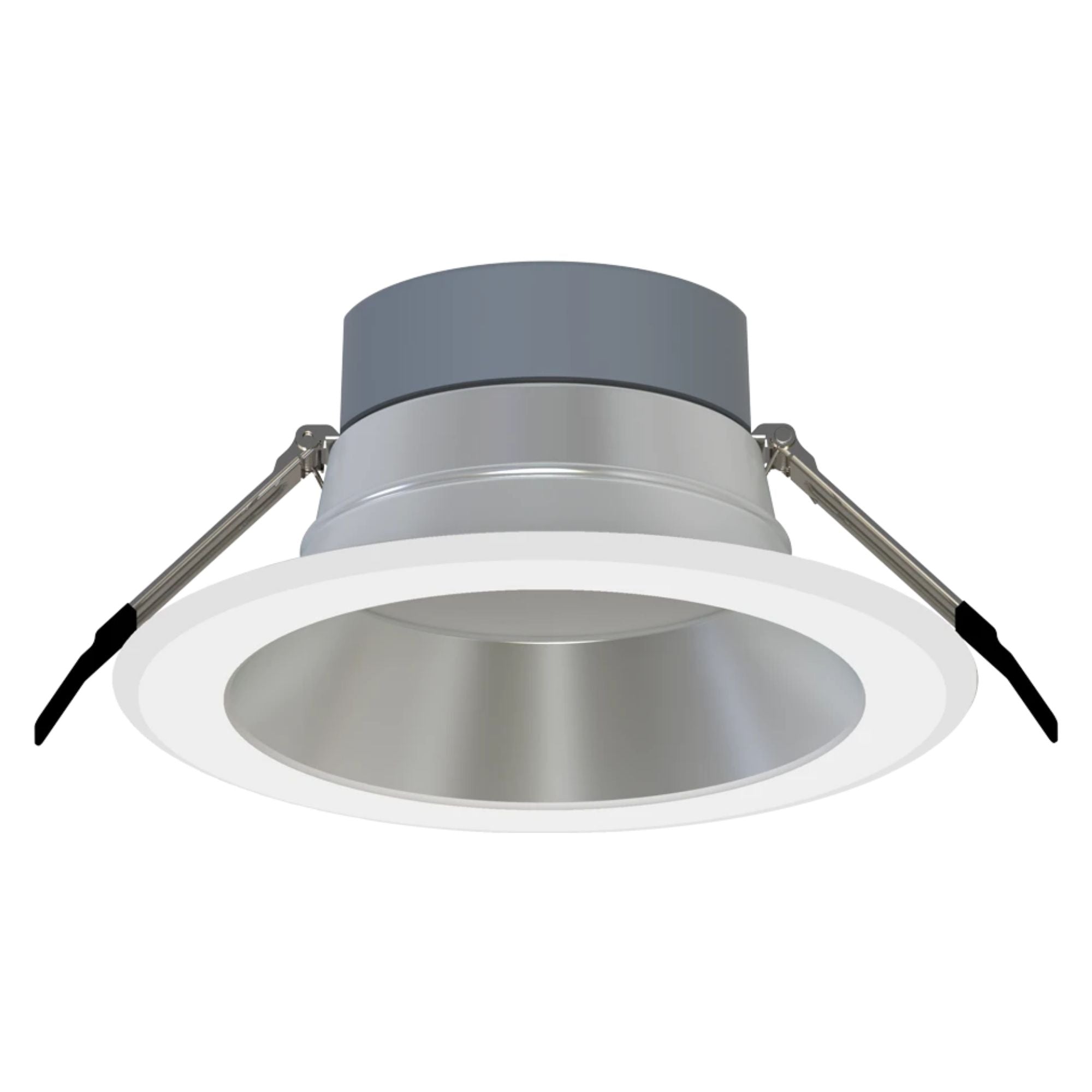

The RAB CR-HW family is a field-adjustable commercial recessed downlight in haze white finish, available in 4 in, 6 in, 8 in, and 10 in aperture sizes. Each size features field-selectable wattage and CCT (2700K–5000K) via integrated dipswitches, with universal 120-277V input and dual dimming compatibility (0-10V and TRIAC/ELV). The spun aluminum enclosure maximizes passive cooling for long-term performance. All sizes are IC rated, ENERGY STAR Version 2.2 certified, and airtight certified per ASTM E283. Interchangeable color trim overlays available separately for all sizes.
Key Features
- Field-Selectable Wattage: Choose wattage at installation via dipswitch — 4 in: 6/8/10W; 6 in: 10/17/21W; 8 in: 16/24/30W; 10 in: 24/30/37W
- Field-Selectable CCT: Dip-switch adjustable between 2700K, 3000K, 3500K, 4000K, and 5000K on all sizes; default 2700K
- Lumen Output by Size: 4 in up to 1,000 lm | 6 in up to 2,500 lm | 8 in up to 3,500 lm | 10 in up to 4,500 lm (all at peak wattage)
- CRI: 90 with R9 > 50 for high color accuracy
- Beam Angle: 85° ±10° for broad, even illumination
- Dimming: 0-10V dimmable to 10%; TRIAC/ELV dimmable to 10% at 120V
- Voltage: 120-277V universal on all sizes
- Integrated Driver: Mounts on top of fixture; connects to junction box (not included) via MC Whip cable
- Enclosure: Spun aluminum for passive cooling; haze white finish on all sizes
- Installation: Spring clips, 1/2 in to 2 in ceiling; remodel direct mount or retrofit into existing commercial housings
- Trim: Spun aluminum smooth splay reflector with polycarbonate lens; interchangeable color trim overlays sold separately
- IC Rated: All sizes suitable for direct contact with air-permeable insulation; not for use with spray foam insulation (consult NEMA LSD57-2013)
- Certifications: ENERGY STAR Version 2.2, Title 24 JA8, UL Listed/Classified, RoHS compliant, NEC compliant (Sec. 410.16)
- Warranty: 5-year no-compromise warranty
Smart & Control Features

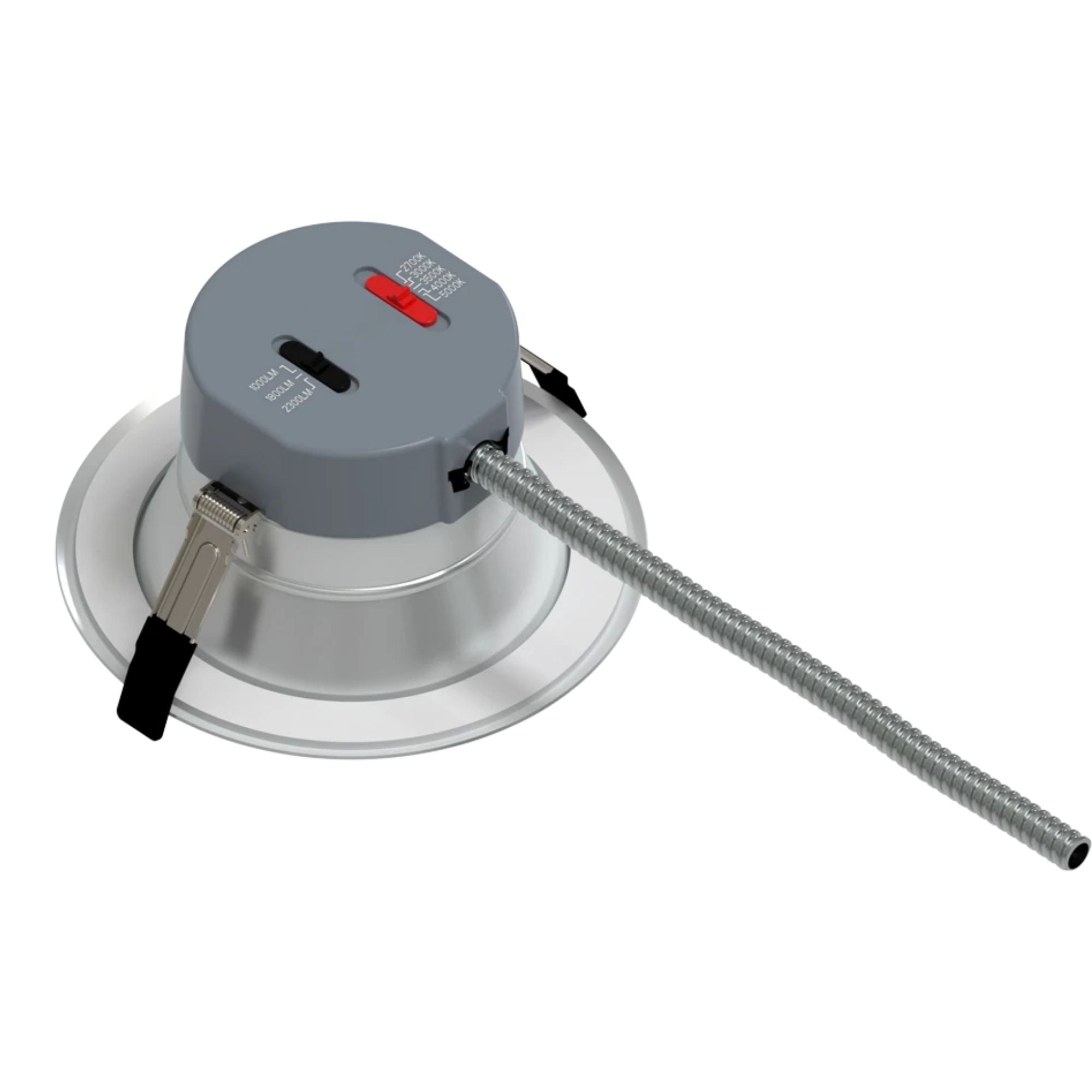

All CR-HW sizes dim to 10% on compatible 0-10V and TRIAC/ELV dimming systems. Both wattage and CCT are field-adjustable via integrated dipswitches at installation. Battery backup sold separately. Compatible emergency driver: DRI-21-EMGR-DC-D10; emergency driver T20.
Construction & Design

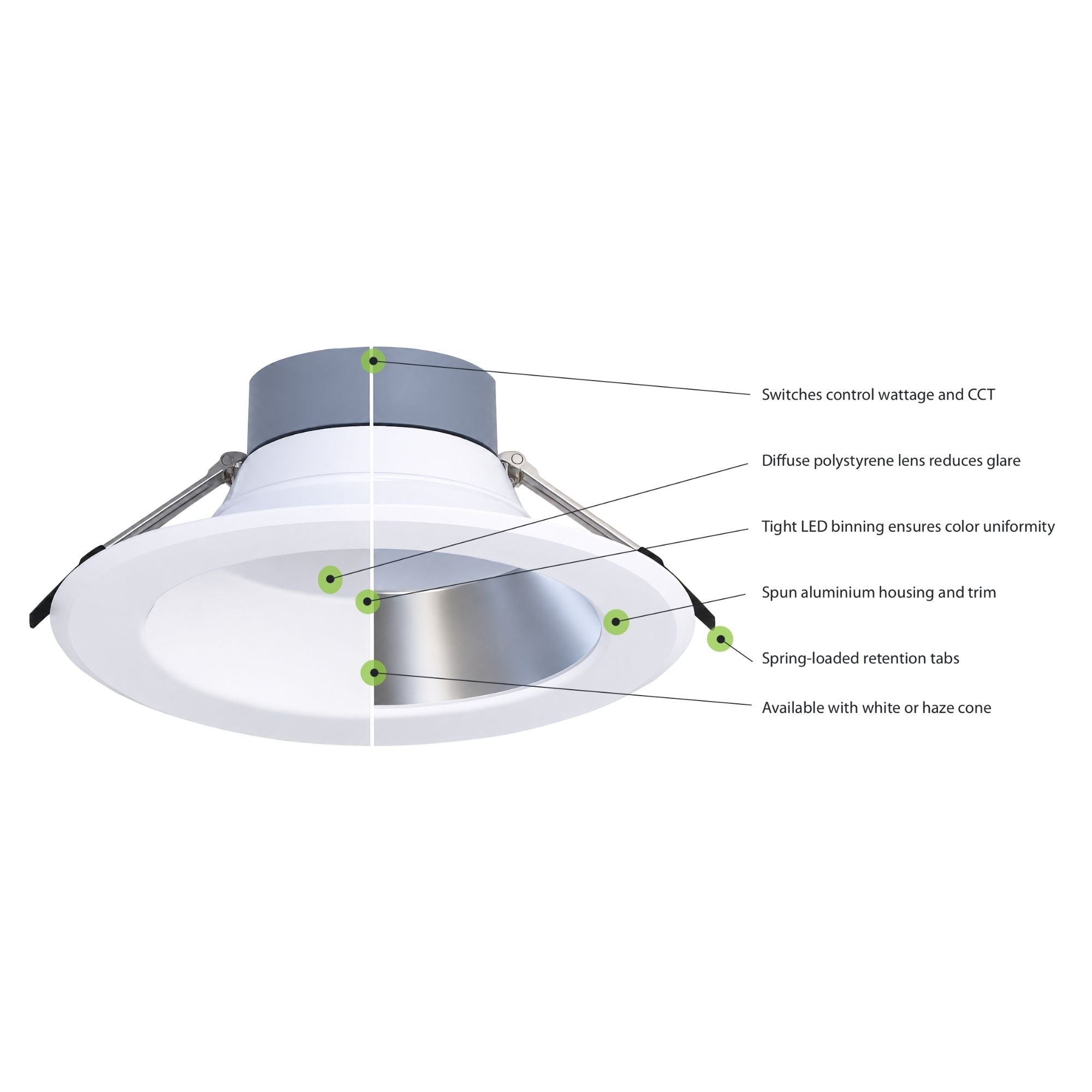

Each CR-HW fixture features a spun aluminum enclosure that maximizes passive cooling for long fixture lifespan, with a spun aluminum smooth splay reflector in haze white finish and a polycarbonate light diffuser for even, smooth general illumination. Spring action stainless steel clips allow for quick, tool-free installation. Interchangeable color trim overlays in smooth black, brushed nickel, bronze, haze white, and wall wash white (4 in, 6 in, 8 in) are available separately; 10 in available in black, brushed nickel, bronze, and haze white.
Light Output & Performance by Size
- 4 in (6/8/10W): Up to 1,000 lm | 100 lm/W | 23W CFL equiv.
- 6 in (10/17/21W): Up to 2,500 lm | Up to 119 lm/W | 52W CFL equiv.
- 8 in (16/24/30W): Up to 3,500 lm | Up to 117 lm/W | 75W CFL equiv.
- 10 in (24/30/37W): Up to 4,500 lm | Up to 122 lm/W | 100W CFL equiv.
All sizes: 90 CRI, R9 > 50, 85° beam angle, 50,000-hour L70 lifespan per IES LM-70.
Electrical & Installation

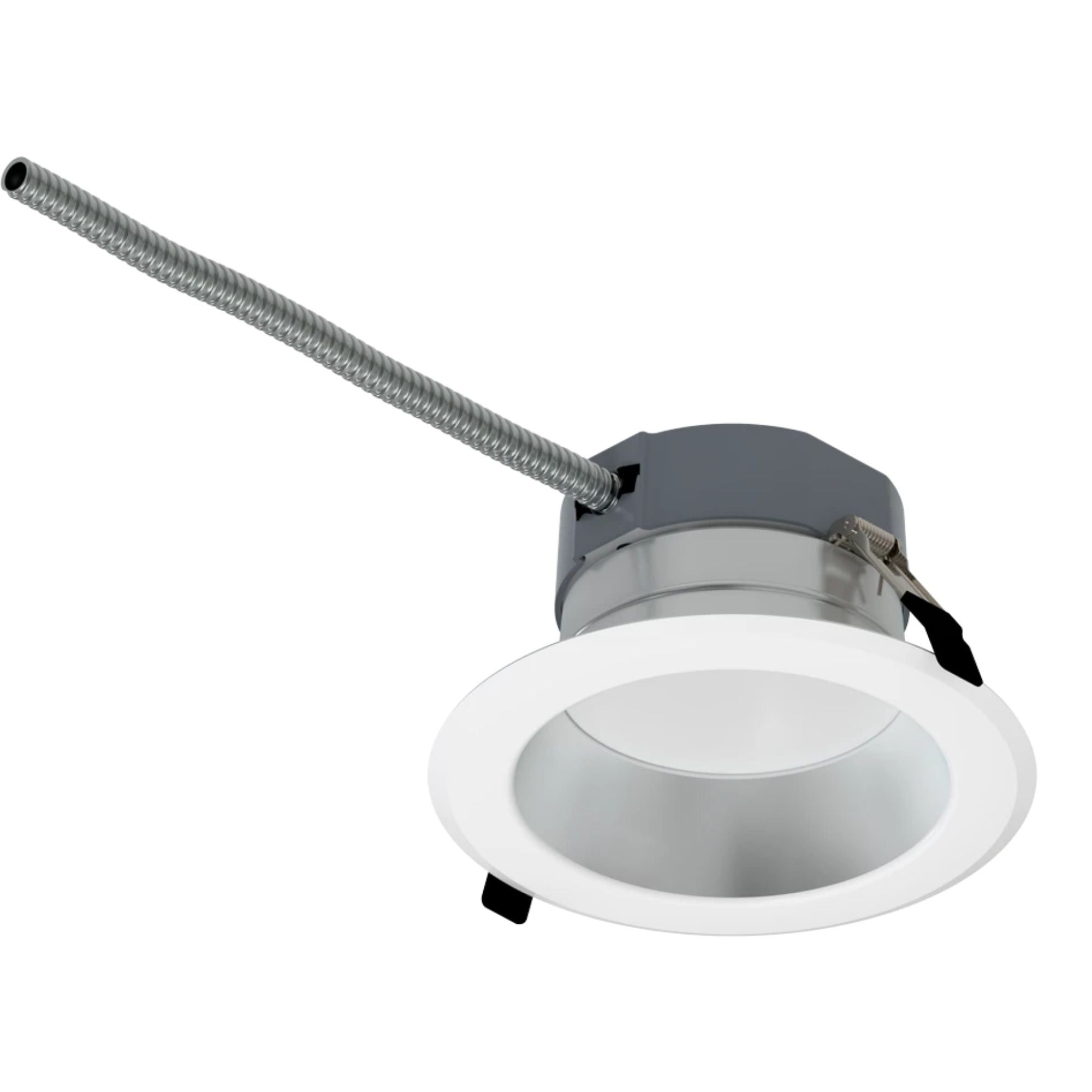

All sizes operate on 120-277V with a Constant Current, Class A driver integrated on top of the fixture. Connects to junction box (not included) via MC Whip cable. Dimmable to 10% via 0-10V or TRIAC/ELV systems. Spring action clips for quick ceiling installation from 1/2 in to 2 in thick. Suitable for remodel direct mount or retrofit into existing commercial downlight housings. All sizes IC rated for direct contact with air-permeable insulation (not spray foam); airtight certified (ASTM E283). Operating temperature: -4°F to 104°F.
What’s Included
- RAB CR-HW commercial downlight (size per variant selected, haze white finish)
- Integrated driver (mounted on fixture)
- MC Whip cable
- Stainless steel spring action mounting clips
- Compatible accessories: size-specific goof rings, color trim overlays, mounting plates (4 in & 6 in), and DRI-21-EMGR-DC-D10 emergency driver (all sold separately)
