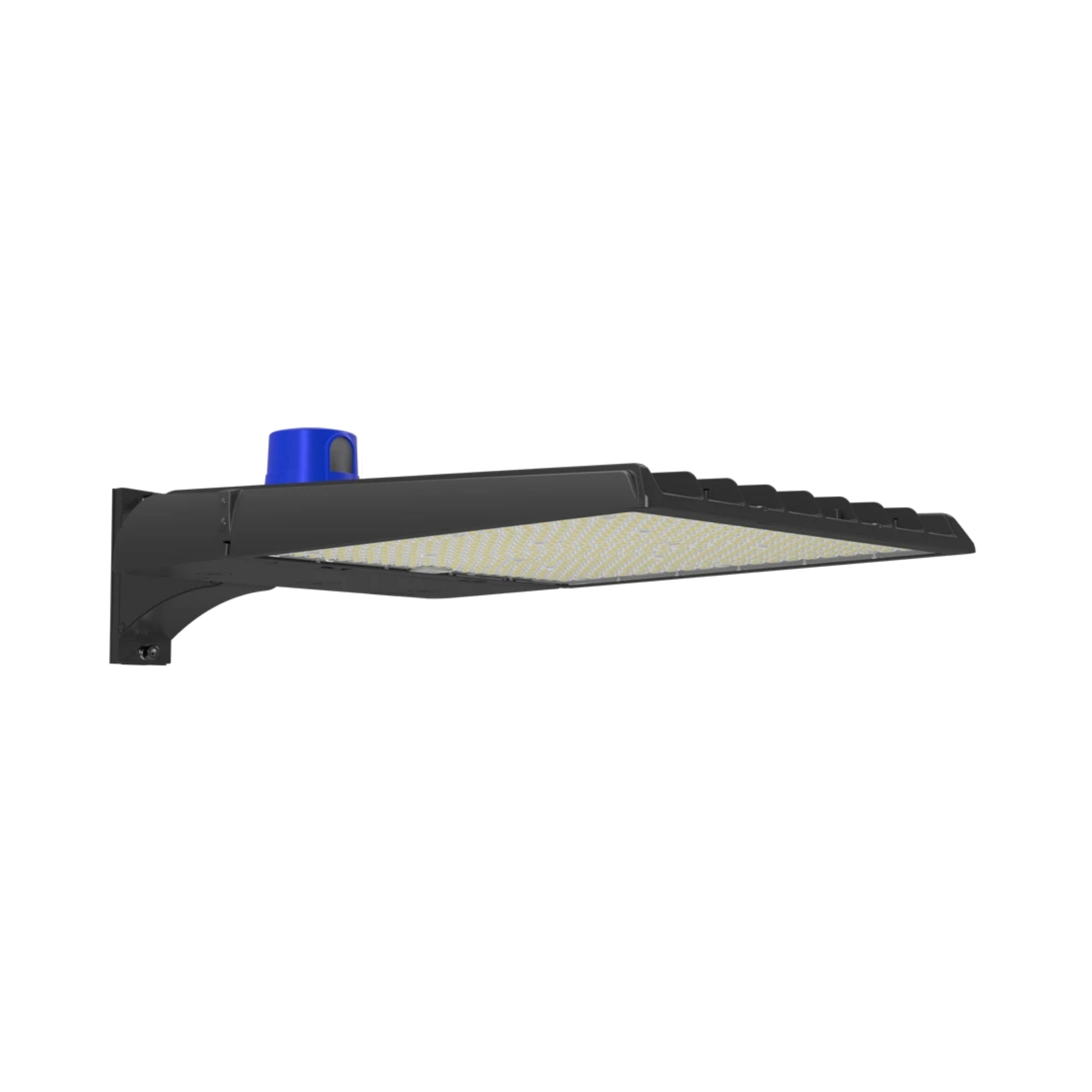

RAB AL22-150/AL22-300 Field Adjustable LED Area Light Selectable Wattage & Optics 120-480V Bronze/White
In stock
-
Estimated delivery: Jul 06 - Jul 12
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
RAB AL22-150 / AL22-150W / AL22-150/480 / AL22-150W/480 / AL22-300 / AL22-300W / AL22-300/480 / AL22-300W/480 Field Adjustable LED Area Light — Selectable Wattage & Optics Series
The RAB AL22 series is a professional-grade, field-configurable LED area light engineered for demanding outdoor applications. Available in 150W (selectable 80/100/150W) and 300W (selectable 200/240/300W) configurations with universal voltage options of 120-277V or 480V, and finish choices of Bronze or White, the AL22 delivers up to 49,904 lumens at up to 176 lm/W efficacy. Field-adjustable optics (Type III, IV, or V) and selectable CCT (3000K/4000K/5000K) make this fixture adaptable to virtually any site requirement without ordering a new fixture.
Key Features
- Field-Selectable Wattage: 150W model adjustable to 80W or 100W; 300W model adjustable to 200W or 240W — dial in the right output on-site.
- Adjustable Optics: Field-configurable Type III, IV, or V light distribution for parking lots, roadways, walkways, and perimeter lighting.
- Selectable CCT: Choose 3000K (warm), 4000K (neutral), or 5000K (daylight) in the field without replacing the fixture.
- Dual Voltage Options: 120-277V or 480V universal drivers for standard and high-voltage installations.
- Housing Material: Die-cast aluminum housing with bronze or white powder coat finish.
- Environmental Ratings: IP66 rated — fully sealed against dust and high-pressure water jets.
- Vibration & Surge Resistance: 3G vibration rated and 6kV surge protection for reliable performance in exposed outdoor environments.
- Dimming Protocol: Standard 0-10V continuous dimming compatible with photocells and automated controls.
- Lifespan: 100,000-hour L70 rated lifespan for minimal maintenance.
- Operating Temperature: Rated up to 122°F (50°C).
- Controls Ready: Includes 7-pin NEMA receptacle and 3-pin twistlock photocell (120-277V or 480V).
Typical Applications
- Parking lots and parking structures.
- Roadway and street lighting.
- Pedestrian walkways and pathways.
- Commercial and industrial perimeter lighting.
- Campus and municipal area lighting.
Performance & Light Output
All AL22 models deliver selectable 3000K/4000K/5000K color temperature with 83–86 CRI for accurate color rendering in outdoor environments. Efficacy ranges from 170 to 176 lm/W depending on wattage and voltage configuration.
- AL22-150 / AL22-150W — 150W / 120-277V: up to 22,951 lumens | 170.2 lm/W
- AL22-150/480 / AL22-150W/480 — 150W / 480V: up to 22,855 lumens | 172.4 lm/W
- AL22-300 / AL22-300W — 300W / 120-277V: up to 49,904 lumens | 174.4 lm/W
- AL22-300/480 / AL22-300W/480 — 300W / 480V: up to 47,198 lumens | 176.8 lm/W
Field-Adjustable Wattage
The AL22's on-board wattage selector allows contractors and facility managers to reduce power consumption in the field without replacing the fixture. The 150W model can be set to 80W or 100W; the 300W model can be set to 200W or 240W. This flexibility supports phased energy reduction programs and simplifies inventory management across multi-site projects.
Adjustable Optics
The AL22 features a field-rotatable optical assembly that can be configured for Type III (asymmetric roadway), Type IV (forward throw), or Type V (square/symmetric) light distribution. This eliminates the need to stock multiple SKUs for different site layouts and allows distribution adjustments after installation if site conditions change.
Electrical & Controls
Each fixture is equipped with a universal driver supporting 120-277V or 480V input. Standard 0-10V dimming enables integration with occupancy sensors, daylight harvesting systems, and automated facility controls. The included 7-pin NEMA receptacle supports wireless control nodes, and the 3-pin twistlock photocell enables dusk-to-dawn operation out of the box.
Construction & Durability
The AL22 housing is constructed from rugged die-cast aluminum with a durable powder coat finish in Bronze or White. The fixture is IP66 rated, fully sealed against dust ingress and high-pressure water jets. 3G vibration resistance and 6kV surge protection ensure reliable long-term performance in exposed pole-mounted installations. Operating temperature is rated up to 122°F (50°C). Dimensions: 150W models — 27.69″ L × 10.63″ W × 7.44″ H (EPA: 0.55 ft²); 300W models — 31.69″ L × 14.0″ W × 7.44″ H (EPA: 0.87 ft²).
Compliance & Certifications
The RAB AL22 series is DLC listed for utility rebate eligibility and UL listed for wet locations. IP66 rated. Compliant with Buy American Act requirements for applicable projects.
Installation & Mounting
Each fixture includes an adjustable universal pole mount arm compatible with standard 2-3/8″ and 3″ tenons. Optional slipfitter mounts and wall mount bracket accessories are available separately. The field-adjustable optic assembly and wattage selector are accessible without special tools, simplifying commissioning and future adjustments.
What's Included
- AL22 LED Area Light Fixture
- Adjustable Universal Pole Mount Arm
- 3-Pin Twistlock Photocell (120-277V or 480V)
- 7-Pin NEMA Receptacle
