RAB AEROBAY Field-Adjustable Linear High Bay — 4 Sizes — 4000K / 5000K — 120–277V or 480V
Available in stock (100)
-
Estimated delivery: Sep 22 - Sep 26
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description
The RAB AEROBAY is a family of field-adjustable linear LED high bays engineered for the full range of commercial and industrial ceiling heights — from supplemental low-bay applications to the tallest industrial facilities. Four models — ARXS (1.5 ft), ARS (2 ft), ARM (3 ft), and ARL (4 ft) — each offer three selectable wattage steps and selectable CCT (4000K / 5000K) adjustable on-site before installation. Every model is available in 120–277V and 480V. UL listed for wet locations. DLC Premium listed on all eight voltage variants. Rated life 100,000 hours. Backed by RAB’s 5-year no-compromise warranty covering light output, color stability, driver performance, paint finish, and labor.
Model & Voltage Selection Guide

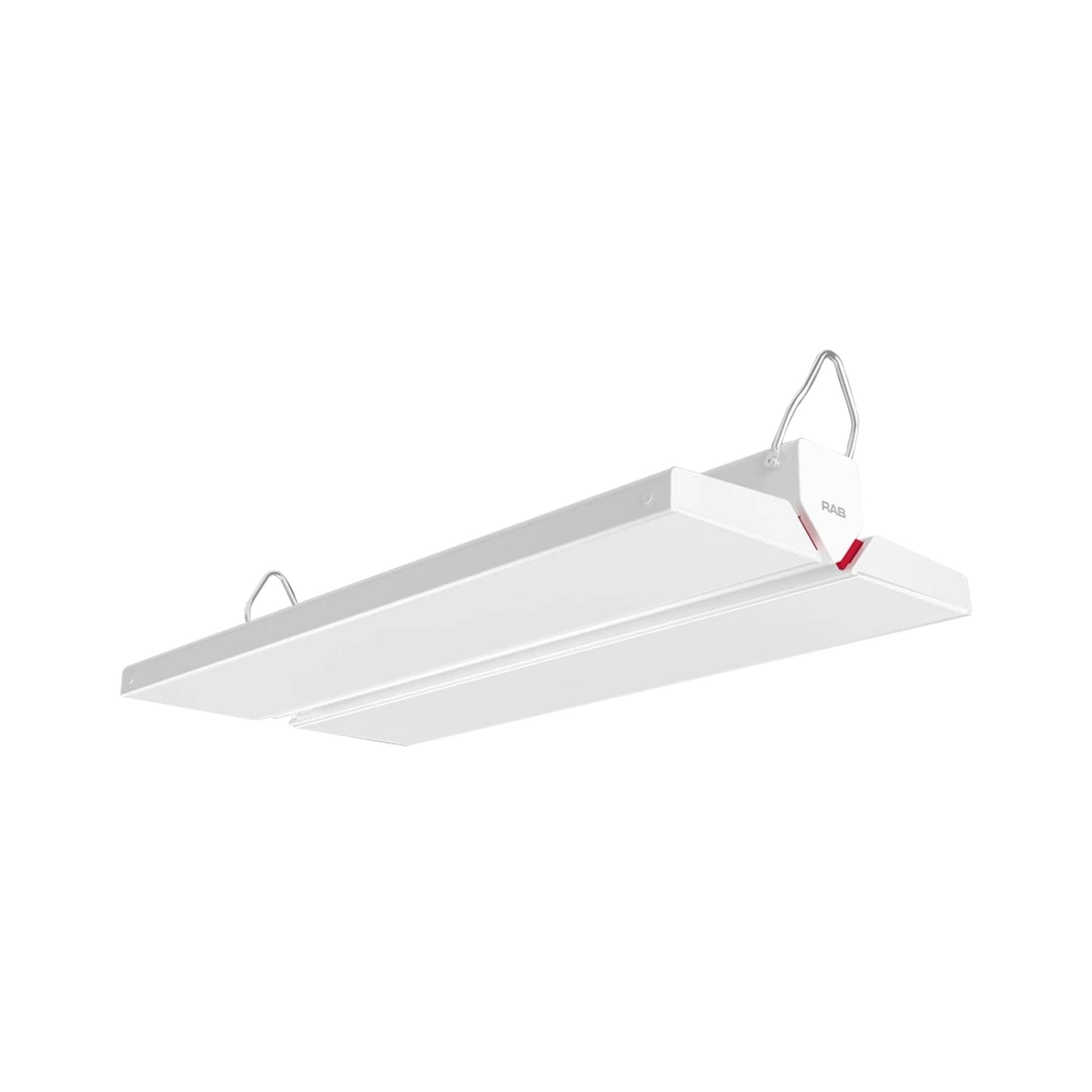

- ARXS — 1.5 ft (18"), 95W / 71W / 48W: Up to 13,085 lm (120–277V) | 13,706 lm (480V) | 5.1 lbs | DLC: S-19PC63 (120–277V) | S-RX31PQ (480V)

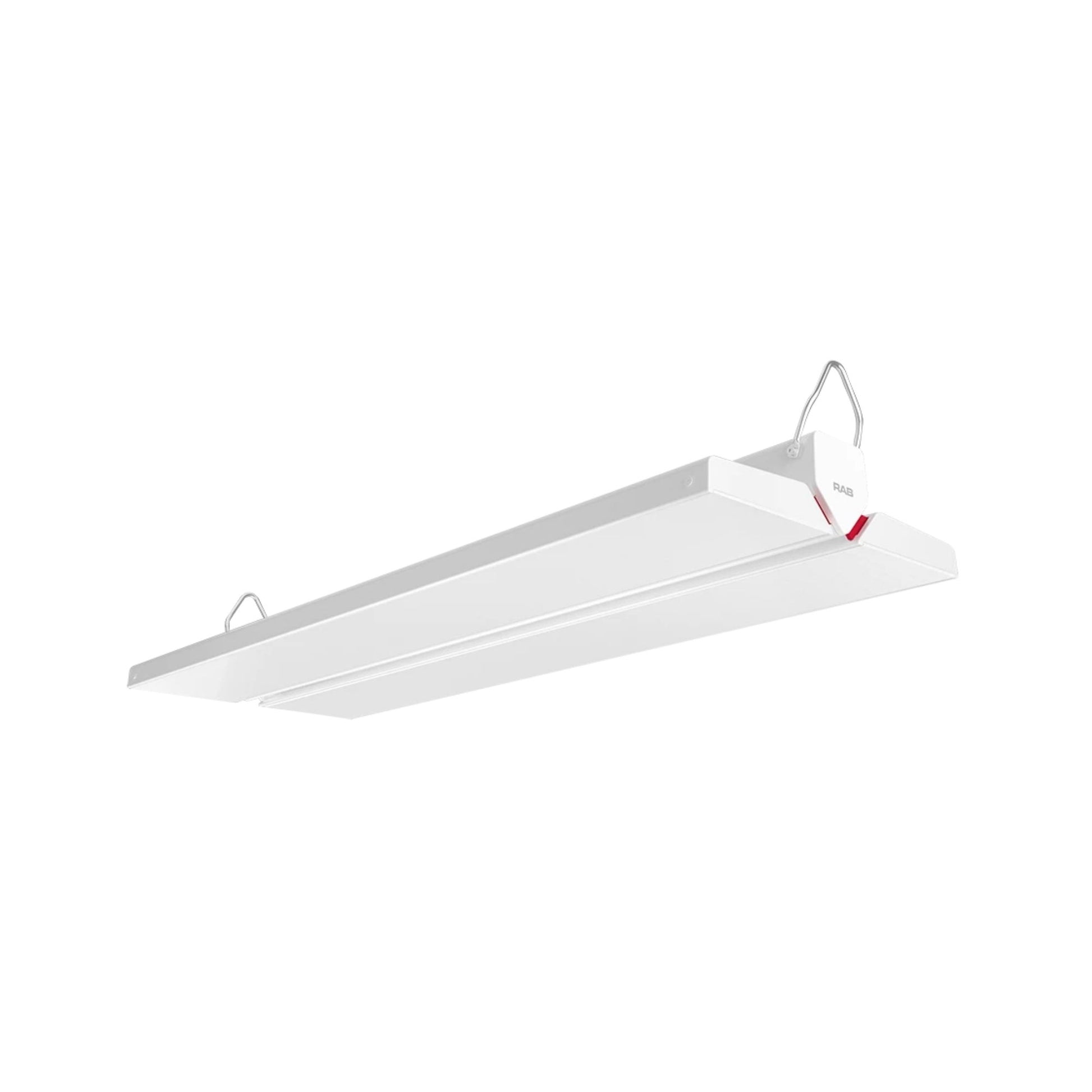

- ARS — 2 ft (24"), 160W / 120W / 80W: Up to 22,991 lm (120–277V) | 23,371 lm (480V) | 6.6 / 7.9 lbs | DLC: S-M11HJ7 (120–277V) | S-GX73YR (480V)

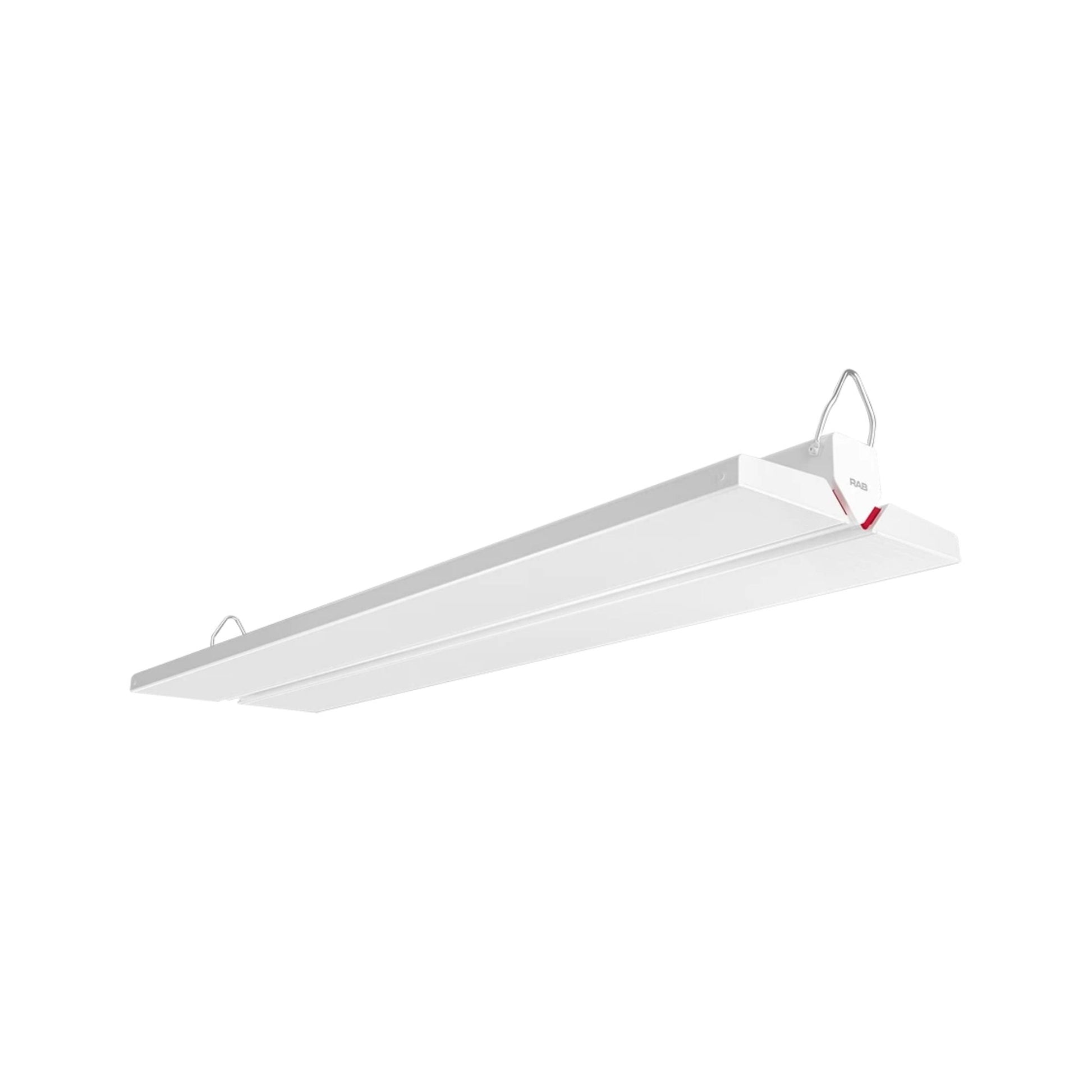

- ARM — 3 ft (36"), 275W / 206W / 138W: Up to 38,786 lm (120–277V) | 38,398 lm (480V) | 9.5 / 10.8 lbs | DLC: S-PD76PN (120–277V) | S-J35C7K (480V)
- ARL — 4 ft (48"), 360W / 270W / 180W: Up to 49,779 lm (120–277V) | 53,382 lm (480V) | 12.0 / 14.6 lbs | DLC: S-8VZGVK (120–277V) | S-D56PQG (480V) | CRI 86
Key Features — All Models
- Field-Selectable Wattage: 3 steps per model — ARXS: 95/71/48W | ARS: 160/120/80W | ARM: 275/206/138W | ARL: 360/270/180W
- Field-Selectable CCT: 4000K / 5000K — all models
- CRI: 85 (4000K) for ARXS/ARS/ARM | 86 (4000K) for ARL | 83–84 (5000K) all models
- Dimming: 0–10V dimmable driver standard — all models, both voltages
- Voltage: 120–277V or 480V — select at time of order
- Location Rating: UL listed for wet locations — all models
- Max Ambient Temperature: 50°C (122°F) — all models
- Rated Life: 100,000 hours (IES LM-80 / TM-21) — all models
- DLC Premium: All 8 voltage variants listed — all qualify for utility rebate programs
- Green Technology: Mercury and UV free, RoHS-compliant — all models
- BAA: Available upon request — contact customer service
- Warranty: 5-year no-compromise warranty — all models
Performance Summary
All values at 4000K (peak CCT), max wattage setting, 120–277V unless noted. ARXS (95W): 13,085 lm / 151.1 lm/W. ARS (160W): 22,991 lm / 153.8 lm/W. ARM (275W): 38,786 lm / 150.2 lm/W. ARL (360W): 49,779 lm / 117.1 lm/W at 120–277V | 53,382 lm / 147.2 lm/W at 480V. Peak efficacy achieved at mid-wattage settings on most models. Full wattage × CCT × voltage lumen matrix available on the RAB AEROBAY spec sheet. Rated life 100,000 hours per IES LM-80 / TM-21 projections.
Smart & Control Features
All AEROBAY models support Lightcloud Blue (LC Blue) controls and occupancy sensors via suffix ordering. Specify suffix at time of order:
- /LCBS/MVS: Lightcloud Blue enabled + Microwave Occupancy Sensor
- /LCBS: Lightcloud Blue enabled + Passive Infrared Sensor
- /E: Battery Backup — 120–277V only — not available on 480V variant
- /LCBS/MVS/E: LC Blue + MVS + Battery Backup — 120–277V only
- /LCBS/E: LC Blue + PIR + Battery Backup — 120–277V only
Lightcloud Blue: vacancy/occupancy modes, dimming profiles, daylight sensing (150–1500 lux threshold), occupancy timeout (1–240 minutes). Standard fixtures ship without controls; 0–10V dimming wiring included on all variants.
Electrical
0–10V dimming standard on all models and both voltage variants. 120–277V AC or 480V AC. Battery backup (/E) options available on 120–277V only. Mercury and UV free, RoHS-compliant. Green Technology.
Construction
Die-cast aluminum housing on all models. Finish formulated for high durability and long-lasting color. All models share 10" × 2-1/2" cross-section. Length: ARXS 18" | ARS 24" | ARM 36" | ARL 48".
Installation & Mounting
Standard mounting hardware included with all models. Pendant mounting supported via optional accessories — compatible with all AEROBAY sizes:
- ARP: AEROBAY Pendant Kit — sold separately
- ARP-ADJ: AEROBAY Adjustable Pendant Kit — sold separately
- ARP-EMB: AEROBAY Pendant Kit for EMB — sold separately
Certifications & Rebates
All models UL listed for wet locations. DLC Premium listed across all 8 voltage variants: ARXS (S-19PC63 / S-RX31PQ), ARS (S-M11HJ7 / S-GX73YR), ARM (S-PD76PN / S-J35C7K), ARL (S-8VZGVK / S-D56PQG). Eligible for utility rebate programs in most U.S. states and Canadian provinces. Verify eligibility at designlights.org. RoHS compliant. BAA-compliant versions available upon request.
Typical Applications
- Warehouses & Distribution Centers — All Heights: ARXS for supplemental/low-bay, ARS for mid-height, ARM for tall racking, ARL for high-cube and jumbo facilities — one product family covers the full spectrum
- Manufacturing & Industrial Facilities: Field-adjustable wattage and CCT adapt to changing process, inspection, and operational requirements across all four sizes
- Large Industrial Facilities with 480V Distribution: Every model available in 480V — DLC Premium listed on all 480V variants for rebate eligibility without transformer infrastructure
- Retail & Commercial High Bays: CRI 85–86 and 4000K / 5000K CCT selection deliver quality illumination for merchandise display and task areas
- Covered Outdoor & Wet-Location Facilities: UL wet location rating across all models supports covered outdoor bays, loading docks, and open-sided facilities
- Facilities Requiring Emergency Egress: /E battery backup (120–277V) available on all four models — maintains illumination for 90 minutes during power outages
What's Included
- RAB AEROBAY Linear High Bay (selected model and voltage) with integrated LED engine and driver
- Standard mounting hardware
