Satco Nuvo TK424 Angle Arm 36W H-Type LED Track Kit 3000K Black
Available in stock (71)
About this item
About this item
- Complete H-Type Kit: Three TH424 heads, 48 in Halo track, floating canopy power feed and mounting hardware.
- Focused Output: 3060 lumens total, 1020 lumens per head, 36° beams.
- Warm Color Quality: 3000K warm white, 90+ CRI, integrated LEDs.
- Angle Arm Design: Round directional heads, Black finish.
- Dimmable Lighting: 36W total, 120V phase-cut dimming, 30,000-hour rated life.
Description
Description
Satco Nuvo TK424 Angle Arm LED Track Lighting Kit Black

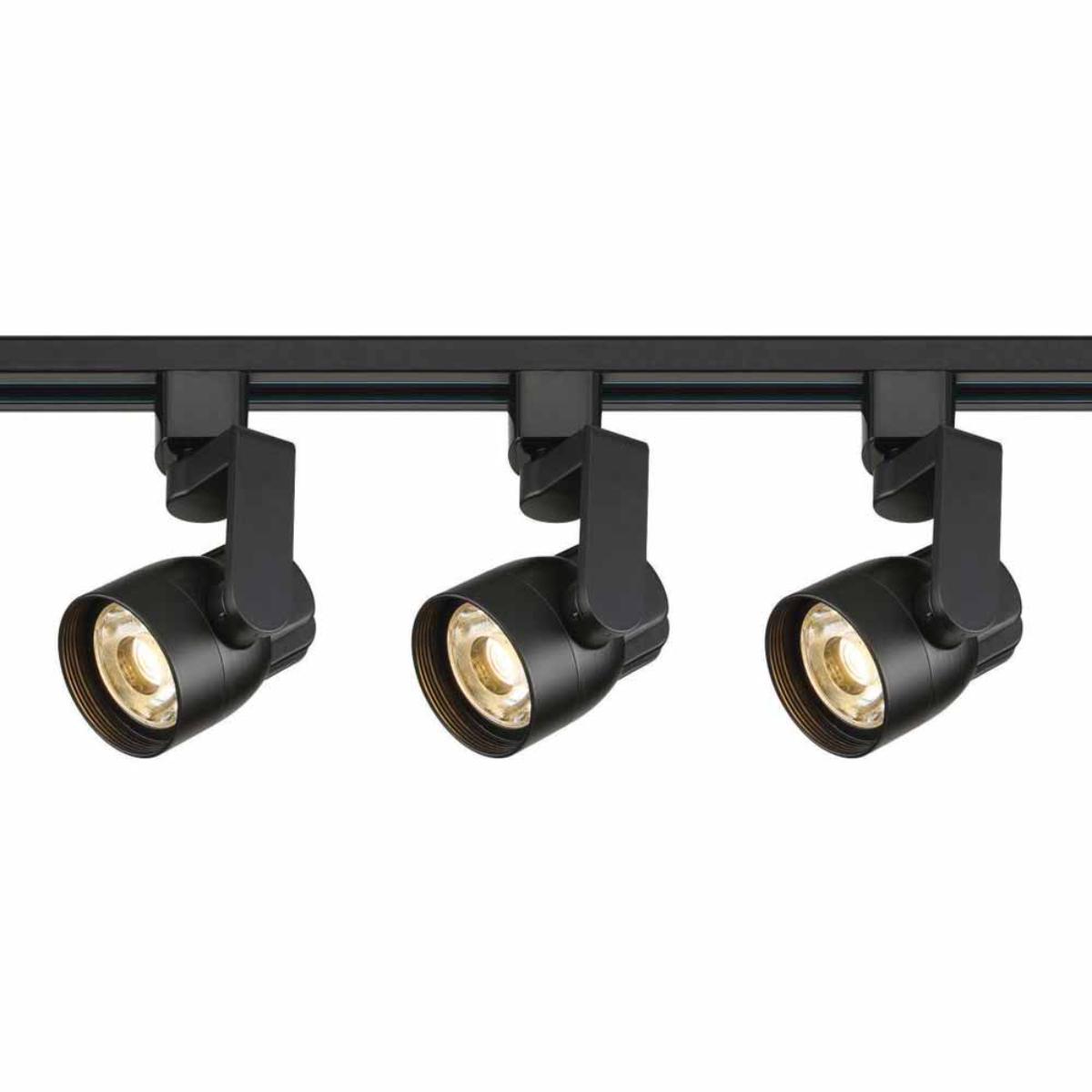

The Satco Nuvo TK424 combines three 12W angle arm LED heads with a 48 in H-Type Halo track and floating canopy power feed. Its round heads and Black finish create a coordinated lighting installation for artwork, shelving and indoor displays. The kit delivers 3060 lumens total at 3000K warm white, using 36W total with 36° beams for focused illumination.
Key Features
- Complete Kit: Three TH424 heads, TR121 48 in track, TP155 floating power feed and mounting hardware.
- Track System: H-Type Halo, 3-conductor connectors.
- Power: 12W per head, 36W total, 120V, 60Hz.
- Light Output: 1020 lumens per head, 3060 lumens total.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90+ CRI.
- Beam Angle: 36° per head.
- Design: Round heads with angle arms, Black finish.
- Material: Stainless steel.
- Dimming: 120V phase-cut dimming with compatible dimmers.
- Rated Life: 30,000 hours.
- Location & Standards: Indoor dry locations, cETLus listed, FCC and RoHS compliant, Title 24 JA8 compliant.
Construction & Design
The Black kit features round heads with angle arms for directing light toward selected objects and surfaces. Stainless steel construction provides the model-specific material specification. The supplied track is 48 in long. Each head measures 2.75 in in diameter and 3.38 in long, with a 5.75 in extension below the track.
Light Output & Performance
Each 12W integrated LED head produces 1020 lumens, giving the three-head kit 3060 lumens total. The 36° beam focuses illumination on artwork and displays, while 3000K warm white and 90+ CRI support inviting light and accurate color rendering. The LEDs have a 30,000-hour rated life.
Electrical & Installation
The TK424 operates on 120V at 60Hz with 36W total input. It supports 120V phase-cut dimming with compatible dimmers. Electrical specifications include 0.300A and a 0.94 power factor. The included TP155 floating canopy power feed supplies the TR121 H-Type Halo track, and the kit includes the required mounting hardware for ceiling installation. Use in dry indoor locations.
Typical Applications
- Living-room artwork and accent lighting.
- Indoor retail displays.
- Gallery walls and shelving.
- Office display areas.
What's Included
- Three TH424 Black angle arm LED track heads.
- One TR121 48 in track.
- One TP155 floating canopy power feed.
- All required mounting hardware.
