Satco Nuvo TH742 30W H-Type LED Track Head 5CCT Beam Adjustable Matte Black
Available in stock (14)
About this item
About this item
- Adjustable Coverage: 20°–50° beam spread for focused accents or wider displays.
- Five White Light Settings: 2700K, 3000K, 3500K, 4000K or 5000K, 90 CRI.
- Bright LED Output: 30W, 2100 lumens, 70 lm/W, 30,000-hour rated life.
- Adjustable Brightness: Dimmable with a compatible dimmer, 120V input.
- Coordinated Halo Design: Matte Black aluminum and steel housing, H-Type track, dry indoor use.
Description
Description

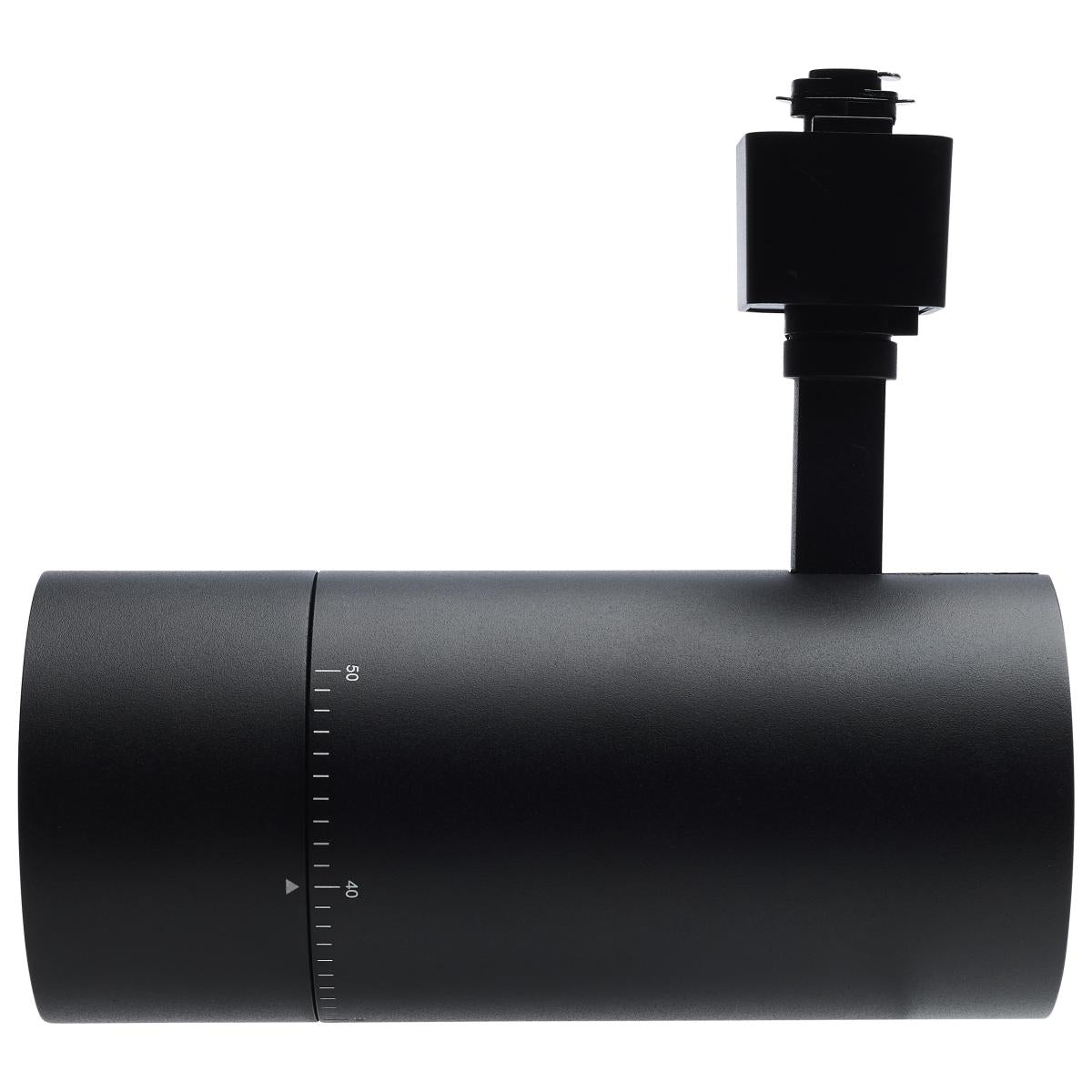

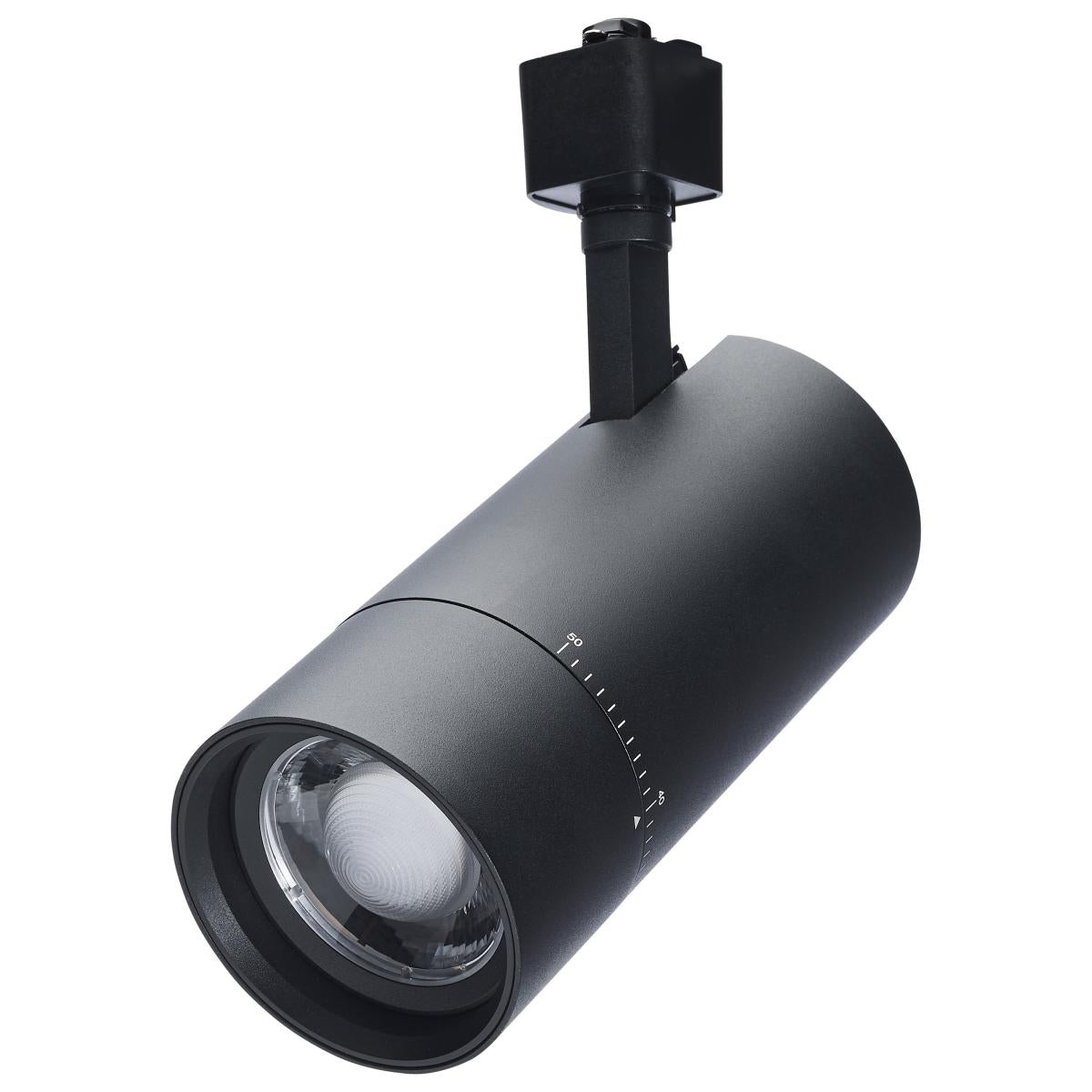

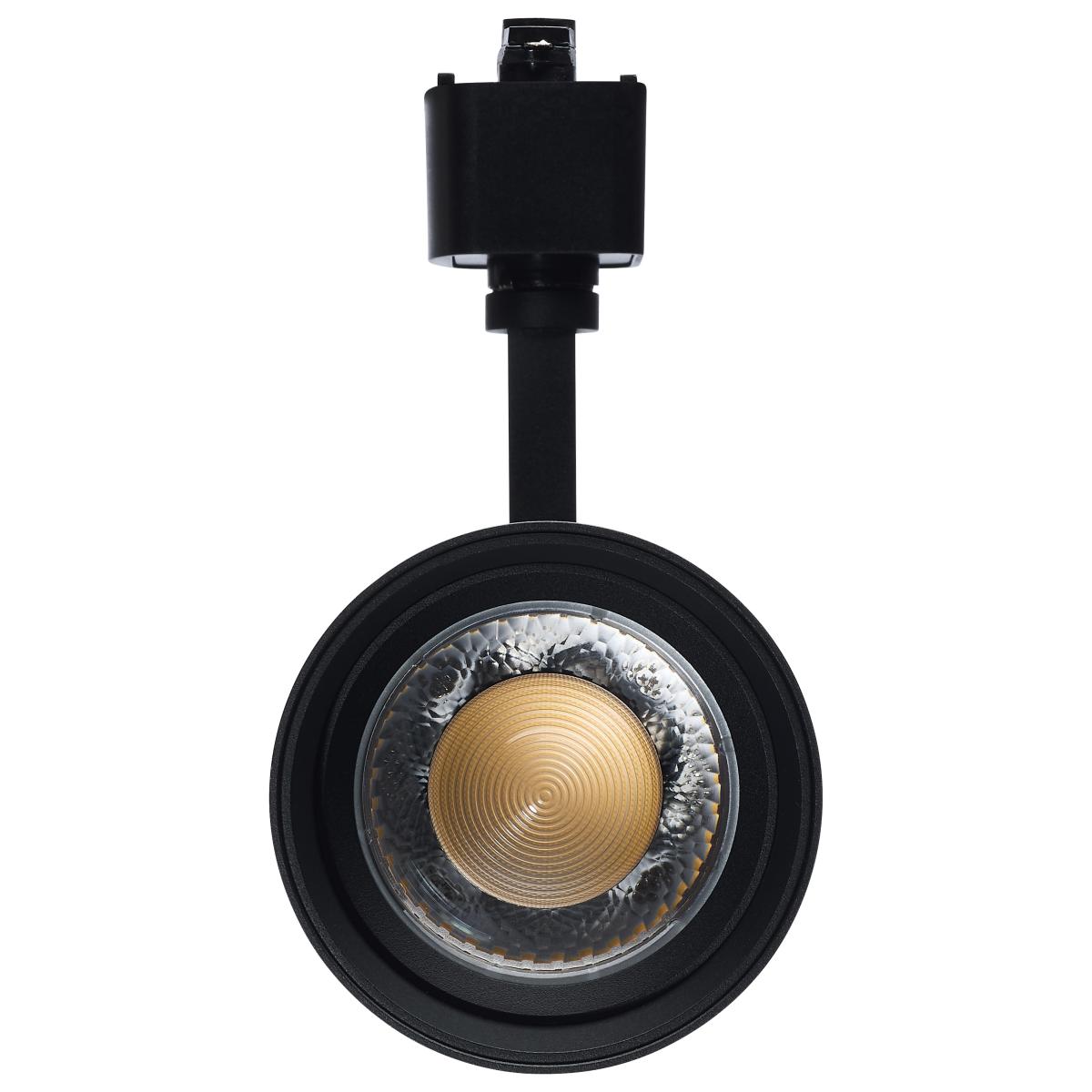

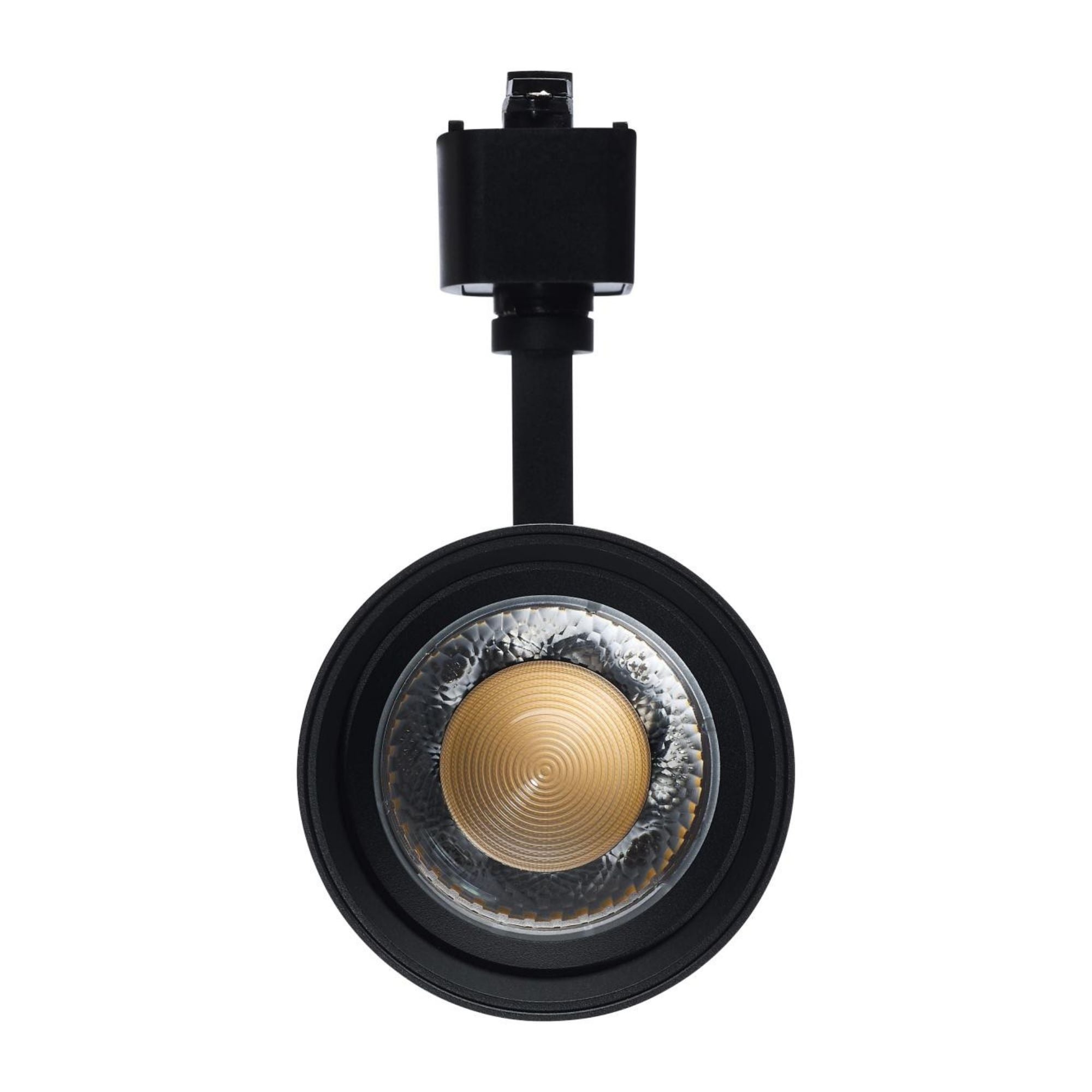

Satco Nuvo TH742 Beam Adjustable LED Track Head
The Satco Nuvo TH742 combines a Matte Black finish with an adjustable 20°–50° beam and five selectable color temperatures. Its 30W integrated LED delivers 2100 lumens with 90 CRI. Narrow the optical spread to emphasize a display or widen it to illuminate a broader area. Select a warm or cool white setting to suit artwork, merchandise or the surrounding interior.
Key Features
- Track Type: H-Type (Halo).

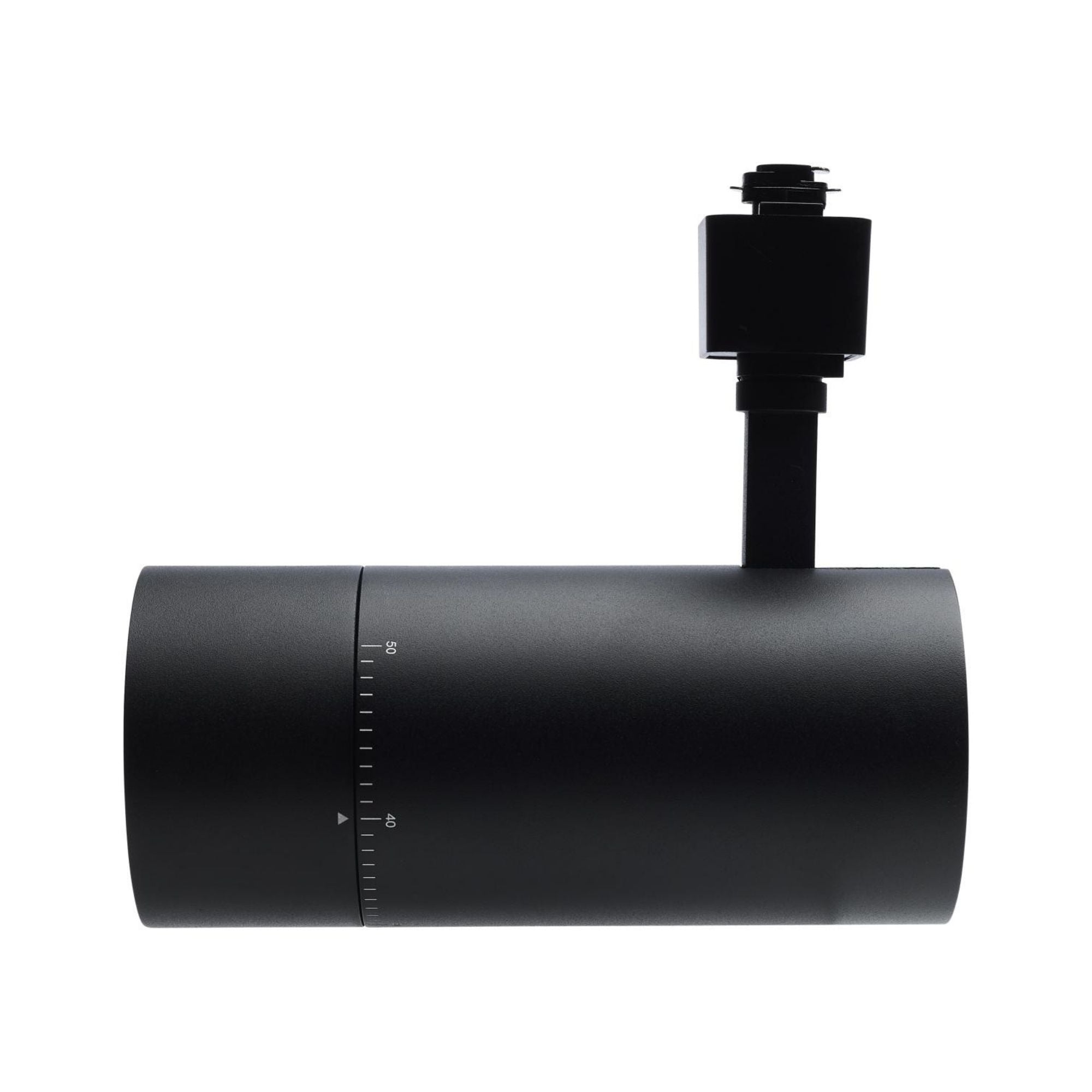

- Beam Spread: Adjustable from 20° to 50°.

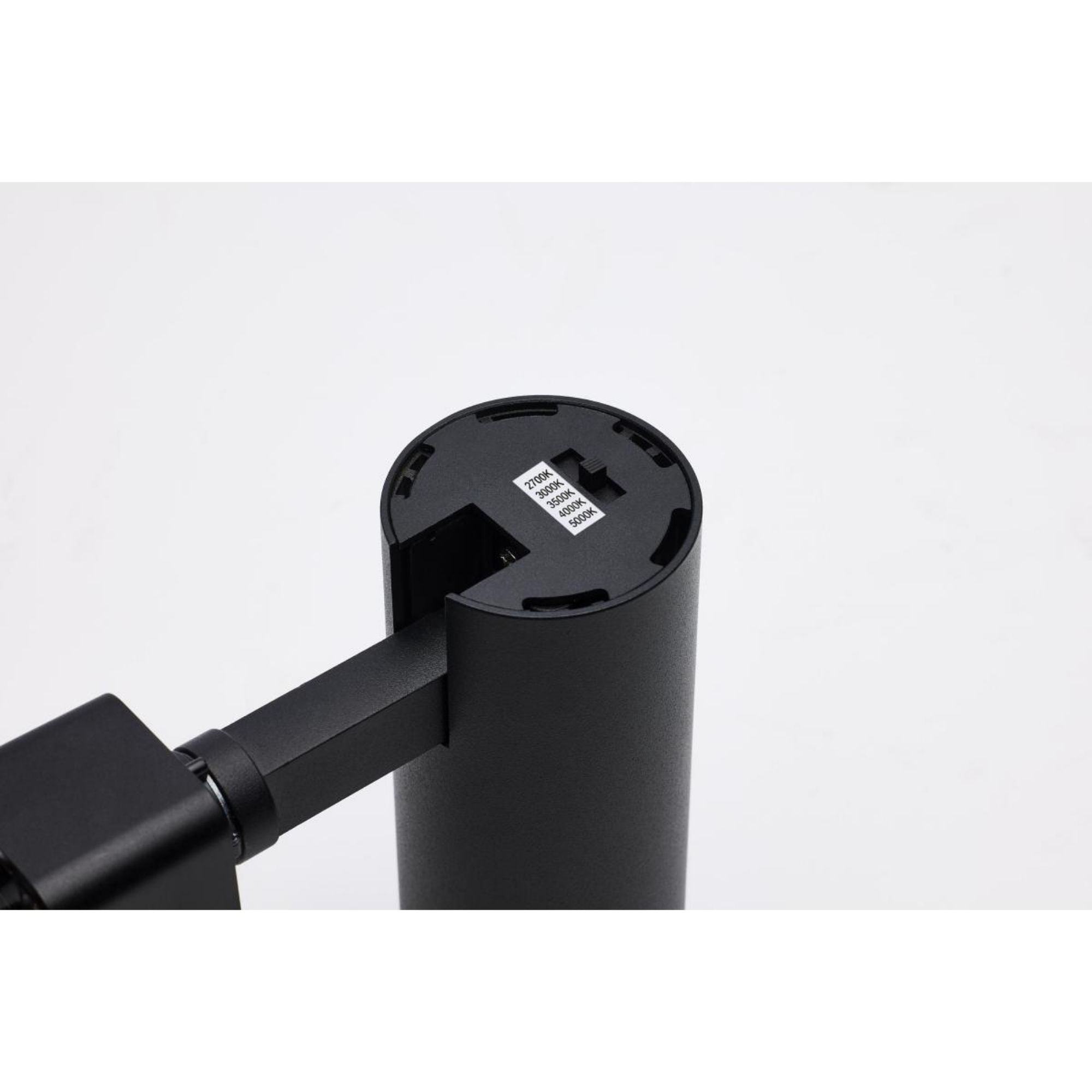

- Color Selection: 2700K, 3000K, 3500K, 4000K or 5000K.
- LED Power: 30W integrated LED.
- Light Output: 2100 lumens, 70 lm/W.
- Color Rendering: 90 CRI.
- Construction: Aluminum and steel.
- Finish: Matte Black.
- Brightness Control: Dimmable with a compatible dimmer.
- Input Voltage: 120V.
- Location: Dry indoor use.
- Rated Life: 30,000 hours.
Construction & Design

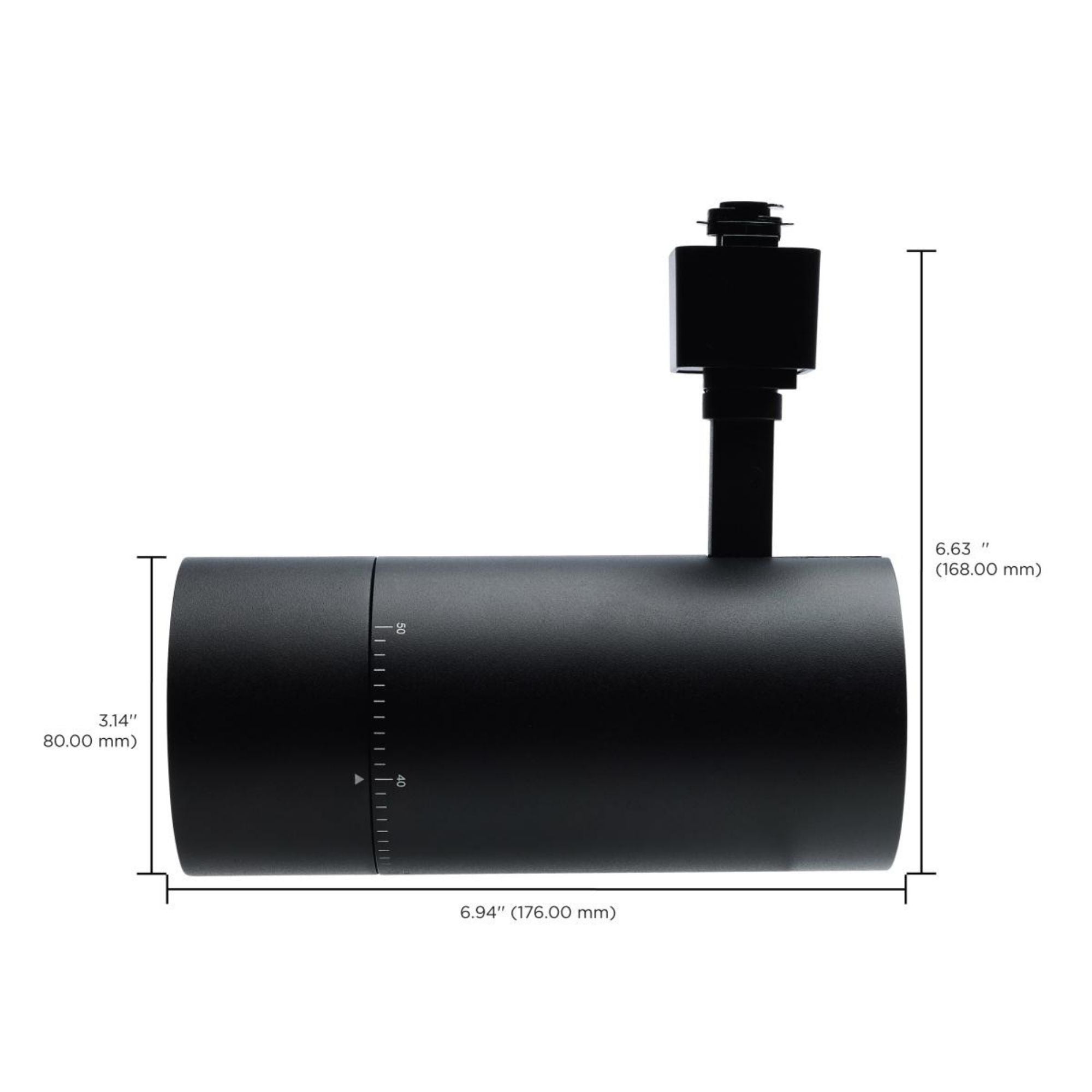

The Matte Black aluminum and steel housing coordinates with black track and dark ceilings for a cohesive installation. Beam adjustment changes the illuminated area, making the same head useful for focused accents or wider display coverage. Dimensions are 6.94 in length, 3.14 in width and 6.63 in height, with a 2.04 lb weight.
Light Output & Performance
The Satco Nuvo TH742 delivers 2100 lumens at 30W, with 70 lm/W efficacy and 90 CRI. Choose from 2700K, 3000K, 3500K, 4000K and 5000K to tailor the white-light appearance. The 20°–50° adjustable beam lets you match coverage to the size of the illuminated subject. Brightness is adjustable with a compatible dimmer, and rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH742 operates at 120V and is designed for H-Type (Halo) track in dry indoor locations. Use a compatible dimmer for brightness adjustment. Track rails, power feeds and connectors are sold separately and should be selected to suit the installation layout.
Compatible Accessories
Complete your beam-adjustable lighting arrangement with coordinating black Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single-circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).
Typical Applications

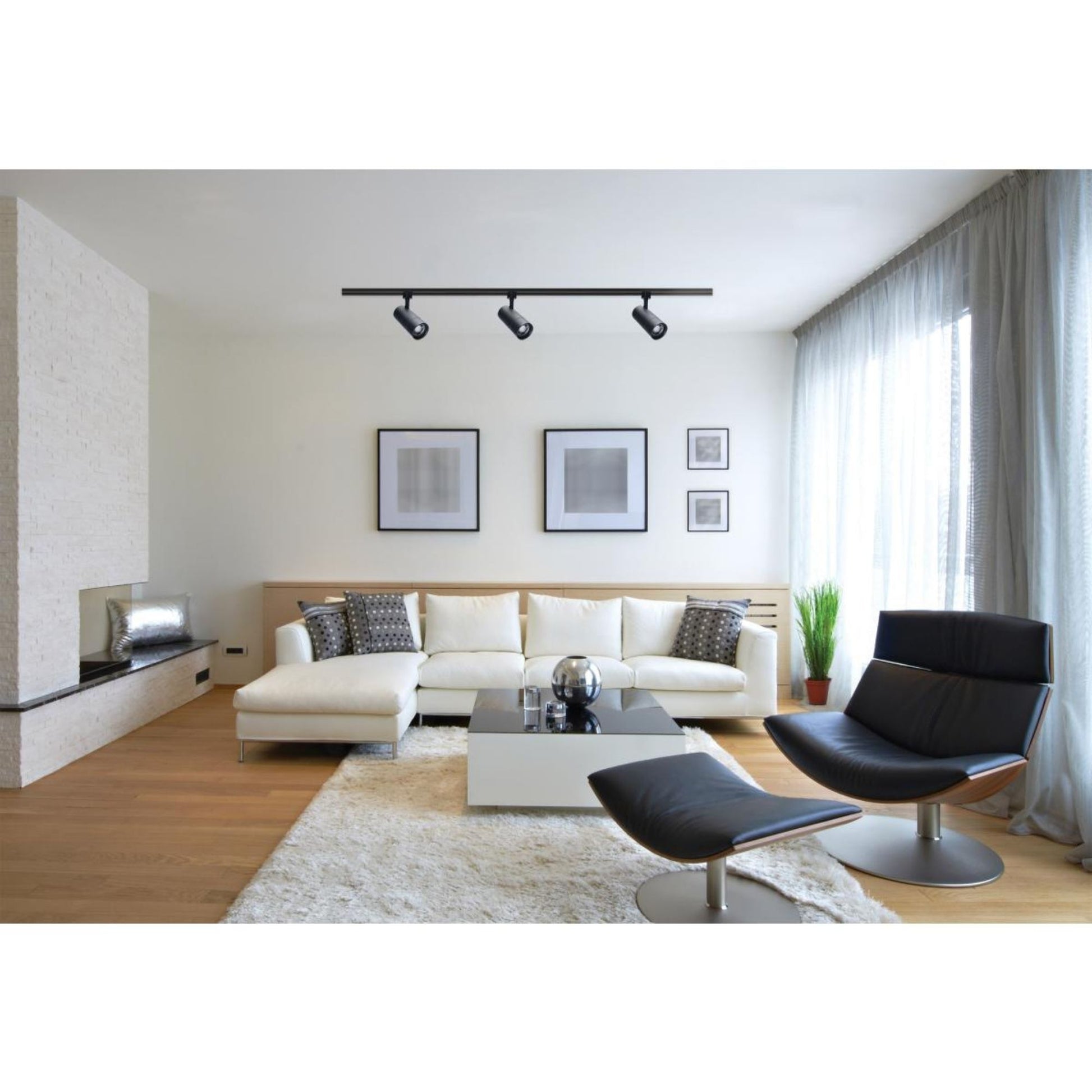

- Retail merchandise and showroom displays.
- Gallery artwork accents.
- Residential shelves and feature walls.
- Restaurant and hospitality interiors.
What's Included
- Satco Nuvo TH742 Matte Black track head with integrated LED.
