Satco Nuvo TH732 Beam Adjustable LED Track Head

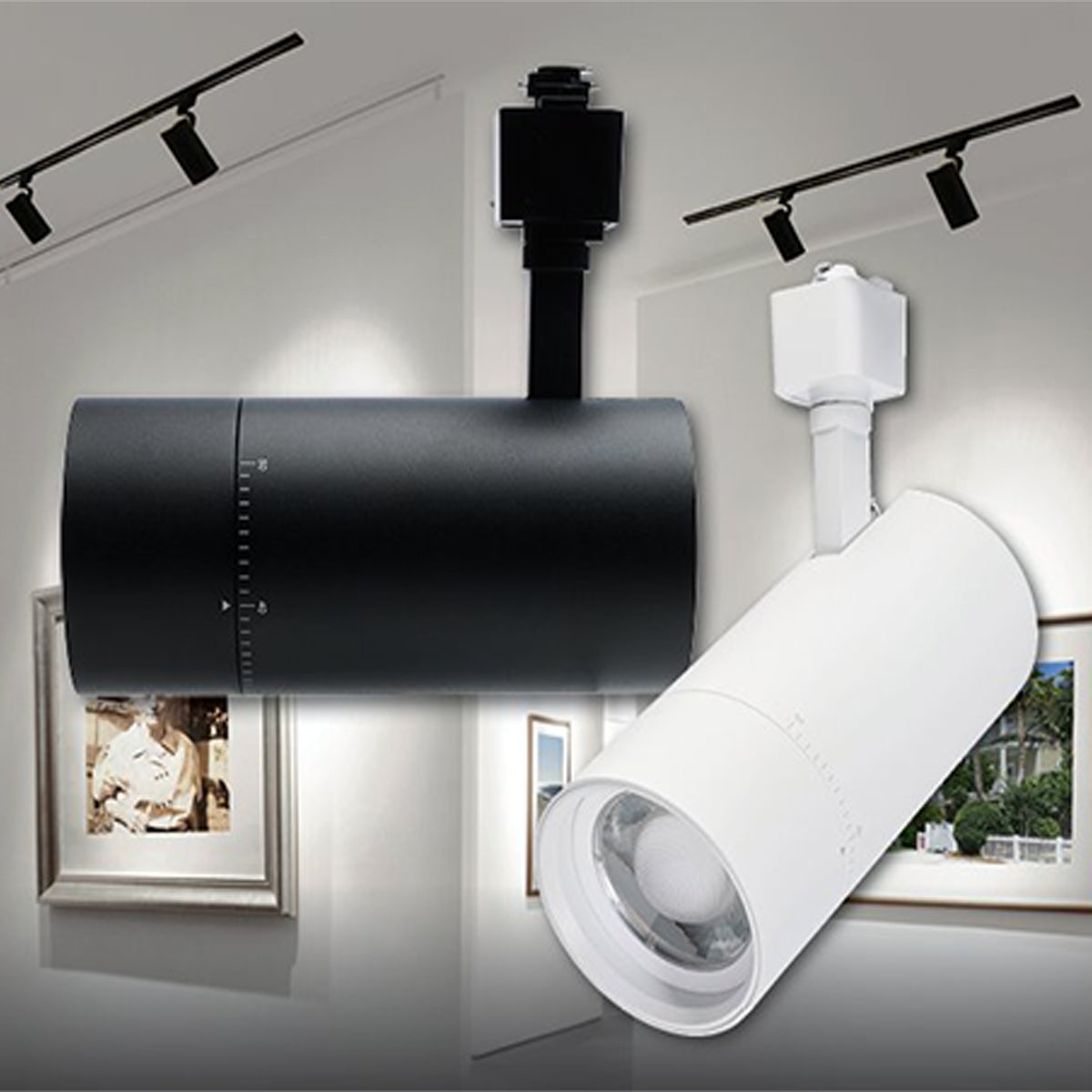

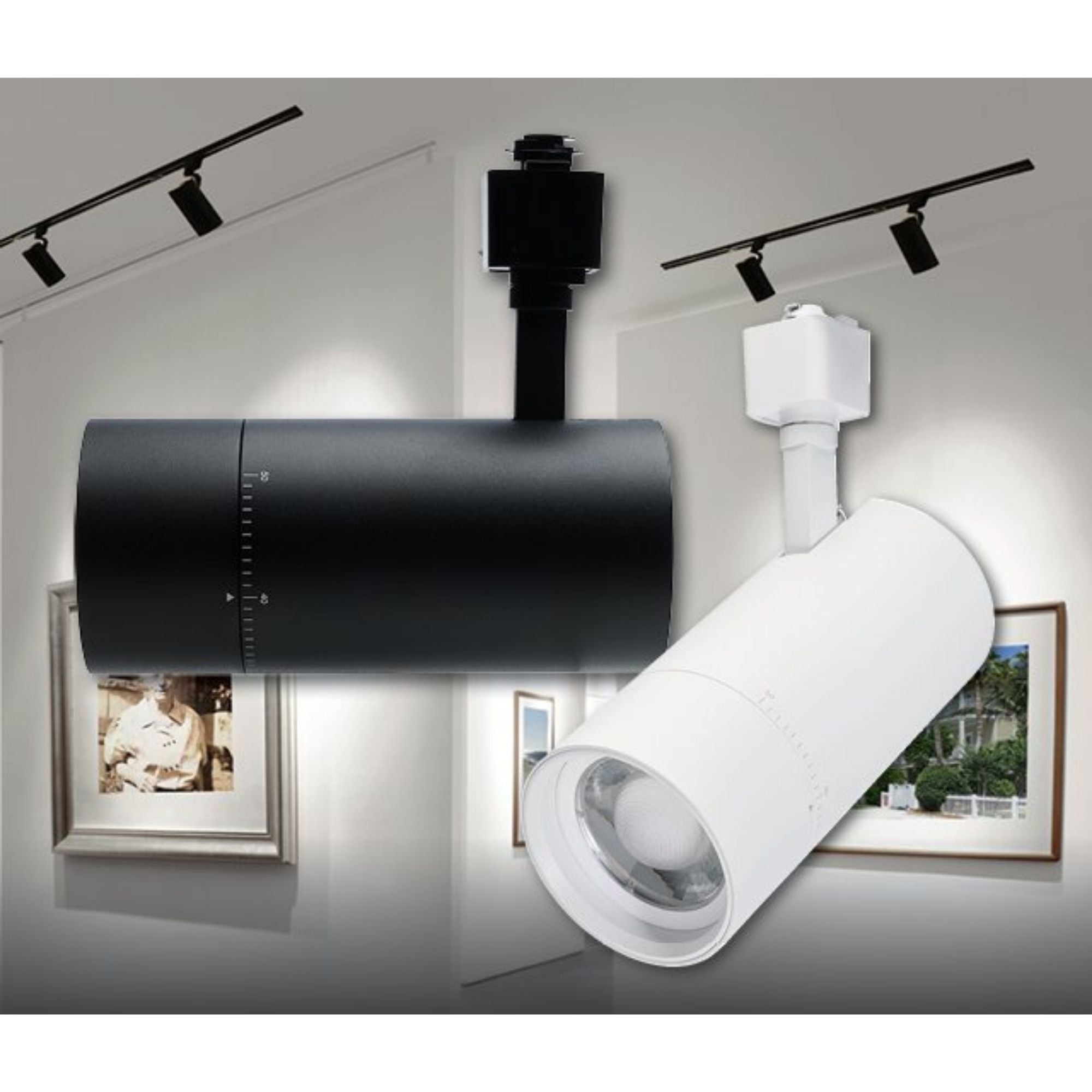

The Satco Nuvo TH732 combines a Matte Black cylindrical housing with an adjustable 20°–50° beam and five selectable color temperatures. Its 15W integrated LED delivers 1050 lumens with 90 CRI. Narrow the beam to emphasize a small display or widen it to cover a larger area, then select the white-light setting that suits your interior. Horizontal and vertical positioning let you direct the light independently of the optical beam adjustment.

Key Features

• Track Compatibility: Satco H-Type (Halo) track.
• Beam Adjustment: 20°–50° optical spread.
• Aiming: Horizontal and vertical positioning, 90° adjustable head.

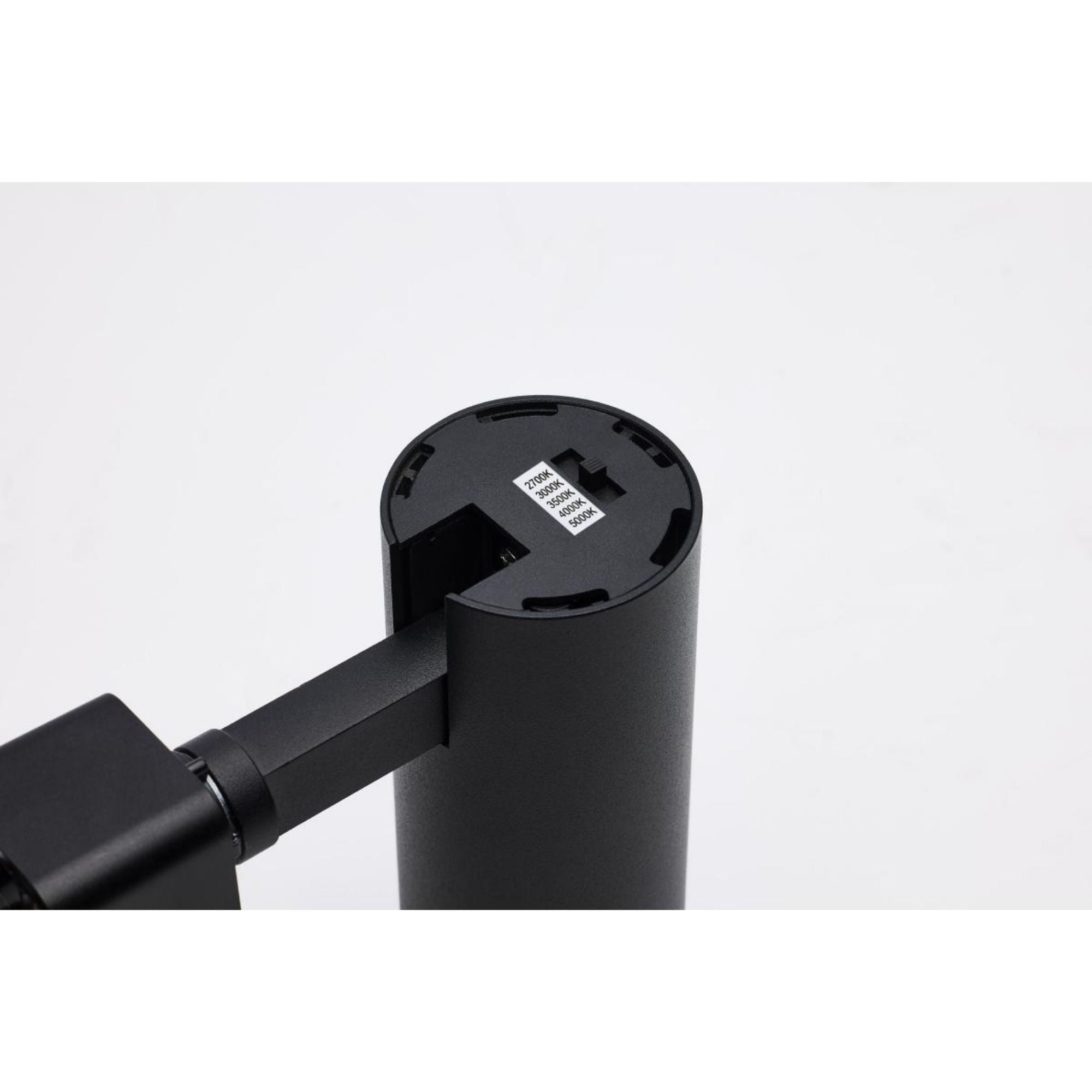

• Color Selection: ColorQuick switch, 2700K, 3000K, 3500K, 4000K or 5000K.
• LED Output: 15W, 1050 lumens, 70 lm/W.
• Color Rendering: 90 CRI.
• Construction: Aluminum and steel, PMMA lens.
• Finish: Matte Black.
• Dimming: Phase-cut dimmable down to 10% with a compatible dimmer.
• Electrical: 120V, 60Hz, 0.13A, power factor greater than 0.9.
• Location: Dry indoor use, -4°F to 104°F.
• Rated Life: 30,000 hours.

Construction & Design

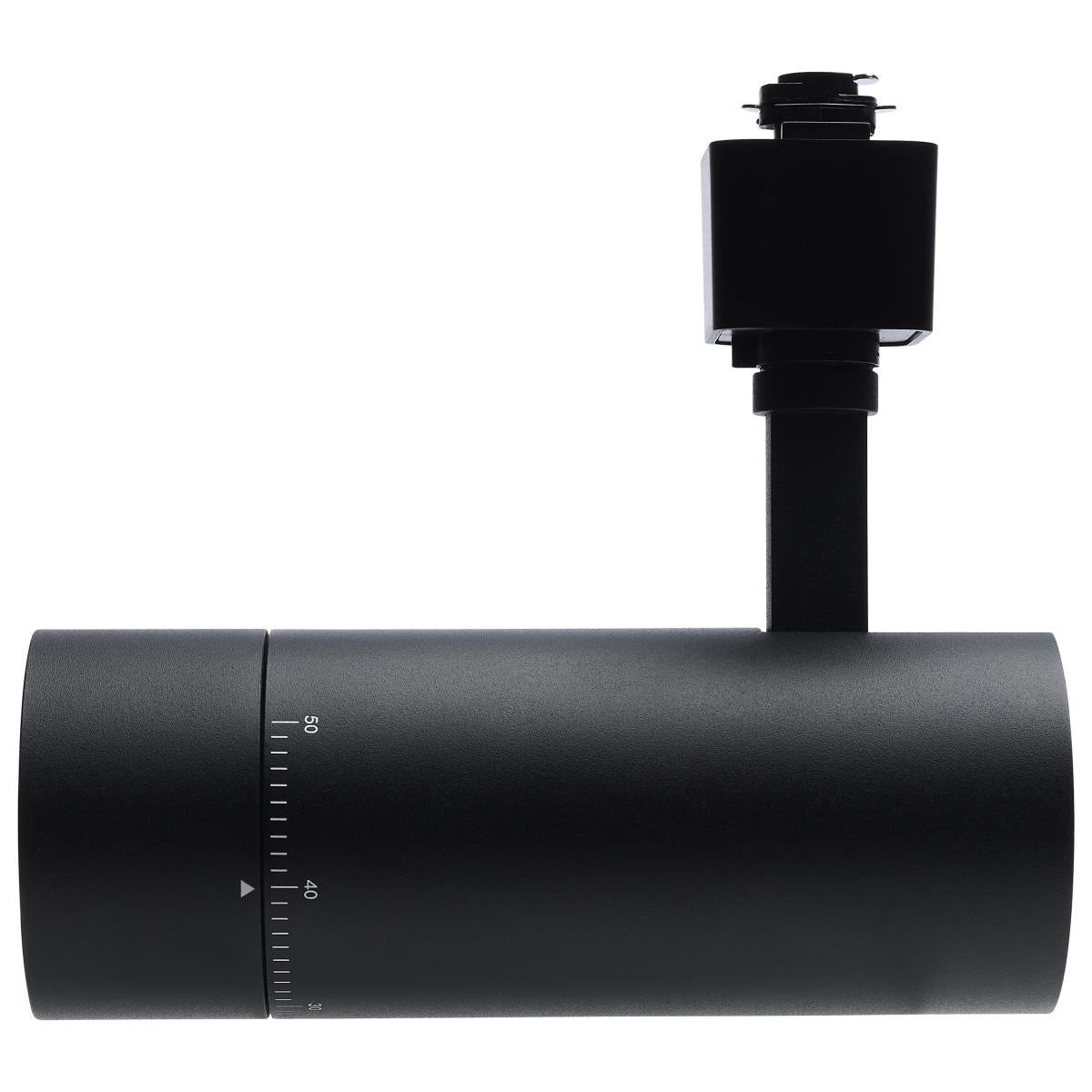

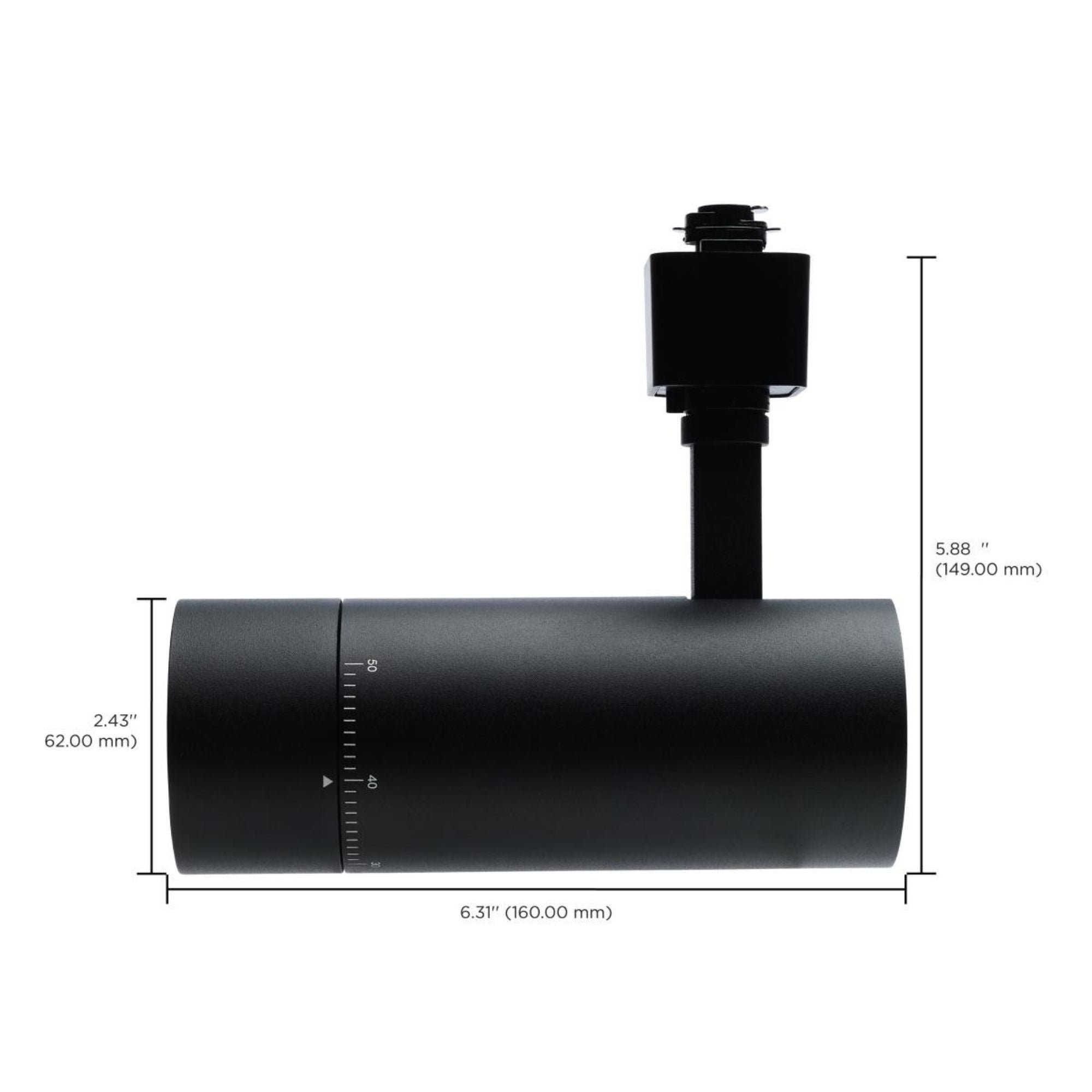

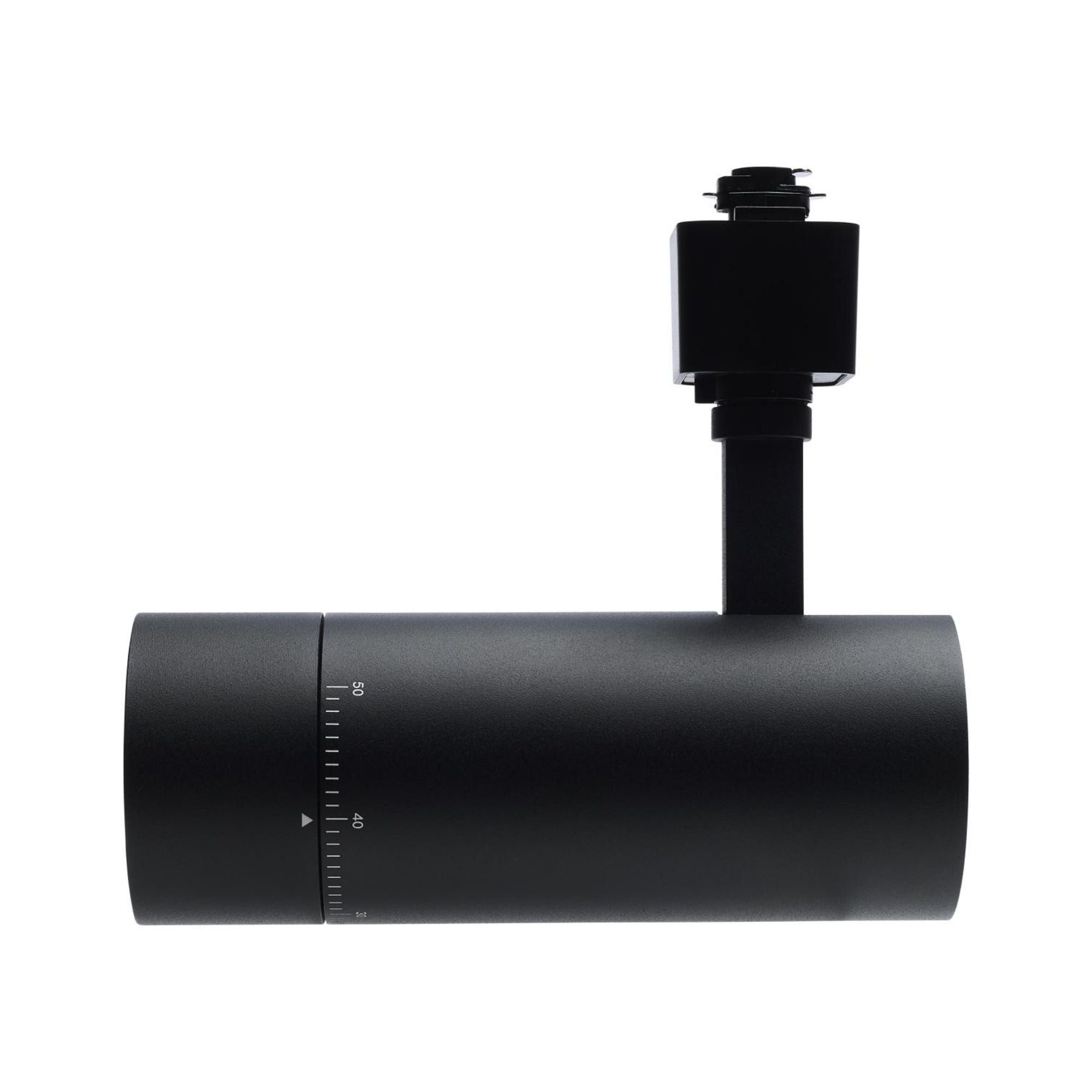

The Matte Black aluminum and steel housing coordinates with black track and dark ceilings. A marked beam-adjustment scale provides a visual reference for the 20°–50° spread, while the adjustable head helps direct illumination toward artwork, shelves or merchandise. The PMMA lens completes the optical assembly. Dimensions are 2.43 in width, 6.31 in length, 5.88 in height and 8.63 in extension, with a 1.40 lb weight.

Light Output & Performance

The Satco Nuvo TH732 produces 1050 lumens at 15W, with 70 lm/W efficacy and 90 CRI. Its ColorQuick CCT switch selects 2700K, 3000K, 3500K, 4000K or 5000K. Unlike a fixed-beam head, the optical spread adjusts from 20° to 50°. Phase-cut dimming reaches 10% with a compatible dimmer. Rated LED life is 30,000 hours.

Electrical & Installation

The Satco Nuvo TH732 operates at 120V, 60Hz, with 0.13A input current and power factor greater than 0.9. Install on compatible Satco H-Type (Halo) track in dry indoor locations within the -4°F to 104°F operating range. Use a compatible phase-cut dimmer for brightness adjustment. Rails, feeds and connectors are sold separately.

Compatible Accessories

Complete your beam-adjustable lighting arrangement with coordinating black Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.

• Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single-circuit H-Type.
• Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
• Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
• Track Mounting: TP241 black aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

Typical Applications

• Museum and gallery displays.
• Retail merchandise accents.
• Restaurant and hospitality interiors.

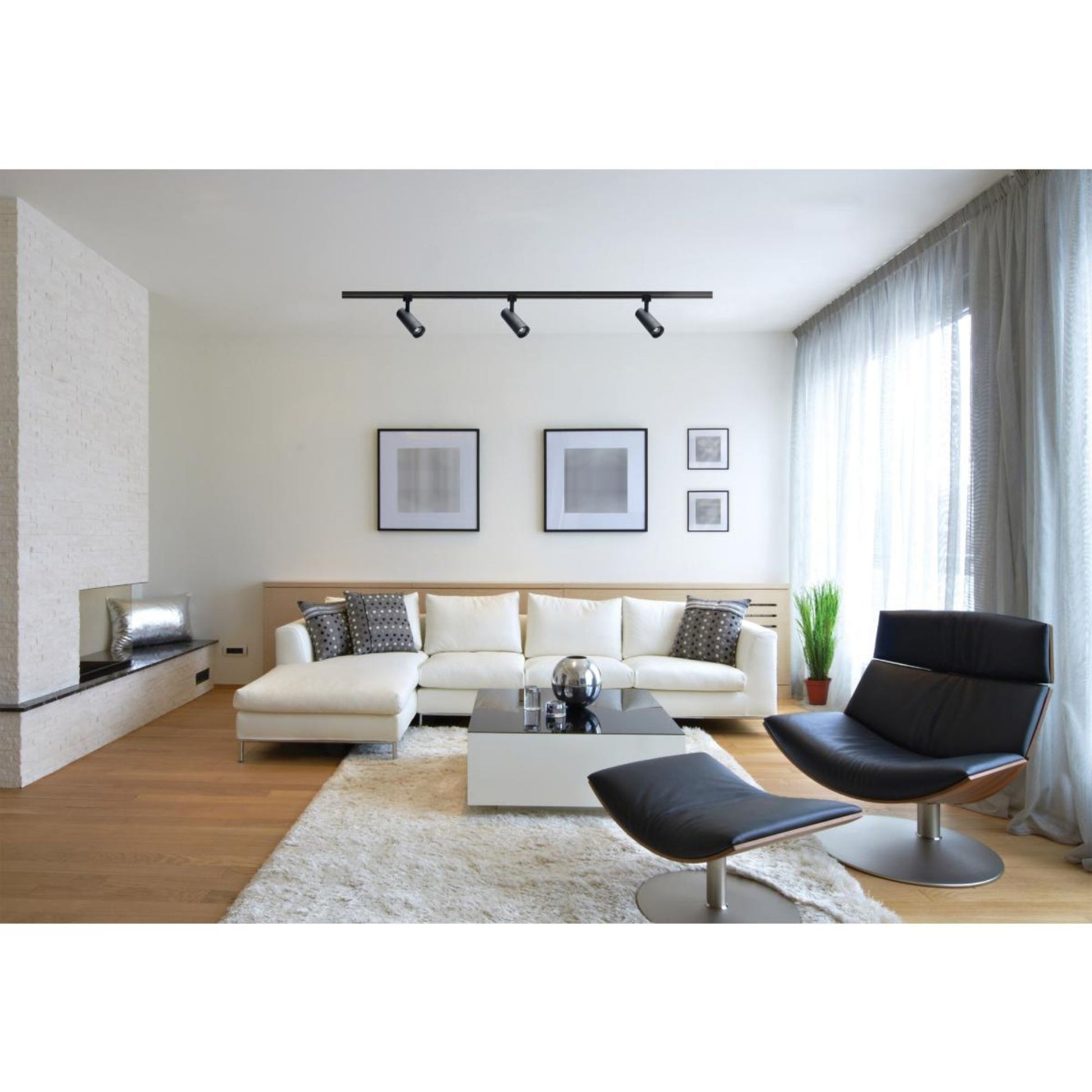

• Residential artwork and shelving.
• Office accent lighting.

What's Included

• Satco Nuvo TH732 Matte Black beam-adjustable track head with integrated LED and H-Type adapter.
