Satco Nuvo TH731 15W H-Type LED Track Head 5CCT Beam Adjustable Matte White
Available in stock (1183)
About this item
About this item
- Tailored Beam Coverage: Adjustable 20°–50° spread, horizontal and vertical positioning, 90° adjustable head.
- Five White Light Settings: ColorQuick switch, 2700K, 3000K, 3500K, 4000K or 5000K, 90 CRI.
- Efficient LED Output: 15W, 1050 lumens, 70 lm/W, 30,000-hour rated life.
- Adjustable Brightness: Phase-cut dimming down to 10% with a compatible dimmer, 120V.
- Coordinated Halo Design: Matte White aluminum and steel housing, PMMA lens, H-Type compatibility, dry indoor use.
Description
Description
Satco Nuvo TH731 Beam Adjustable LED Track Head
The Satco Nuvo TH731 combines a Matte White cylindrical housing with an adjustable 20°–50° beam and five selectable color temperatures. Its 15W integrated LED delivers 1050 lumens with 90 CRI. Narrow the beam to emphasize a small display or widen it to cover a larger area, then select the white-light setting that suits your interior. Horizontal and vertical positioning let you direct the light independently of the optical beam adjustment.
Key Features
- Track Compatibility: Satco H-Type (Halo) track.
- Beam Adjustment: 20°–50° optical spread.
- Aiming: Horizontal and vertical positioning, 90° adjustable head.

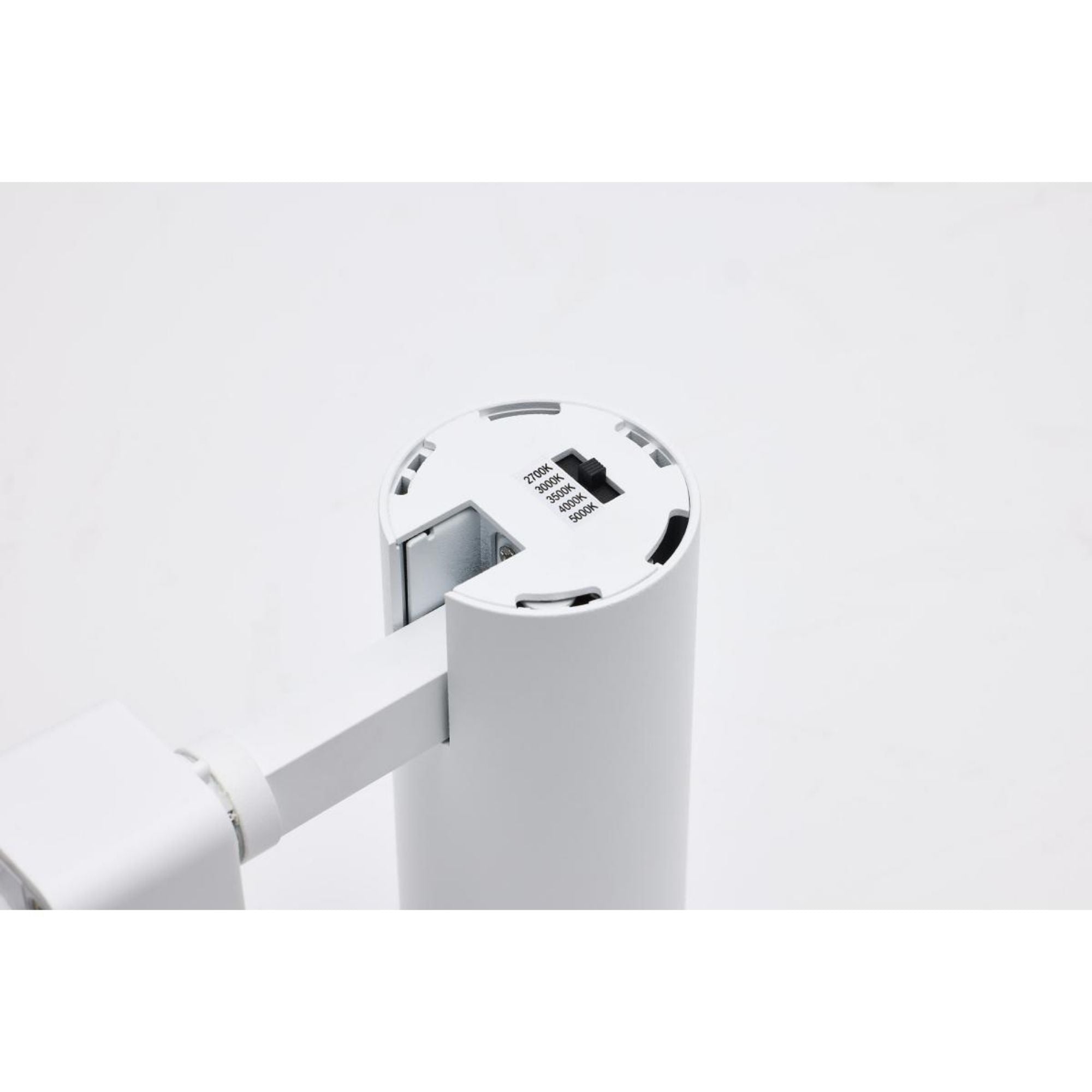

- Color Selection: ColorQuick switch, 2700K, 3000K, 3500K, 4000K or 5000K.
- LED Output: 15W, 1050 lumens, 70 lm/W.
- Color Rendering: 90 CRI.

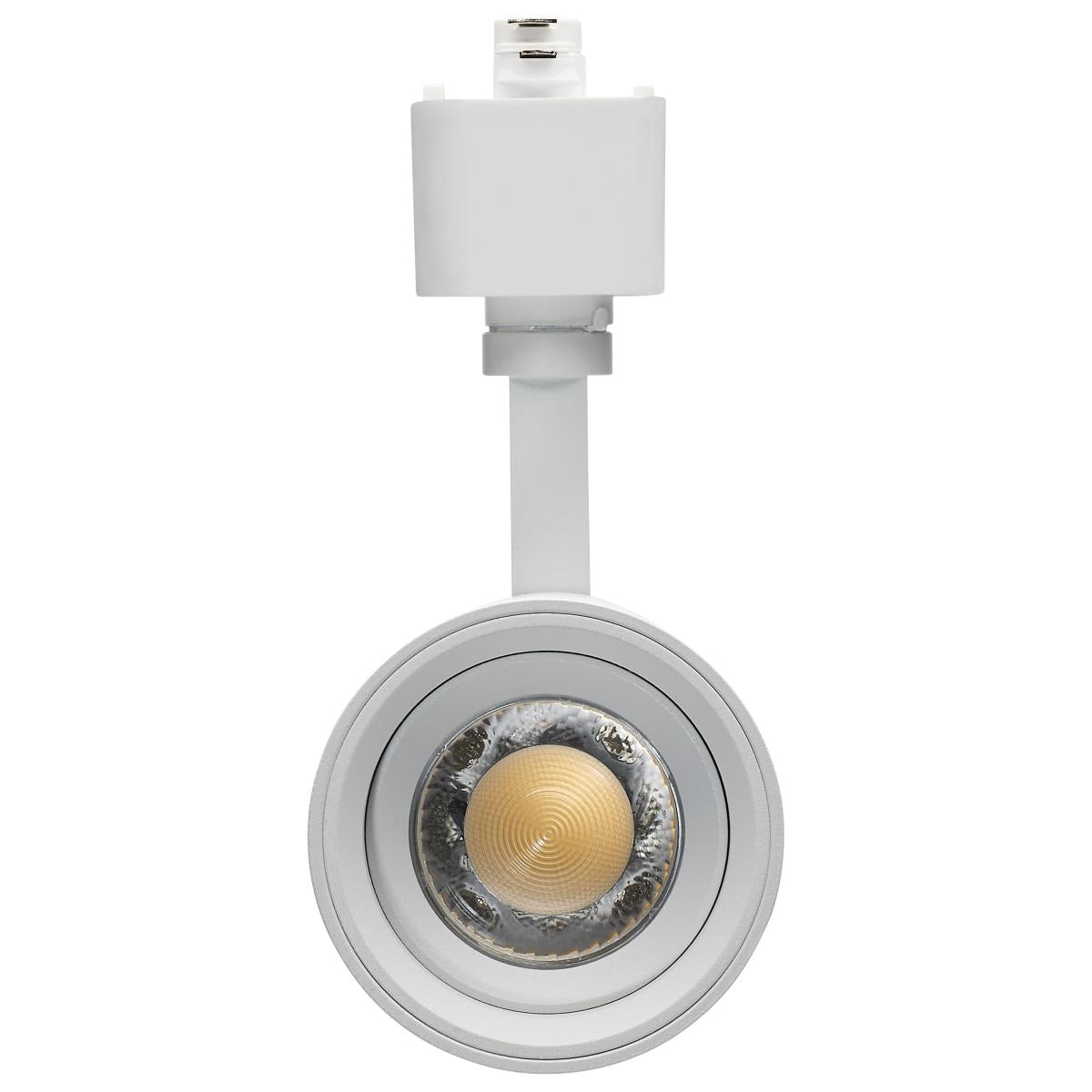

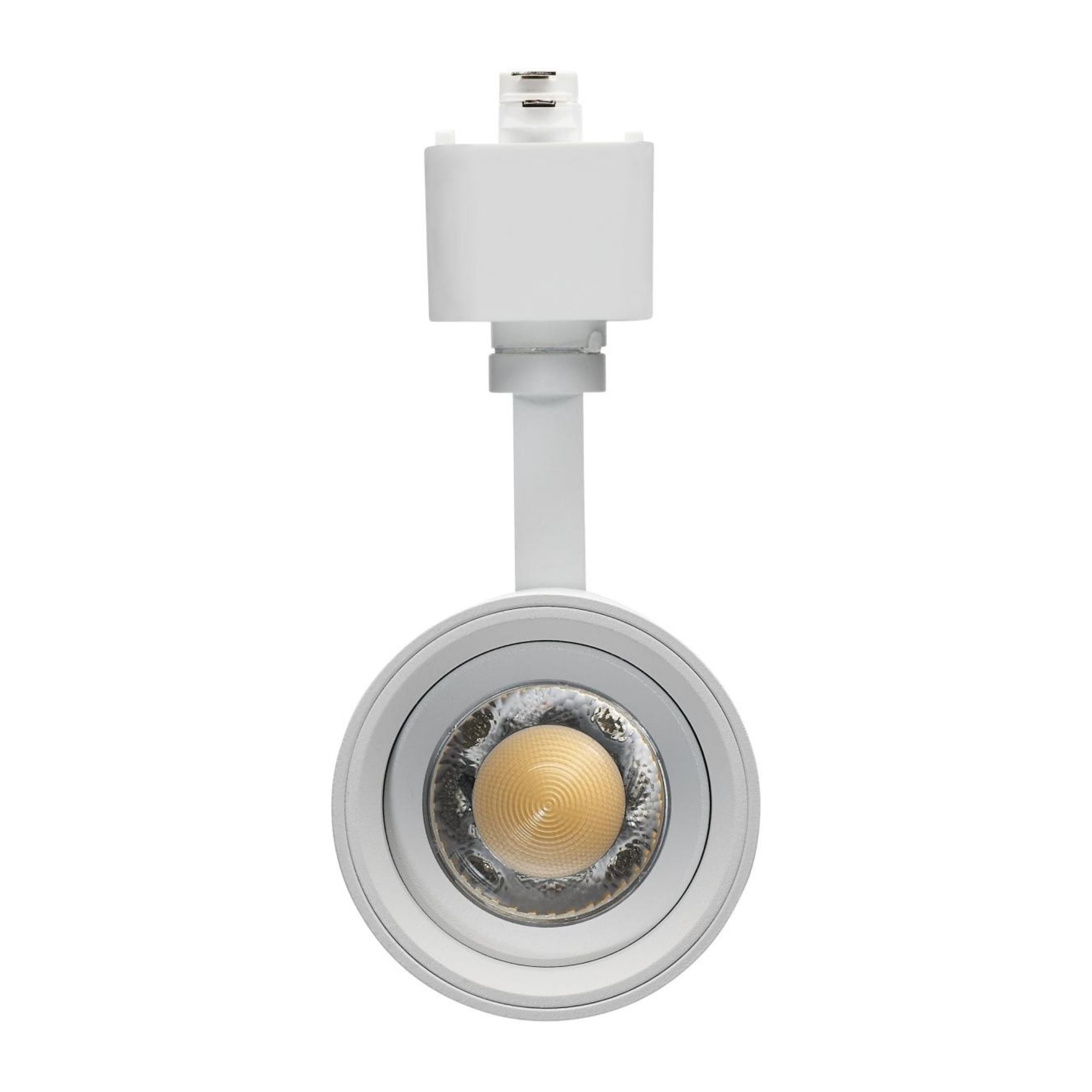

- Construction: Aluminum and steel, PMMA lens.
- Finish: Matte White.
- Dimming: Phase-cut dimmable down to 10% with a compatible dimmer.
- Electrical: 120V, 60Hz, 0.13A, power factor greater than 0.9.
- Location: Dry indoor use, -4°F to 104°F.
- Rated Life: 30,000 hours.
Construction & Design

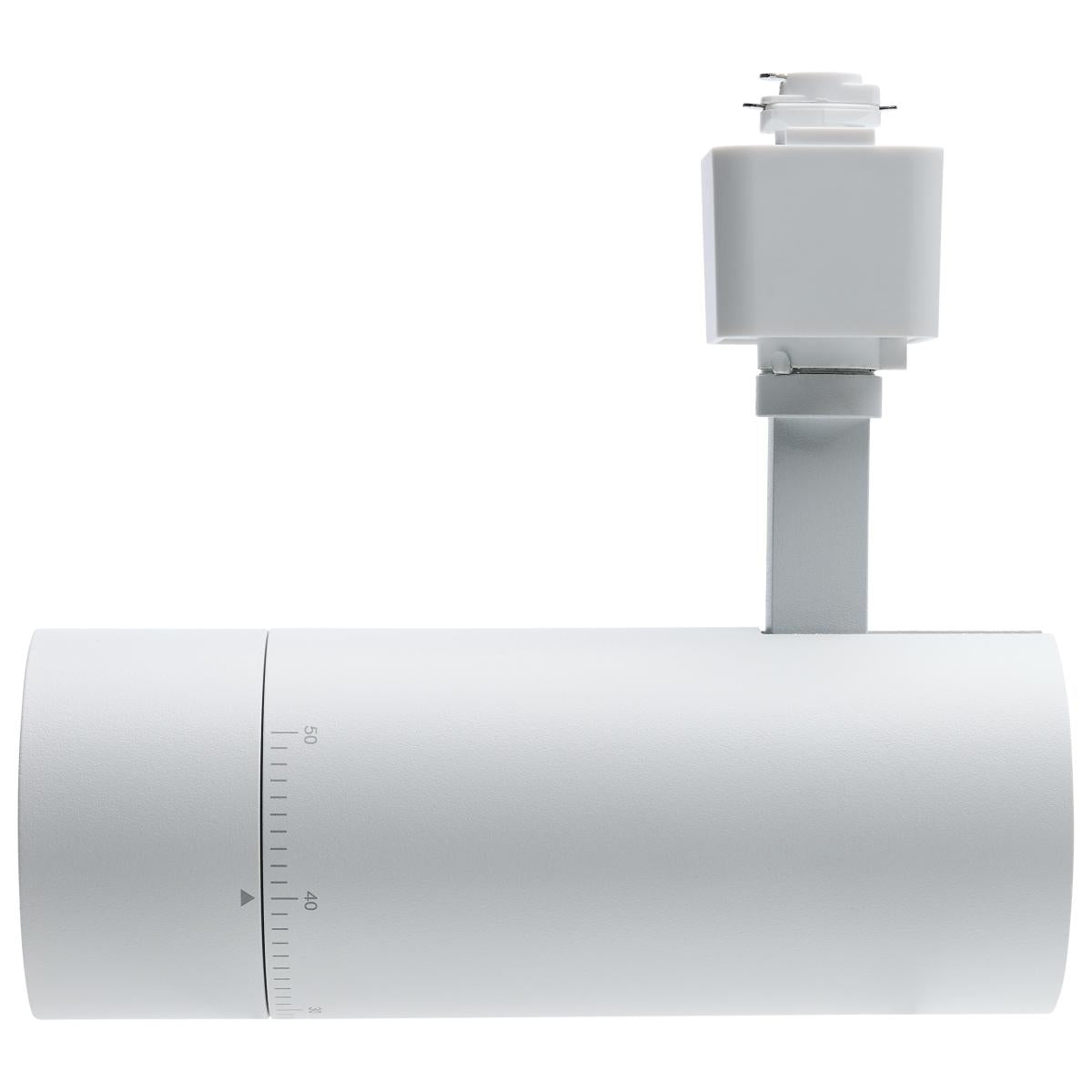

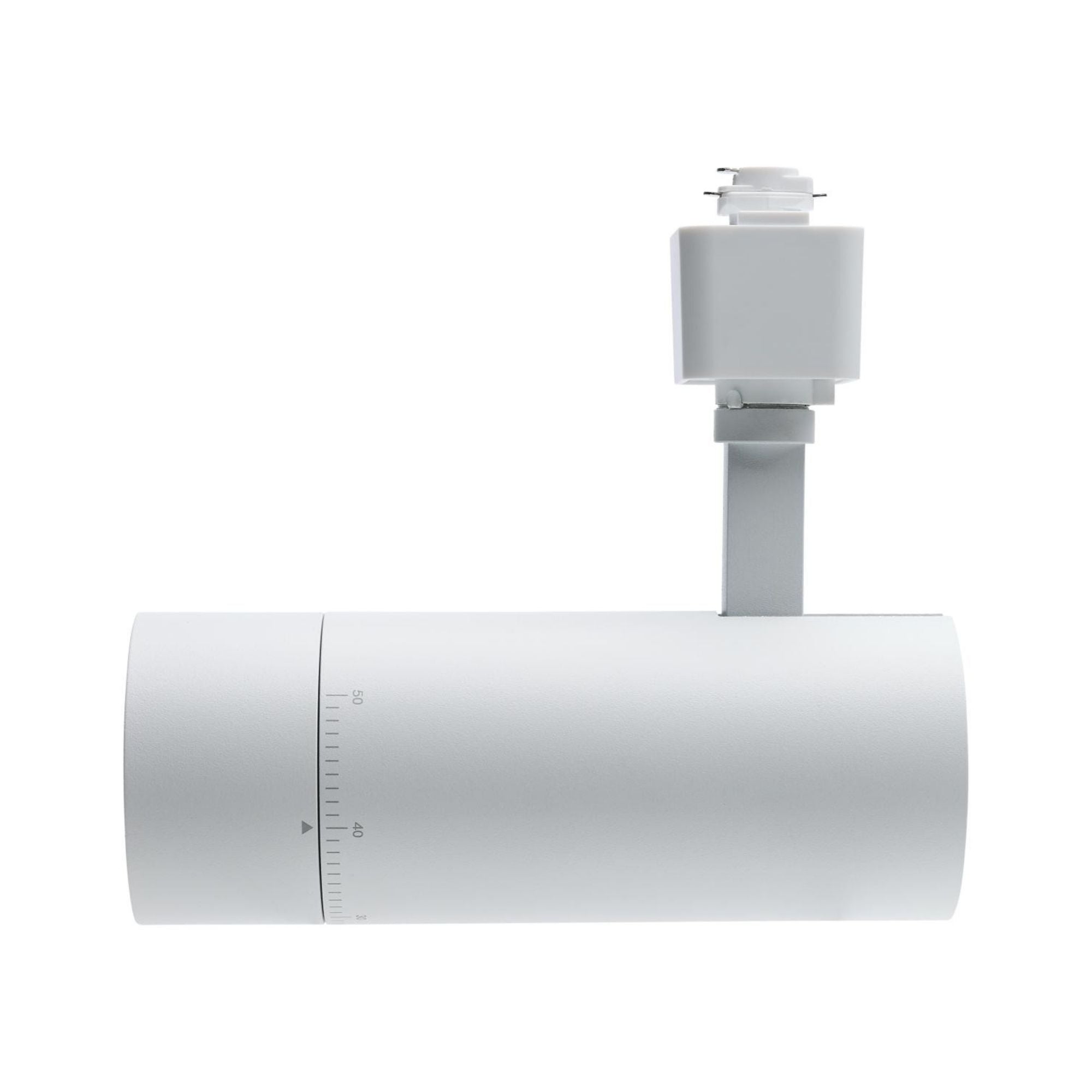

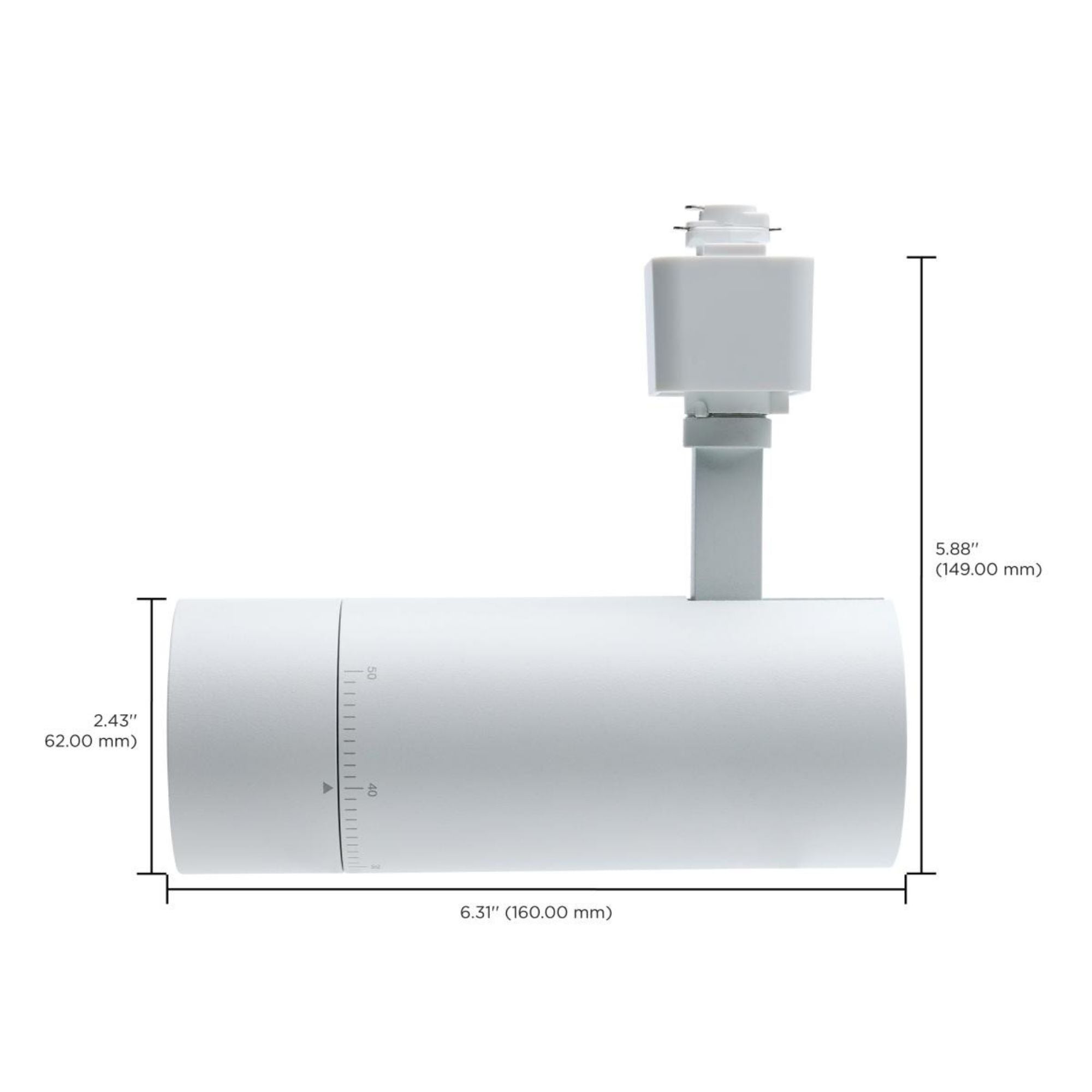

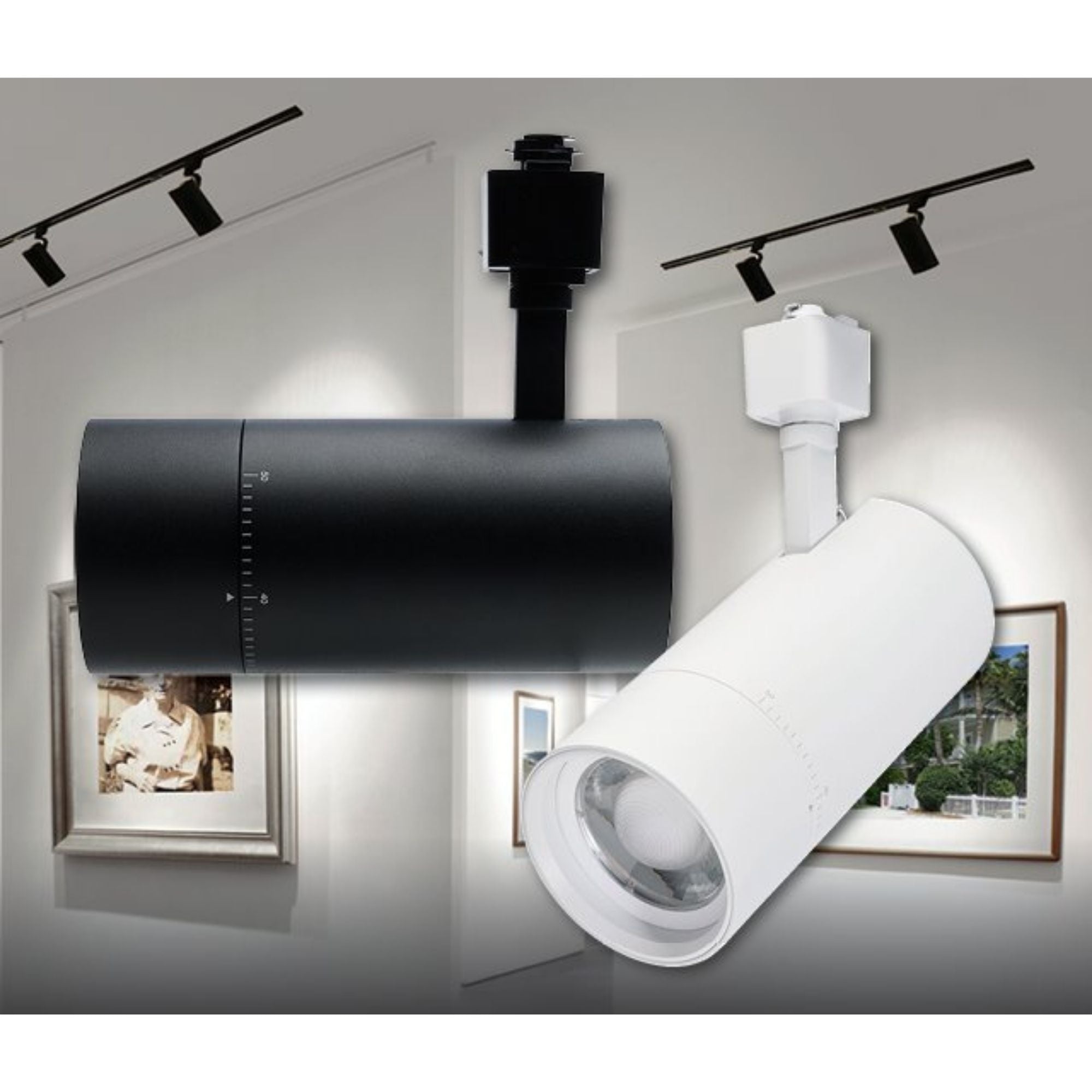

The Matte White aluminum and steel housing coordinates with white track and light ceilings. A marked beam-adjustment scale provides a visual reference for the 20°–50° spread, while the adjustable head helps direct illumination toward artwork, shelves or merchandise. The PMMA lens completes the optical assembly. Dimensions are 2.43 in width, 6.31 in length, 5.88 in height and 8.63 in extension, with a 1.40 lb weight.
Light Output & Performance
The Satco Nuvo TH731 produces 1050 lumens at 15W, with 70 lm/W efficacy and 90 CRI. Its ColorQuick CCT switch selects 2700K, 3000K, 3500K, 4000K or 5000K. Unlike a fixed-beam head, the optical spread adjusts from 20° to 50°. Phase-cut dimming reaches 10% with a compatible dimmer. Rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH731 operates at 120V, 60Hz, with 0.13A input current and power factor greater than 0.9. Install on compatible Satco H-Type (Halo) track in dry indoor locations within the -4°F to 104°F operating range. Use a compatible phase-cut dimmer for brightness adjustment. Rails, feeds and connectors are sold separately.
Compatible Accessories
Complete your beam-adjustable lighting arrangement with coordinating white Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.
- Track Rails: TR118 (2 ft), TR120 (4 ft), TR124 (6 ft) and TR122 (8 ft), single-circuit H-Type.
- Power Feeds: TP152 live end and canopy, TP154 floating canopy, TP156 live end cord kit, TP169 conduit live end and TP171 inline feed.
- Track Connectors: TP144 mini straight, TP146 L, TP148 T, TP150 X and TP167 flexible connector.
- Track Mounting: TP240 white aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

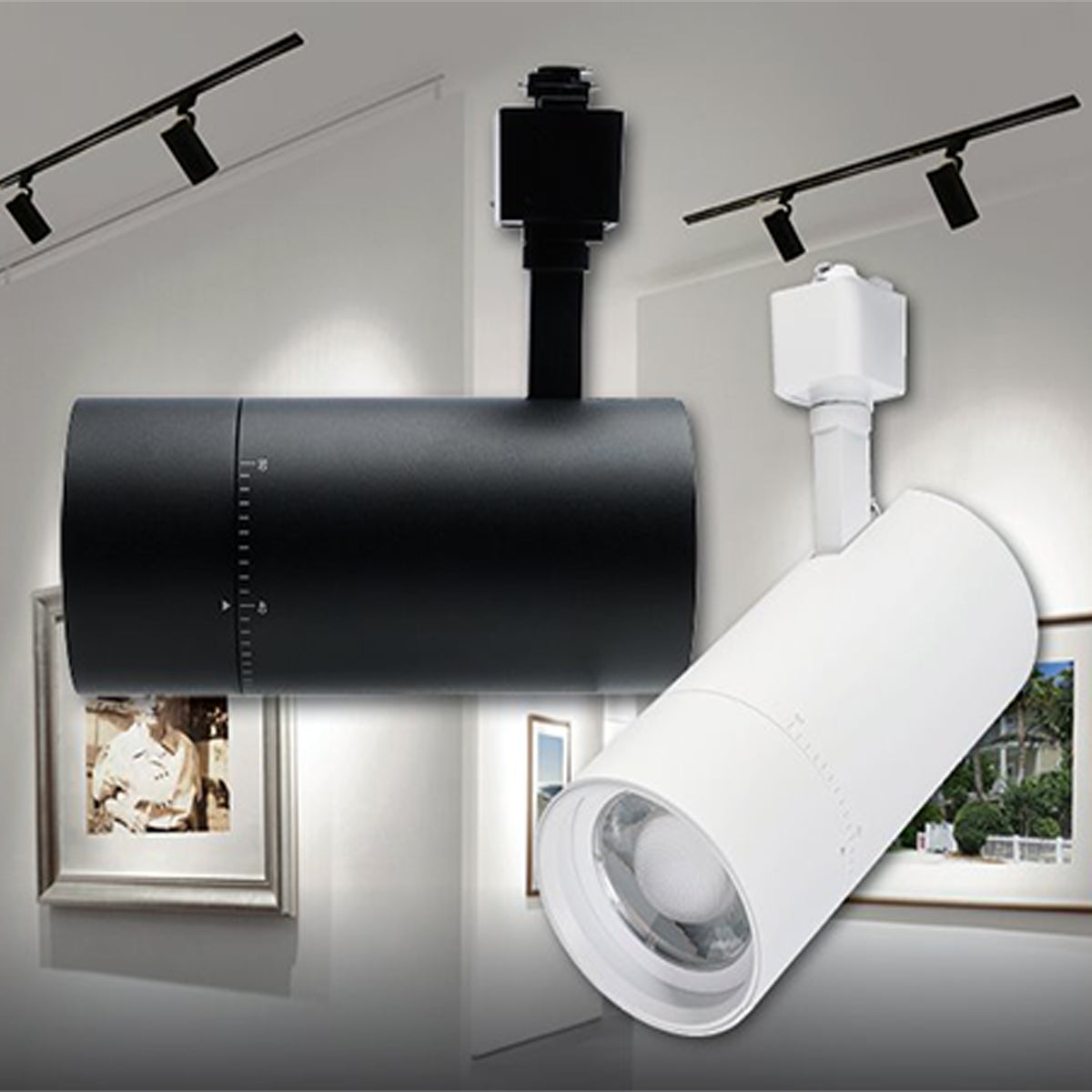

Typical Applications
- Museum and gallery displays.
- Retail merchandise accents.
- Restaurant and hospitality interiors.

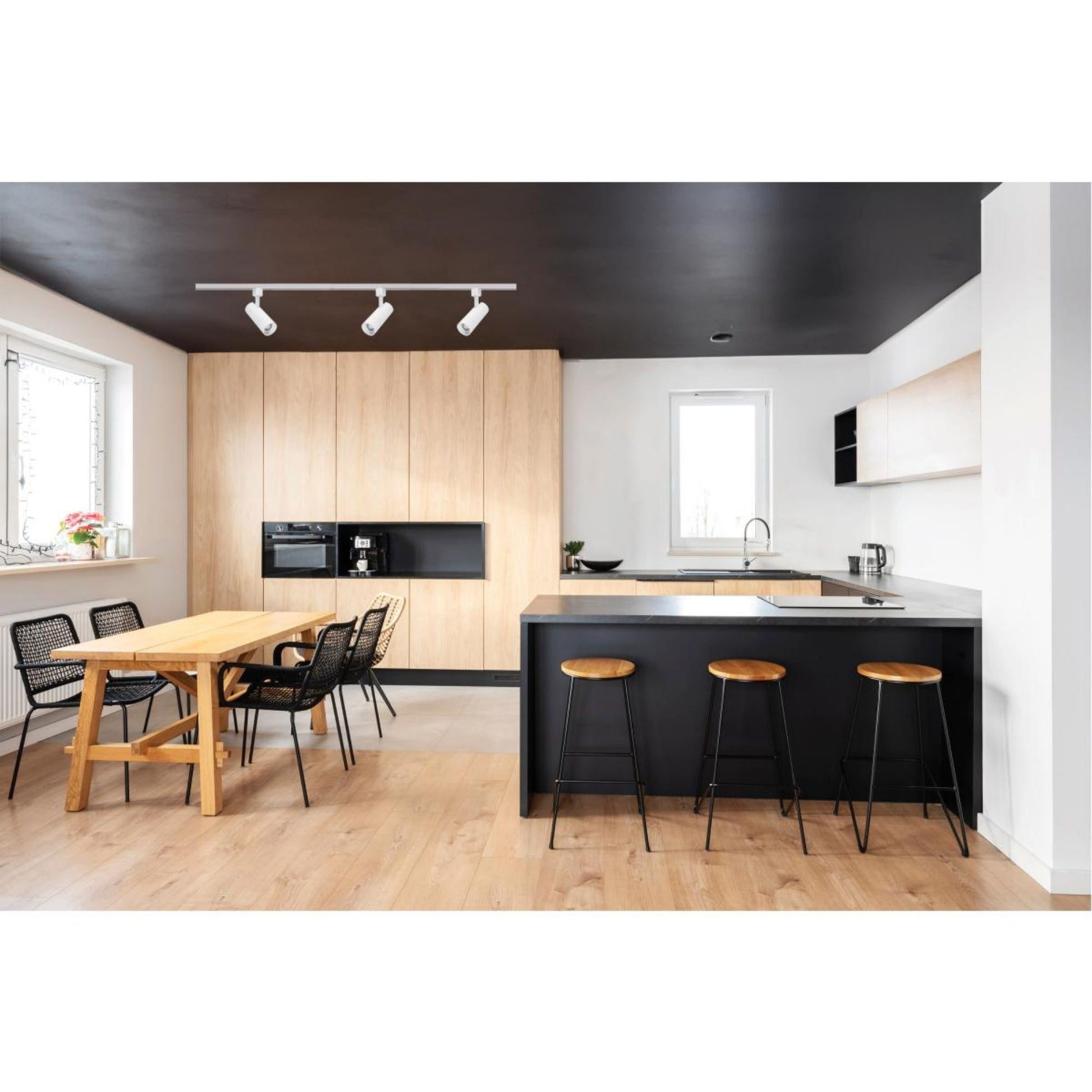

- Residential artwork and shelving.
- Office accent lighting.
What's Included
- Satco Nuvo TH731 Matte White beam-adjustable track head with integrated LED and H-Type adapter.
