Satco Nuvo TH635 Round 12W H-Type LED Track Head 3000K 24 Degree Matte Black Brushed Brass
Available in stock (150)
About this item
About this item
- Focused Illumination: 1020 lumens from 12W, 85 lm/W, fixed 24° beam for accent lighting.
- Warm Color Quality: Fixed 3000K warm white light with 90 CRI.
- Two-Tone Design: Articulating round head, matte black housing with brushed brass accent.
- Dimming Control: Compatible 120V dimmers for adjustable brightness.
- Matched Track System: H-Type adapter for Satco Nuvo H-Style track, dry indoor use, 30,000-hour L70 life.
Description
Description

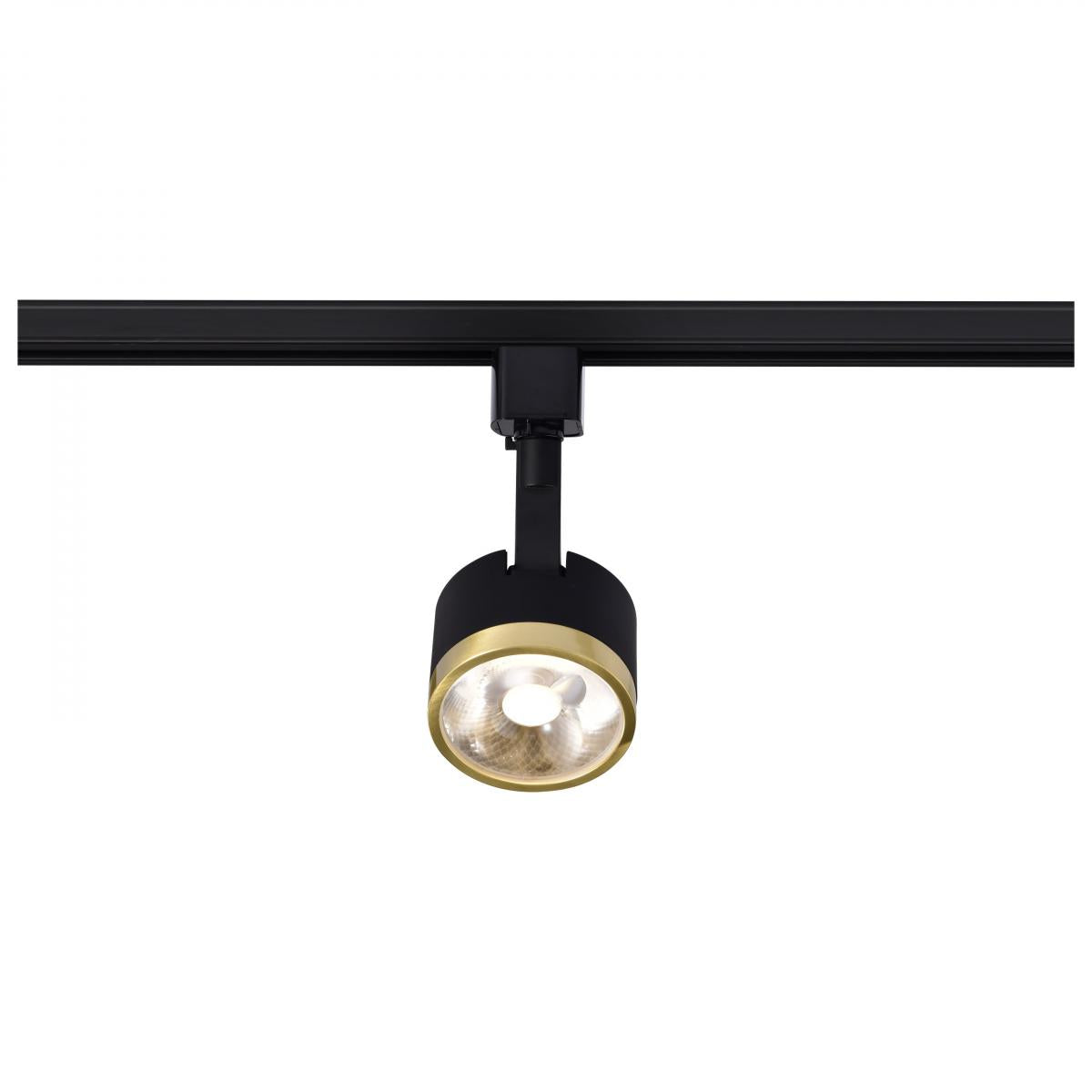

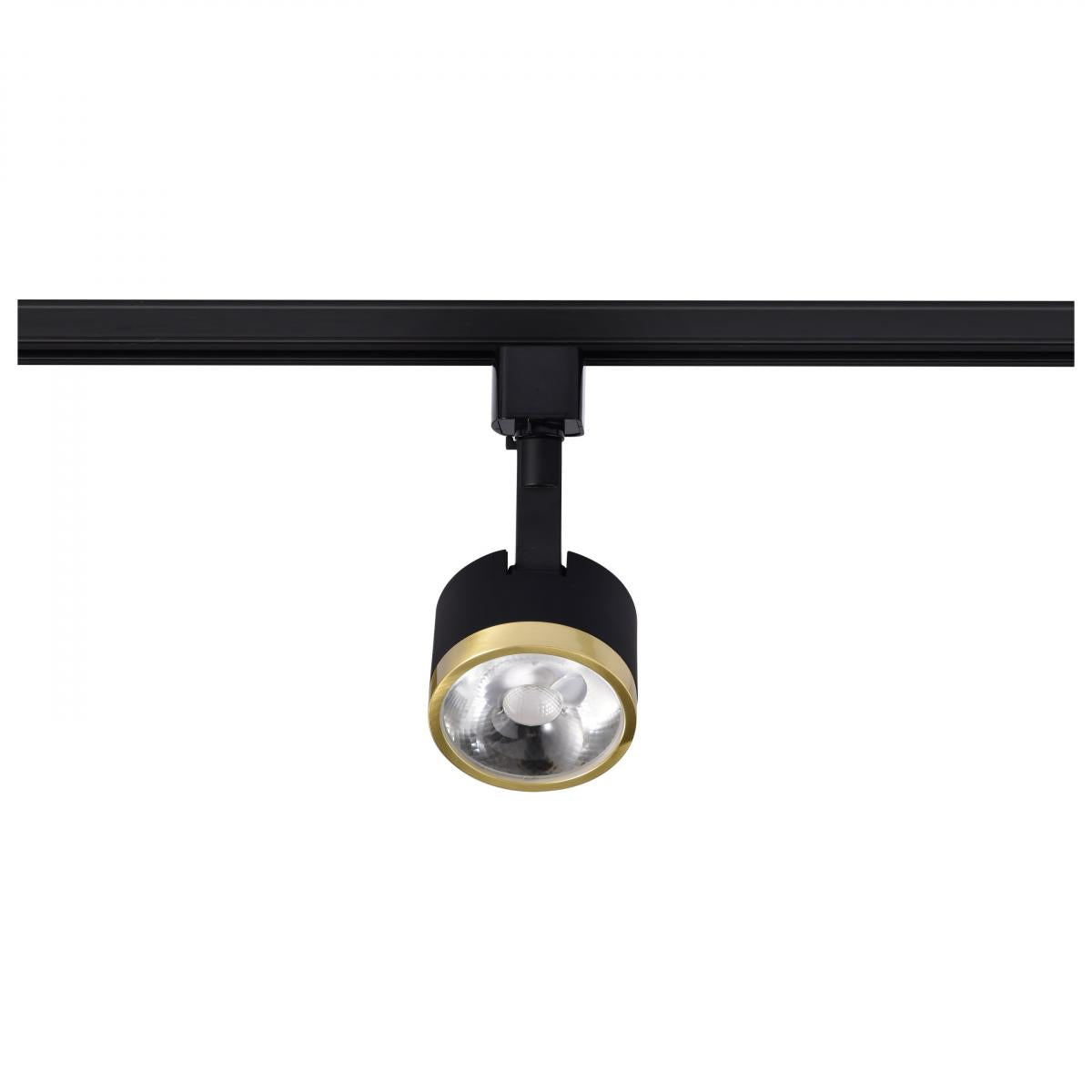

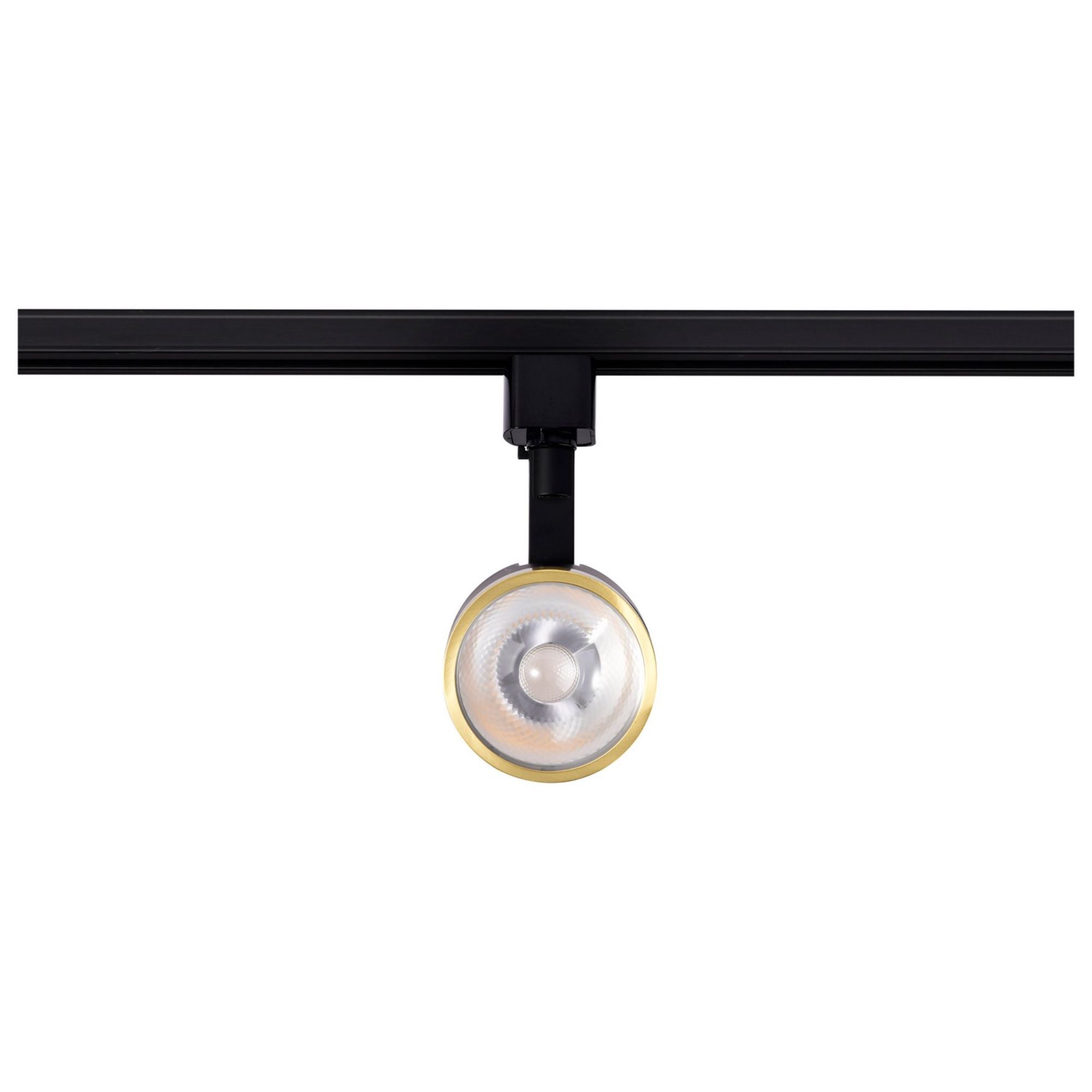

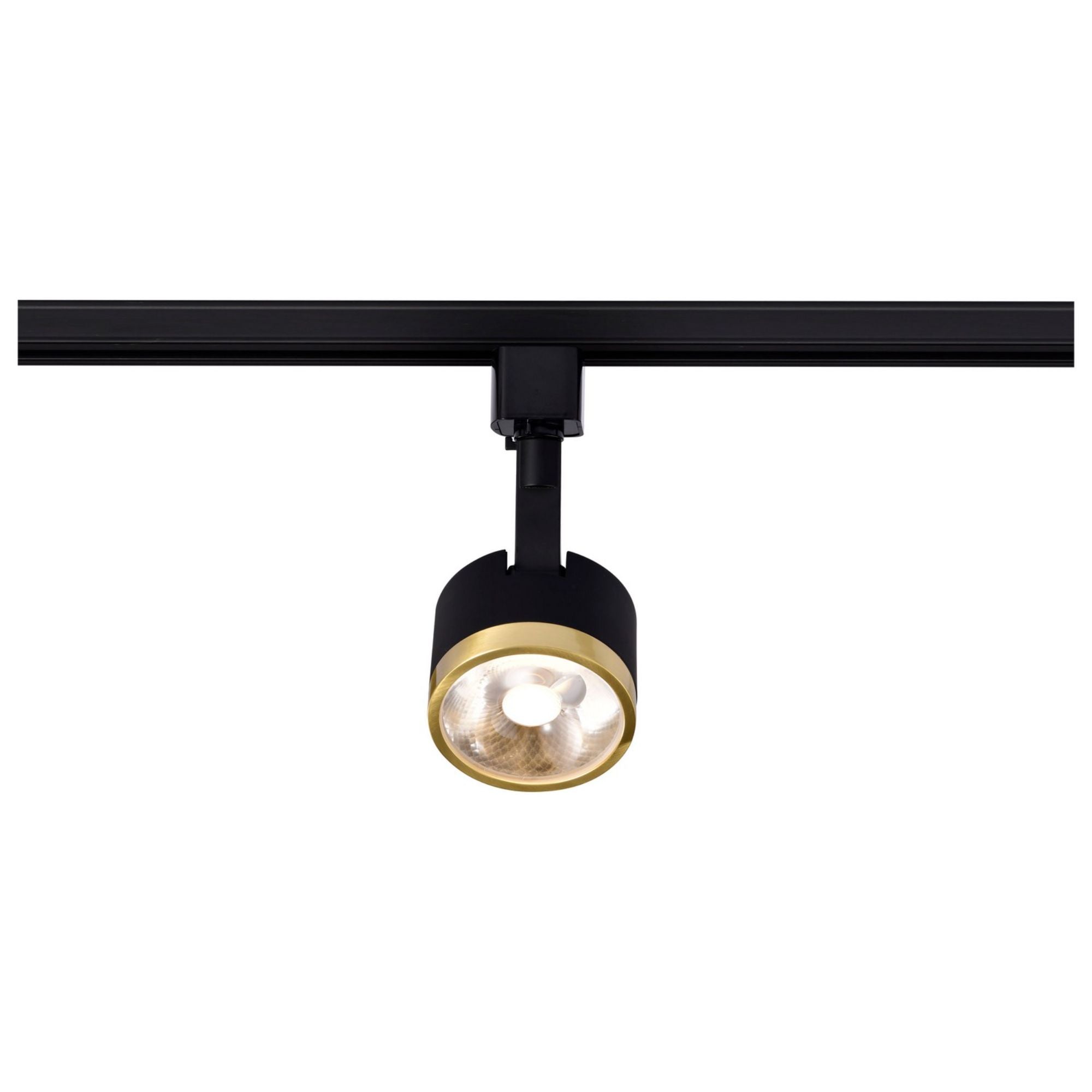

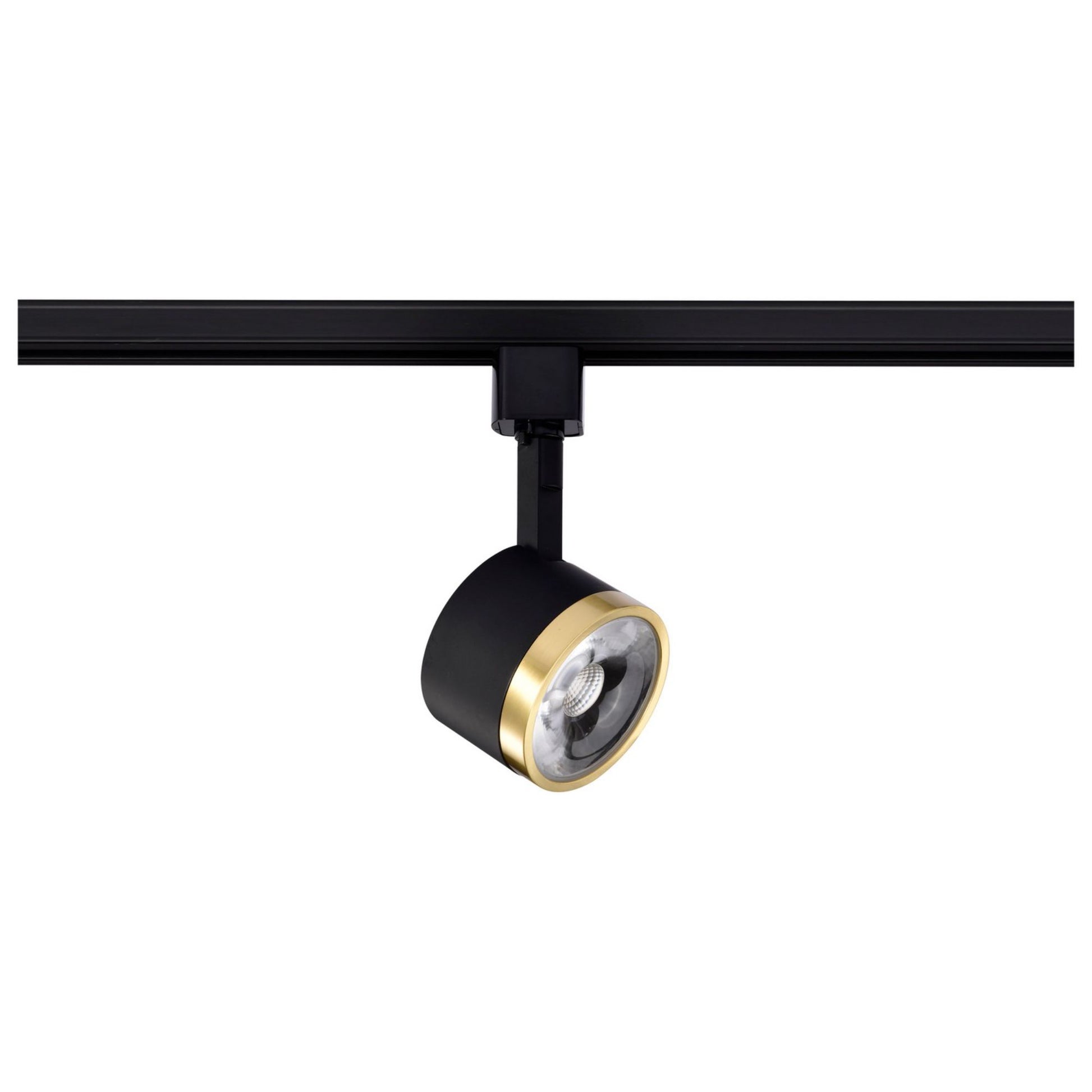

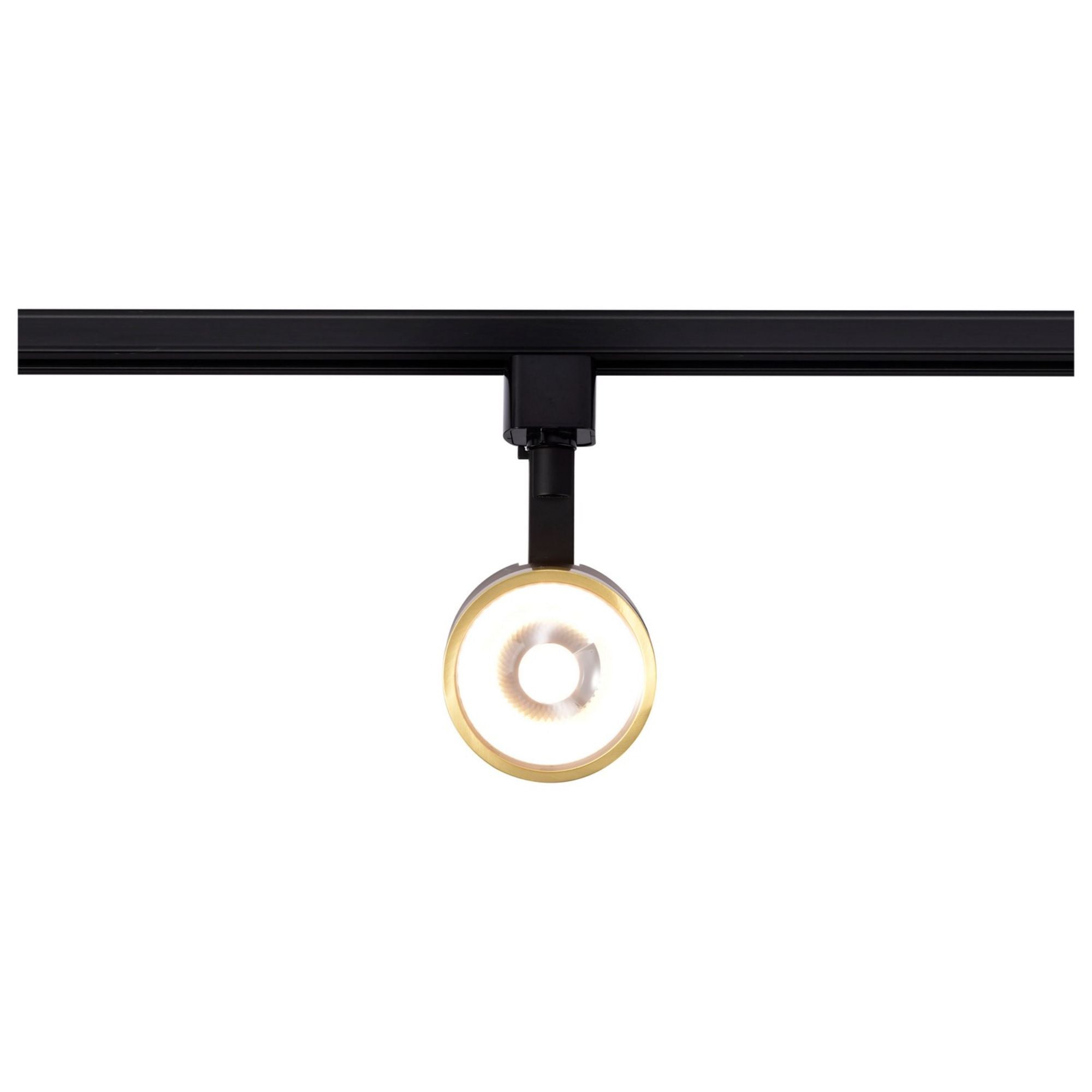

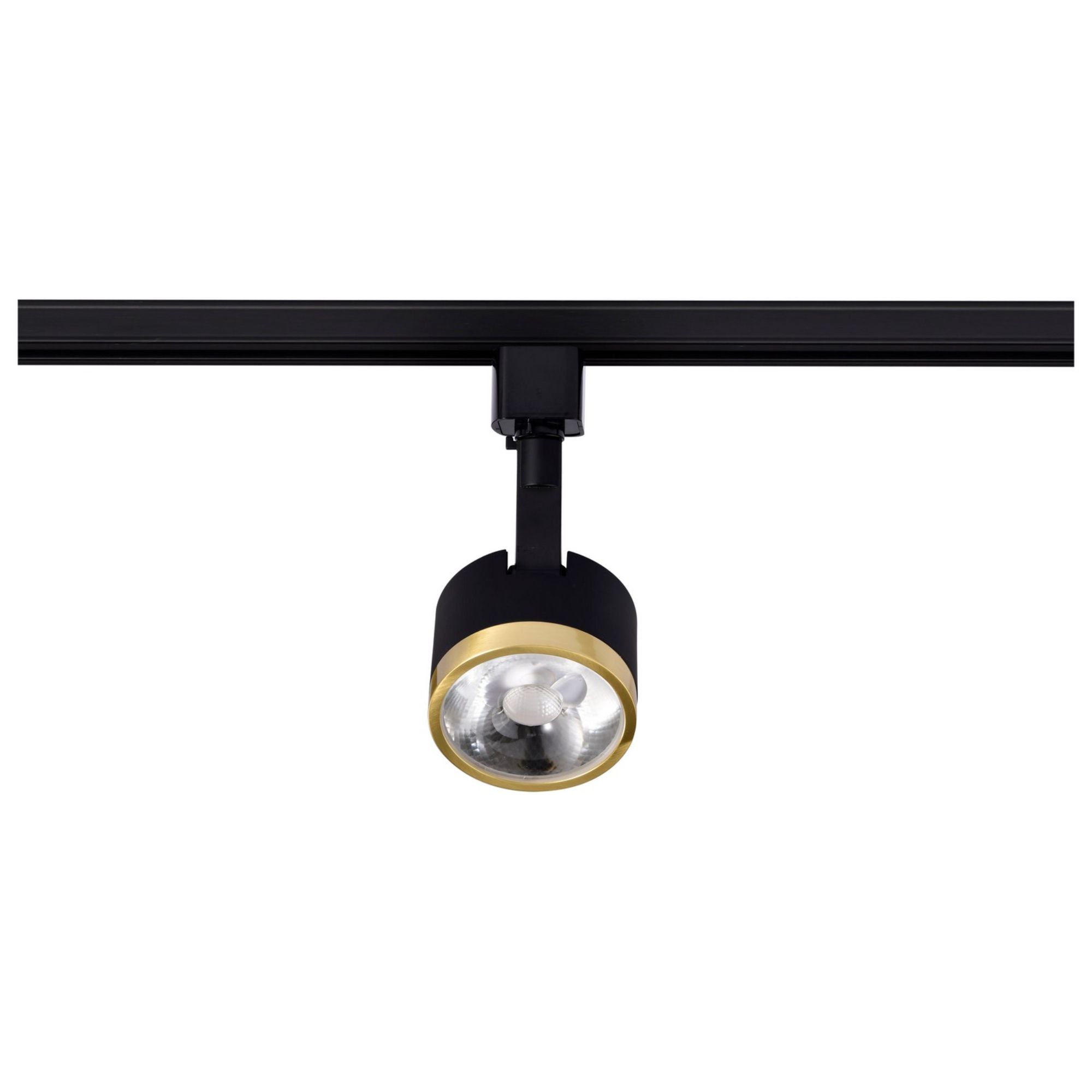

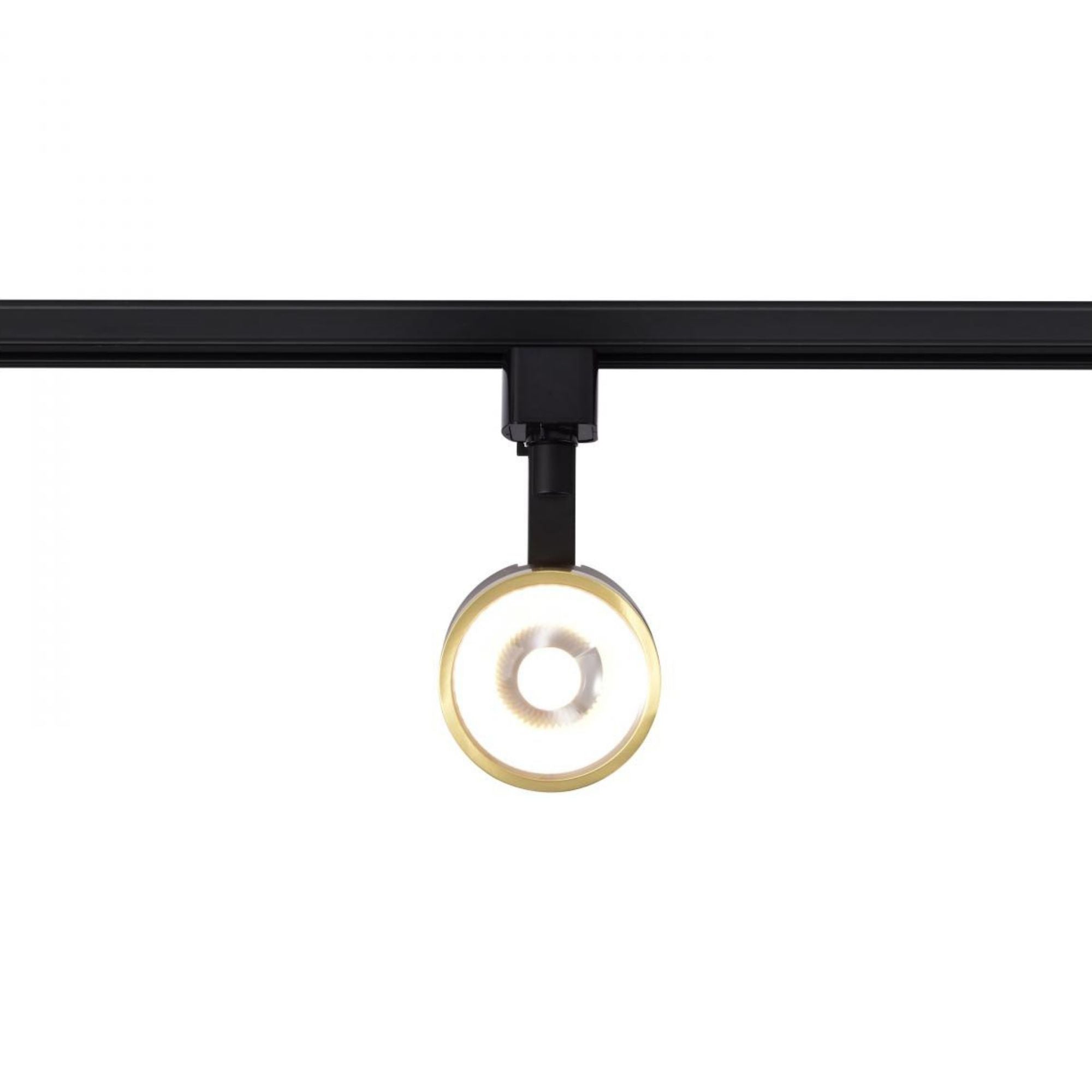

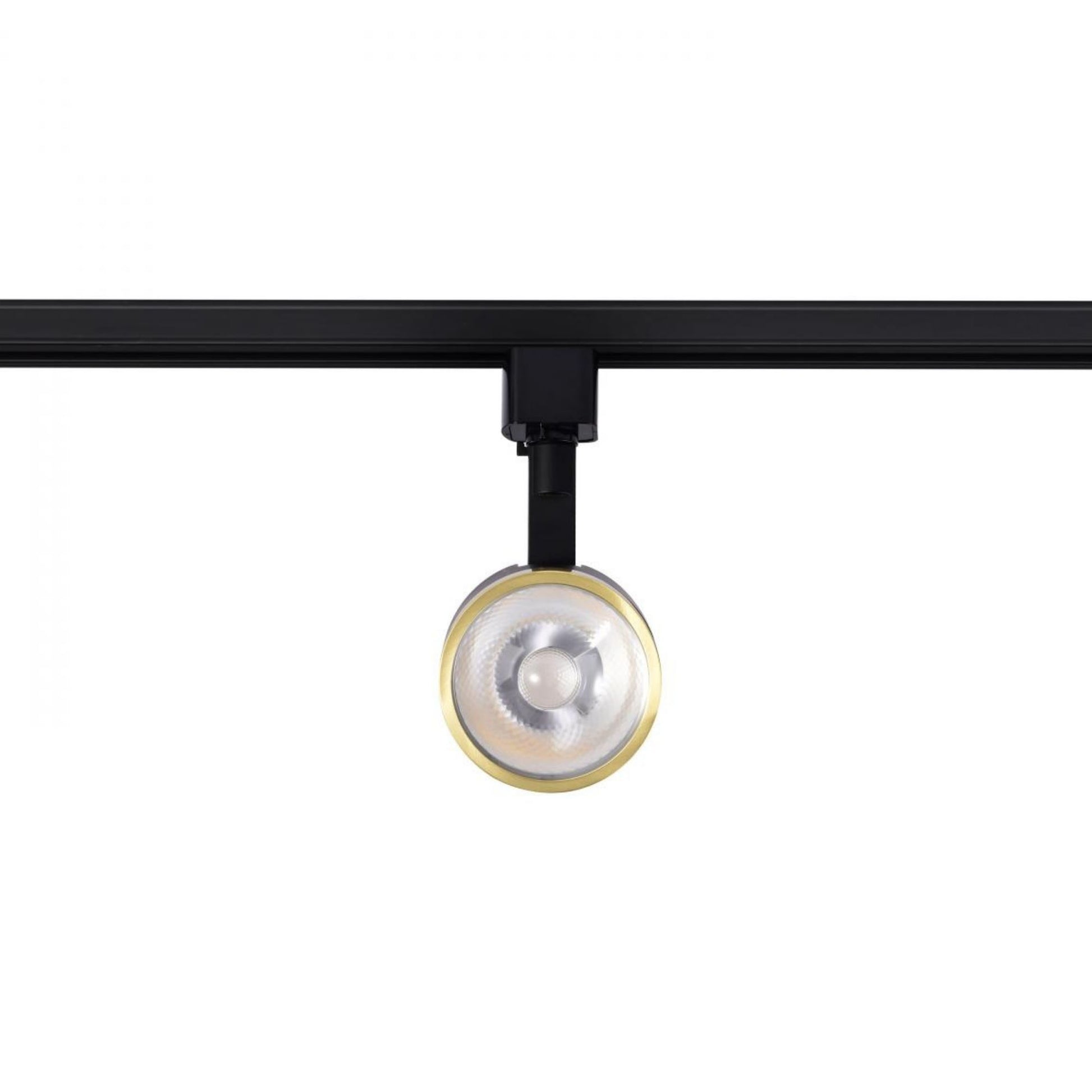

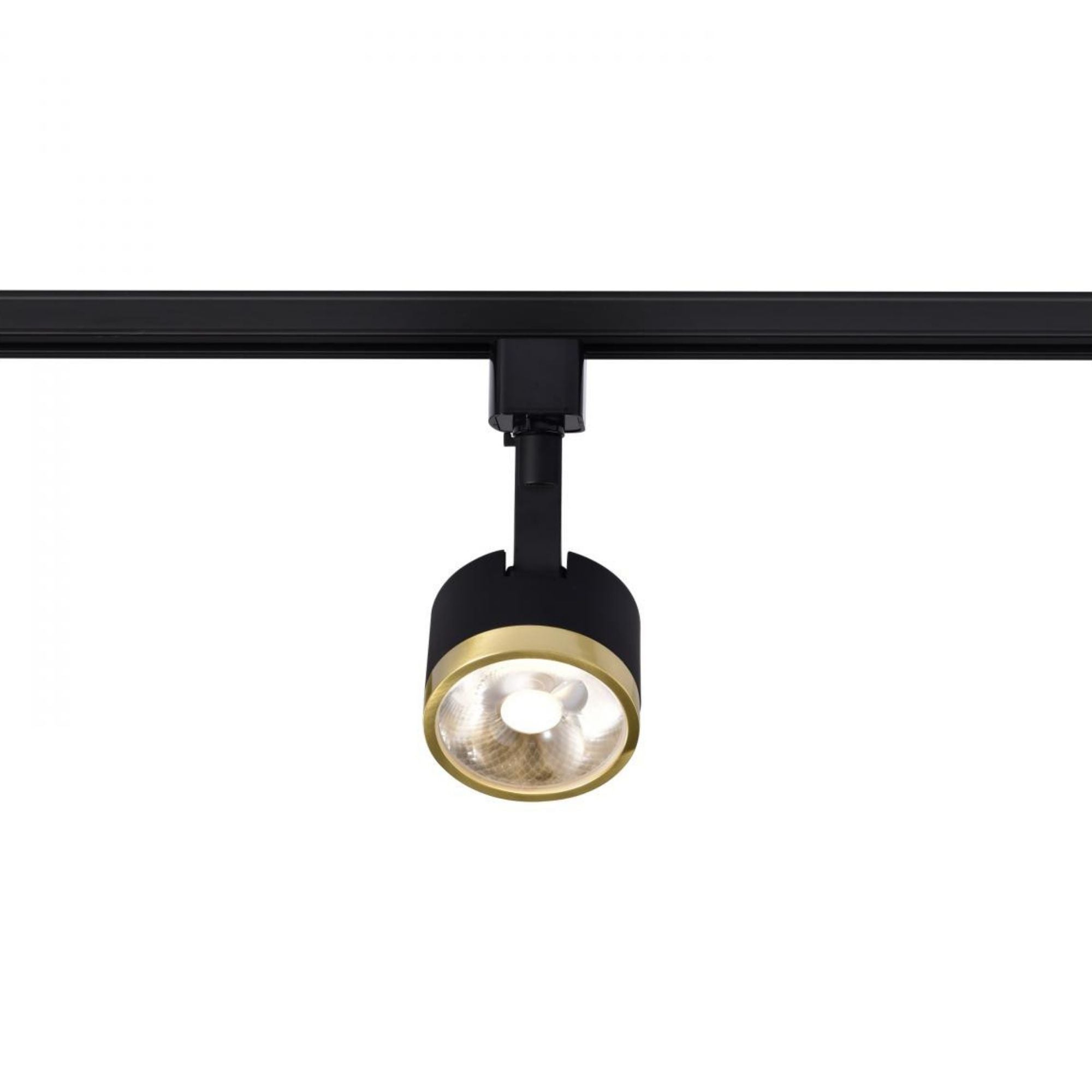

Satco Nuvo TH635 Round LED Track Head
The Satco Nuvo TH635 brings focused 3000K warm white light to residential and commercial interiors. Its 12W integrated LED delivers 1020 lumens through a fixed 24° beam, with 90 CRI for detailed color rendering. A matte black housing with brushed brass accent and articulating round head combine contemporary styling with directional accent lighting. Designed for Satco Nuvo H-Style track, the fixture is dimmable at 120V.
Key Features
- Track System: H-Type adapter, designed for Satco Nuvo H-Style track.
- Light Source: 12W integrated LED, no separate lamp required.
- Light Output: 1020 lumens, 85 lm/W.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90 CRI.
- Beam: Fixed 24° spread, articulating head for directional aiming.
- Finish: Matte black with brushed brass accent.
- Construction: Aluminum and steel.
- Electrical: 120V, 60Hz, 0.10A, power factor greater than 0.9.
- Dimming: Supports compatible 120V dimmers.
- Rated Life: 30,000 hours L70.
- Location & Listings: Dry indoor locations, cETLus Listed, FCC and RoHS compliant, Title 24 compliant.
Construction & Design

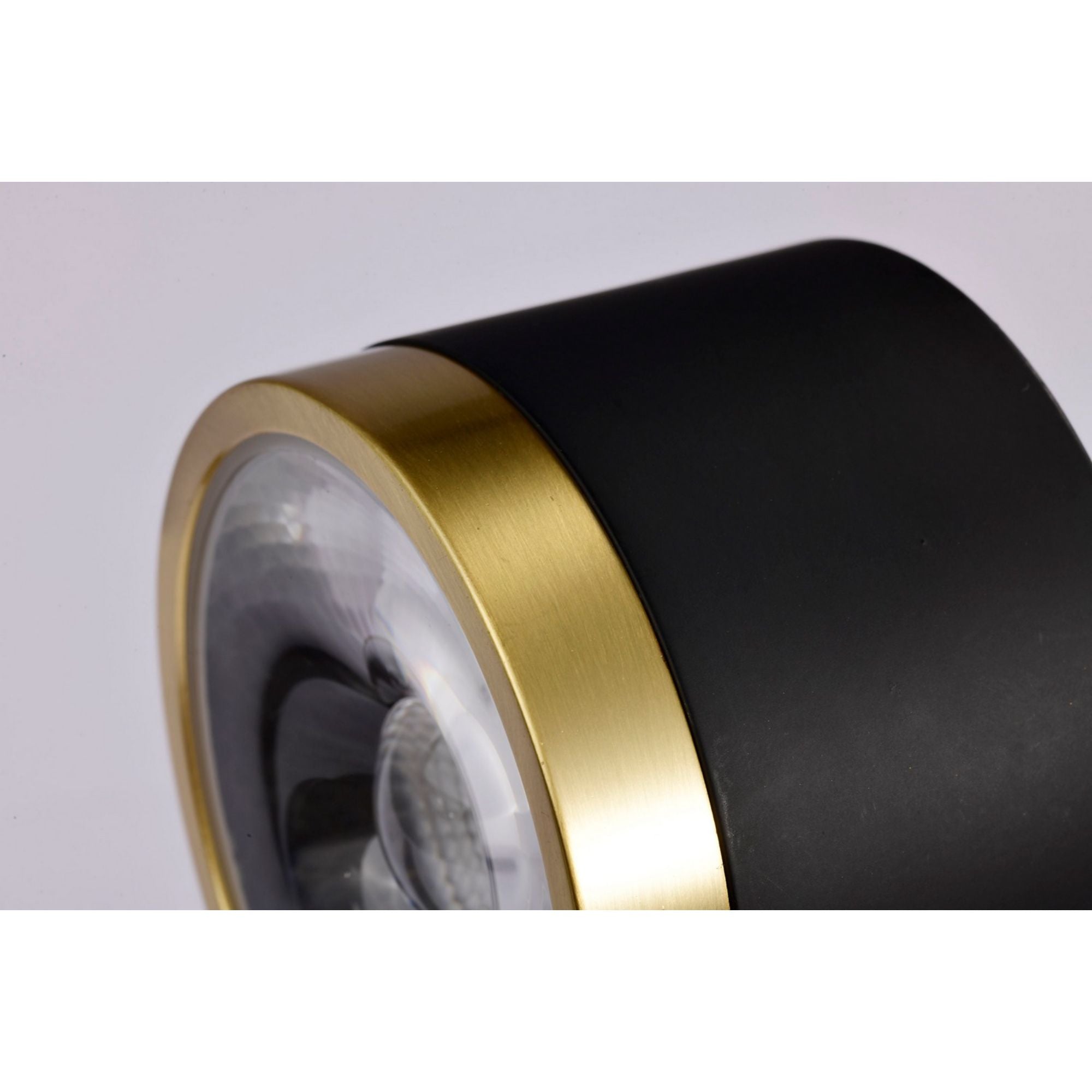

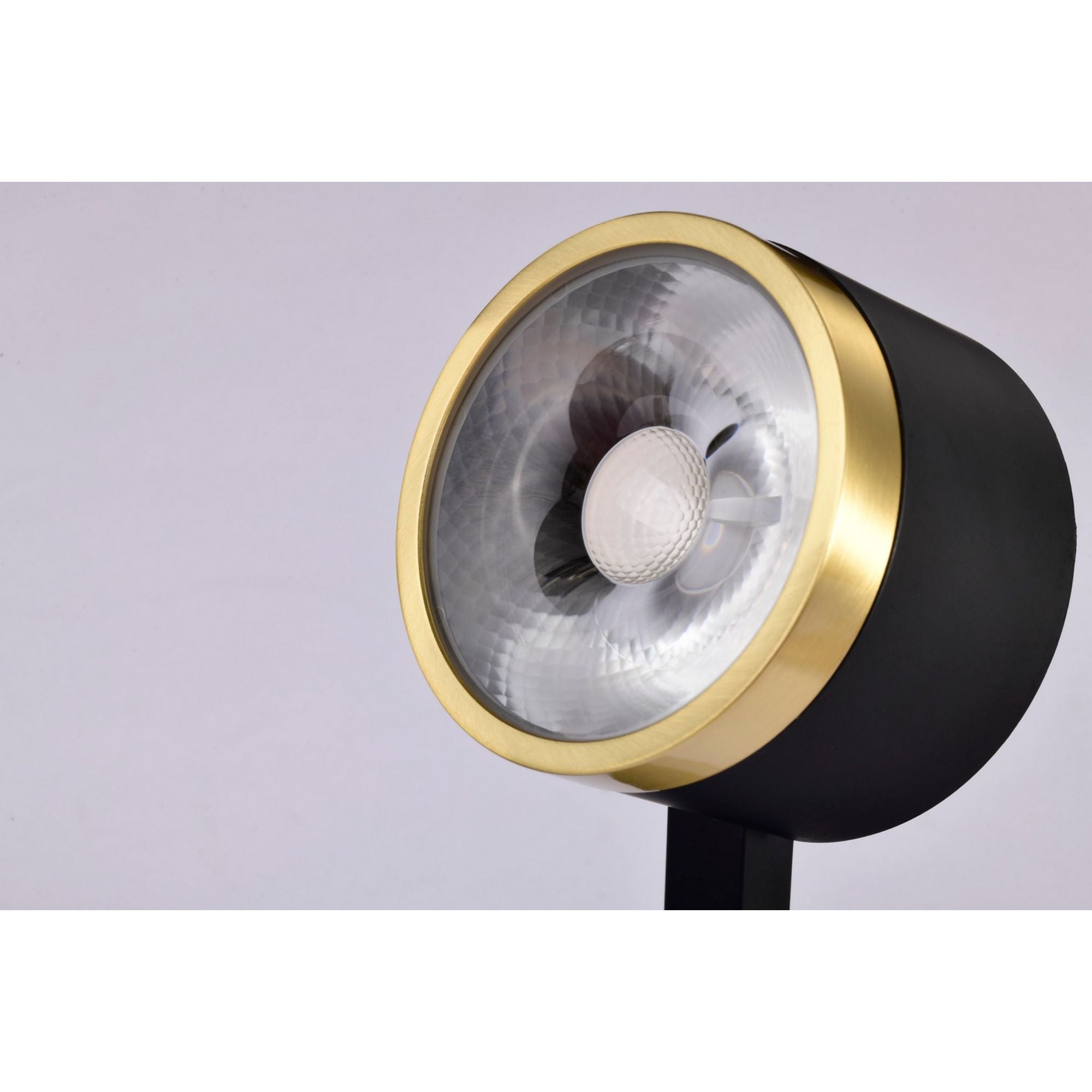

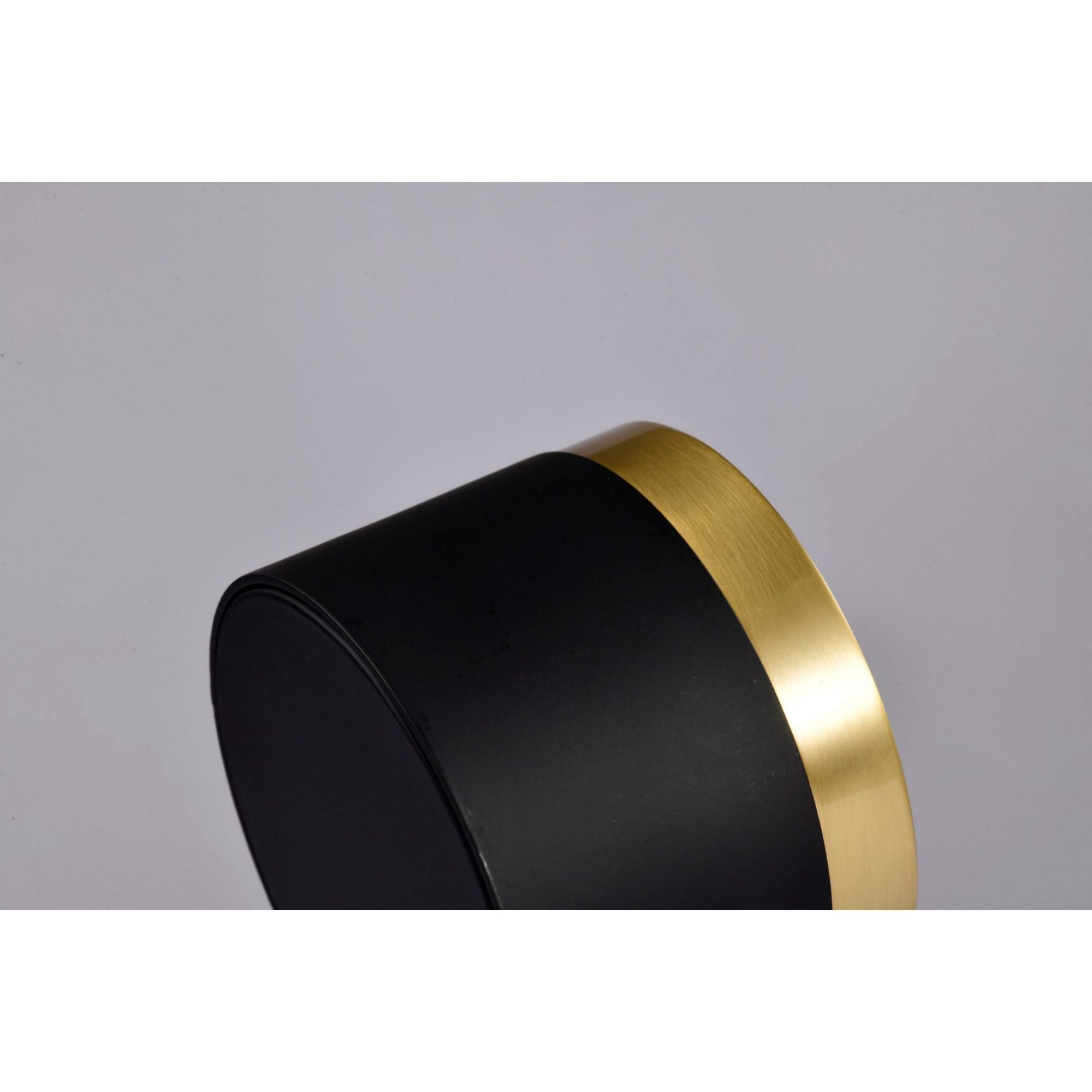

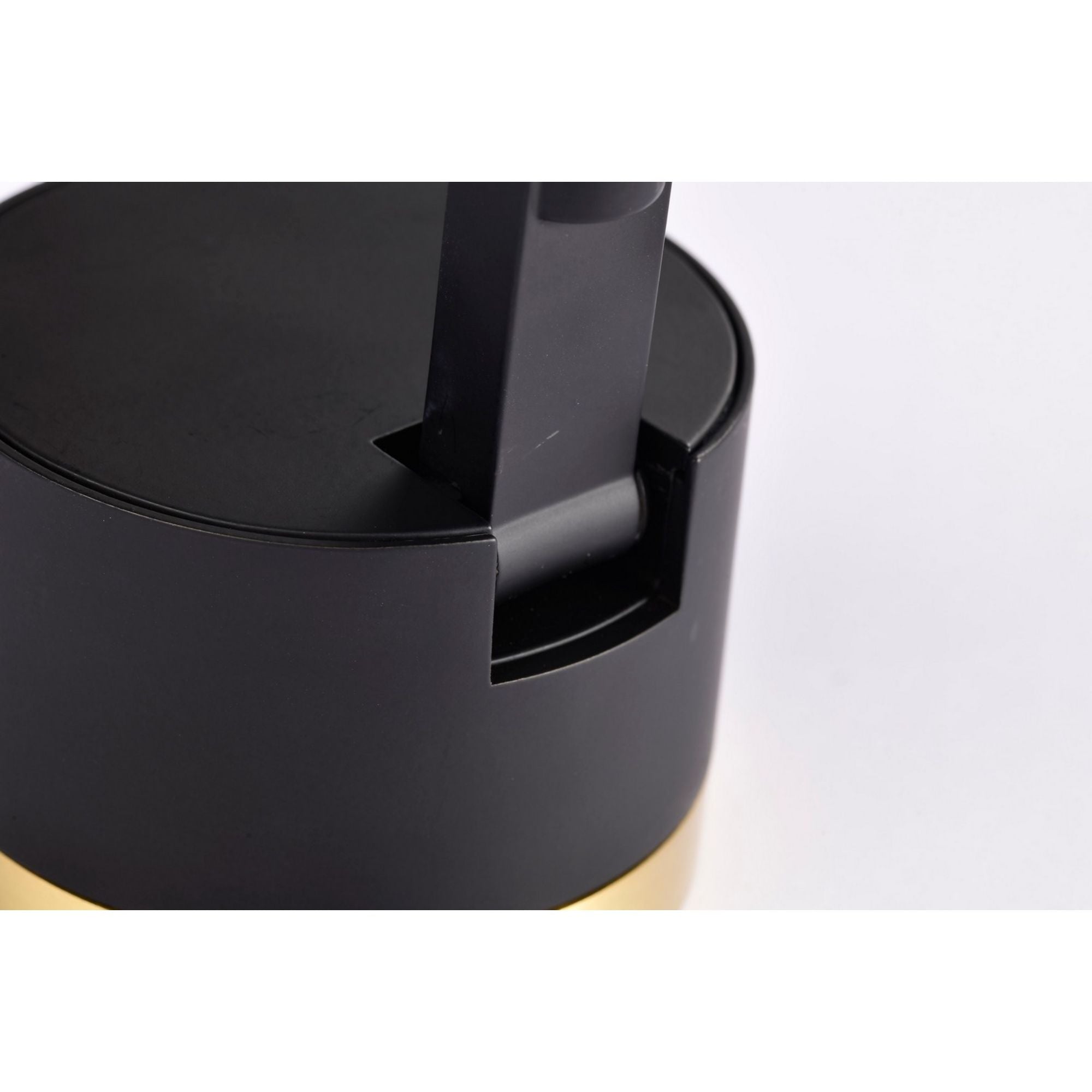

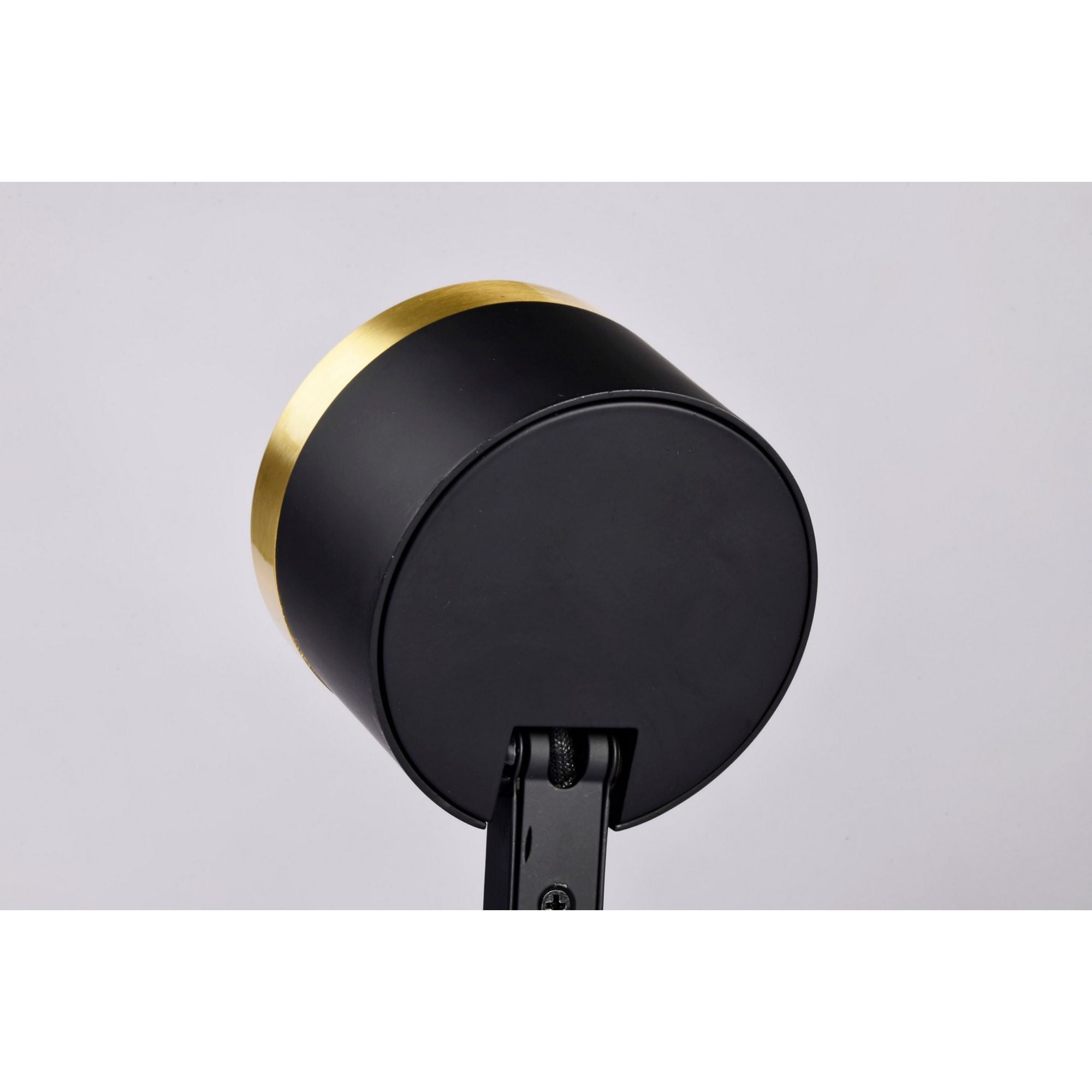

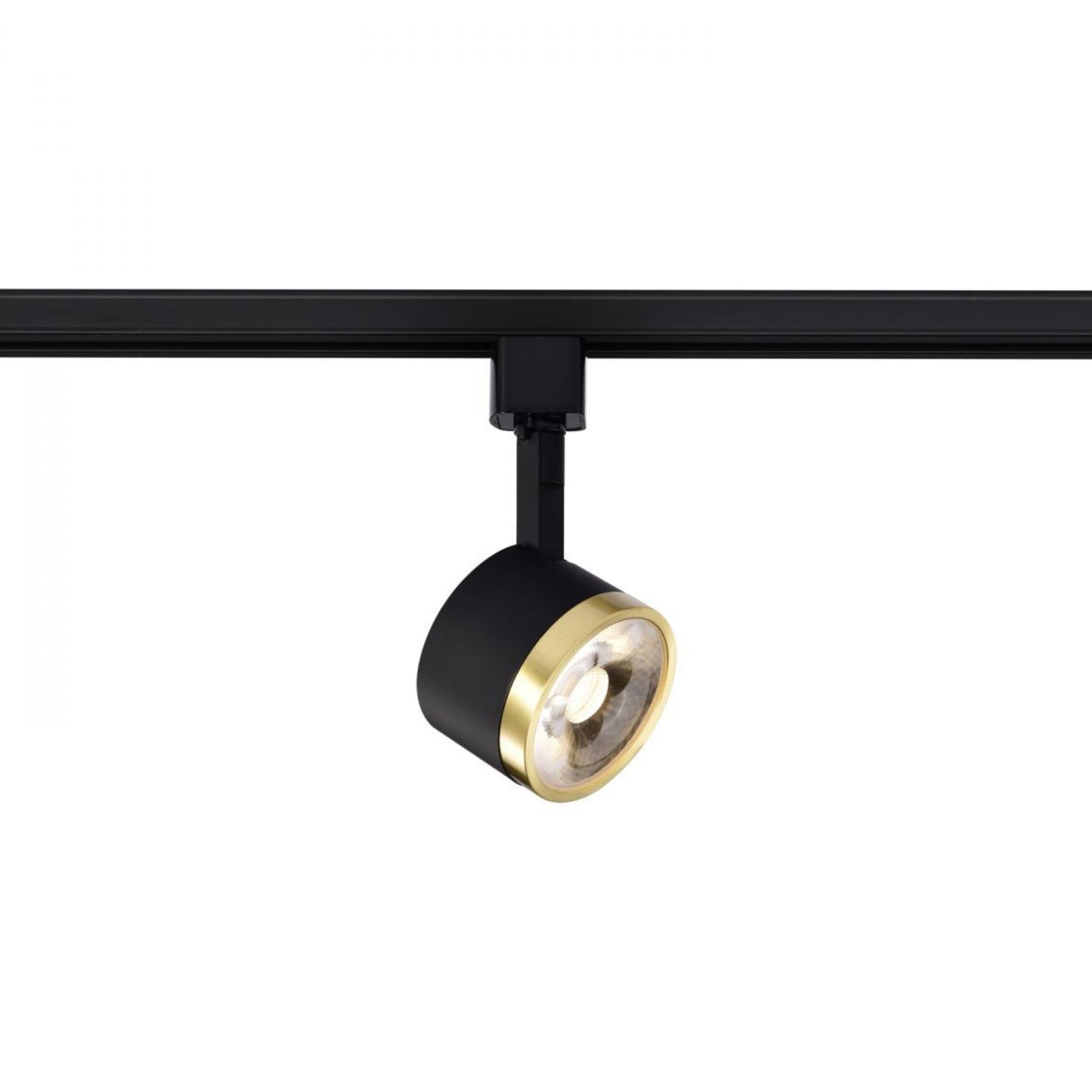

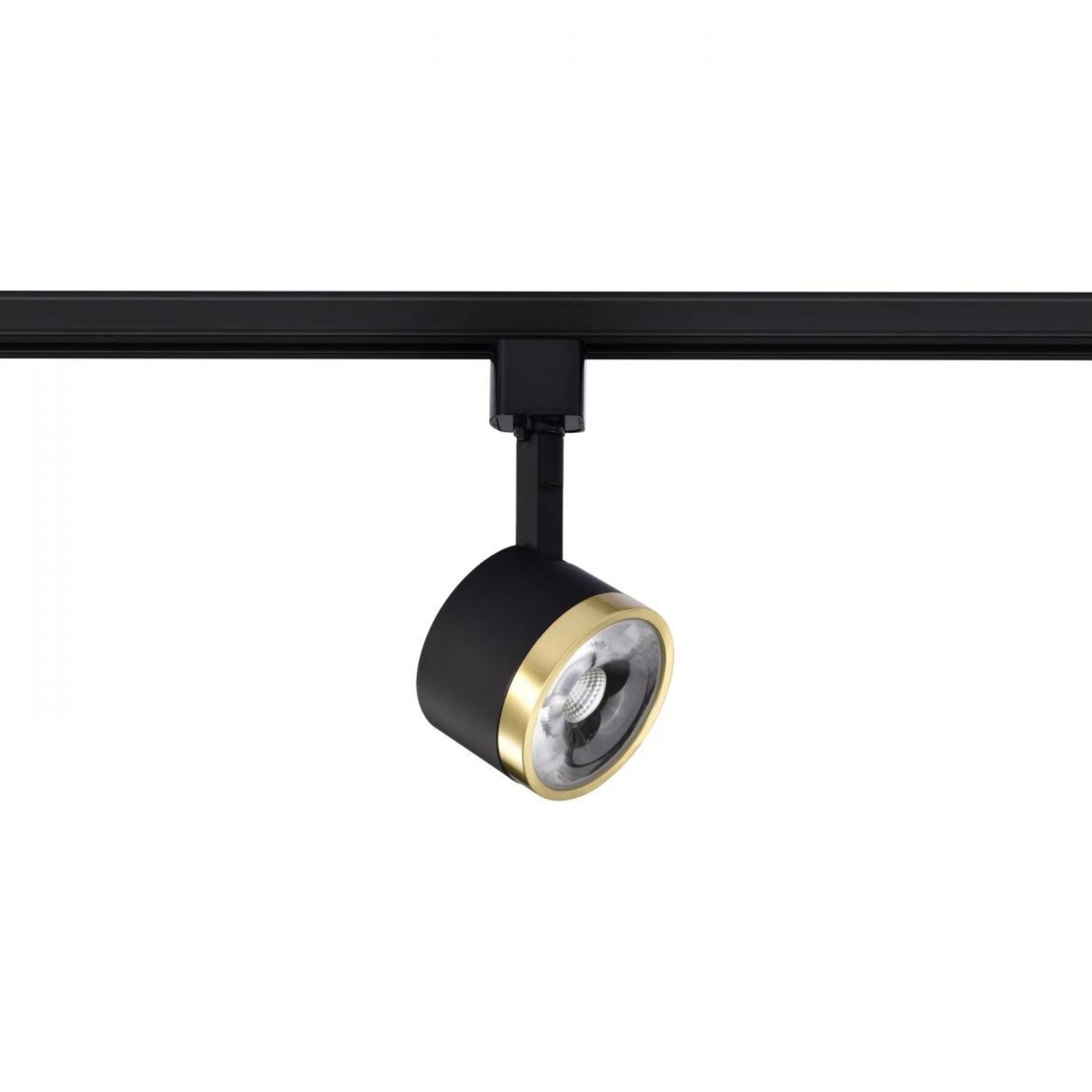

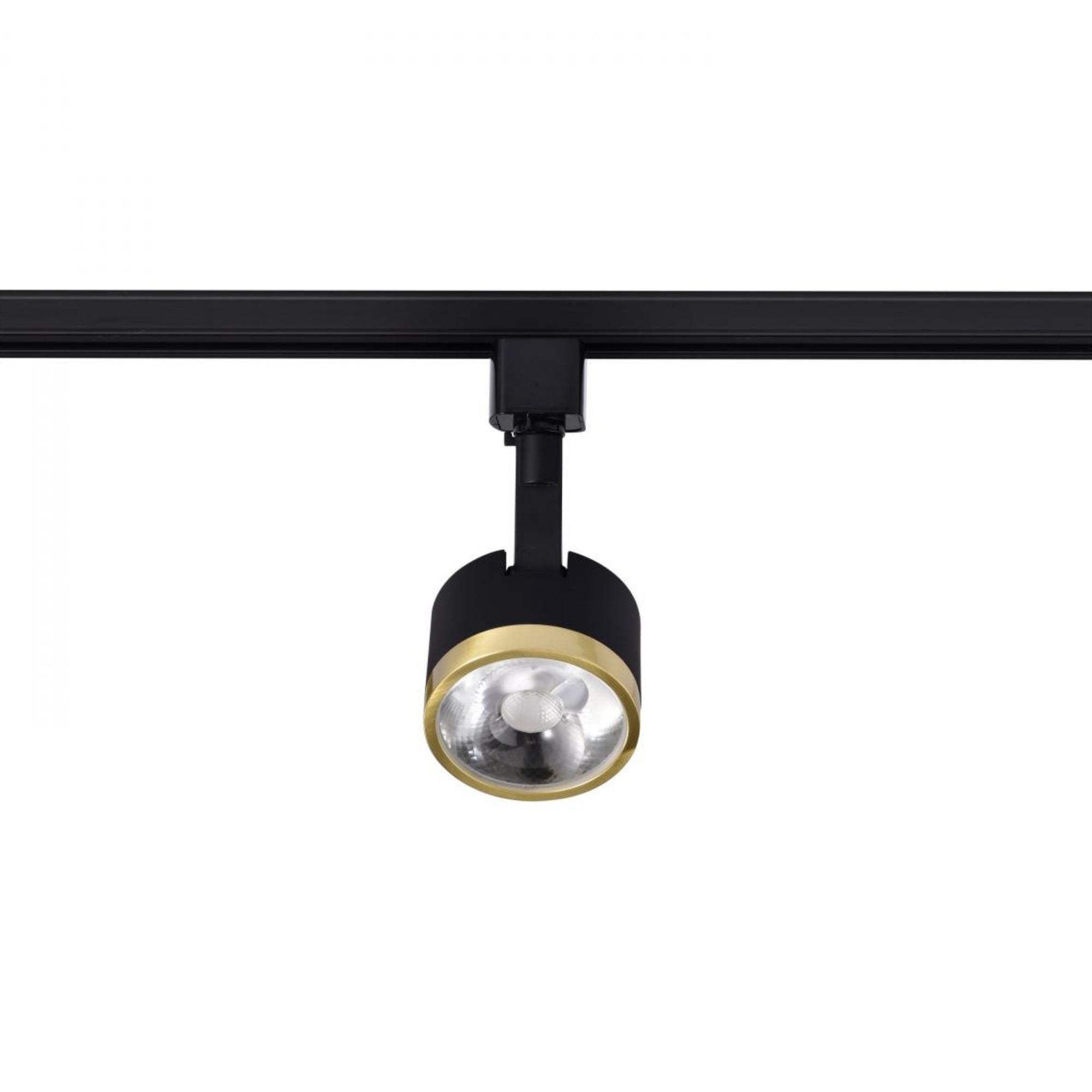

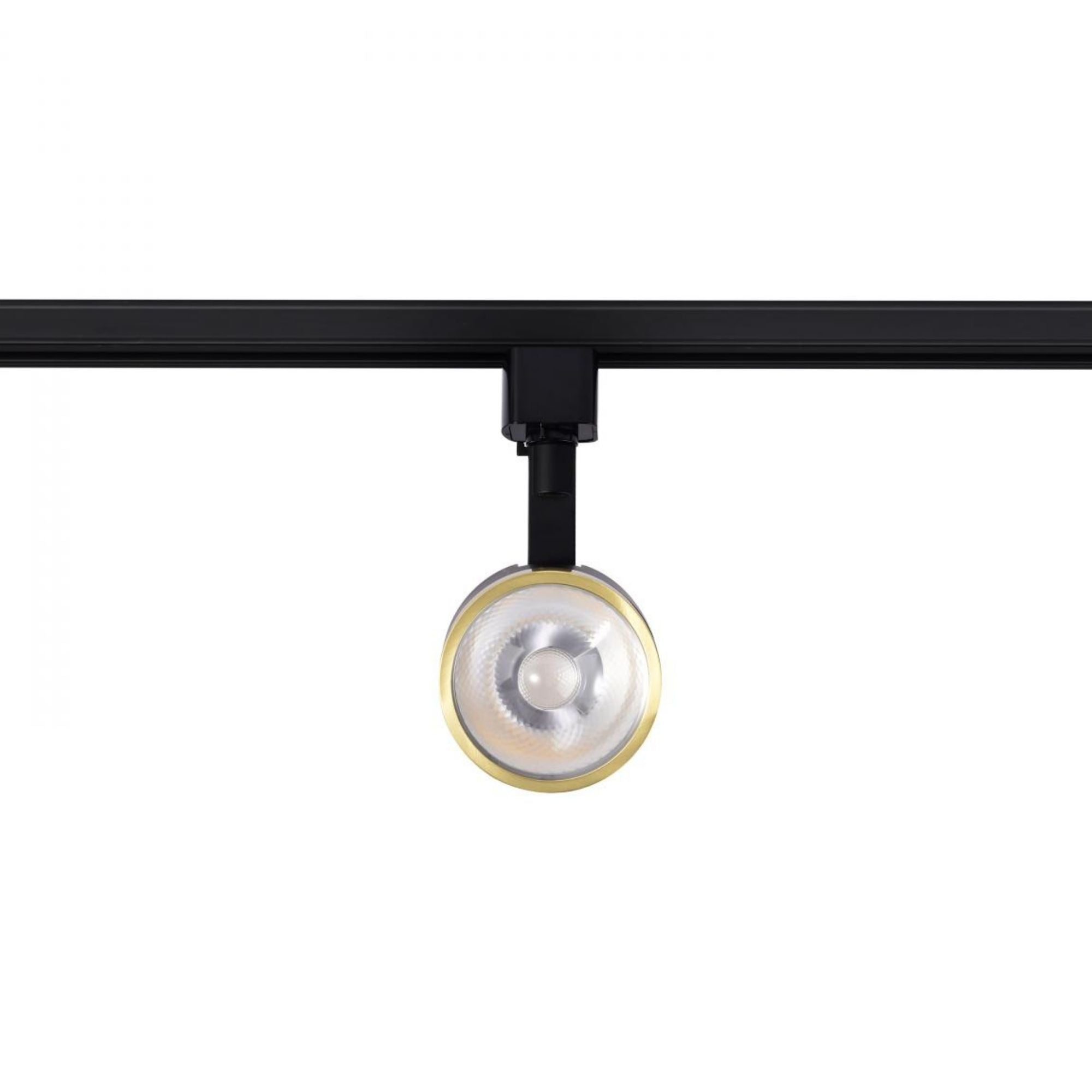

The round head pairs a matte black finish with brushed brass accents in a single two-tone fixture, not separate finish options. Aluminum and steel construction provides a contemporary design that coordinates with black track. The PMMA lens delivers the fixed optical spread, while articulation directs the head toward displays or architectural details.
Light Output & Performance
The integrated LED produces 1020 lumens at 12W, equivalent to 85 lm/W. Its 3000K color temperature and 24° beam are fixed, while 90 CRI supports accurate color rendering. Rated functional life is 30,000 hours L70. Dimming lets you adjust brightness using compatible controls.
Electrical & Installation
The Satco Nuvo TH635 operates at 120V, 60Hz, with 0.10A input current and power factor greater than 0.9. It uses an H-Type track adapter and must be used with Satco Nuvo H-Style track systems to maintain the cETLus listing and warranty requirements. Use compatible 120V dimmers. Install in dry indoor locations within the -4°F to 104°F (-20°C to 40°C) operating range. Track and system components are sold separately.
Compatible Accessories
Matching black Satco Nuvo track-system components, sold separately. Choose rails, a suitable power feed and connectors for your layout.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).
Typical Applications

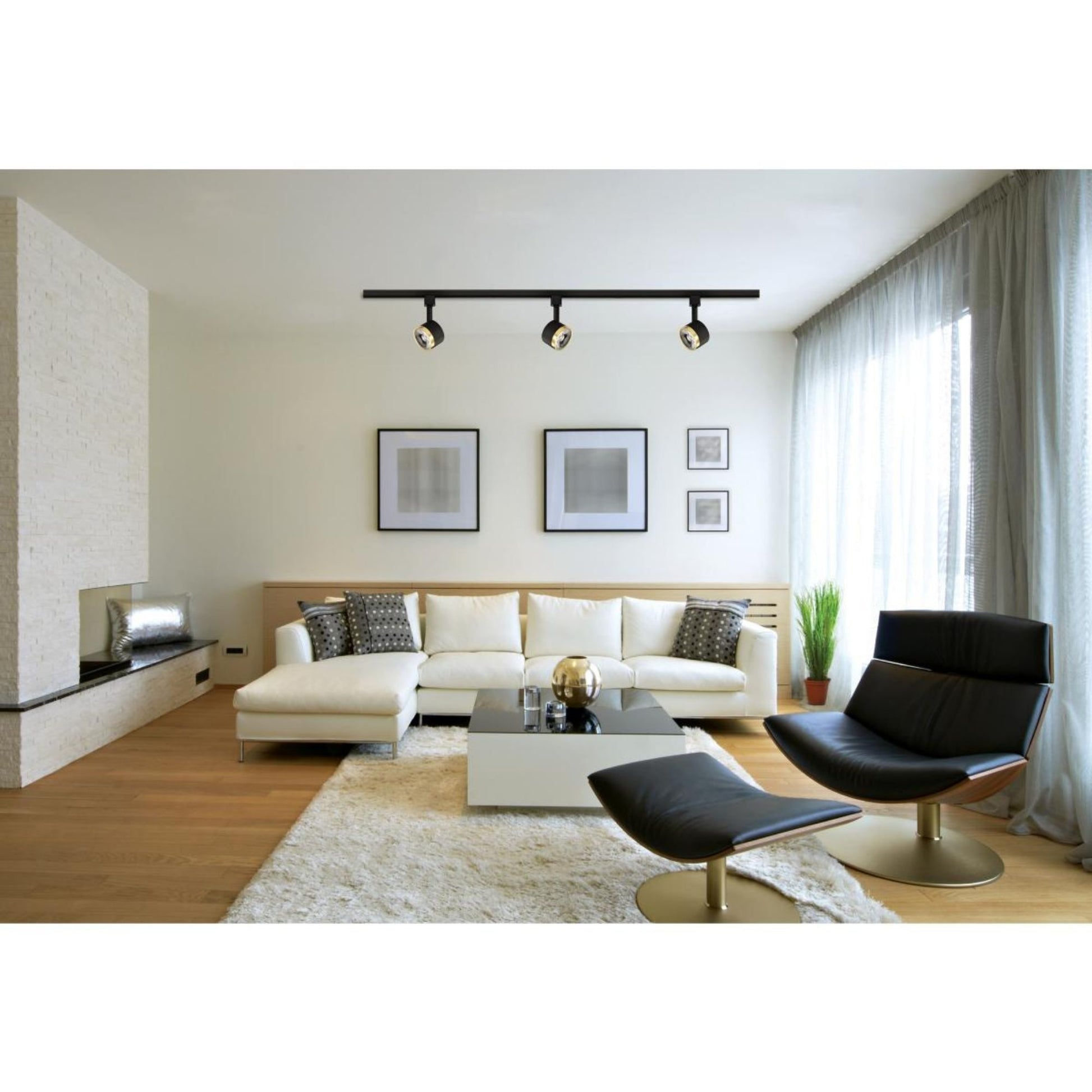

- Residential artwork and display accents.
- Retail merchandise lighting.
- Gallery spot lighting.
- Commercial interior architectural accents.
What's Included
- Satco Nuvo TH635 matte black round track head with brushed brass accents, integrated LED and H-Type track adapter.
Specifications
Specifications

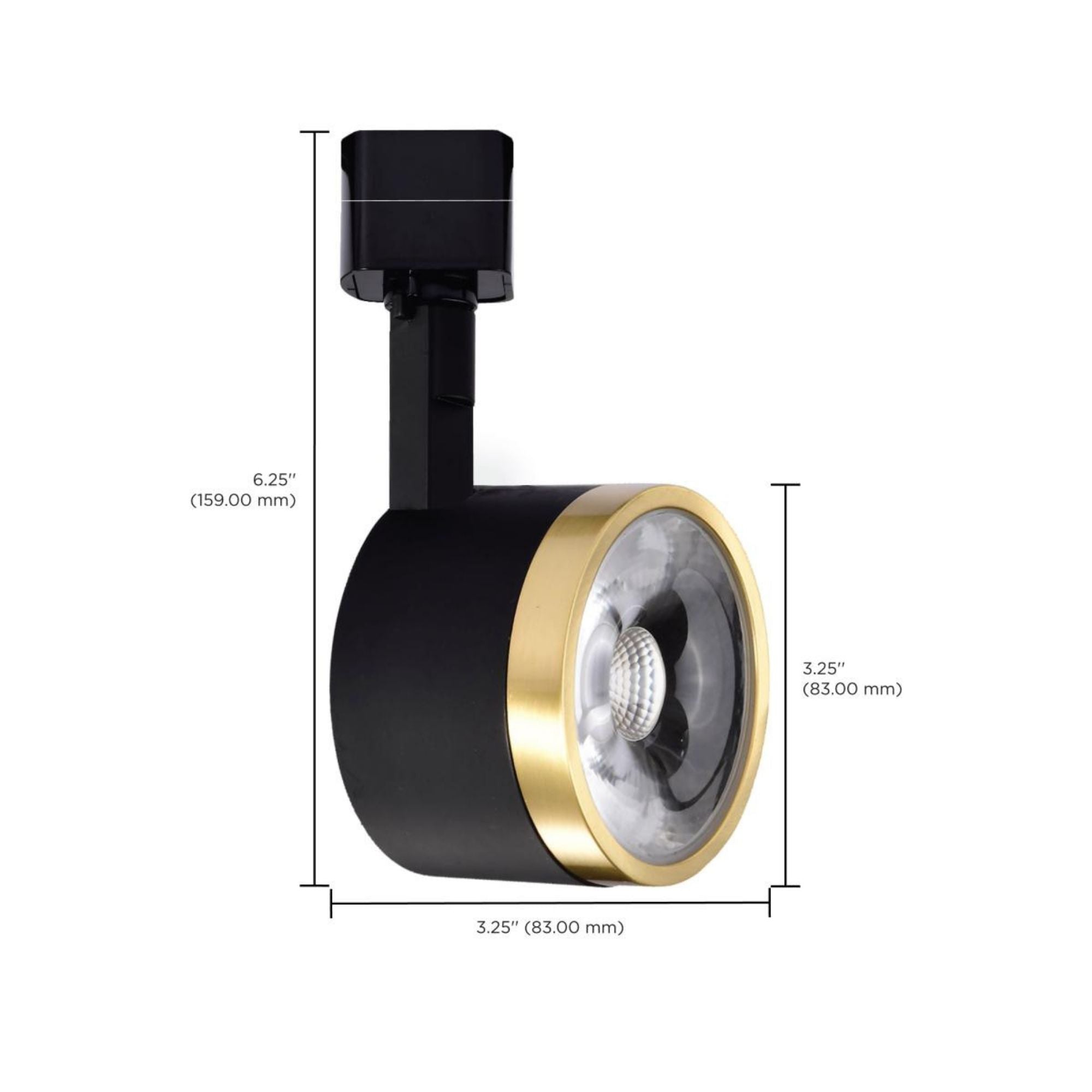

Dimensions
