Satco Nuvo TH632 Cinch LED Track Head

The Satco Nuvo TH632 brings a sculpted Matte White Cinch profile to focused accent lighting. Its 12W integrated LED delivers 1020 lumens of 3000K warm white light with 90 CRI and a fixed 24° beam. Use the concentrated light to draw attention to a framed print, featured merchandise or an architectural detail. The narrow waist and flared front give the head a distinctive silhouette, while the white finish coordinates with light ceilings and white track.

Key Features

• Track System: H-Type (Halo) track.
• Collection: Cinch, sculpted narrow-waist profile.
• Finish: Matte White.
• Light Source: 12W integrated LED.
• Light Output: 1020 lumens.
• Color Temperature: 3000K warm white.
• Color Rendering: 90 CRI.
• Beam: Fixed 24° optical spread.
• Dimming: Dimmable with a compatible dimmer.
• Construction: Aluminum and steel.
• Electrical: 120V.
• Location & Life: Dry indoor use, 30,000-hour rated life.

Construction & Design

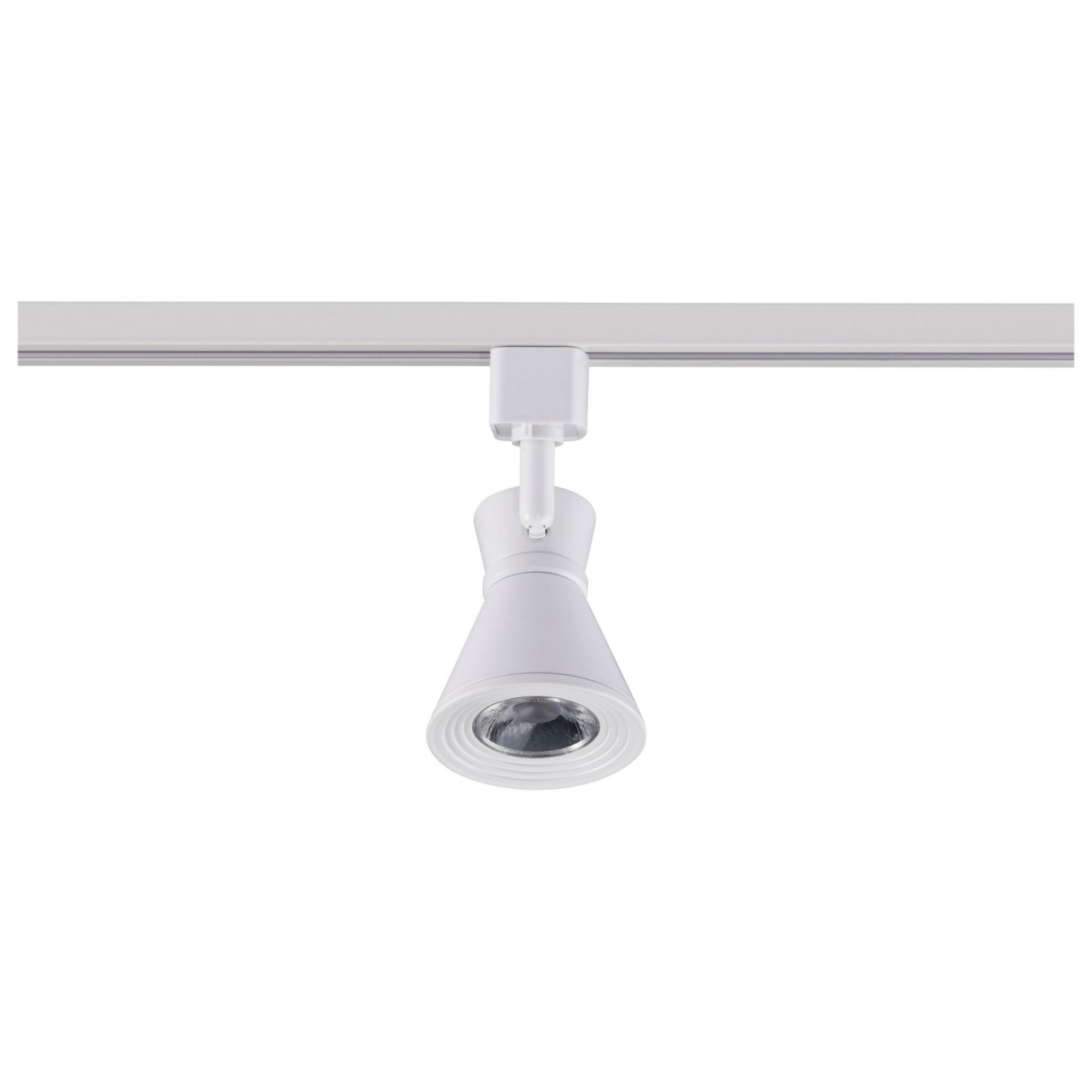

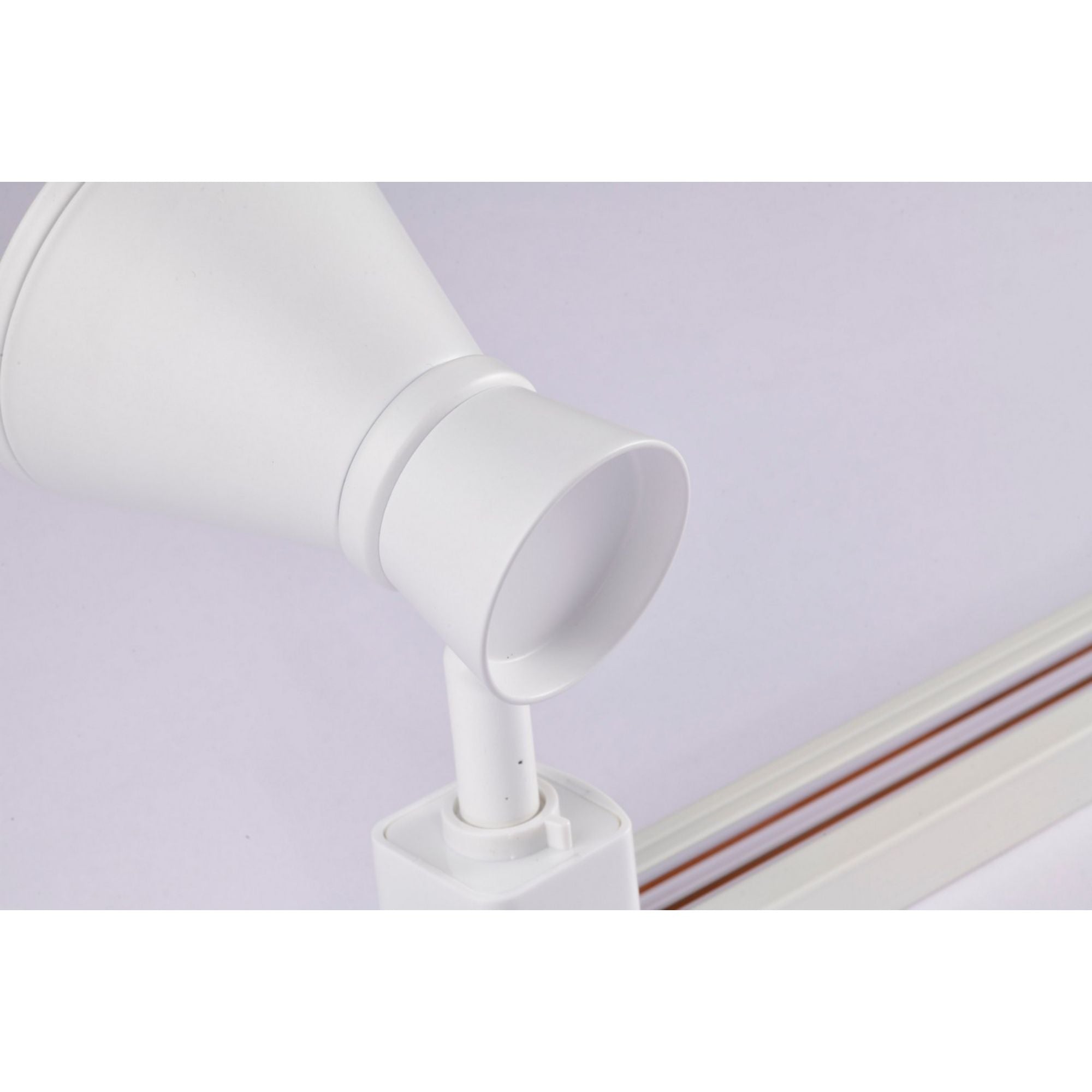

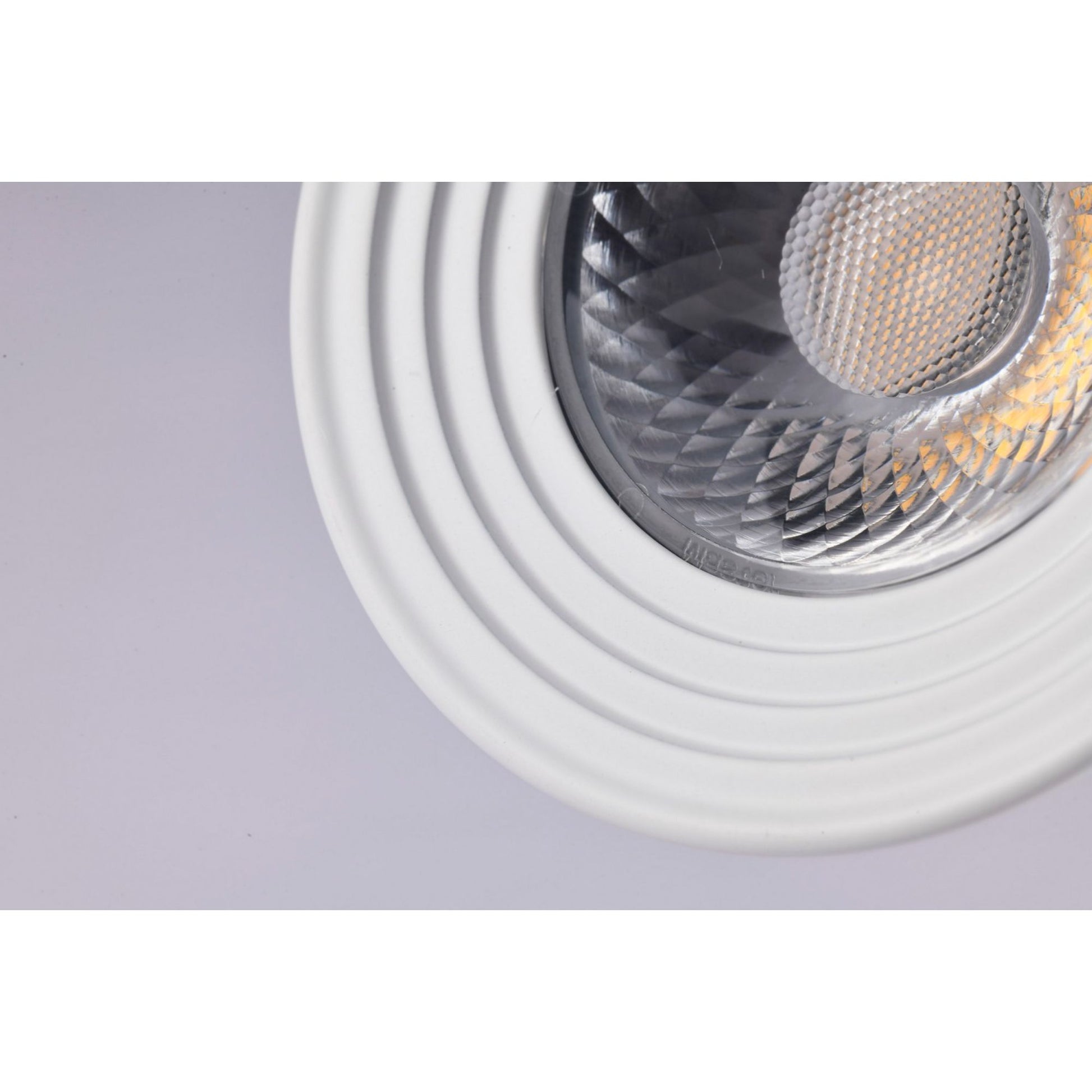

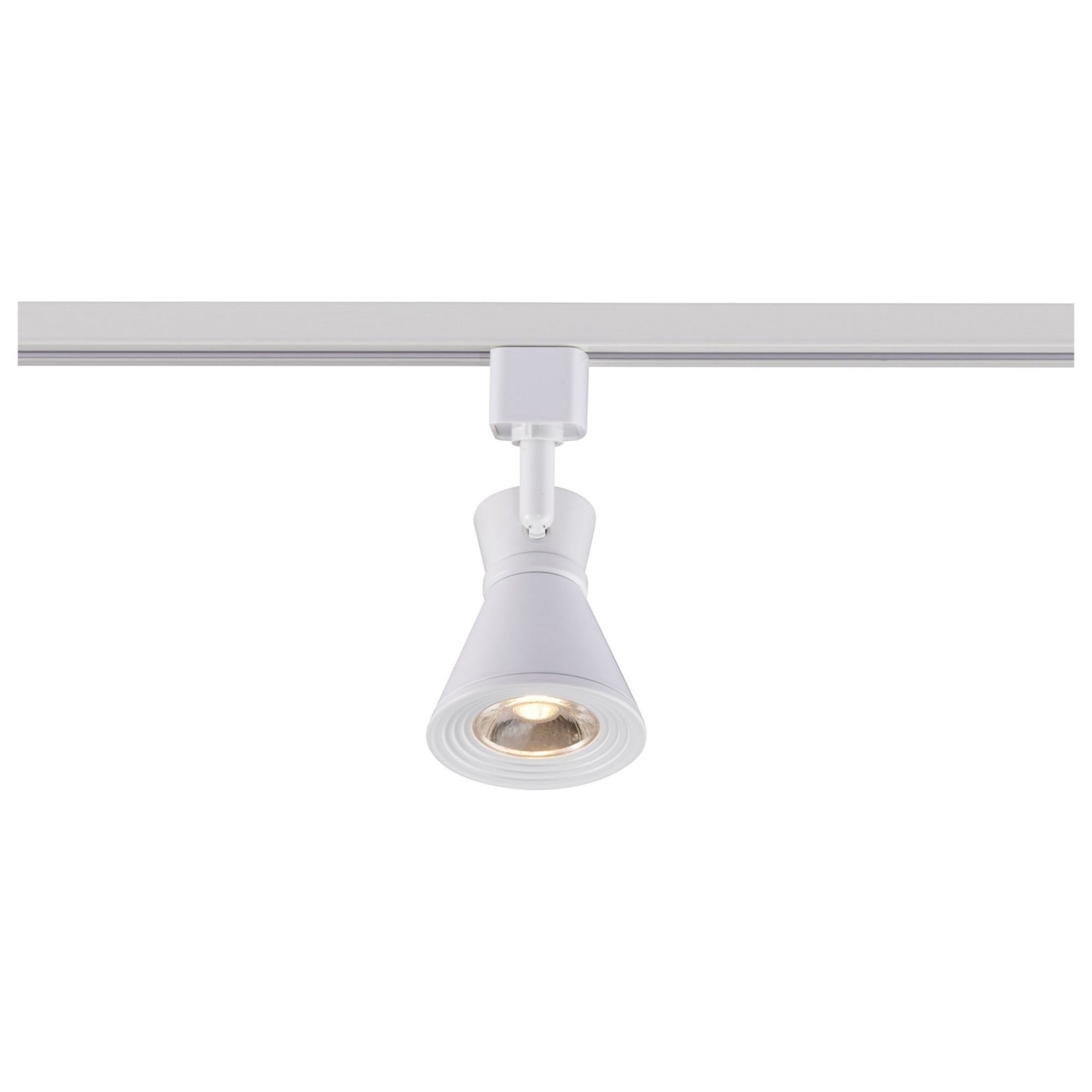

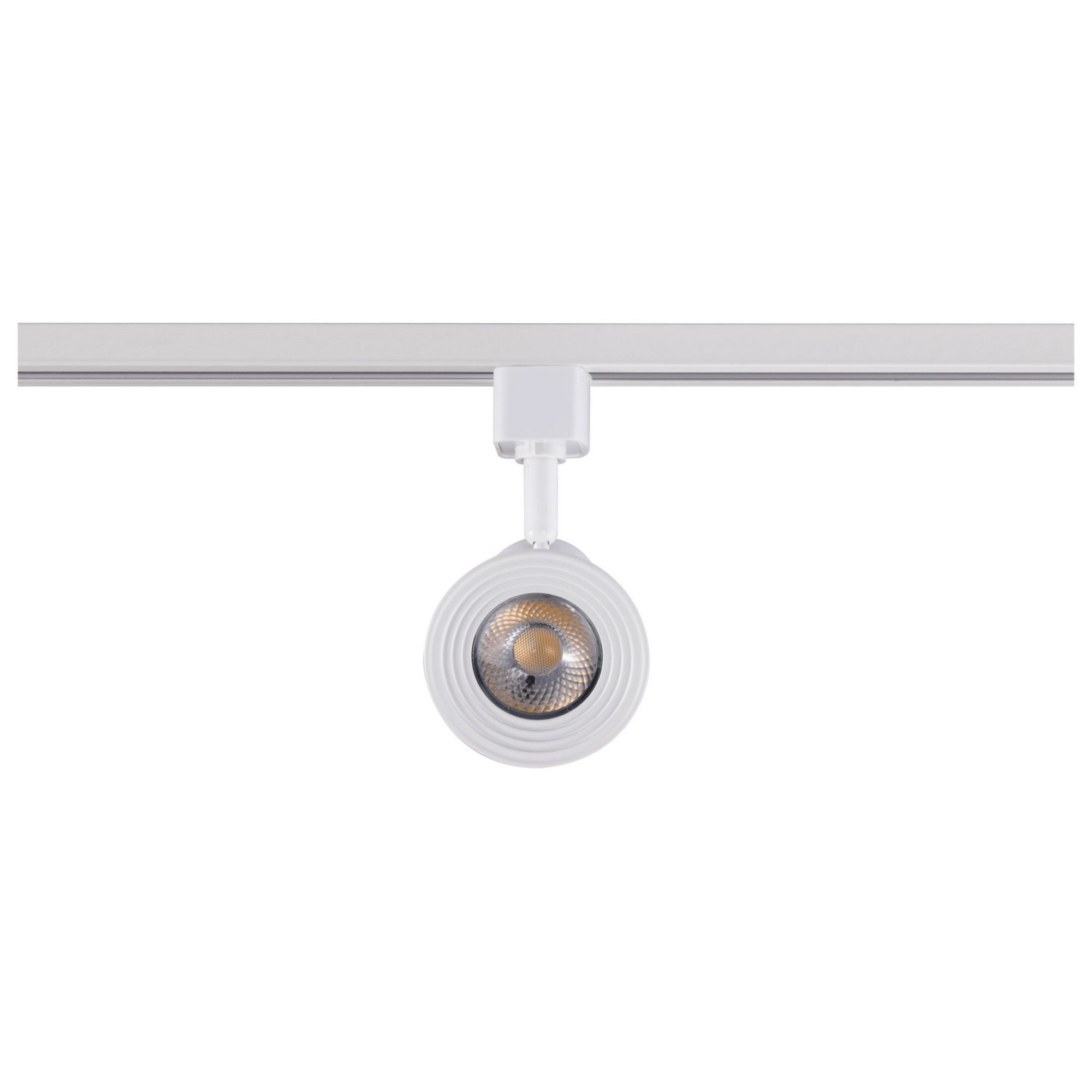

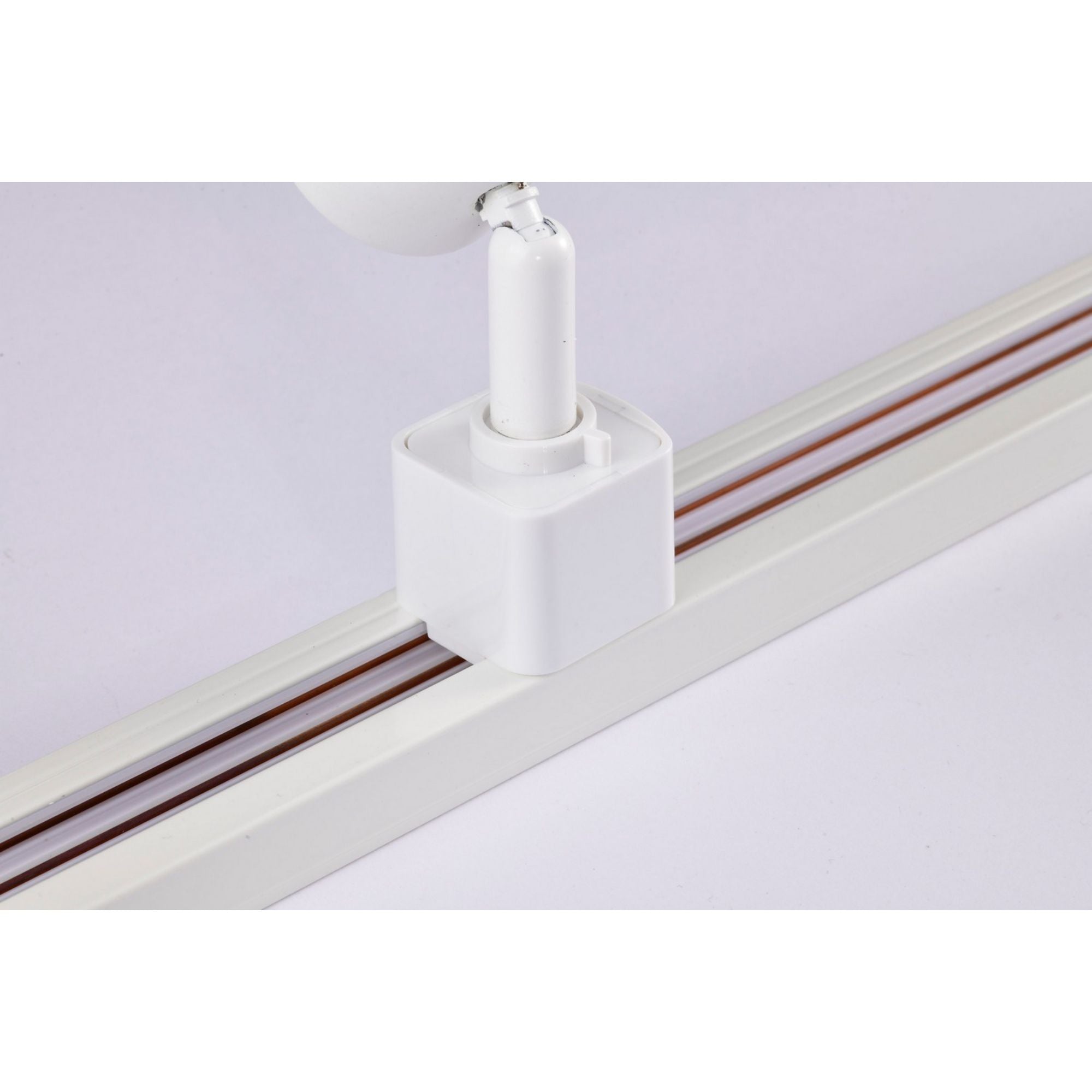

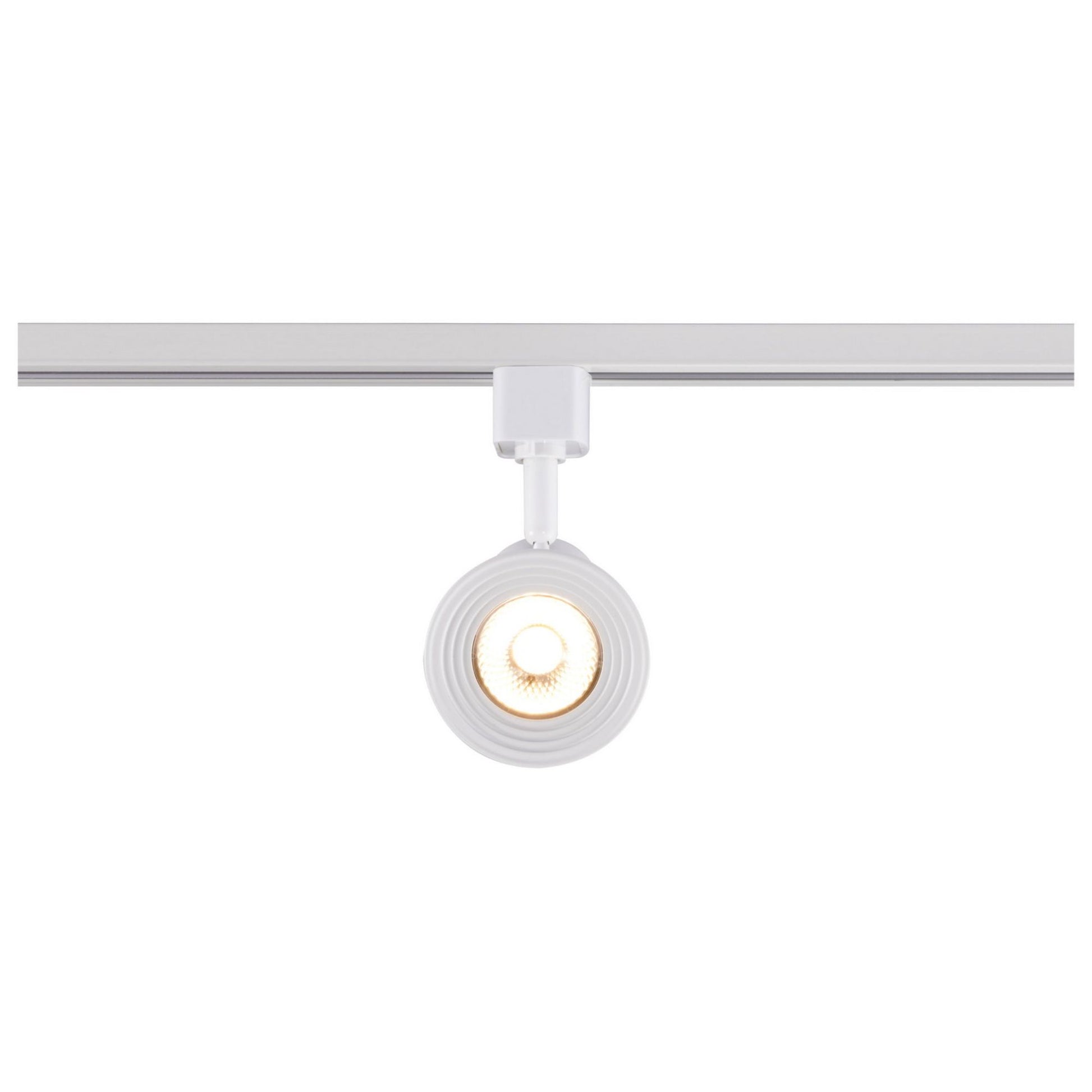

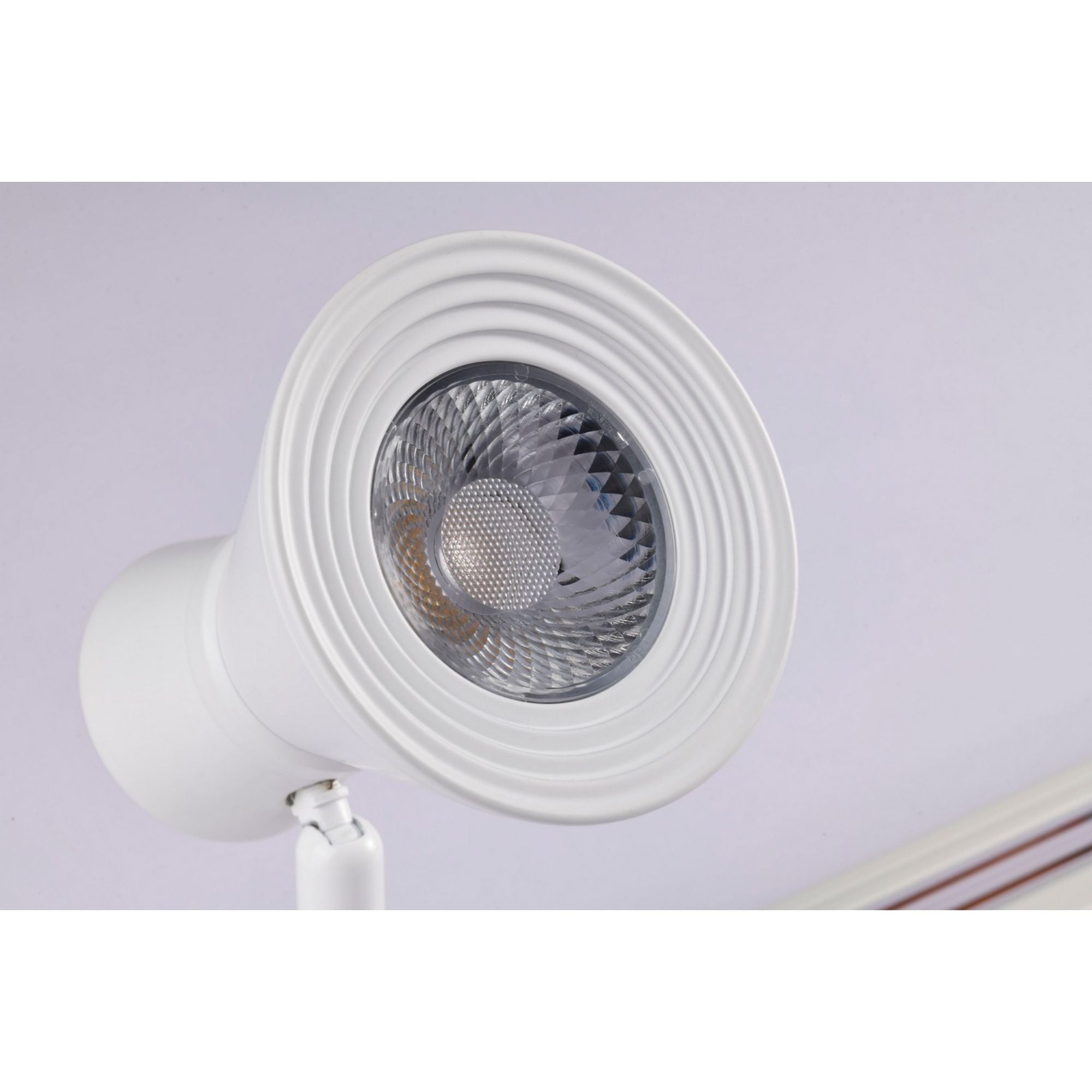

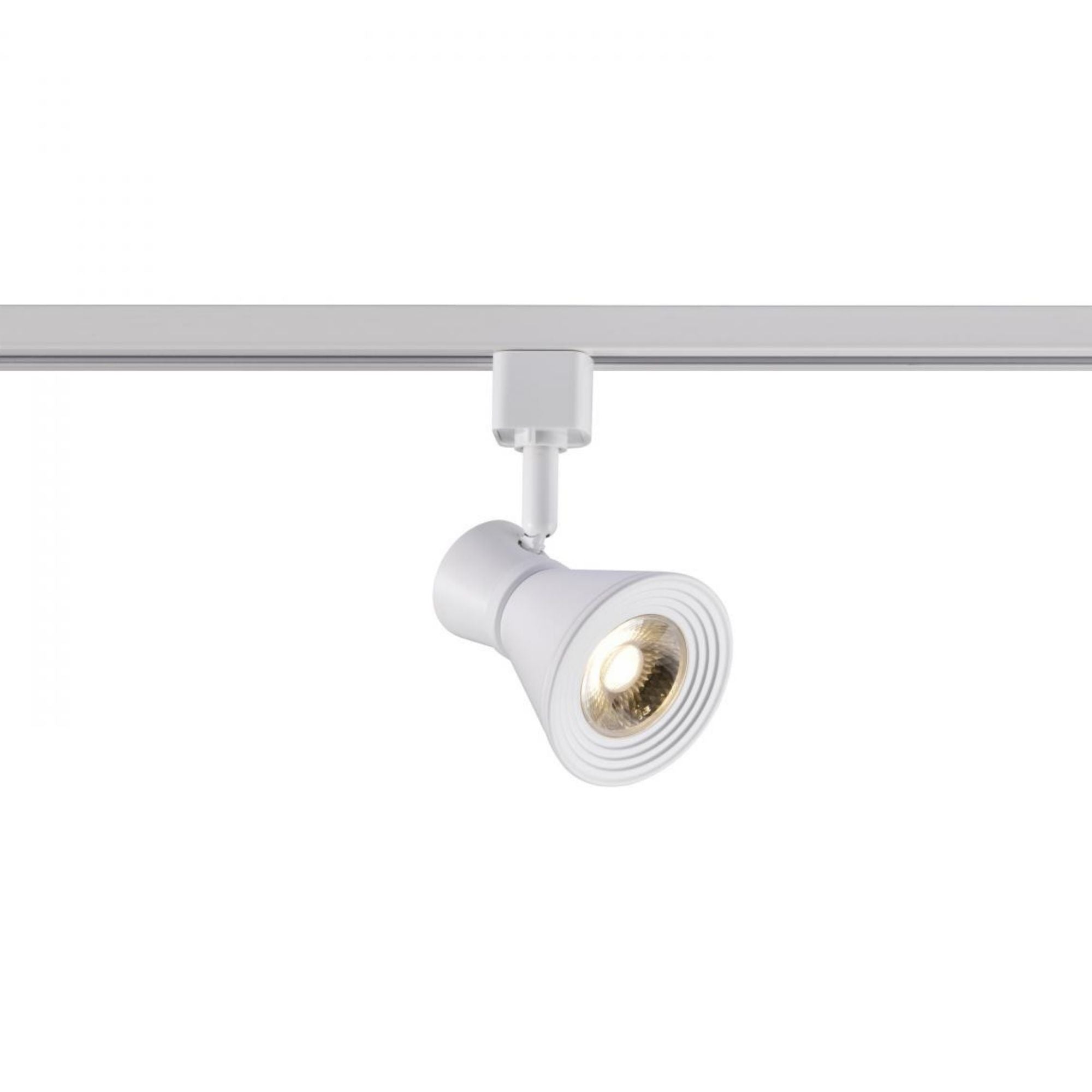

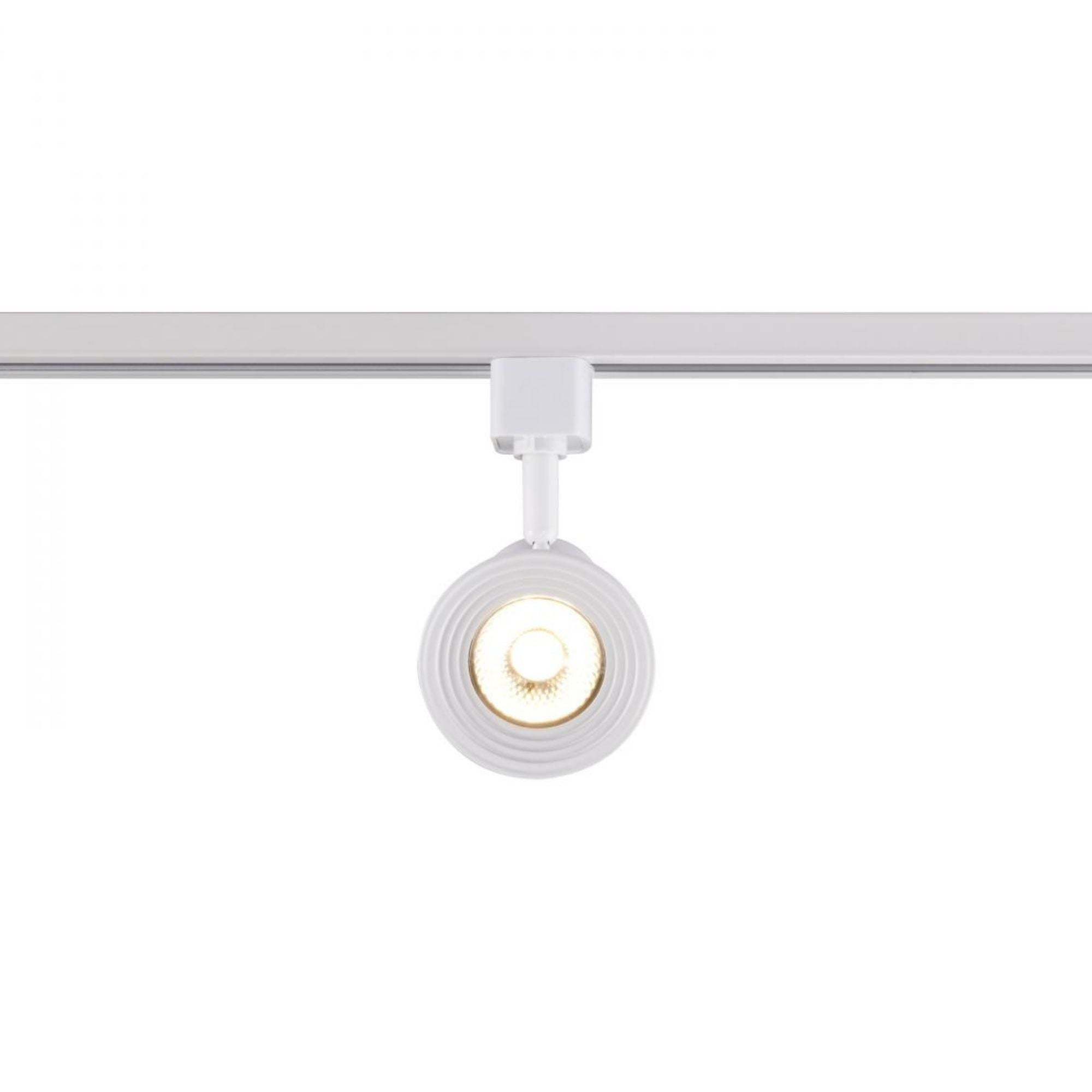

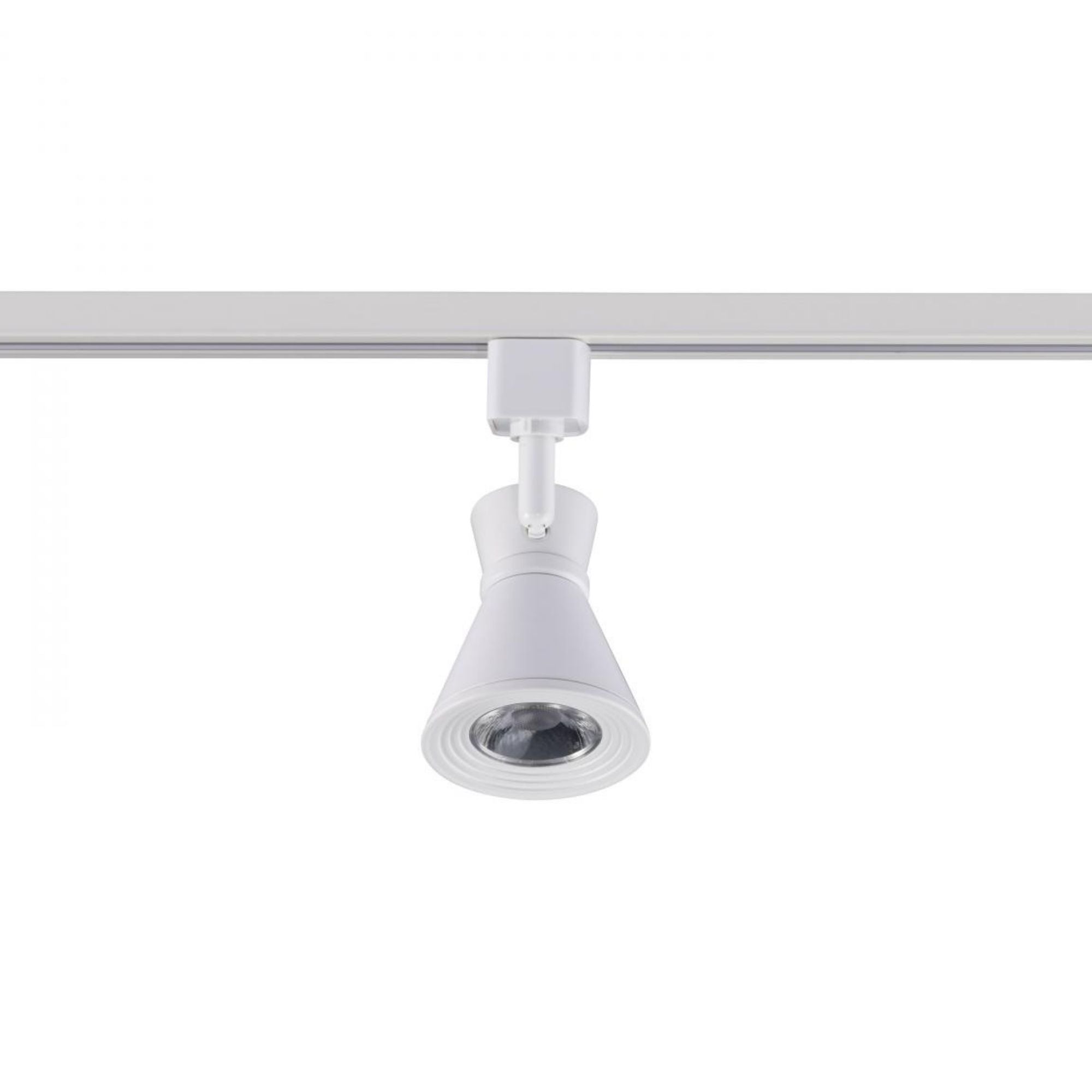

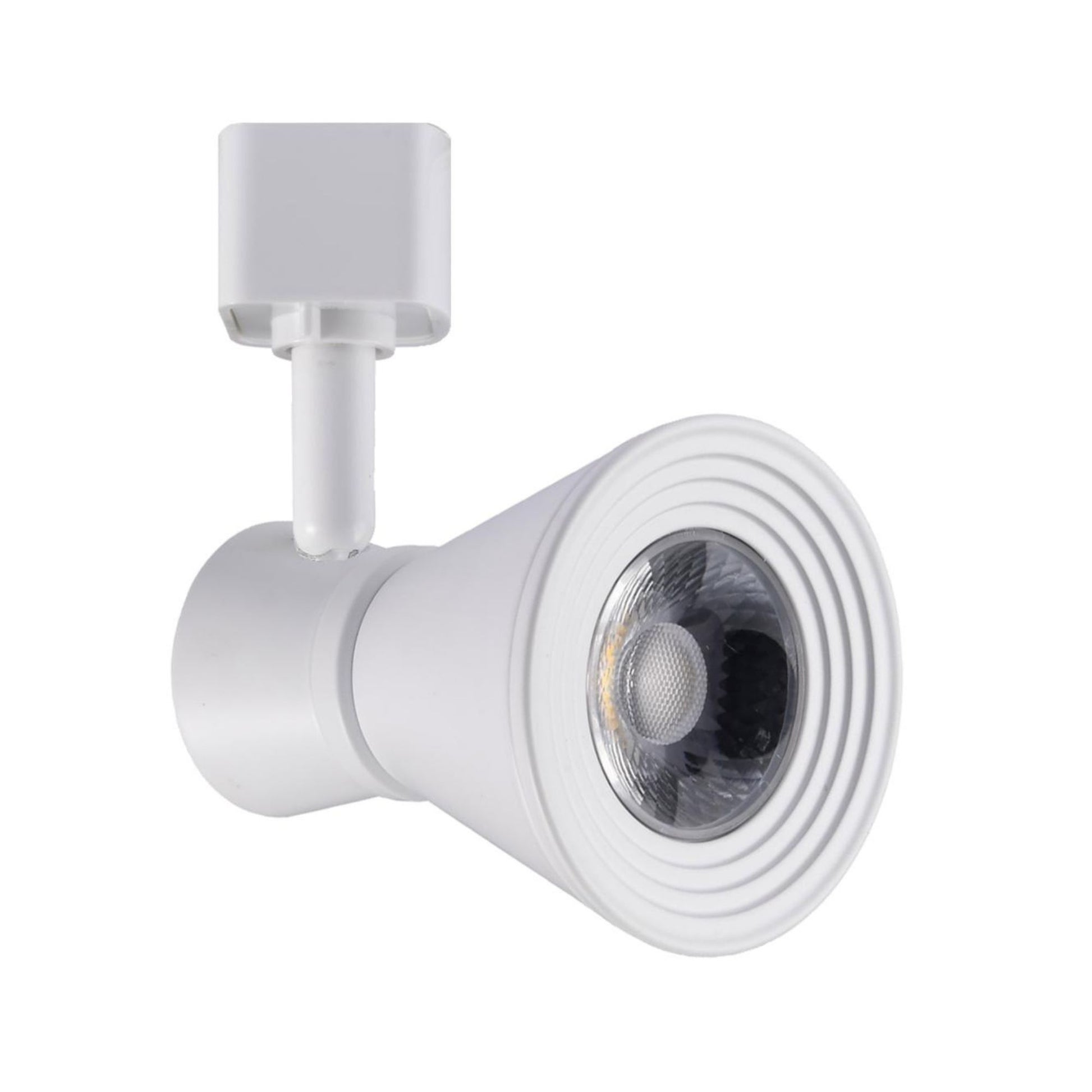

The Matte White aluminum and steel housing combines a cylindrical rear section with a cinched center and flared face. Concentric rings around the front opening add definition to the light aperture and distinguish the fixture from a plain cylindrical head. The supporting stem separates the head visually from the track adapter, giving the arrangement a clean, sculpted appearance. Coordinating white track components create a consistent finish throughout the lighting layout.

Light Output & Performance

The Satco Nuvo TH632 delivers 1020 lumens from 12W, with 3000K warm white light and 90 CRI. Its fixed 24° beam is suited to focused accents rather than broad illumination. This concentrated spread helps establish a visual focal point on artwork, merchandise and interior details. Brightness is adjustable with a compatible dimmer, and rated LED life is 30,000 hours.

Electrical & Installation

The Satco Nuvo TH632 operates at 120V and is designed for H-Type (Halo) track in dry indoor locations. Select a compatible dimmer for brightness control. Track rails, power feeds and connectors are sold separately, allowing the layout to be configured for the installation.

Compatible Accessories

Complete your Cinch lighting arrangement with coordinating white Satco Nuvo track components, sold separately. Select rails, power feeds and connectors to suit your layout.

• Track Rails: TR118 (2 ft), TR120 (4 ft), TR124 (6 ft) and TR122 (8 ft), single-circuit H-Type.
• Power Feeds: TP152 live end and canopy, TP154 floating canopy, TP156 live end cord kit, TP169 conduit live end and TP171 inline feed.
• Track Connectors: TP144 mini straight, TP146 L, TP148 T, TP150 X and TP167 flexible connector.
• Track Mounting: TP240 white aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

Typical Applications

• Retail merchandise displays.
• Gallery and artwork accents.

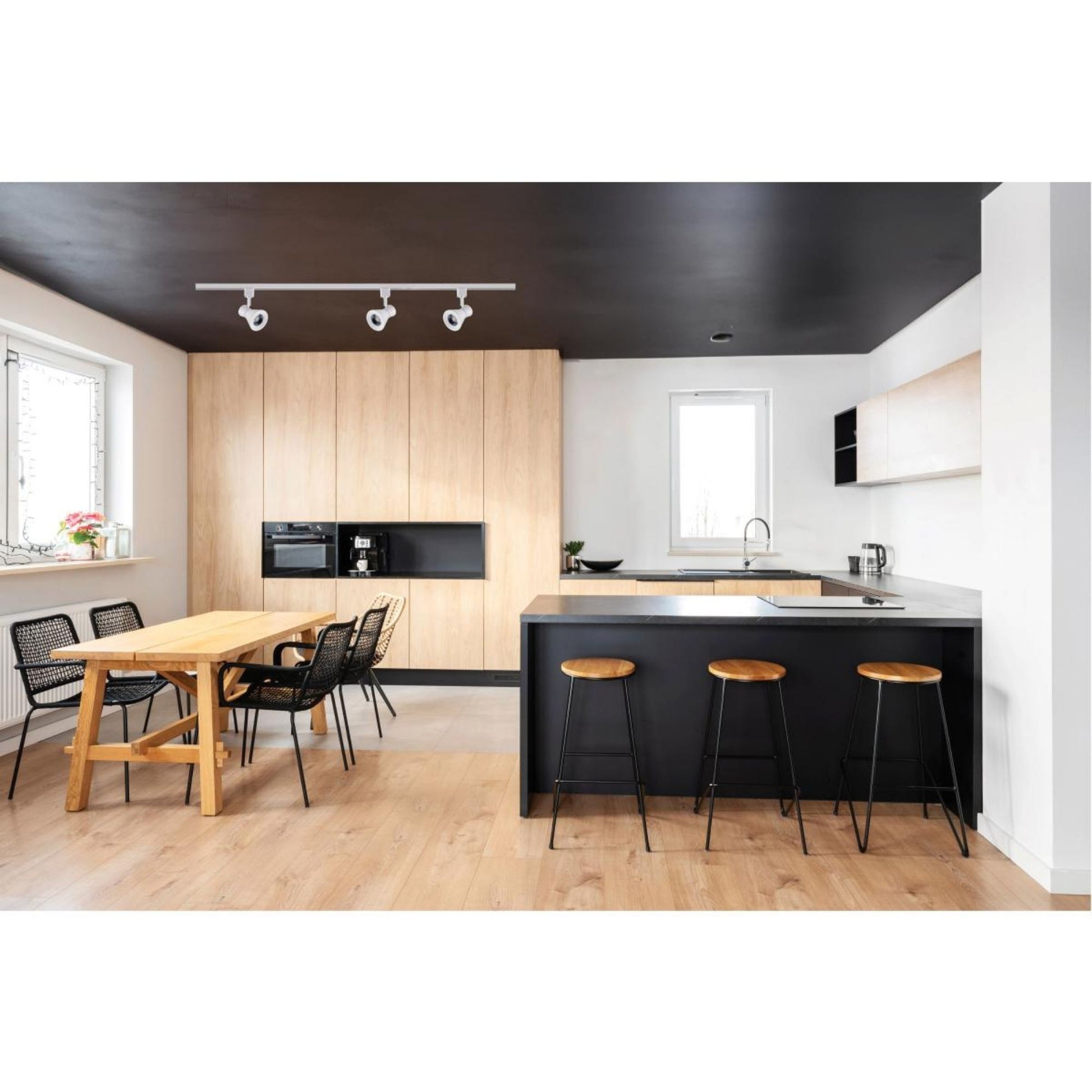

• Residential interior focal points.
• Commercial architectural details.

What's Included

• Satco Nuvo TH632 Matte White Cinch track head with integrated LED and H-Type adapter.
