Satco Nuvo TH506 4 ft 60W H-Type LED Track Bar 3000K White
Available in stock (89)
About this item
About this item
- Linear Accent Lighting: Nominal 4 ft length, 1.25 in width, 60W, 3840 lumens.
- Warm Color Rendering: 3000K warm white, 90 CRI.
- Directional Control: 270° rotation with a fixed 30° beam.
- Adjustable Brightness: 120V phase-cut TRIAC dimming, 30,000-hour rated life.
- White Track Design: Aluminum and plastic construction, H-Type compatibility, dry indoor use.
Description
Description

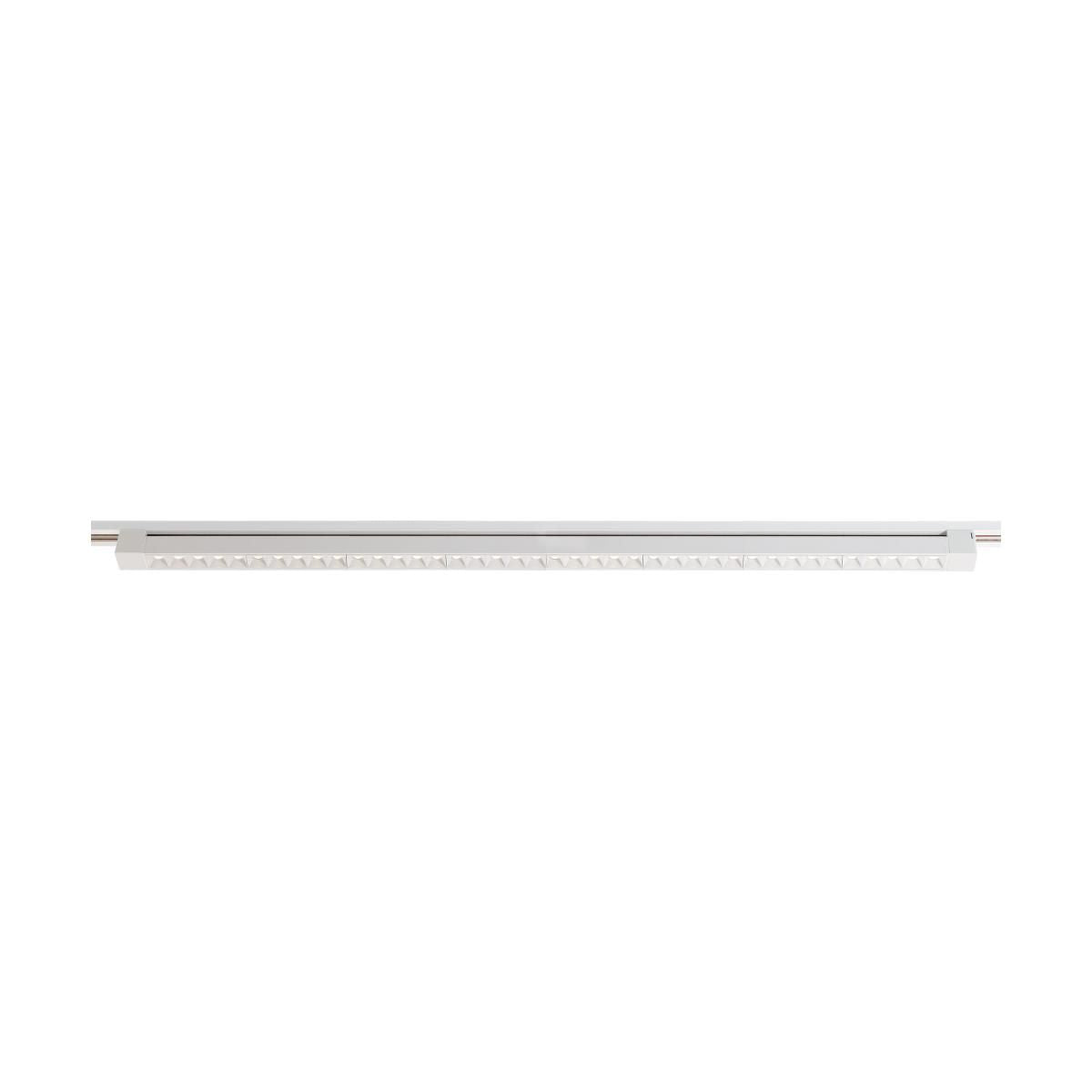

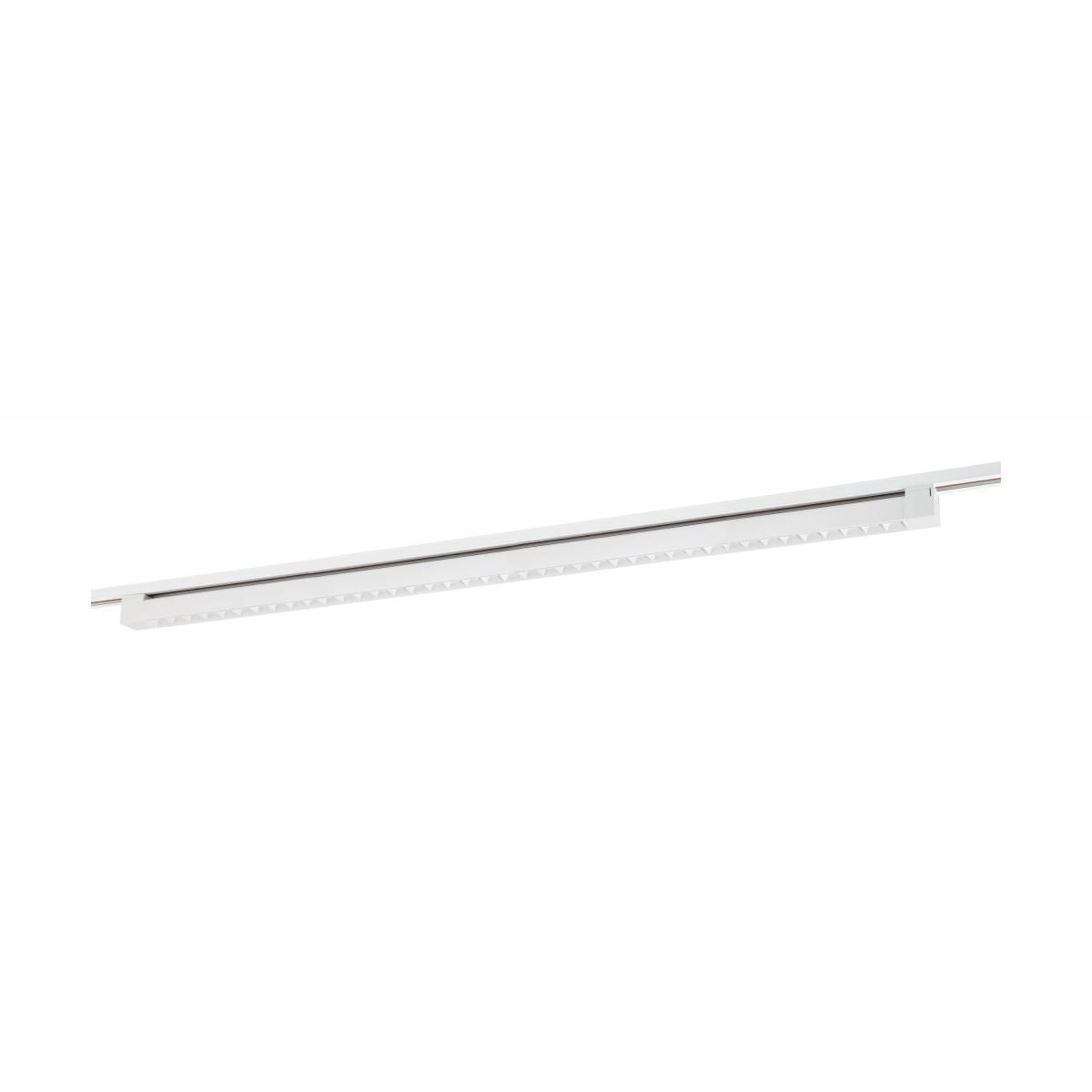

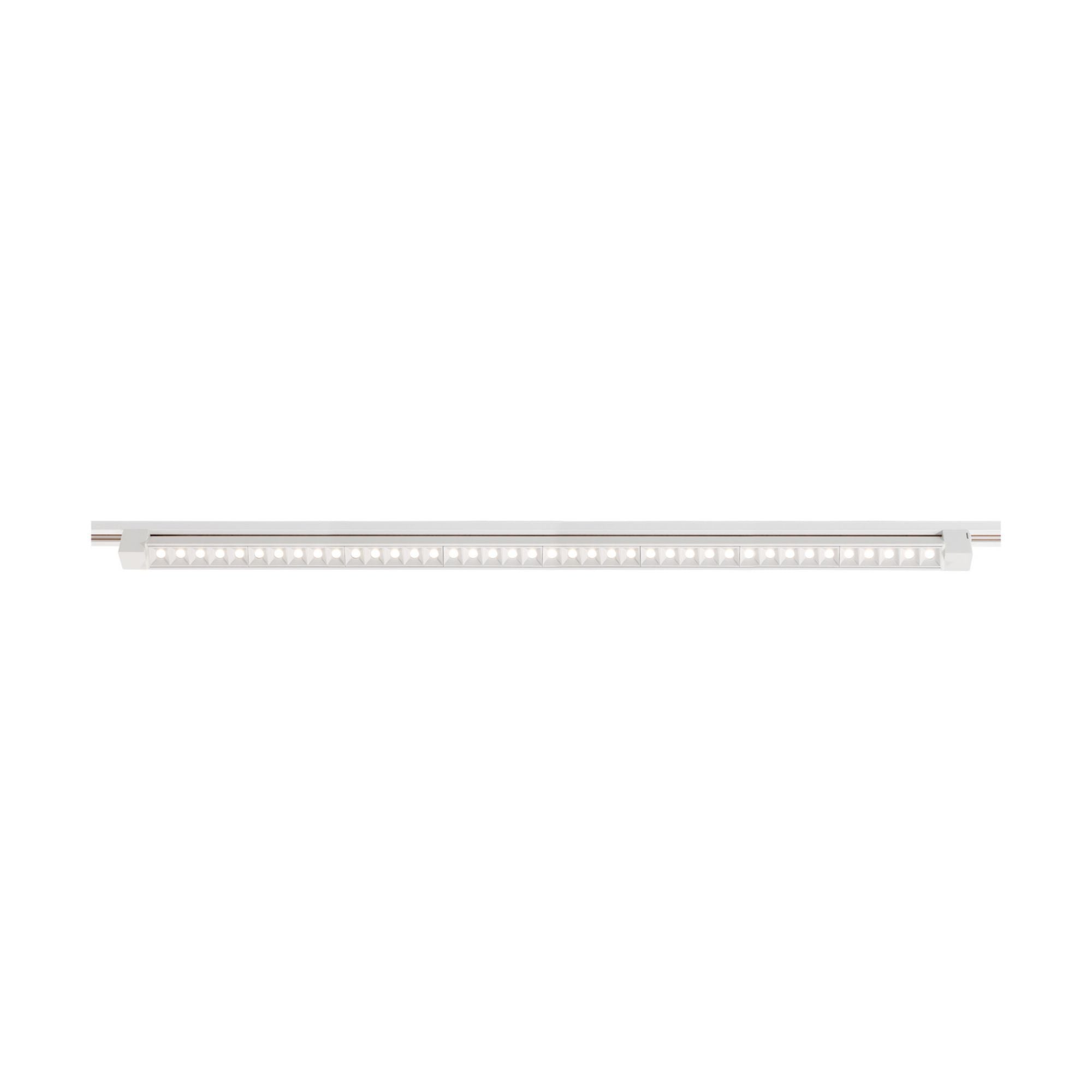

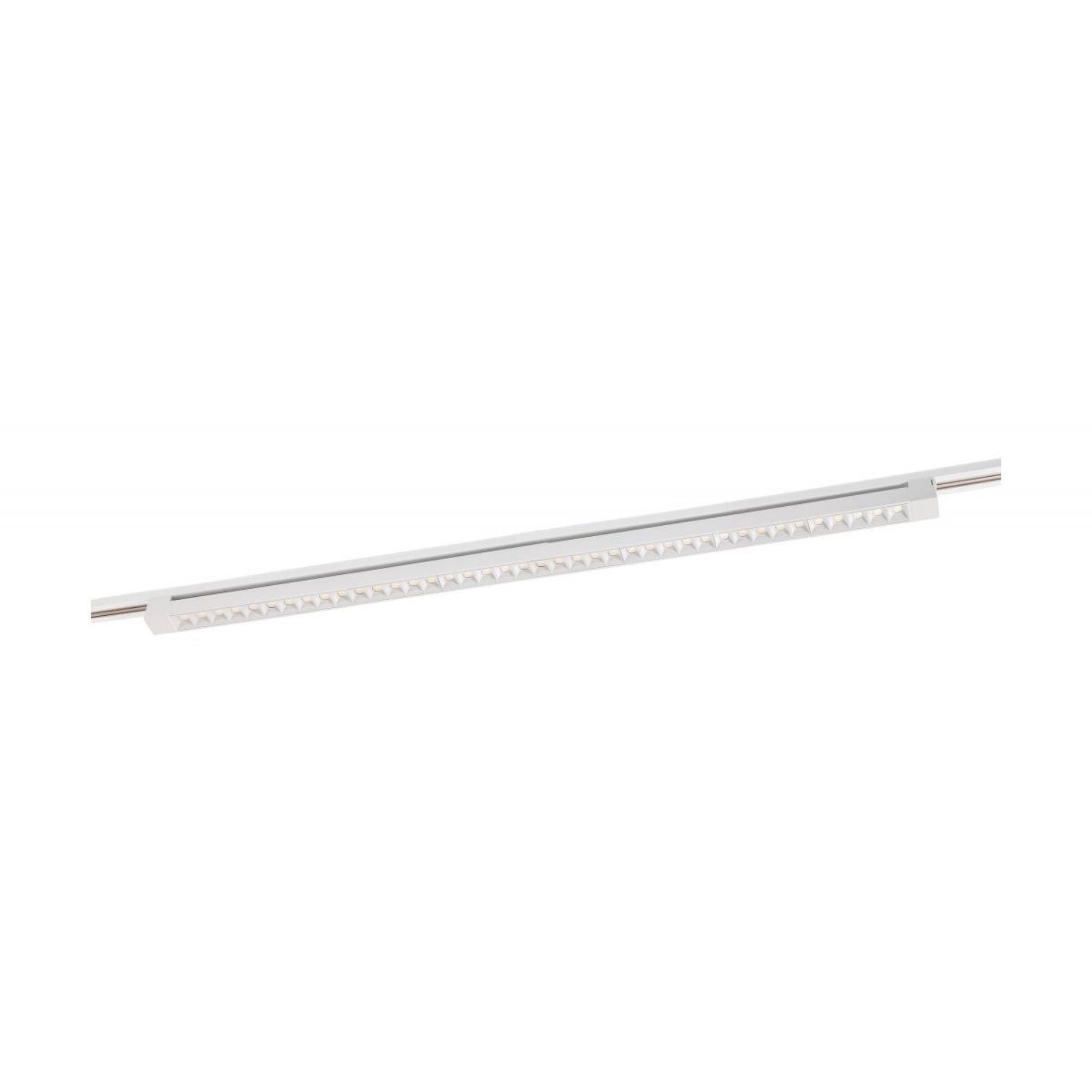

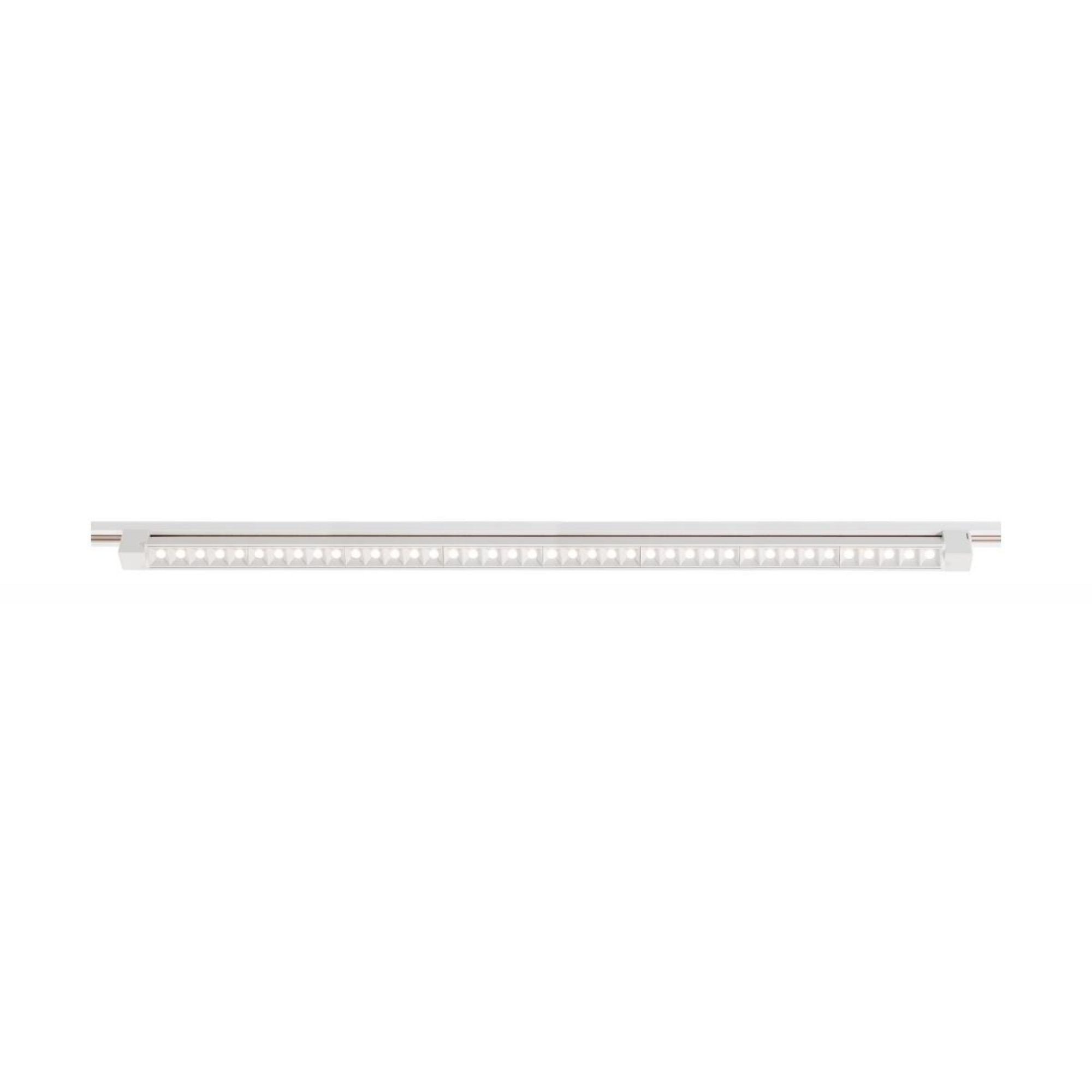

Satco Nuvo TH506 4 ft LED Linear Track Bar
The Satco Nuvo TH506 brings linear illumination to artwork, signage and architectural wall features. This white 4 ft track bar delivers 3840 lumens at 60W, with 3000K warm white light and 90 CRI. Its fixed 30° beam and 270° rotation help direct illumination across display surfaces, while dimming adjusts brightness to suit the space.
Key Features
- Track Compatibility: H-Type (Halo) track adapter.
- Size & Finish: Nominal 4 ft length, 1.25 in width, white.
- LED Output: 60W, 3840 lumens.
- Color Quality: 3000K warm white, 90 CRI.
- Optics & Aiming: Fixed 30° beam, 270° rotation.
- Dimming: 120V phase-cut TRIAC with a compatible dimmer.
- Construction: Aluminum and plastic.
- Electrical: 120V operation.
- Rated Life: 30,000 hours.
- Location: Dry indoor use.
Construction & Design
The white aluminum and plastic body houses an integrated LED array in a slim linear profile. Its nominal 4 ft length and 1.25 in width create a narrow architectural accent. The bar rotates 270° to direct illumination across walls or merchandise displays.
Light Output & Performance
The Satco Nuvo TH506 produces 3840 lumens from 60W with 3000K warm white light and 90 CRI. Its fixed 30° beam supports focused linear accents and wall-wash effects. Brightness is adjustable through 120V phase-cut TRIAC dimming with a compatible dimmer. Rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH506 installs directly into H-Type (Halo) track and operates at 120V. Pair it with a compatible phase-cut TRIAC dimmer for brightness adjustment and install in dry indoor locations. Track rails, power feeds and connectors are sold separately.
Compatible Accessories
Build your Linear Track Bar layout with coordinating white Satco Nuvo track components, sold separately. Choose rail lengths, feeds and connectors for your installation.
- Track Rails: TR118 (2 ft), TR120 (4 ft), TR124 (6 ft) and TR122 (8 ft), single-circuit H-Type.
- Power Feeds: TP152 live end and canopy, TP154 floating canopy, TP156 live end cord kit, TP169 conduit live end and TP171 inline feed.
- Track Connectors: TP144 mini straight, TP146 L, TP148 T, TP150 X and TP167 flexible connector.
- Track Mounting: TP240 white aircraft cable suspension, TP185 silver T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

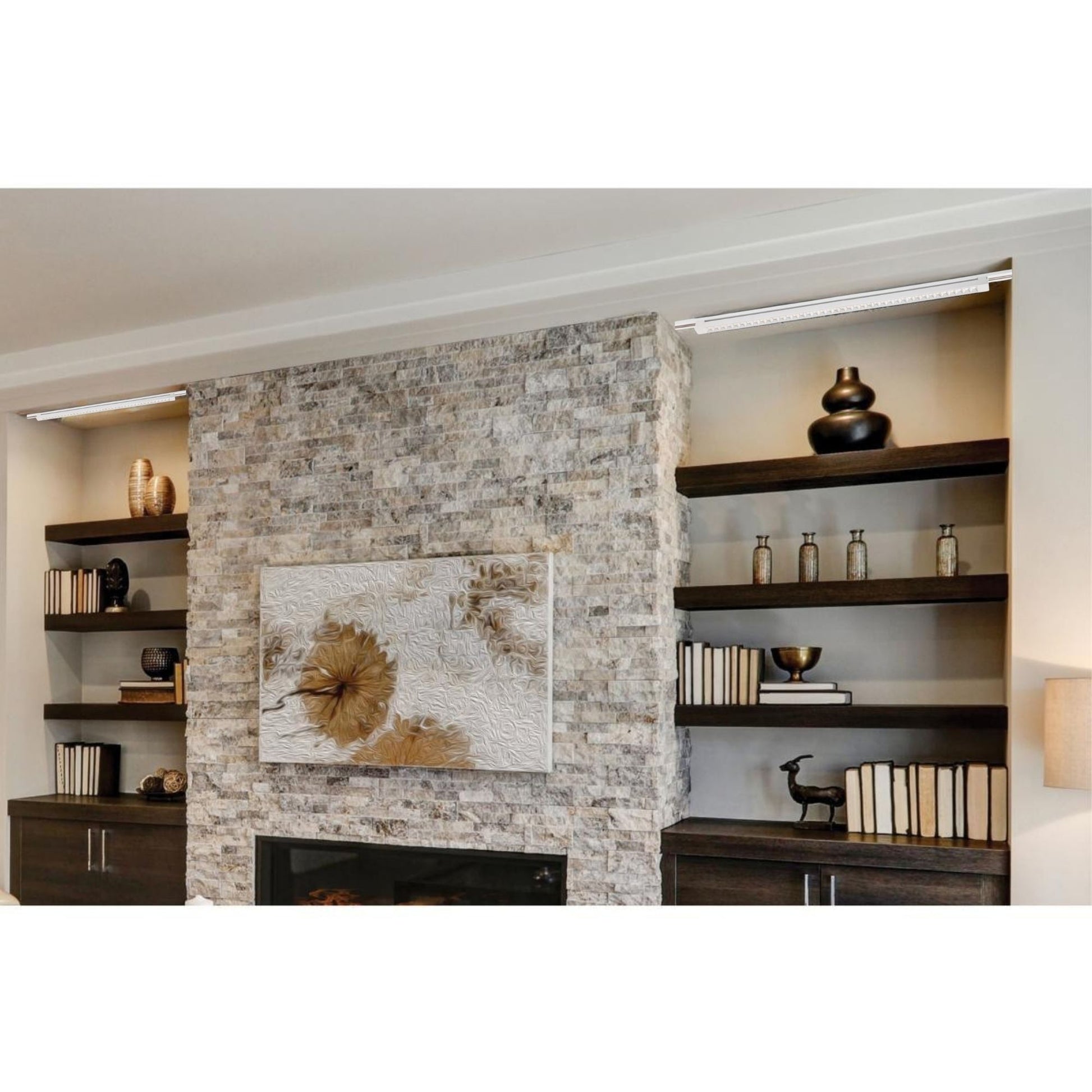

Typical Applications
- Artwork and gallery wall accents.
- Retail merchandise and signage.
- Textured walls and architectural features.
- Residential and commercial interior displays.
What's Included
- Satco Nuvo TH506 white 4 ft linear track bar with integrated LED and H-Type adapter.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which track system does the Satco Nuvo TH506 use?
Which track system does the Satco Nuvo TH506 use?
Is the Satco Nuvo TH506 dimmable?
Is the Satco Nuvo TH506 dimmable?
What light output and color temperature does the Satco Nuvo TH506 provide?
What light output and color temperature does the Satco Nuvo TH506 provide?
Can the Satco Nuvo TH506 rotate or change its beam angle?
Can the Satco Nuvo TH506 rotate or change its beam angle?
What size is the Satco Nuvo TH506 and where can it be used?
What size is the Satco Nuvo TH506 and where can it be used?
