Satco Nuvo TH496 Piston 12W H-Type LED Track Head 3000K 24 Degree White
Available in stock (13)
About this item
About this item
- Focused Accent Light: Fixed 24° beam, 1020 lumens from 12W.
- Warm Color Quality: 3000K warm white, 90 CRI.
- Lightweight Piston Design: White aluminum housing for coordinated light-colored track layouts.
- Brightness Control: Dimmable output with a compatible dimmer, 120V operation.
- Indoor Track Lighting: Single-circuit H-Type compatibility, dry rated, 30,000-hour rated life.
Description
Description

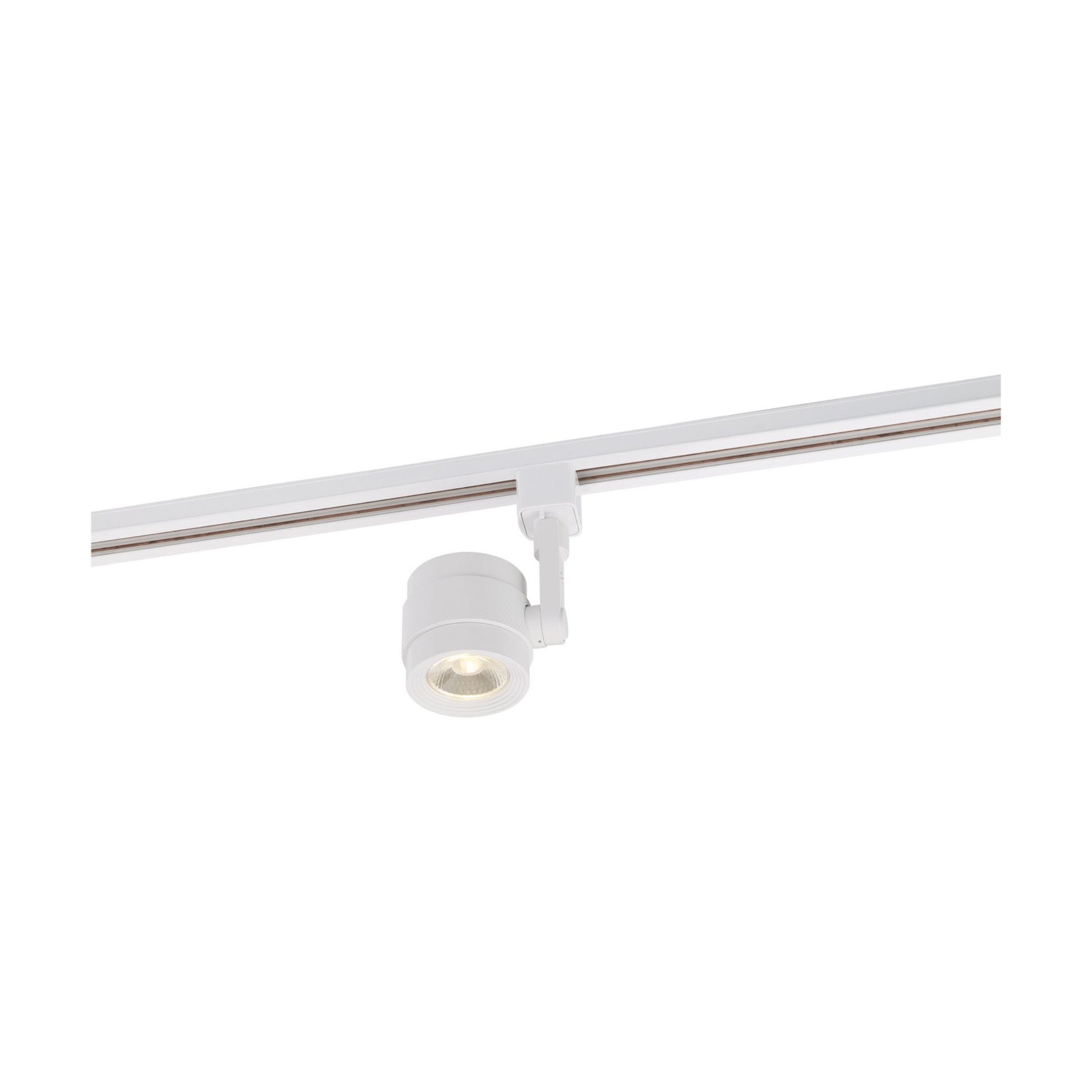

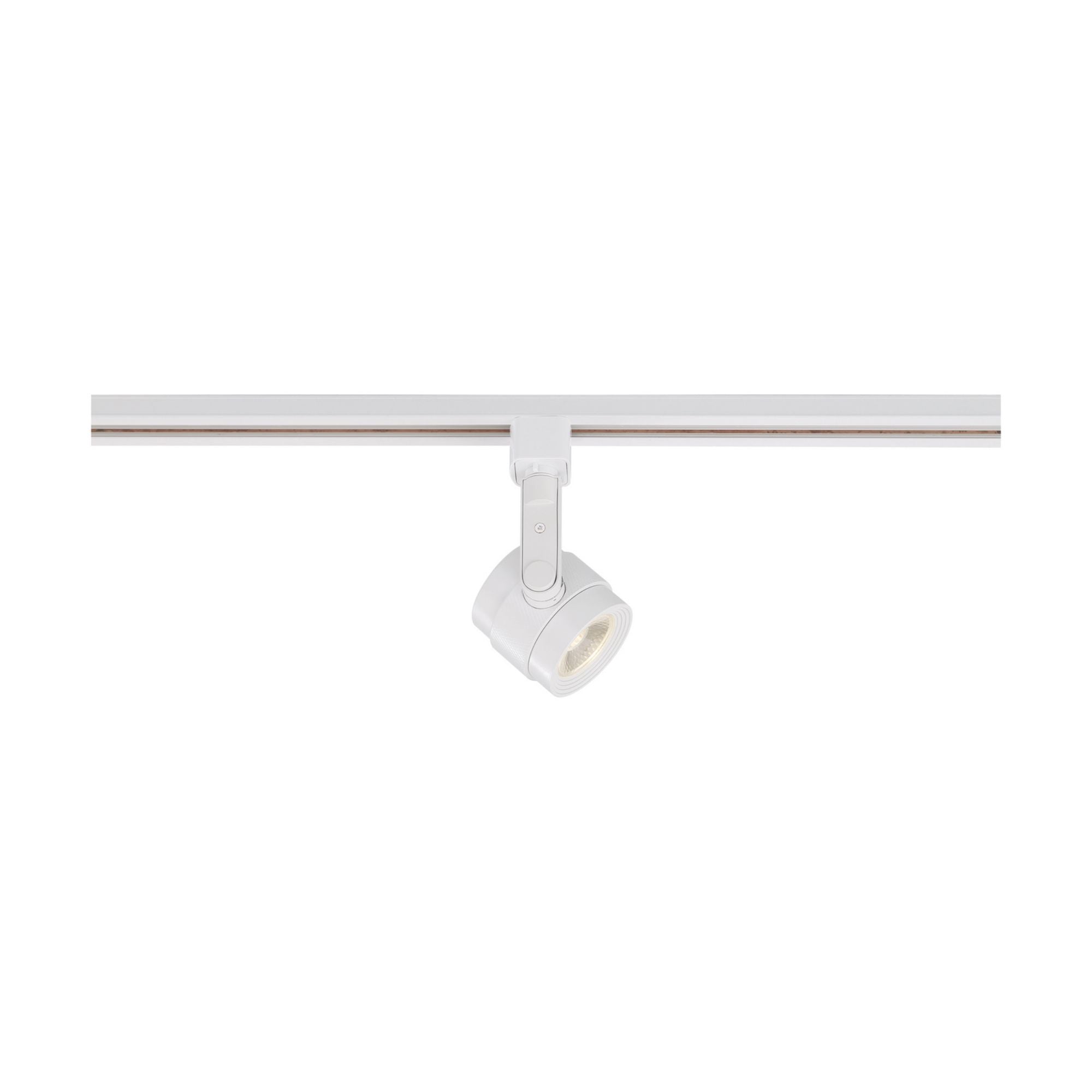

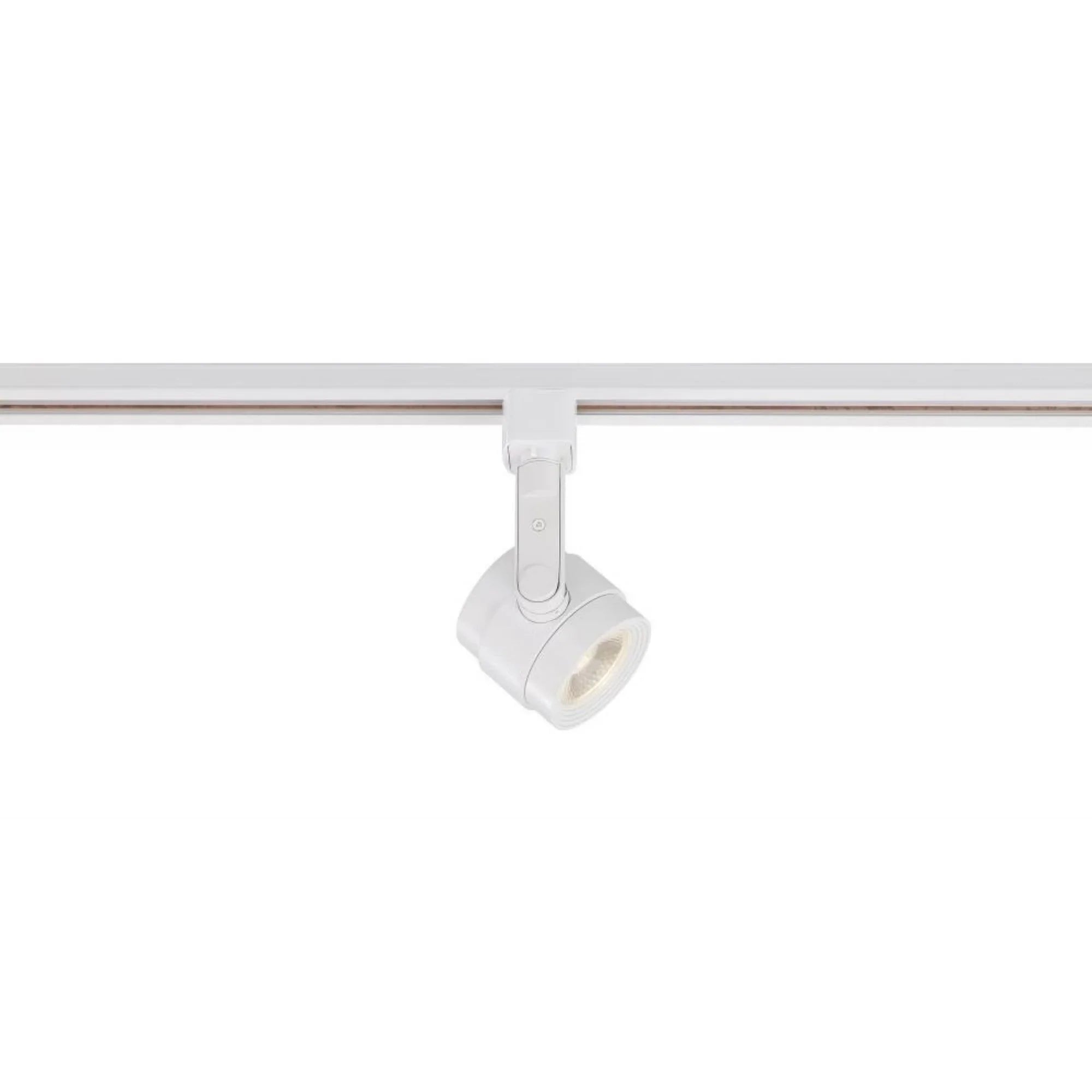

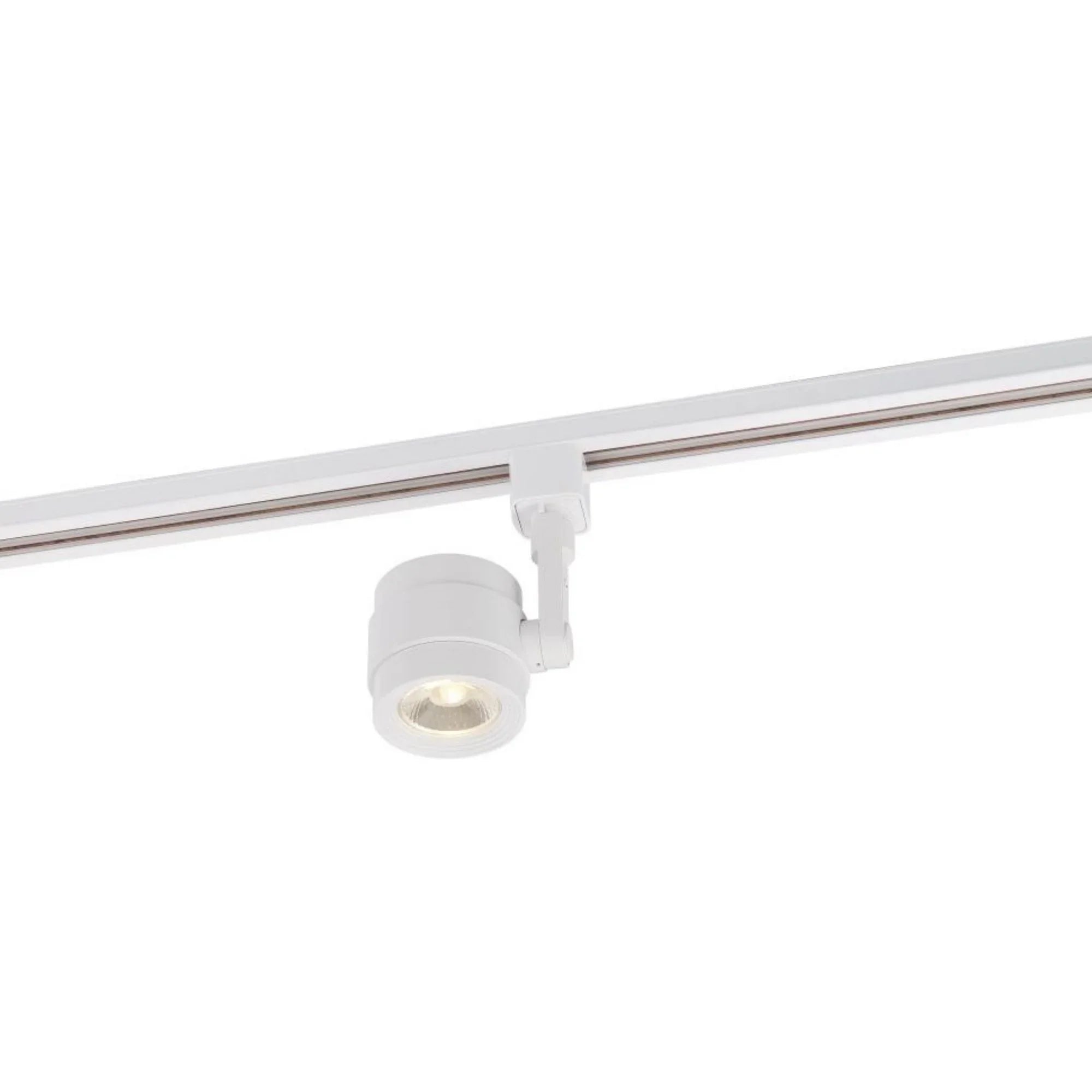

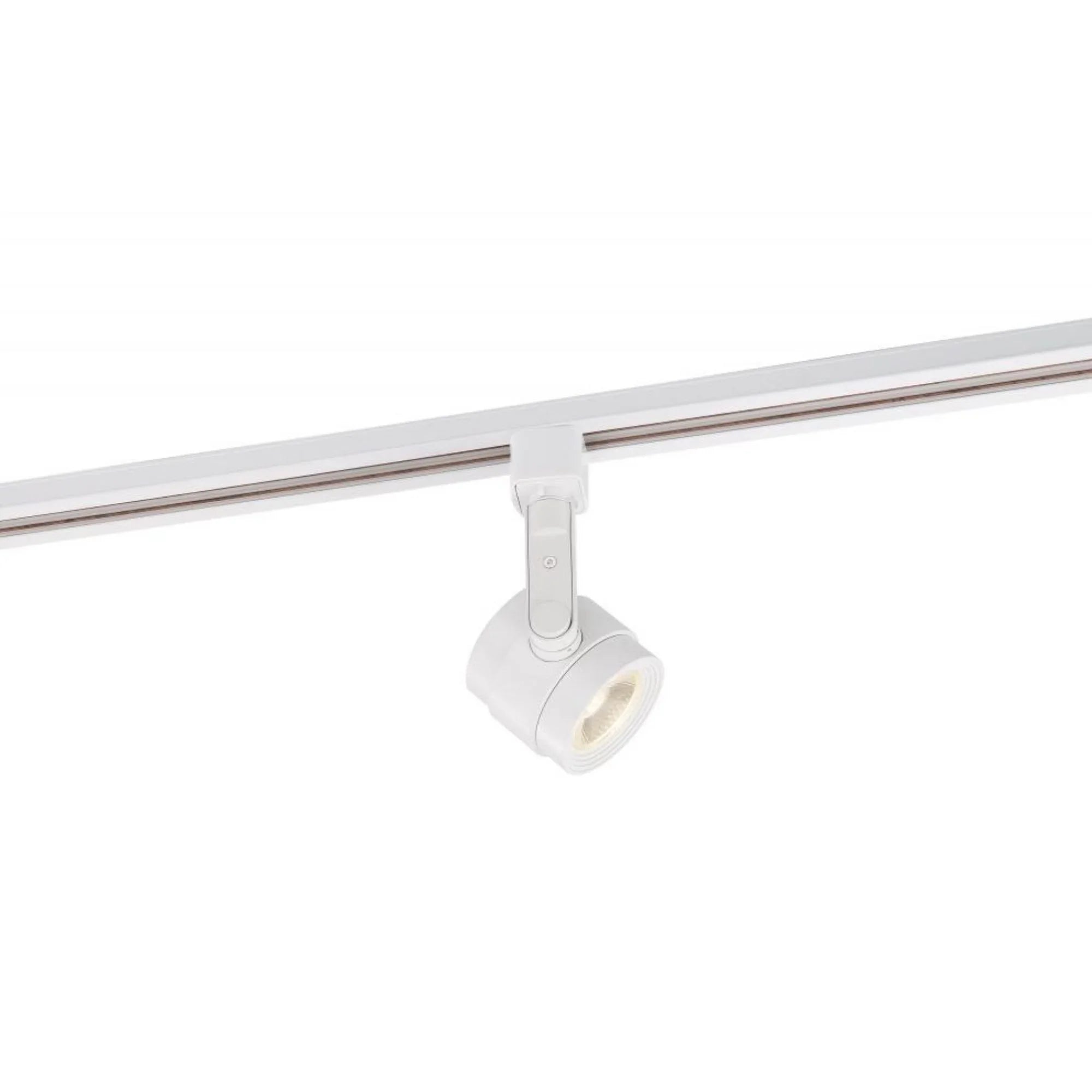

Satco Nuvo TH496 Piston LED Track Head
The Satco Nuvo TH496 combines a white Piston design with a fixed 24° beam for focused artwork and merchandise accents. Its 12W integrated LED delivers 1020 lumens of 3000K warm white light with 90 CRI. The lightweight aluminum head offers a compact spotlight profile for residential and commercial interiors.
Key Features
- Track System: H-Type (Halo), single-circuit track compatibility.
- Design: Piston track head, white finish.
- Light Source: 12W integrated LED.
- Light Output: 1020 lumens.
- Color Temperature: 3000K warm white.
- Color Rendering: 90 CRI.
- Beam: Fixed 24° spread.
- Construction: Lightweight aluminum housing.
- Electrical: 120V operation.
- Dimming: Adjustable brightness with a compatible dimmer.
- Rated Life: 30,000 hours.
- Location: Dry indoor use.
Construction & Design
The lightweight aluminum housing features a white finish. The Piston design pairs a compact cylindrical head with a supporting arm, creating a defined spotlight accent that coordinates with light-colored track layouts.
Light Output & Performance
The Satco Nuvo TH496 delivers 1020 lumens at 12W, with 3000K warm white light and 90 CRI for detailed color rendering. Its fixed 24° beam concentrates illumination on focal points. Dimmable output allows brightness adjustment with a compatible dimmer, and rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH496 operates at 120V. Its H-Type adapter supports single-circuit H-Type (Halo) track lighting runs. Install in dry indoor locations and pair with a compatible dimmer for brightness control. Track rails, feeds and connectors are sold separately.
Compatible Accessories
Complete your Piston lighting layout with coordinating white Satco Nuvo track components, sold separately. Choose rail lengths, power feeds and connectors to suit your installation.
- Track Rails: TR118 (2 ft), TR120 (4 ft), TR124 (6 ft) and TR122 (8 ft), single circuit H-Type.
- Power Feeds: TP152 live end and canopy, TP154 floating canopy, TP156 live end cord kit, TP169 conduit live end and TP171 inline feed.
- Track Connectors: TP144 mini straight, TP146 L, TP148 T, TP150 X and TP167 flexible connector.
- Track Mounting: TP240 white aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).
Typical Applications
- Retail merchandise displays.
- Gallery and artwork accents.

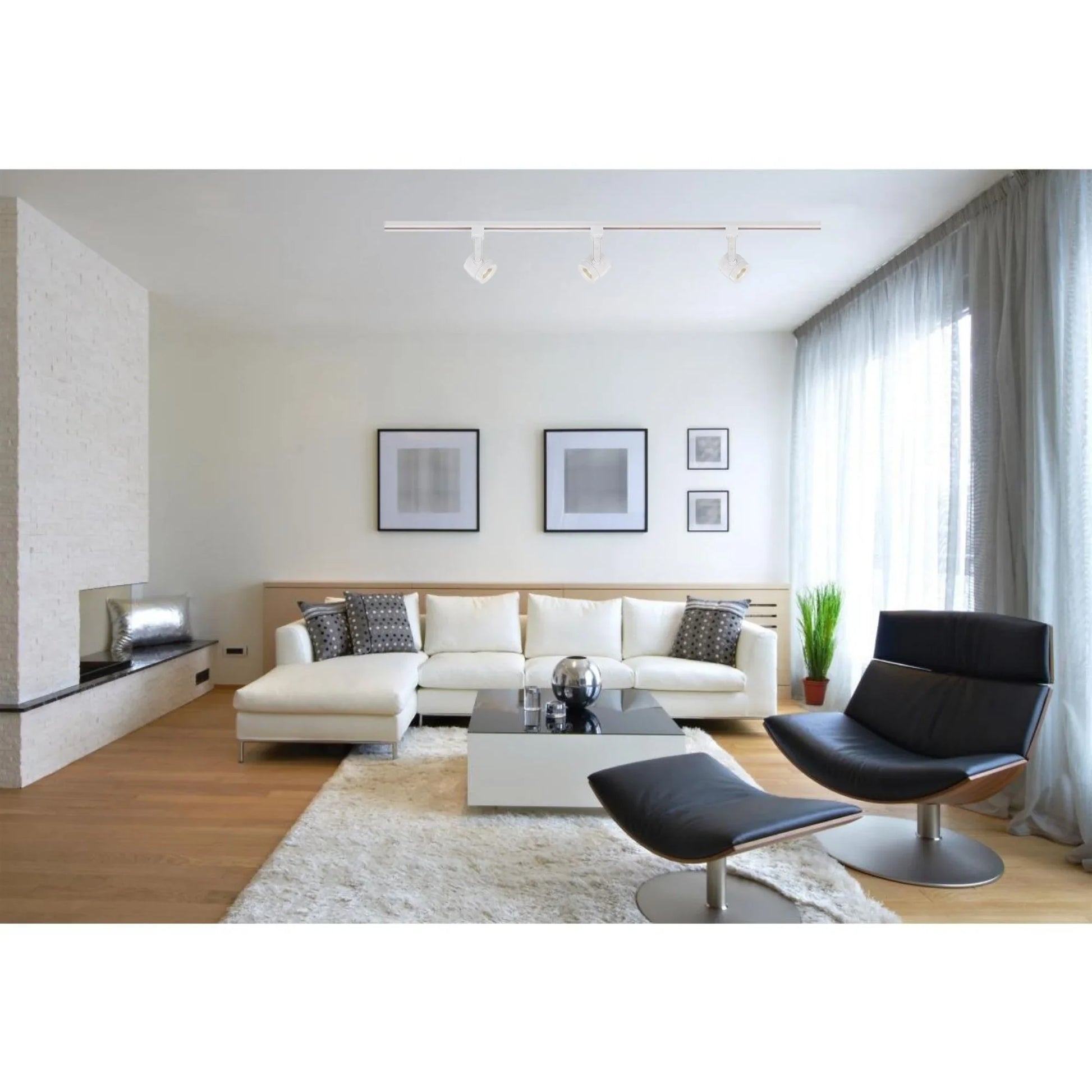

- Residential interior focal points.
- Commercial architectural accents.
What's Included
- Satco Nuvo TH496 white Piston track head with integrated LED and H-Type adapter.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which track system does the Satco Nuvo TH496 use?
Which track system does the Satco Nuvo TH496 use?
Is the Satco Nuvo TH496 dimmable?
Is the Satco Nuvo TH496 dimmable?
What color temperature does the Satco Nuvo TH496 provide?
What color temperature does the Satco Nuvo TH496 provide?
Can the beam angle of the Satco Nuvo TH496 be adjusted?
Can the beam angle of the Satco Nuvo TH496 be adjusted?
What light output does the Satco Nuvo TH496 provide?
What light output does the Satco Nuvo TH496 provide?
