Satco Nuvo TH480 Pipe Dual 24W H-Type LED Track Head 3000K 24 Degree Black
Available in stock (111)
About this item
About this item
- Focused Dual Lighting: Pipe Dual design, fixed 24° beam, 2040 lumens total from 24W.
- Warm Color Quality: Fixed 3000K warm white, 90+ CRI.
- Black Aluminum Design: Dual cylindrical housing with PMMA lenses for architectural accents.
- Brightness Control: Compatible 120V phase-cut TRIAC dimmers, 60Hz operation.
- Indoor H-Type Lighting: Single-circuit H-track compatibility, dry rated, 30,000-hour rated life.
Description
Description

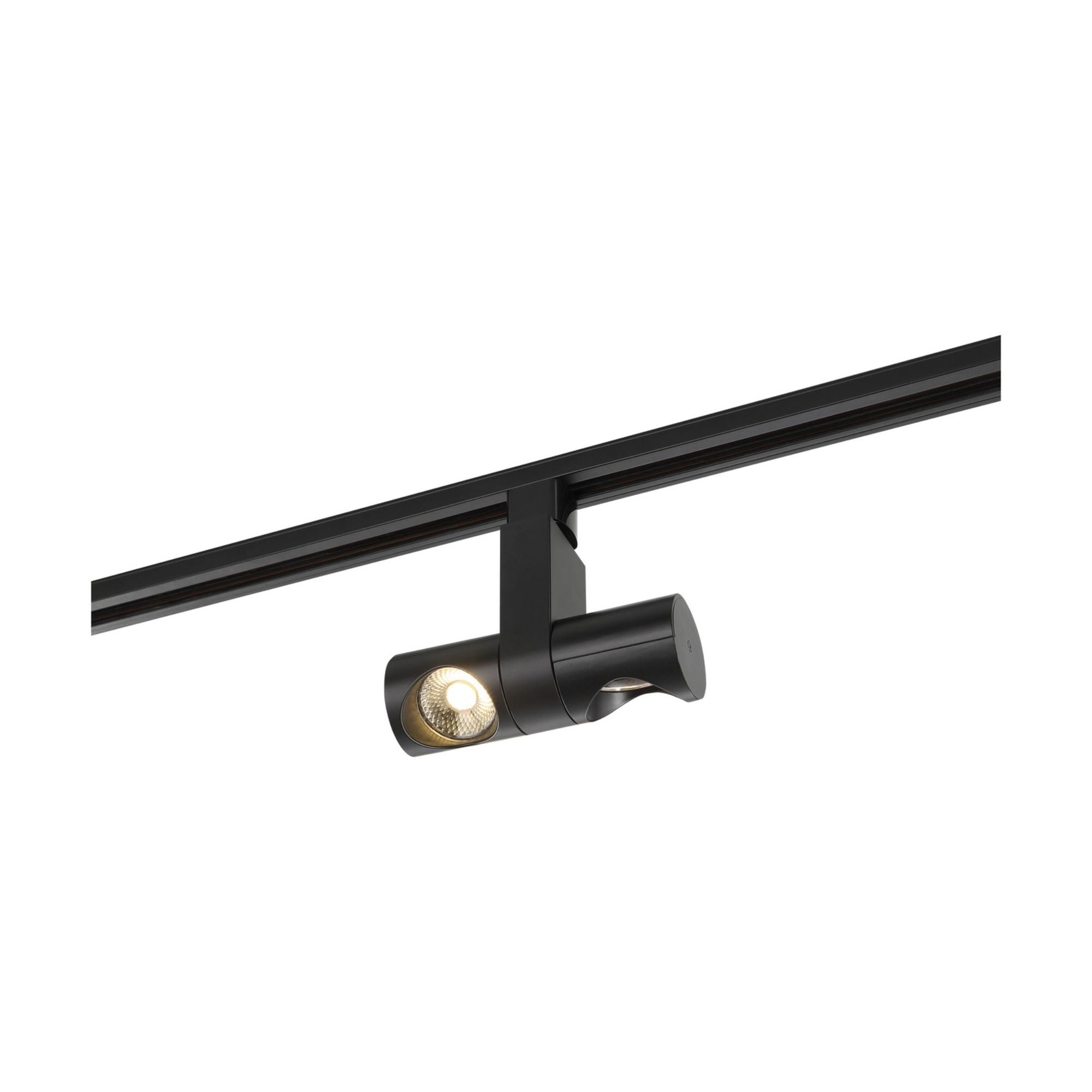

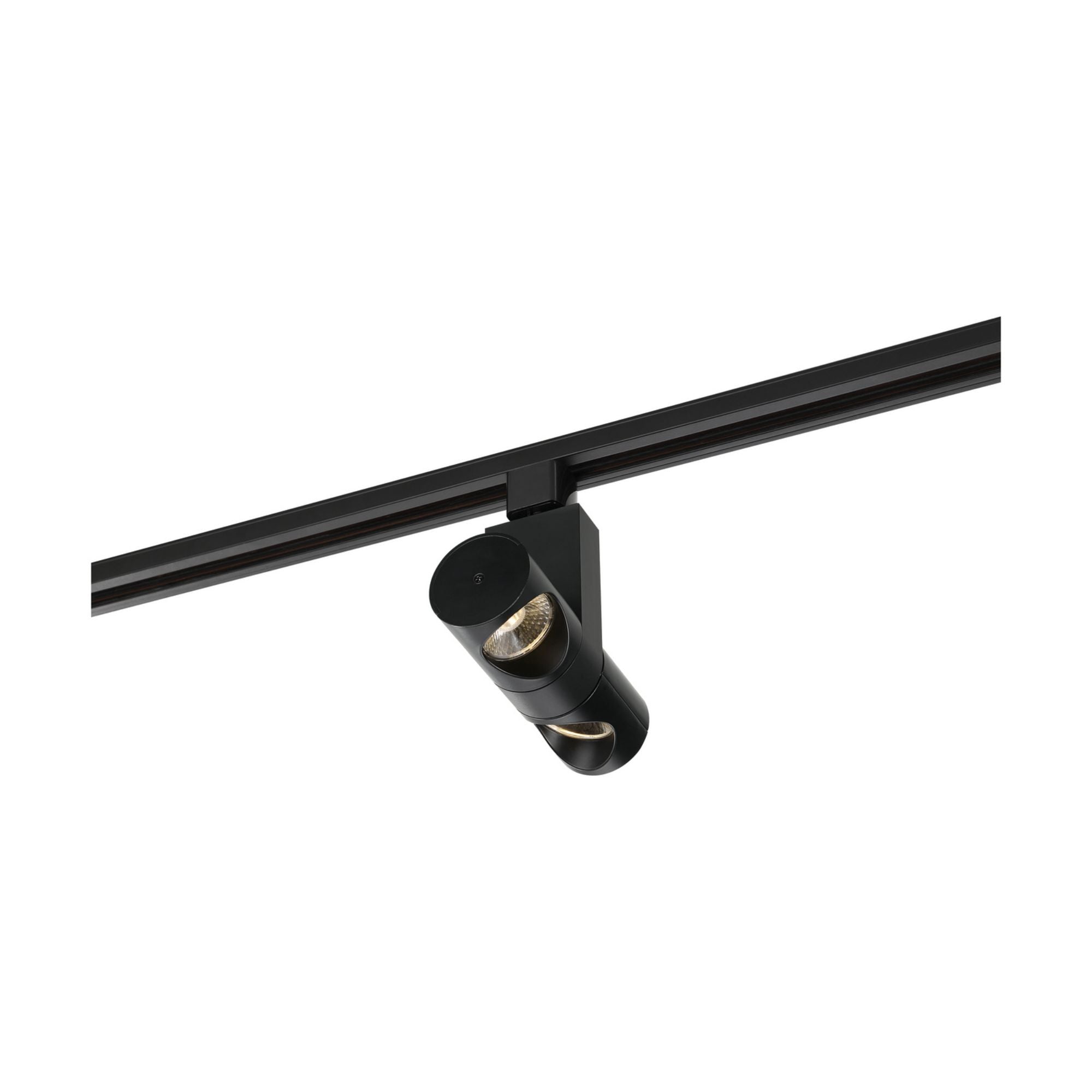

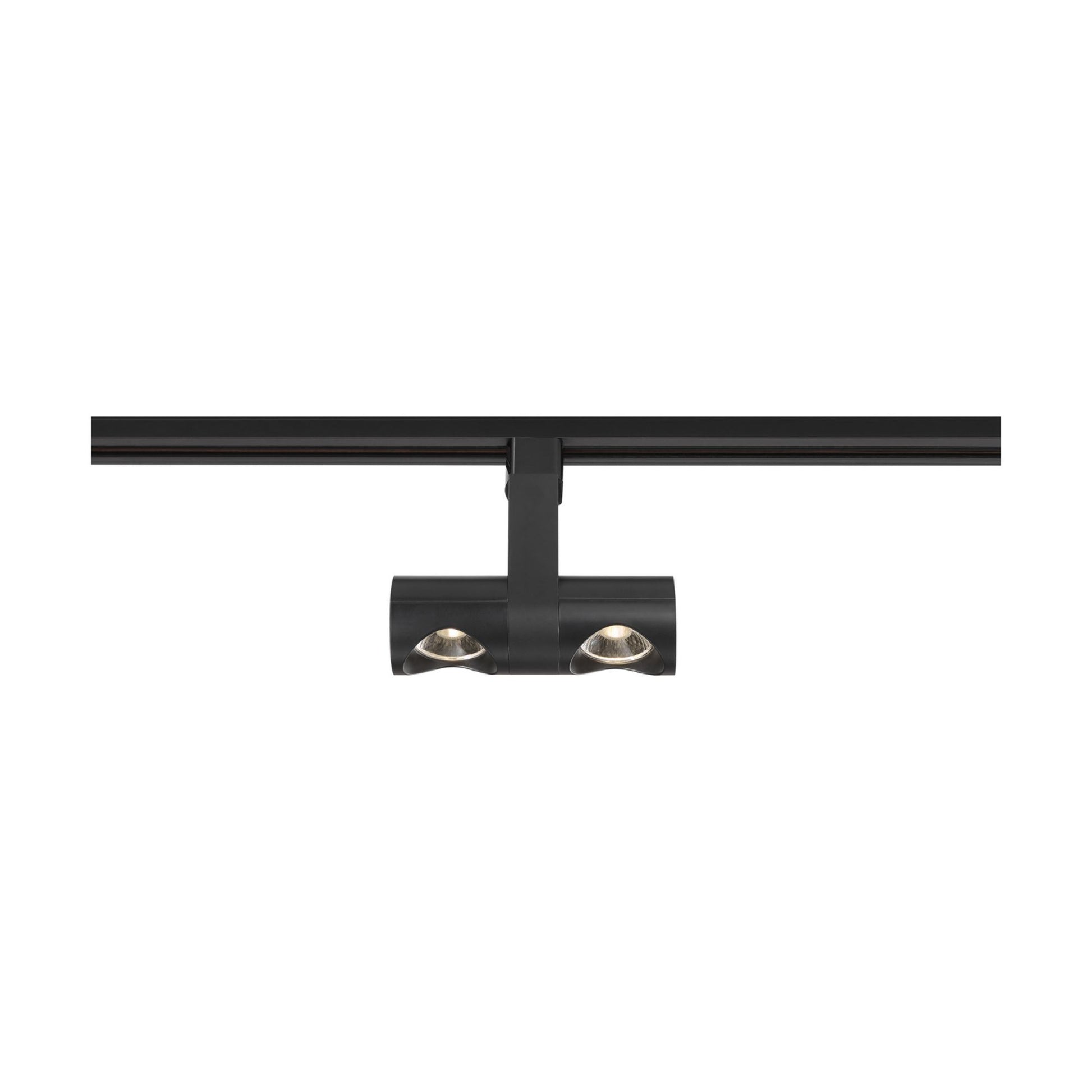

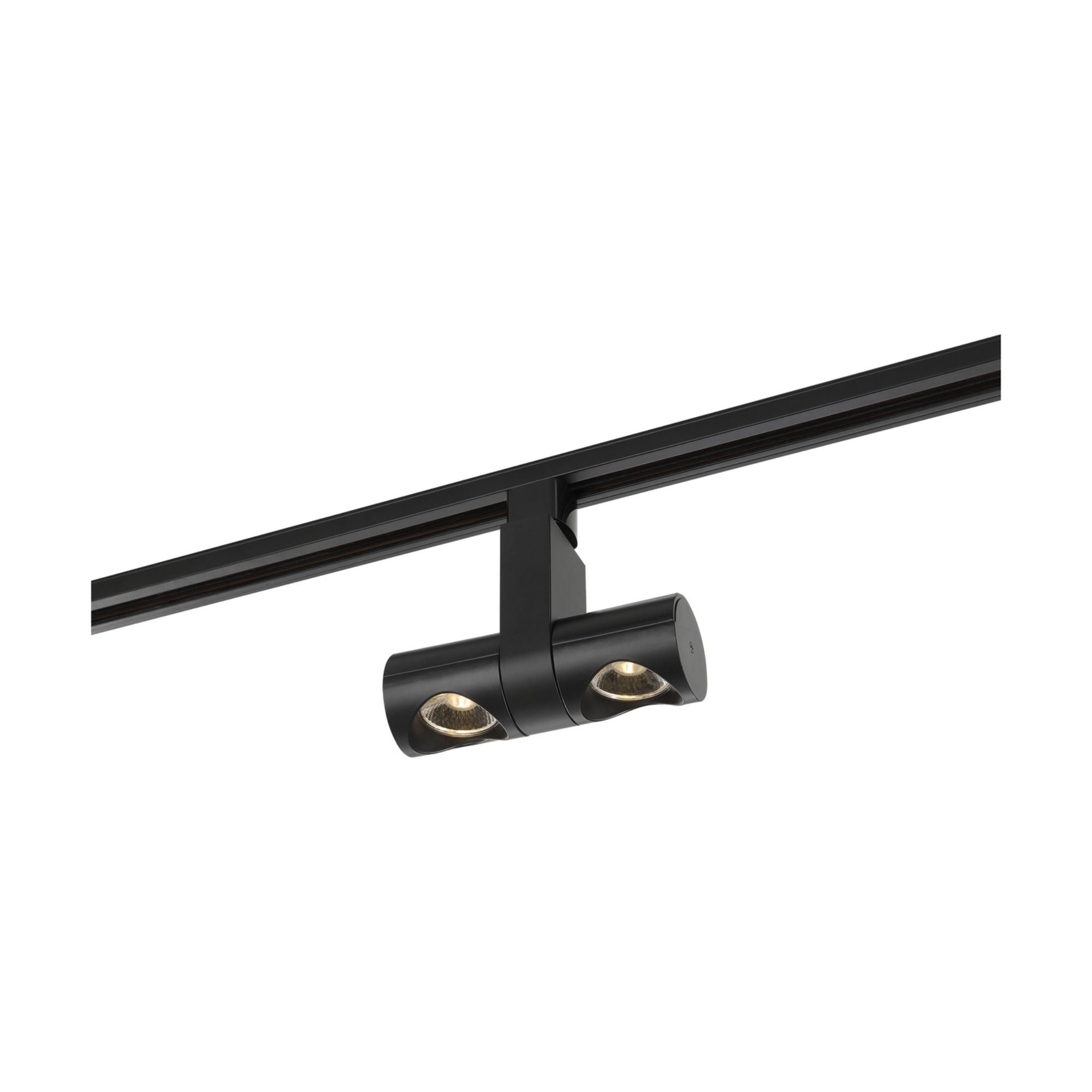

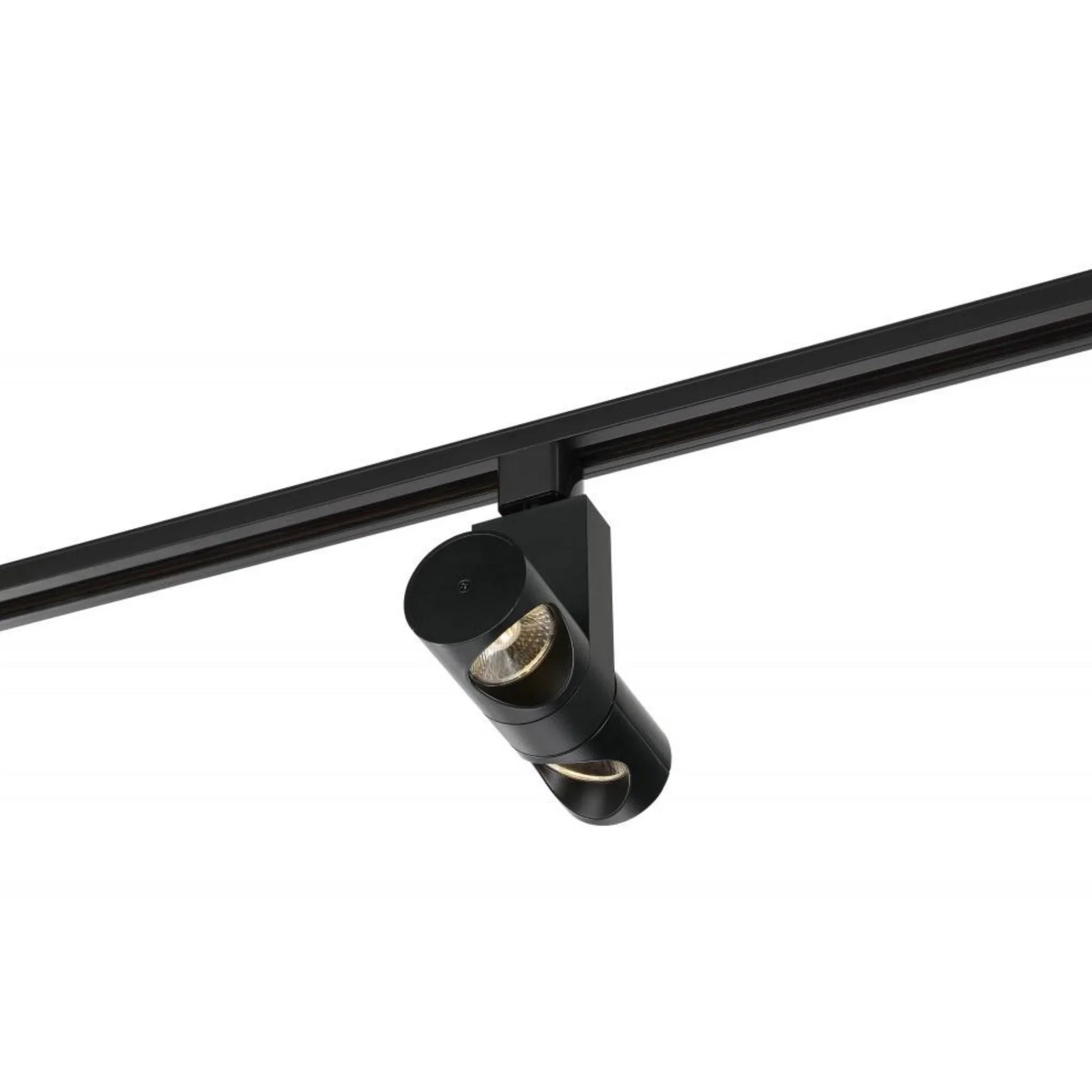

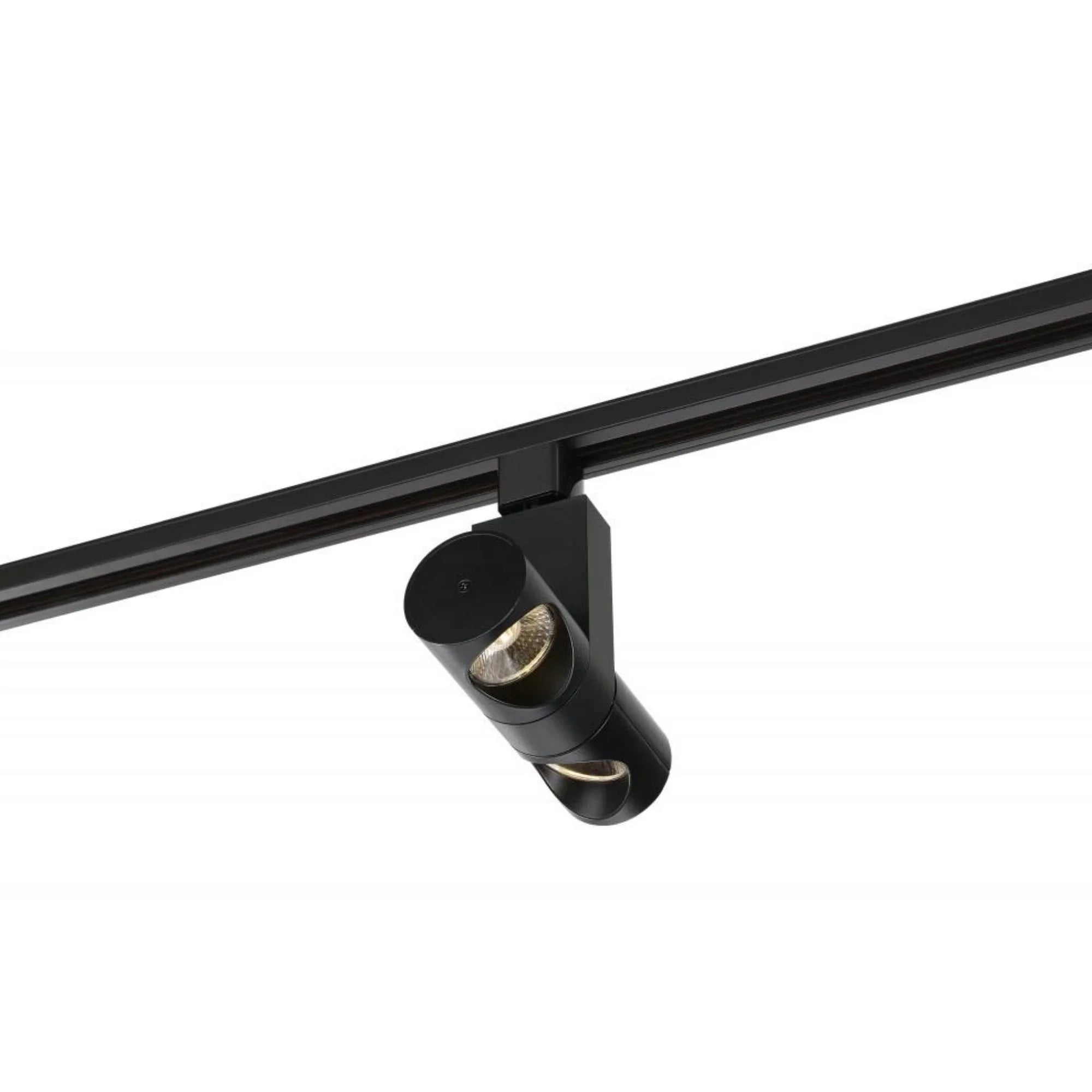

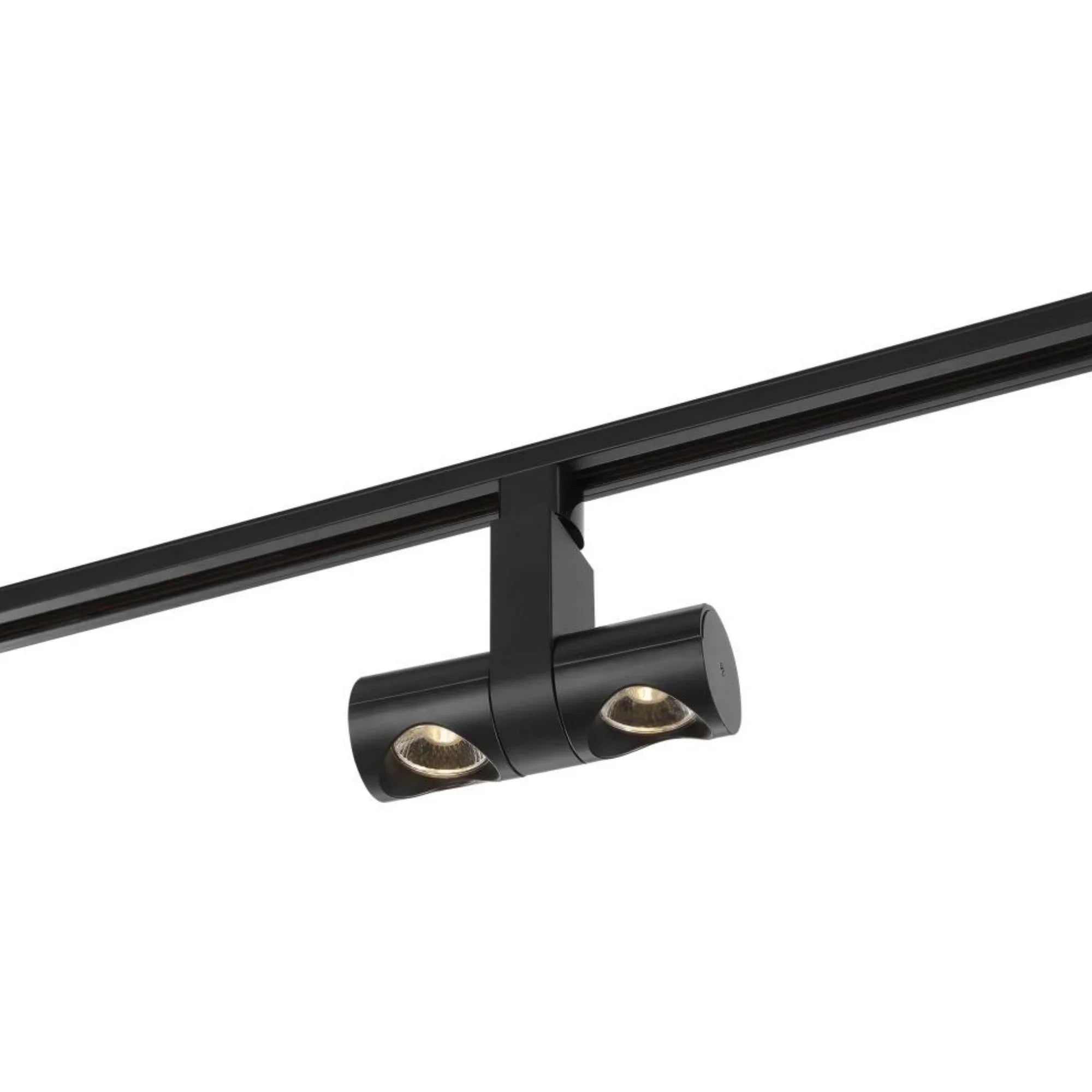

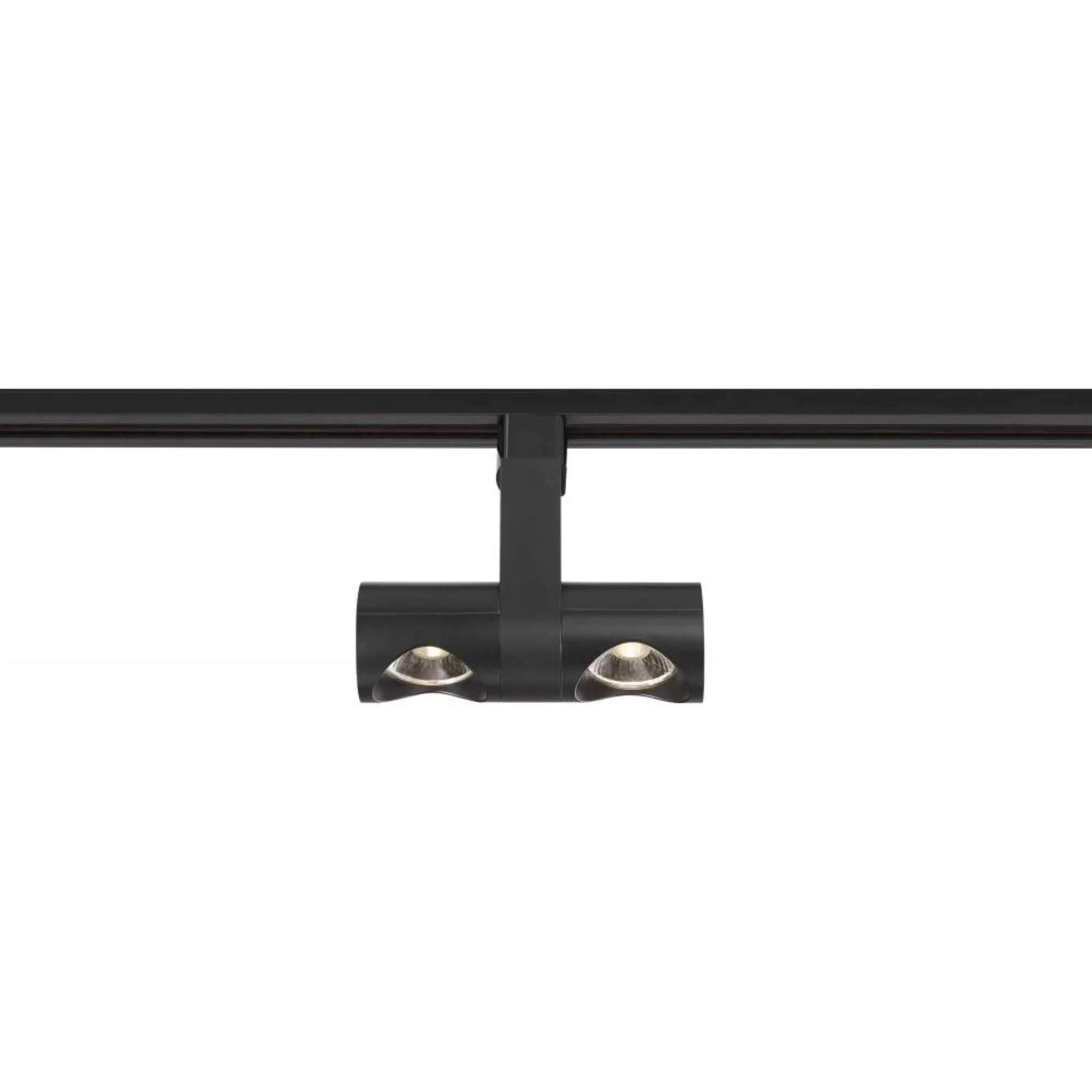

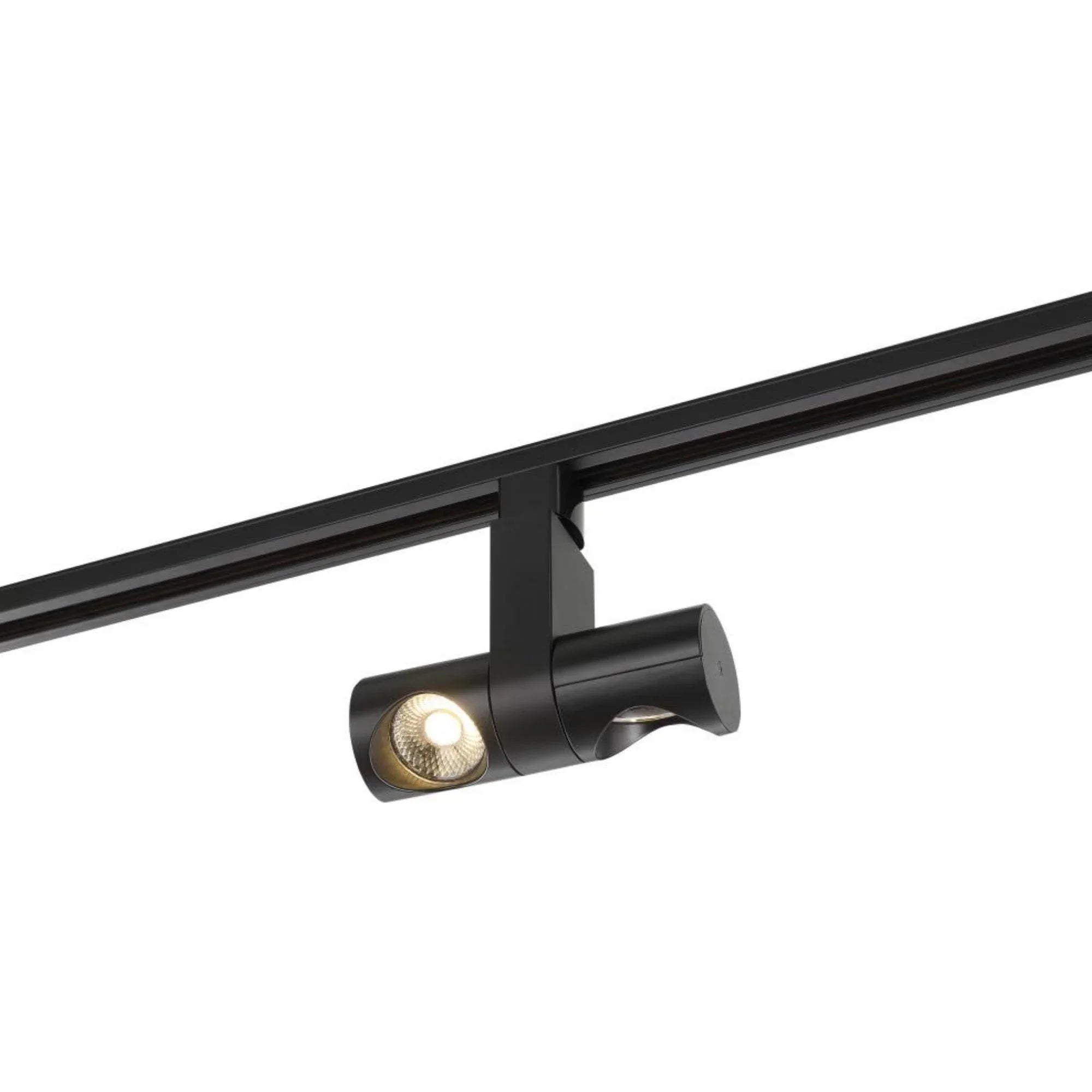

Satco Nuvo TH480 Pipe Dual LED Track Head
The Satco Nuvo TH480 combines a black Pipe Dual design with fixed 24° beam optics for focused artwork and merchandise lighting. Its 24W integrated LED delivers 2040 lumens of 3000K warm white light with 90+ CRI. The dual cylindrical design adds a distinctive architectural accent to residential and commercial interiors.
Key Features
- Track System: H-Type, single-circuit track compatibility.
- Design: Pipe Dual configuration, black finish.
- Light Source: Fixed 24W integrated LED.
- Light Output: 2040 lumens total.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90+ CRI.
- Beam: Fixed 24° spread.
- Construction: Aluminum housing, PMMA lens.
- Electrical: 120V, 60Hz, 0.200A, power factor greater than 0.9.
- Dimming: Compatible 120V phase-cut TRIAC dimmers.
- Rated Life: 30,000 hours.
- Location: Dry indoor use, operating temperature 1.4°F to 113°F.
Construction & Design
The black aluminum housing features a dual cylindrical Pipe design with PMMA lenses. Its contrasting light apertures and streamlined form suit display lighting and contemporary interior accents.
Light Output & Performance
The Satco Nuvo TH480 delivers 2040 lumens total at 24W, with 3000K warm white light and 90+ CRI for detailed color rendering. The fixed 24° beam concentrates illumination on focal points. Wattage and color temperature are not selectable, and rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH480 operates at 120V, 60Hz, draws 0.200A and has a power factor greater than 0.9. Its H-Type adapter supports single-circuit H-track lighting runs. Brightness is adjustable with compatible 120V phase-cut TRIAC dimmers. Install in dry indoor locations within the operating temperature range of 1.4°F to 113°F (-17°C to 45°C). Track rails, feeds and connectors are sold separately.
Compatible Accessories
Configure your Pipe Dual lighting run with coordinating black Satco Nuvo track components, sold separately. Select the rails, power feed and connectors needed for your layout.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).
Typical Applications
- Retail merchandise displays.
- Gallery and artwork accents.

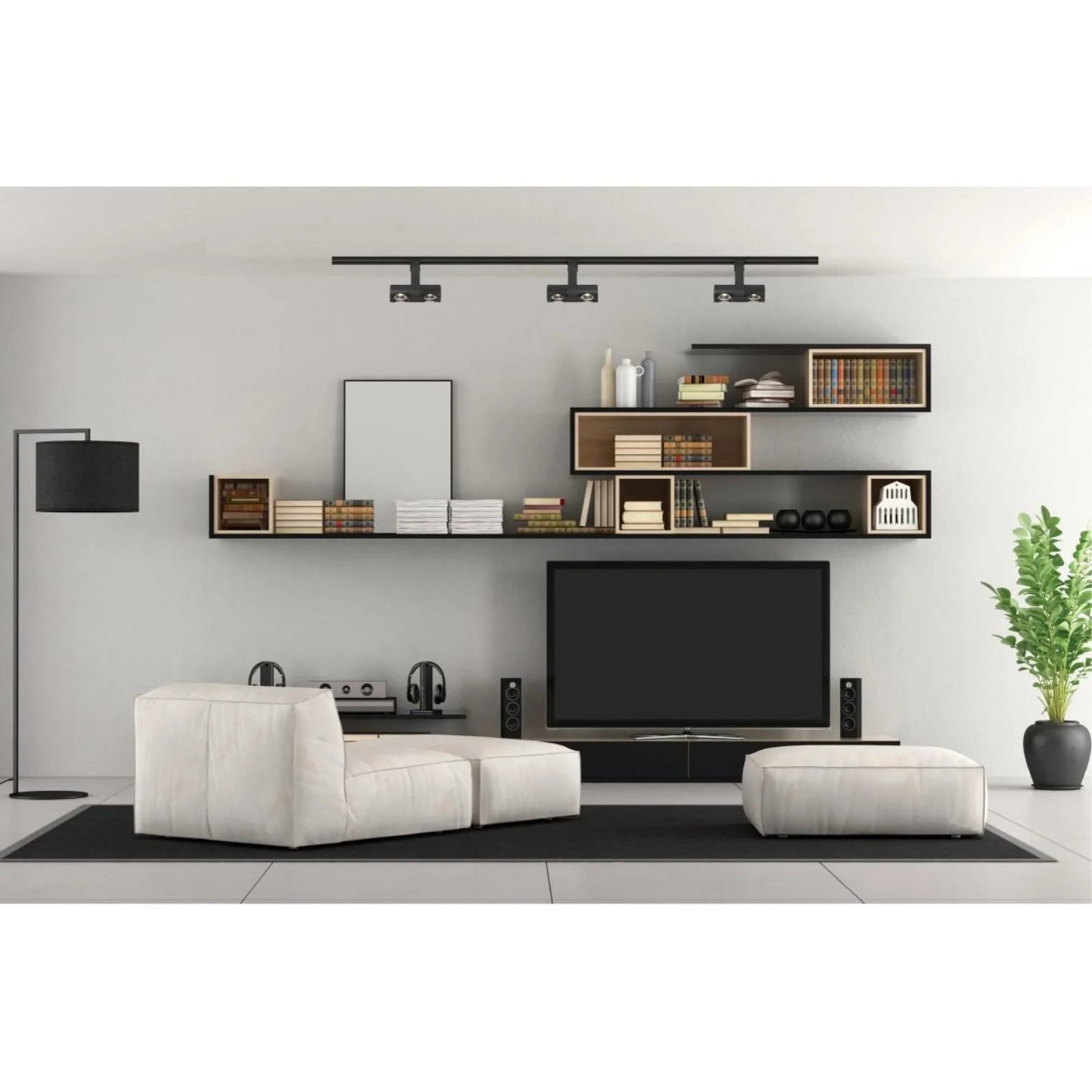

- Residential interior focal points.
- Commercial architectural accents.
What's Included
- Satco Nuvo TH480 black Pipe Dual track head with integrated LED and H-Type adapter.
