Satco Nuvo TH477 Small Cylinder 12W H-Type LED Track Head 3000K 36 Degree Brushed Nickel
Available in stock (1272)
About this item
About this item
- Focused Accent Light: Fixed 36° beam, 1020 lumens from 12W, 85 lm/W.
- Warm Color Quality: Fixed 3000K warm white, 90 CRI.
- Small Cylinder Design: Brushed nickel finish, articulating head, aluminum and steel, PMMA lens.
- Brightness Control: Compatible reverse-phase dimmers, 120V operation.
- Indoor Track Lighting: Satco Nuvo H-Style compatibility, dry rated, 30,000-hour life.
Description
Description

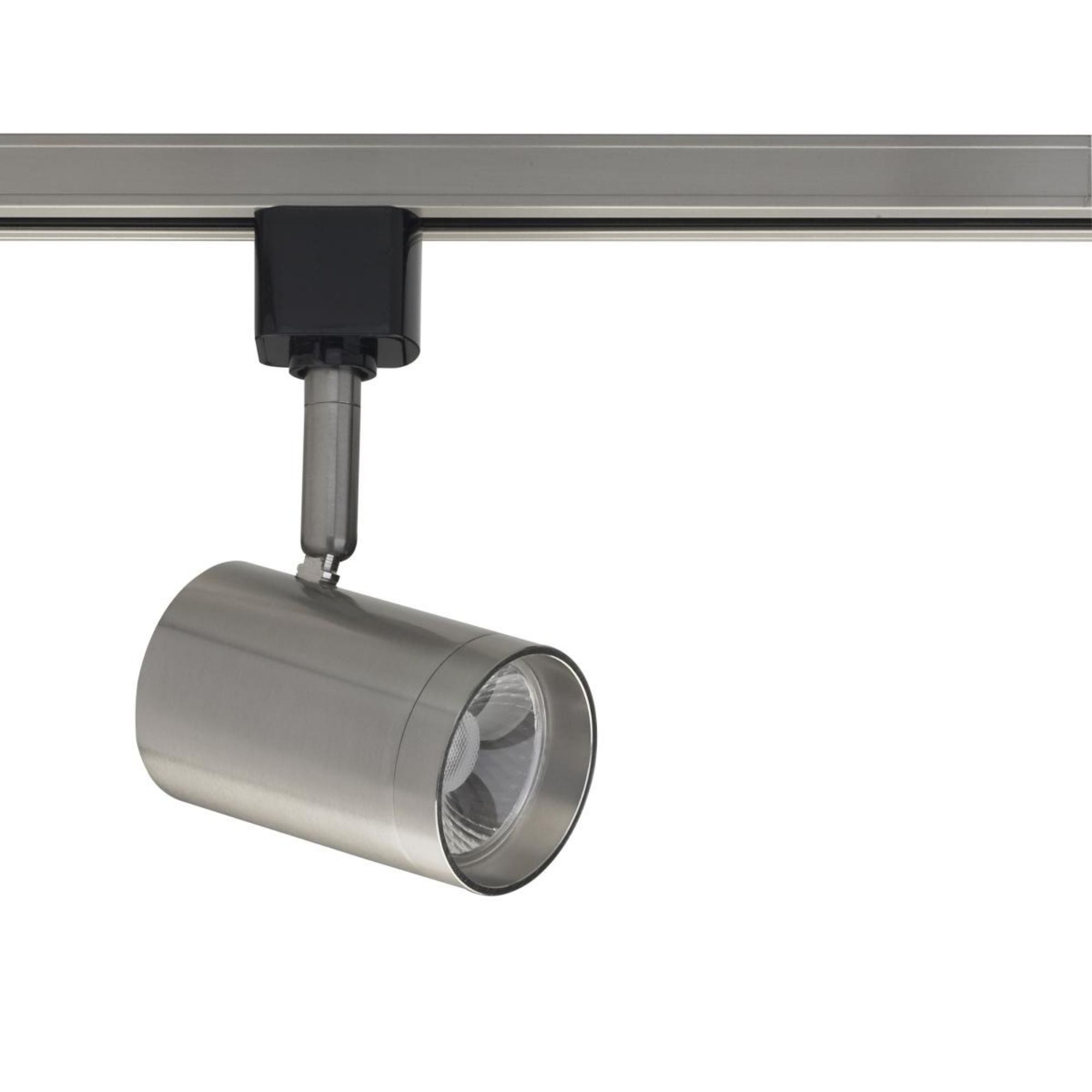

Satco Nuvo TH477 Small Cylinder LED Track Head
The Satco Nuvo TH477 combines a brushed nickel Small Cylinder design with a fixed 36° beam for artwork and merchandise accents. Its 12W integrated LED delivers 1020 lumens of 3000K warm white light with 90 CRI. Articulating aiming and dimming help tailor the light to residential and commercial interiors.
Key Features
- Track System: H-Type adapter for Satco Nuvo H-Style track.
- Design: Small Cylinder head, brushed nickel finish.
- Light Source: Fixed 12W integrated LED.
- Light Output: 1020 lumens, 85 lm/W.
- Color Quality: Fixed 3000K warm white, 90 CRI.
- Beam: Fixed 36° spread.
- Aiming: Articulating head for directional lighting.
- Construction: Aluminum and steel, PMMA lens.
- Electrical: 120V, 60Hz, 0.100A, power factor greater than 0.9.
- Dimming: Compatible reverse-phase dimmers.
- Rated Life: 30,000 hours.
- Location: Dry indoor use, -4°F to 104°F operating temperature.
Construction & Design
The brushed nickel cylindrical housing uses aluminum and steel construction with a PMMA lens. The articulating head directs light toward focal points without changing the optical beam spread. The head measures 3.38 in long and 2.25 in wide.
Light Output & Performance
The Satco Nuvo TH477 produces 1020 lumens at 12W with 85 lm/W efficacy. Fixed 3000K warm white light and 90 CRI support detailed color rendering. Its 36° beam provides focused illumination, and rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH477 operates at 120V, 60Hz, draws 0.100A and has a power factor greater than 0.9. Install its H-Type adapter on Satco Nuvo H-Style track. Brightness is adjustable with compatible reverse-phase dimmers. The fixture is dry rated for indoor use, with an operating temperature range of -4°F to 104°F. Track rails, feeds and connectors are sold separately.
Compatible Accessories
Assemble your Small Cylinder lighting layout with coordinating Satco Nuvo track components, sold separately. Choose rail lengths, feeds and connectors for your installation.
- Nickel Track Rails: TR126 (2 ft), TR127 (4 ft), TR128 (6 ft) and TR129 (8 ft), single circuit H-Type.
- Black Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Black Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP242 nickel aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

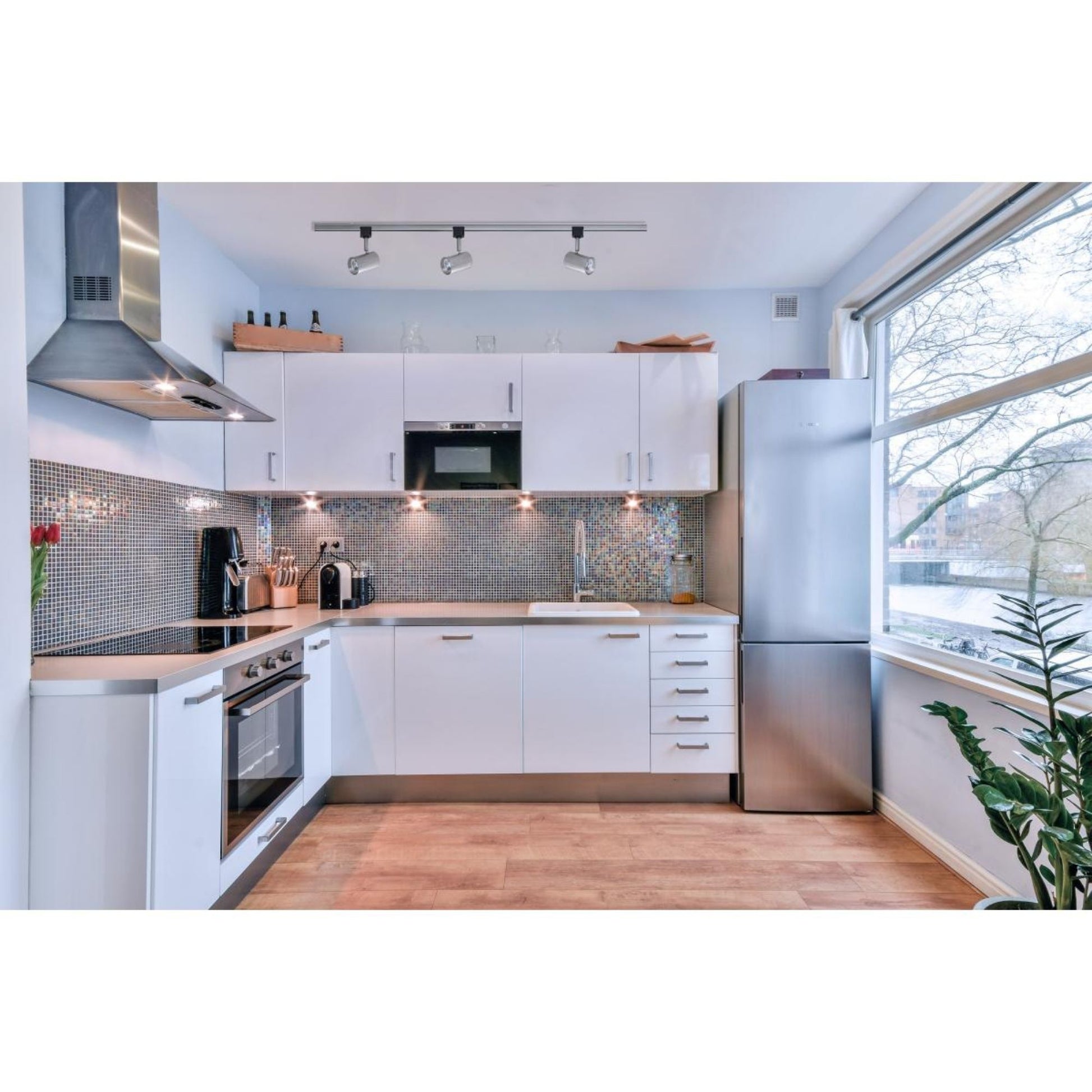

Typical Applications
- Residential artwork accents.
- Retail merchandise displays.
- Gallery lighting.
- Commercial interior architectural accents.
What's Included
- Satco Nuvo TH477 brushed nickel Small Cylinder track head with integrated LED and H-Type adapter.
