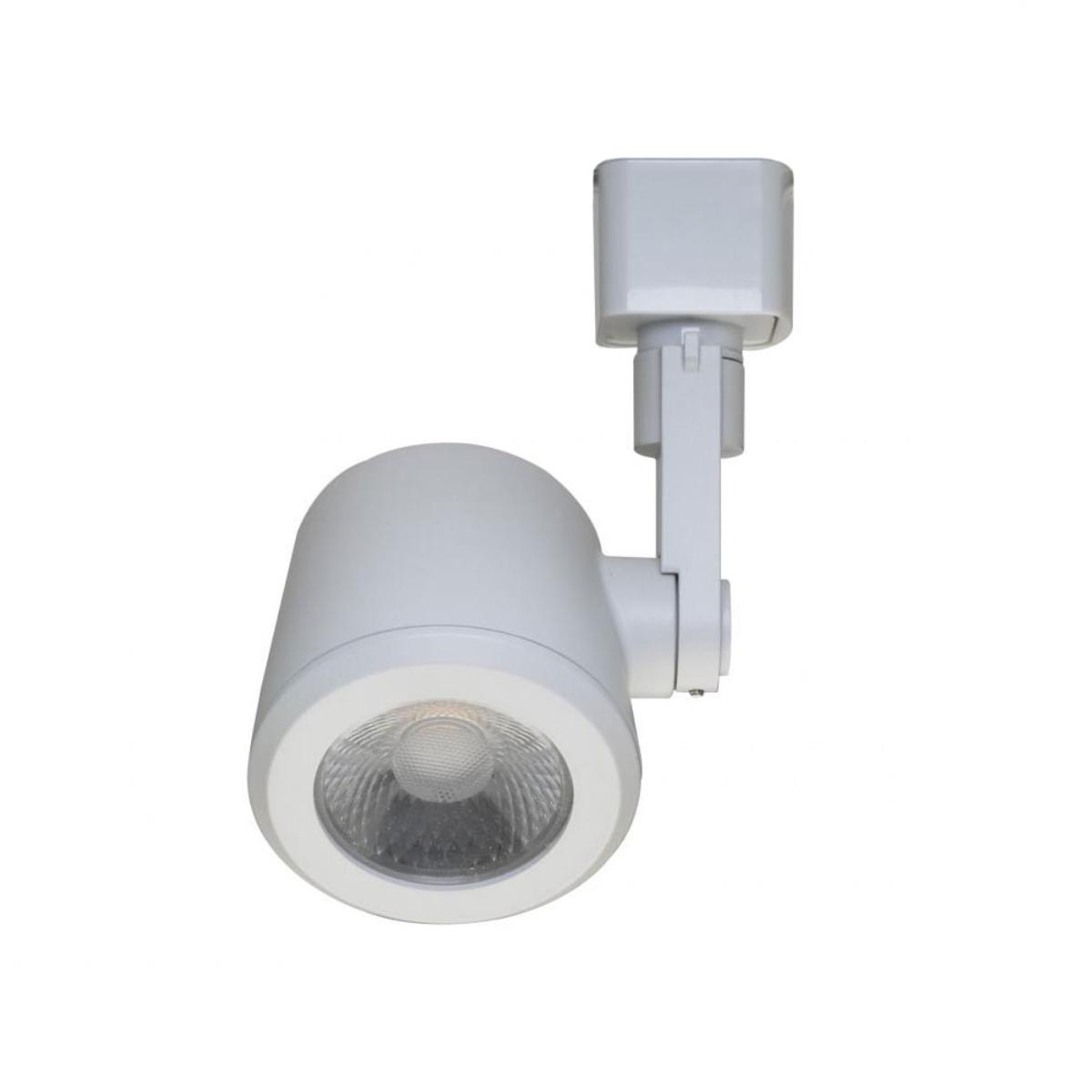

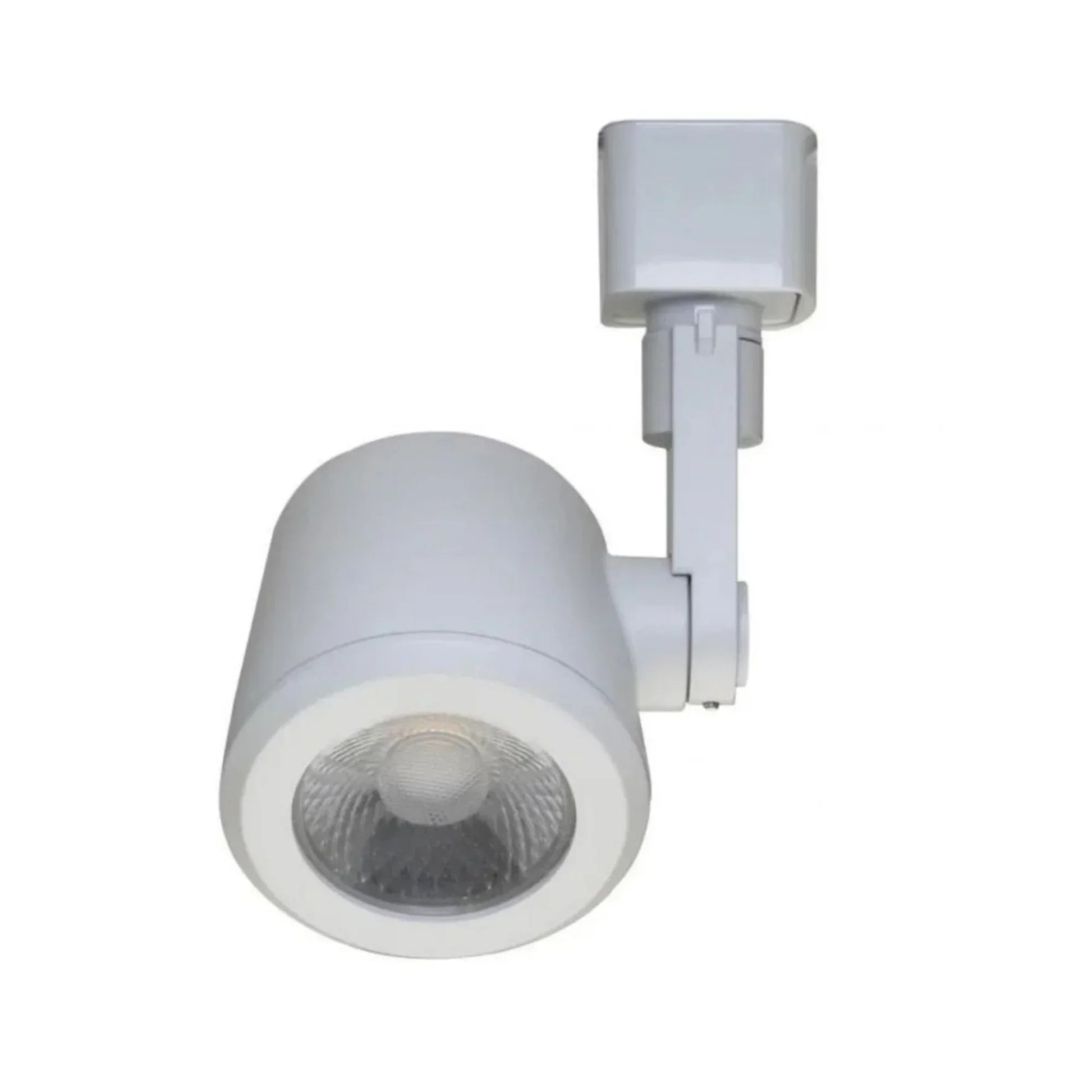

Satco Nuvo TH451 Taper Back 12W H-Type LED Track Head 3000K 24 Degree White
Available in stock (99)
About this item
About this item
- Focused Accent Light: Fixed 24° beam, 1020 lumens from 12W.
- Detailed Color Rendering: Fixed 3000K warm white, 90+ CRI.
- Taper Back Design: White finish, directional head, aluminum and steel construction.
- Brightness Control: Compatible 120V phase-cut dimmers.
- Indoor Track Lighting: H-Type adapter for H-Style track, dry rated, 30,000-hour life.
Description
Description

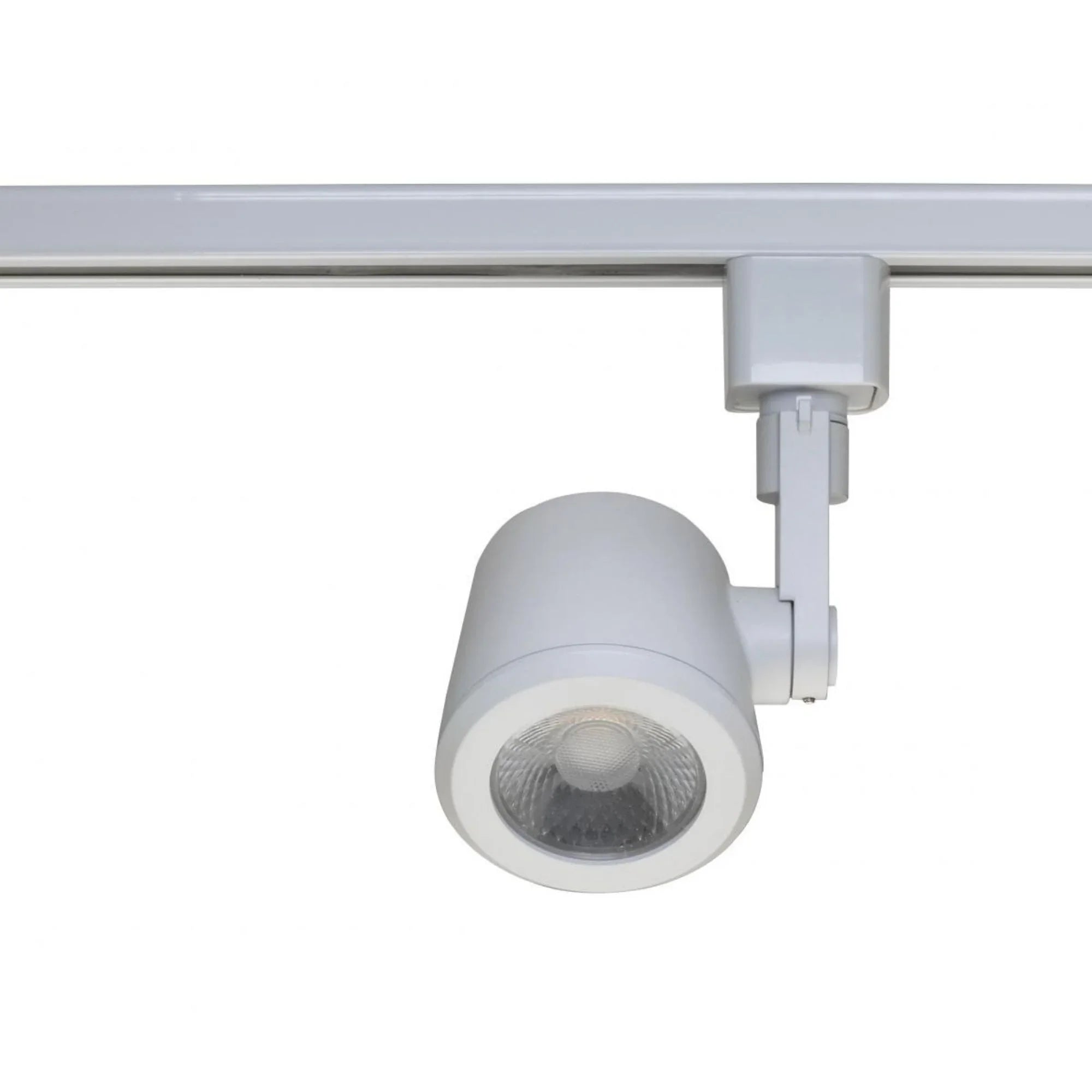

Satco Nuvo TH451 Taper Back LED Track Head
The Satco Nuvo TH451 combines a white Taper Back design with a fixed 24° beam for focused interior accents. Its 12W integrated LED delivers 1020 lumens of 3000K warm white light with 90+ CRI. Aim the head toward artwork or merchandise and adjust brightness with compatible phase-cut dimmers.
Key Features
- Track System: H-Type adapter for H-Style track.
- Design: Taper Back head, white finish.
- Light Source: Fixed 12W integrated LED.
- Light Output: 1020 lumens.
- Color Quality: Fixed 3000K warm white, 90+ CRI.
- Beam: Fixed 24° spread.
- Aiming: Directional head.
- Construction: Aluminum and steel.
- Electrical: 120V, 60Hz, 0.100A, 0.94 power factor.
- Dimming: 120V phase-cut dimming.
- Rated Life: 30,000 hours.
- Location & Listing: Dry indoor use, cETLus listed.
Construction & Design
The white Taper Back head features aluminum and steel construction and a tapered rear profile. Its directional design positions light toward interior focal points, while the white finish coordinates with matching track layouts.
Light Output & Performance
The Satco Nuvo TH451 delivers 1020 lumens at 12W, with fixed 3000K light and 90+ CRI for detailed color rendering. Its 24° beam is fixed; repositioning the head changes its aiming direction rather than its optical spread. Rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH451 operates at 120V, 60Hz, with 0.100A current and a 0.94 power factor. Mount its H-Type adapter to an H-Style track system in a dry indoor location. Brightness is adjustable with compatible 120V phase-cut dimmers. Track rails, feeds and connectors are sold separately.
Compatible Accessories
Plan your Taper Back installation with white Satco Nuvo track components, sold separately. Combine the rail lengths, power feed and connectors needed for your layout.
- Track Rails: TR118 (2 ft), TR120 (4 ft), TR124 (6 ft) and TR122 (8 ft), single circuit H-Type.
- Power Feeds: TP152 live end and canopy, TP154 floating canopy, TP156 live end cord kit, TP169 conduit live end and TP171 inline feed.
- Track Connectors: TP144 mini straight, TP146 L, TP148 T, TP150 X and TP167 flexible connector.
- Track Mounting: TP240 white aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

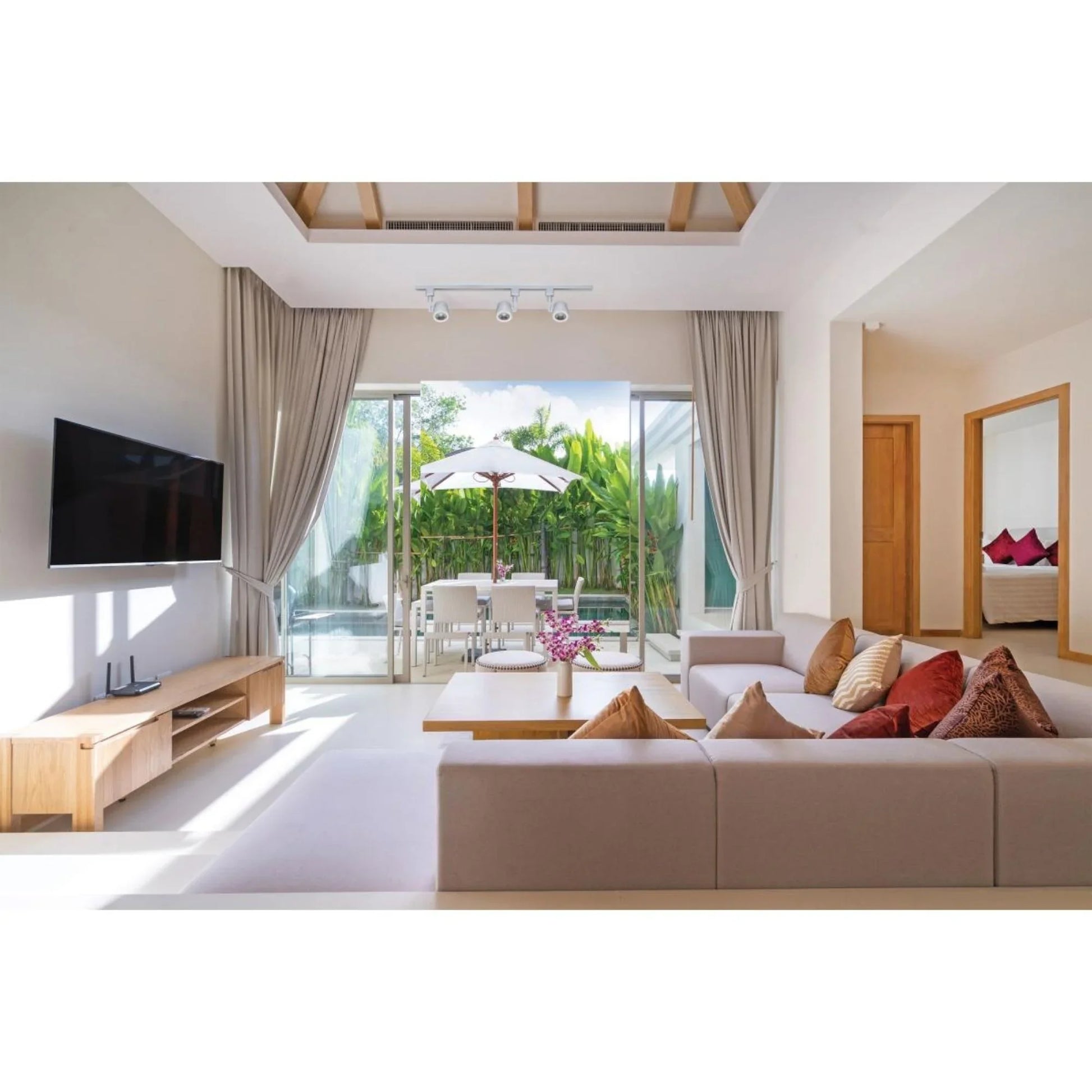

Typical Applications
- Residential artwork accents.
- Retail merchandise displays.
- Gallery lighting.
- Commercial interior architectural accents.
What's Included
- Satco Nuvo TH451 white Taper Back track head with integrated LED and H-Type adapter.
