Satco Nuvo TH414 Pinch Back 12W H-Type LED Track Head 3000K 36 Degree Black
Available in stock (1372)
About this item
About this item
- Accent Illumination: Fixed 36° beam, 1020 lumens from 12W, 85 lm/W.
- Warm Color Quality: Fixed 3000K warm white, 90 CRI.
- Pinch Back Design: Black finish, directional head, aluminum and steel construction.
- Brightness Control: Compatible reverse-phase or phase-selectable dimmers, 120V operation.
- Indoor Track Lighting: H-Type adapter for H-Style track, dry rated, 30,000-hour life.
Description
Description

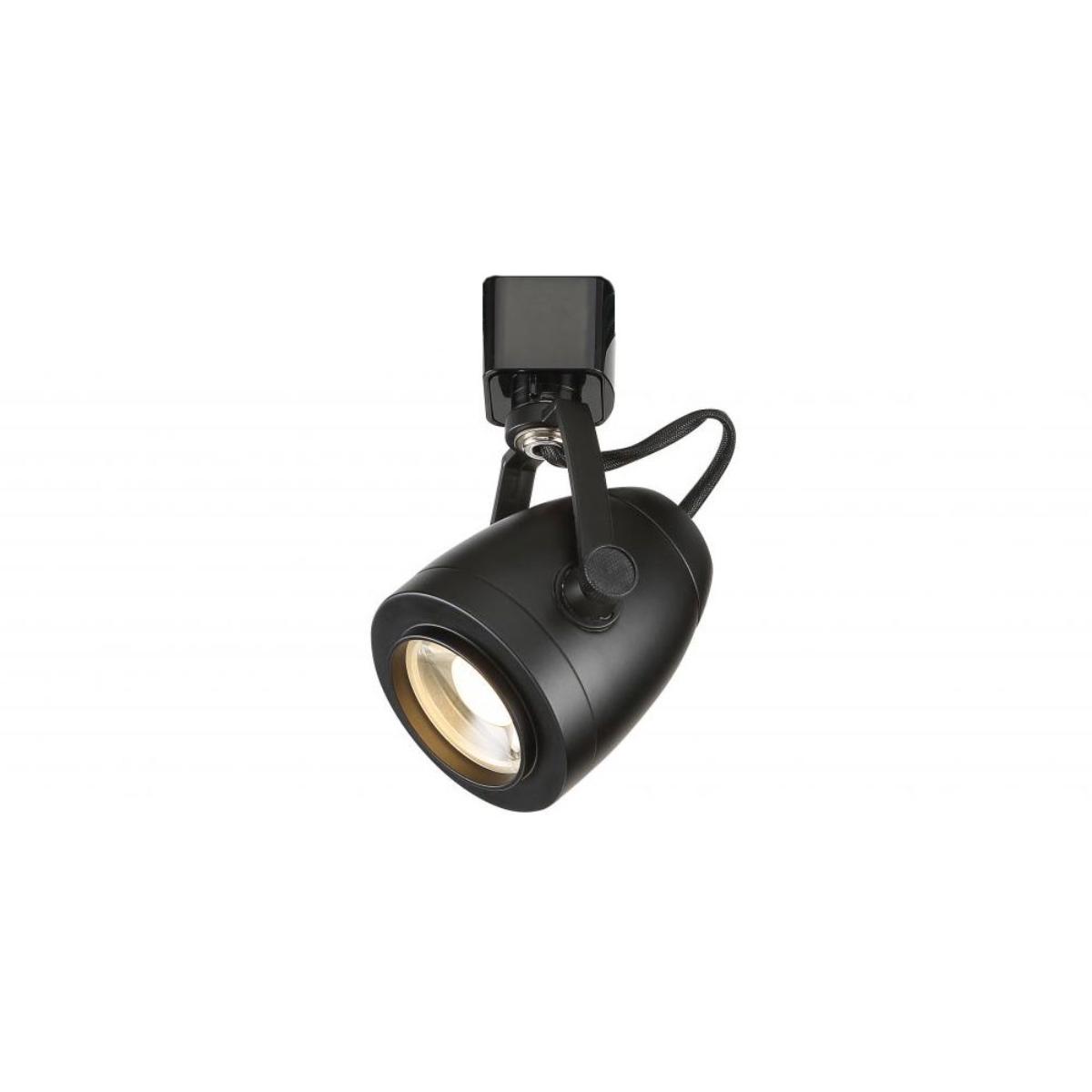

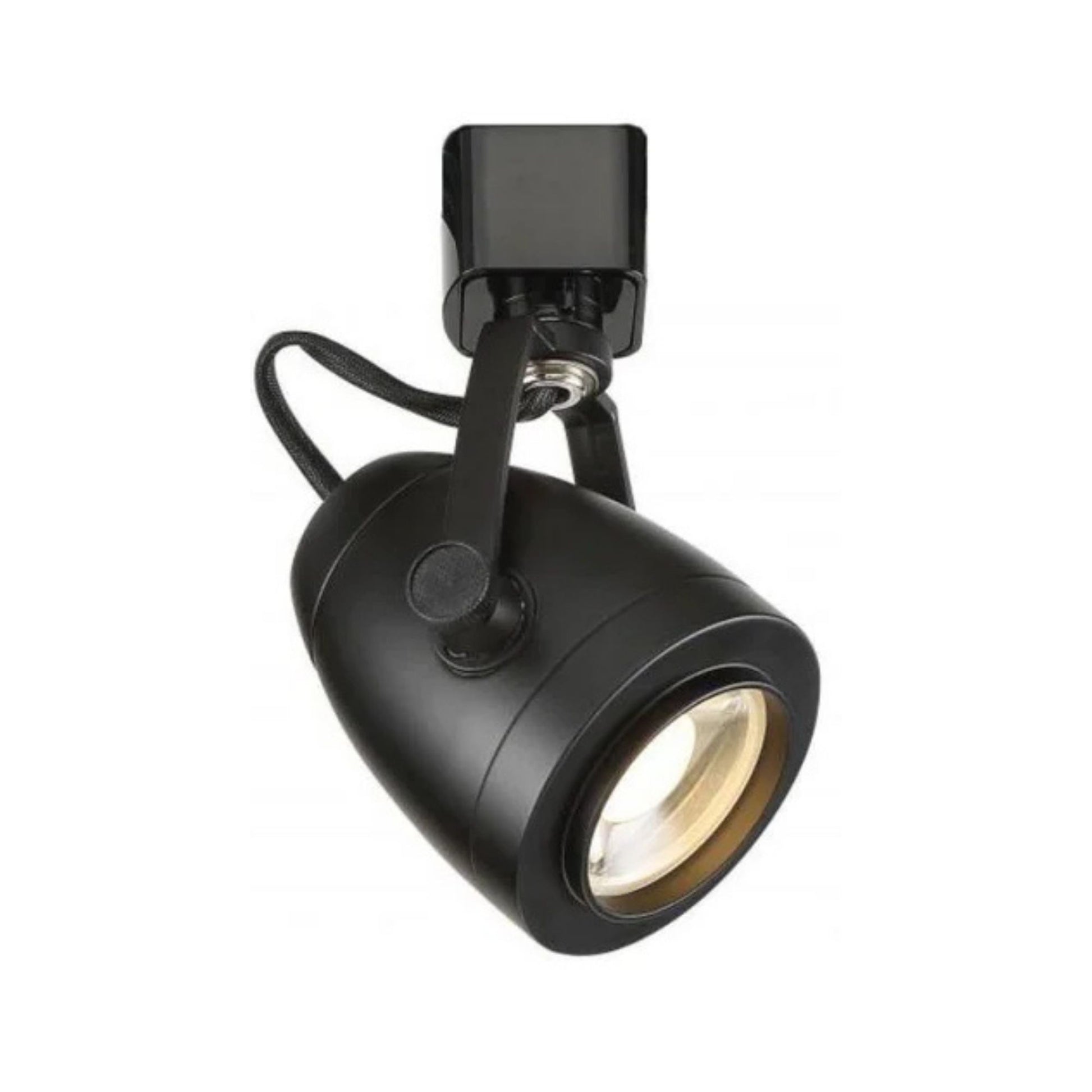

Satco Nuvo TH414 Pinch Back LED Track Head
The Satco Nuvo TH414 combines a contemporary black Pinch Back design with a fixed 36° beam for interior accent lighting. Its 12W integrated LED delivers 1020 lumens of 3000K warm white light. The directional head highlights artwork, merchandise and architectural details, while dimming adjusts brightness to suit the space.
Key Features
- Track System: H-Type adapter for H-Style track.
- Design: Pinch Back head, black finish.
- Light Source: 12W integrated LED.
- Light Output: 1020 lumens, 85 lm/W.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90 CRI.
- Beam: Fixed 36° spread.
- Aiming: Adjustable head for directional lighting.
- Construction: Aluminum and steel.
- Electrical & Dimming: 120V, compatible reverse-phase or phase-selectable dimmers.
- Rated Life: 30,000 hours.
- Location: Dry indoor use.
Construction & Design
The black Pinch Back head features aluminum and steel construction and a driver integrated within the fixture body for a clean profile. Position the head toward displays or interior features and coordinate it with black track components.
Light Output & Performance
The Satco Nuvo TH414 produces 1020 lumens at 12W, equivalent to 85 lm/W. Fixed 3000K provides warm white illumination with 90 CRI. Its 36° beam remains fixed when the head is repositioned. Rated LED life is 30,000 hours.
Electrical & Installation

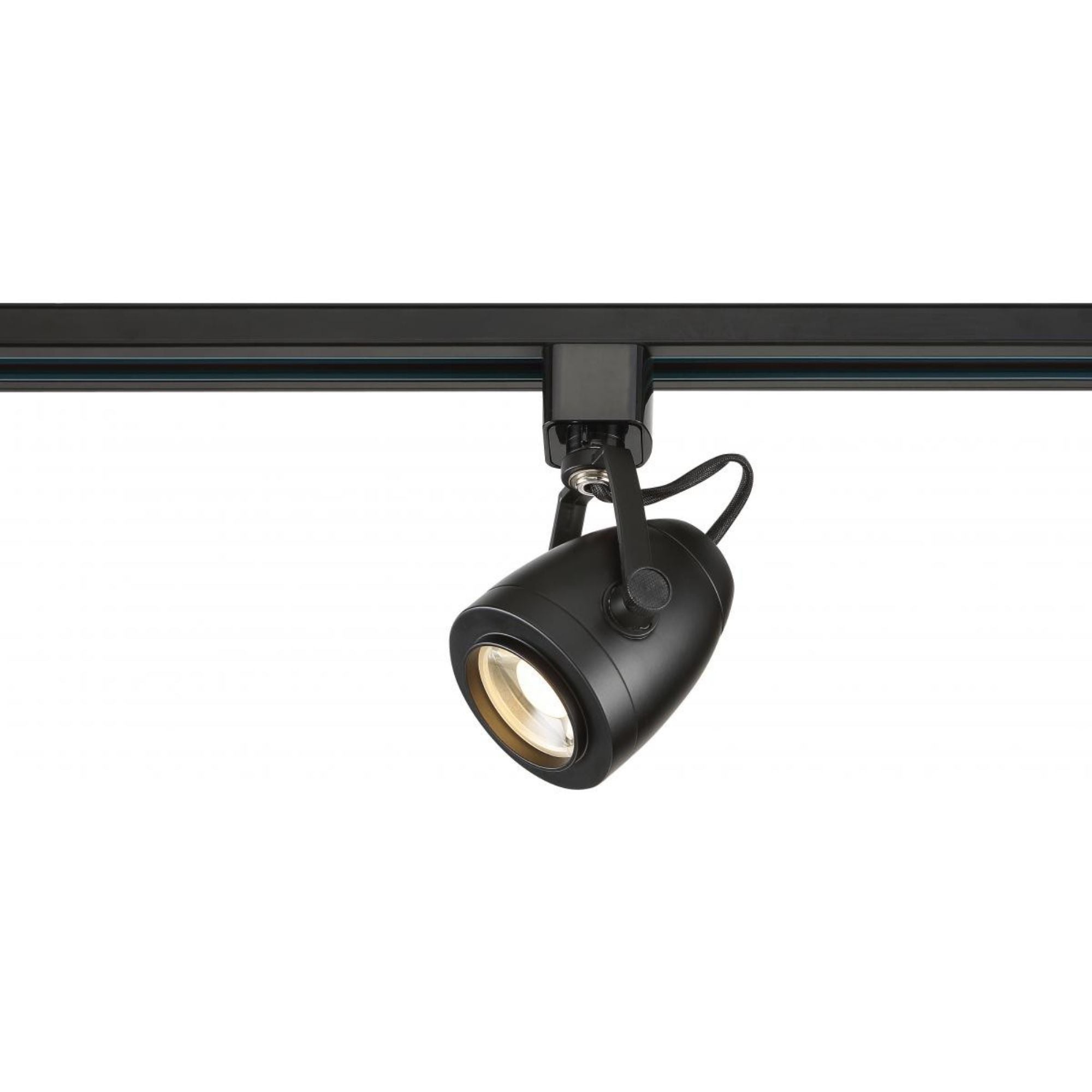

The Satco Nuvo TH414 operates at 120V and mounts to an H-Style track system using its H-Type adapter. Use compatible reverse-phase or phase-selectable dimmers and install in dry indoor locations. Track rails, power feeds and connectors are sold separately.
Compatible Accessories
Build your layout with coordinating black Satco Nuvo track components, each sold separately. Select the rail lengths, power feed and connectors that suit your installation.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

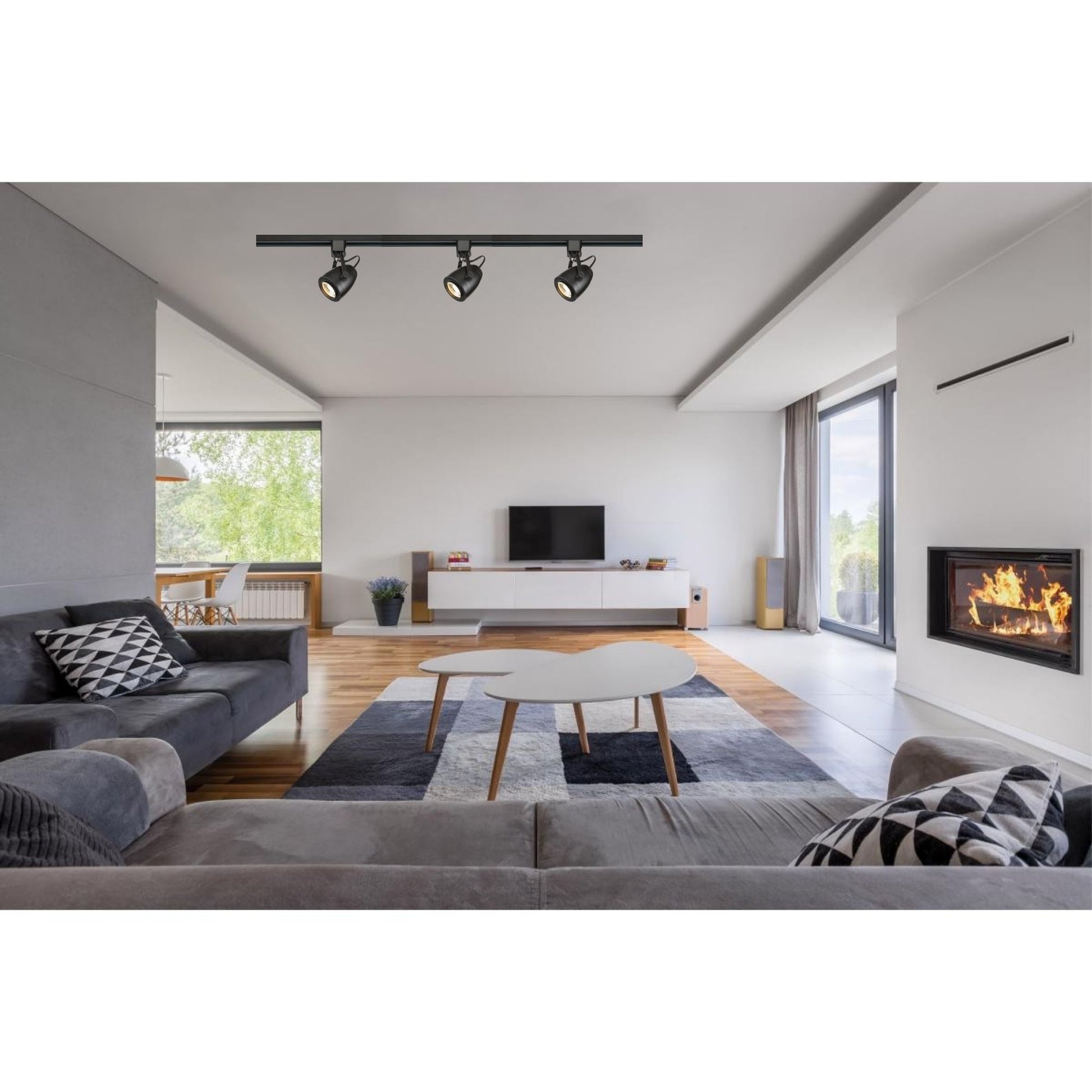

Typical Applications
- Residential artwork accents.
- Retail merchandise displays.
- Gallery accent lighting.
- Commercial interior architectural accents.
What's Included
- Satco Nuvo TH414 black Pinch Back track head with integrated LED and H-Type adapter.
Specifications
Specifications
Dimensions
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Which track system does the Satco Nuvo TH414 use?
Which track system does the Satco Nuvo TH414 use?
Is the Satco Nuvo TH414 dimmable?
Is the Satco Nuvo TH414 dimmable?
Are wattage and color temperature selectable on the Satco Nuvo TH414?
Are wattage and color temperature selectable on the Satco Nuvo TH414?
Can the beam angle and aiming direction of the Satco Nuvo TH414 be adjusted?
Can the beam angle and aiming direction of the Satco Nuvo TH414 be adjusted?
What light output does the Satco Nuvo TH414 provide?
What light output does the Satco Nuvo TH414 provide?
