Satco Nuvo TH412 Pinch Back 12W H-Type LED Track Head 3000K 24 Degree Black
Available in stock (111)
About this item
About this item
- Focused Accent Light: Fixed 24° beam, 1020 lumens from 12W, 85 lm/W.
- Warm Color Quality: Fixed 3000K warm white, 90 CRI.
- Pinch Back Design: Black finish, directional head, aluminum and glass construction.
- Brightness Control: Compatible reverse-phase or phase-selectable dimmers, 120V operation.
- Indoor Track Lighting: H-Type adapter for H-Style track, dry rated, 30,000-hour life.
Description
Description

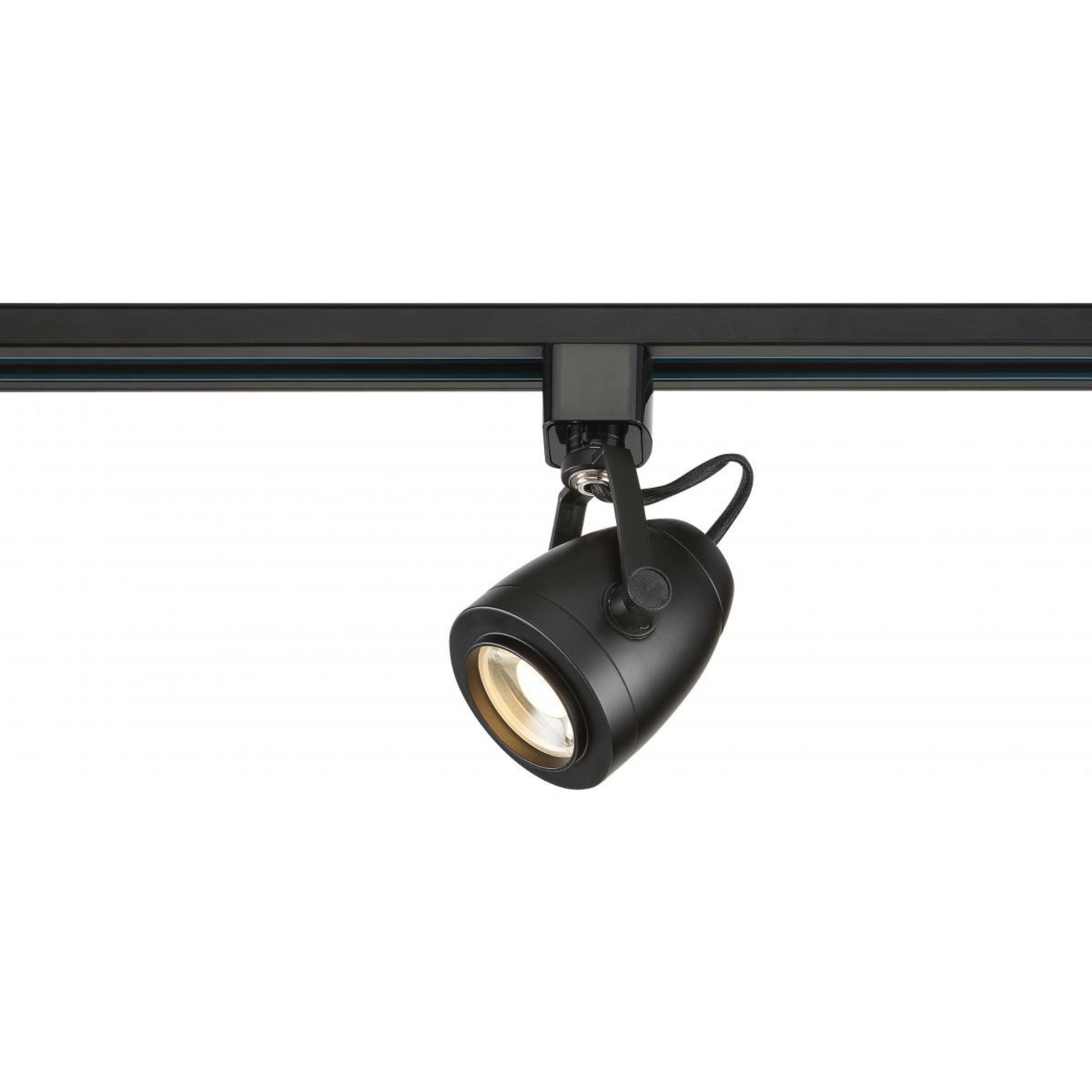

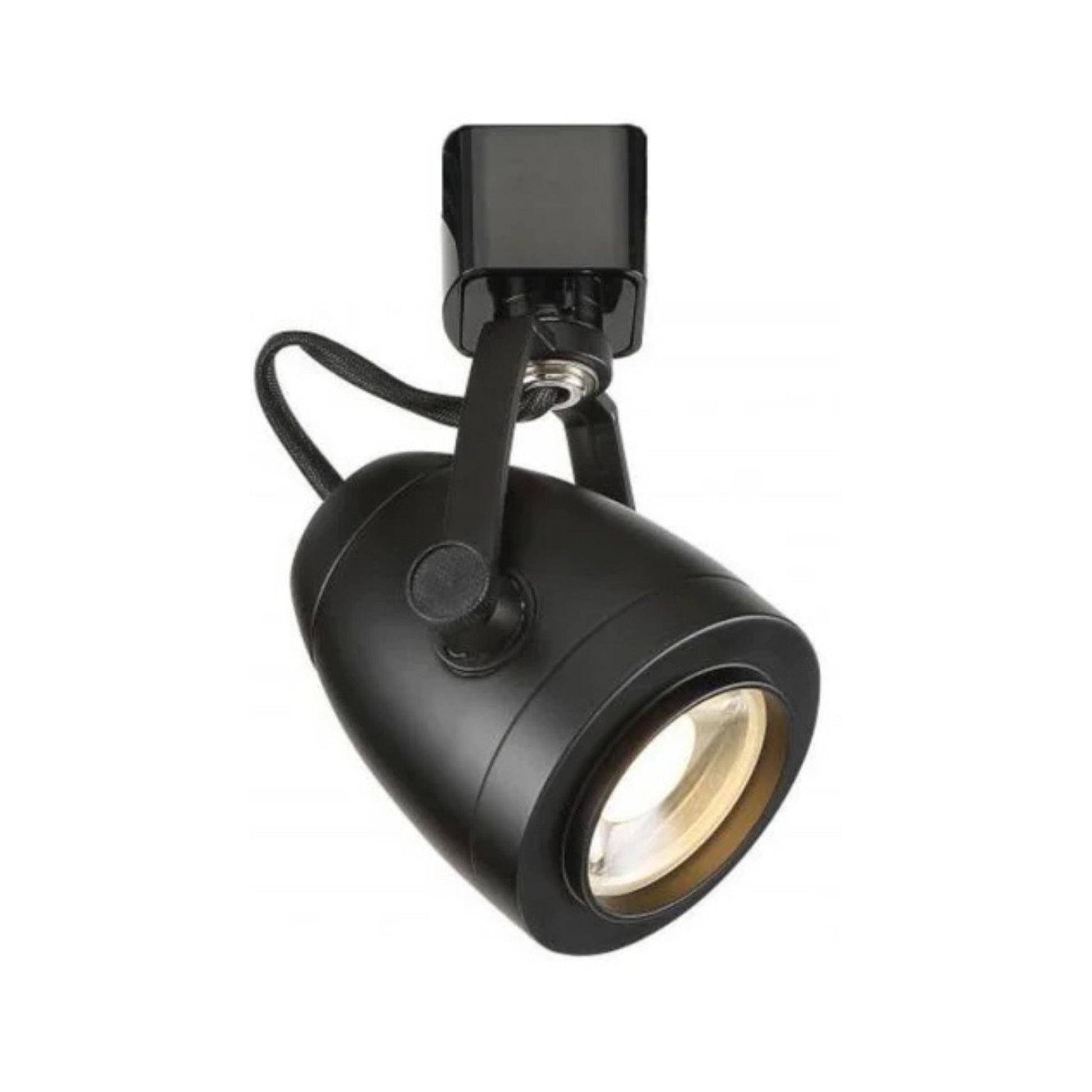

Satco Nuvo TH412 Pinch Back LED Track Head
The Satco Nuvo TH412 combines a contemporary black Pinch Back design with a fixed 24° beam for focused artwork and merchandise accents. Its 12W integrated LED delivers 1020 lumens of 3000K warm white light. The directional head lets you position illumination around your display, while dimming adjusts brightness to suit the space.
Key Features
- Track System: H-Type adapter for H-Style track.
- Design: Pinch Back head, black finish.
- Light Source: 12W integrated LED.
- Light Output: 1020 lumens, 85 lm/W.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90 CRI.
- Beam: Fixed 24° spread.
- Aiming: Adjustable head for directional lighting.
- Construction: Aluminum and glass.
- Electrical & Dimming: 120V, compatible reverse-phase or phase-selectable dimmers.
- Rated Life: 30,000 hours.
- Location: Dry indoor use.
Construction & Design
The black Pinch Back head features aluminum and glass construction and an integrated driver concealed within the fixture body. The directional design highlights interior features and coordinates with black track components.
Light Output & Performance
The Satco Nuvo TH412 produces 1020 lumens at 12W, equivalent to 85 lm/W. Its fixed 3000K color temperature provides warm white light with 90 CRI. The 24° beam concentrates illumination on the subject and remains fixed when the head is repositioned. Rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH412 operates at 120V and mounts to an H-Style track system using its H-Type adapter. Use compatible reverse-phase or phase-selectable dimmers and install in dry indoor locations. Track rails, power feeds and connectors are sold separately.
Compatible Accessories
Coordinate the TH412 with black Satco Nuvo track components, sold separately. Plan your run with the appropriate rail lengths, a power feed and connectors for straight sections or turns.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

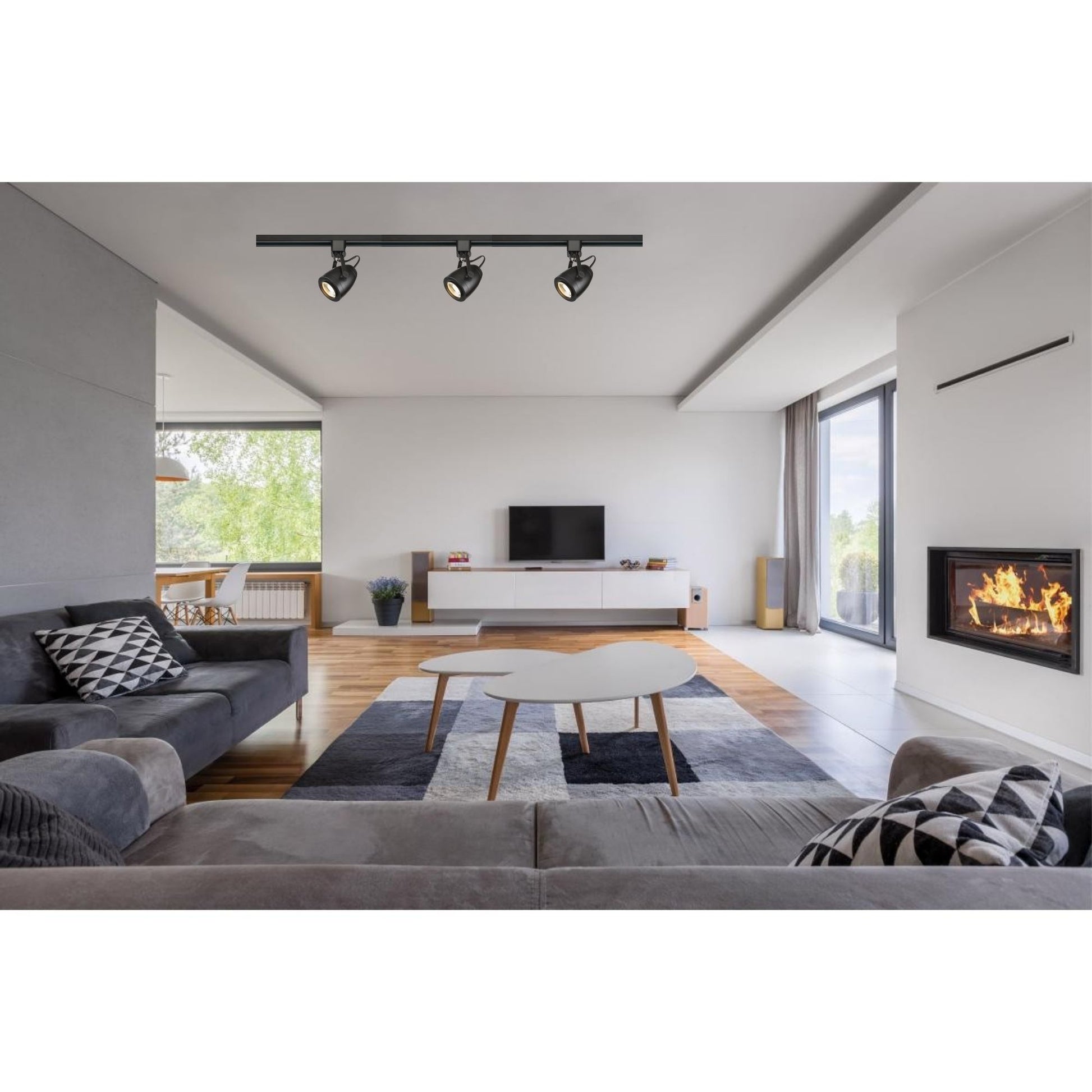

Typical Applications
- Residential artwork accents.
- Retail merchandise displays.
- Gallery spot lighting.
- Commercial interior architectural accents.
What's Included
- Satco Nuvo TH412 black Pinch Back track head with integrated LED and H-Type adapter.
