Satco Nuvo TH405 Round 12W H-Type LED Track Head 3000K 24 Degree Brushed Nickel
Available in stock (151)
About this item
About this item
- Focused Illumination: 1020 lumens from 12W, 85 lm/W, fixed 24° beam for accent lighting.
- Warm Color Quality: Fixed 3000K warm white light with 90+ CRI.
- Directional Design: Articulating round head, brushed nickel die-cast aluminum housing and PMMA lens.
- Dimming Control: Compatible 120V phase-cut dimmers, 60Hz operation.
- Matched Track System: H-Type adapter for Satco Nuvo H-Style track, dry indoor use, 30,000-hour L70 life.
Description
Description

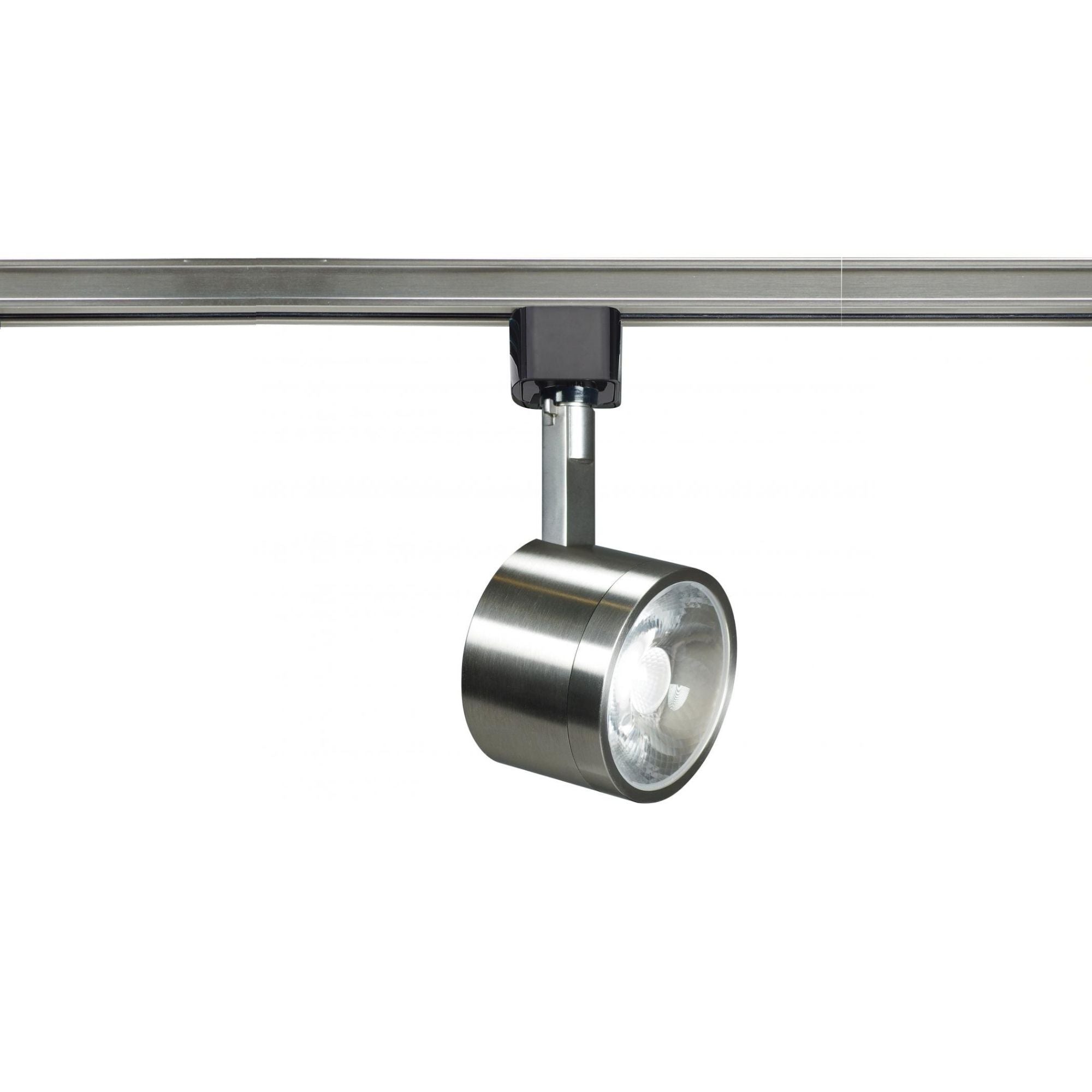

Satco Nuvo TH405 Round LED Track Head
The Satco Nuvo TH405 brings focused 3000K warm white light to residential and commercial interiors. Its 12W integrated LED delivers 1020 lumens through a fixed 24° beam, with 90+ CRI for detailed color rendering. A brushed nickel die-cast aluminum housing and articulating head pair contemporary styling with directional accent lighting. Designed for Satco Nuvo H-Style track, it supports compatible 120V phase-cut dimming.
Key Features
- Track System: H-Type adapter, designed for Satco Nuvo H-Style track.
- Light Source: 12W integrated LED, no separate lamp required.
- Light Output: 1020 lumens, 85 lm/W.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90+ CRI.
- Beam: Fixed 24° spread, articulating head for directional aiming.
- Construction: Die-cast aluminum, brushed nickel finish, PMMA lens.
- Electrical: 120V, 60Hz, 0.10A, power factor greater than 0.9.
- Dimming: Compatible 120V phase-cut dimmers.
- Rated Life: 30,000 hours L70.
- Location & Listings: Dry indoor locations, cETLus Listed, FCC and RoHS compliant, Title 24 JA8 compliant.
- Operating Temperature: -4°F to 104°F (-20°C to 40°C).
Construction & Design
The round head combines a brushed nickel die-cast aluminum body with a polymethyl methacrylate (PMMA) lens. Overall height is 6.25 in and body depth is 2.25 in. Articulation directs the head toward displays or architectural details without changing the fixed optical beam.
Light Output & Performance
The integrated LED produces 1020 lumens at 12W, equivalent to 85 lm/W. Its 3000K color temperature and 24° beam are fixed, while 90+ CRI supports natural-looking colors. Rated functional life is 30,000 hours L70. Compatible phase-cut dimming lets you adjust brightness for the space.
Electrical & Installation
The Satco Nuvo TH405 operates at 120V, 60Hz, draws 0.10A and has a power factor greater than 0.9. It uses an H-Type track adapter and must be used with Satco Nuvo H-Style track systems to maintain the cETLus listing and warranty requirements. Dimming is supported with compatible 120V phase-cut dimmers. Install in dry indoor locations within the -4°F to 104°F operating range. Track and system components are sold separately.
Compatible Accessories
Satco Nuvo track-system components, sold separately. Brushed nickel rails and aircraft cable suspension coordinate with the fixture; the power feeds and connectors below have black finishes.
- Brushed Nickel Track Rails: TR126 (2 ft), TR127 (4 ft), TR128 (6 ft) and TR129 (8 ft), single circuit H-Type.
- Black Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Black Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP242 brushed nickel aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

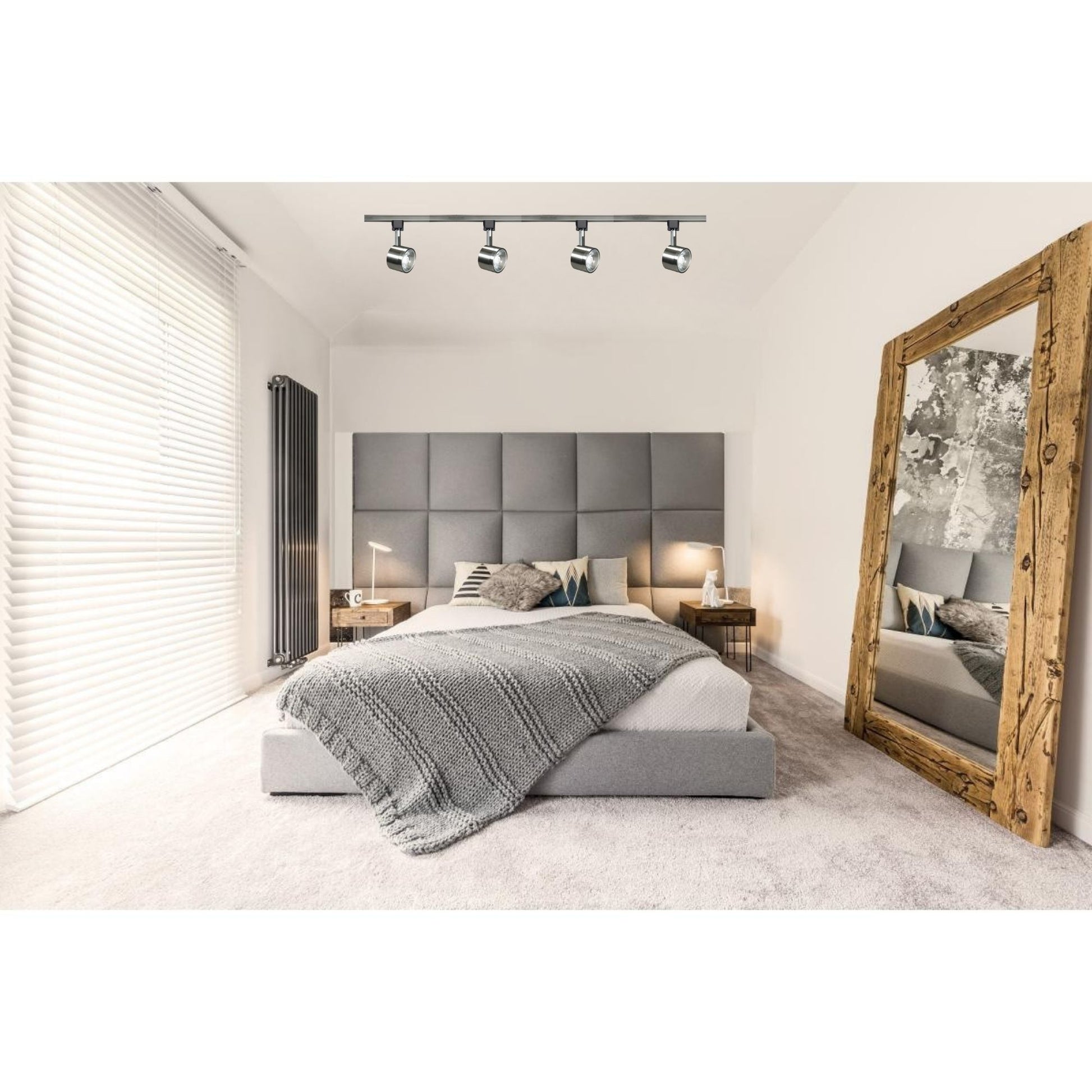

Typical Applications
- Residential artwork and display accents.
- Retail merchandise lighting.
- Gallery spot lighting.
- Commercial interior architectural accents.
What's Included
- Satco Nuvo TH405 brushed nickel round track head with integrated LED and H-Type track adapter.
