Satco Nuvo TH404 Round 12W H-Type LED Track Head 3000K 36 Degree Matte Black
Available in stock (2124)
About this item
About this item
- Accent Illumination: Fixed 36° beam, 1020 lumens from 12W, 85 lm/W.
- Warm Color Quality: Fixed 3000K warm white light, 90 CRI.
- Directional Design: Adjustable round head, matte black aluminum housing and PMMA lens.
- Dimming Control: 120V operation, compatible reverse-phase or phase-selectable dimmers.
- Track Integration: H-Type adapter, dry indoor use, 30,000-hour rated life.
Description
Description

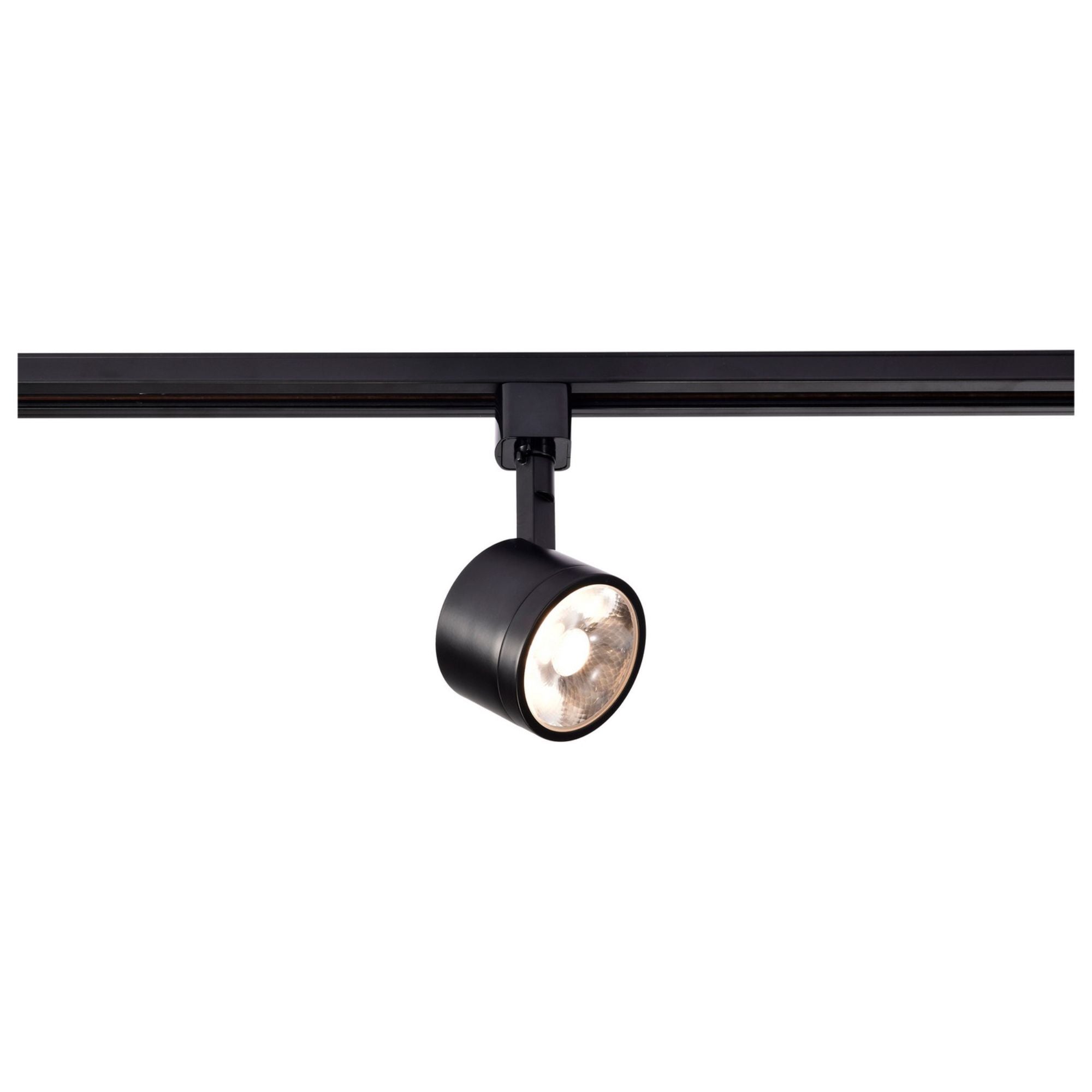

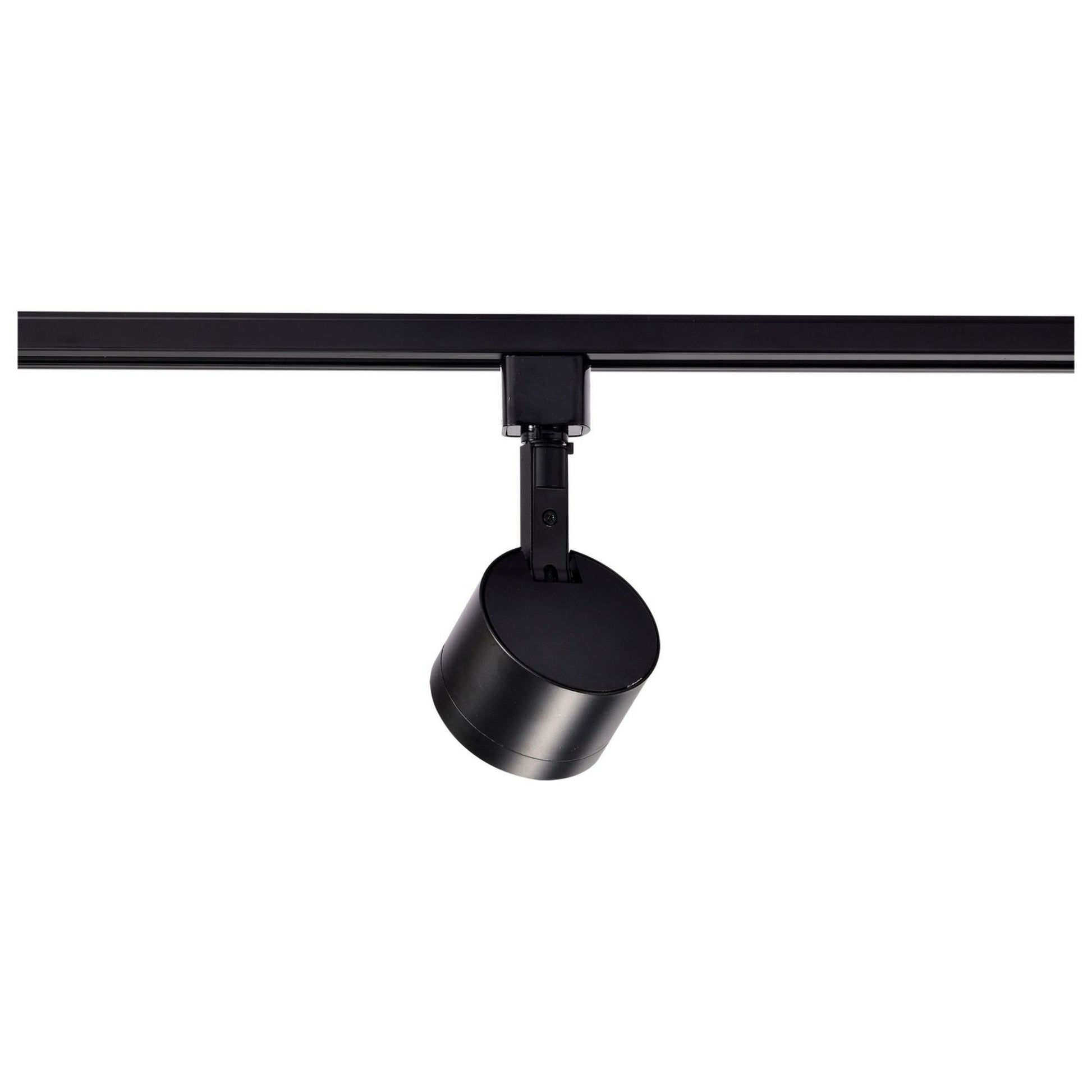

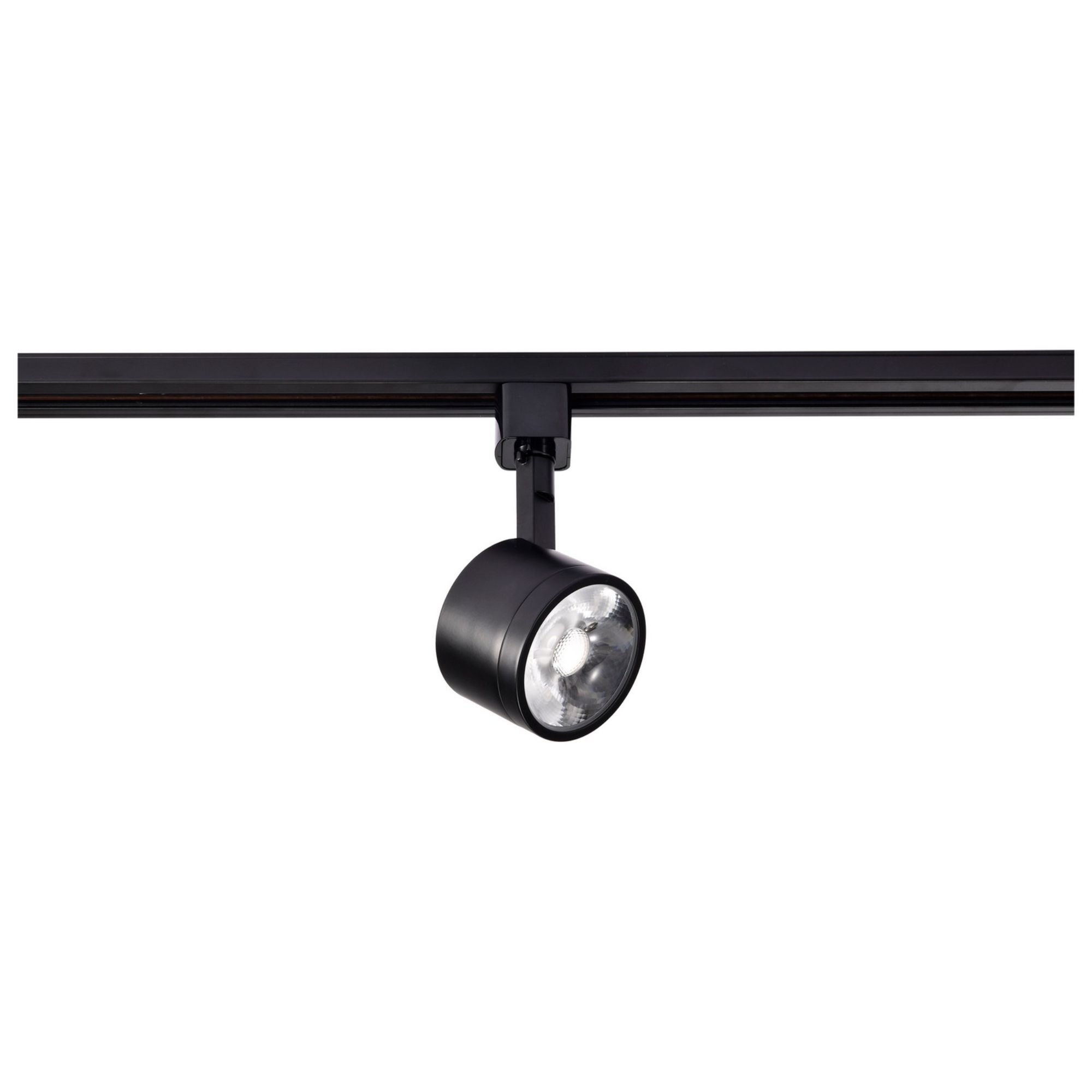

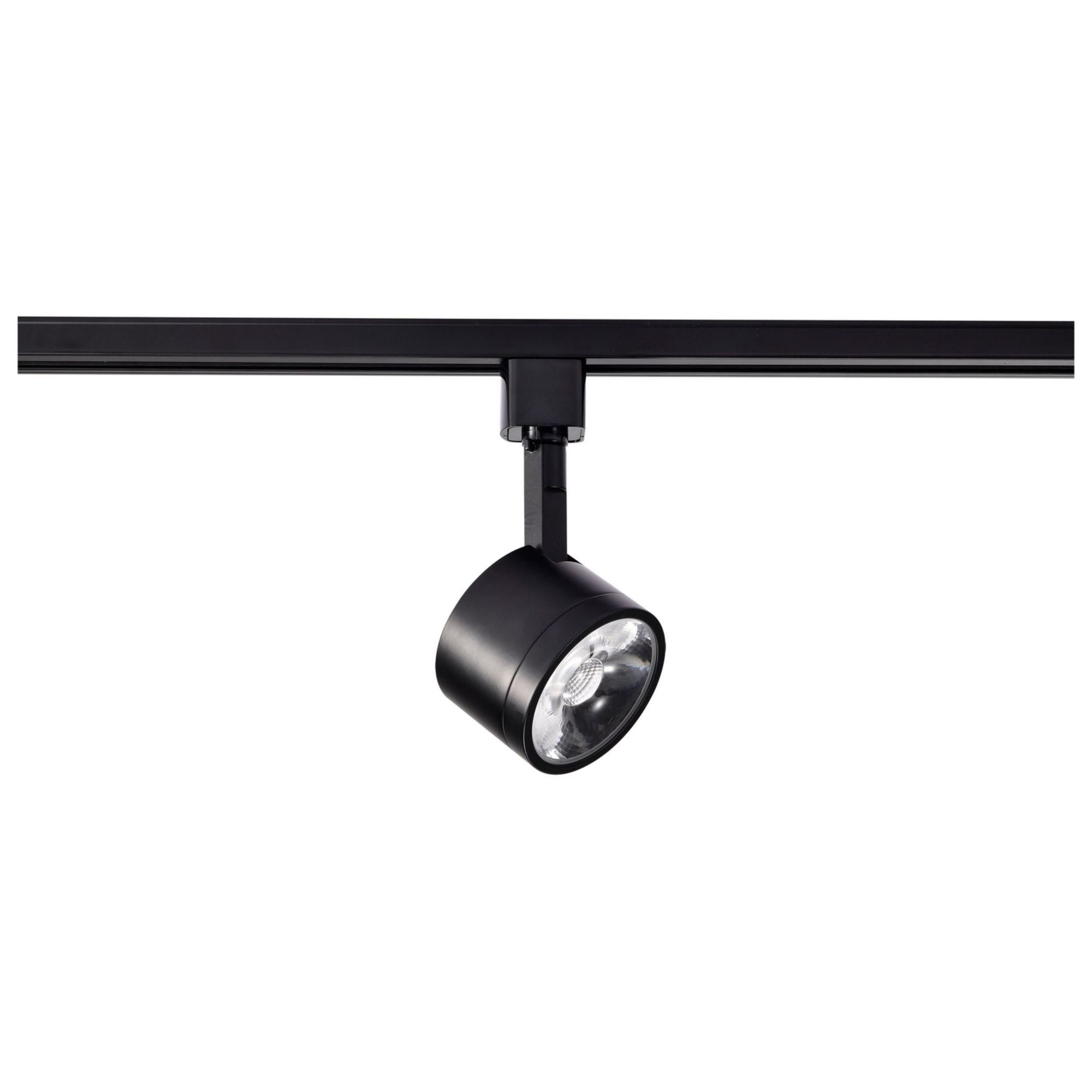

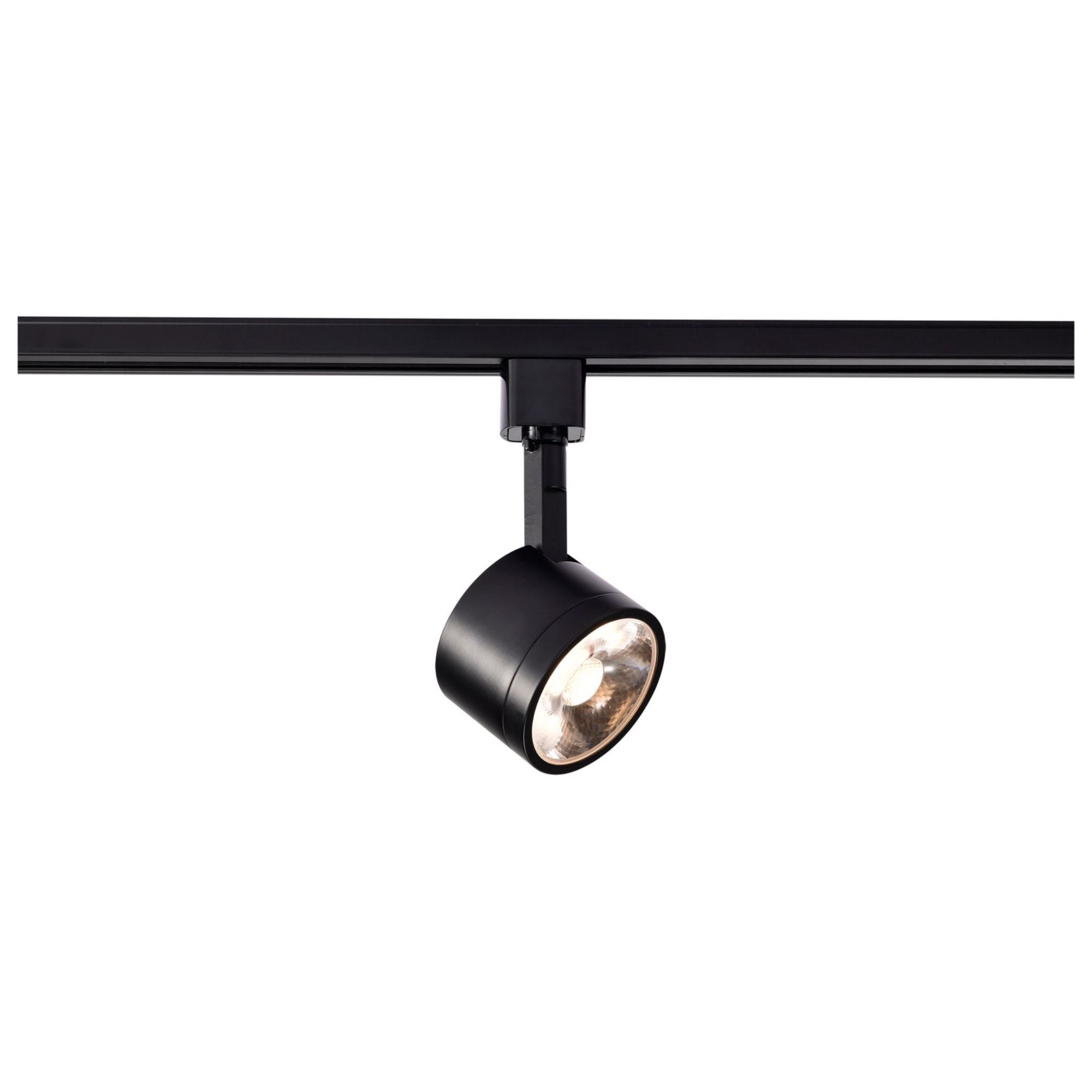

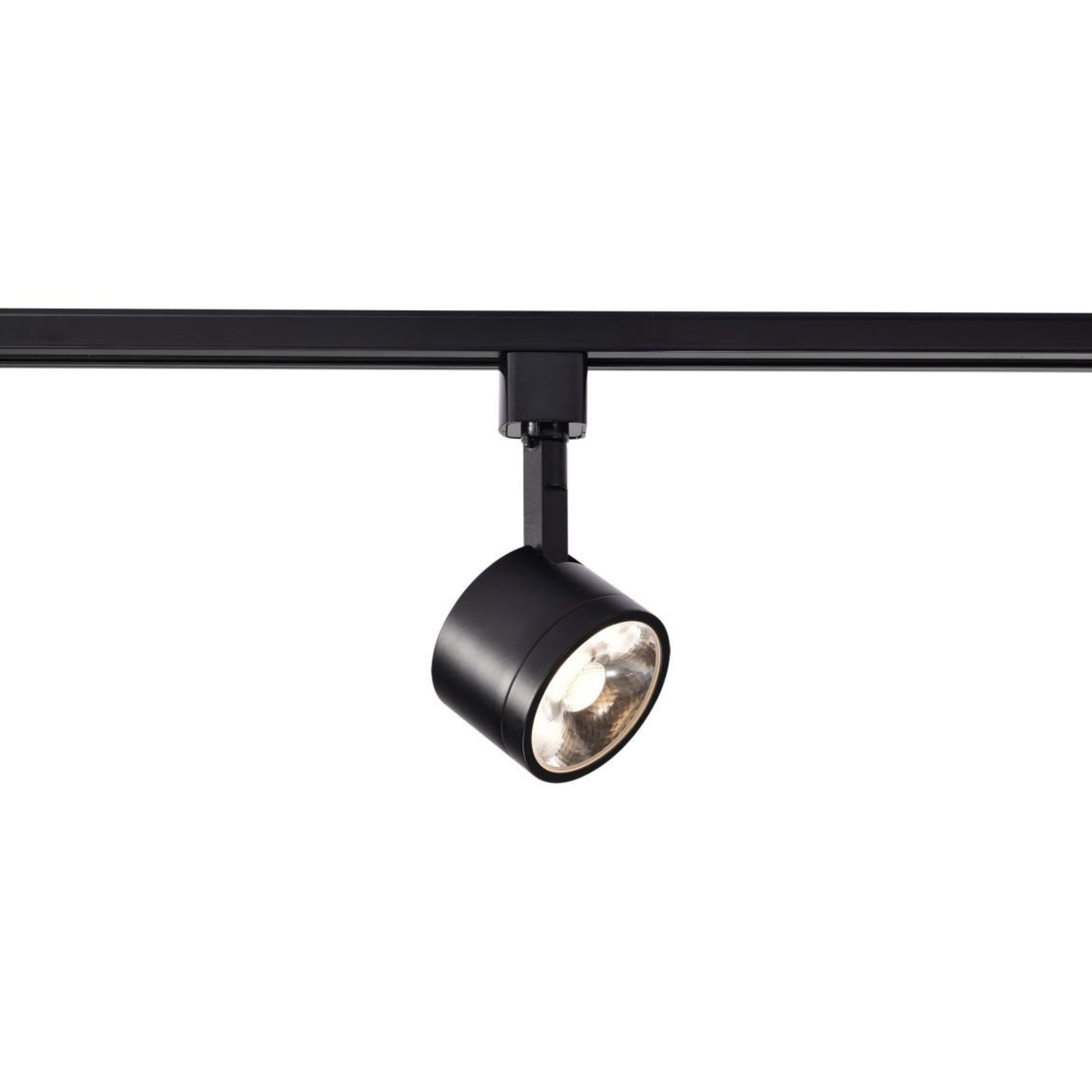

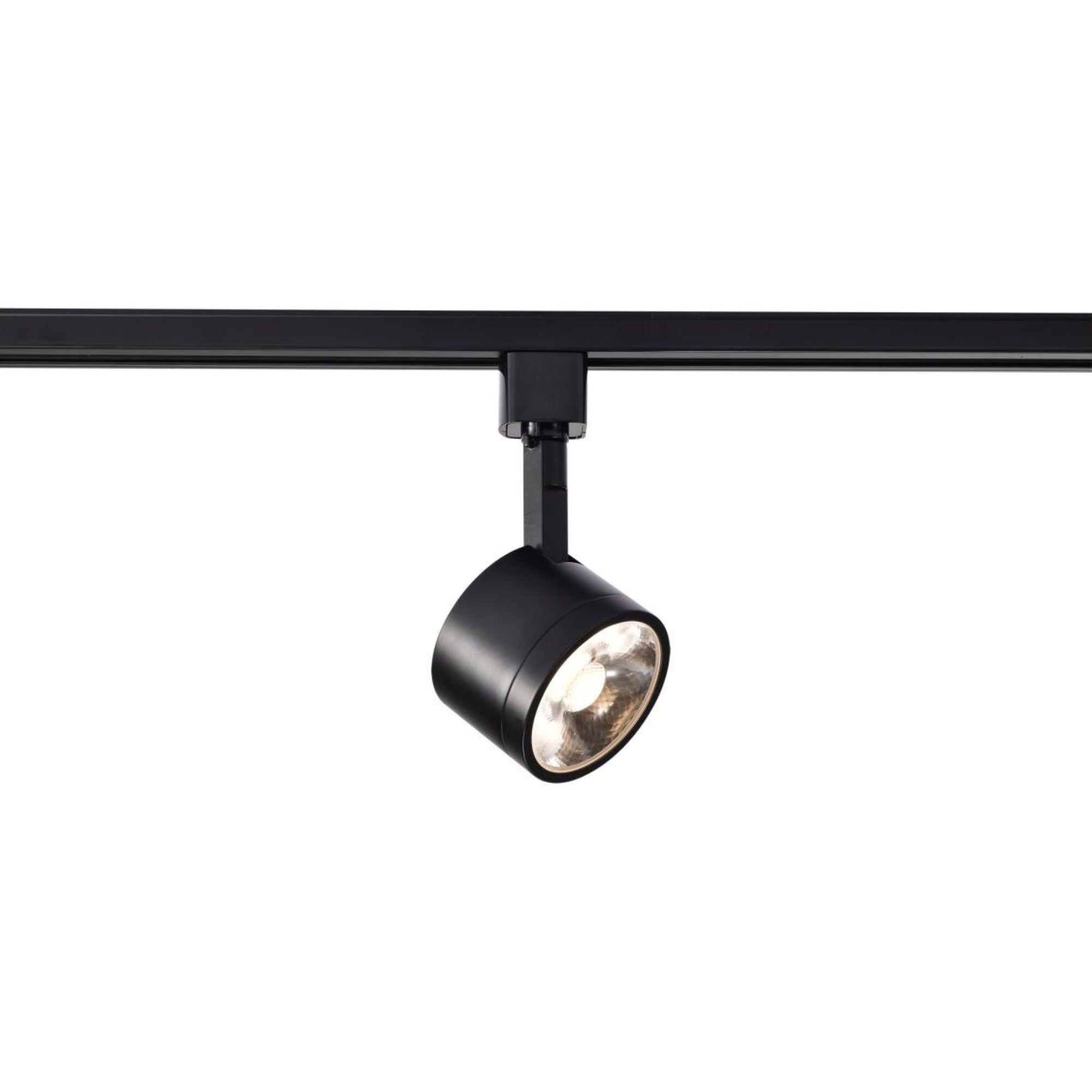

Satco Nuvo TH404 Round LED Track Head
The Satco Nuvo TH404 combines a matte black round head with 3000K warm white light for artwork, merchandise and architectural accents. Its 12W integrated LED delivers 1020 lumens through a fixed 36° beam. The adjustable head directs illumination toward the subject, while the H-Type adapter integrates with the track layout.
Key Features
- Track System: H-Type adapter.
- Light Source: 12W integrated LED.
- Light Output: 1020 lumens, 85 lm/W.
- Color Temperature: Fixed 3000K warm white.
- Color Rendering: 90 CRI.
- Beam: Fixed 36° spread.
- Aiming: Adjustable head for directional lighting.
- Construction: Die-cast aluminum housing, PMMA lens.
- Finish: Matte black.
- Electrical & Dimming: 120V, reverse-phase or phase-selectable dimmers.
- Rated Life: 30,000 hours.
- Location: Dry indoor use.
Construction & Design

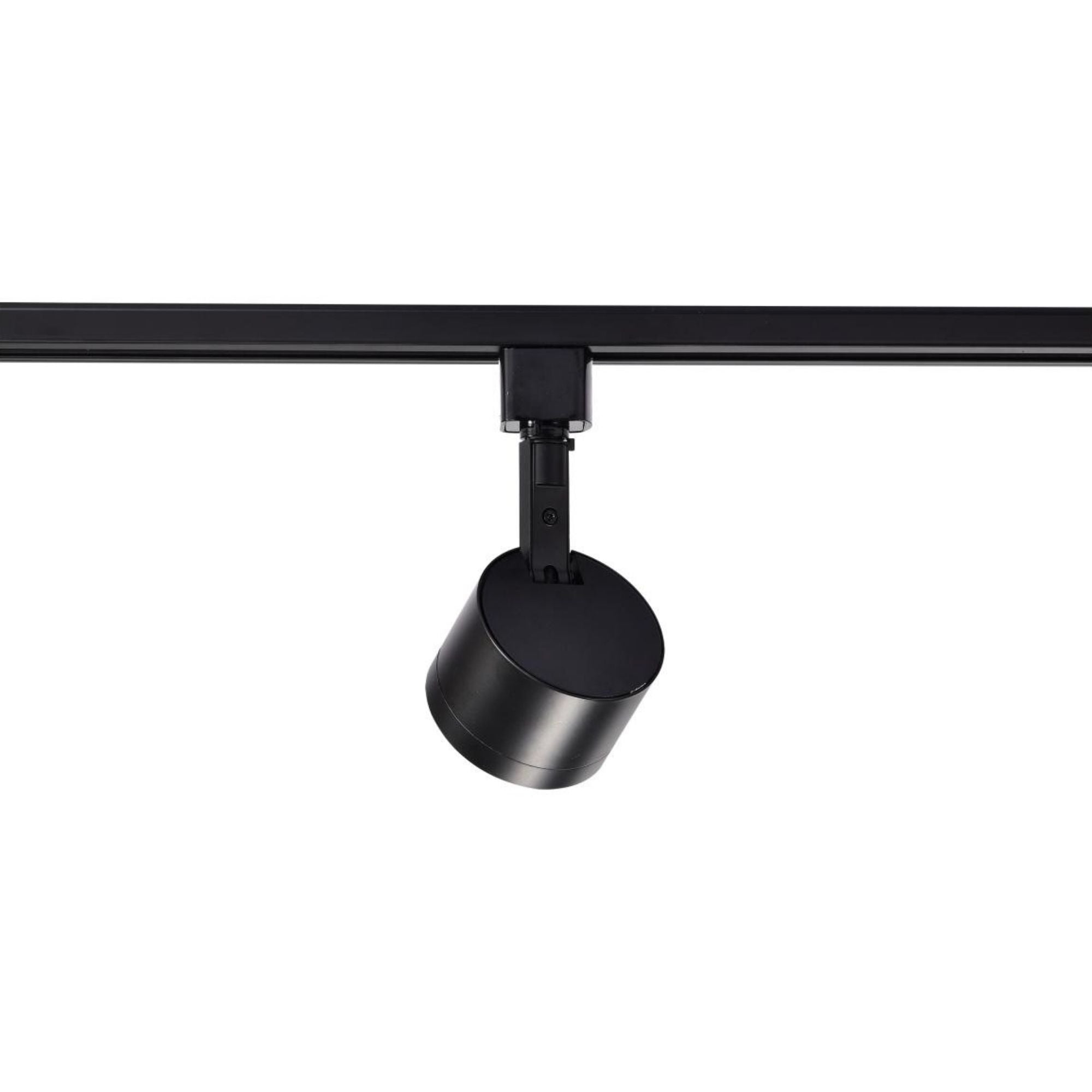

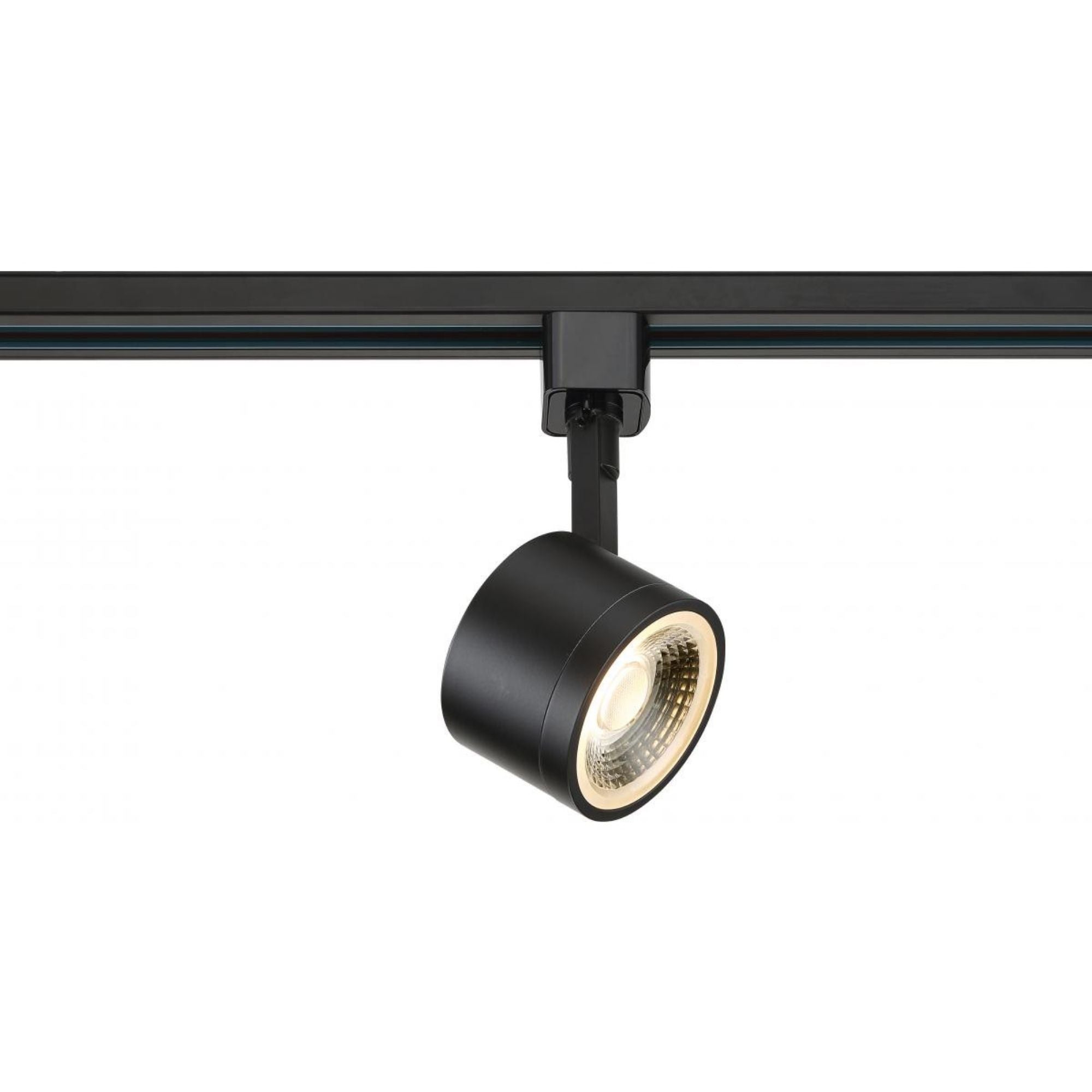

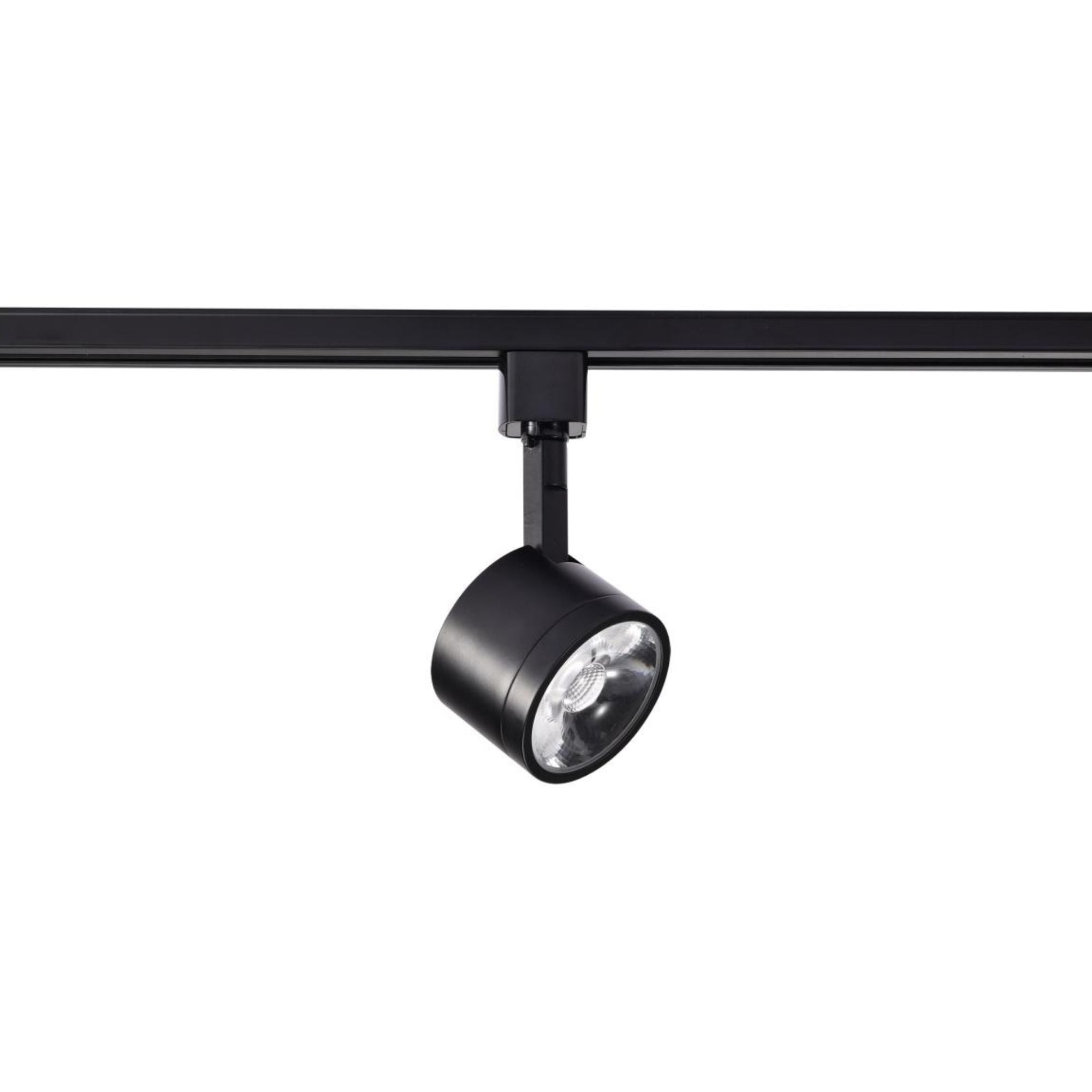

The die-cast aluminum housing has a matte black finish that coordinates with black track components. A PMMA lens shapes the light from the integrated LED. The round head can be aimed toward a display or interior feature.
Light Output & Performance
The Satco Nuvo TH404 produces 1020 lumens at 12W, equivalent to 85 lm/W. Its fixed 3000K color temperature provides warm white illumination, with 90 CRI for color rendering. The 36° beam remains fixed when the head is repositioned. Rated LED life is 30,000 hours.
Electrical & Installation
The Satco Nuvo TH404 operates at 120V and mounts to an H-Type track system. It supports compatible reverse-phase or phase-selectable dimmers. Install in dry indoor locations. Select track rails, power feeds and connectors to suit the layout; system components are sold separately.
Compatible Accessories
Matching black Satco Nuvo H-Type track-system components, sold separately.
- Track Rails: TR119 (2 ft), TR121 (4 ft), TR125 (6 ft) and TR123 (8 ft), single circuit H-Type.
- Power Feeds: TP153 live end and canopy, TP155 floating canopy, TP157 live end cord kit, TP170 conduit live end and TP172 inline feed.
- Track Connectors: TP145 mini straight, TP147 L, TP149 T, TP151 X and TP168 flexible connector.
- Track Mounting: TP241 black aircraft cable suspension, TP185 silver drop-ceiling T-bar clips (4 pack) and TP243 replacement mounting hardware (2 screws and 2 toggle bolts).

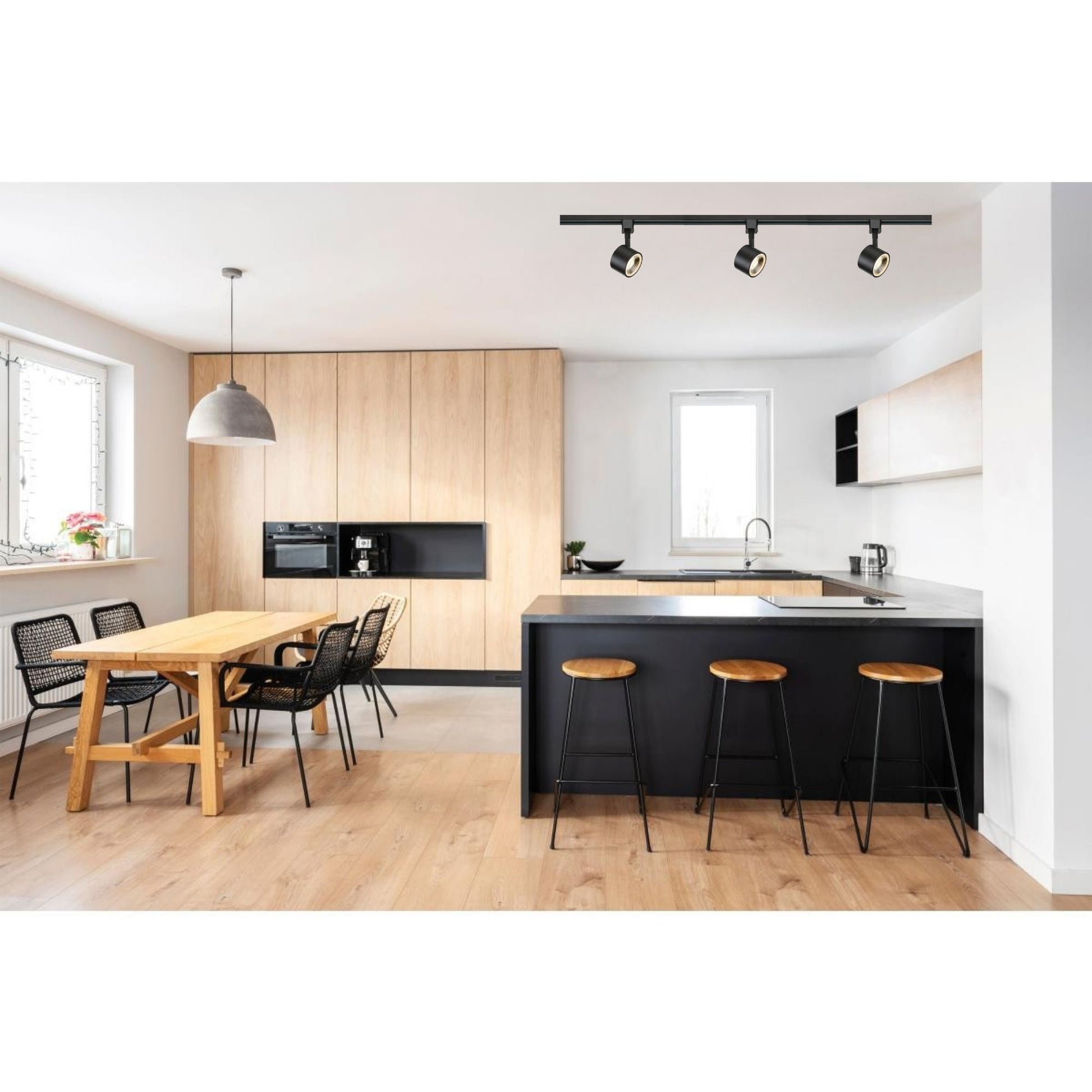

Typical Applications
- Residential artwork and display accents.
- Retail merchandise lighting.
- Gallery accent lighting.
- Commercial interior architectural accents.
What's Included
- Satco Nuvo TH404 matte black round track head with integrated LED and H-Type track adapter.
