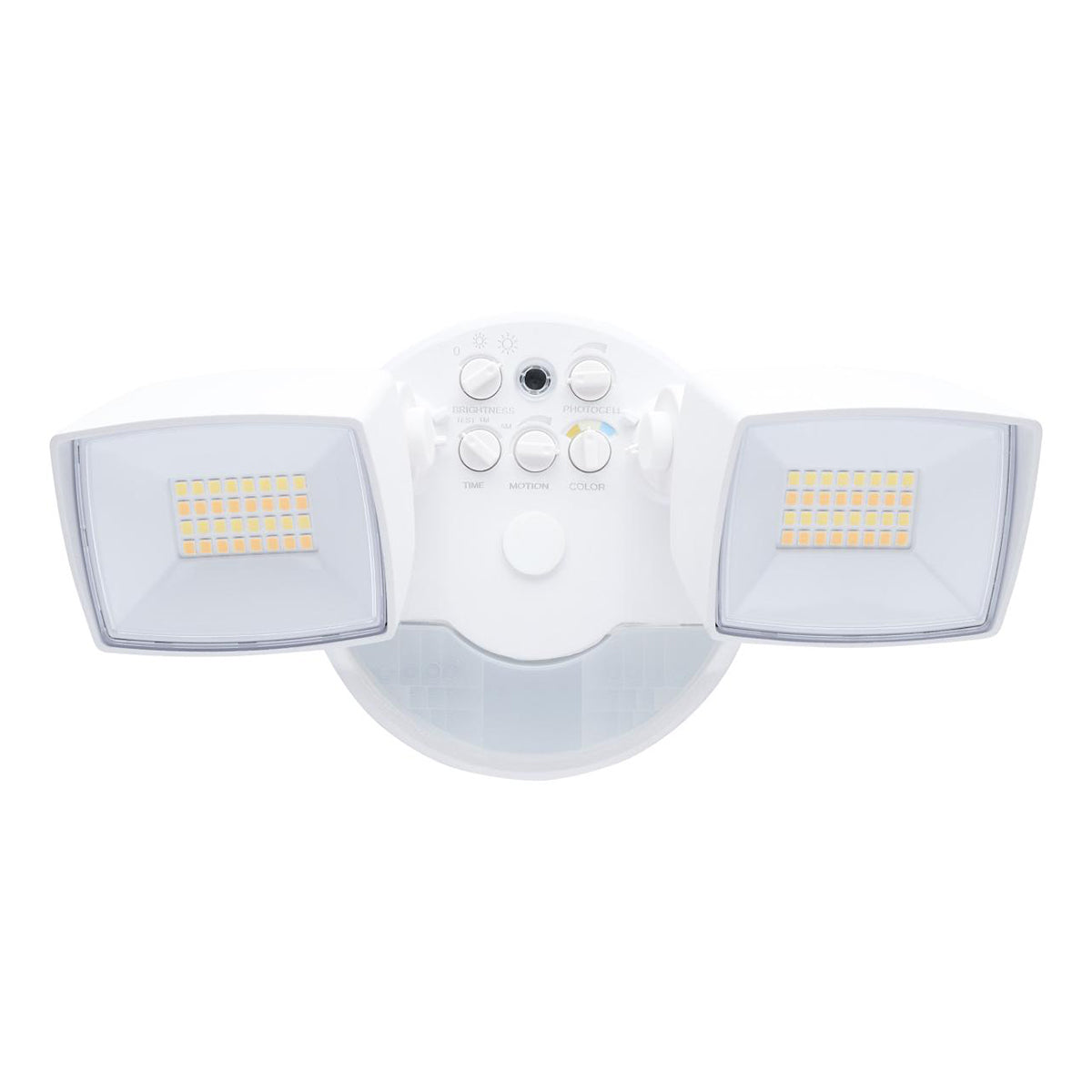

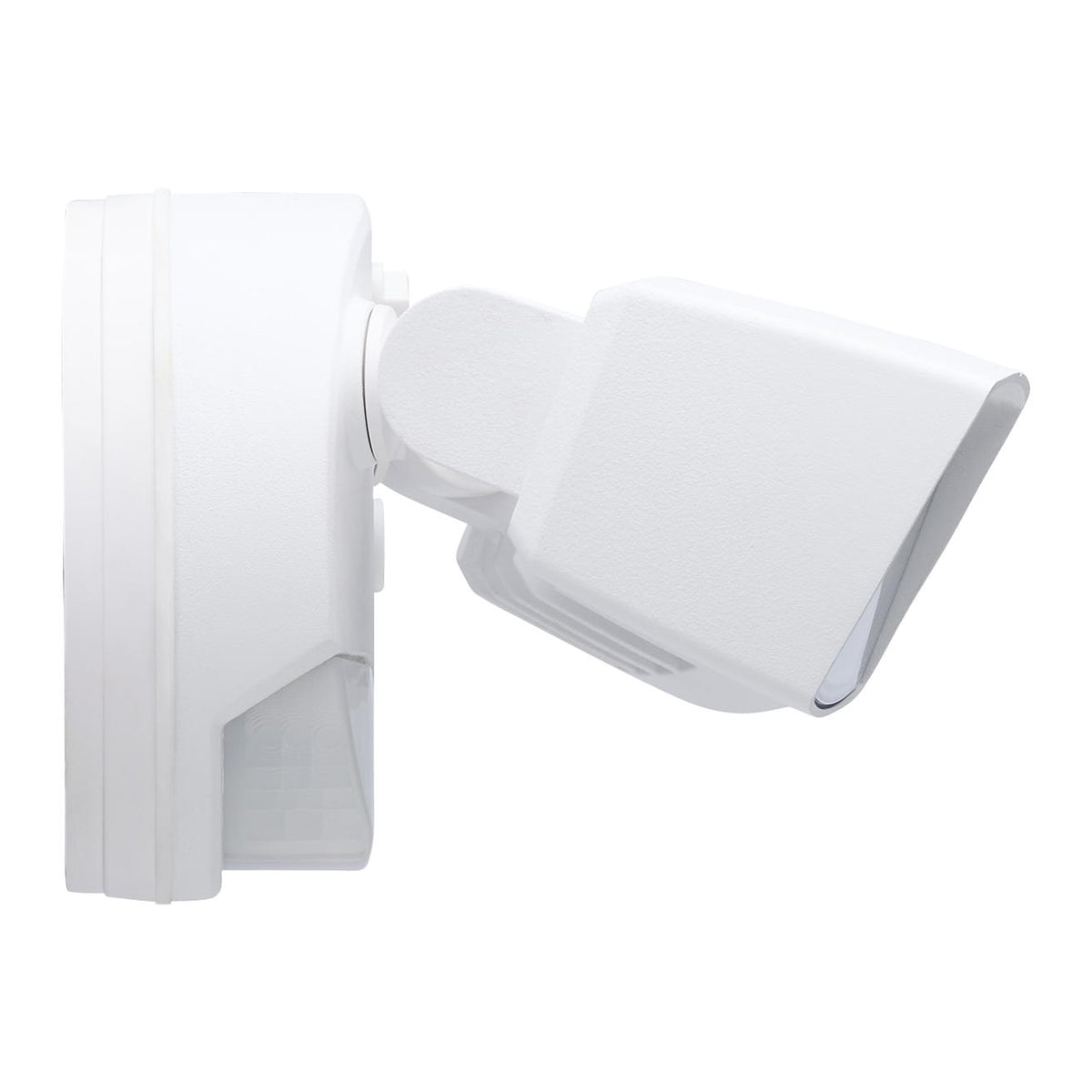

Satco|Nuvo 65-997 Selectable Dual Head Security Floodlight — 25W, Selectable CCT & Power, Wall/Eave Mount, PIR Motion Sensor, 120V, White

The Satco|Nuvo 65-997 is a premium, dual head LED security flood light engineered to deliver comprehensive and intelligent safety lighting. This sleek white luminaire produces up to 3,352 lumens and allows installers to easily adjust the brightness by toggling between 17W and 25W, as well as select between three color temperatures (3000K, 4000K, 5000K) directly in the field. Designed with fully articulating heads, it provides a broad 103° beam angle. What sets this model apart is its advanced PIR motion sensor, which features a 180° detection range, tunable timeout, and tunable detection range. It also incorporates an integrated Sentry light (3W, 108 lumens) that provides a soft accent glow when no motion is detected. Operating on a 120V driver, it is constructed from rugged die-cast aluminum with an IP65 rating for superior weather resistance. With a 5-year warranty, it is the ultimate smart solution for exterior security lighting.

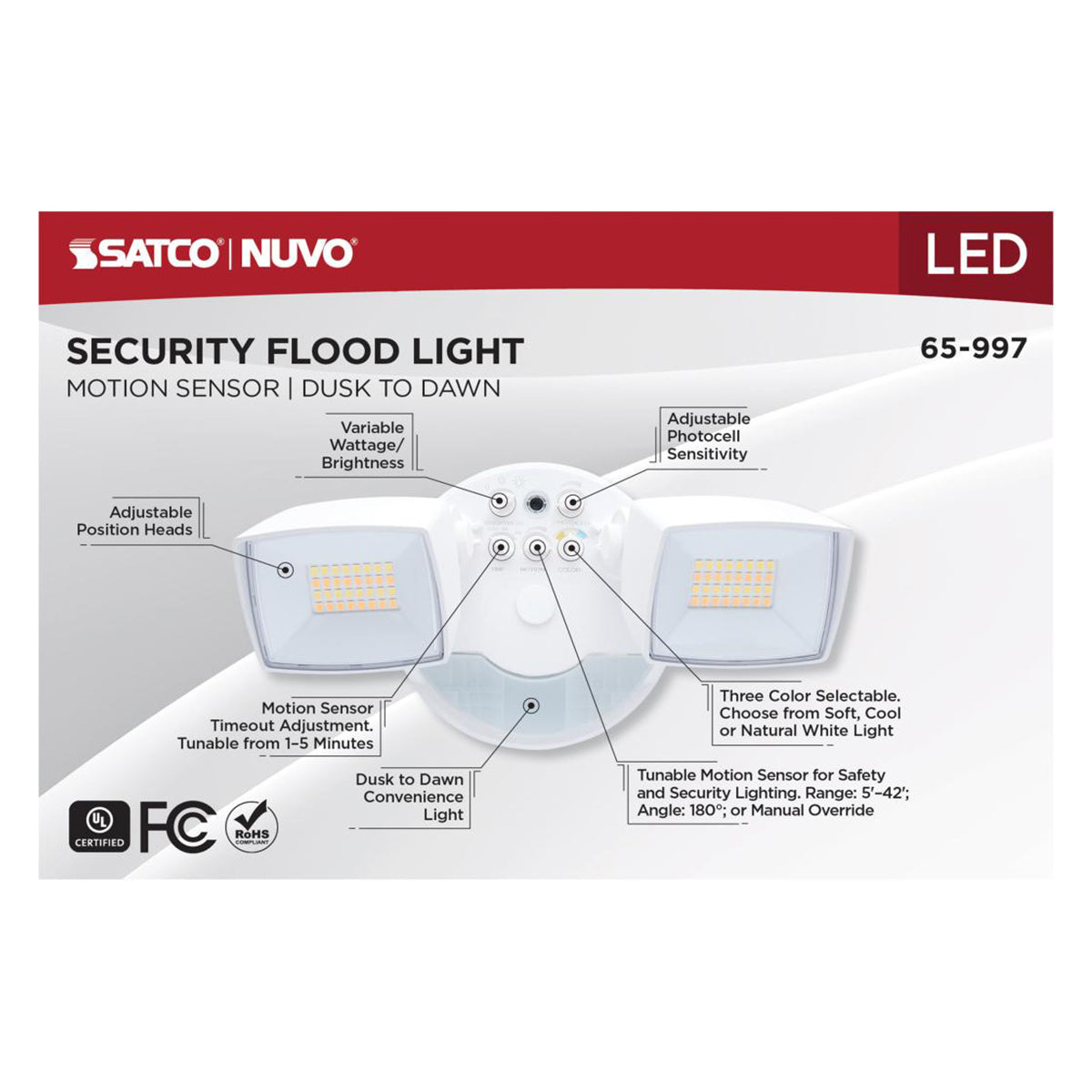

Key Features

• Wattage: Field adjustable from 17W to 25W.
• Selectable CCT: Field adjustable between 3000K (Soft White), 4000K (Natural White), and 5000K.
• Advanced Controls: PIR motion sensor with tunable timeout and detection range.
• Sentry Light: Integrated 3W (108 lumens) accent light for continuous safety illumination.
• Optics: 103° beam angle with fully articulating heads.
• Mounting Type: Wall or Eave Mount.
• Delivered Lumens: 2,190 to 3,352 lumens (Up to 138 LPW).
• Environmental Ratings: IP65 rated; Wet location rated.
• Warranty: 5-Year Manufacturer Warranty.

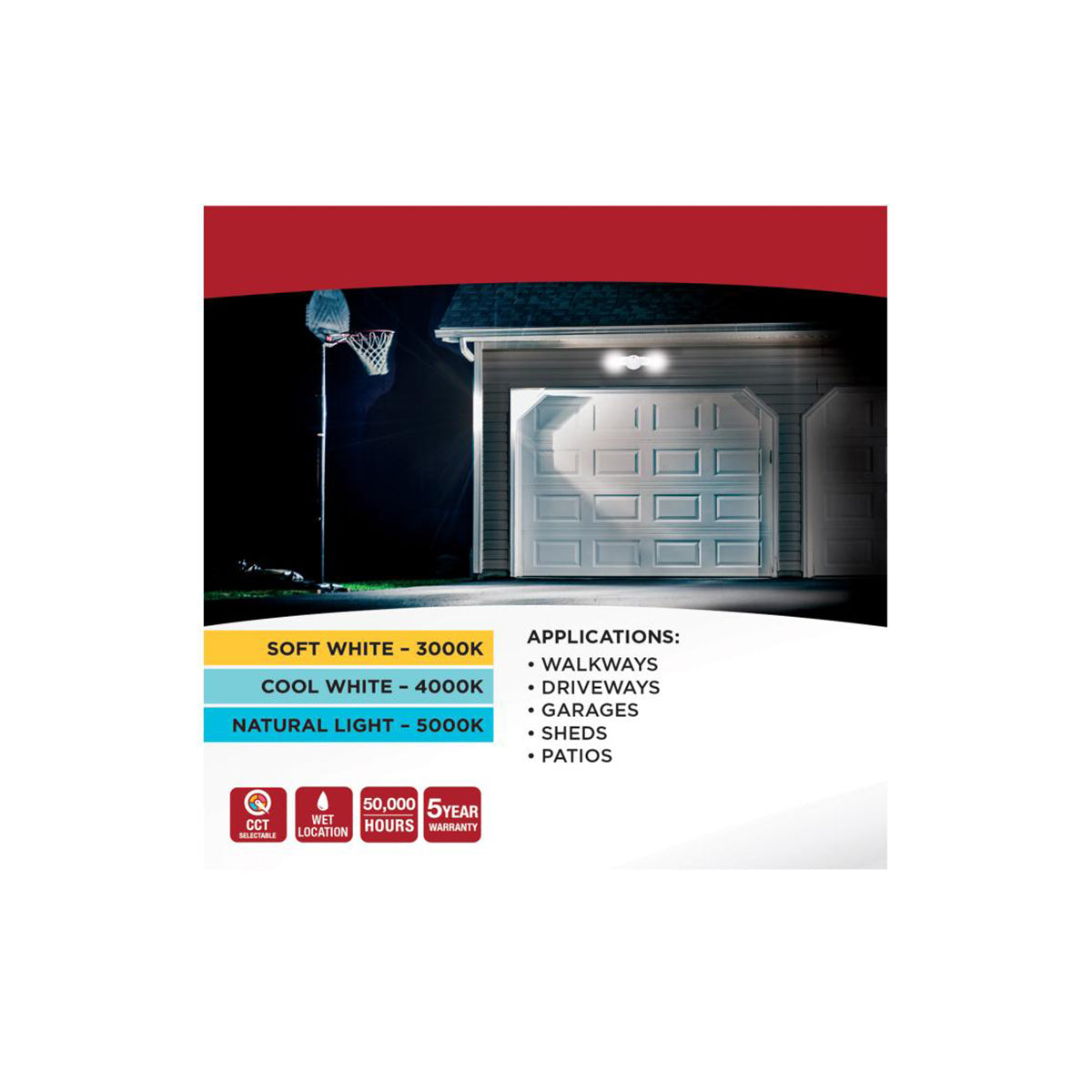

Typical Applications

• Walkways and driveways
• Garages and sheds
• Patios and residential exteriors
• General commercial security lighting

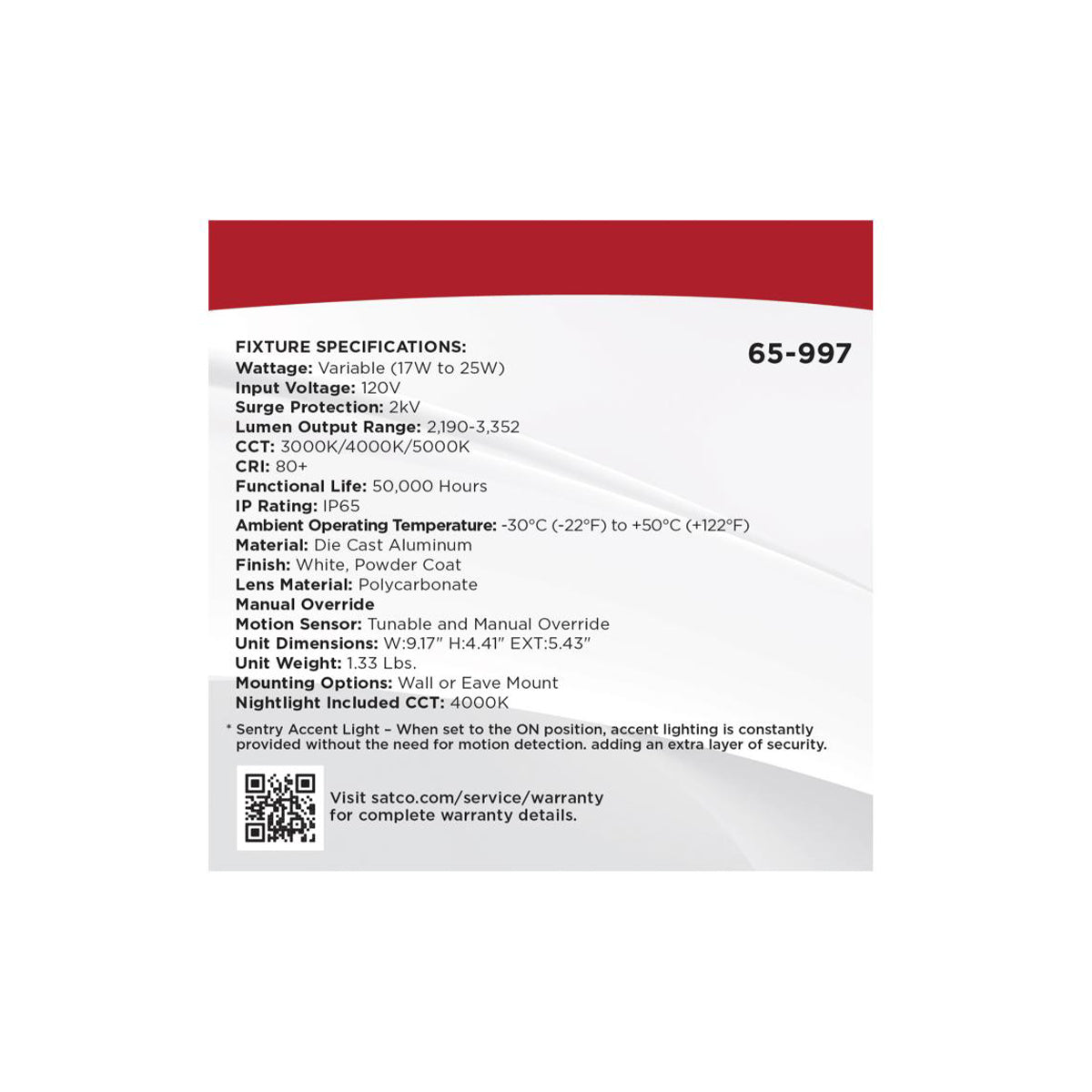

Performance & Light Output

The Satco 65-997 provides high-intensity, uniform light with an adjustable output ranging from 2,190 to 3,352 lumens and an exceptional efficacy of up to 138 lm/W. Its dual articulating heads and polycarbonate lens ensure excellent light distribution and color consistency (80+ CRI). With long-life LEDs rated for 50,000 hours, this fixture significantly reduces maintenance and energy costs over time.

Electrical & Controls

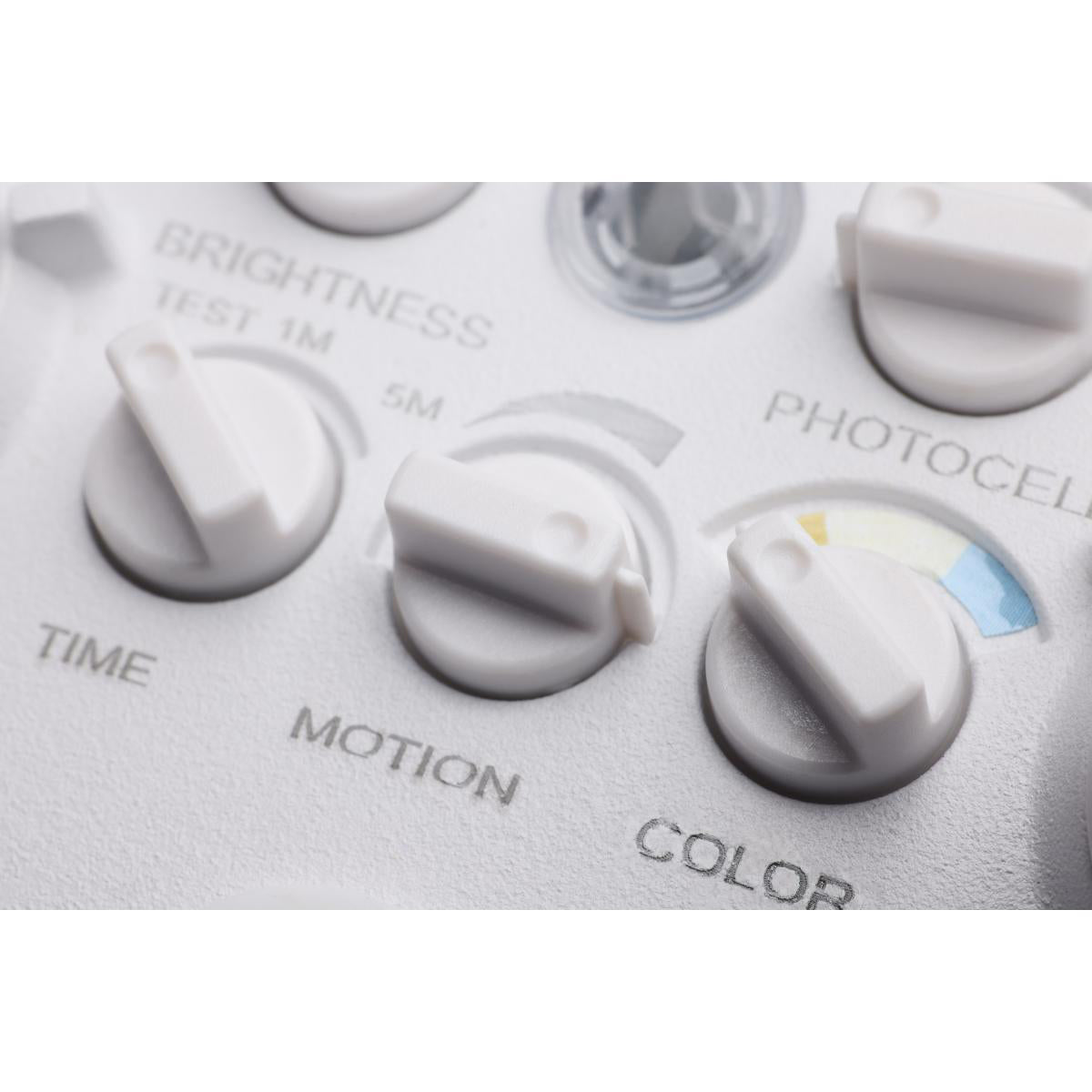

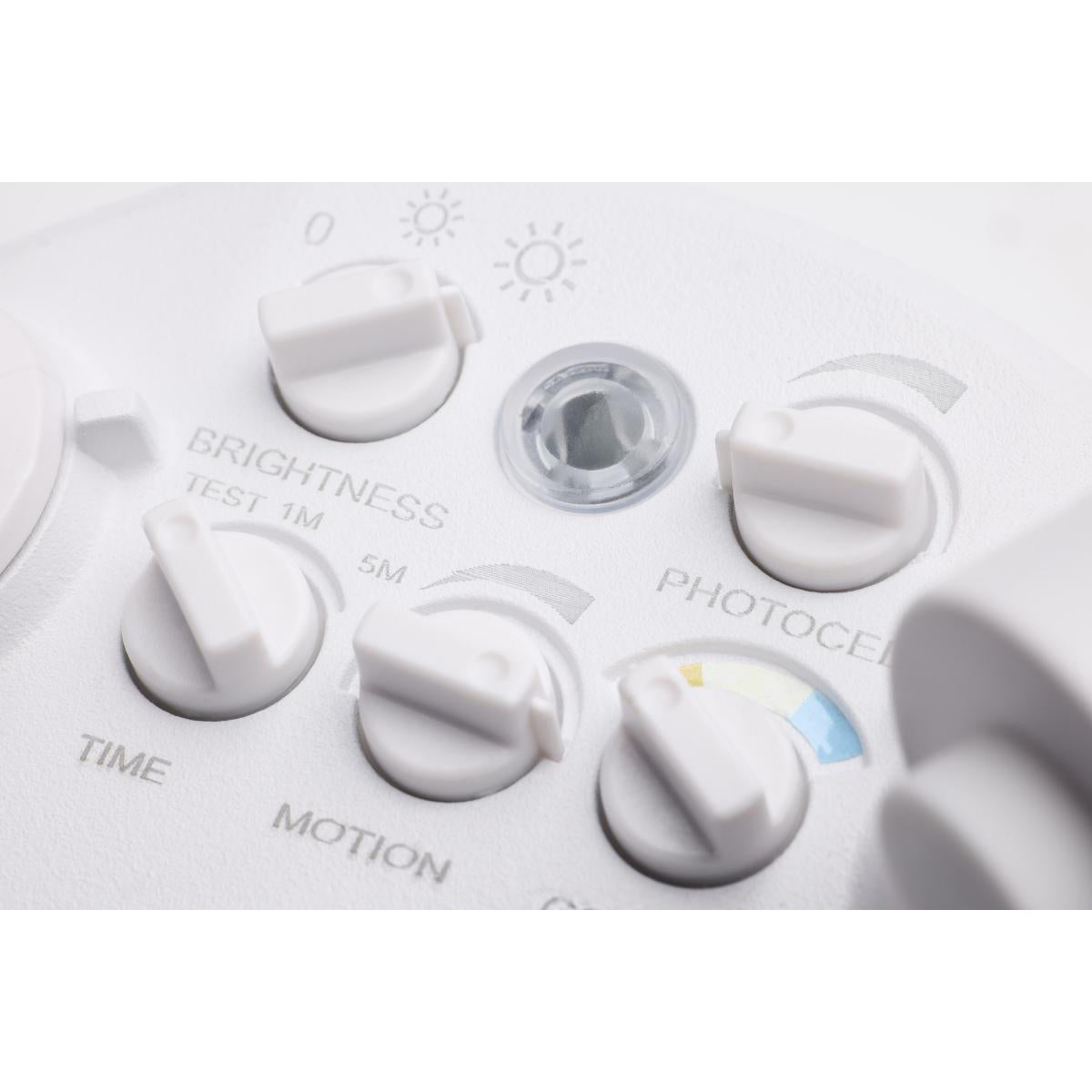

Operating efficiently on a 120V AC input, the 65-997 features a sophisticated PIR motion sensor. The sensor includes tunable adjustments for detection range and standby timeout, and the fixture can be manually overridden at the switch. It maintains a high power factor (>0.9) and built-in 2kV surge protection for stable performance.

Construction & Durability

The fixture features a rugged die-cast aluminum housing finished in crisp white. Its IP65 rating confirms total protection against dust and water jets, safely operating in ambient temperatures ranging from -22°F (-30°C) up to 122°F (50°C).

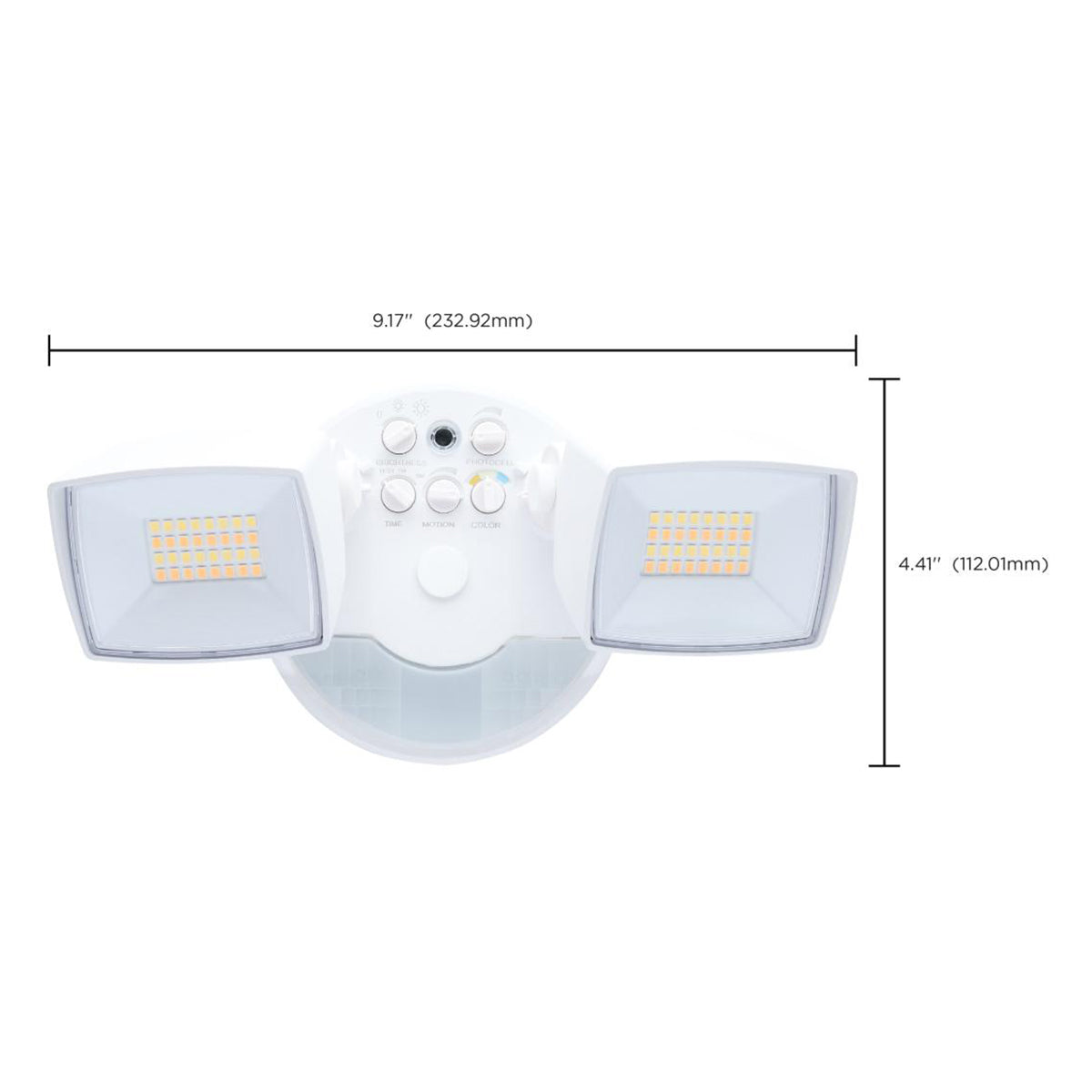

Installation & Mounting

This model provides excellent installation flexibility, designed to be mounted easily on either exterior walls or eaves. The fully articulating heads allow for precise aiming once installed.

What's Included

• Satco|Nuvo 65-997 LED Security Floodlight (White)
• Integrated PIR Motion Sensor & Sentry Light
• 5-Year Manufacturer Warranty
