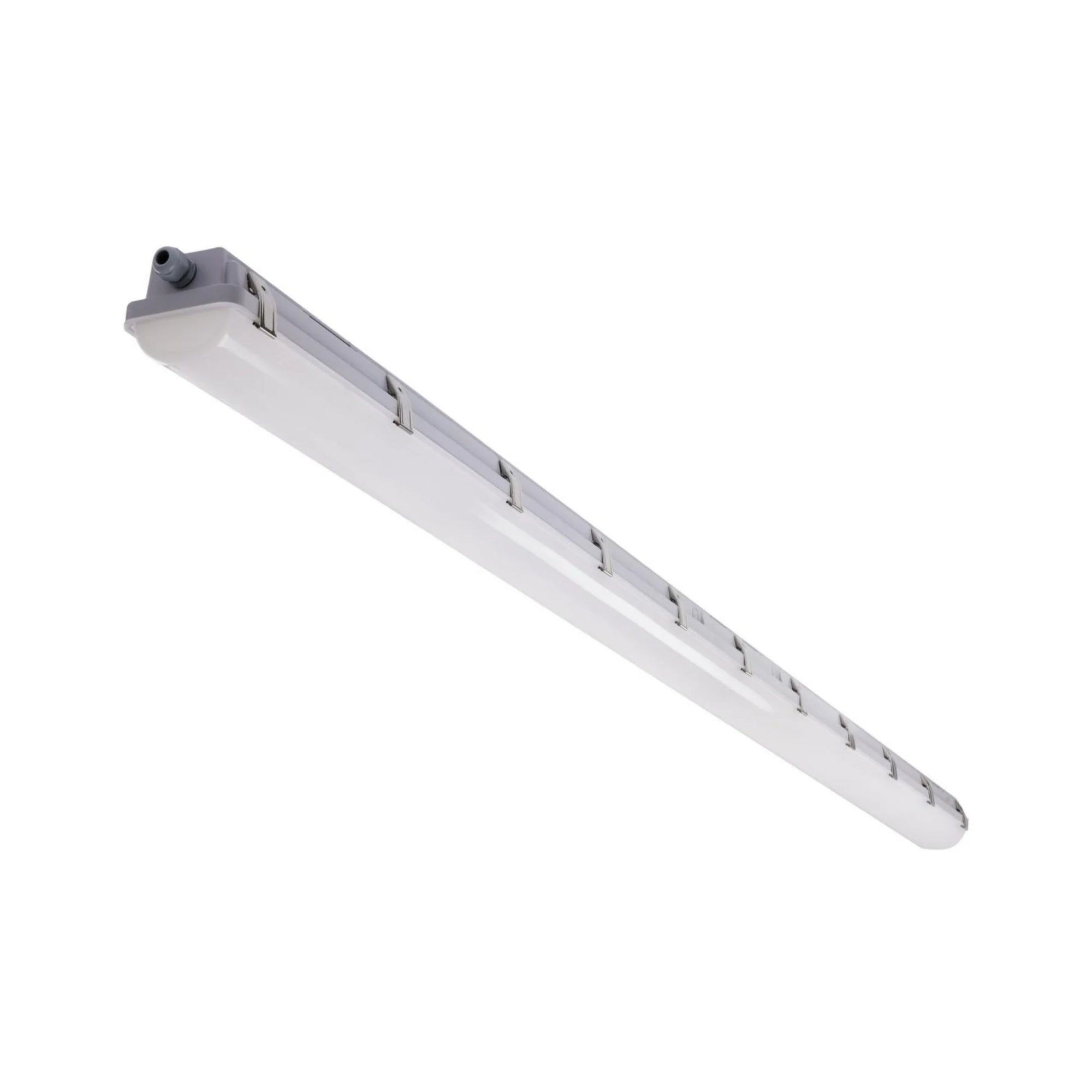

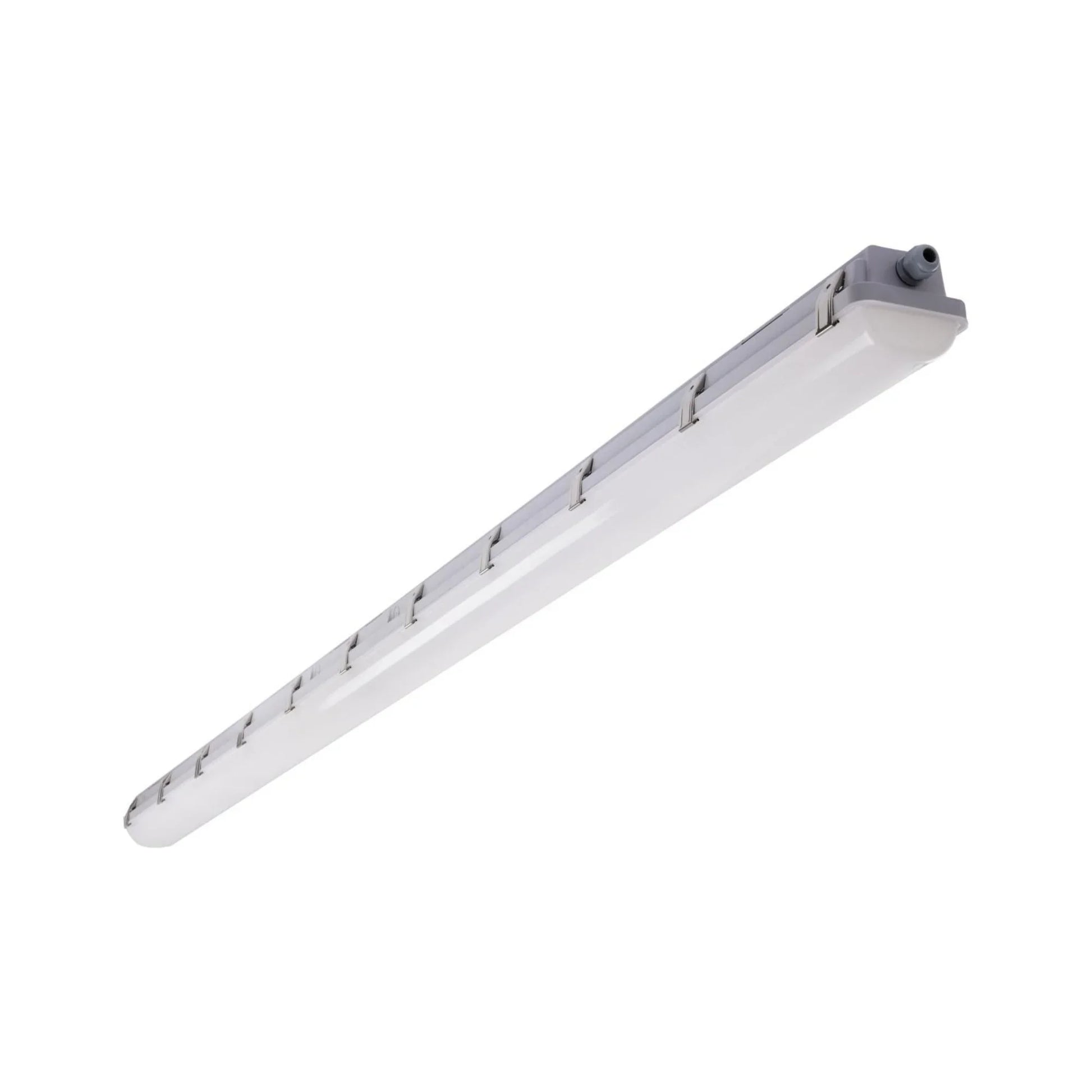

Satco 65-825R1 8ft LED Vapor Proof Fixture — 50W/60W/72W Selectable — 3000K/4000K/5000K — 120–347V — Integrated Microwave Sensor — Gray/Polycarbonate Lens

The Satco 65-825R1 is a commercial 8ft LED Vapor Proof luminaire engineered to deliver 6,400–9,360 lumens with field-adjustable 50W/60W/72W power settings and switchable 3000K/4000K/5000K color temperatures. Operating on wide-range 120–347V AC electrical systems with 0–10V continuous dimming, this luminaire provides an energy-efficient replacement for legacy up to 200W fixtures. Equipped with a factory-installed microwave sensor with onboard DIP switches, it provides automated motion-based control for added energy efficiency. Built with a cETLus Wet Location rating, it is qualified for commercial utility rebates under DLC Listed standards and features an IP65-sealed, IK08 impact-rated, and NSF-certified gray polycarbonate enclosure with an IP65 waterproof wire gland.

Key Features

• Selectable Wattage: 50W / 60W / 72W — field-adjustable multi-wattage selectable driver for variable power settings
• Wattage Equivalency: Replaces legacy fixtures up to 200W for up to 75% energy savings
• Lumen Output Range: 6,400–9,360 lm across selectable settings
• Peak Efficacy: Up to 134 lm/W series efficacy (128.0–130.0 lm/W) for high-efficiency commercial operation
• CRI: 80 CRI color rendering
• Selectable CCT: 3000K / 4000K / 5000K — field-adjustable CCT for tunable white and switchable Kelvin control
• Lens & Optics: Polycarbonate (PC) lens with a 120° beam angle for uniform distribution
• Dimming: 0–10V continuous dimming standard
• Voltage: Universal 120–347V AC, 50/60Hz constant current driver
• Location Rating: cETLus Listed for wet locations
• Operating Temperature: -40°F (-40°C) to 113°F (45°C) ambient operating range
• Certifications: DLC Listed, cETLus Listed, NSF Certified, IP65, IK08, FCC Part 15 / ICES-005 Class A, RoHS, NLB Trusted Warranty
• Rated Life: 50,000 hours functional life
• Warranty: 5-year limited warranty — Satco (NLB Trusted Warranty Program)
• Sensor Compatibility: Factory-installed integrated microwave sensor with onboard DIP switch configuration

Performance & Light Output

Across its selectable 50W / 60W / 72W power and 3000K / 4000K / 5000K settings, the Satco 65-825R1 delivers 6,400–9,360 lumens (128.0–130.0 lm/W; up to 134 lm/W series efficacy) with a 120° beam angle, replacing up to 200W legacy fixtures.

CRI 80 across all configurations. Rated life 50,000 hours. Delivers high-efficiency illumination resulting in significant energy reduction compared to traditional systems.

Smart & Control Features

The Satco 65-825R1 vapor proof luminaire includes a factory-installed microwave sensor and supports standard 0–10V dimming:

• 0–10V Continuous Dimming (Standard): Dims smoothly on standard 0–10V low-voltage control circuits. Compatible with commercial dimmers and building lighting controls.

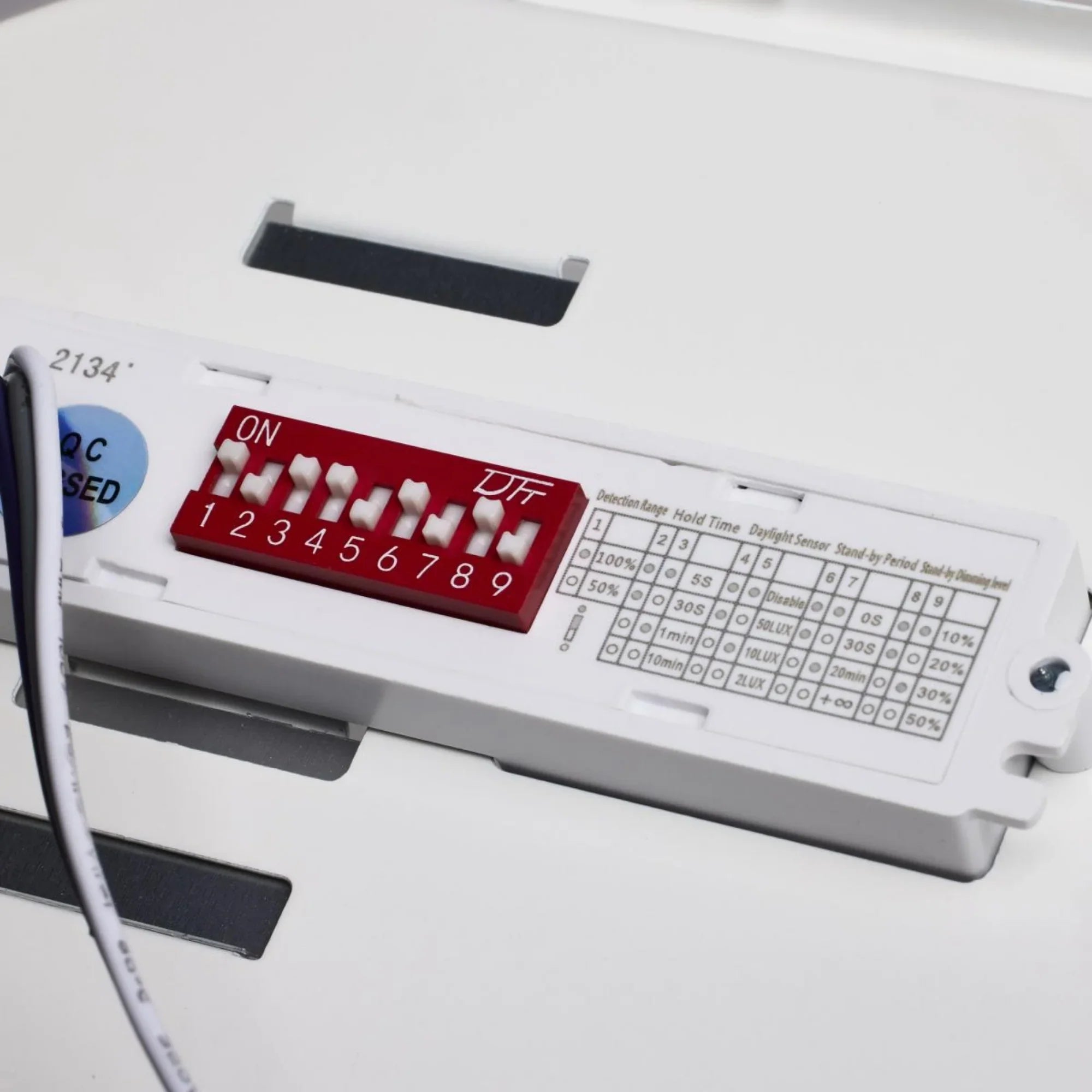

• Integrated Microwave Sensor: Factory-installed microwave occupancy sensor with an onboard 9-position DIP switch for motion-based control and added commercial efficiency.

Electrical

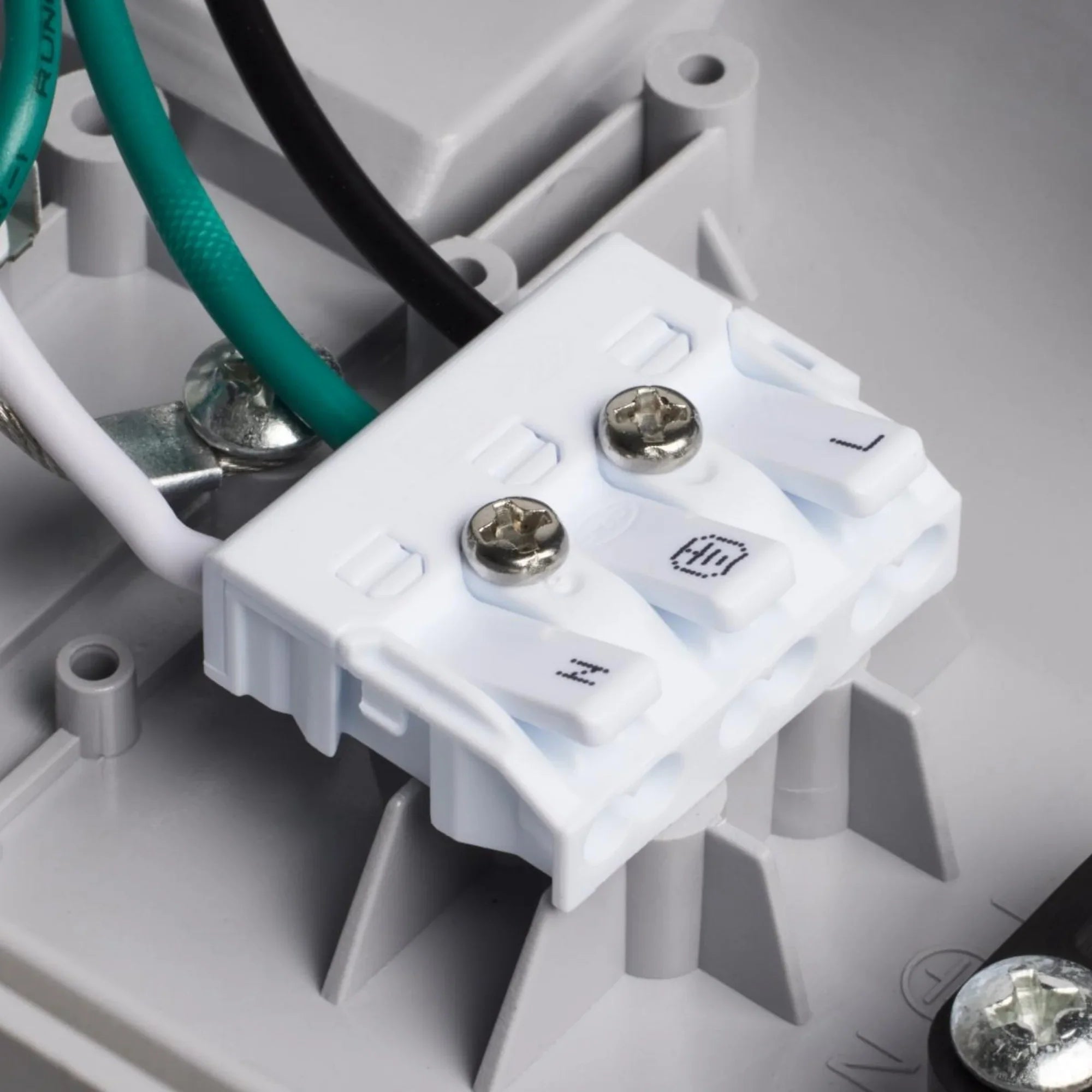

Powered by a constant current driver operating on 120–347V AC at 50/60Hz (Input Current: 0.42–0.14A / 0.50–0.17A / 0.60–0.21A). Delivers high electrical efficiency with a Power Factor >0.96 and Total Harmonic Distortion (THD) of 14.20%. Integrated 2kV surge protection shields internal electronics against transient voltage spikes. Includes 0–10V dimming leads and an IP65 waterproof wire gland.

Emergency Battery Backup: Available in 2ft and 4ft emergency battery backup configurations in the series (catalog # 65-836, 65-837, 65-838, and 65-839, sold separately) featuring a LiFePO4 battery that provides 90 minutes of illumination during power loss.

Construction

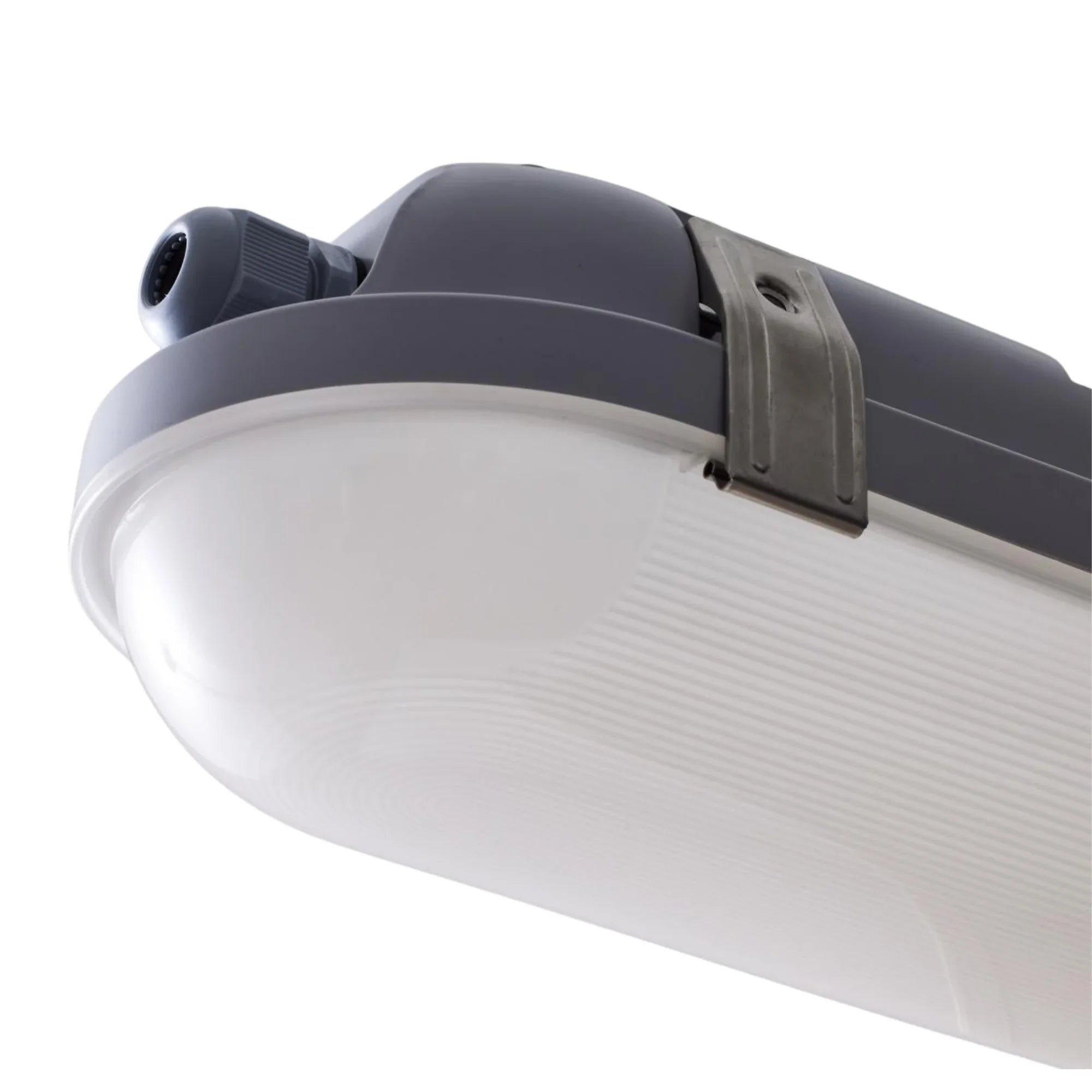

Durability & Impact Protection: Gray polycarbonate (PC) housing and polycarbonate lens engineered for durability in demanding environments. IK08 rated for protection against mechanical impact, paired with NSF certification for sanitation environments.

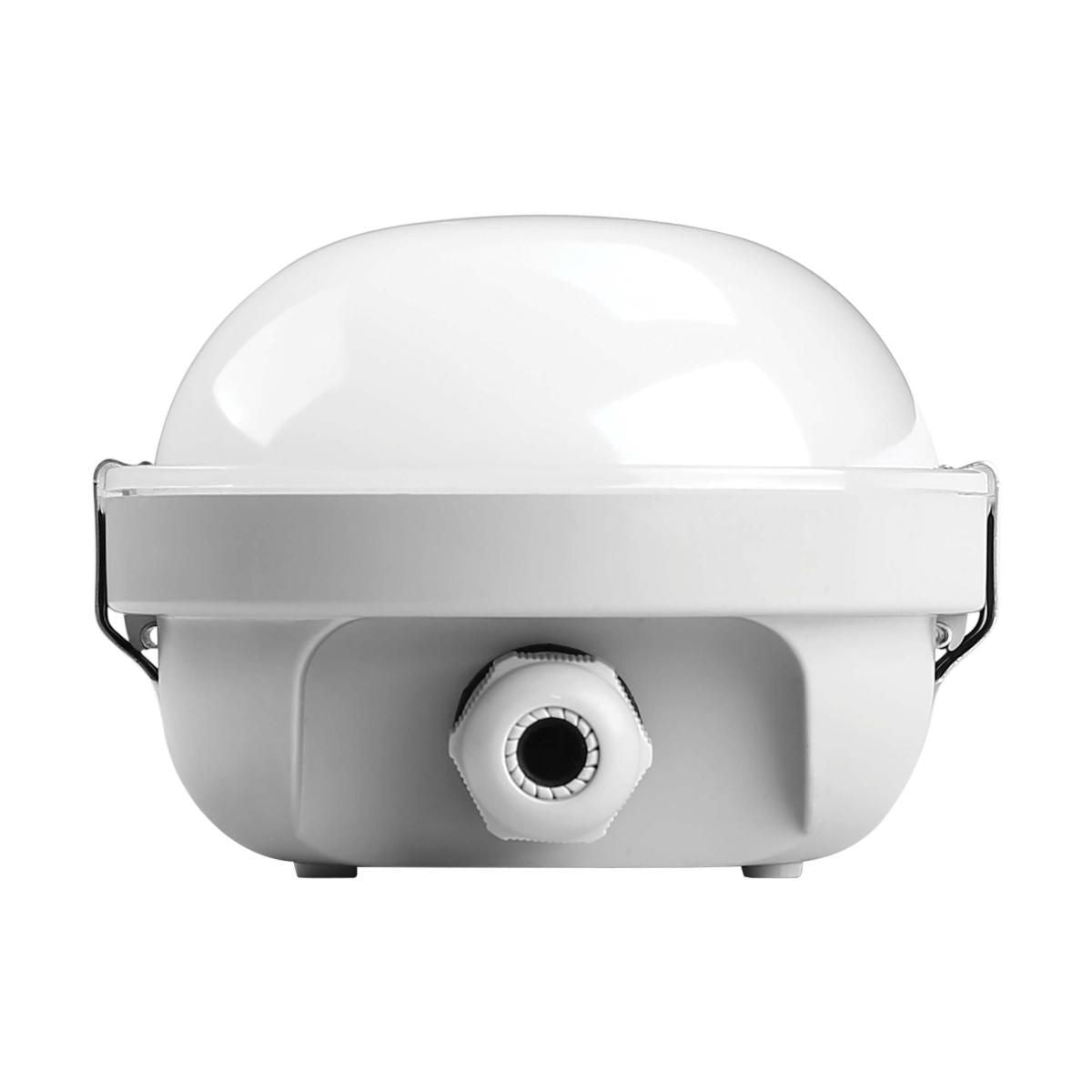

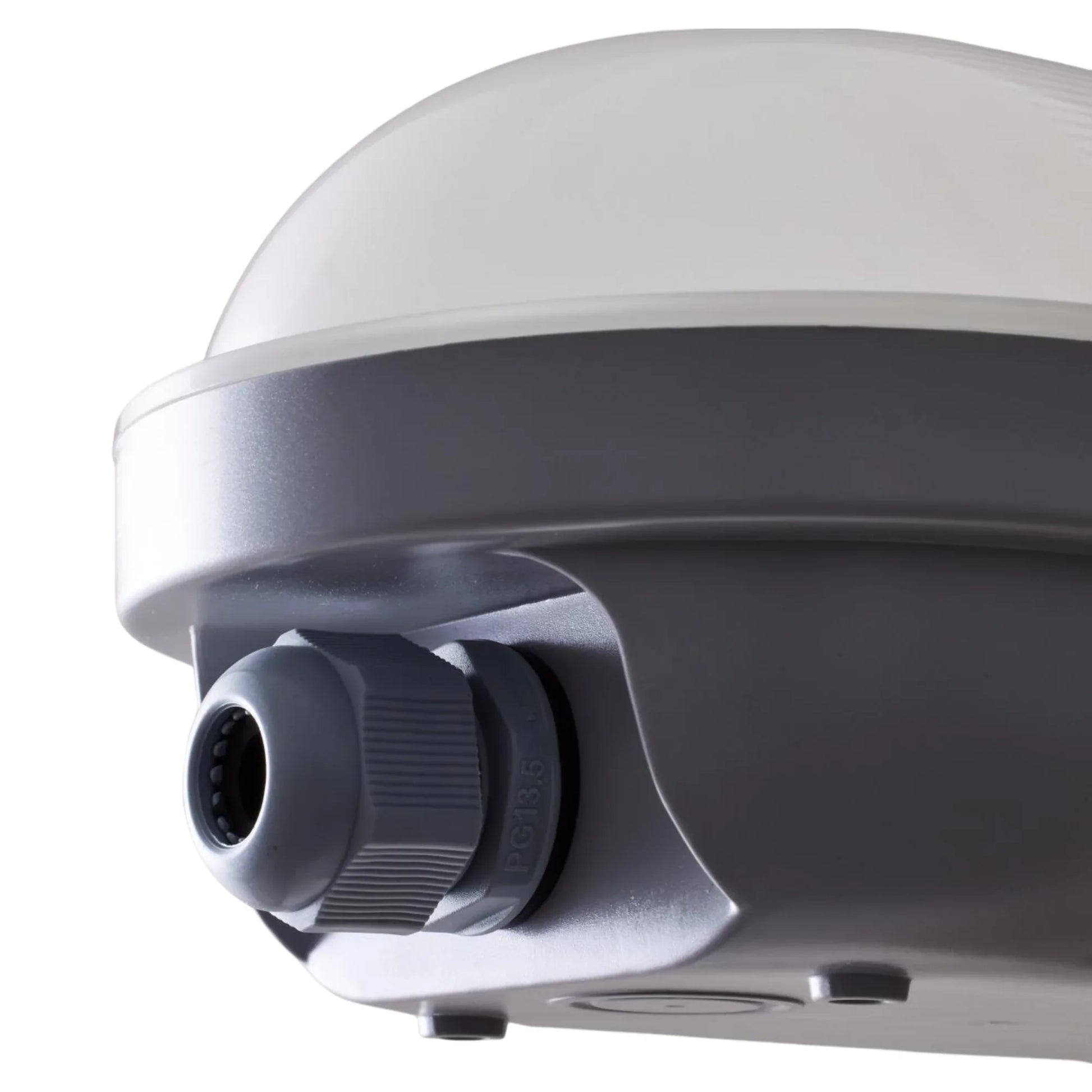

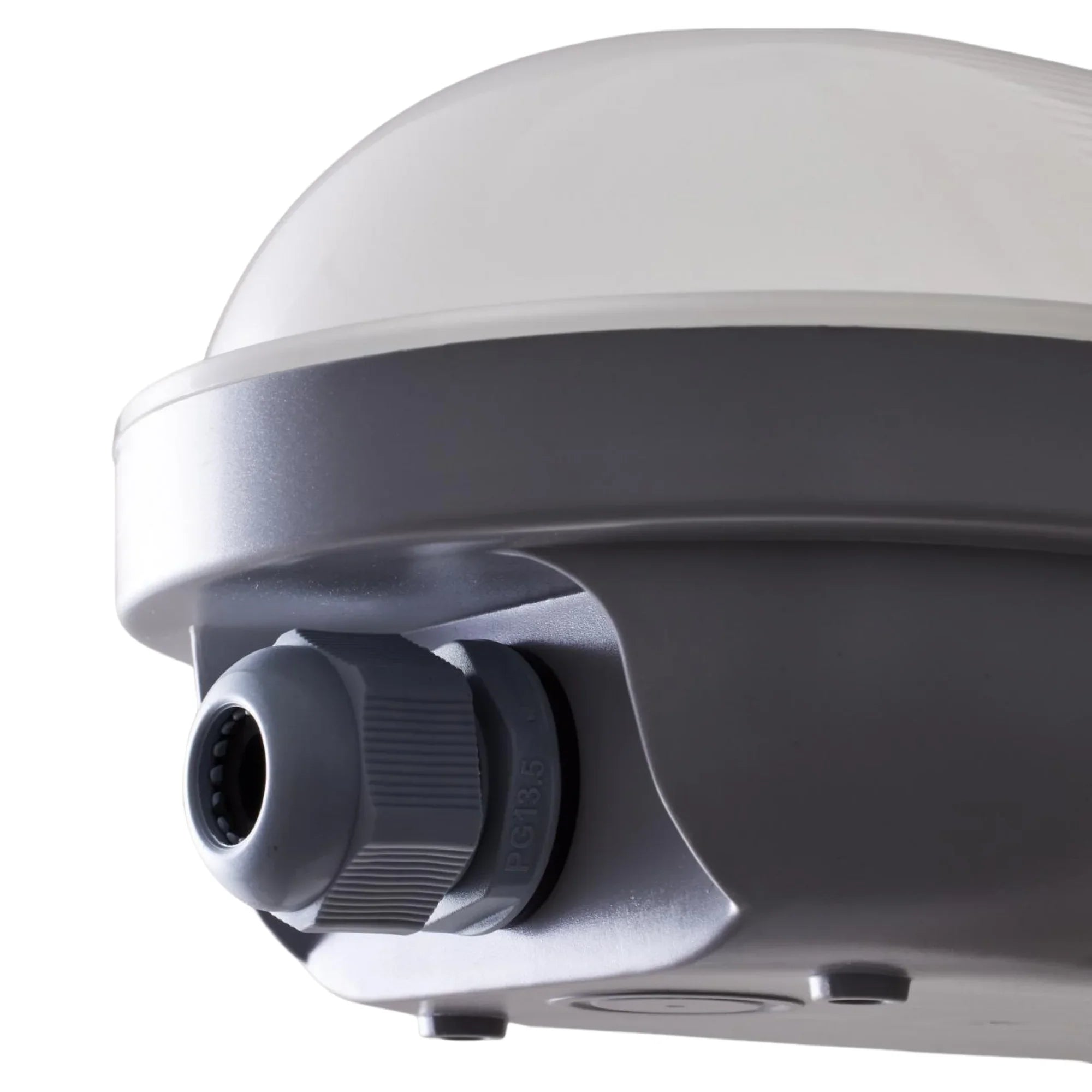

Ingress Protection: IP65 rated and cETLus wet location listed for complete protection against airborne dust and water jets, complete with an IP65 waterproof wire gland.

Operating Temperature: Operating ambient temperature range of -40°F (-40°C) to 113°F (45°C).

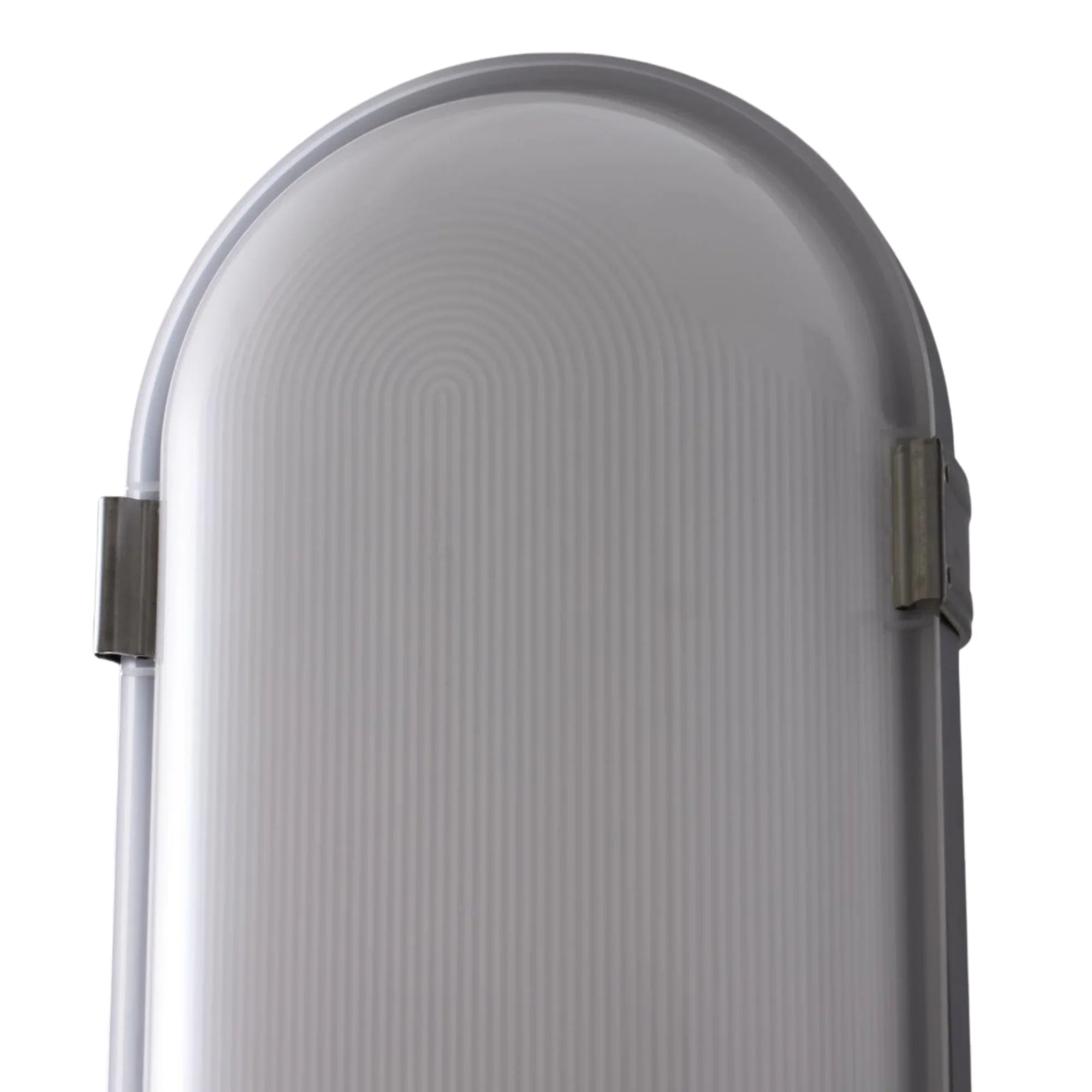

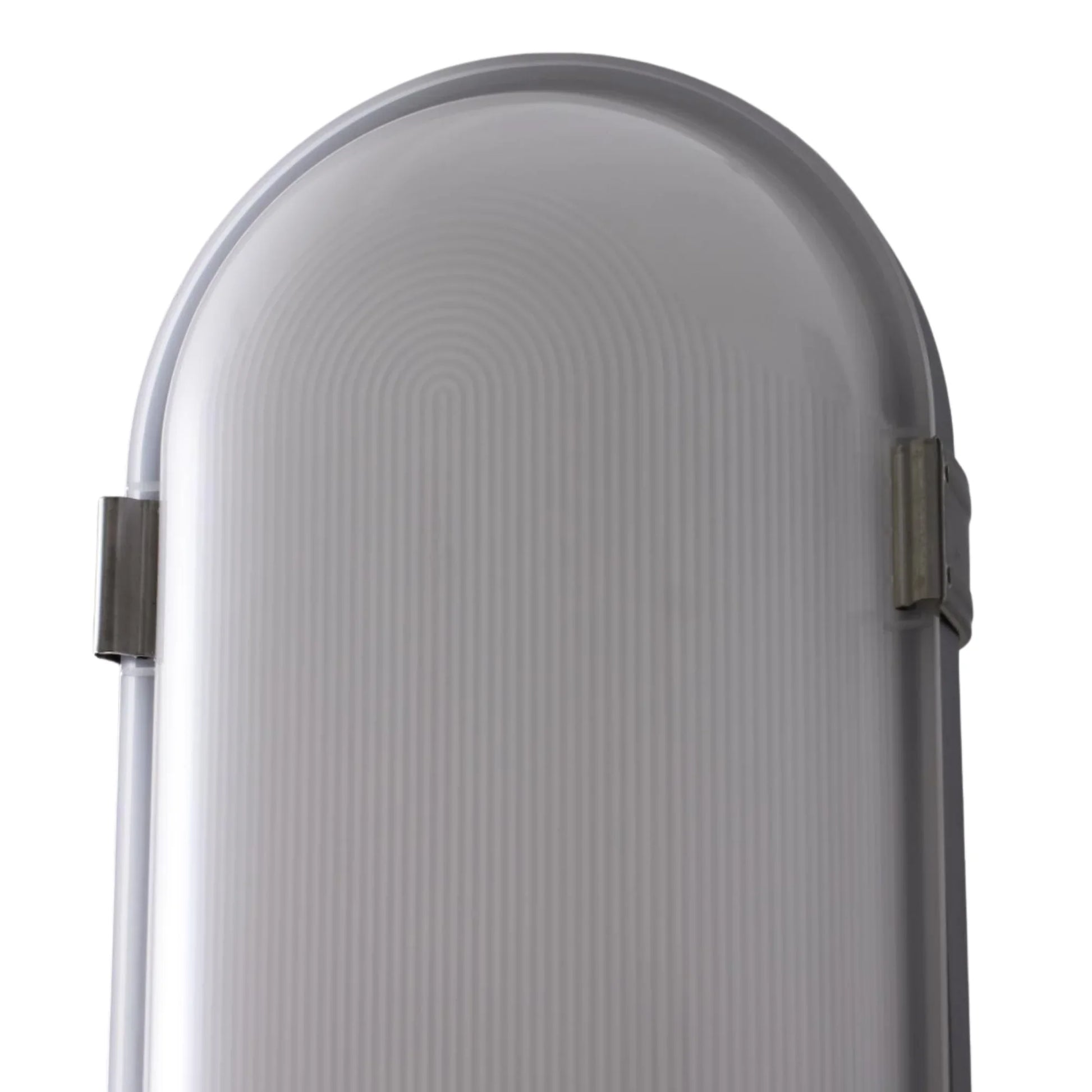

Lens & Optics: Polycarbonate (PC) lens delivering a 120° beam angle.

Finish: Gray finish formulated for high resistance against corrosion and surface wear.

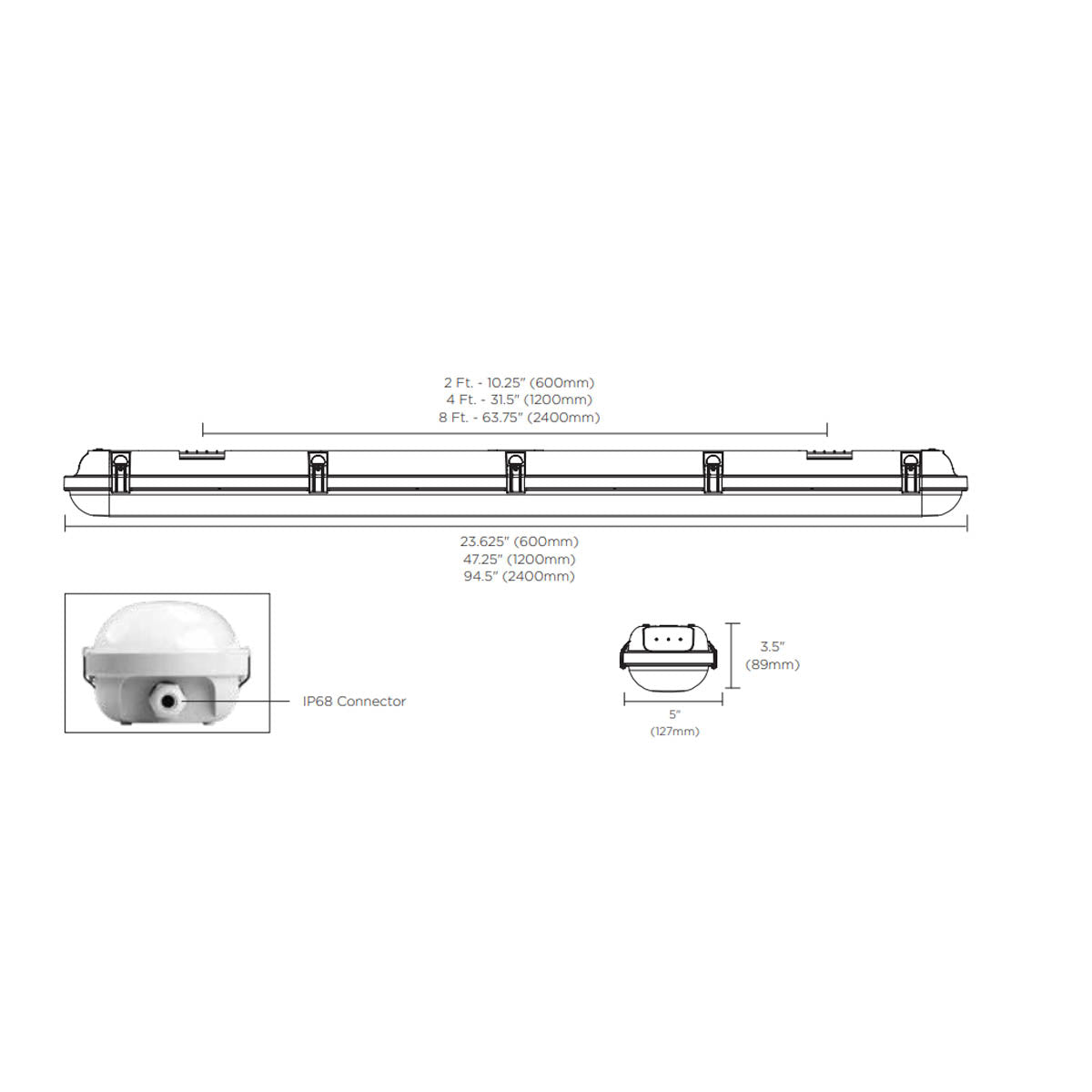

Dimensions & Weight: 94.49" L × 4.33" W × 3.46" H. Fixture weight: 12.13 lbs.

Installation & Mounting

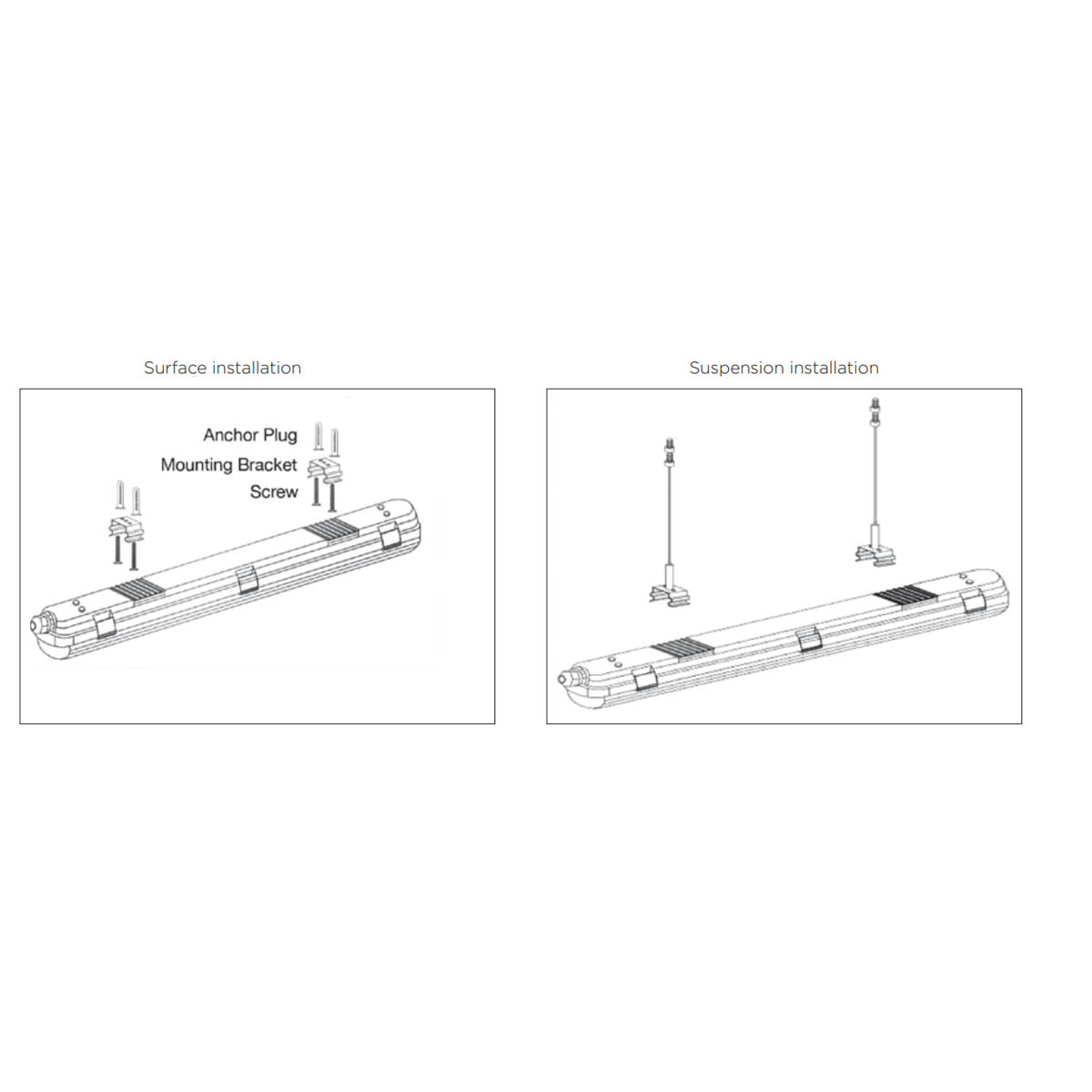

Standard Mounting: Surface mounts to ceilings or walls, or suspends using optional suspension cable kits; includes an IP65 waterproof wire gland for sealed conduit/cord entry.

Accessories (Sold Separately):

• Mounts: 65-827 (8' Suspension Kit, sold separately)

Certifications & Rebates

• DLC Listed: Qualifies for commercial utility rebate incentives across regional energy programs. To confirm rebate eligibility with your local utility provider, visit designlights.org and search DLC Product ID S-UBDKSW, S-ZA16T3 (or model 65-825R1).
• cETLus Listed: Certified for wet locations.
• NSF: NSF certified for commercial sanitation and food-service environments.
• IP65 & IK08 Rated: IP65 sealed against dust and water jets; IK08 impact certified.
• FCC Part 15 & ICES-005: Complies with Part 15 of the FCC Rules and meets ICES-005 Issue 5 Class A requirements for commercial applications.
• RoHS Compliant: Engineered free of toxic lead, mercury, and hazardous substances.
• NLB Trusted: Verified under the National Lighting Bureau Trusted Warranty Program.

Typical Applications

• Industrial Facilities & Manufacturing — Polycarbonate housing, IK08 impact resistance, and wide 120–347V input withstand demanding plant operations.
• Commercial Warehouses & Storage — Wide 120° beam angle and up to 134 lm/W series efficacy illuminate aisles, racking, and staging areas.
• Utility & Mechanical Rooms — Switchable 3000K/4000K/5000K CCT and IP65 waterproof wire gland simplify installation across commercial service spaces.
• Parking Garages & Covered Decks — Wet location IP65 sealing and -40°F (-40°C) to 113°F (45°C) ambient rating handle year-round temperature extremes.
• Agricultural & Washdown Barns — NSF certification and sealed polycarbonate construction resist dust, humidity, and sanitation washdowns.

What's Included

• Satco 65-825R1 8ft LED Vapor Proof Fixture with Integrated Microwave Sensor — Gray

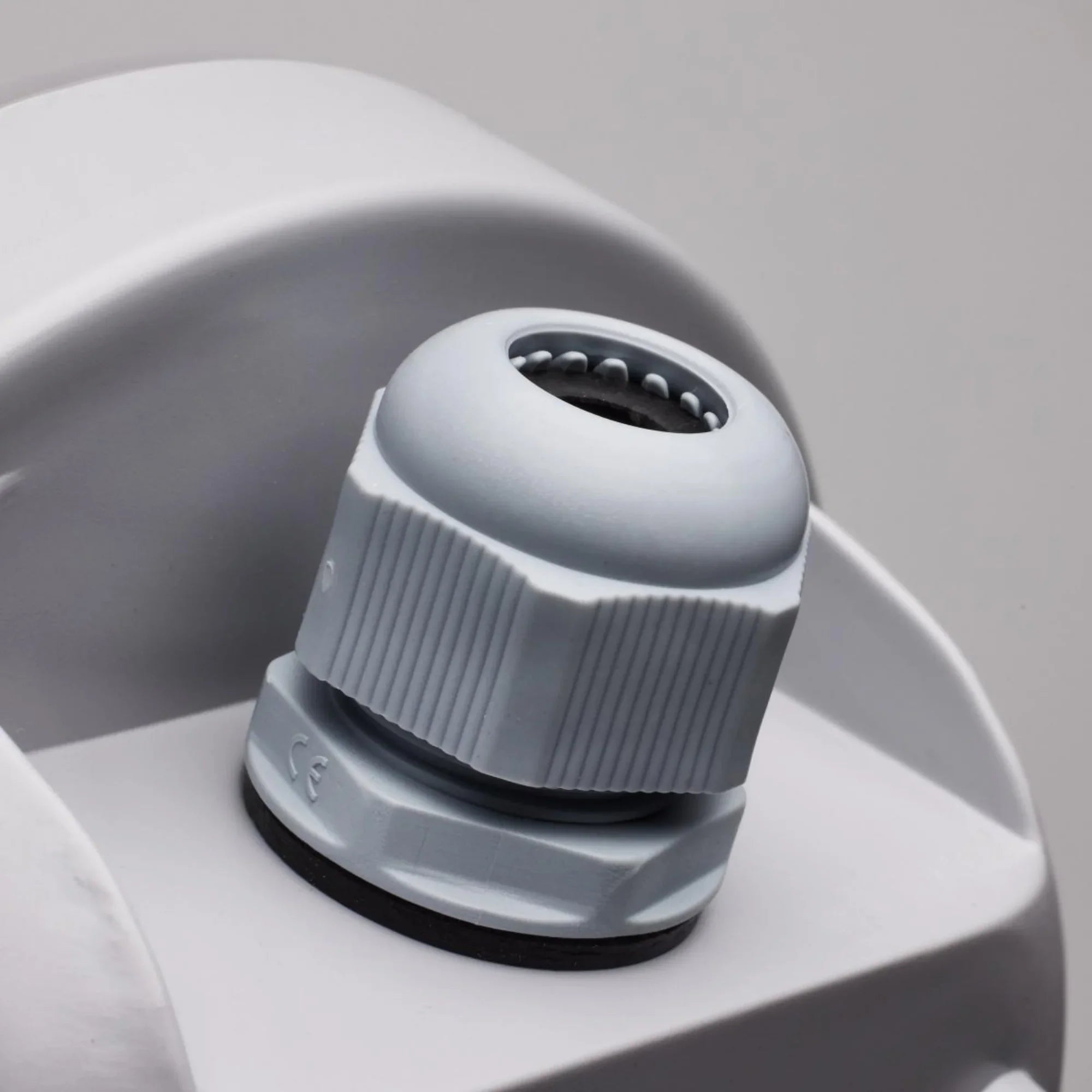

• IP65 waterproof wire gland
• Installation and operation manual
