SATCO|NUVO 4ft LED Vapor Tight Fixture 7,991 Lumens 40/50/60W Selectable 30K/40K/50K 120–347V Gray Motion Sensor 65?824R1
SATCO|NUVO 4ft LED Vapor Tight Fixture 7,991 Lumens 40/50/60W Selectable 30K/40K/50K 120–347V Gray Motion Sensor 65?824R1
Hurry up, only 5 items left in stock.
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Integrated Motion Sensor: Built-in microwave sensor automatically adjusts light output based on occupancy.
- Configurable Light Output: Selectable wattage and color temperature allow installers to tailor brightness and color during installation.
- Wide Voltage Compatibility: Operates on 120–347V electrical systems used in commercial and industrial facilities.
- Wet Location Protection: IP65 construction protects the fixture from moisture, dust, and washdown conditions.
- Durable Industrial Design: IK08 impact resistance and sealed polycarbonate housing support demanding environments.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

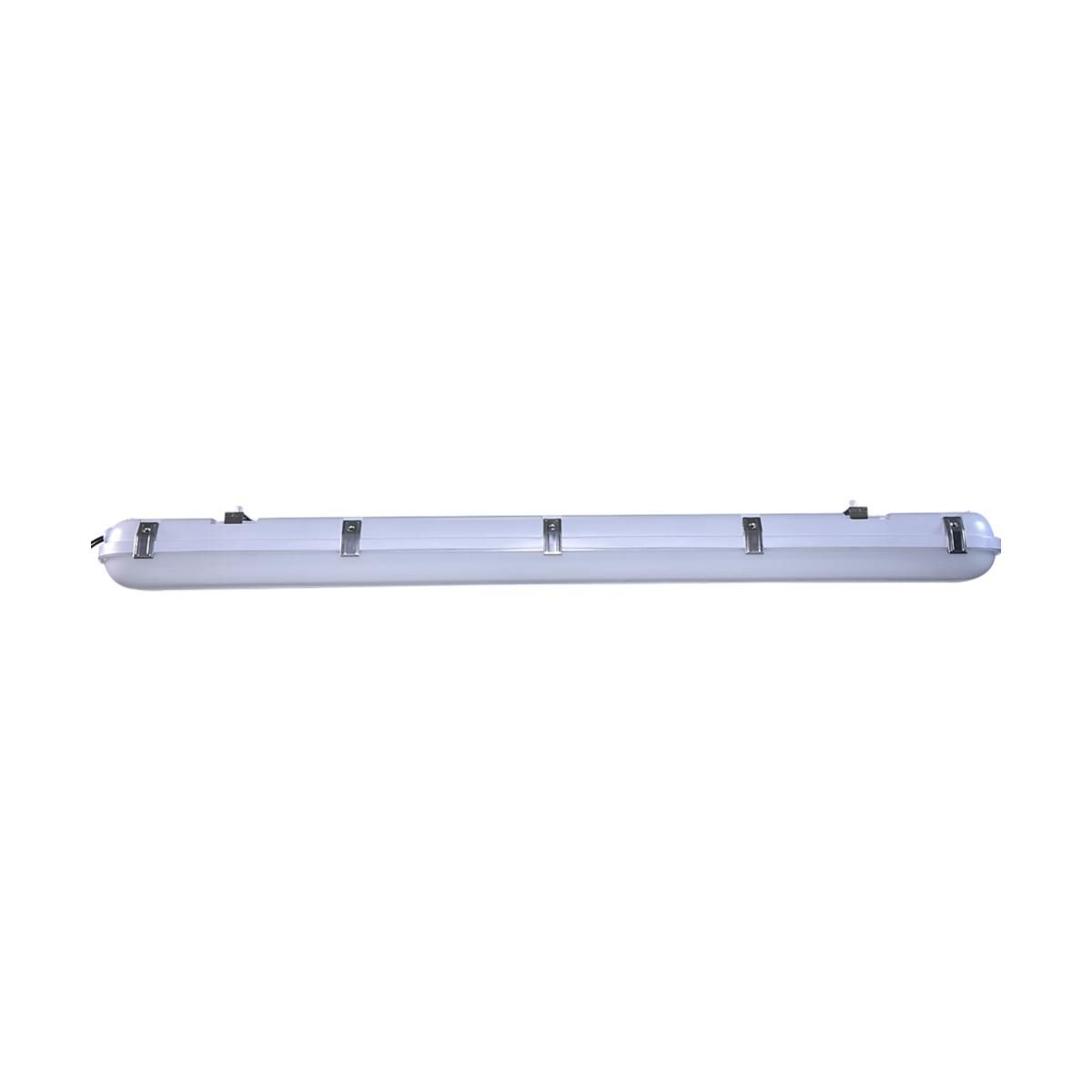

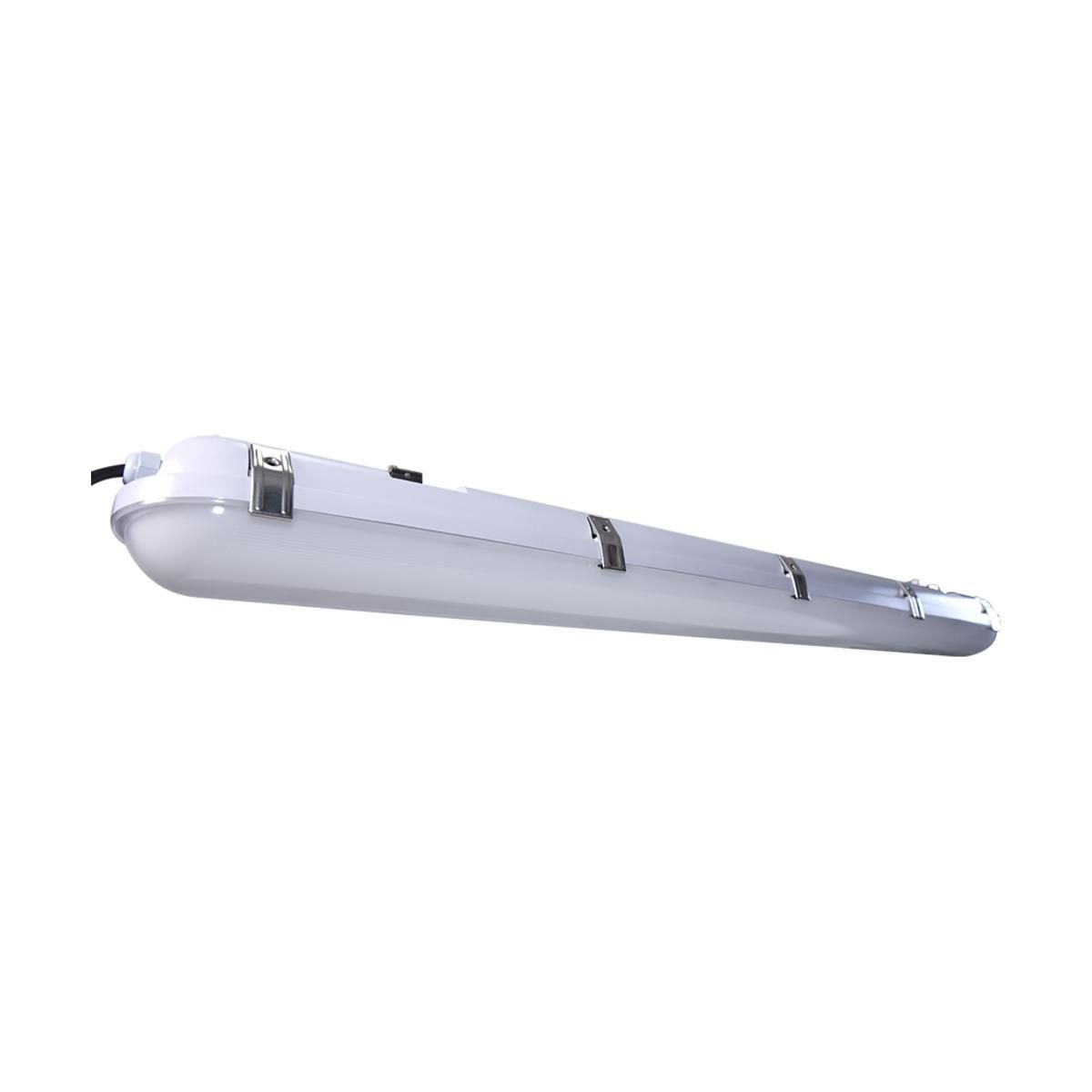

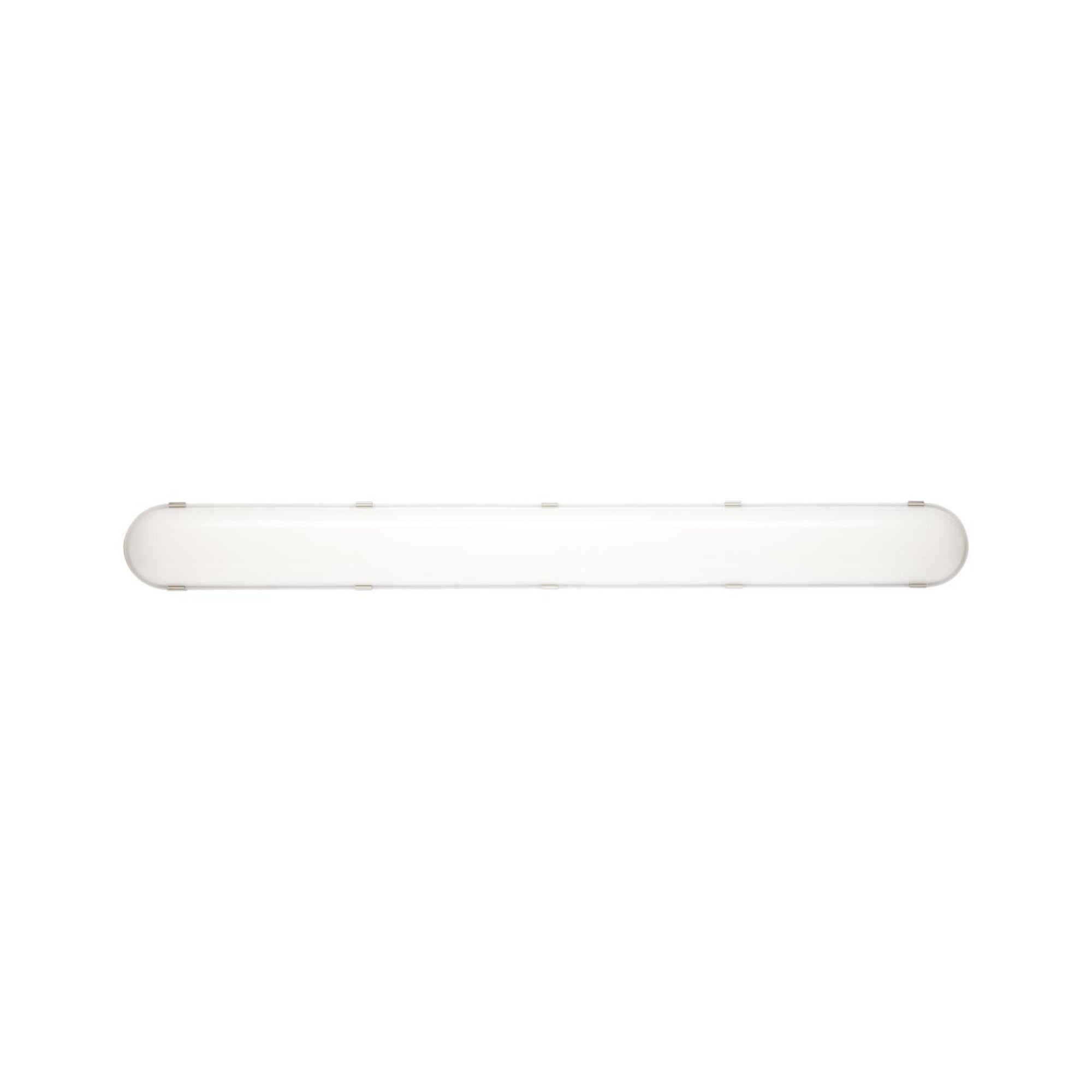

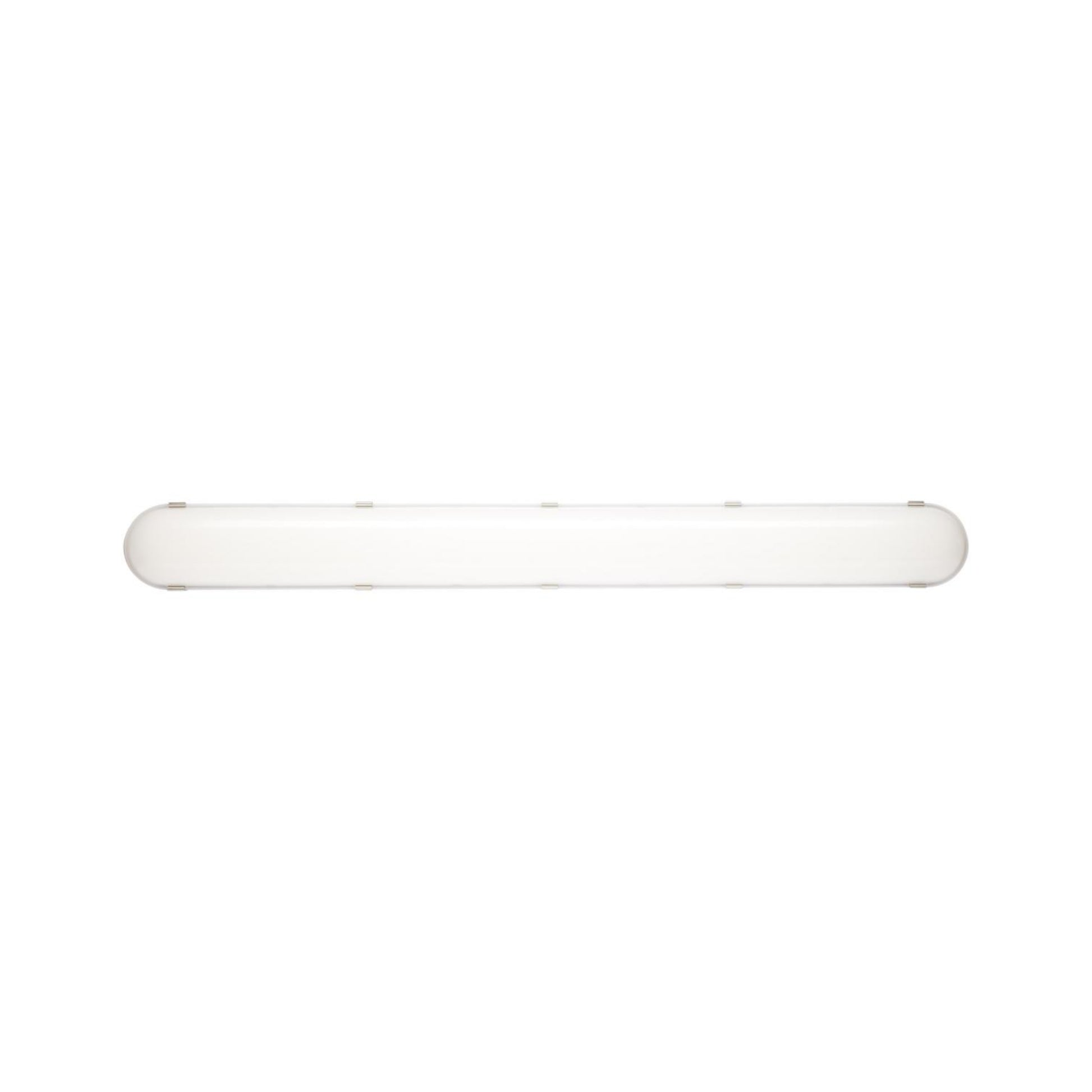

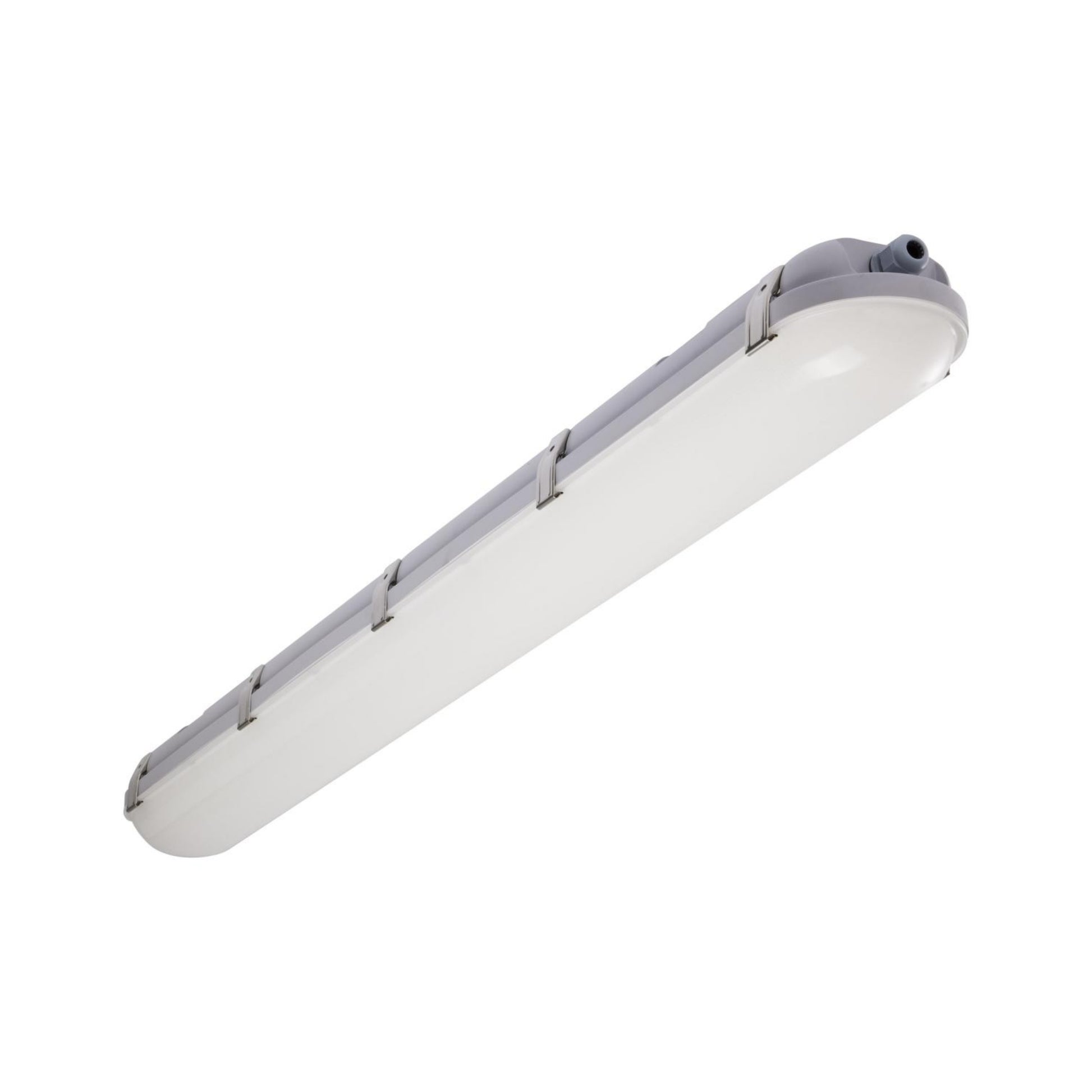

SATCO|NUVO 65-824R1 4ft LED Vapor Tight Fixture — Motion Sensor & Power Selectable
The SATCO|NUVO 65-824R1 is a 4-foot LED vapor tight fixture designed for wet and demanding commercial environments. It delivers up to 7,991 lumens with field-selectable wattage of 40W / 50W / 60W and adjustable color temperatures of 3000K / 4000K / 5000K. Powered by a universal 120–347V driver with integrated 0–10V dimming, this fixture also features a built-in microwave motion sensor that provides occupancy-based lighting control and bi-level dimming. The sealed enclosure delivers IP65 ingress protection with an IK08 impact-resistant housing for dependable performance in industrial and outdoor installations.
Key Features
- Selectable Wattage: 40W / 50W / 60W field-adjustable output
- Selectable CCT: 3000K / 4000K / 5000K switchable color temperature
- Maximum Output: Up to 7,991 lumens
- Voltage: Universal 120–347V input
- Dimming: 0–10V dimming with integrated motion sensor
- Integrated Sensor: Built-in microwave motion detection with bi-level dimming control
- Environmental Rating: IP65 wet location protection
- Impact Protection: IK08 rated enclosure
- Operating Temperature: -40°C to 45°C ambient range
- CRI: 80+ color rendering
- Rated Life: 50,000-hour LED system

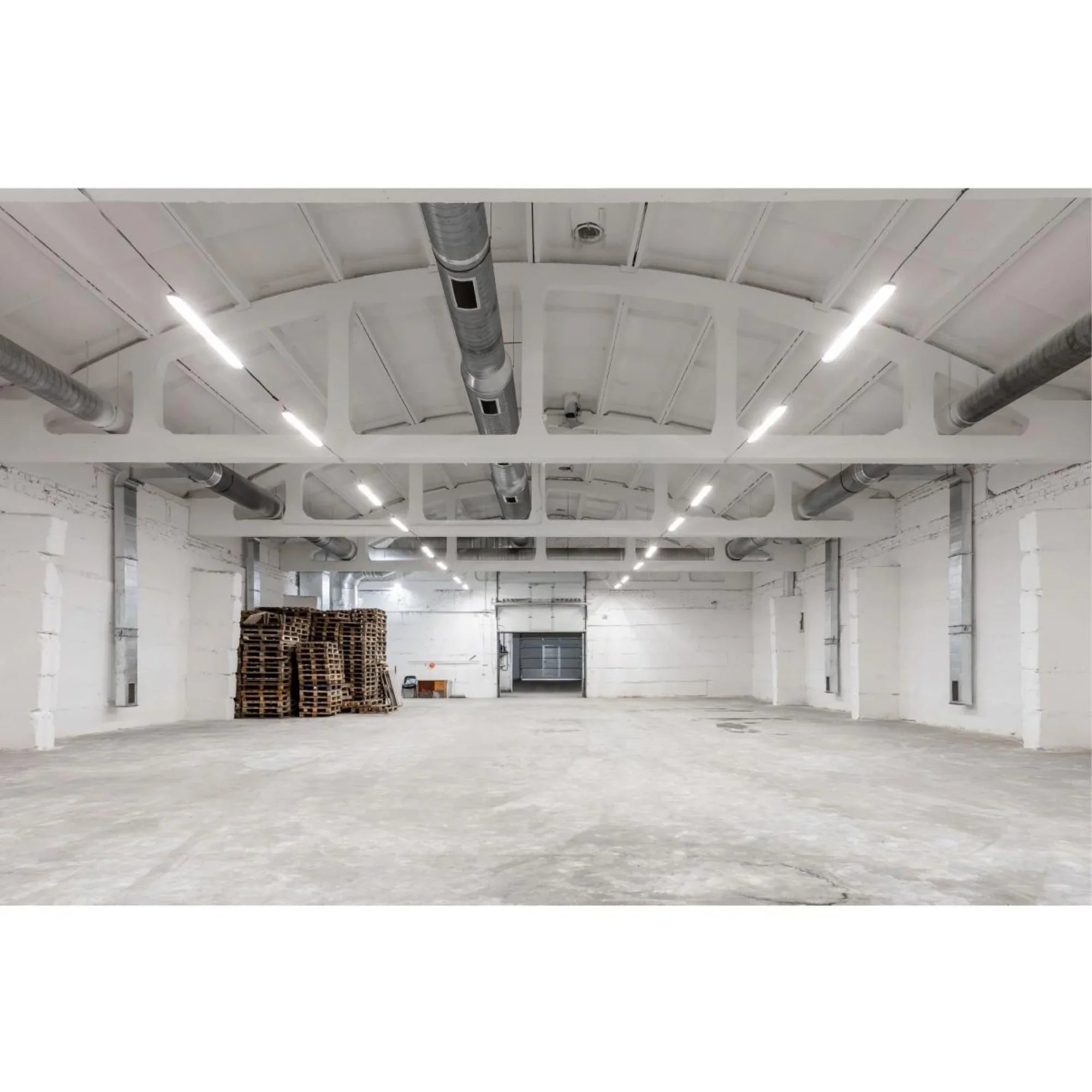

Typical Applications
- Parking garages
- Industrial warehouses
- Cold storage facilities
- Food processing plants
- Car washes
- Utility corridors
- Loading docks
Performance & Light Output
Selectable wattage allows installers to configure light levels during installation to match the needs of the space. At maximum output, the fixture delivers up to 7,991 lumens with wide beam distribution designed for utility and industrial lighting environments.
Electrical & Controls

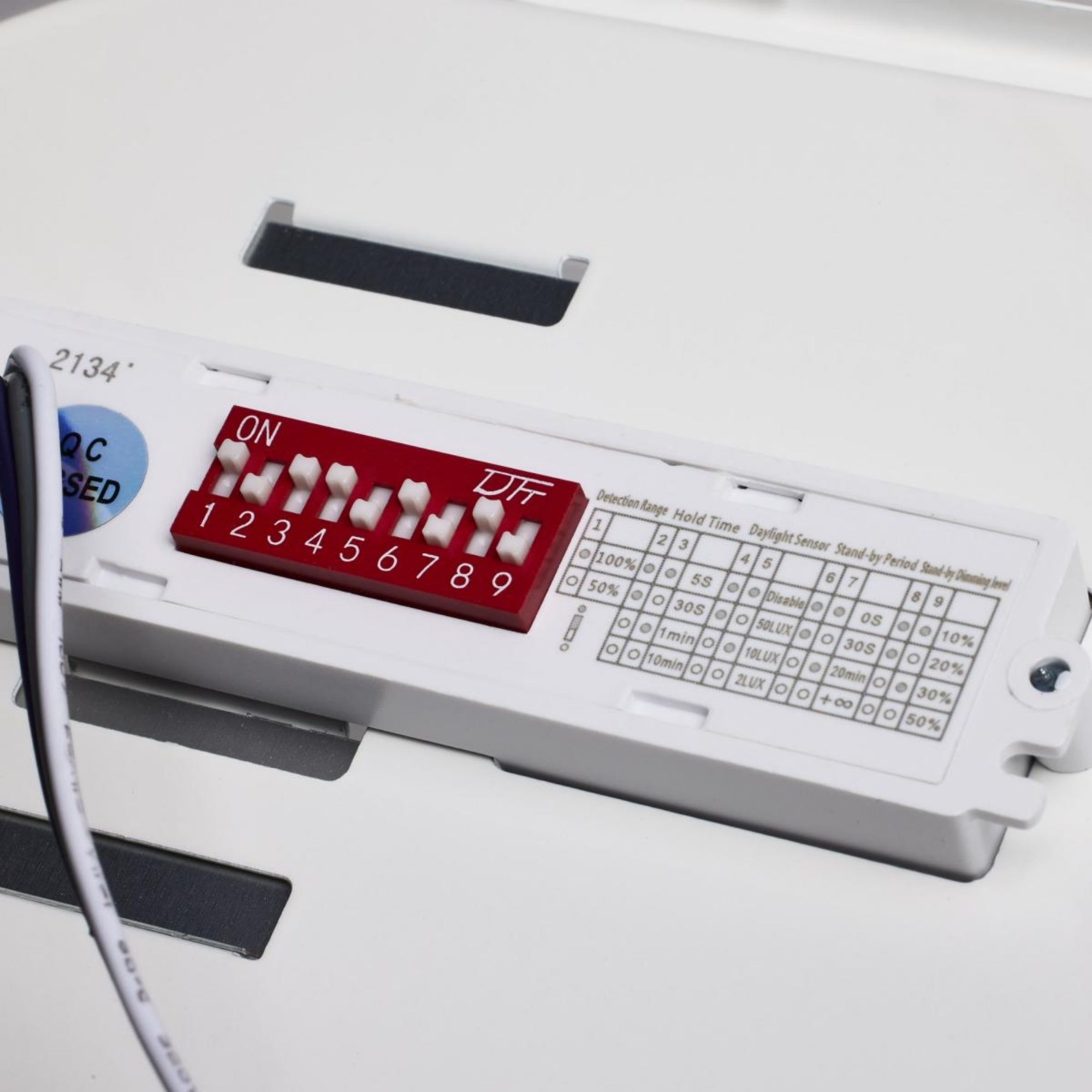

The fixture operates on a universal 120–347V input and supports 0–10V dimming for compatibility with commercial lighting control systems. The integrated microwave motion sensor enables occupancy detection and bi-level dimming to reduce energy consumption when spaces are unoccupied.
Construction & Durability

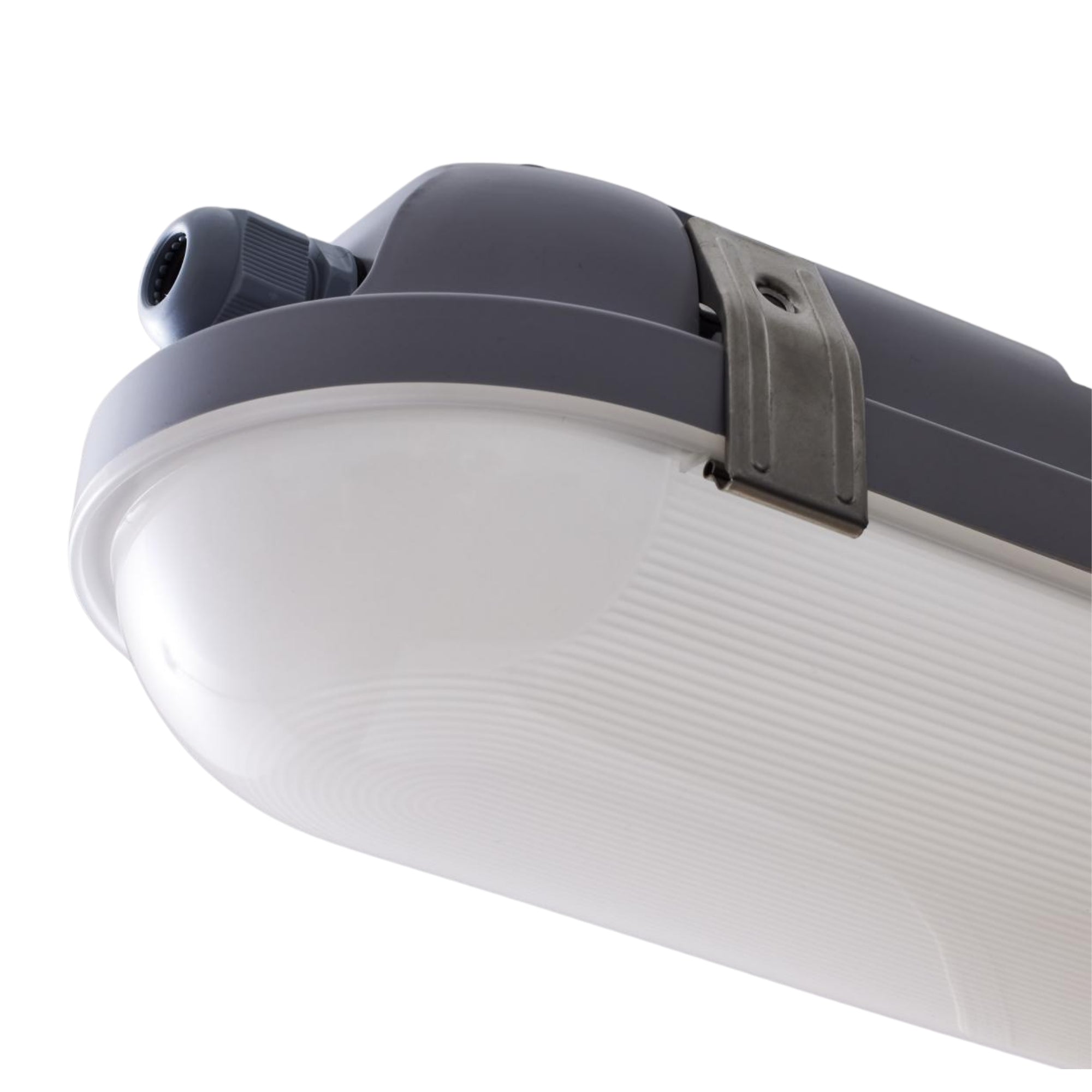

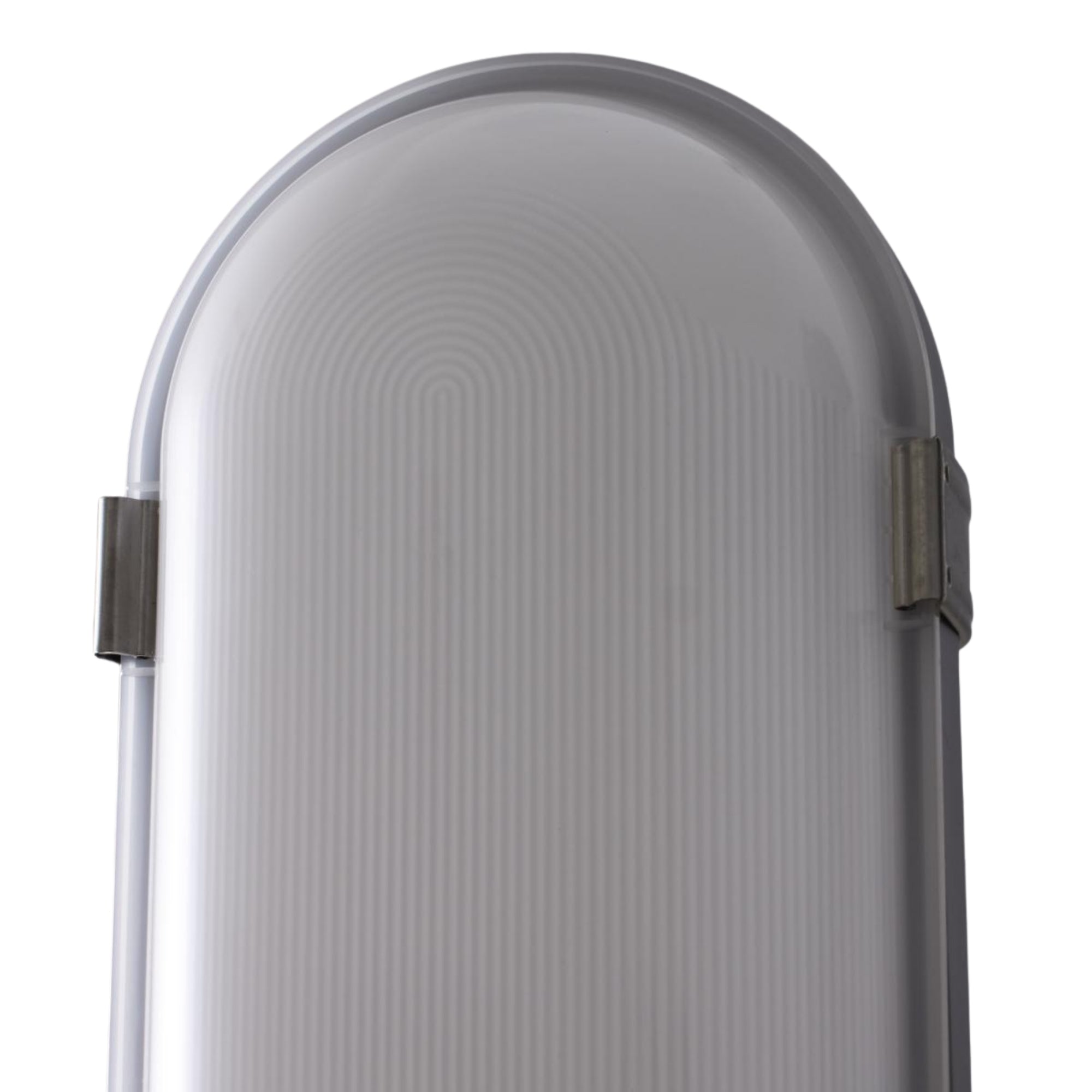

Constructed with a durable polycarbonate housing and lens, the fixture resists moisture, dust, and corrosion in demanding environments. The IP65 enclosure protects against water intrusion while the IK08 impact rating provides additional mechanical durability.
Installation & Mounting

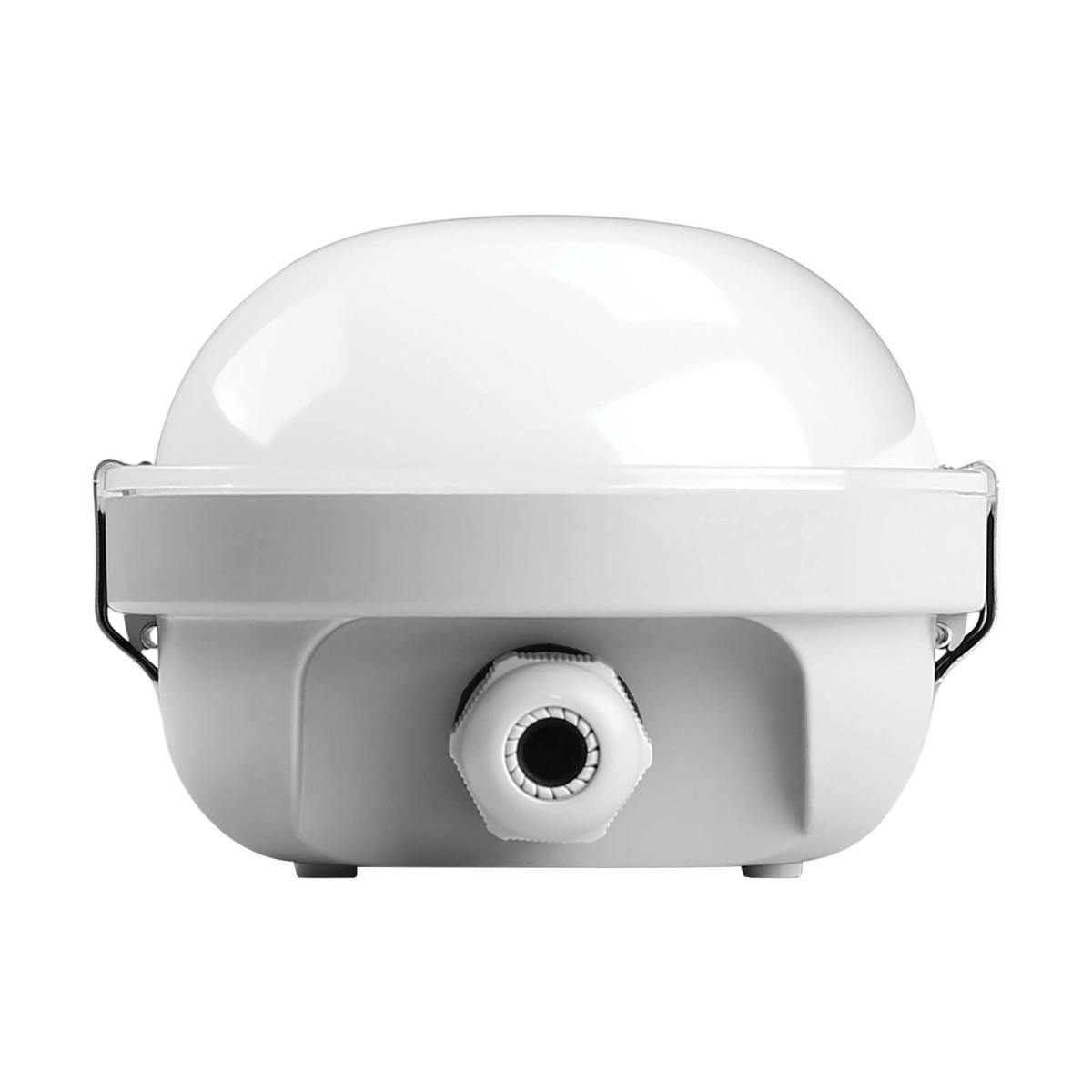

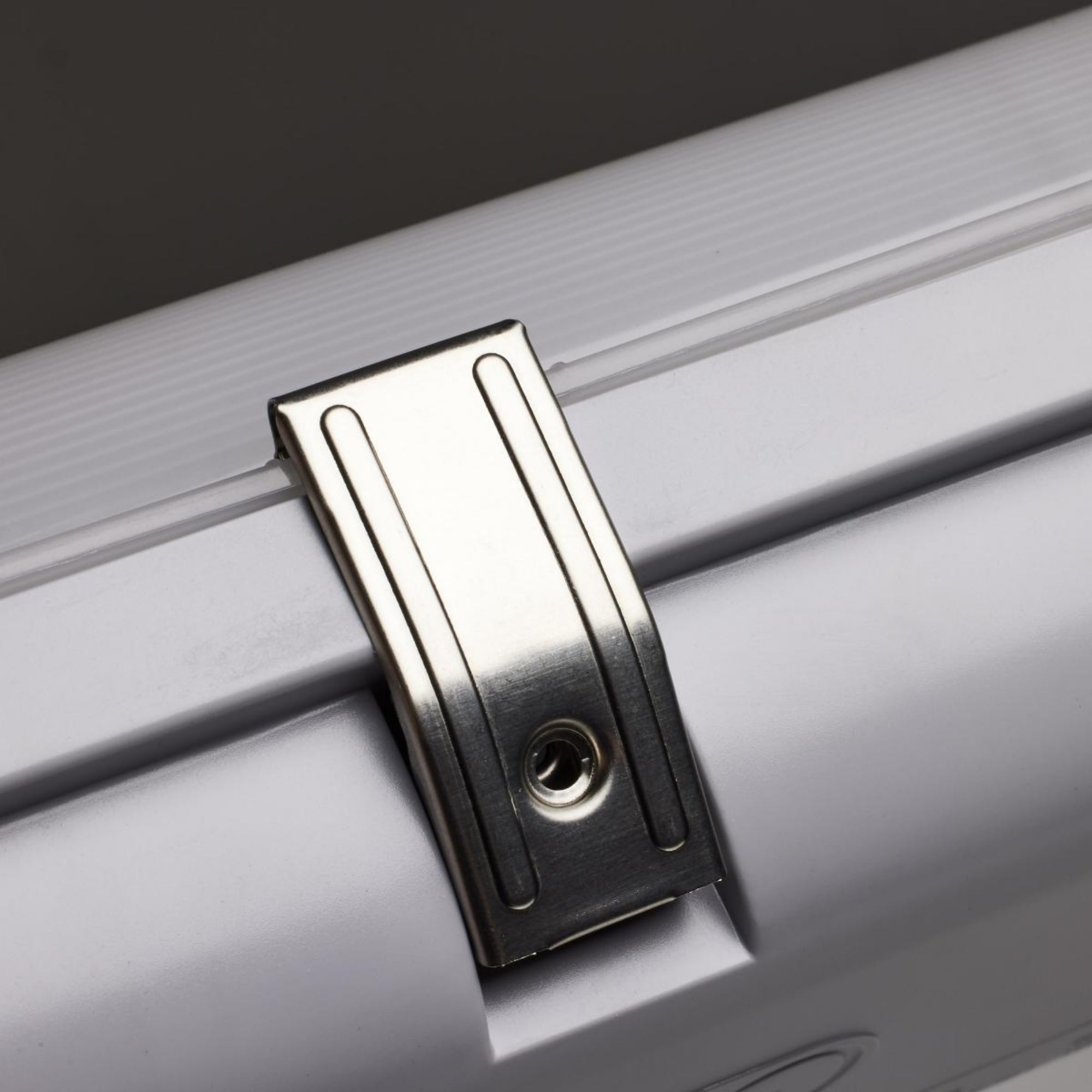

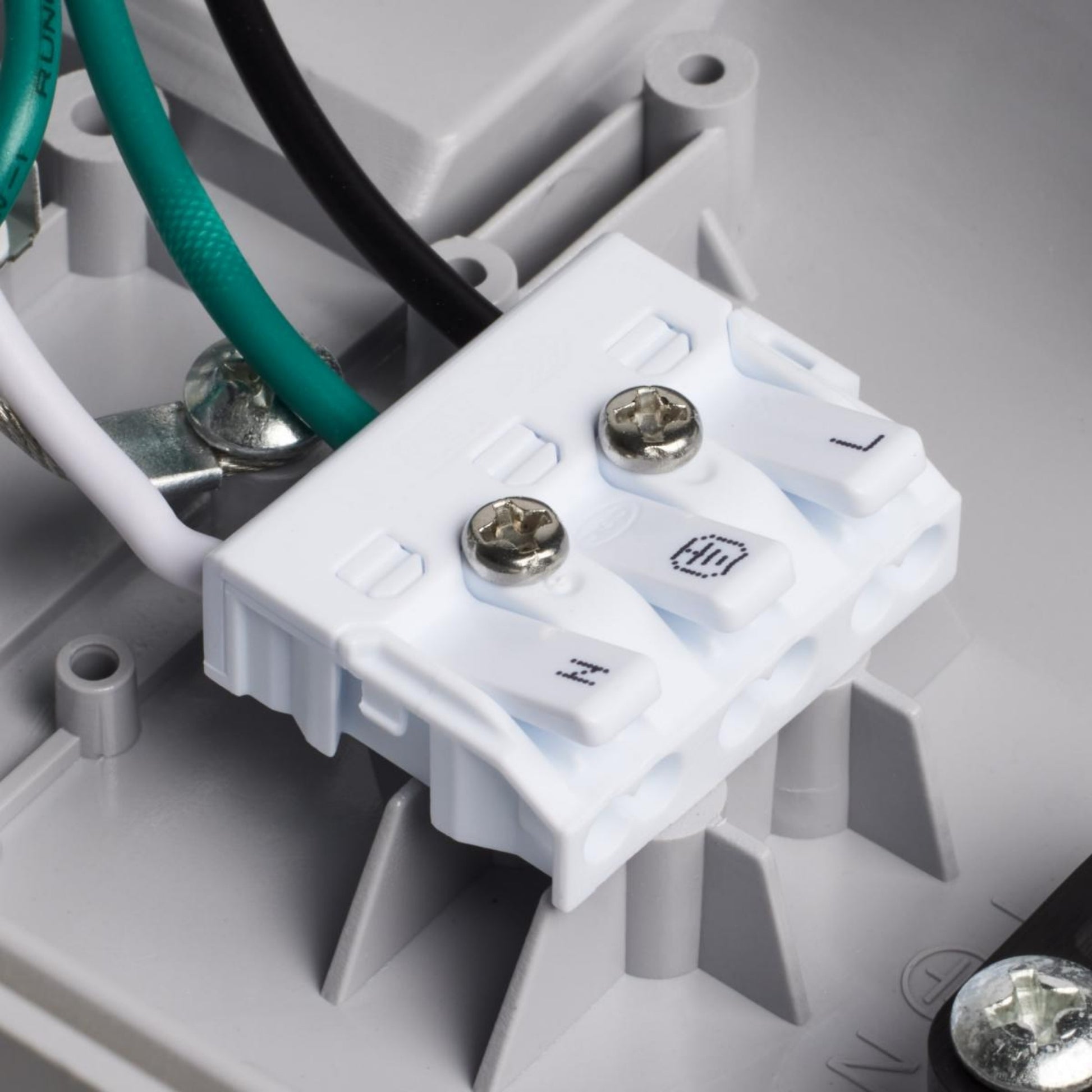

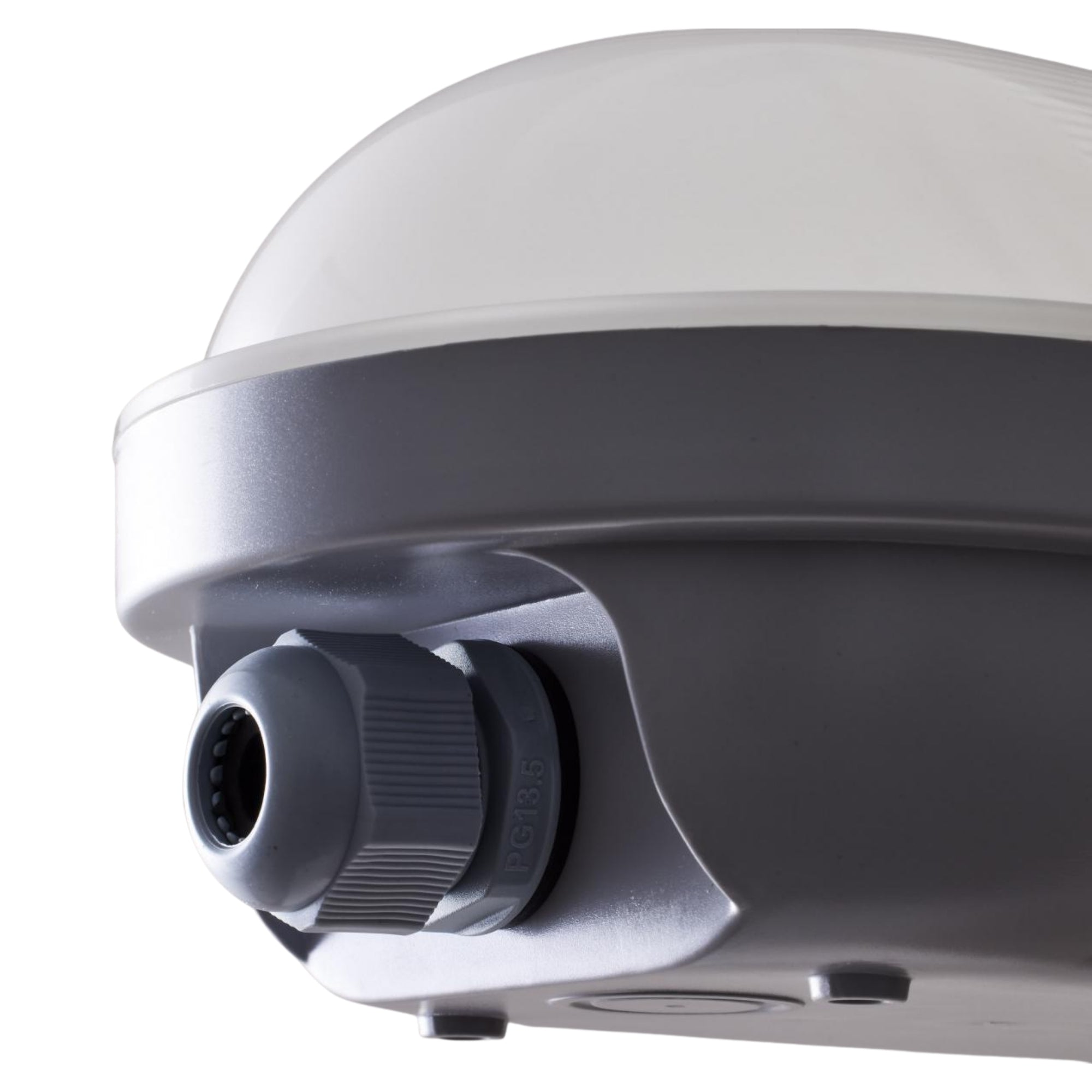

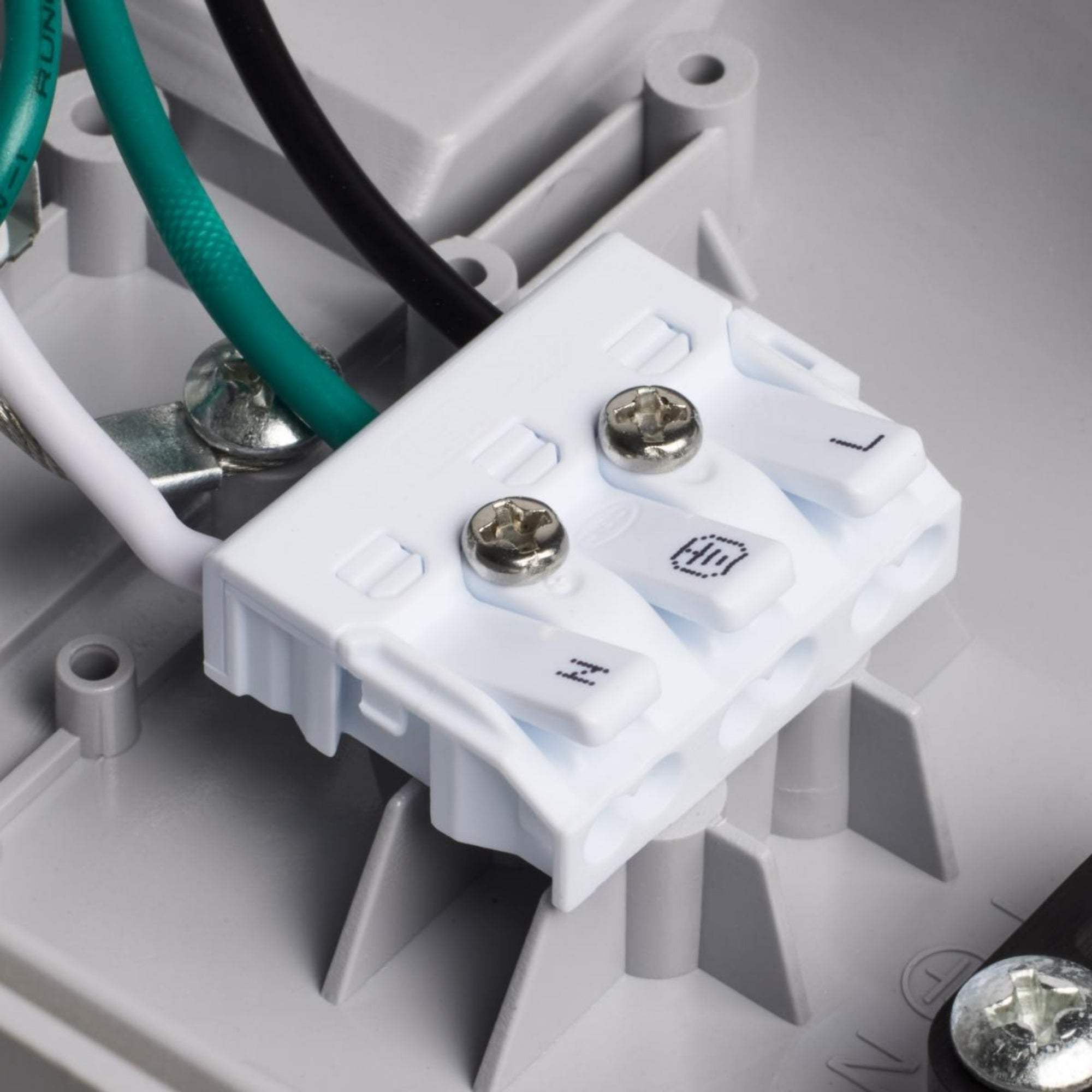

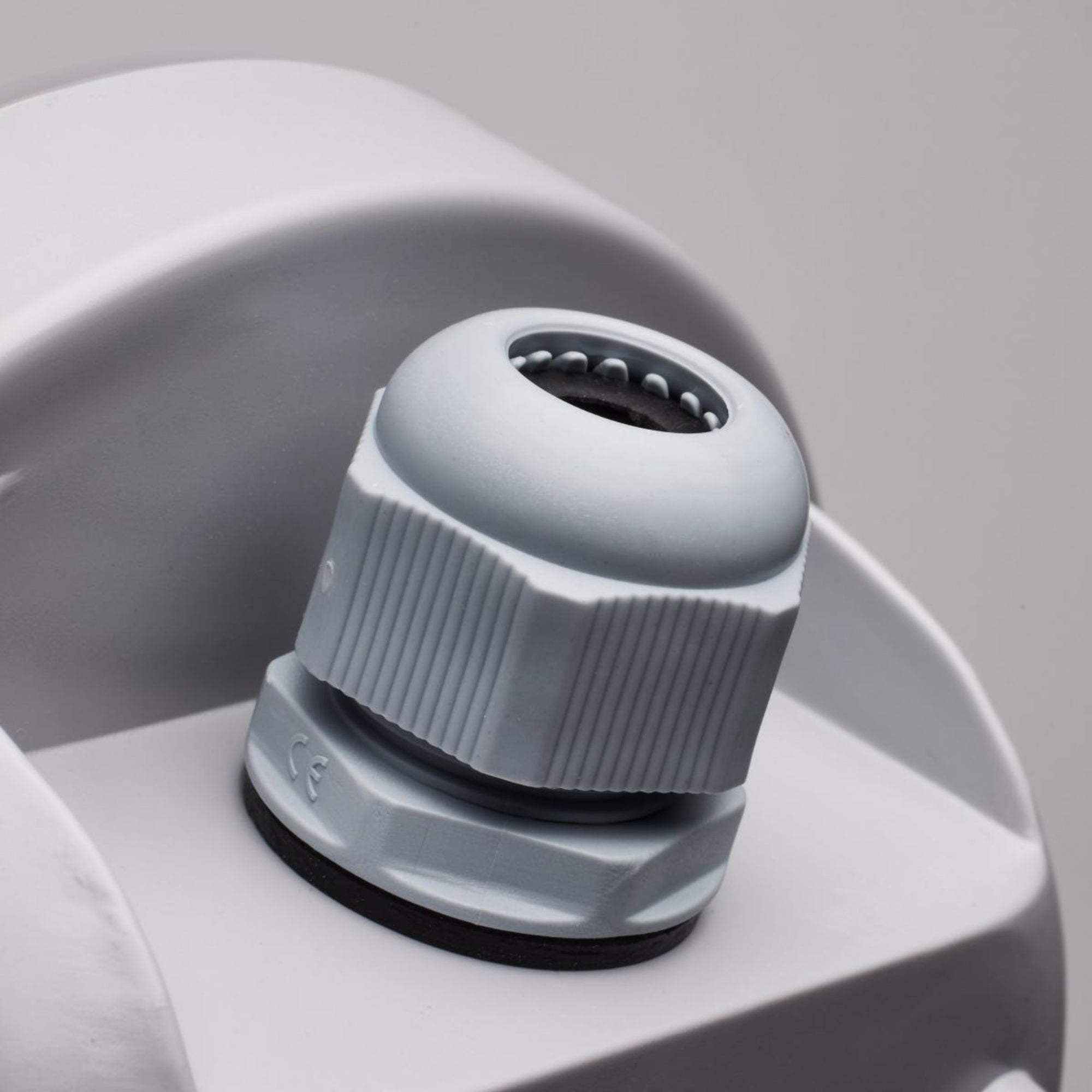

The fixture supports surface mounting on ceilings or walls and includes sealed wiring entry to maintain environmental protection. Suspension mounting options can be used when chain installation is preferred.
Included
- Surface mounting hardware
- Installation components
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Does the SATCO 65-824R1 include a motion sensor?
Does the SATCO 65-824R1 include a motion sensor?
What voltage systems does this fixture support?
What voltage systems does this fixture support?
How are wattage and color temperature adjusted?
How are wattage and color temperature adjusted?
Is this fixture suitable for wet locations?
Is this fixture suitable for wet locations?
Can the fixture be dimmed with lighting controls?
Can the fixture be dimmed with lighting controls?
