SATCO|NUVO 4ft LED Vapor Tight Fixture 7,991 Lumens 40/50/60W Selectable 30K/40K/50K 120–347V Gray 65?821R1
SATCO|NUVO 4ft LED Vapor Tight Fixture 7,991 Lumens 40/50/60W Selectable 30K/40K/50K 120–347V Gray 65?821R1
Available in stock (485)
Choose your location
enter a US zip code
Couldn't load pickup availability
About this item
About this item
- Adjustable Light Output: Selectable wattage and color temperature allow installers to configure brightness and color during installation.
- Wide Voltage Compatibility: Operates on 120–347V electrical systems for commercial and industrial installations.
- Wet Location Protection: IP65 construction protects the fixture from dust, moisture, and washdown conditions.
- Dimming Ready: Integrated 0–10V dimming supports standard lighting control systems.
- Industrial Durability: IK08 impact resistance and sealed polycarbonate housing support demanding facility environments.
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

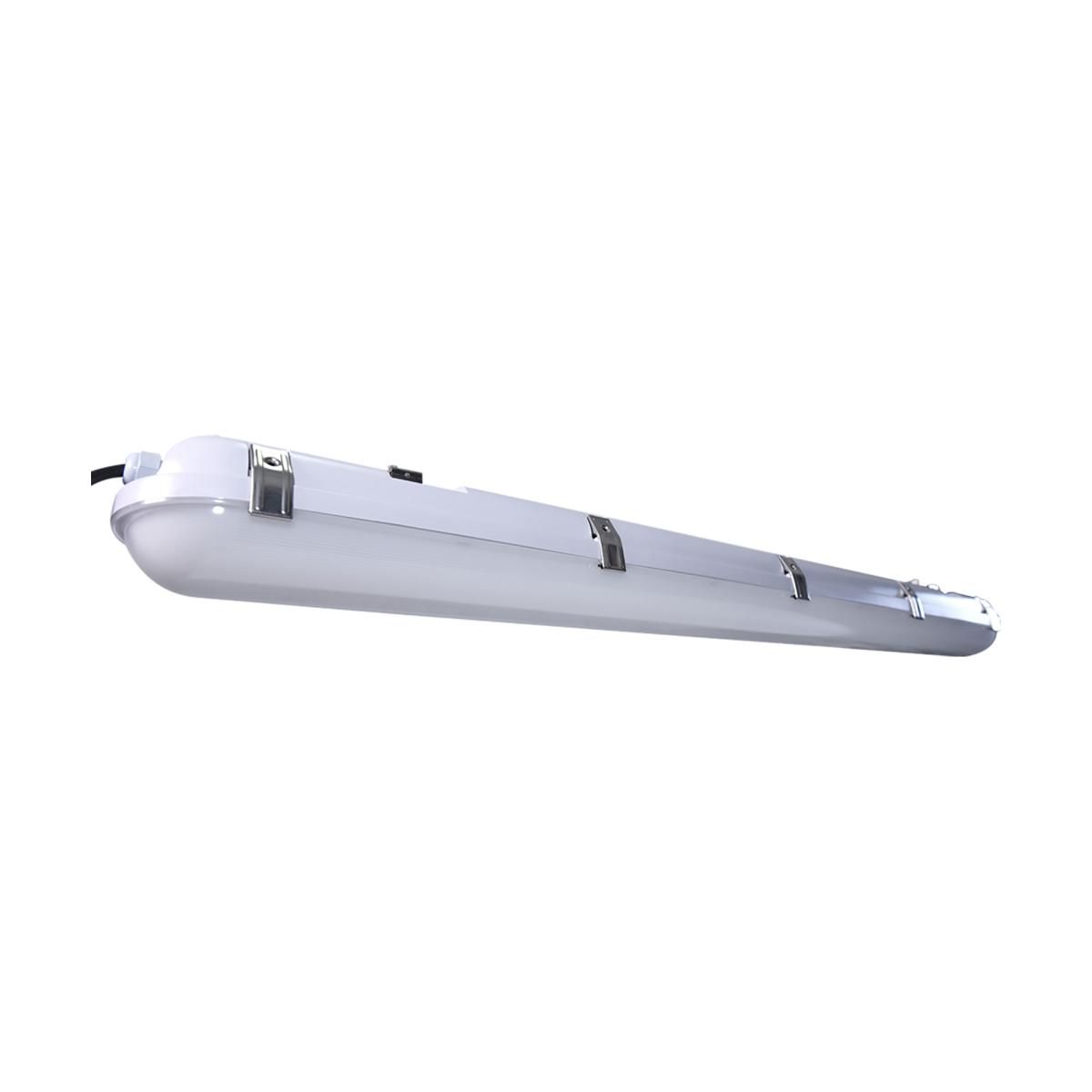

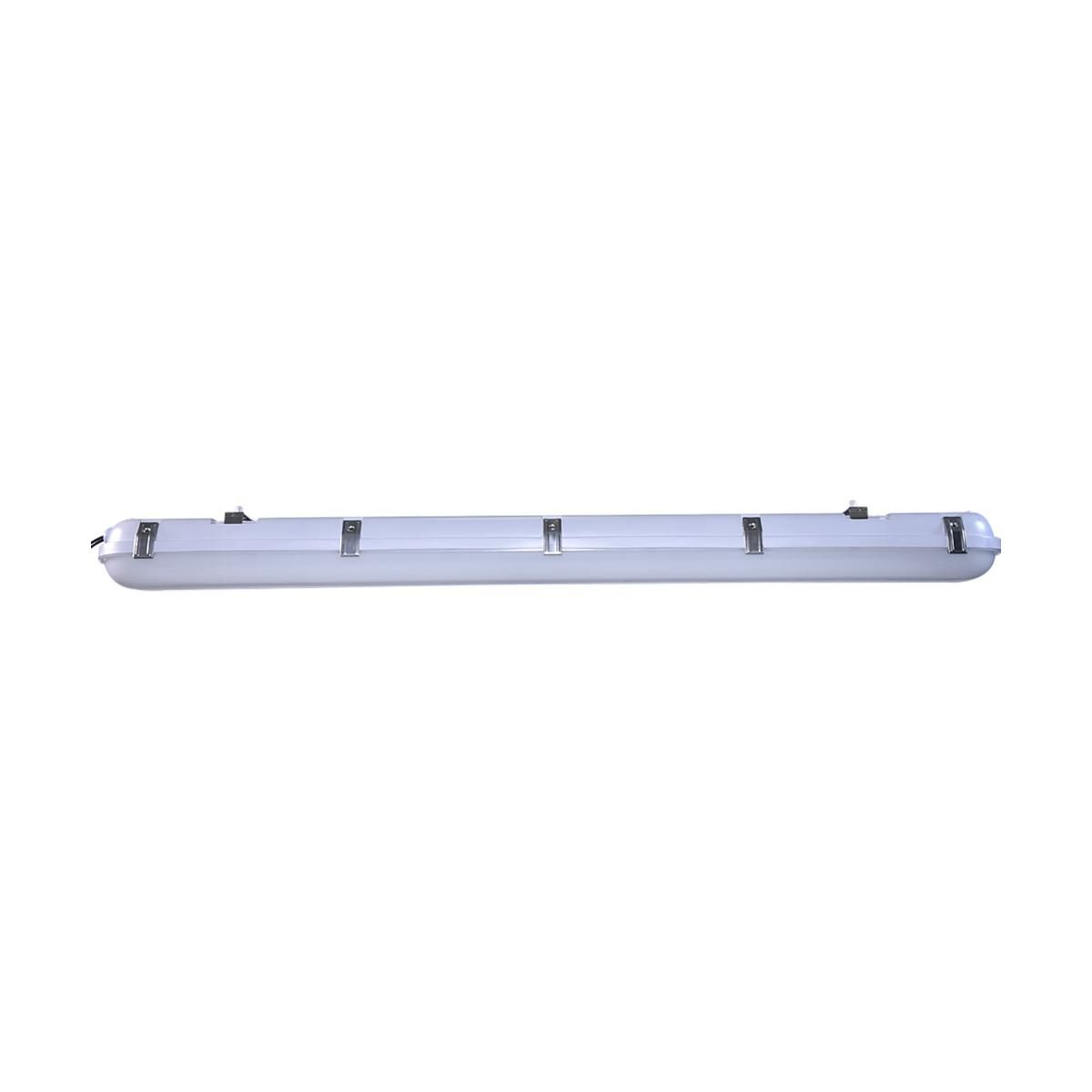

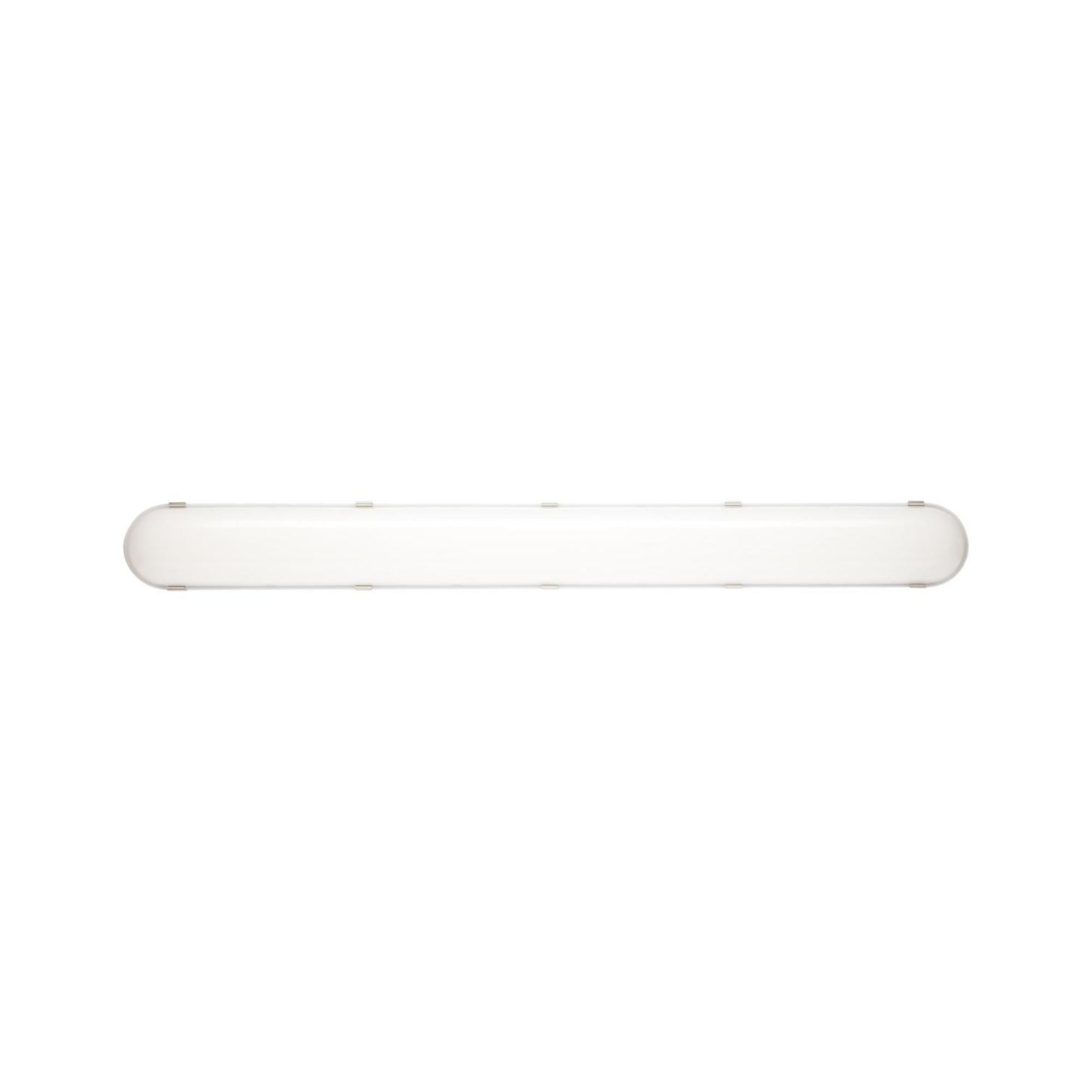

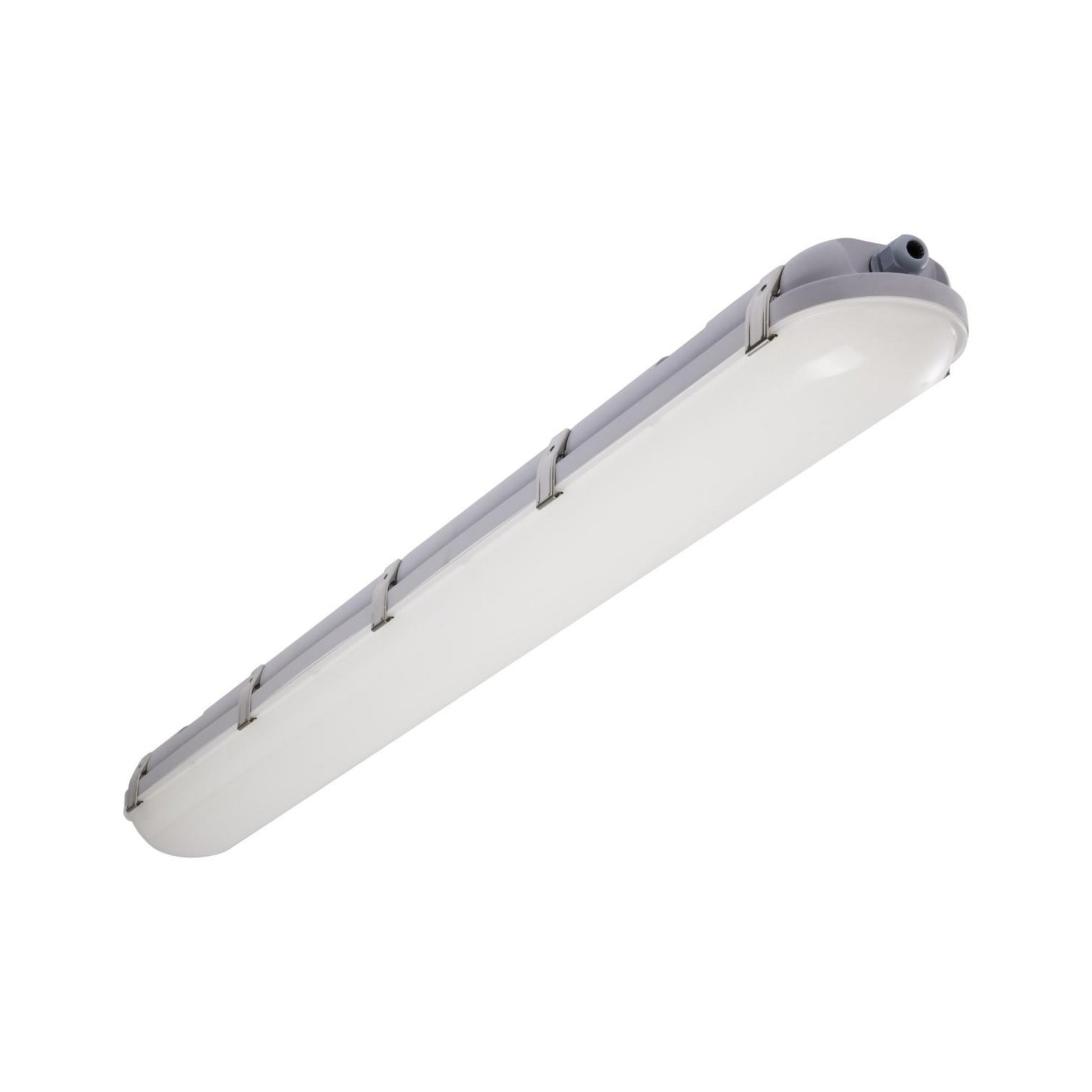

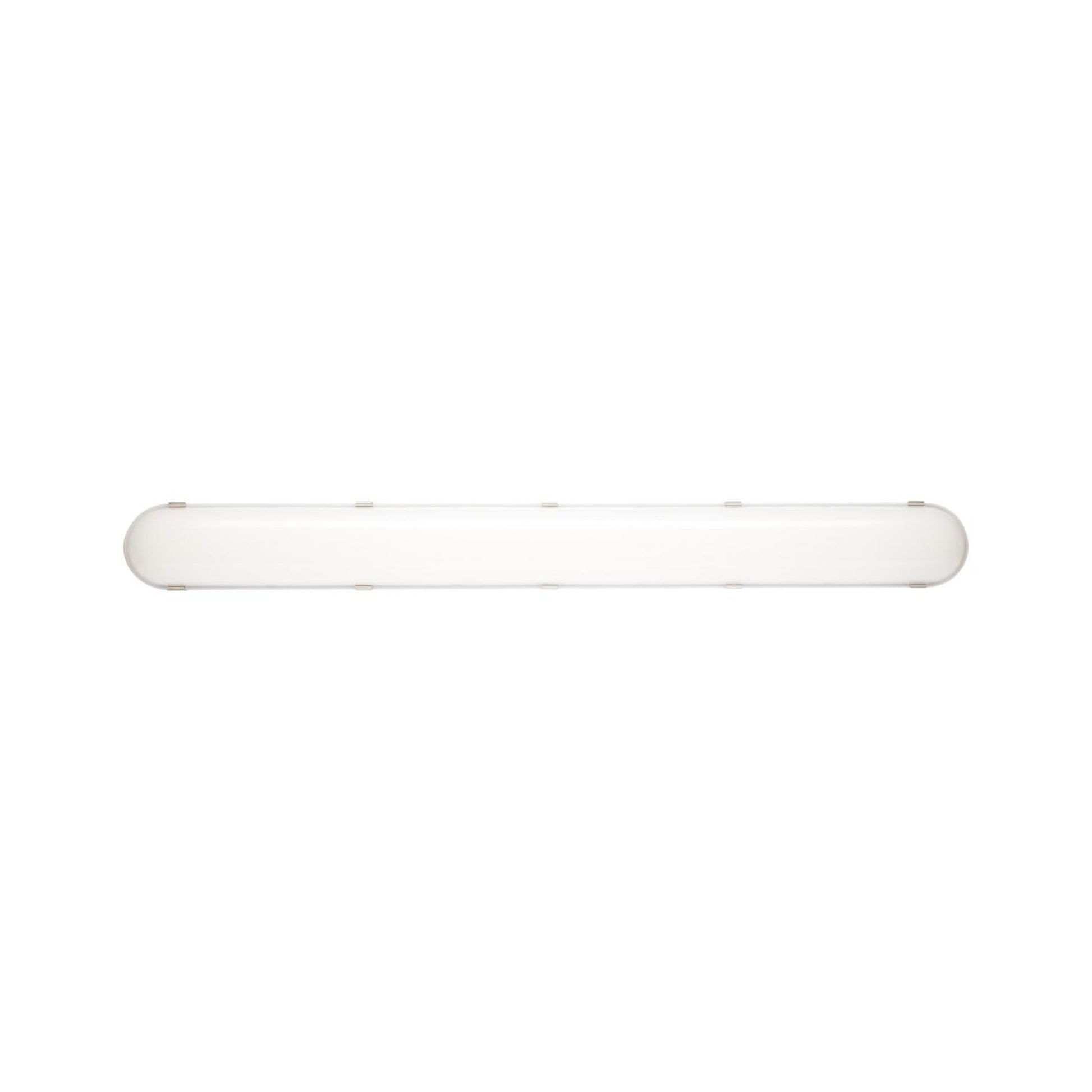

SATCO|NUVO 65-821R1 4ft LED Vapor Tight Fixture — Power & Color Selectable
The SATCO|NUVO 65-821R1 is a 4-foot LED vapor tight fixture designed for wet, damp, and demanding commercial environments. It delivers up to 7,991 lumens with field-selectable wattage of 40W / 50W / 60W and selectable color temperatures of 3000K / 4000K / 5000K. Operating on a universal 120–347V driver with integrated 0–10V dimming, this fixture features IP65 ingress protection and an IK08 impact-resistant enclosure for reliable performance in indoor and outdoor applications.
Key Features
- Selectable Wattage: 40W / 50W / 60W field-adjustable output
- Selectable CCT: 3000K / 4000K / 5000K switchable color temperature
- Maximum Output: Up to 7,991 lumens
- Voltage: Universal 120–347V input
- Dimming: 0–10V dimming compatible with lighting controls
- Environmental Rating: IP65 rated for wet locations
- Impact Protection: IK08 impact-resistant housing
- Operating Temperature: -40°C to 45°C ambient range
- CRI: 80+ color rendering
- Rated Life: 50,000 hour LED system

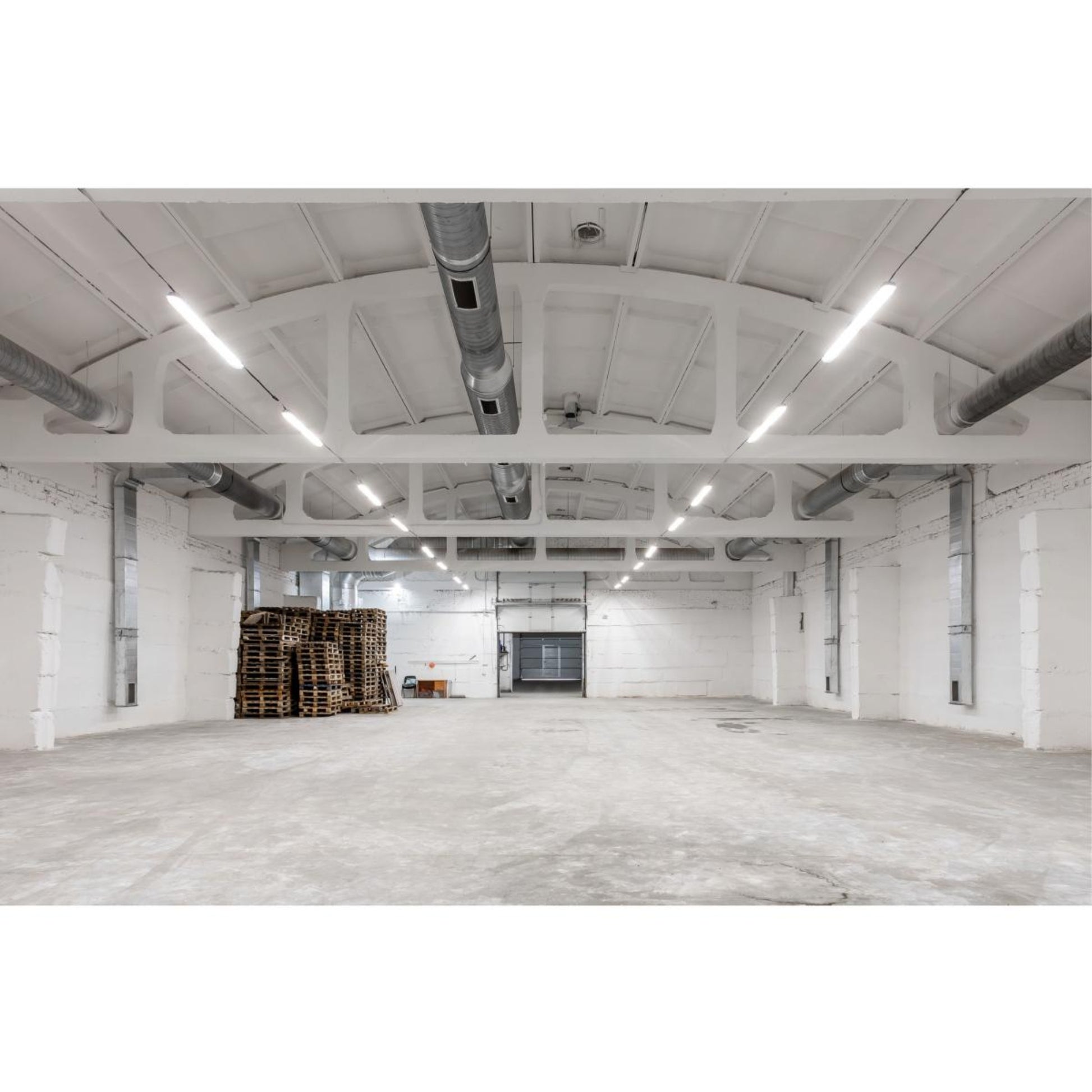

Typical Applications
- Parking garages
- Commercial kitchens
- Food processing areas
- Car washes
- Cold storage facilities
- Industrial washdown zones
- Utility corridors
Performance & Light Output
Selectable power and color temperature allow contractors to configure light levels during installation to match the needs of the space. At maximum output, the fixture delivers up to 7,991 lumens with a wide 120-degree beam distribution and consistent illumination suitable for industrial and commercial environments.
Electrical & Controls
The fixture operates on a universal 120–347V input and supports 0–10V dimming for integration with commercial lighting control systems. Built-in surge protection and high power factor performance support reliable operation across a wide range of electrical installations.
Construction & Durability

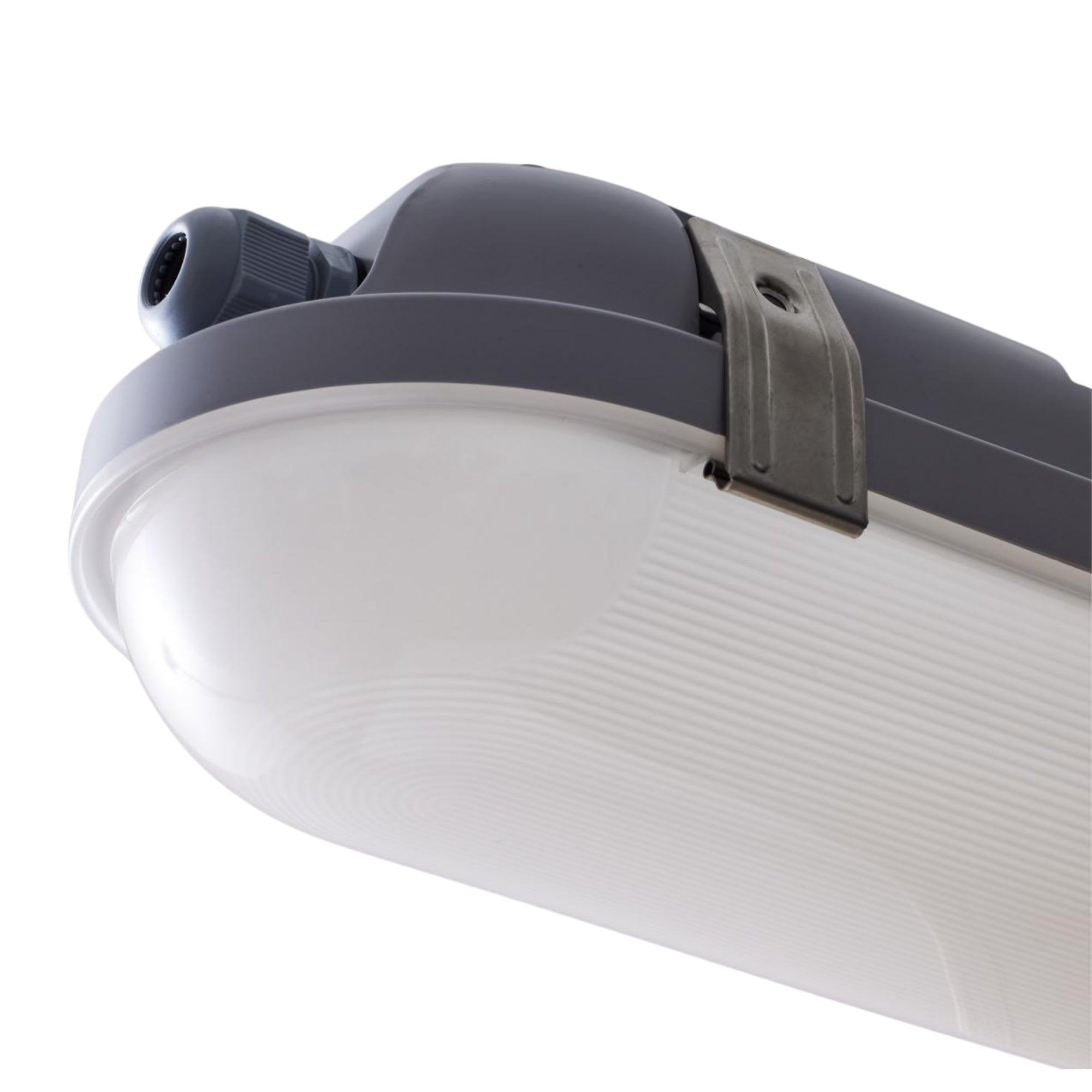

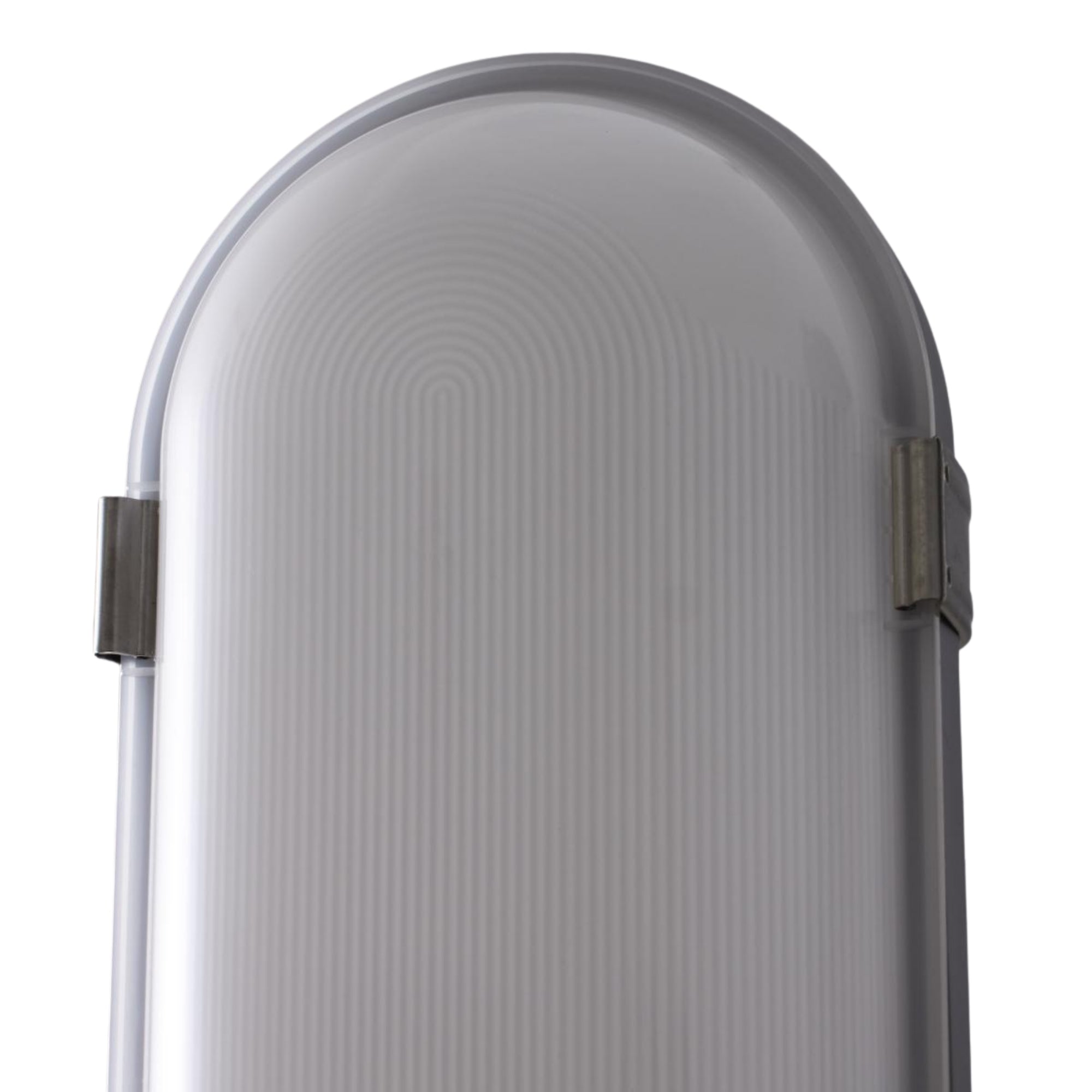

The fixture features a durable polycarbonate housing with an opaque polycarbonate lens designed to resist moisture, dust, and corrosion. The sealed enclosure provides IP65 protection while the IK08 impact rating adds mechanical durability for demanding facility environments.

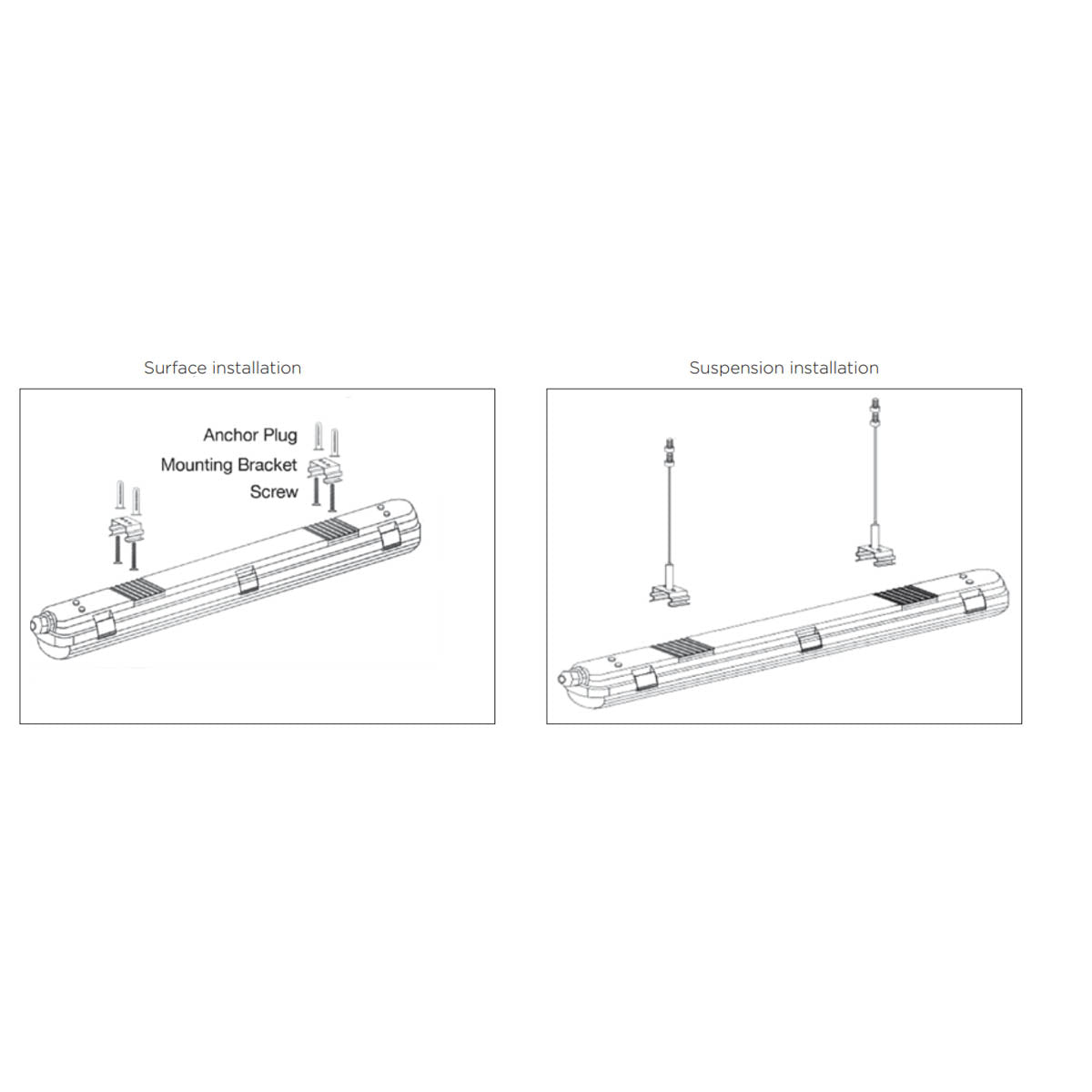

Installation & Mounting

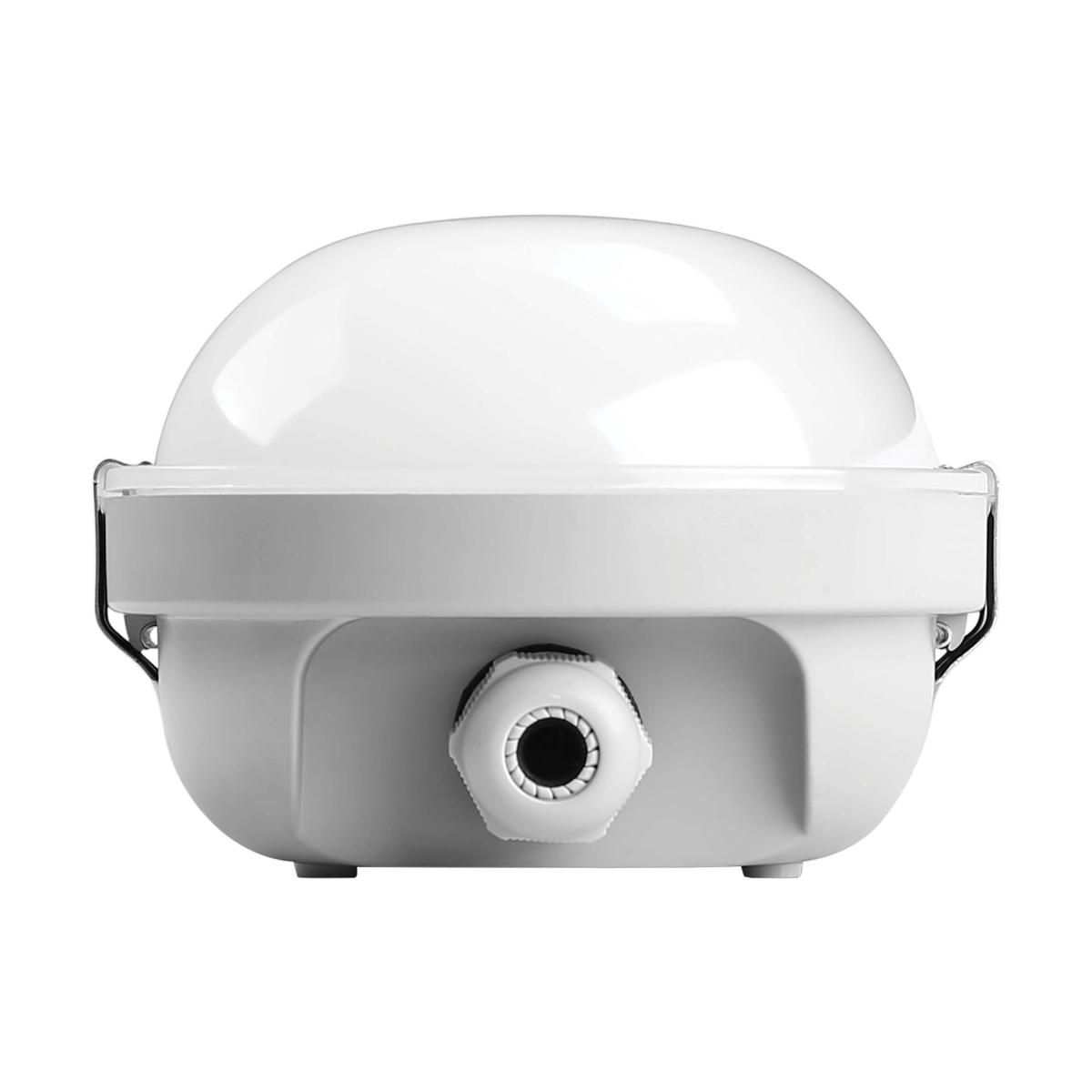

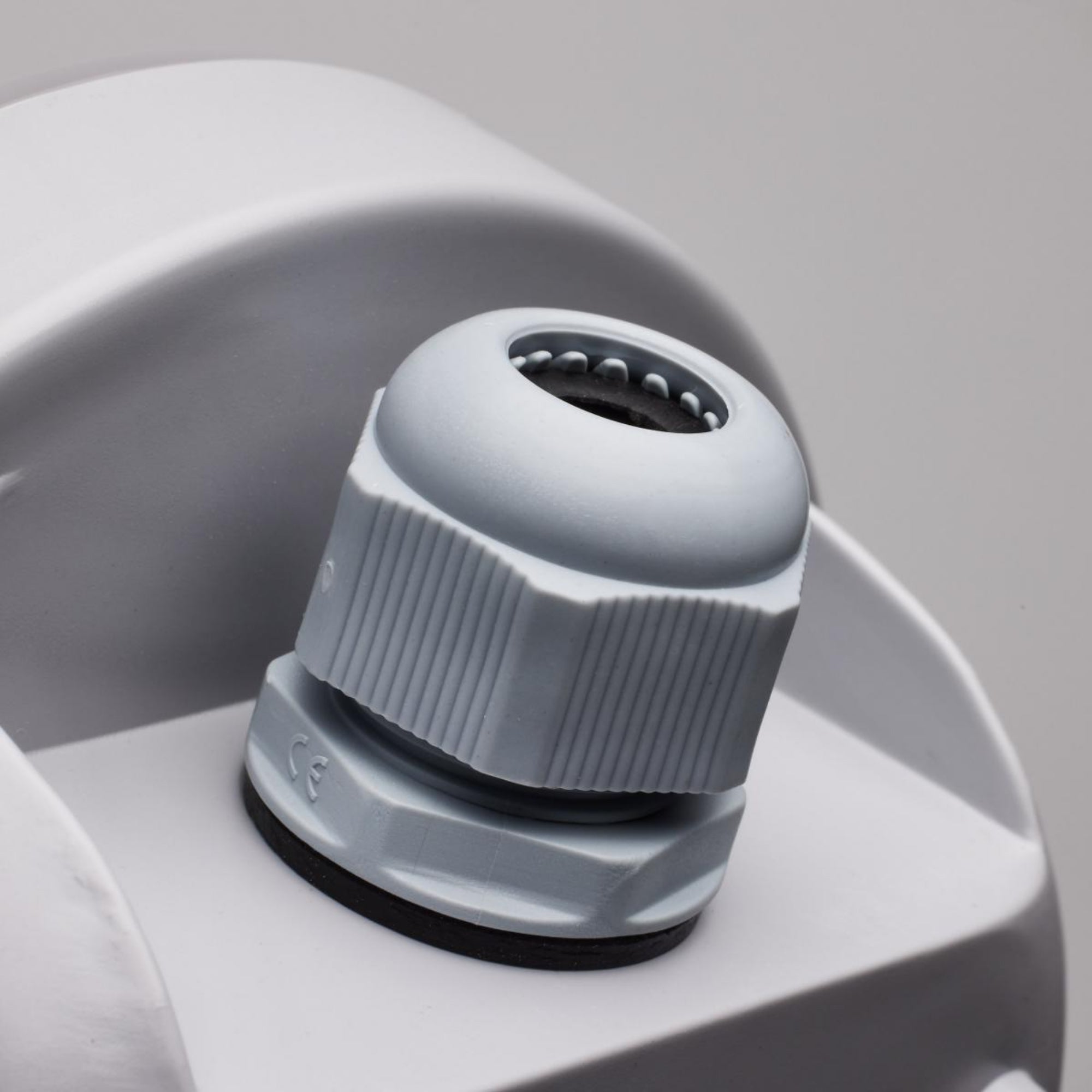

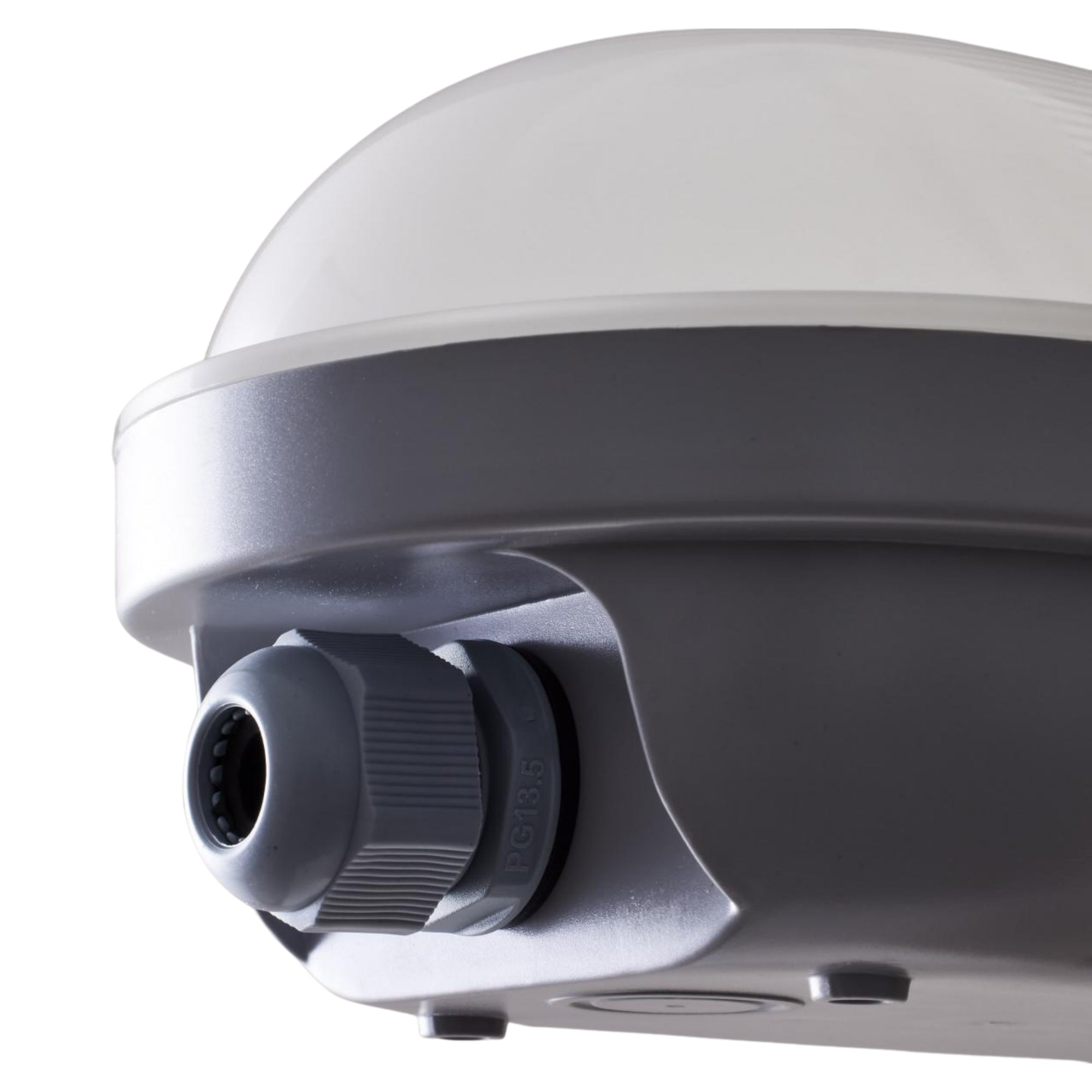

Designed for surface mounting on ceilings or walls, the fixture supports standard vapor tight installation methods with sealed wiring entry to maintain environmental protection. Suspension mounting hardware can be added when required for chain installations.
Included
- Surface mounting hardware
- Installation components
Specifications
Specifications

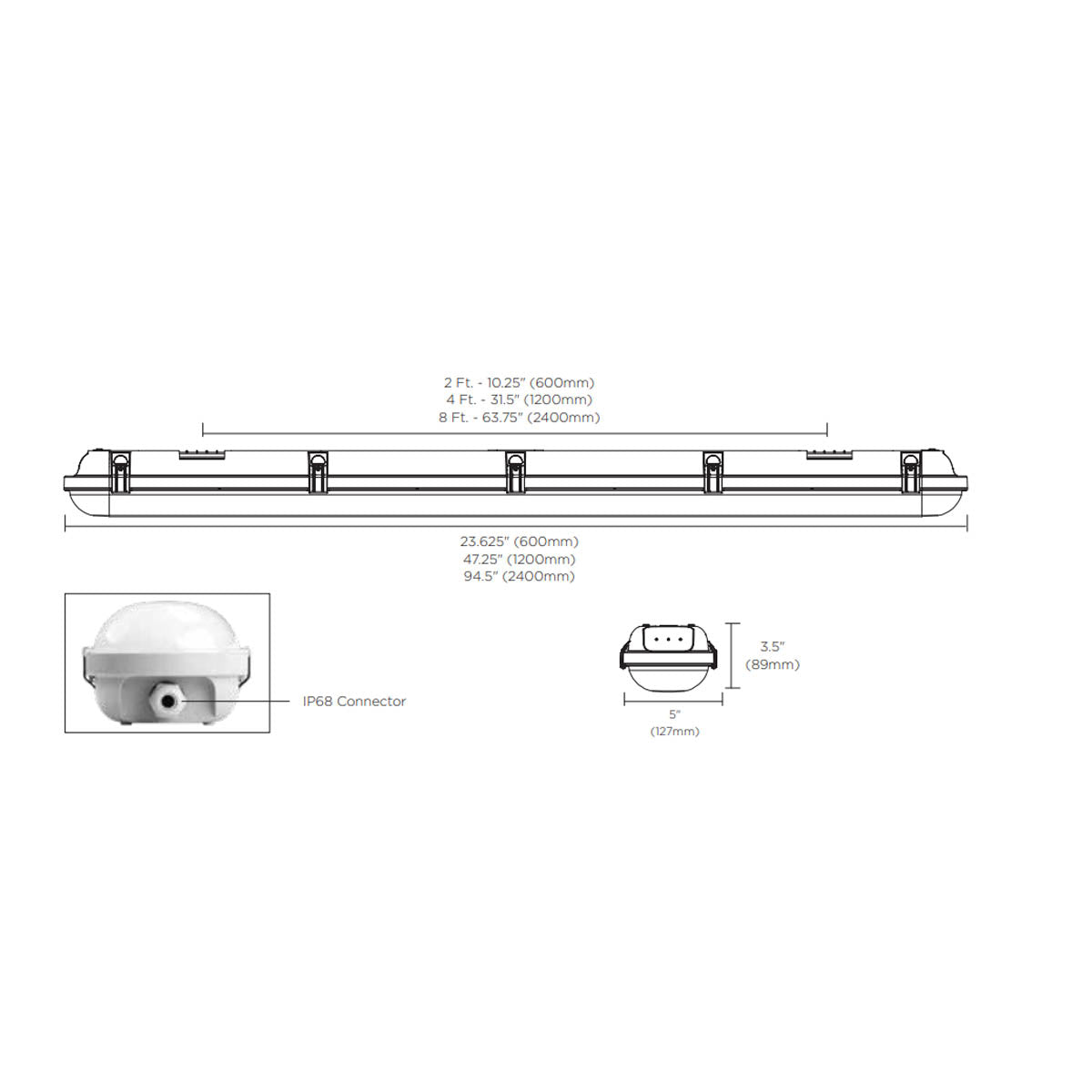

Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Frequently Asked Questions
Is the SATCO 65-821R1 rated for wet locations?
Is the SATCO 65-821R1 rated for wet locations?
What voltage systems can this fixture operate on?
What voltage systems can this fixture operate on?
How do you change wattage and color temperature?
How do you change wattage and color temperature?
Can this vapor tight fixture be dimmed?
Can this vapor tight fixture be dimmed?
What environments is this fixture designed for?
What environments is this fixture designed for?
