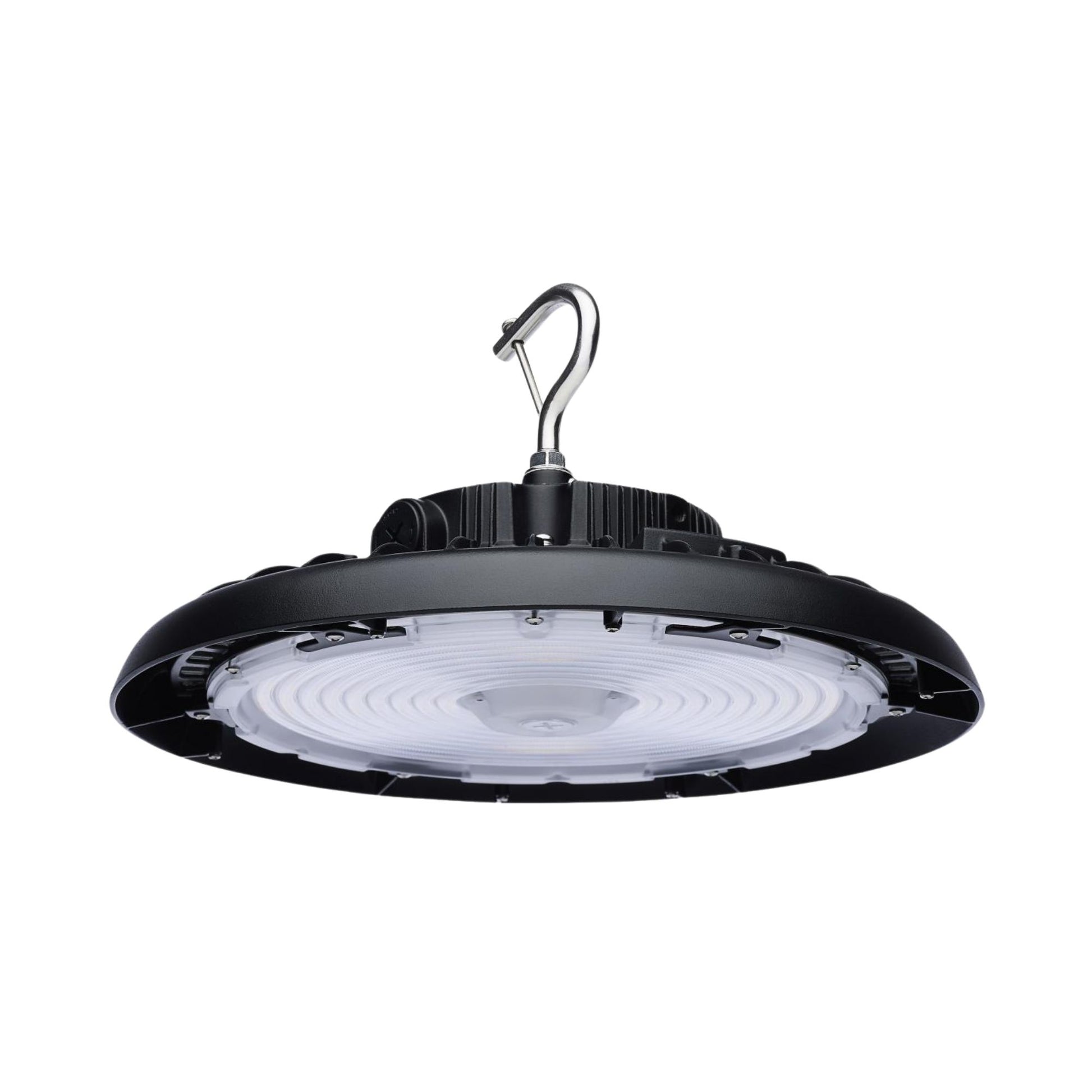

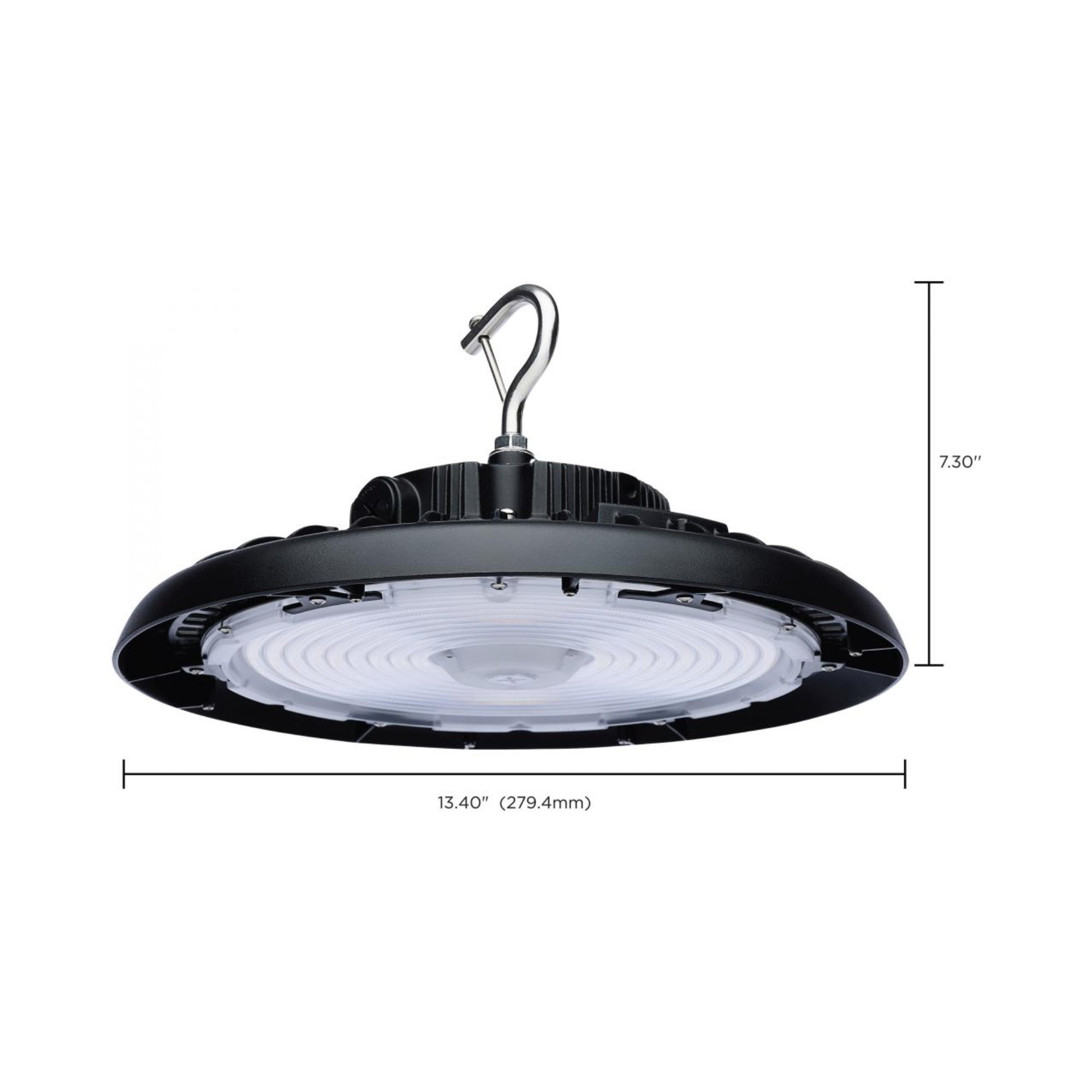

Satco|Nuvo 65-771R3 UFO High Bay LED Light — Field Selectable 150/175/200W

The Satco|Nuvo 65-771R3 UFO high bay is engineered for commercial and industrial lighting applications requiring flexible field configurability. Featuring selectable wattage (150W / 175W / 200W) and selectable CCT (3000K / 4000K / 5000K), this fixture provides versatile optical and performance options on a universal 120-347V platform.

Key Features:

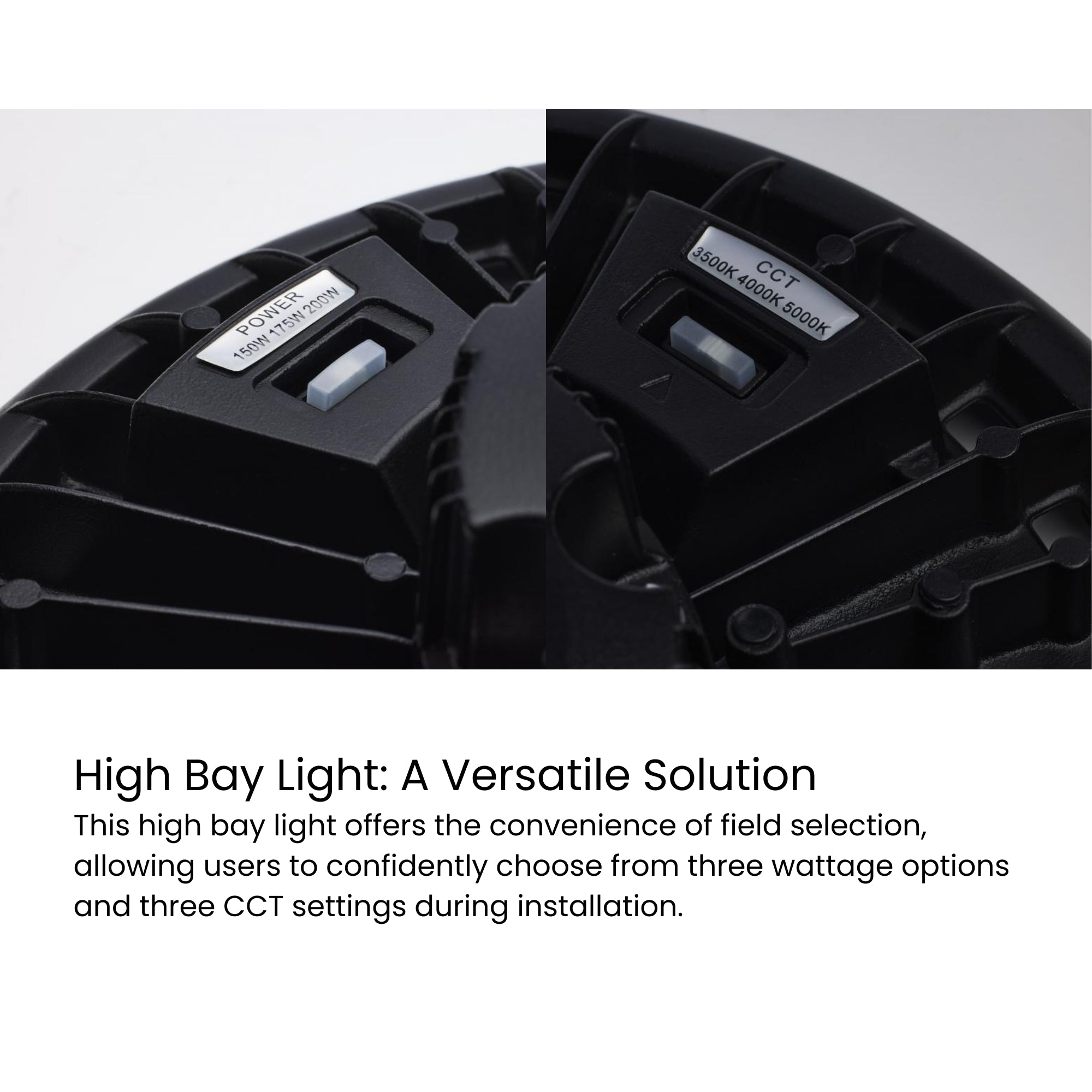

• Selectable Wattage: 150W / 175W / 200W
• Selectable CCT: 3000K / 4000K / 5000K
• Universal Voltage: 120-347V input
• Dimming: 0-10V dimmable driver
• Light Output: Up to 28,800 lumens
• Rated Life: 50,000 hours

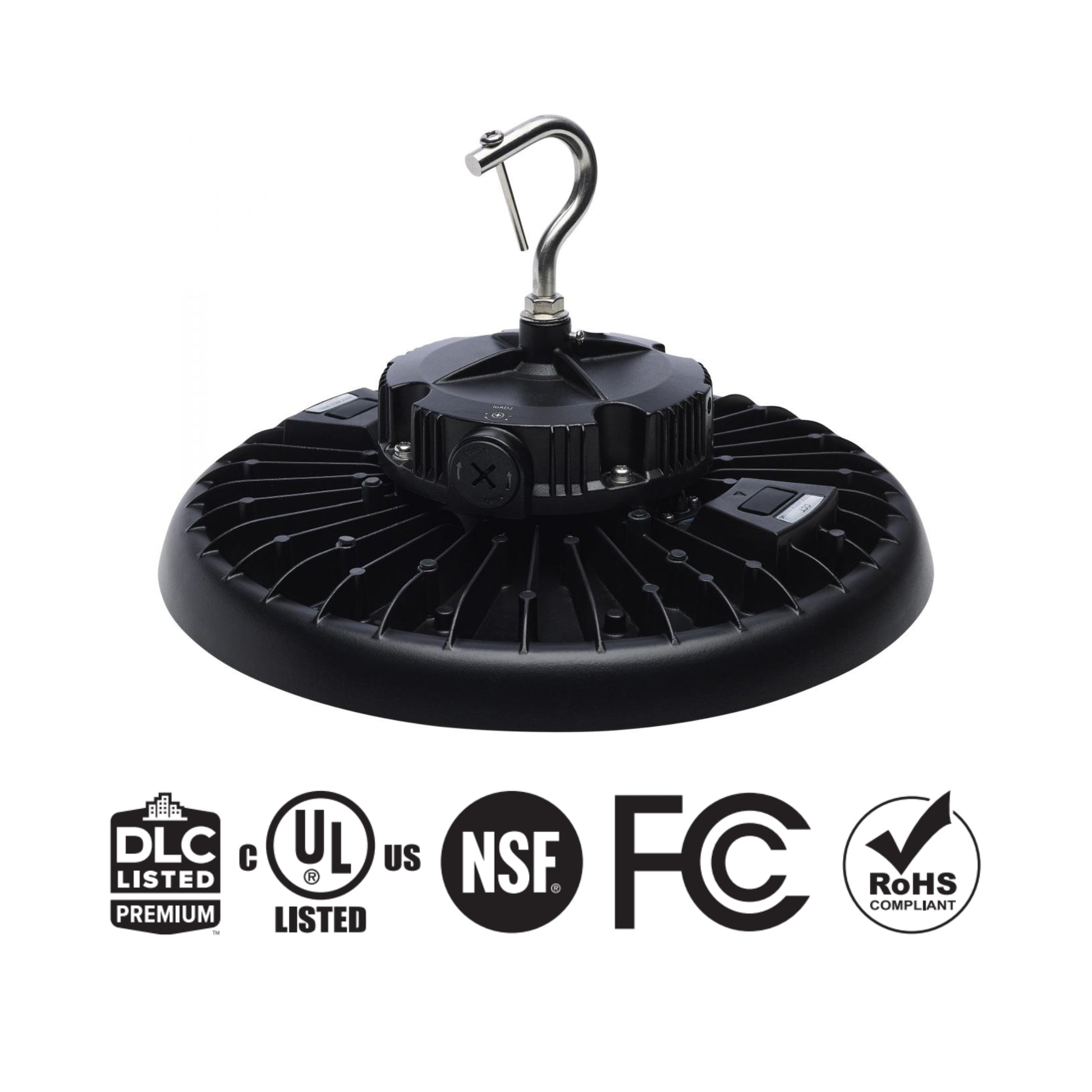

• Certifications: DLC Premium, cULus, NSF, RoHS, FCC
• Mounting: Includes locking hanging hook and 6' whip

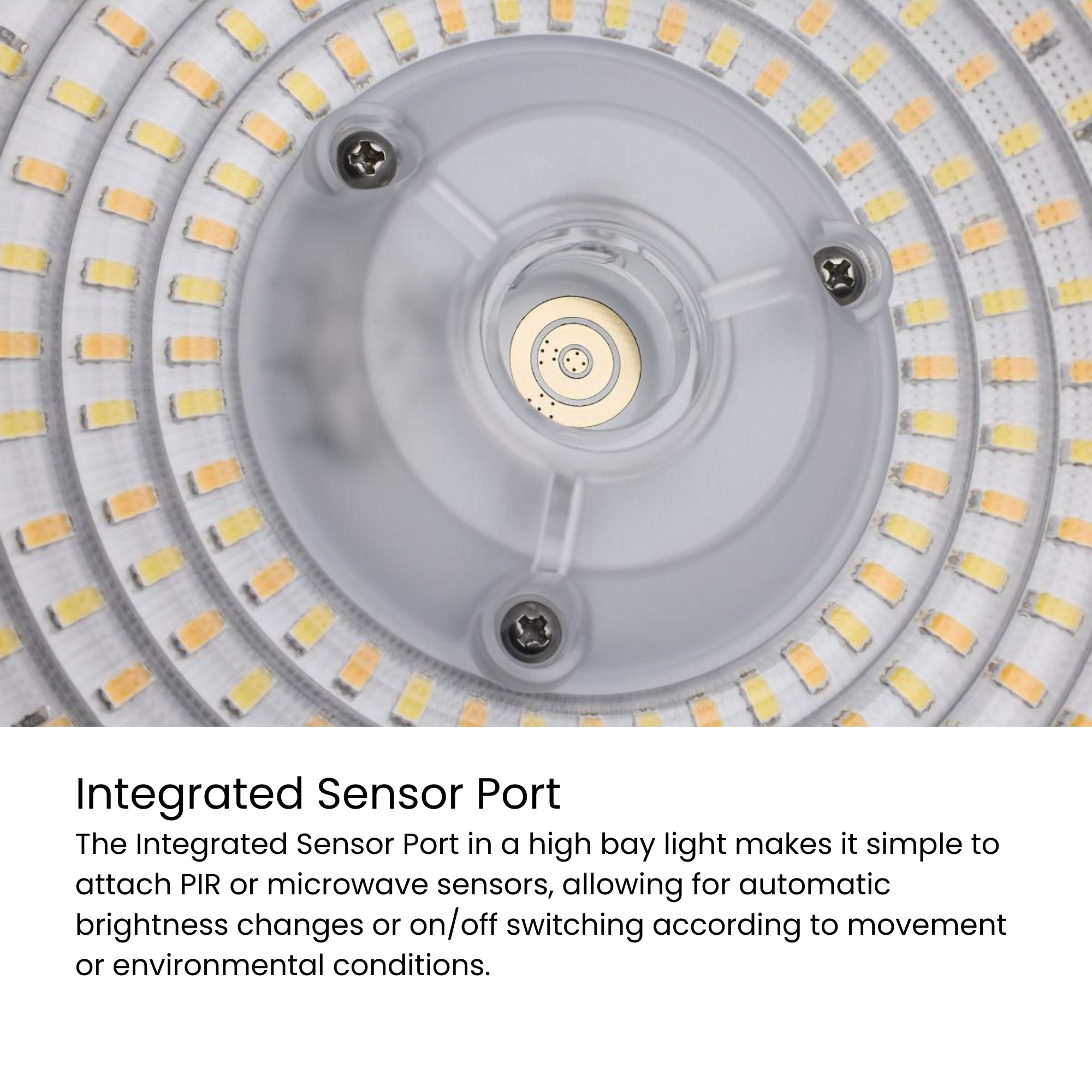

• Controls Compatibility: Integrated sensor port for optional sensors
• Surge Protection: 6kV built-in protection

Typical Applications:

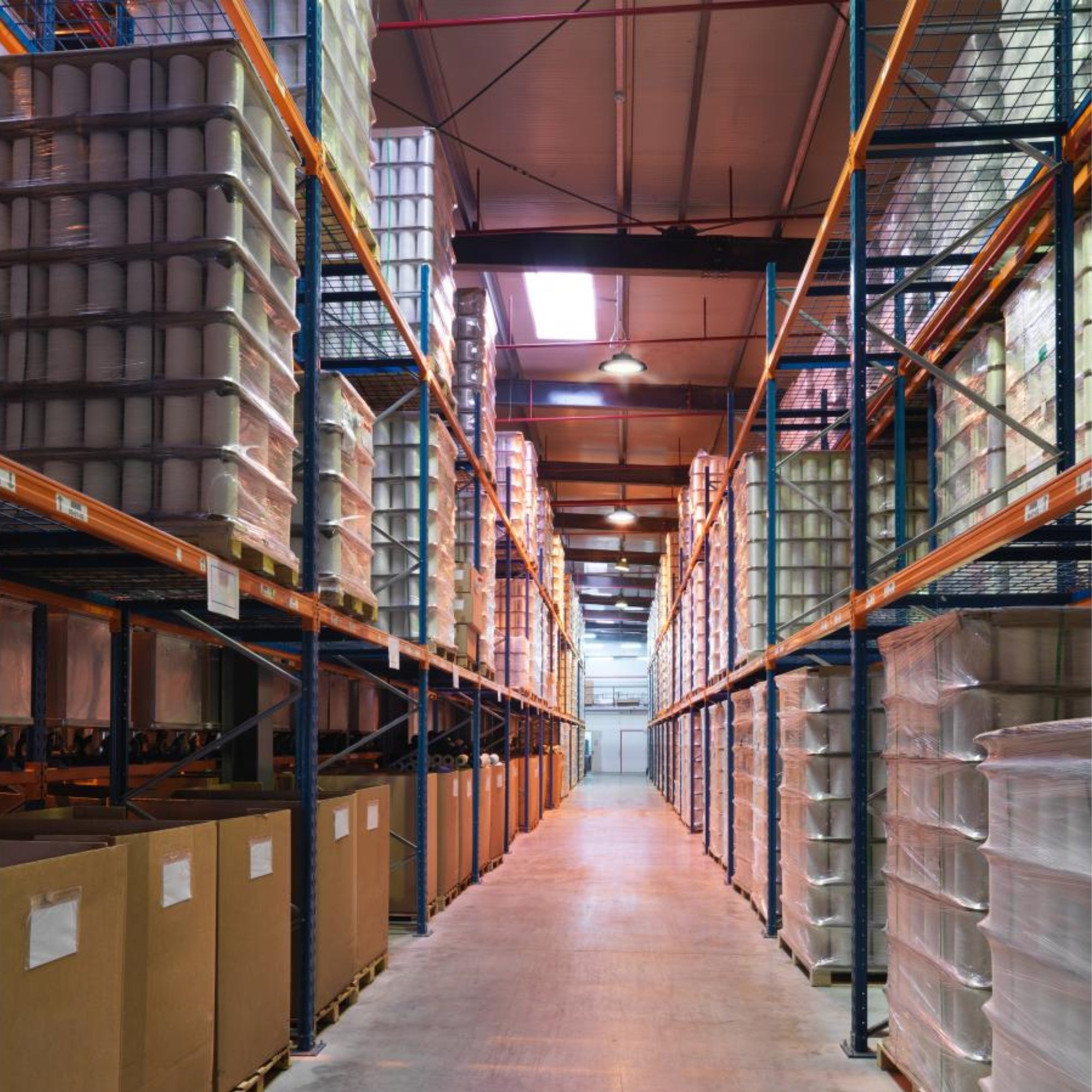

• Warehouses
• Distribution centers
• Manufacturing facilities
• Gymnasiums
• Commercial garages

Performance & Light Output:

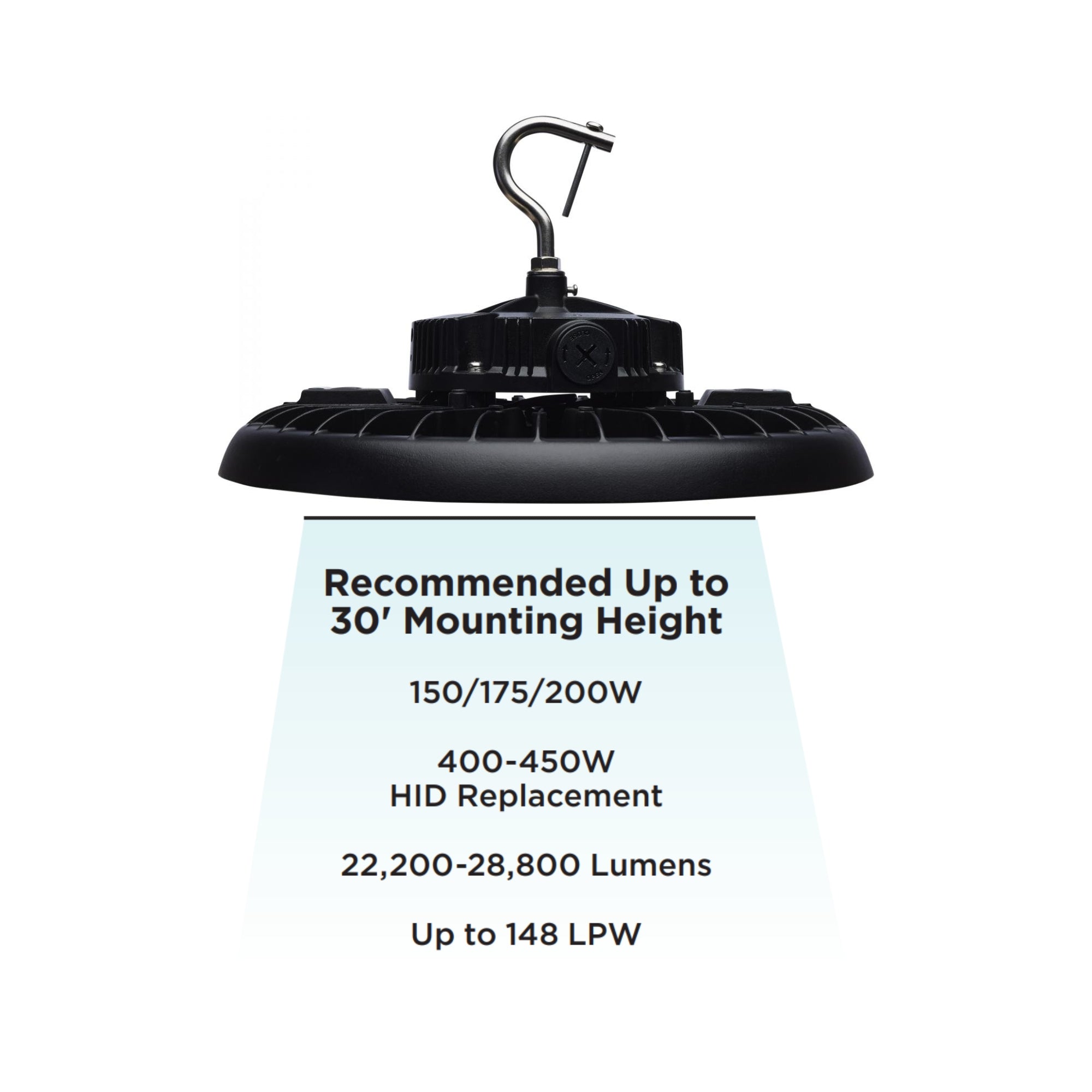

Delivers between approximately 22,200 and 28,800 lumens depending on selected wattage. CRI is 80+ for accurate color rendering. Standard 90° beam distribution provides uniform illumination across high-bay spaces.

Electrical & Controls:
Operates on 120-347V AC with 0-10V dimming capability. Controls-ready design supports field-installed motion or daylight sensors for energy management. Integrated 6kV surge protection enhances system reliability.

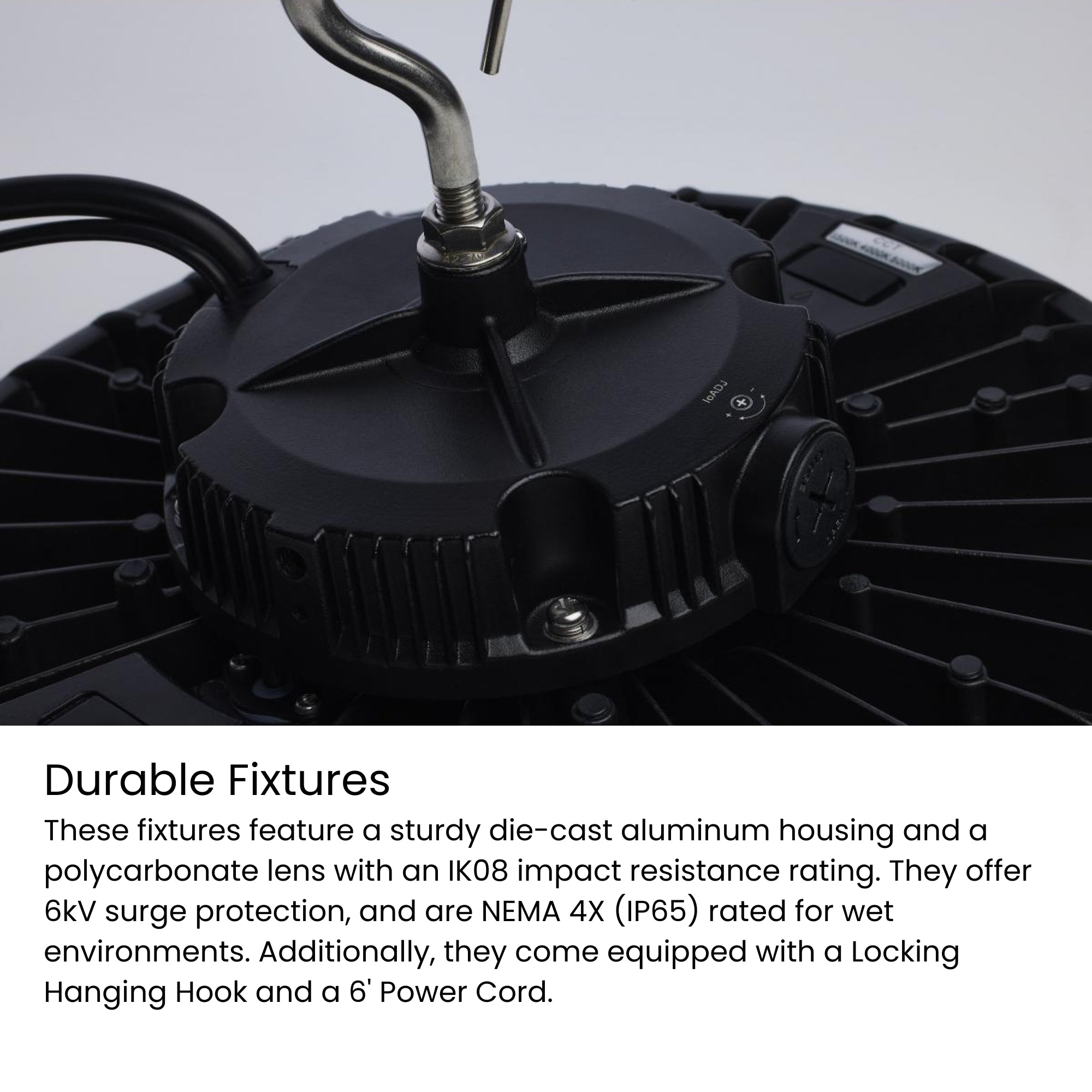

Construction & Durability:

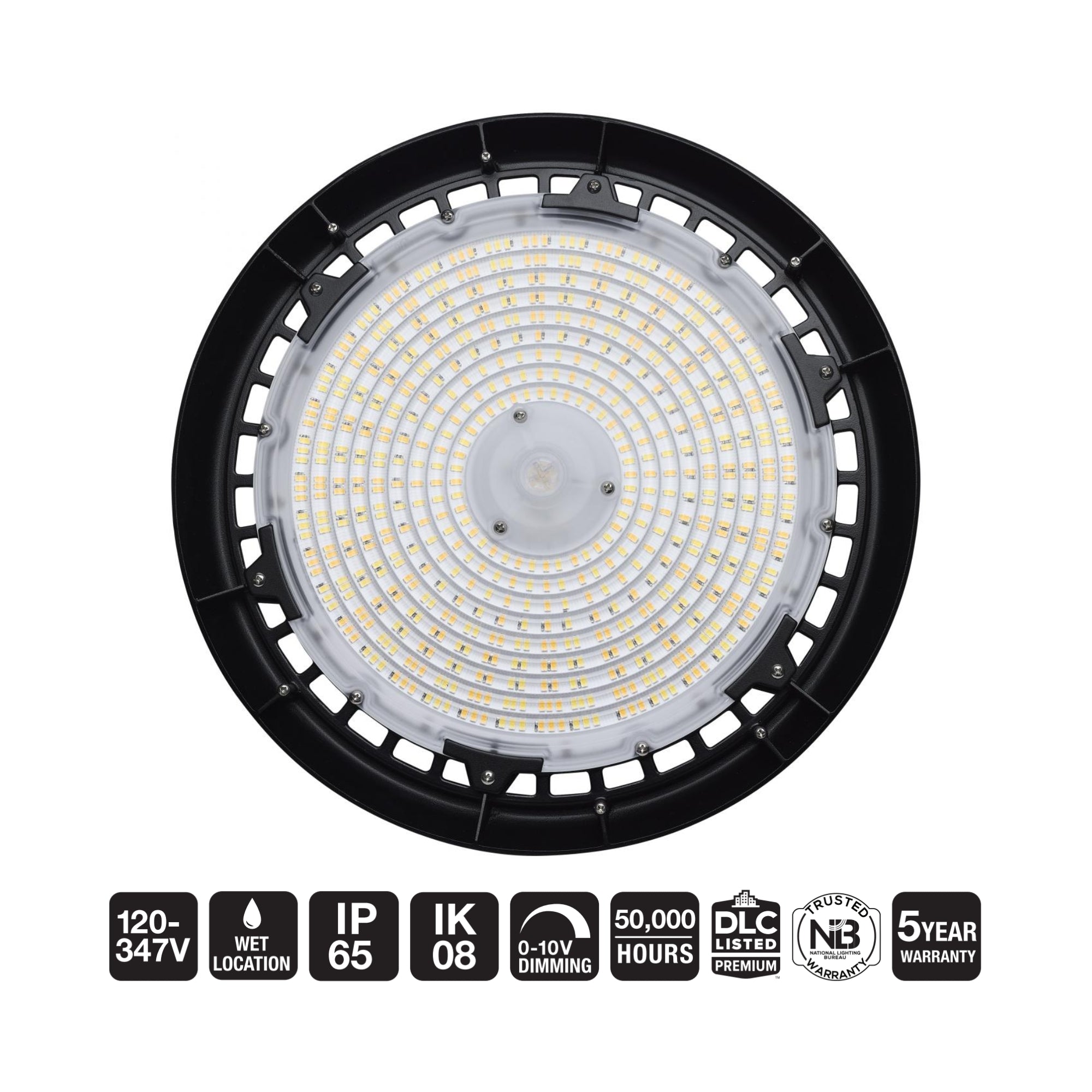

Die-cast aluminum housing with polycarbonate lens and IK08 impact rating. Rated IP65 for wet locations and UL Wet Location listed, suitable for indoor and covered outdoor commercial environments.

Installation & Mounting:
Includes locking hanging hook and 6' supply whip for quick installation. Optional surface, pendant, and yoke mounting accessories available.

Accessories:
Optional accessories include pendant mount kits, yoke brackets, wire guards, motion and daylight sensors, and emergency battery backup units.
