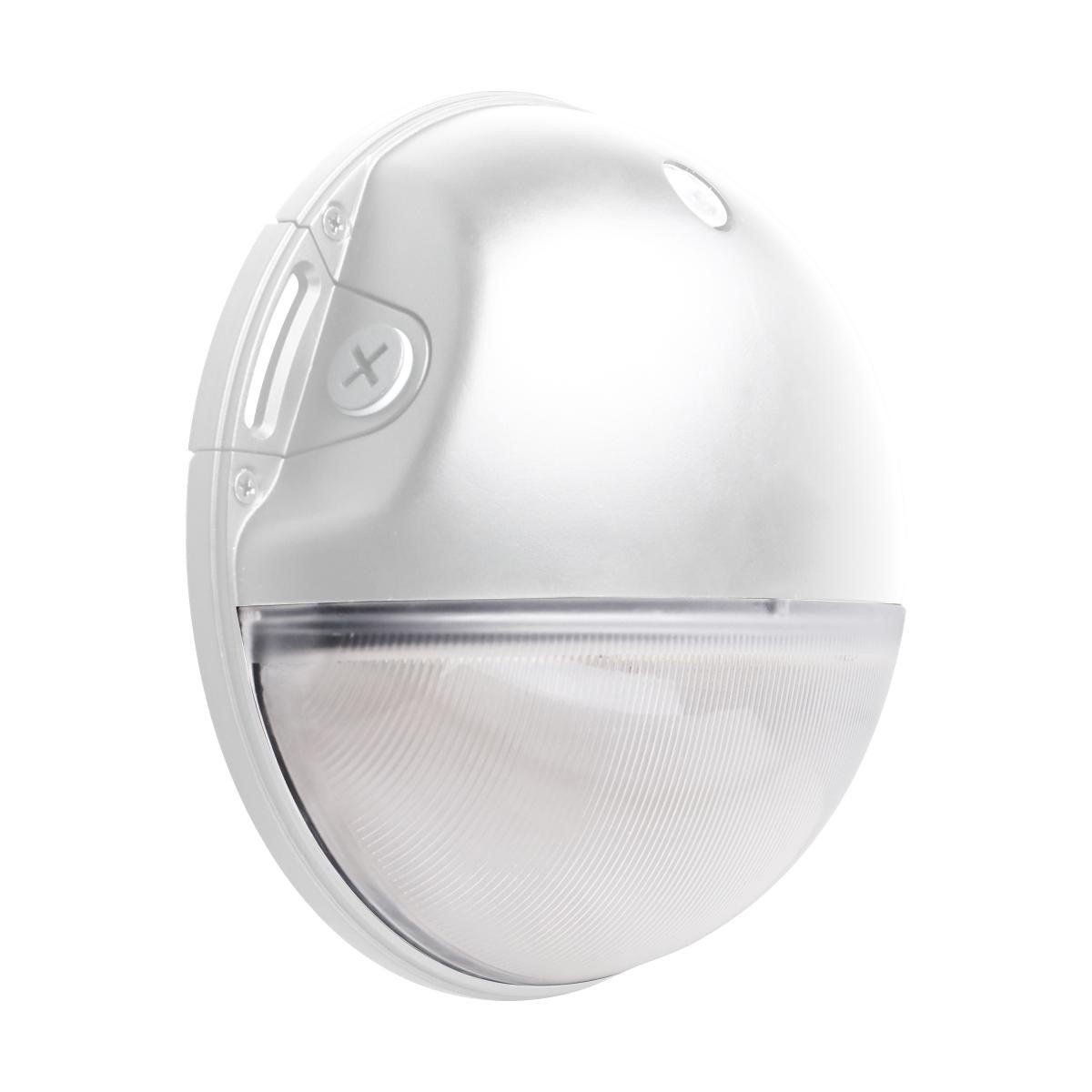

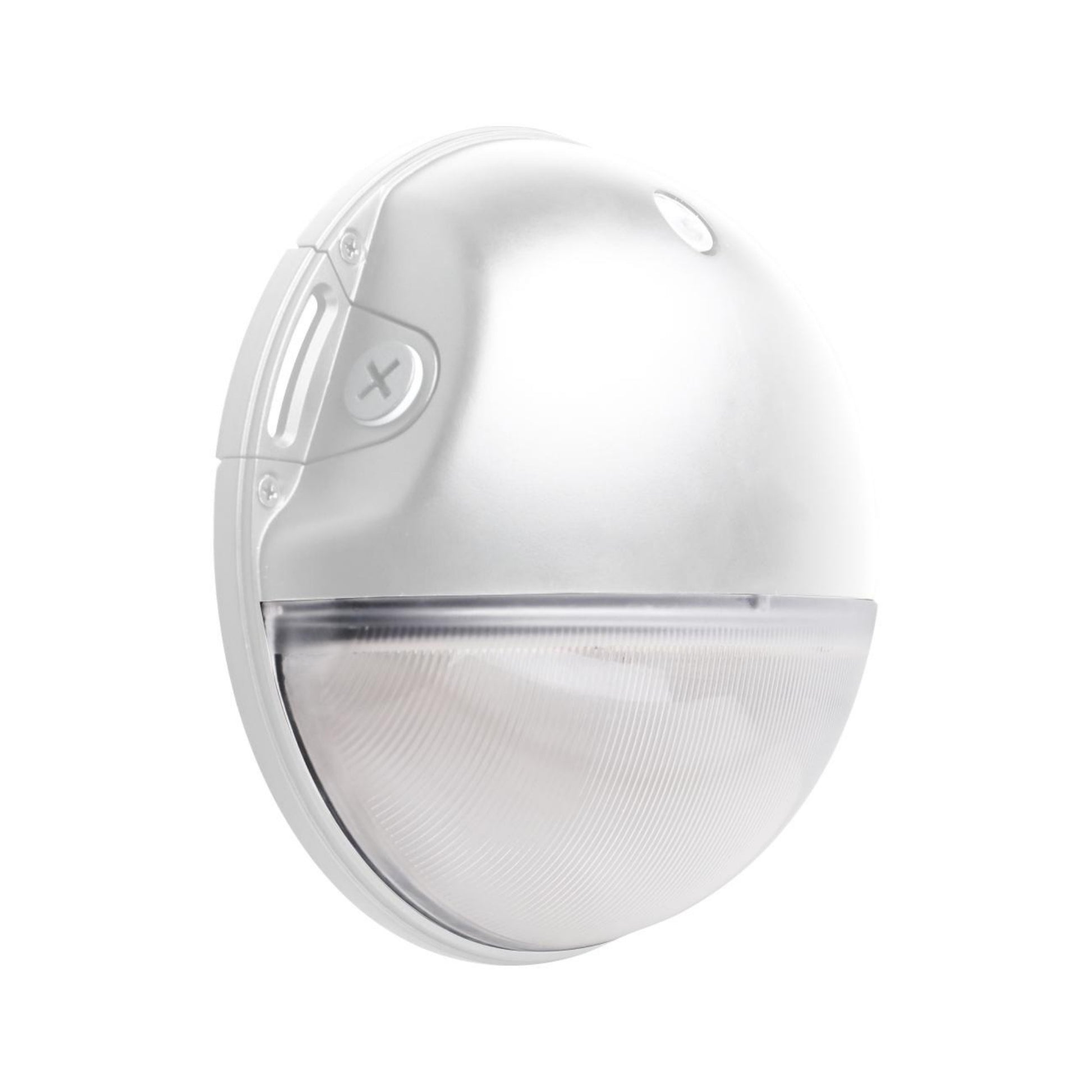

Satco 65-752 Field Selectable Small Round Mini LED Wall Pack — 20W — 3000K/4000K/5000K — White

The Satco 65-752 is a commercial Field Selectable small round mini LED wall pack engineered to deliver 2,600–2,800 lumens (up to 2,800 lumens at up to 140 lm/W) from a maintenance-free 20W light engine across ColorQuick switchable 3000K, 4000K, and 5000K color temperatures. Operating on universal 120-277V electrical systems with 0-10V dimming, it replaces legacy 100W HID and 150W incandescent fixtures while qualifying for DLC Premium utility rebates. Built with a weatherproof IP65 die-cast aluminum body and cULus wet-location certification, this compact doorway and perimeter luminaire features a slim 3.4" ADA-compliant wall extension (8-3/4" / 8.7" diameter, 2.64 lbs), three 1/2" NPT conduit knockout points (one on each side and one on the back), an impact-resistant polycarbonate lens, an integrated by-passable dusk-to-dawn photocell, and 2.5kV surge protection.

Key Features

  • Wattage: Fixed 20W integrated LED system
  • Wattage Equivalency: Replaces 100W HID and 150W incandescent luminaires
  • Lumen Output: 2,600–2,800 lm across selectable CCTs
  • Peak Efficacy: Up to 140 lm/W
  • CRI: 80+ CRI (flicker-free operation)
  • Selectable CCT: ColorQuick 3000K / 4000K / 5000K internal selector switch
  • Lens & Optics: Impact-resistant polycarbonate lens with 100° beam angle (B1-U3-G2)
  • Photocell & Controls: Integrated by-passable dusk-to-dawn photocell
  • Dimming: 0-10V continuous dimming
  • Voltage & Surge Protection: 120-277V AC, 50/60Hz; built-in 2.5kV surge protection
  • Location & Body Rating: cULus Wet Location certified; IP65 weatherproof rated; Air Tight; ADA Compliant
  • Operating Temperature: -22°F (-30°C) to 113°F (45°C)
  • Certifications: DLC Premium Listed, cULus Certified, IP65, ADA Compliant, FCC Compliant, RoHS Compliant
  • Rated Life: L70 50,000 hours rated lifespan
  • Warranty: 5-year limited warranty - Satco

Performance & Light Output

System Wattage Lumen Output Efficacy Selectable CCT Legacy Equivalent
20W 2,600–2,800 lm 130–140 lm/W 3000K / 4000K / 5000K 100W HID / 150W Incandescent

Delivers flicker-free illumination with 80+ CRI across warm-to-cool white color settings. Achieves an IES BUG Rating of B1-U3-G2. Rated life of 50,000 hours (L70).

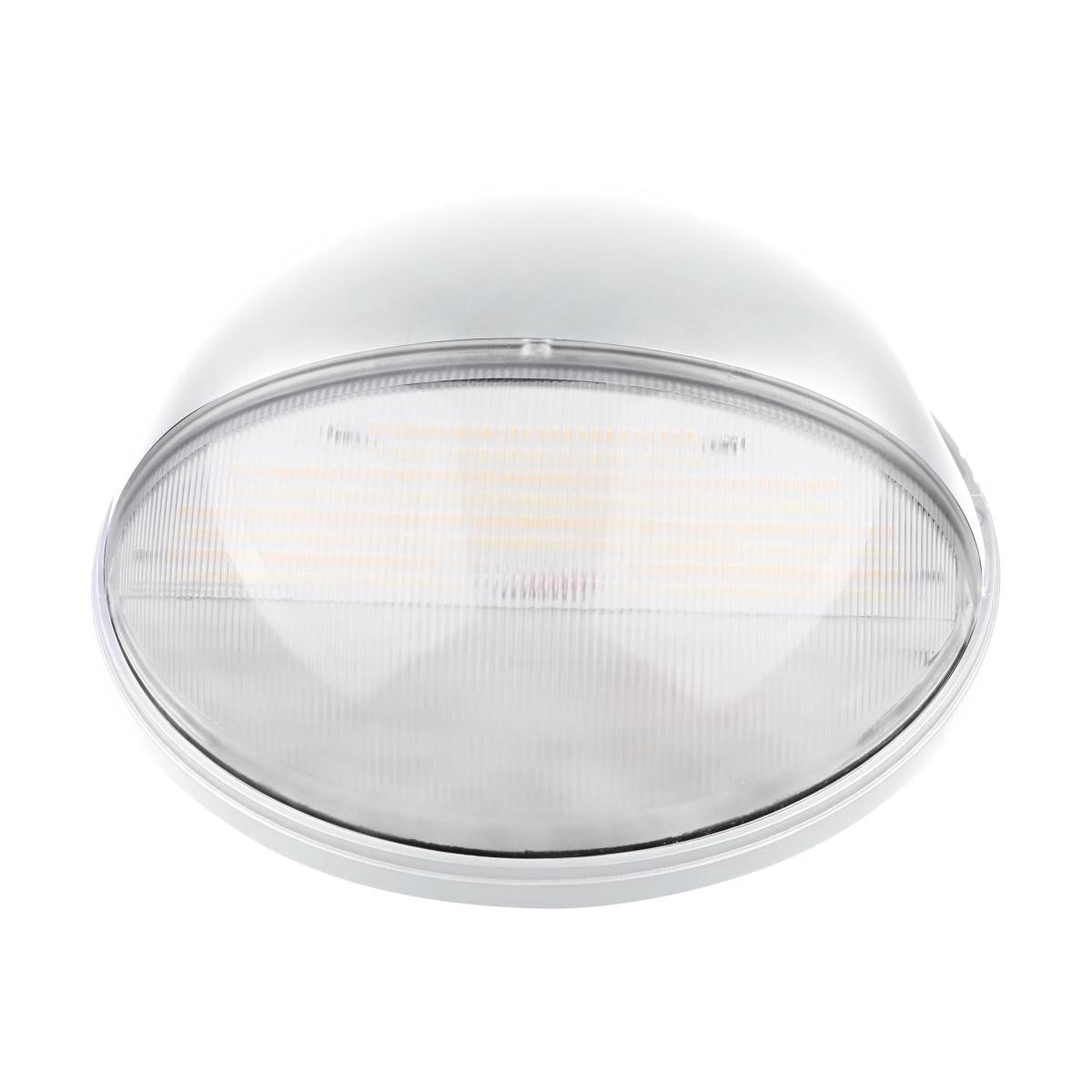

Lens & Optics

Engineered with an impact-resistant polycarbonate lens under a half-shrouded round die-cast aluminum hood delivering a dedicated 100° beam angle and B1-U3-G2 forward-throw distribution. The upper eyelid shield minimizes upward glare while projecting smooth, low-glare pedestrian walkway, entryway, and landscape illumination from a compact 3.4" (3-3/8") ADA-compliant profile.

Smart & Control Features

Engineered for automated dusk-to-dawn operation, field-selectable color tuning, and commercial dimming:

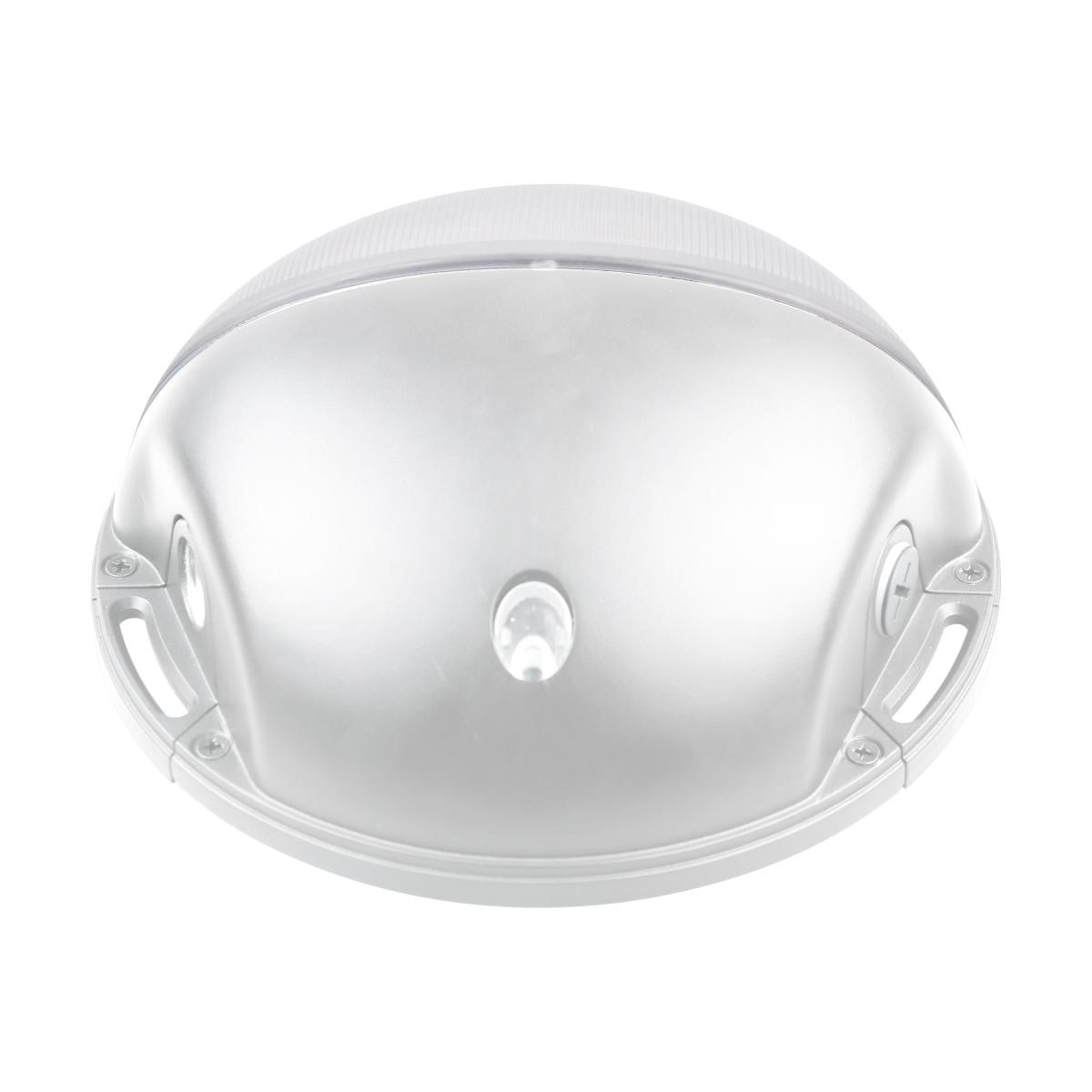

  • Integrated By-Passable Photocell: Top-mounted dusk-to-dawn photocell automatically activates the luminaire at dusk and turns it off at dawn, or can be bypassed for manual wall-switch, timer, or lighting panel operation.
  • Internal ColorQuick CCT Switch: Accessible internal selector switch lets installers toggle between 3000K warm white, 4000K cool white, and 5000K daylight at installation.
  • 0-10V Continuous Dimming: Compatible with commercial 0-10V dimming controls and building automation systems.

Electrical

Powered by a constant current driver operating on universal 120-277V AC at 50/60Hz with a Power Factor >0.9, Total Harmonic Distortion (THD) of 15%, and flicker-free output. Built-in 2.5kV surge protection safeguards internal LED and driver components against electrical line transients. Includes 0-10V dimming leads.

Operating current and amp draw across 120V–277V input voltages for branch circuit and breaker loading calculations:

Wattage 120V Current (A) 277V Current (A)
20W 0.167A 0.072A

Construction

Housing & Thermal: Compact round die-cast aluminum body engineered for passive thermal dissipation and maintenance-free outdoor durability.

Finish: UV-stabilized powder-coated White finish formulated to resist fading, flaking, and corrosion.

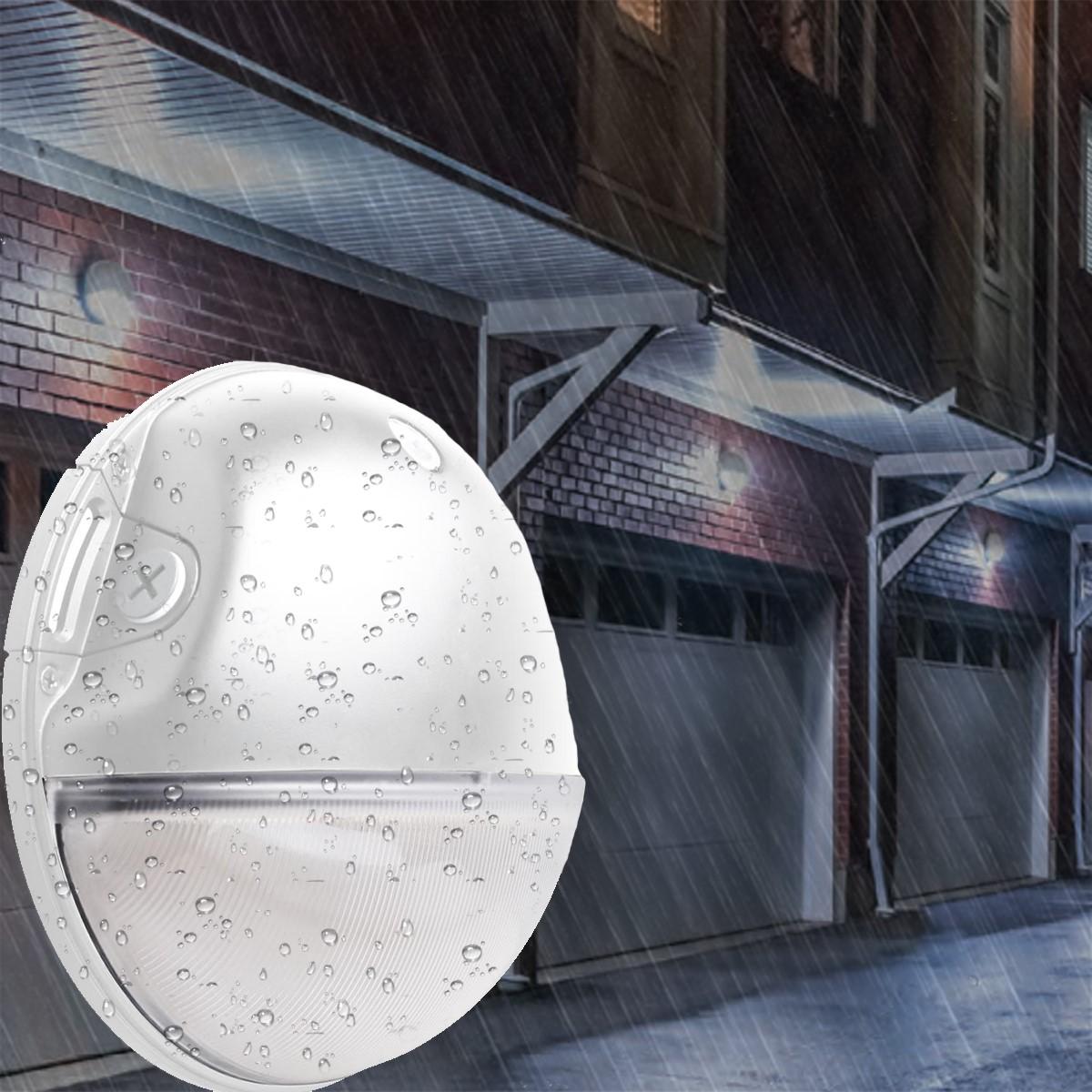

Environmental Sealing: IP65 weatherproof rated, Air Tight rated, and cULus Certified for wet locations. Ambient operating temperature: -22°F (-30°C) to 113°F (45°C).

Dimensions & Weight: 8.7" Dia (8-3/4" / 220.9mm) x 3.4" D (3-3/8" / 86.4mm). Fixture weight: 2.64 lbs.

Installation & Mounting

Mounting Hardware: Compact 8.7" (8-3/4") diameter round die-cast aluminum enclosure extends only 3.4" (3-3/8") from the wall (2.64 lbs), meeting ADA (Americans with Disabilities Act) wall-protrusion requirements (<4") for pedestrian walkways, stairwells, and doorways.

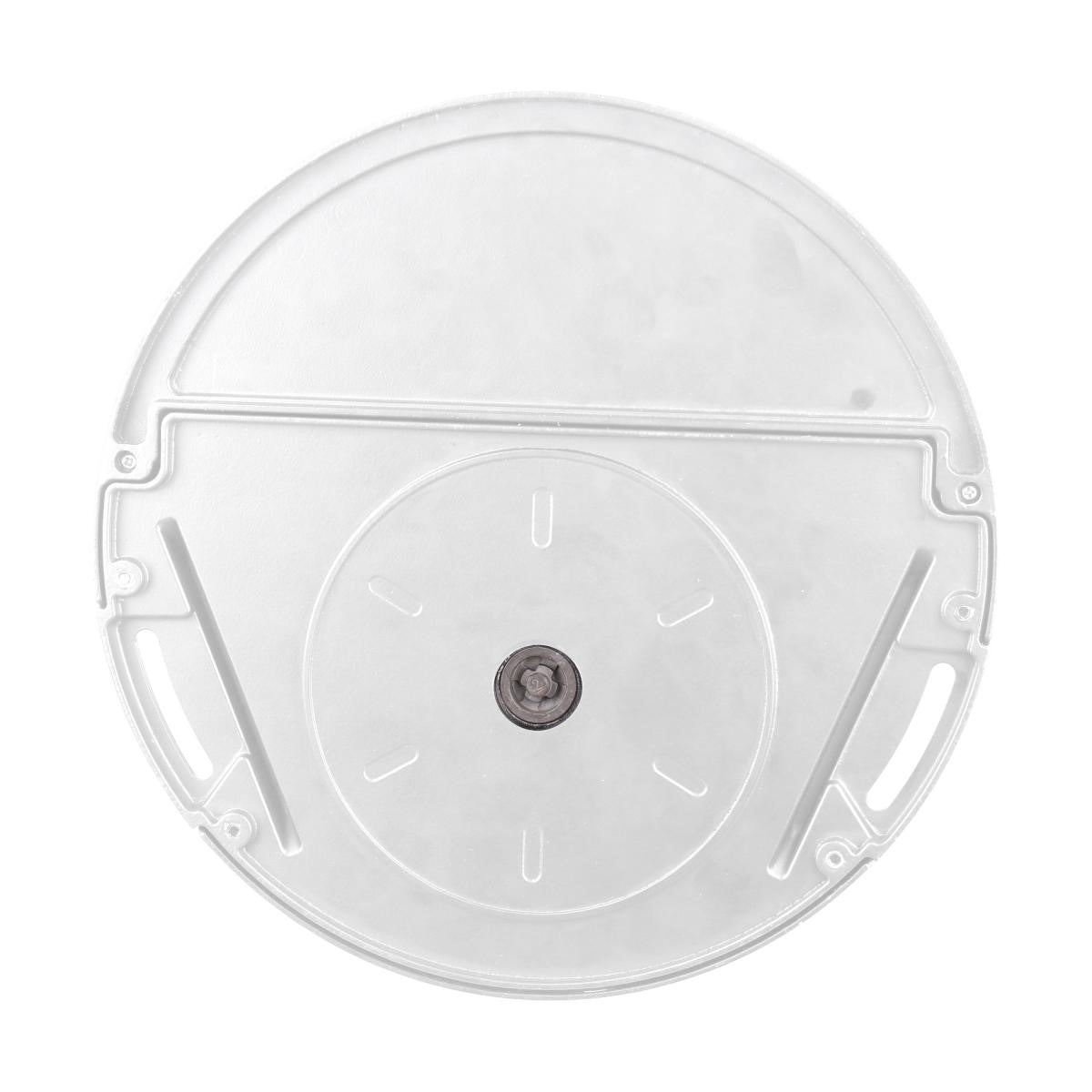

Conduit & Wiring Access: Equipped with three (3) 1/2" NPT threaded conduit knockout points—one on either side and one on the back—for pass-through surface conduit wiring or direct recessed junction box installation.

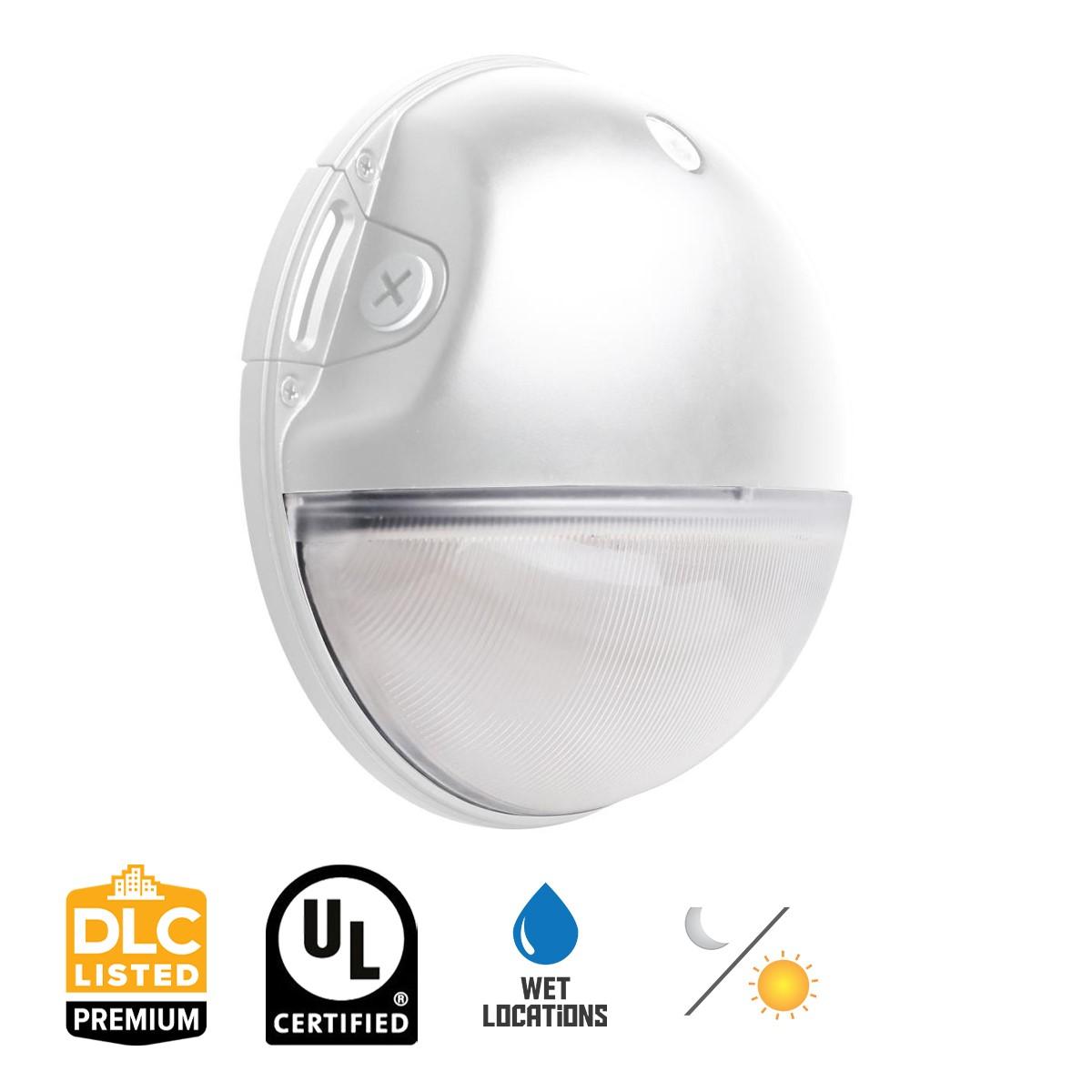

Certifications & Rebates

  • DLC Premium Listed: DLC Approved for commercial utility rebates (searchable on designlights.org; DLC ID PLGEPXY78U37 on 65-752)
  • cULus Certified: Certified for wet locations per outdoor luminaire safety standards
  • IP65 & Air Tight Rated: Ingress protection rating of IP65 against dust and water jets
  • ADA Compliant: Slim 3.4" (3-3/8") wall extension meets ADA requirements for wall-mounted luminaires
  • FCC & California Compliant: FCC Compliant; California Title 20 Exempt and lawful for sale in California
  • RoHS Compliant: Free of mercury and restricted hazardous substances

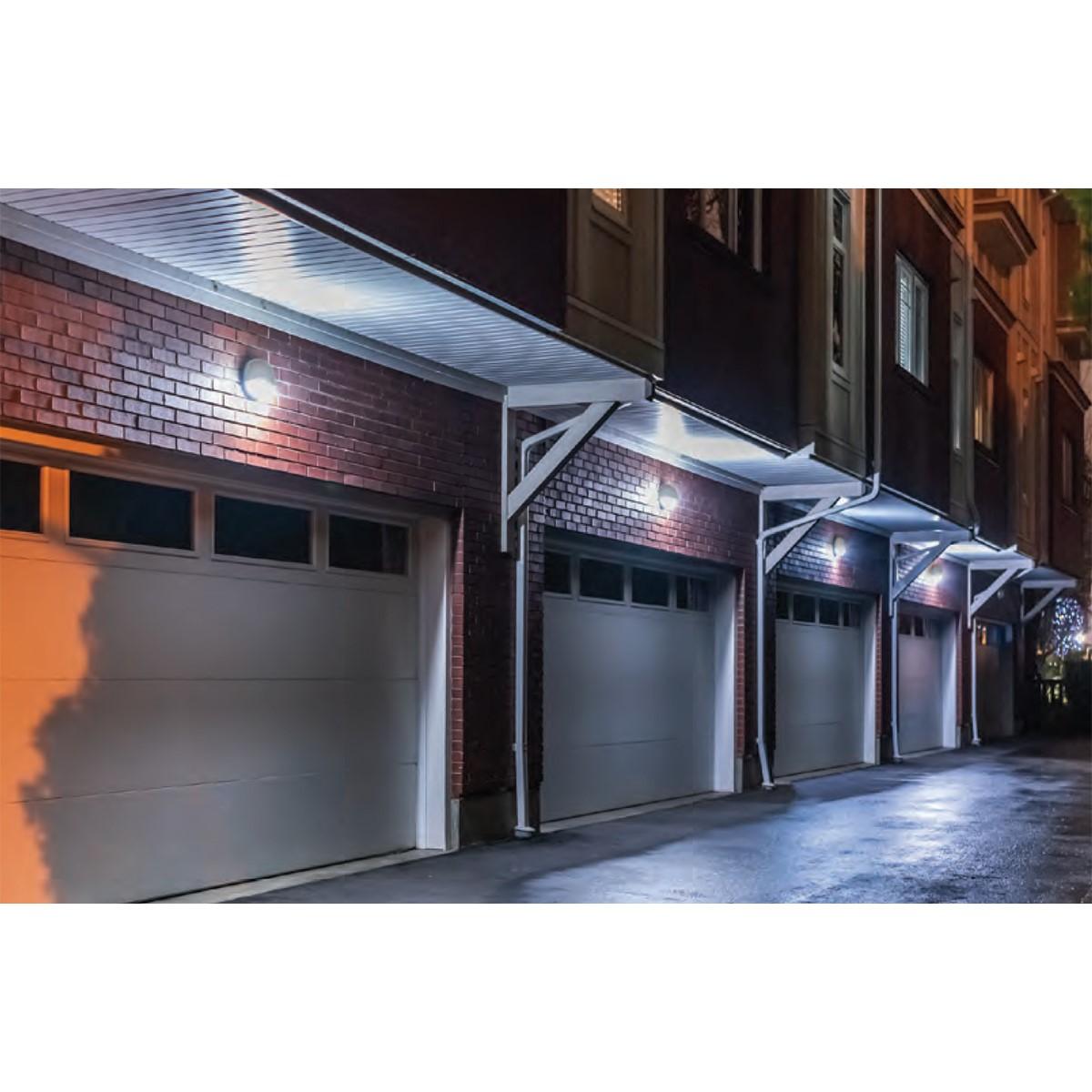

Typical Applications

  • Multi-Unit Residential & Hospitality - Compact 8.7" round architectural profile in UV-stabilized powder coat complements modern building exteriors, balconies, and breezeways
  • ADA Walkways & Pedestrian Corridors - Slim 3.4" wall projection complies with ADA protrusion limits while delivering 2,600–2,800 lumens across a 100° beam spread
  • Light Commercial Entryways & Doorways - Replaces 100W HID and 150W incandescent fixtures with maintenance-free 50,000-hour LED performance
  • Surface Conduit & Pass-Through Walls - Three 1/2" NPT knockout points on both sides and the back streamline pass-through conduit runs
  • Landscape Walls & Perimeter Security - Integrated by-passable photocell, IP65 wet-location sealing, and 2.5kV surge protection automate all-weather dusk-to-dawn lighting

What's Included

  • Satco 65-752 Field Selectable Small Round Mini LED Wall Pack - White (UPC: 045923657702)
  • Pre-installed by-passable dusk-to-dawn photocell
  • Threaded 1/2" NPT knockout plugs, installation hardware, and operation manual

Specifications

Dimensions

Length/Depth
8.7 in
Width/Diameter
8.7 in
Height
8.7 in
Weight
2.42 lb

Style & Materials

Finish
White
Material
Aluminum
Style
Shape
Mini

Characteristics & Features

Lamp Source
led
Base Type
Integrated
Bulb Included
Yes
Number of Lights
1
Lamp Color
3000K, 4000K, 5000K, Selectable CCT
Color Rendering
80 CRI
Delivered Lumens
2800
Beam Angle
100.00
Dimmable
Yes

Electrical Information

Voltage
120-277V
Total Wattage
20W
Bulb Wattage
20W

Item Details

MPN
65-752
Brand
SATCO|NUVO
UPC
045923657702

Warranty & Certifications

Product Warranty
5 Year Limited - Fixtures
Lamp Life
50000 hours
Product Rating
IP65 Rated
Safety Listing
cULus

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

Is the Satco 65-752 round mini wall pack ADA compliant, and how many conduit knockouts does it have?

Yes, this compact round wall pack measures 8.7 inches (8-3/4") in diameter and extends just 3.4 inches (3-3/8") from the wall (2.64 lbs) to meet ADA compliance. Its die-cast aluminum housing includes three 1/2-inch NPT knockout points—one on either side and one on the back—for pass-through or J-box wiring.

What lumen output, HID equivalency, and color temperatures does the Satco 65-752 provide?

This 20W integrated LED luminaire delivers 2,600 to 2,800 lumens at up to 140 lm/W efficacy, replacing 100W HID and 150W incandescent fixtures. An internal ColorQuick selector switch lets installers choose between 3000K warm white, 4000K cool white, and 5000K daylight with 80+ CRI.

Can the built-in photocell on the Satco 65-752 be bypassed, and does it support dimming?

Yes, this fixture includes an integrated by-passable dusk-to-dawn photocell that can be enabled for automatic nighttime operation or bypassed for manual switch control. It operates on universal 120-277V AC circuits (0.167A at 120V; 0.072A at 277V) with >0.9 power factor, 15% THD, and 0-10V continuous dimming.

What lens material, weather rating, and surge protection protect the Satco 65-752 outdoors?

The luminaire combines an impact-resistant polycarbonate lens (100° beam angle, B1-U3-G2) with a UV-stabilized powder-coated white die-cast aluminum body. It is IP65 weatherproof rated, cULus wet-location certified, protected by built-in 2.5kV surge suppression, and rated for -22°F (-30°C) to 113°F (45°C) operation.

What is the rated LED lifespan, utility rebate status, and warranty coverage for Satco 65-752?

The Satco 65-752 is rated for a maintenance-free 50,000-hour L70 lifespan and holds DLC Premium certification to qualify for commercial utility rebates. It is backed by Satco's 5-year limited warranty and is FCC compliant, RoHS compliant, and California Title 20 exempt.
