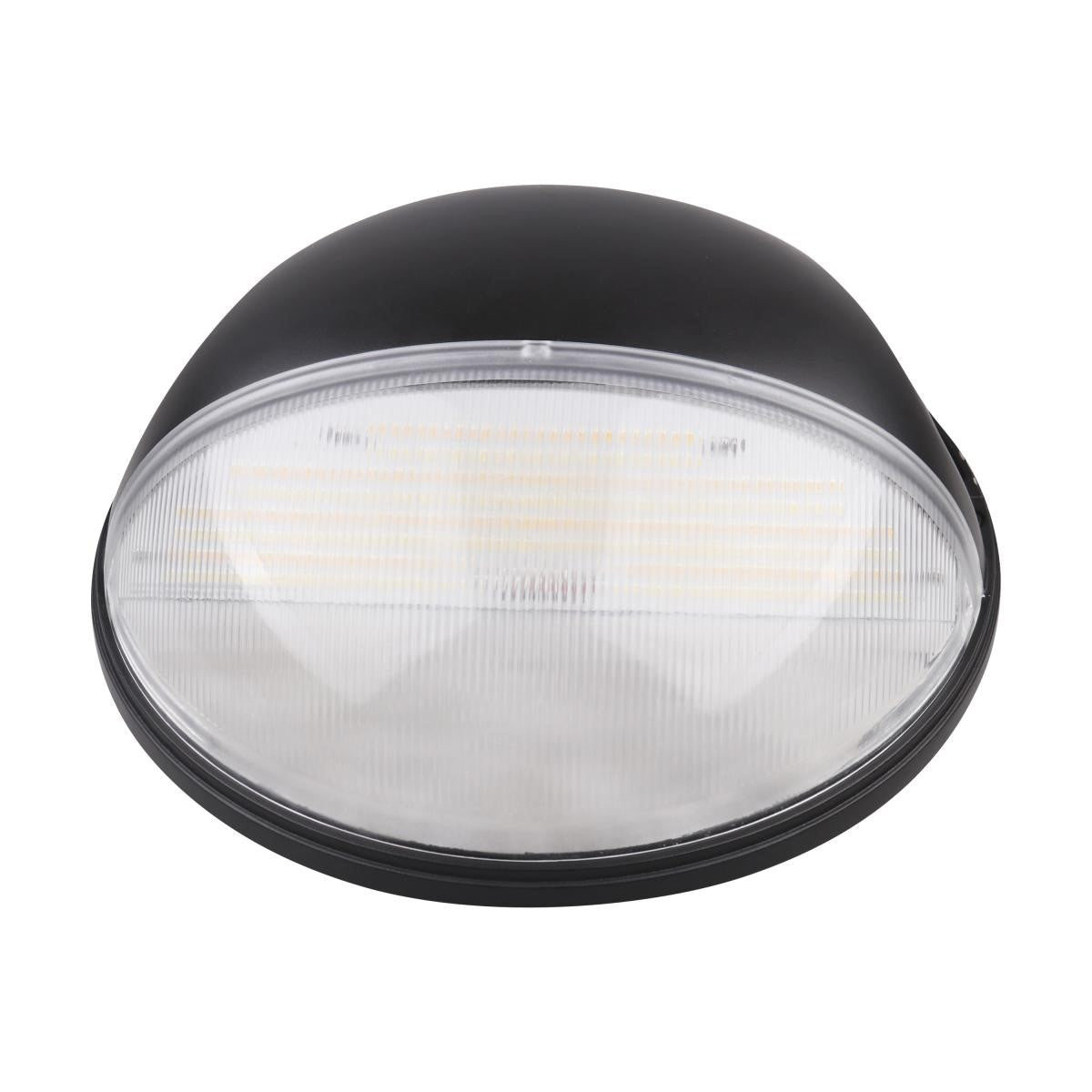

Satco|Nuvo Small Round LED Wall Pack 2,800 Lumens 20W Selectable 30K/40K/50K 120-277V Photocell Bronze 65-751
Out of stock
About this item
About this item
- Selectable CCT: Field-adjustable color temperature technology allows you to switch between 3000K, 4000K, and 5000K on-site for optimal lighting flexibility.
- Compact & Durable Design: Features a rugged die-cast aluminum housing with a slim 8.75" diameter profile and an impact-resistant polycarbonate lens.
- High Efficiency: Delivers up to 2,800 lumens using just 20W of power, offering a highly efficient, energy-saving lighting solution that is DLC Premium listed.
- Integrated Photocell: Comes equipped with a built-in by-passable photocell for automated dusk-to-dawn operation and maximum energy savings.
- Built for Outdoors: IP65 rated for wet locations, complete with 2.5KV surge protection to withstand all weather conditions and ensure long-lasting, maintenance-free operation.
We process payments securely and do not store credit card information.
Description
Description

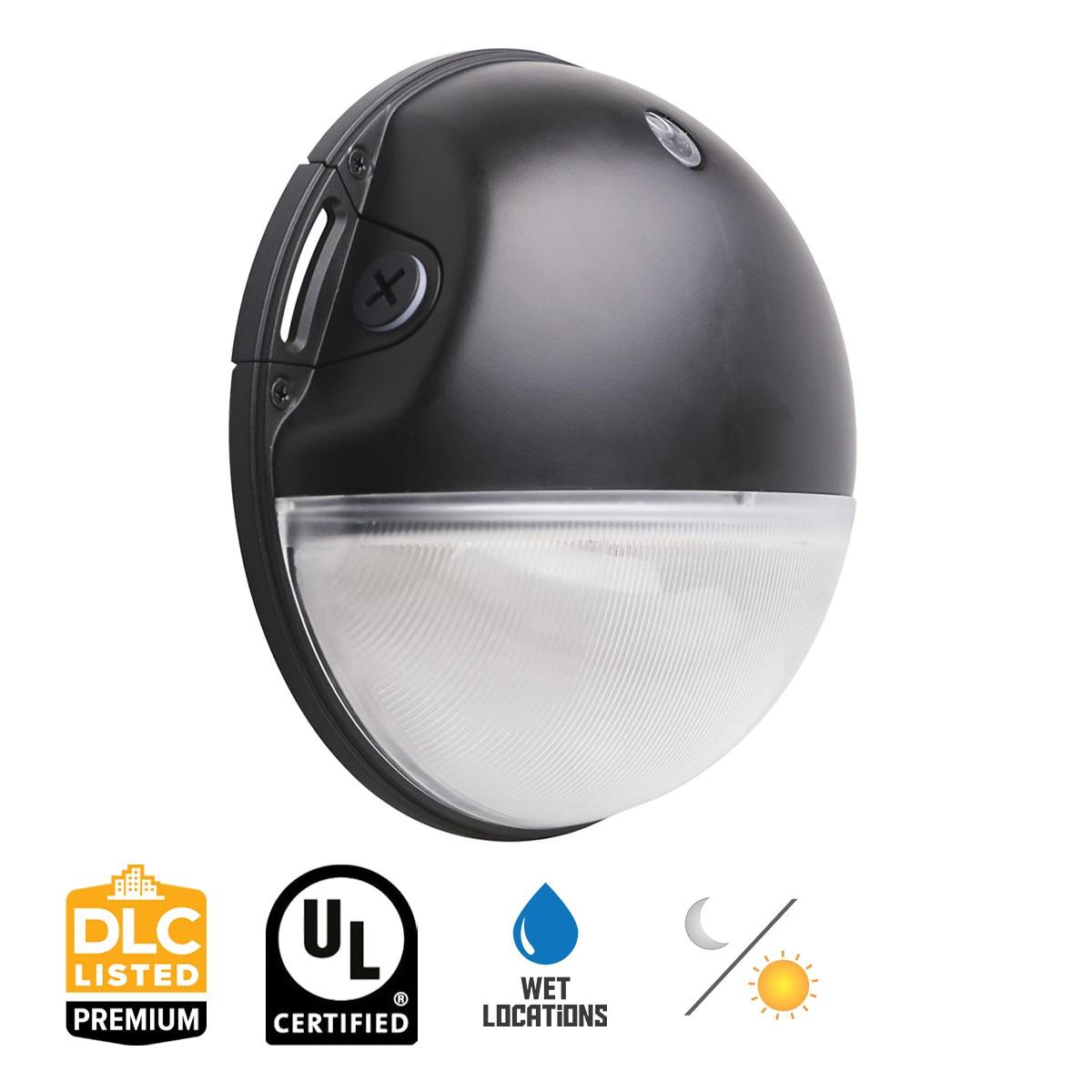

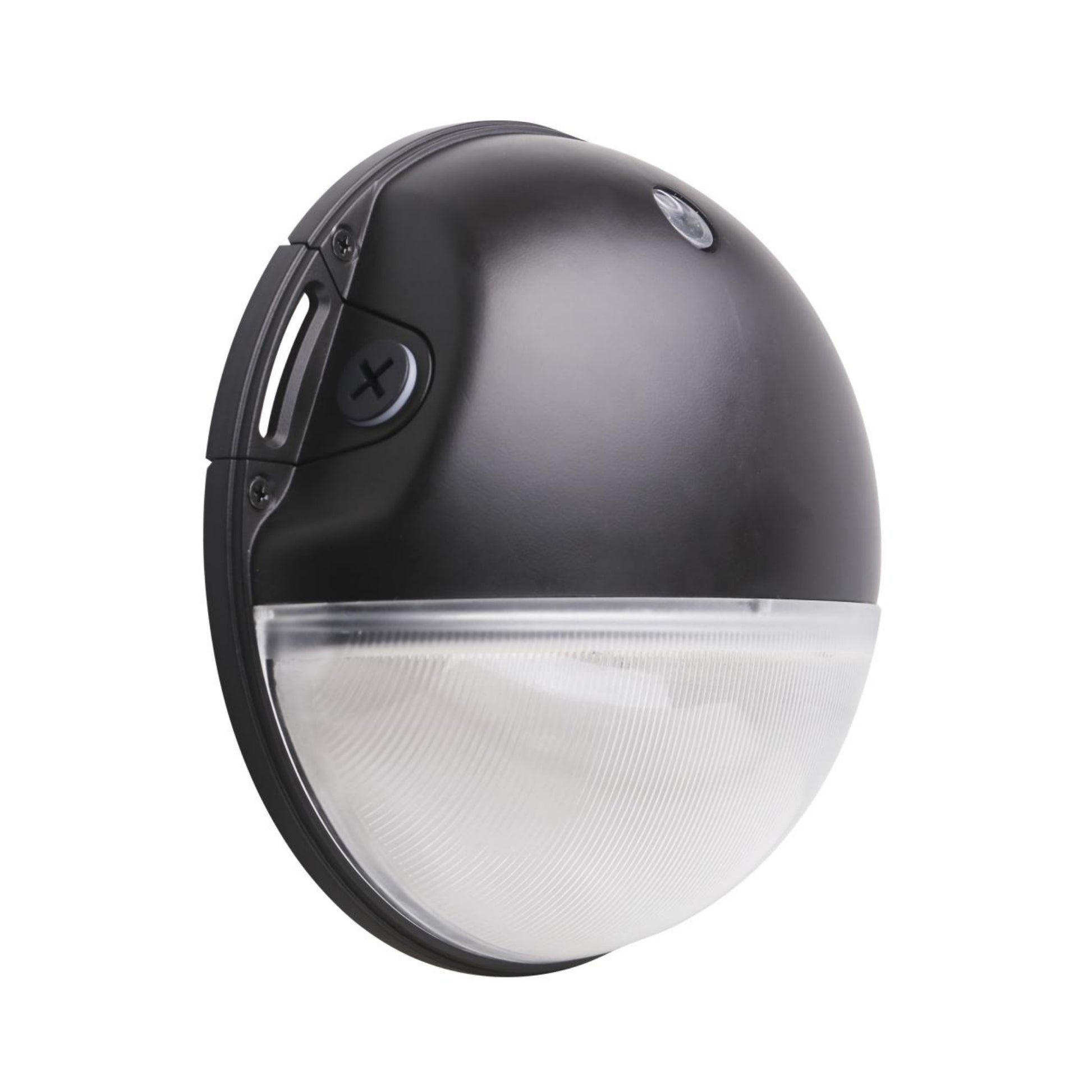

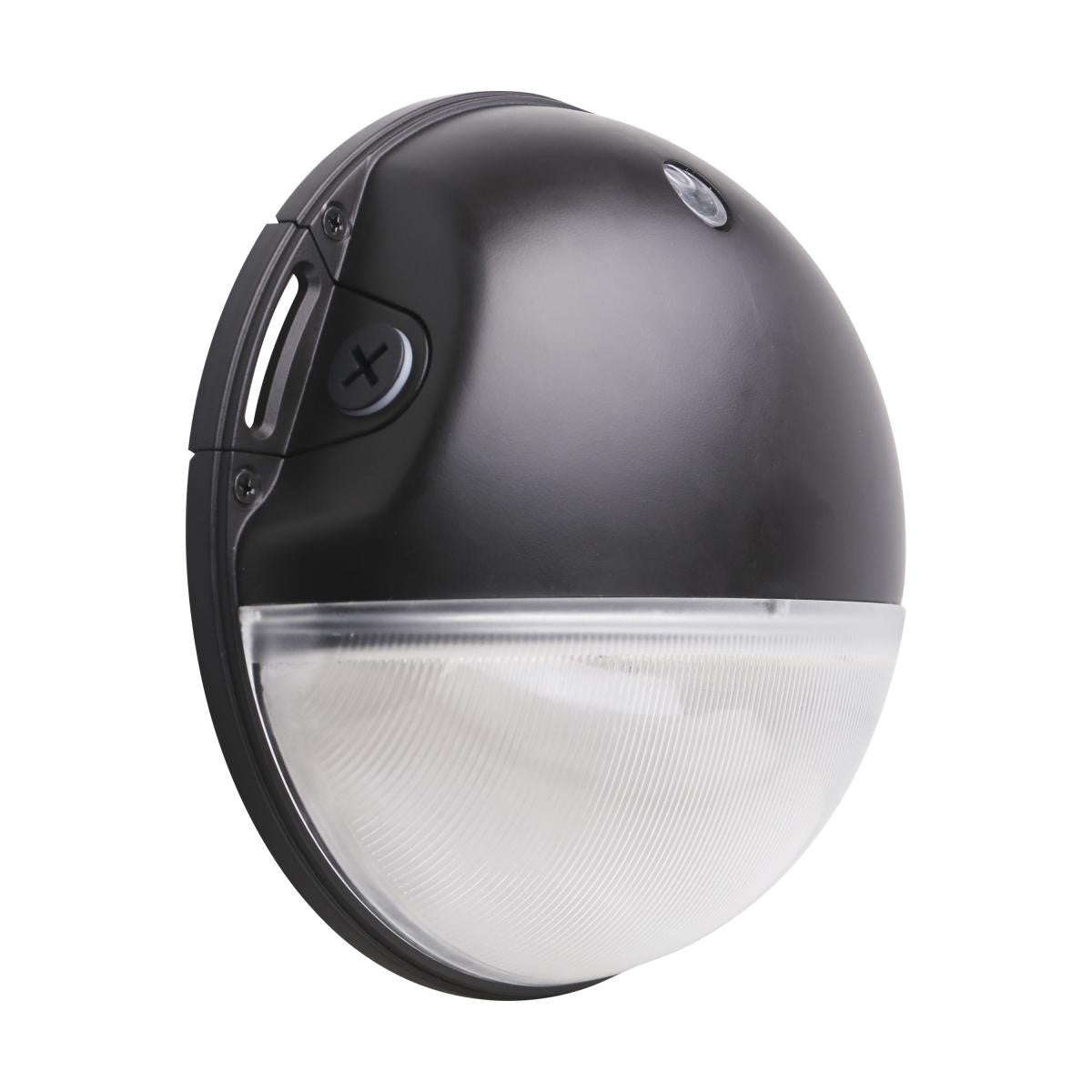

Satco|Nuvo Small Round LED Wall Pack — 20W, Color Selectable, 120–277V, Bronze
The Satco|Nuvo 65-751 is a compact and highly versatile small round LED wall pack delivering up to 2,800 lumens. Engineered for both commercial and residential applications, this 20W fixture features built-in Color Quick™ technology, allowing installers to easily choose between 3000K, 4000K, or 5000K color temperatures using an internal switch. Operating on a 120–277V universal driver, it includes an integrated by-passable photocell for hands-free dusk-to-dawn lighting automation. With its durable die-cast aluminum construction finished in bronze, impact-resistant polycarbonate lens, and IP65 Wet Location rating, it is the ideal maintenance-free solution for multi-unit housing, light commercial buildings, landscapes, and pathways.
Key Features
- Wattage: 20W
- Selectable CCT: 3000K / 4000K / 5000K
- Delivered Lumens: 2,600 to 2,800 lumens
- Voltage: 120–277V universal input
- Dimming: 0–10V dimming standard
- Controls: Integrated by-passable photocell for dusk-to-dawn operation
- Lens: Impact-resistant polycarbonate lens
- Surge Protection: Built-in 2.5KV surge protection
- CRI: 80
- Environmental Ratings: IP65 rated for Wet Locations
- Certifications: cULus Listed, DLC Premium, RoHS Compliant
- Estimated Life: 50,000 hours

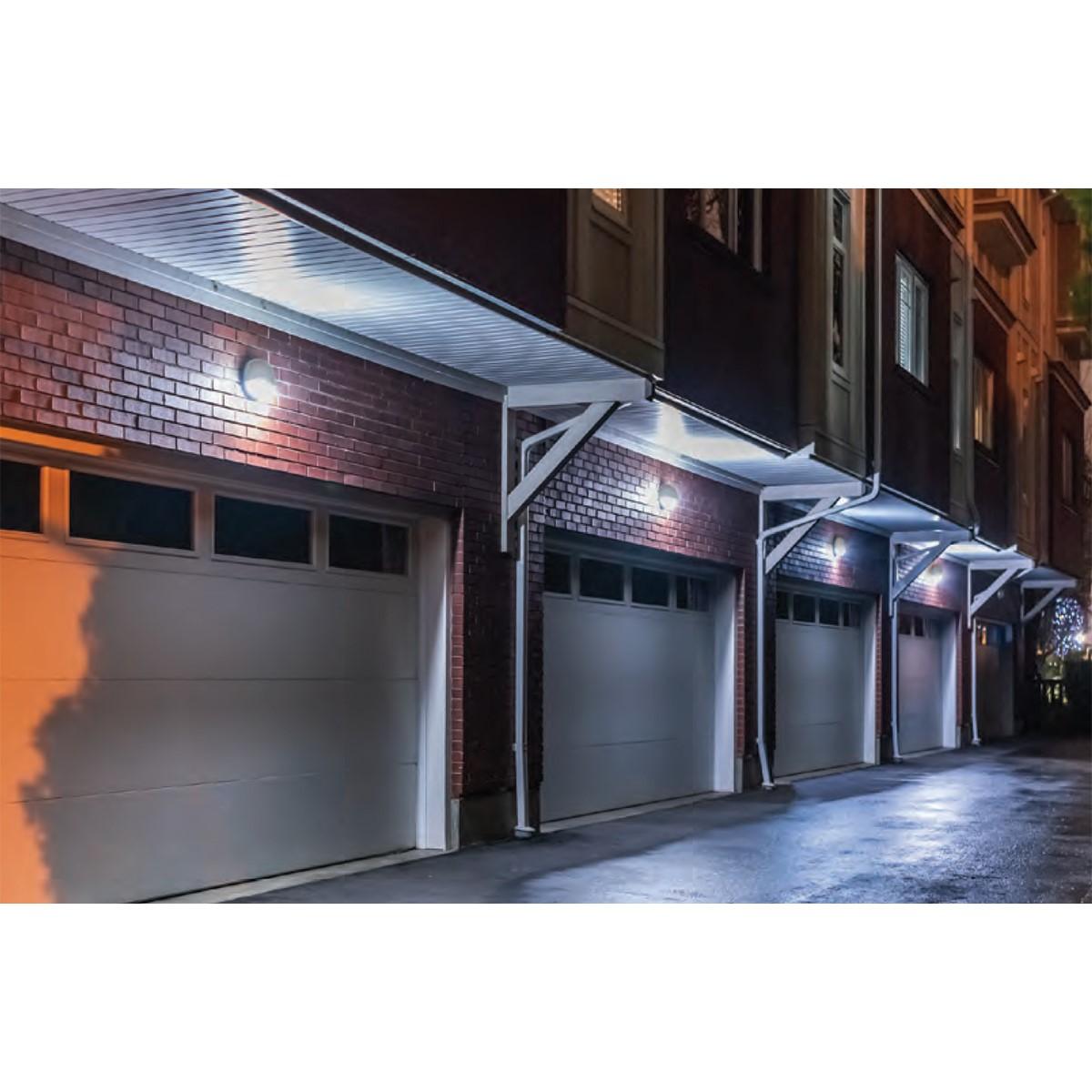

Typical Applications
- Multi-unit housing and residential exteriors
- Light commercial building perimeters
- Walkways, entryways, and pathways
- Landscape and security lighting
Performance & Light Output
The 65-751 round wall pack provides bright, reliable illumination ranging from 2,600 to 2,800 lumens depending on the selected color temperature. Its highly diffused polycarbonate lens casts a smooth, uniform light pattern while providing superior durability. With a 50,000-hour rated lifespan and DLC Premium certification, this fixture drastically reduces energy consumption and maintenance cycles compared to legacy systems.
Electrical & Controls
This fixture operates on a 120–277V AC driver and supports standard 0–10V dimming for integration with advanced lighting controls. The integrated photocell ensures the light only operates when needed, providing reliable dusk-to-dawn automation, but can easily be bypassed if the unit is connected to external timers or centralized building systems.
Construction & Durability

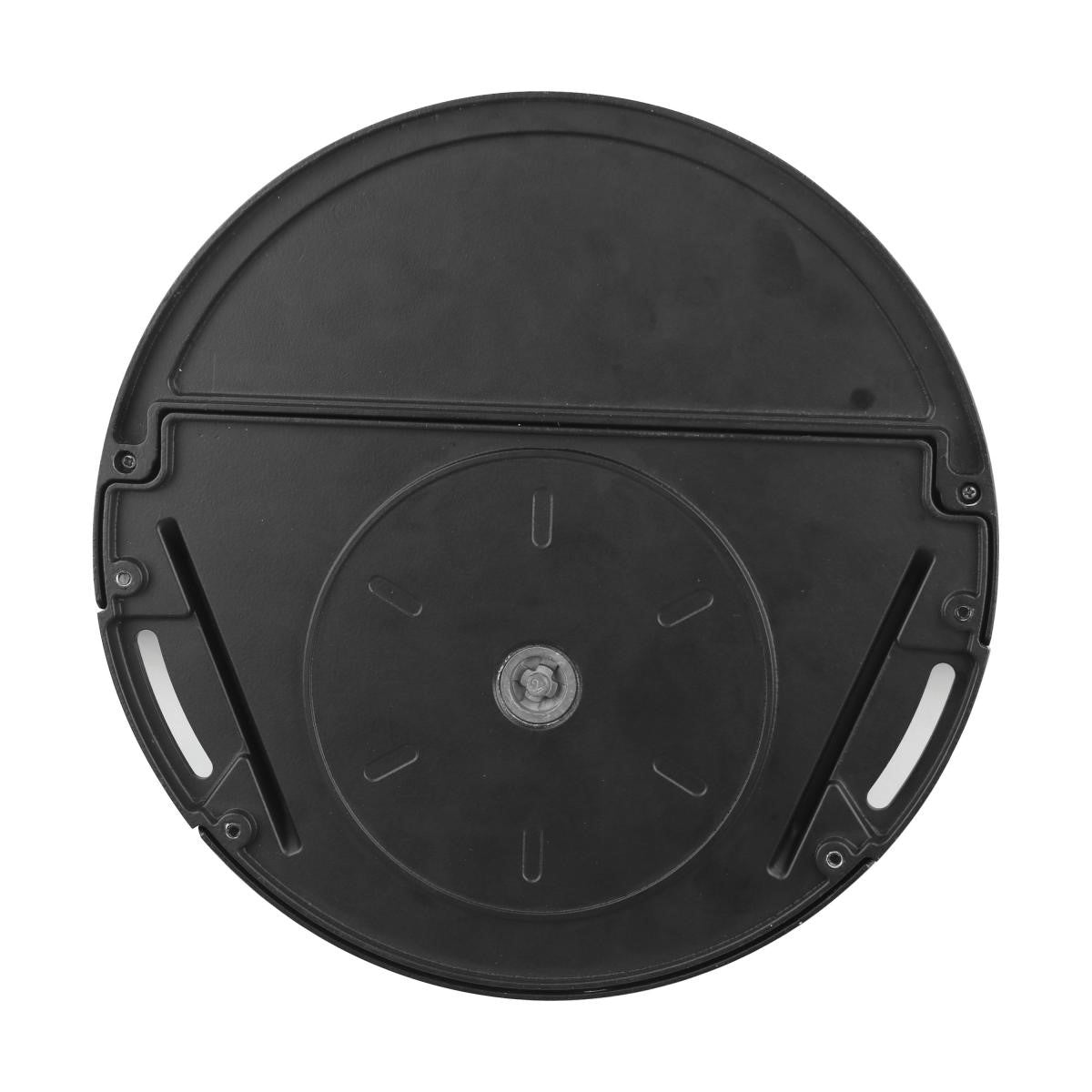

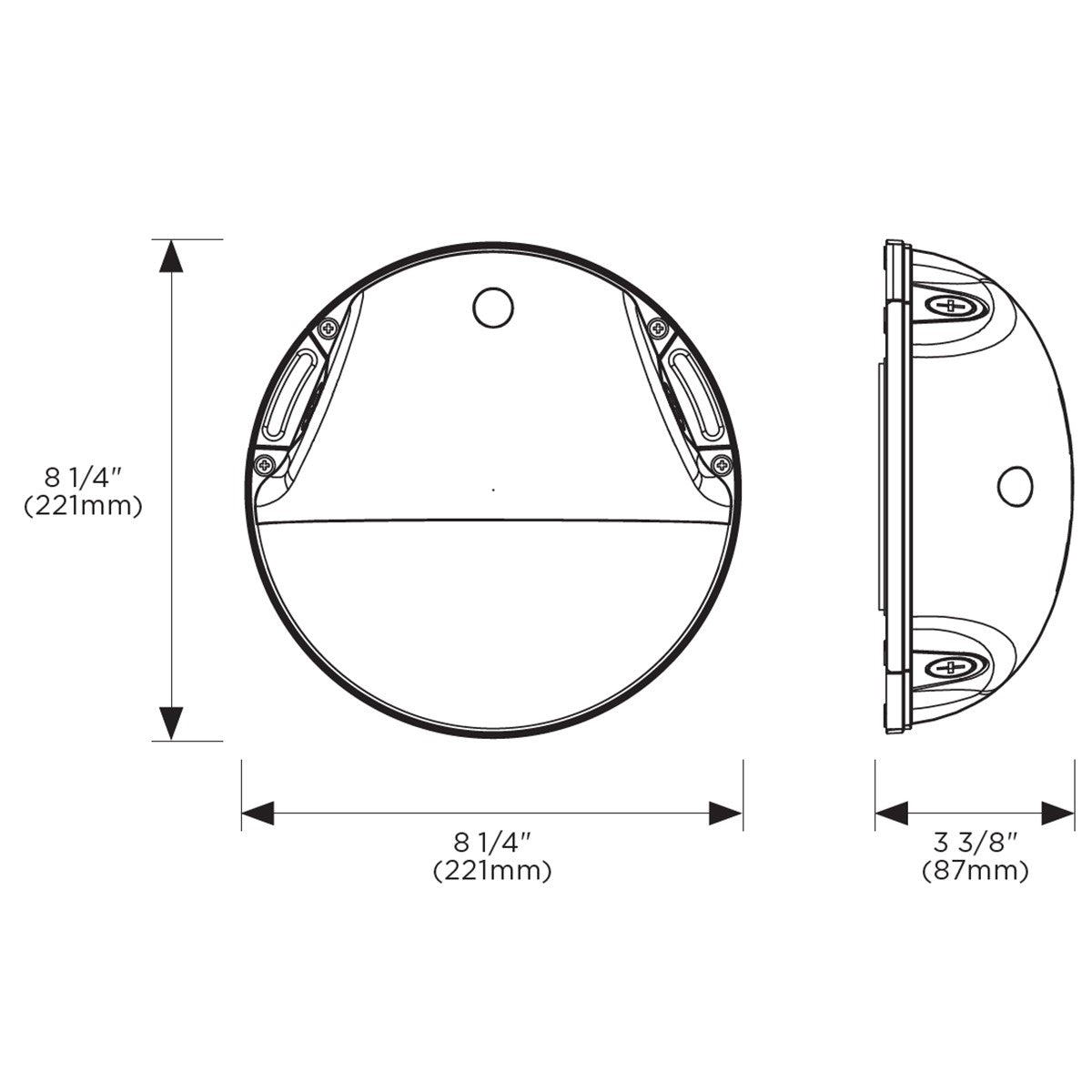

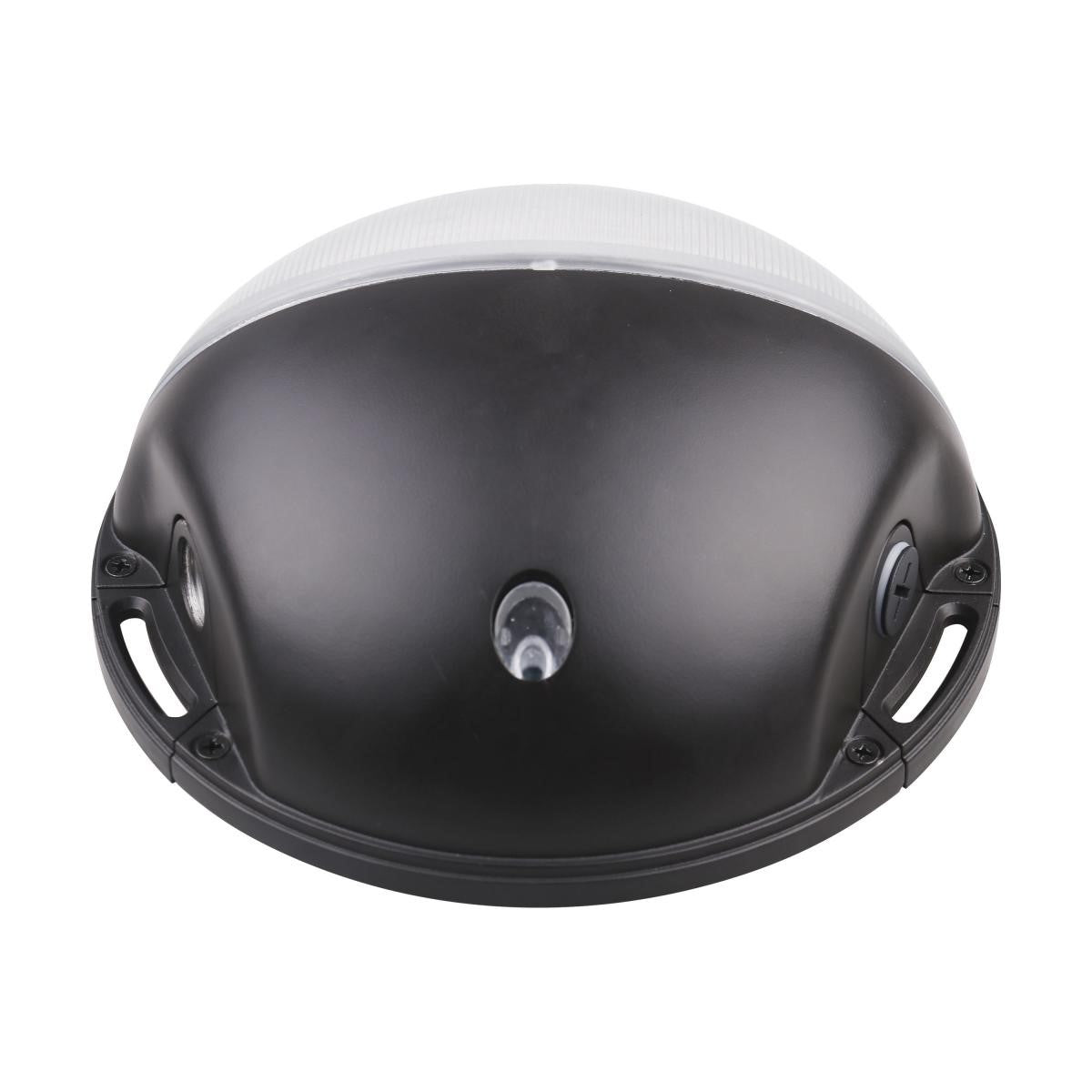

Engineered to withstand the elements, the fixture features a compact, heavy-duty die-cast aluminum housing (just 8.75" in diameter) finished in a classic bronze. It includes multiple 1/2-inch NPT knockout points for flexible pass-through wiring. The fixture is fully IP65 rated, protecting it against dust and wet weather in all conditions.
What's Included
- Satco|Nuvo Small Round LED Wall Pack (Bronze)
- Integrated Photocell
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
Yes, it features a standard 0-10V dimmable driver, allowing you to easily adjust the light output when connected to compatible 0-10V dimming controls.
Yes, it features a standard 0-10V dimmable driver, allowing you to easily adjust the light output when connected to compatible 0-10V dimming controls.

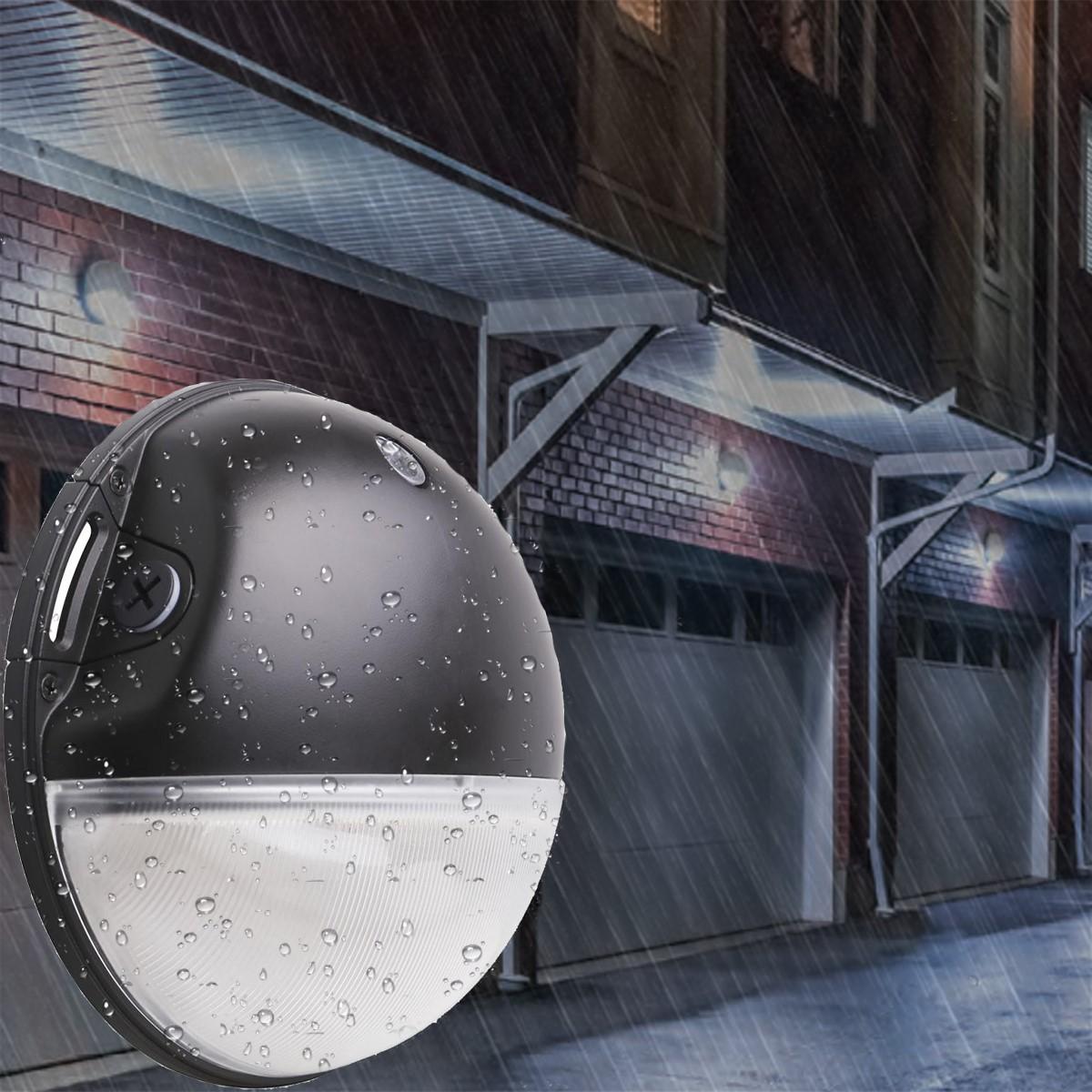

Can this wall pack be used in wet weather?
Can this wall pack be used in wet weather?
Absolutely. This fixture features an IP65 rating and a durable die-cast aluminum housing with an impact-resistant polycarbonate lens, making it fully protected against wet locations and all weather conditions.
Absolutely. This fixture features an IP65 rating and a durable die-cast aluminum housing with an impact-resistant polycarbonate lens, making it fully protected against wet locations and all weather conditions.
What input voltage does this handle?
What input voltage does this handle?
This fixture is equipped with a universal driver that can handle any voltage from standard 120V up to 277V AC, making it highly versatile for most commercial and residential applications.
This fixture is equipped with a universal driver that can handle any voltage from standard 120V up to 277V AC, making it highly versatile for most commercial and residential applications.
