SATCO|NUVO Square LED Canopy Light 6288 Lumens 45W Selectable CCT 120-277V Bronze
Available in stock (708)
About this item
About this item
- Lumens: This canopy light provides up to 6288 lumens, ensuring bright illumination for outdoor spaces.

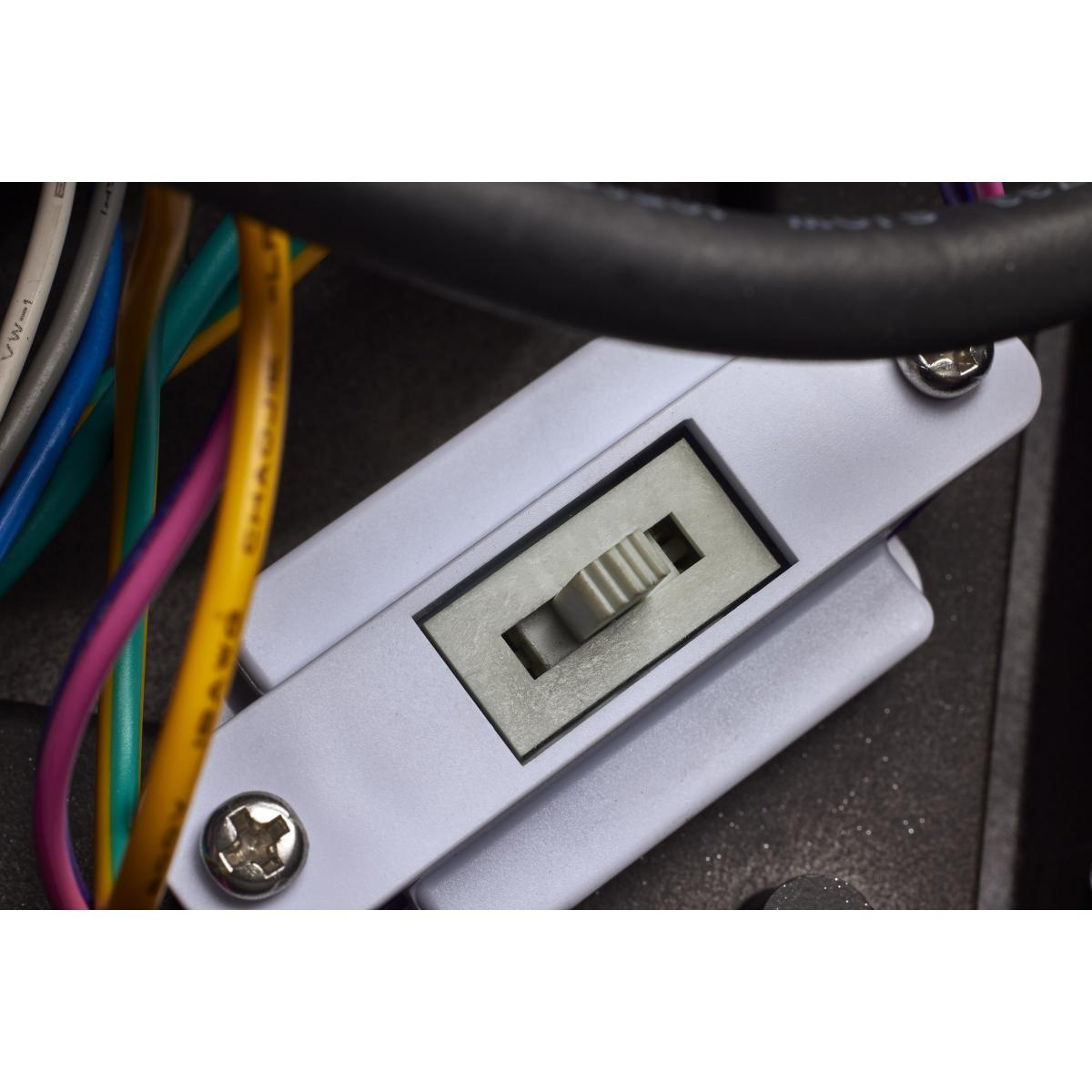

- Wattage Selectable: Choose from 20W, 30W, or 45W settings to suit different lighting needs.
- Voltage: Operates on a wide voltage range of 120-277V, making it versatile for various installations.
- Beam Angle: Features a wide 190-degree beam angle for broad light distribution.
- IP Rating: Rated IP65 for wet locations, ensuring durability in outdoor environments.
We process payments securely and do not store credit card information.
Description
Description

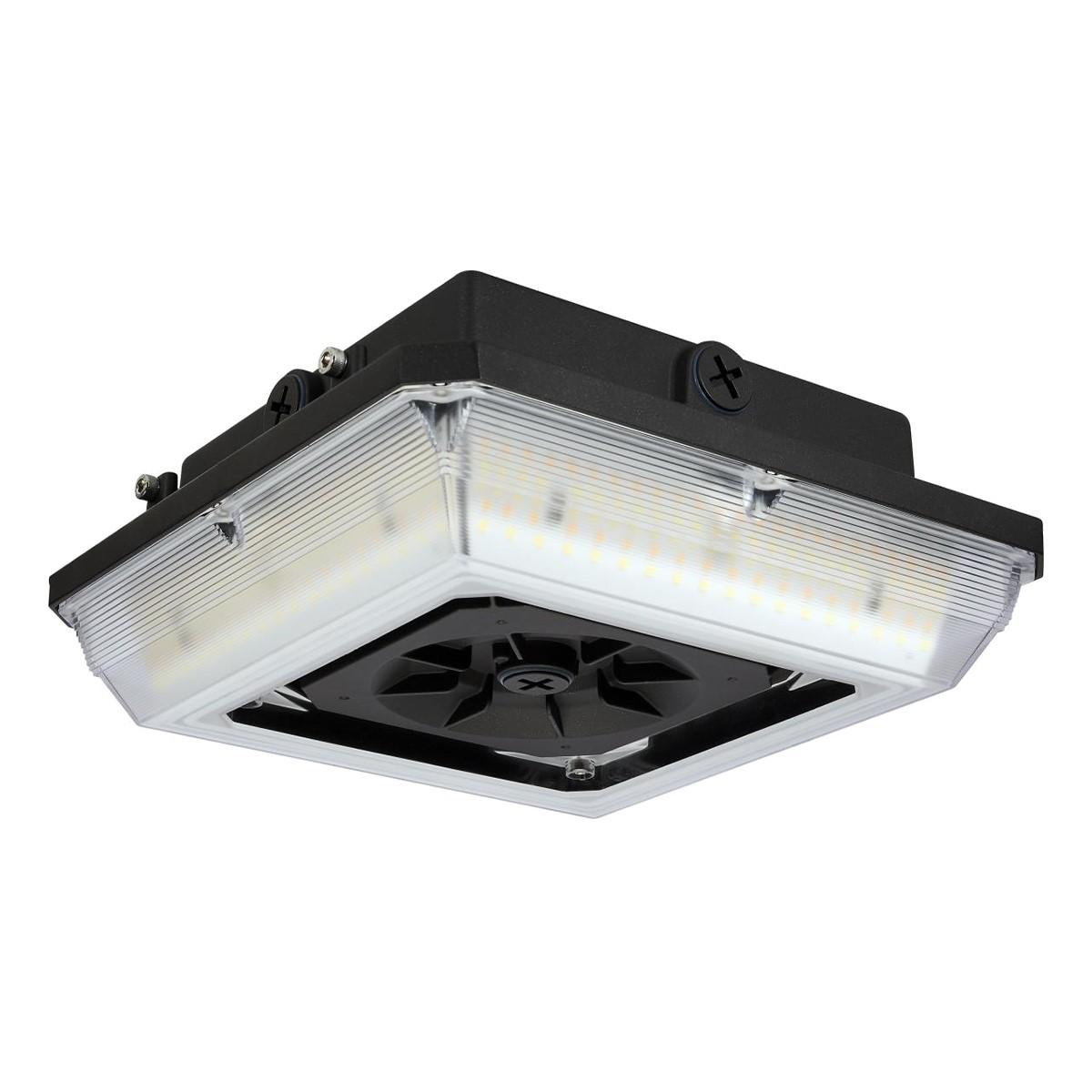

SATCO|NUVO Square LED Canopy Light - 45W Selectable Configuration
The SATCO 65-636 is a versatile LED canopy light offering selectable wattage options of 20W, 30W, and 45W, delivering up to 6288 lumens. It operates on 120-277V and features a selectable CCT of 3000K, 4000K, and 5000K. This fixture is ideal for wet locations, certified with an IP65 rating.
Key Features

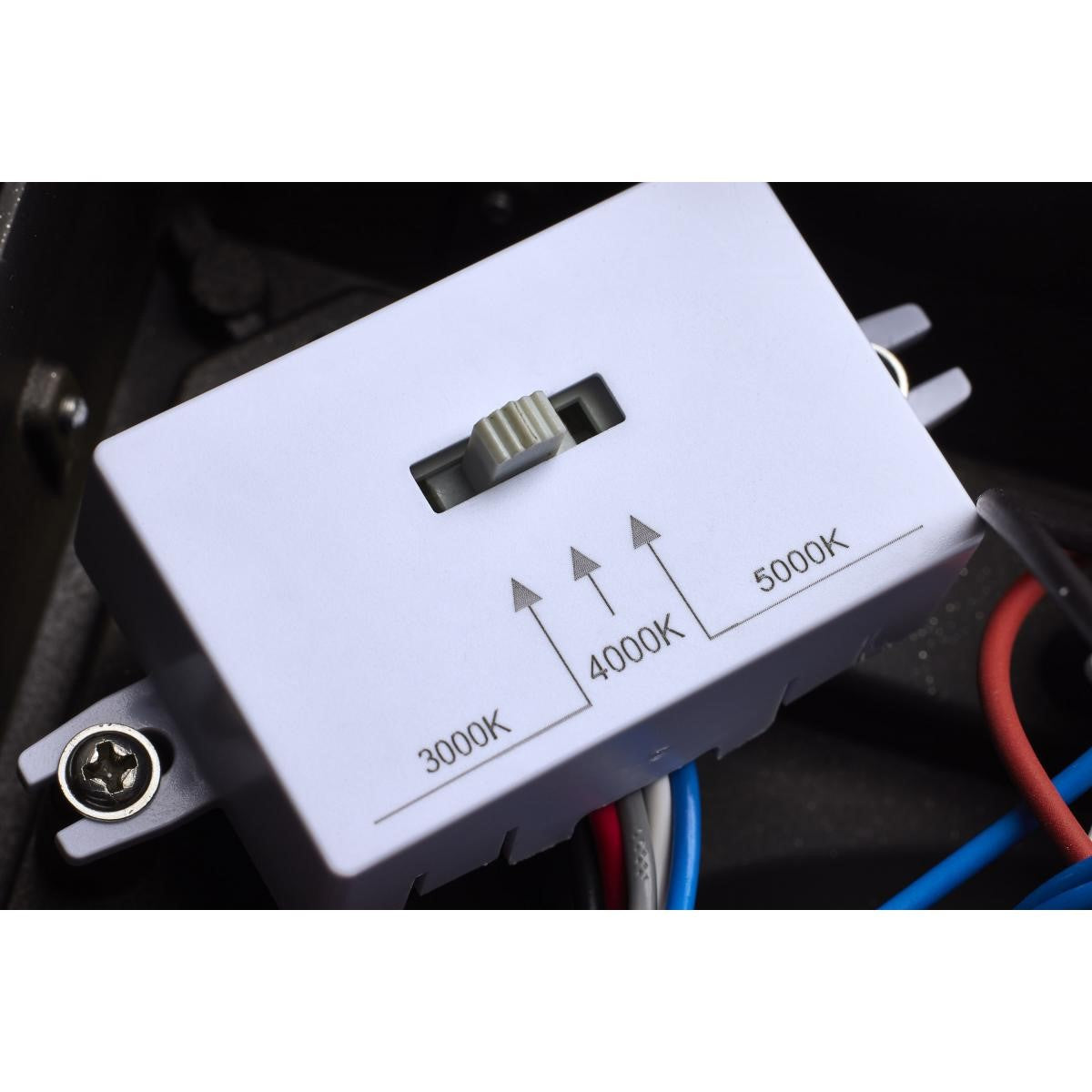

- Selectable CCT: Easily switch between 3000K, 4000K, and 5000K to match the desired ambiance.
- Construction: Made with die-cast aluminum housing and a polycarbonate lens for durability.
- Dimming: Supports 0-10V dimming for customizable light levels.
- Surge Protection: Built-in 2.5KV surge protection enhances reliability.
- Power Factor: High power factor of >0.9 ensures efficient energy use.

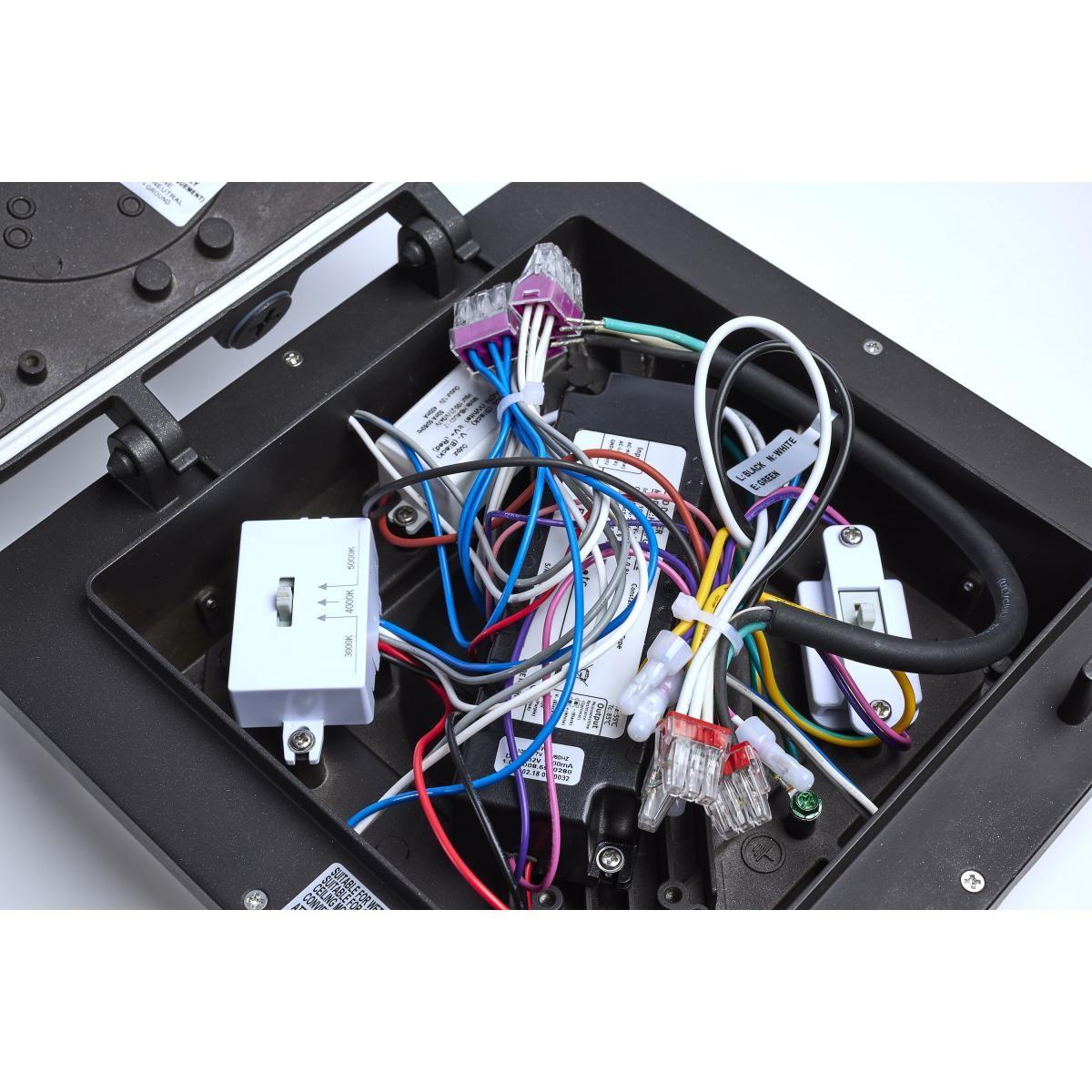

- Installation: Features a hinged door for ease of installation and multiple knockouts for versatile mounting options.
- Optional Photocell: Compatible with optional add-on photocell for automatic lighting control.
- Compliance: cULus certified and DLC approved for quality assurance.
Typical Applications
- Parking Garages
- Gas Stations
- Loading Docks
- Walkways
- Building Entrances
Performance & Light Output
This fixture delivers a range of 2663 to 6288 lumens with an efficacy that ensures energy-efficient performance. It has a CRI of 80+ and a rated life of 50,000 hours, providing consistent and reliable lighting.
Electrical & Controls
Operates on 120-277V with a 50/60Hz frequency. It features 0-10V dimming capability and built-in surge protection. Optional photocell control is available for enhanced energy savings.
Construction & Durability
Constructed from die-cast aluminum with a polycarbonate lens, this fixture is IP65 rated for wet locations, ensuring durability in harsh environments. It operates in temperatures ranging from -40C to +50C.
Installation & Mounting

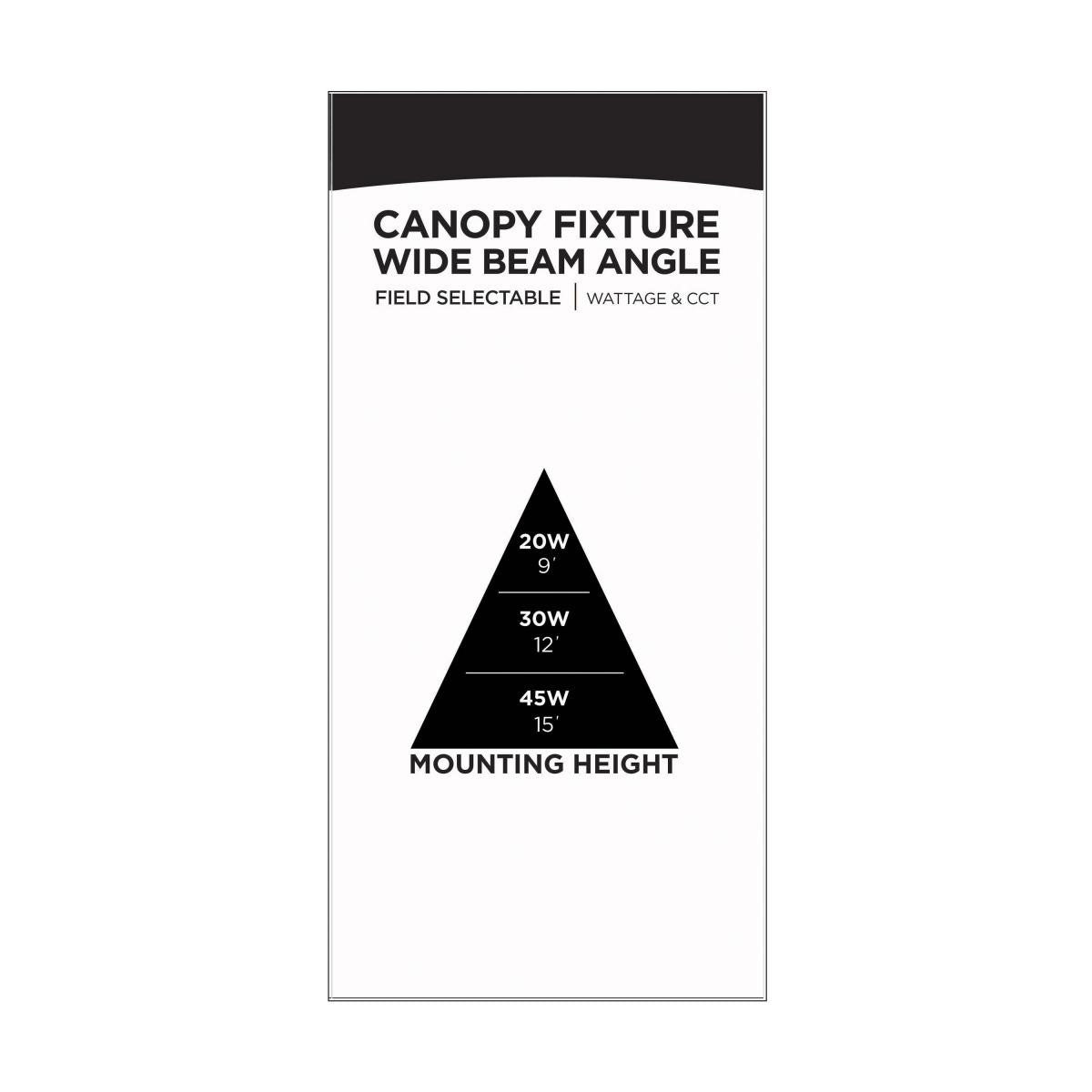

Designed for easy installation with a hinged door and multiple knockouts. Recommended mounting height is between 9 to 15 feet. Compatible with pendant applications via a three-quarter inch back knockout.
What's Included
- Integrated LED Canopy Light
