SATCO NUVO Canopy Light - 90W Selectable Configuration

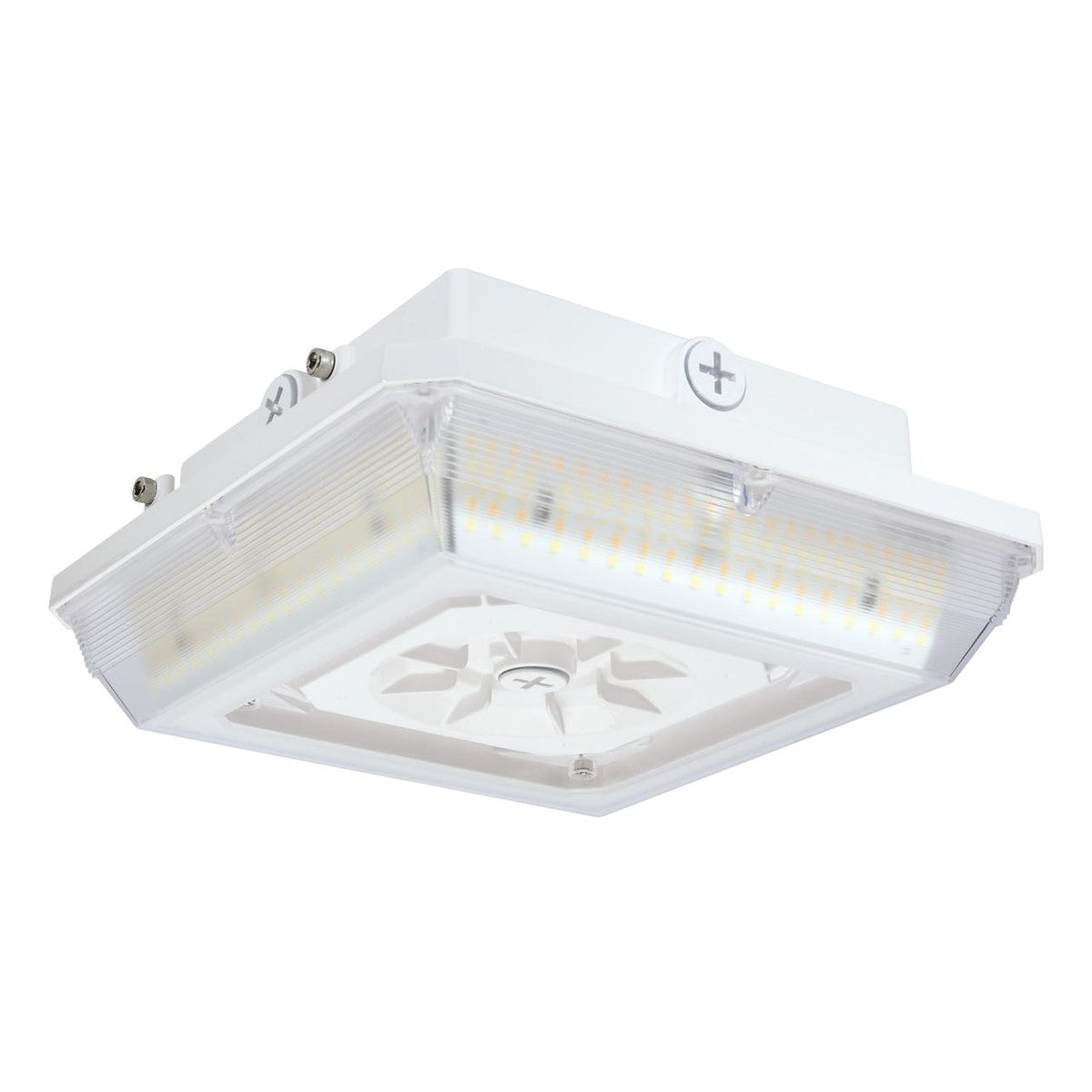

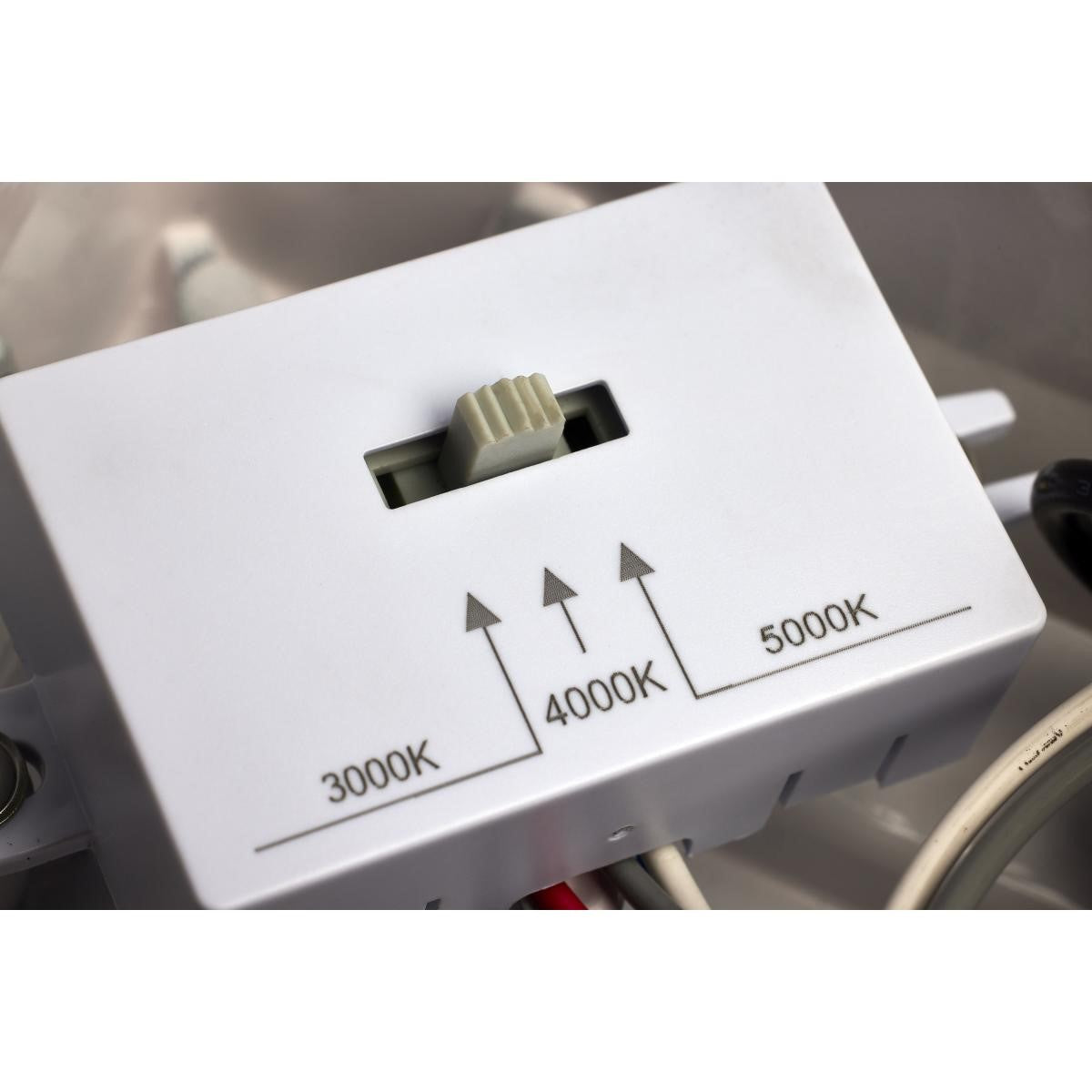

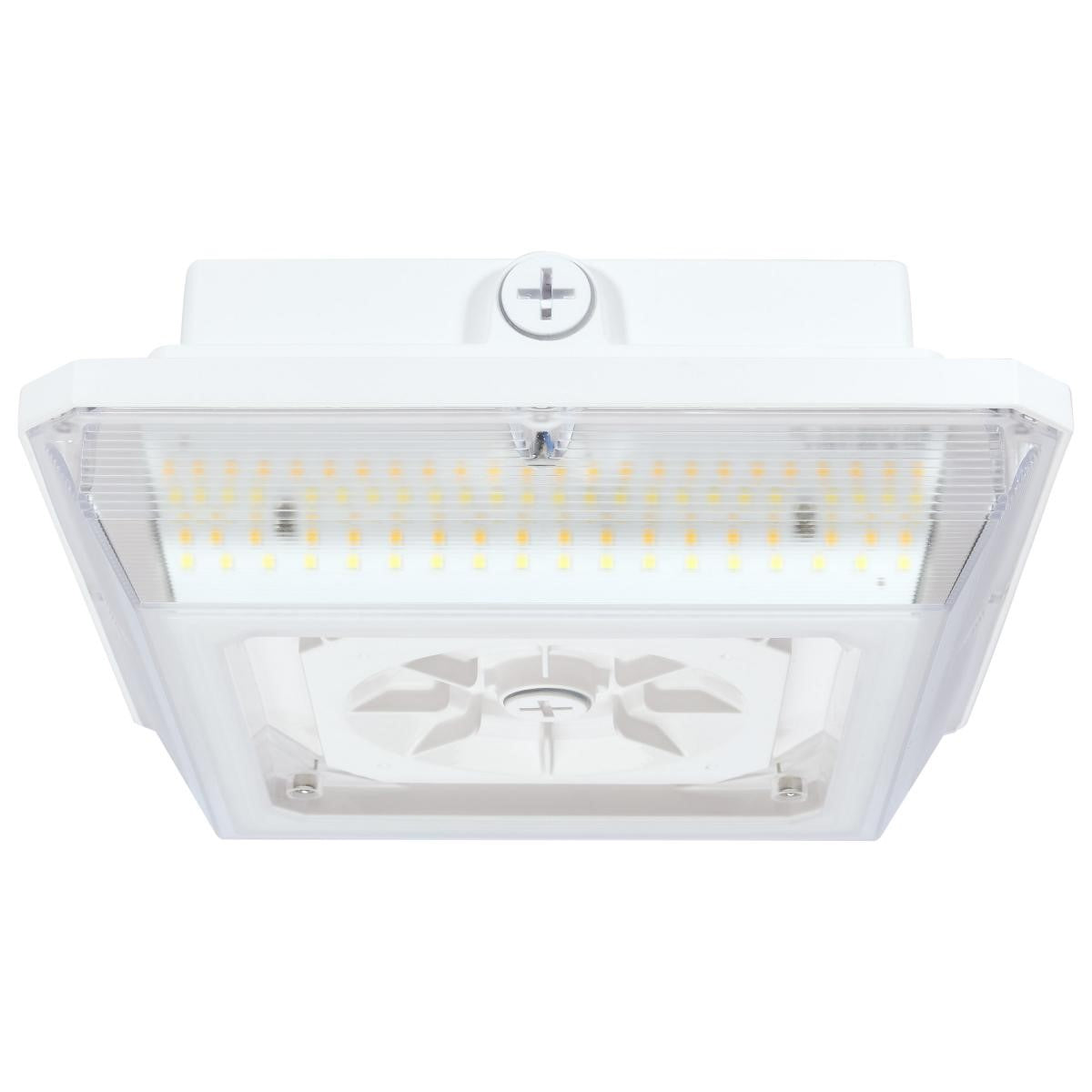

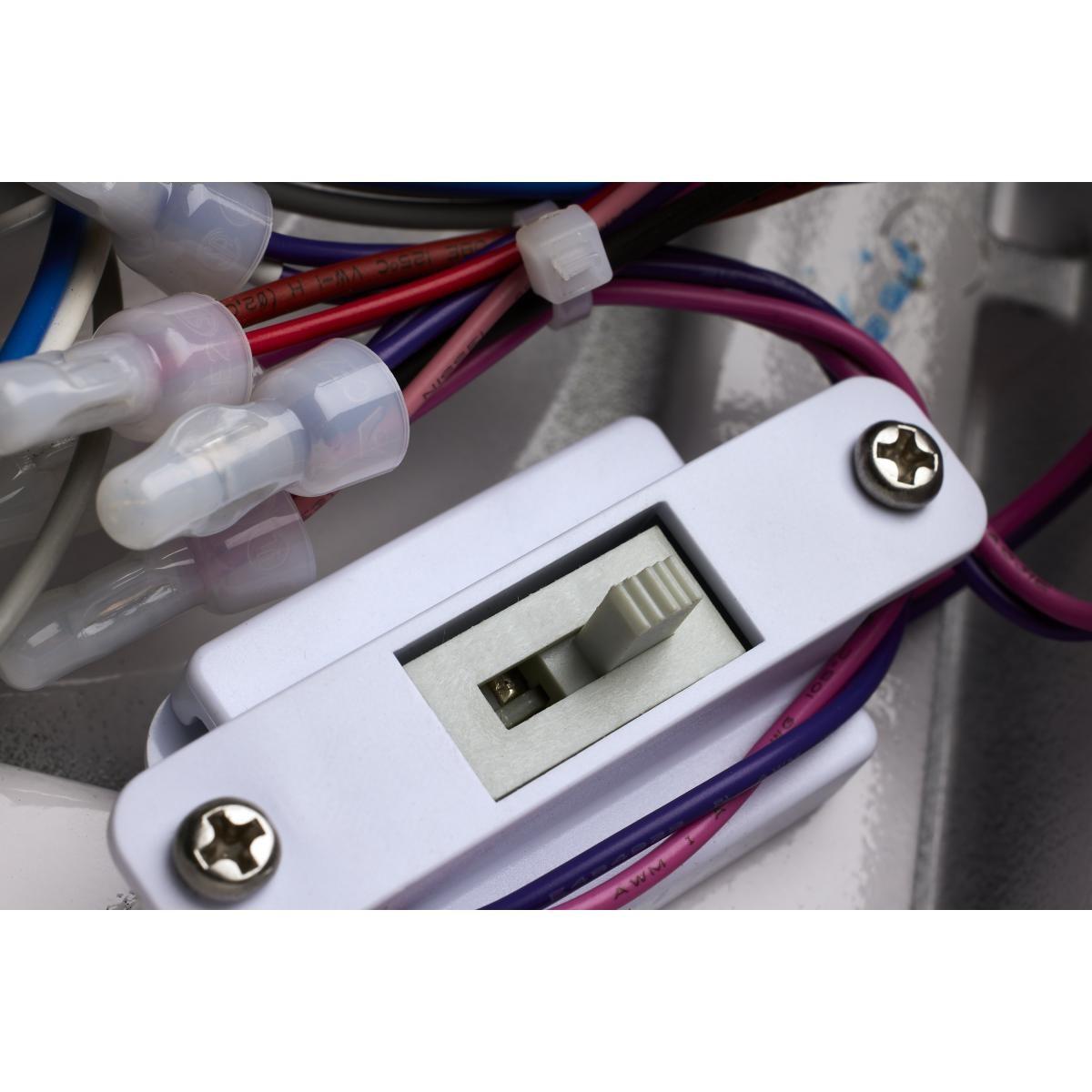

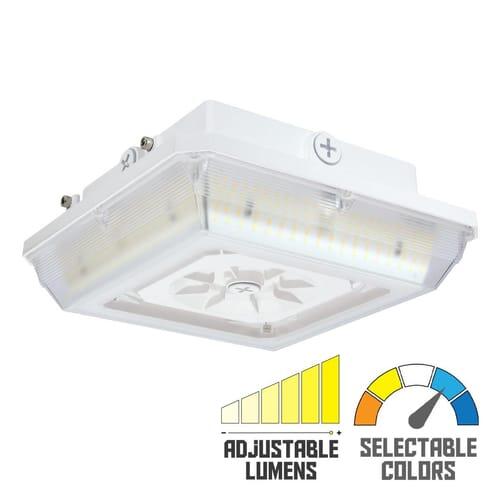

The SATCO 65-635 is a square LED canopy light delivering up to 12557 lumens with selectable wattage options of 60W, 75W, and 90W. It operates on 120-277V and features a selectable CCT of 3000K, 4000K, and 5000K. This fixture is ideal for outdoor applications, boasting an IP65 rating for wet locations.

Key Features

• Beam Angle: Wide 190-degree beam angle for extensive coverage.
• Dimming: Supports 0-10V dimming for adjustable light levels.
• Surge Protection: Built-in 6KV surge protection enhances durability.
• Construction: Made from die-cast aluminum for long-lasting performance.
• Lens Material: Polycarbonate lens ensures impact resistance.
• Power Factor: Greater than 0.9 for efficient energy use.
• CRI: CRI of 80+ for accurate color rendering.
• Operating Temperature: Functions in temperatures from -40C to +50C.
• Warranty: Comes with a 5-year limited warranty.
• Compliance: cULus certified and ROHS compliant for safety and environmental standards.

Typical Applications

• Parking Garages
• Gas Stations
• Loading Docks
• Warehouses
• Industrial Facilities

Performance & Light Output

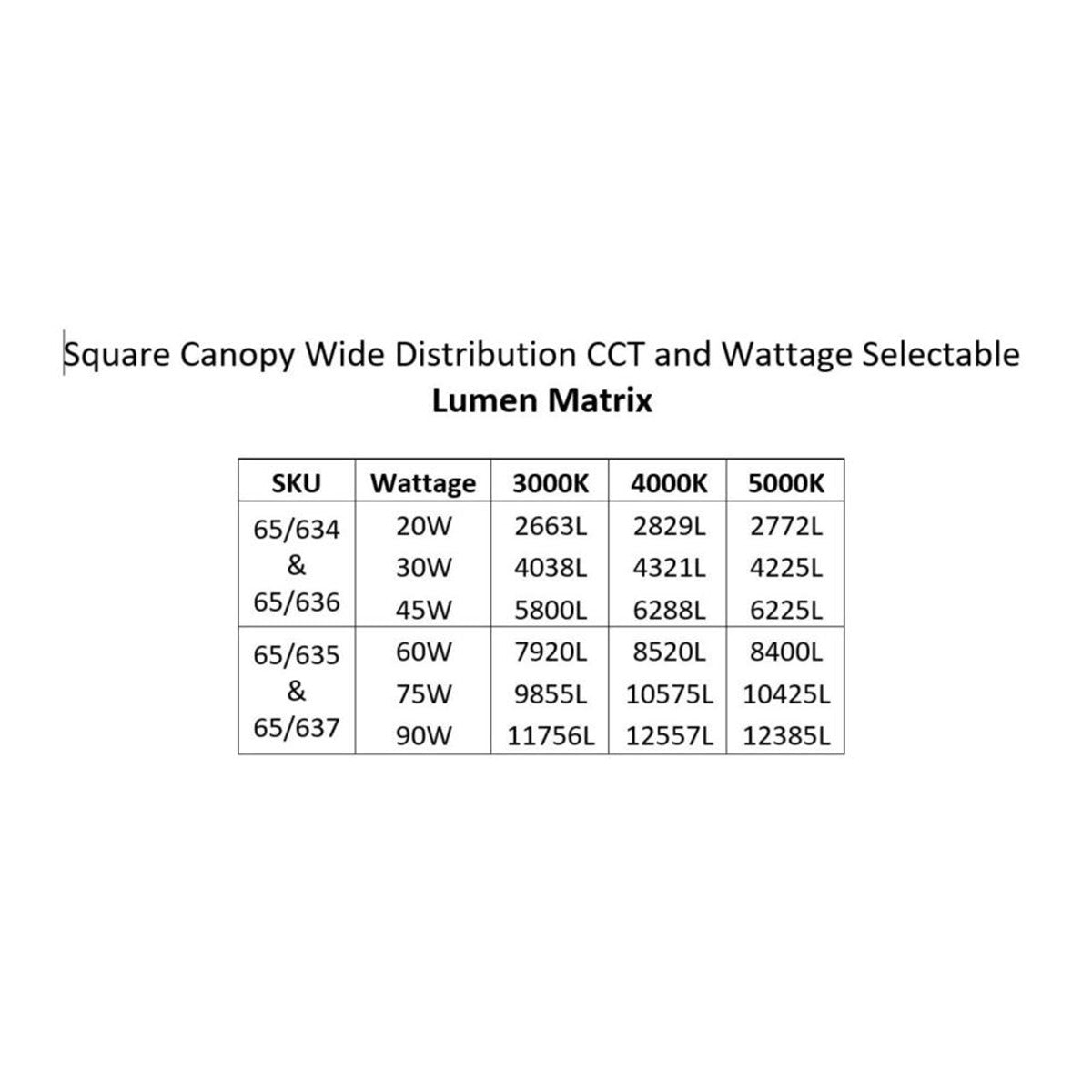

This fixture provides a luminous efficacy that ranges from 7920 to 12557 lumens with a CRI of 80+, ensuring high-quality light output. The wide 190-degree beam angle offers broad illumination coverage.

Electrical & Controls

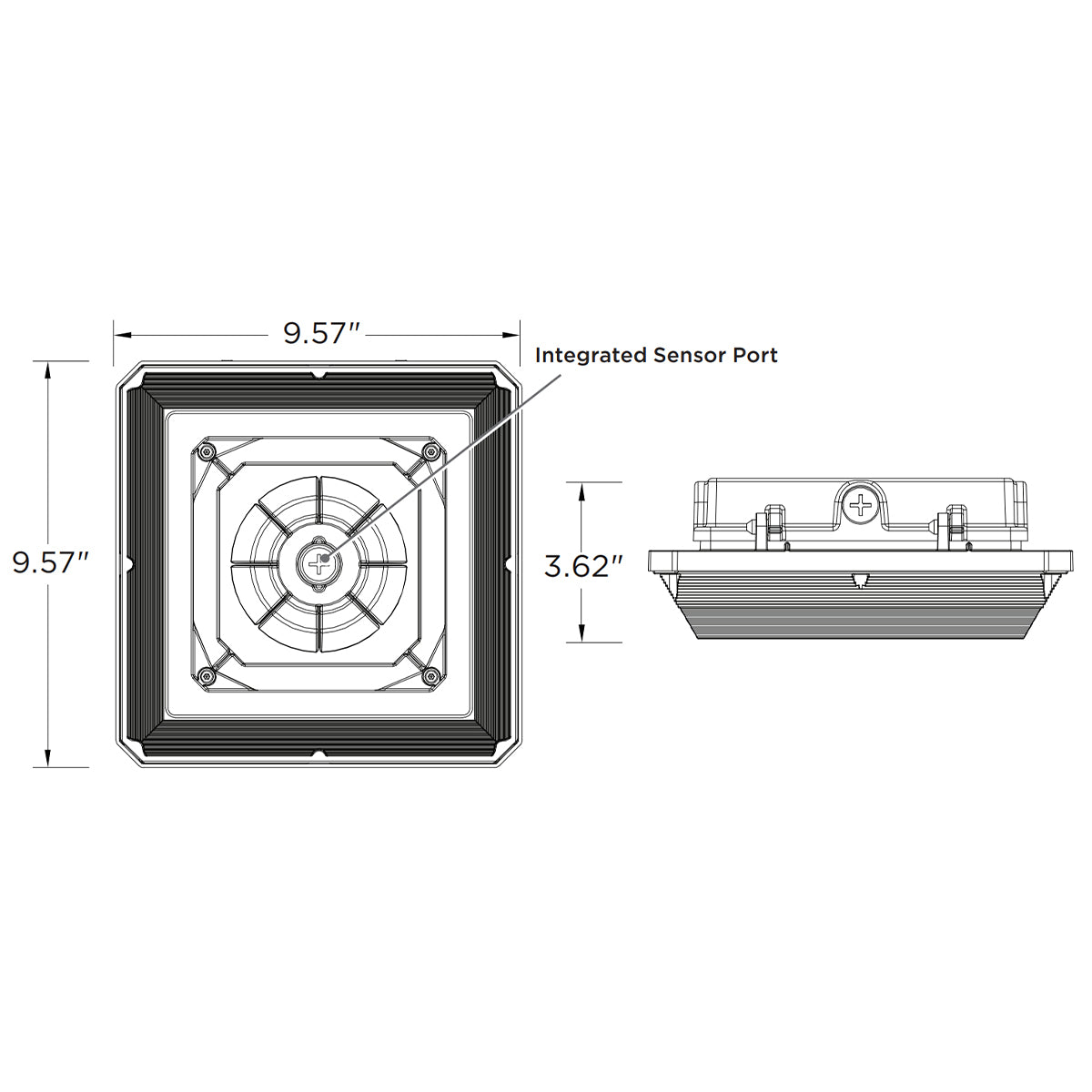

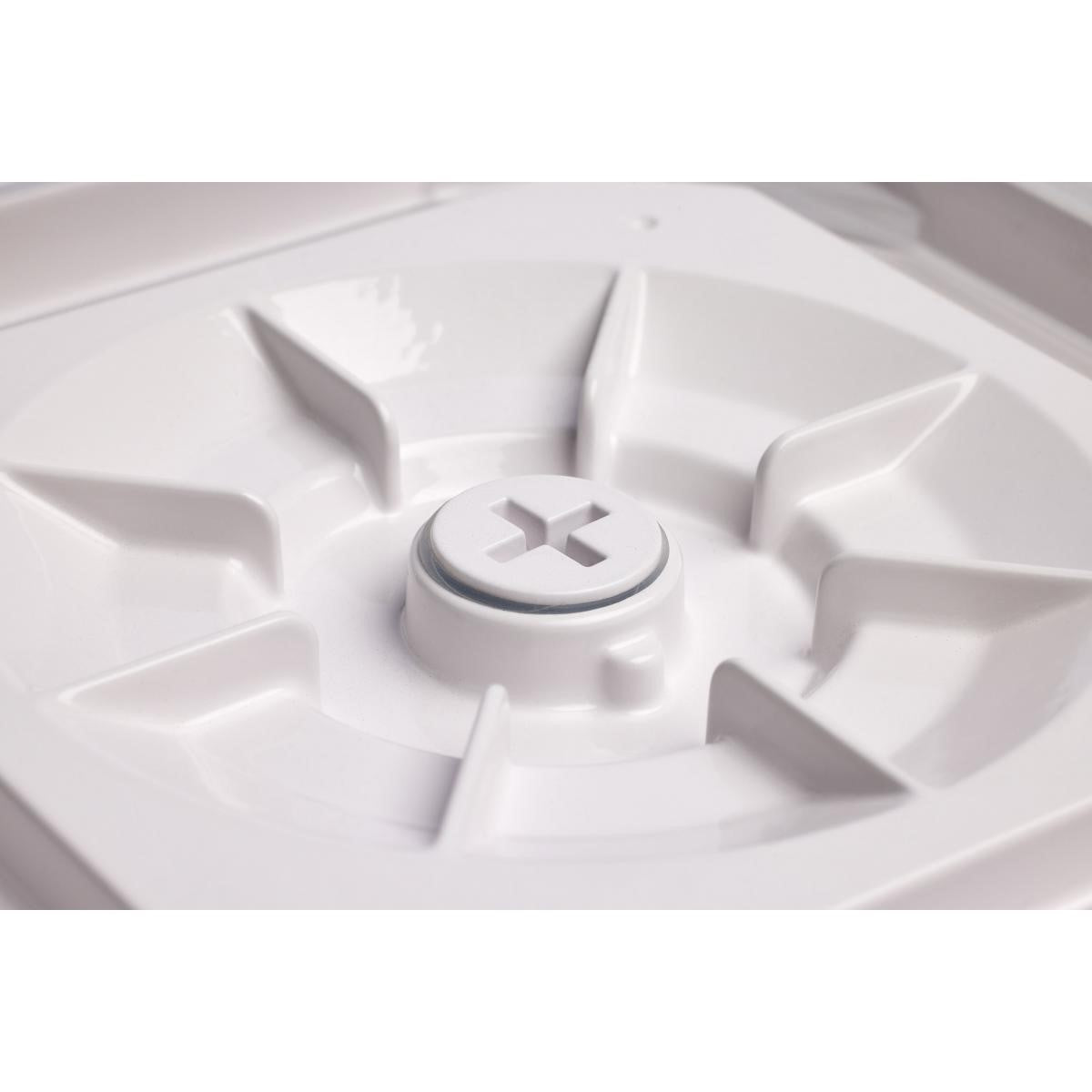

Designed for 120-277V input, this canopy light supports 0-10V dimming and includes built-in 6KV surge protection. It features an integrated DC sensor port for additional control options.

Construction & Durability

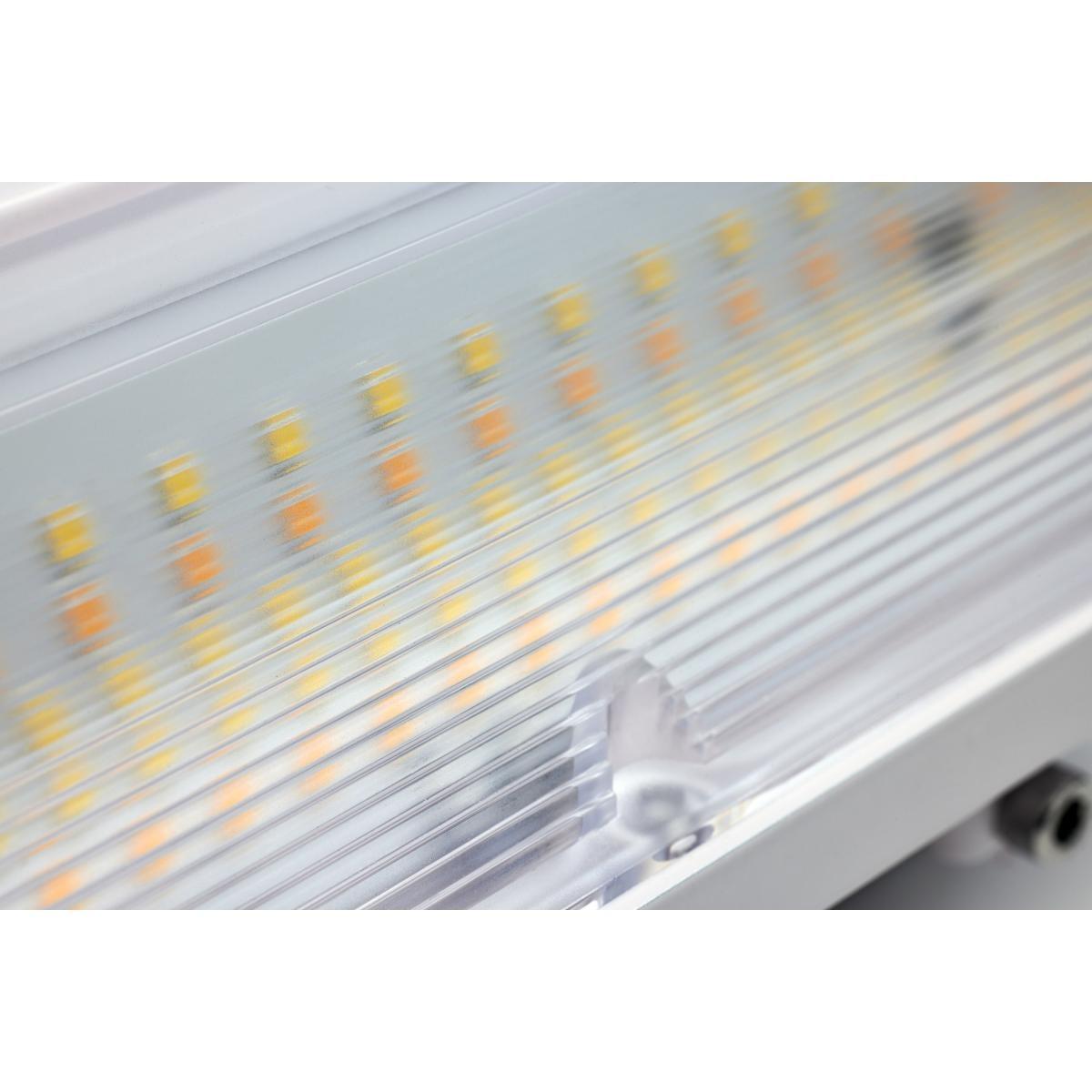

The SATCO 65-635 is constructed with die-cast aluminum and a polycarbonate lens, rated IP65 for protection against dust and water. It is suitable for wet locations and operates in temperatures from -40C to +50C.

Installation & Mounting

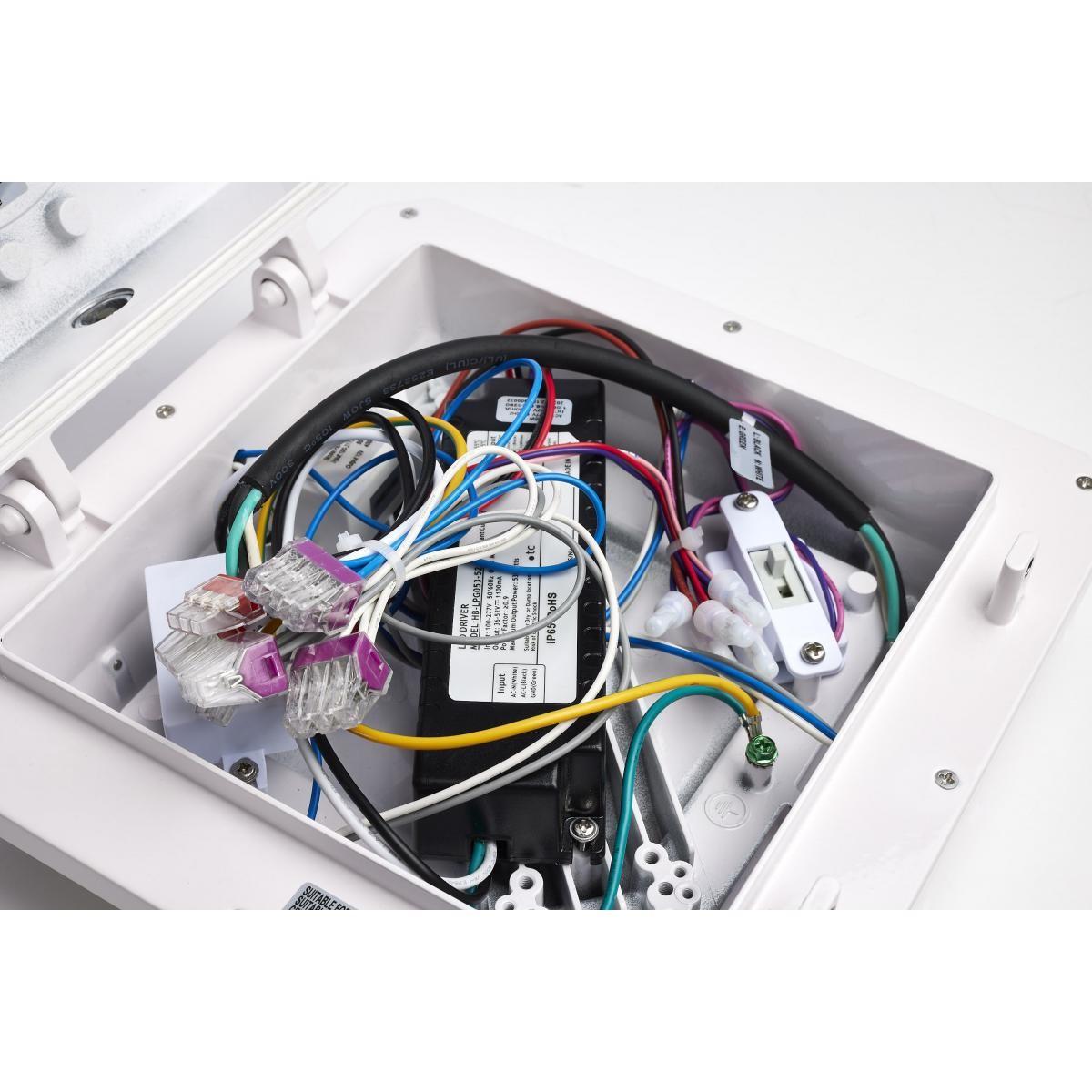

Features multiple half-inch knockouts and a three-quarter inch back knockout for pendant applications. A hinged door facilitates easy installation.

What's Included

• Integrated LED Canopy Light
