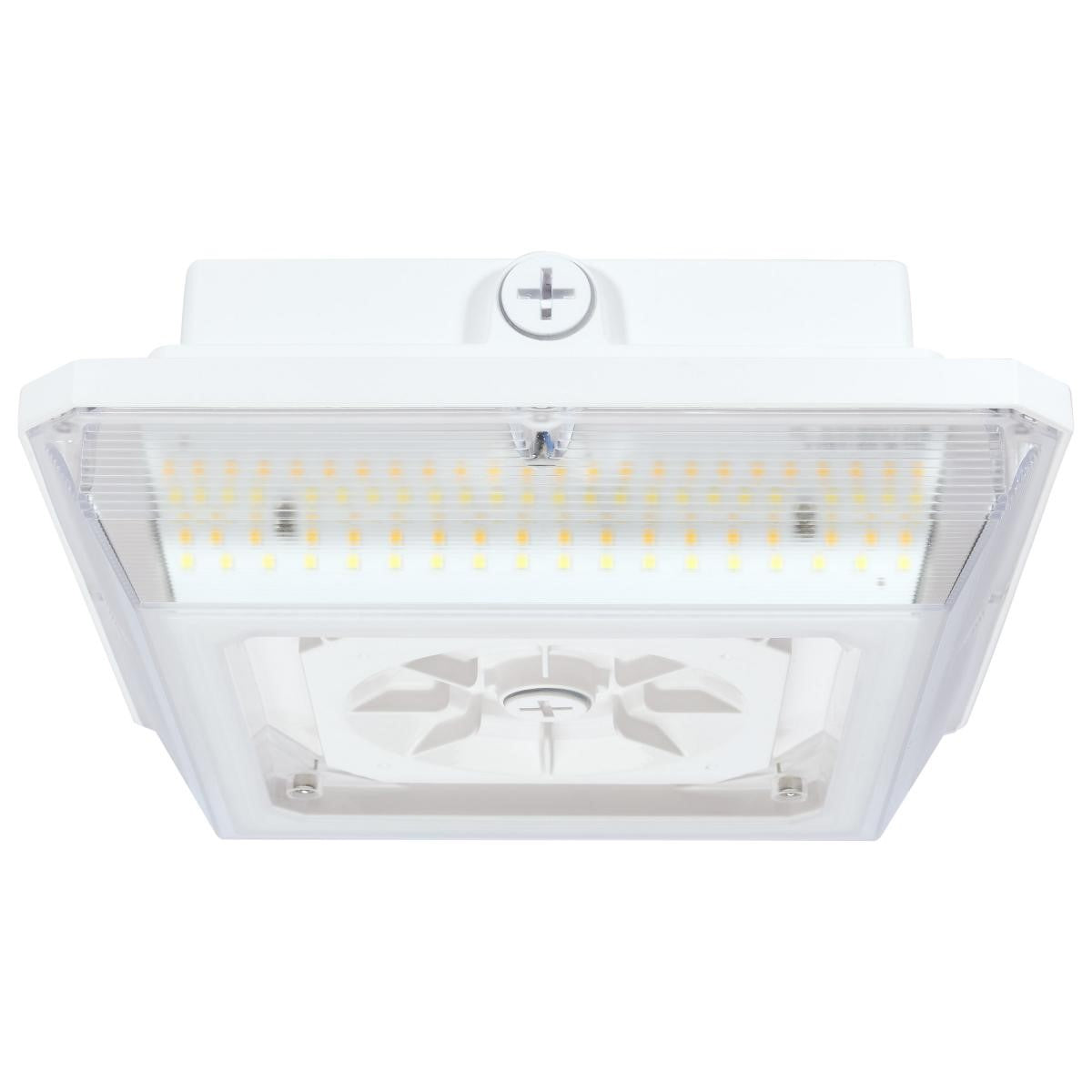

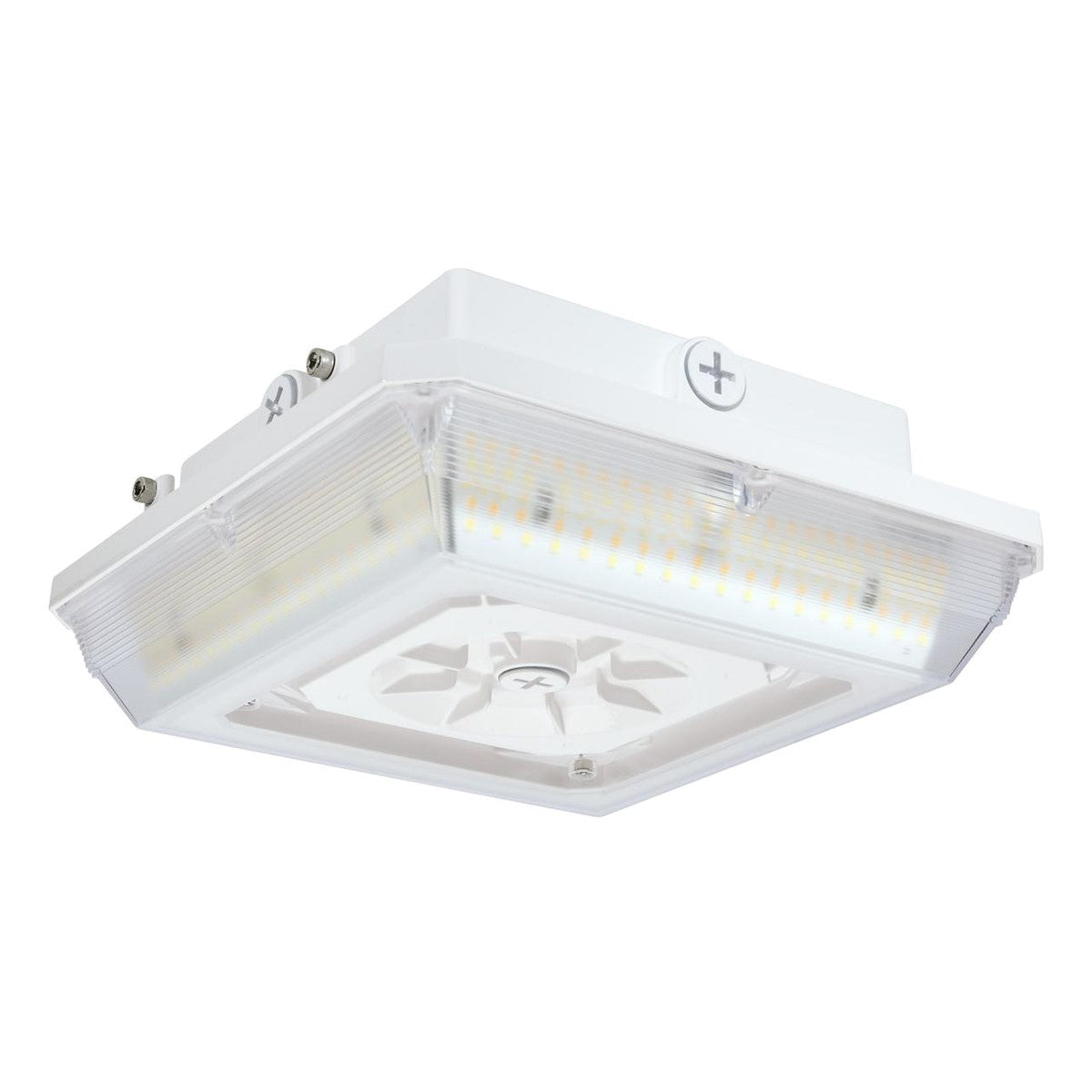

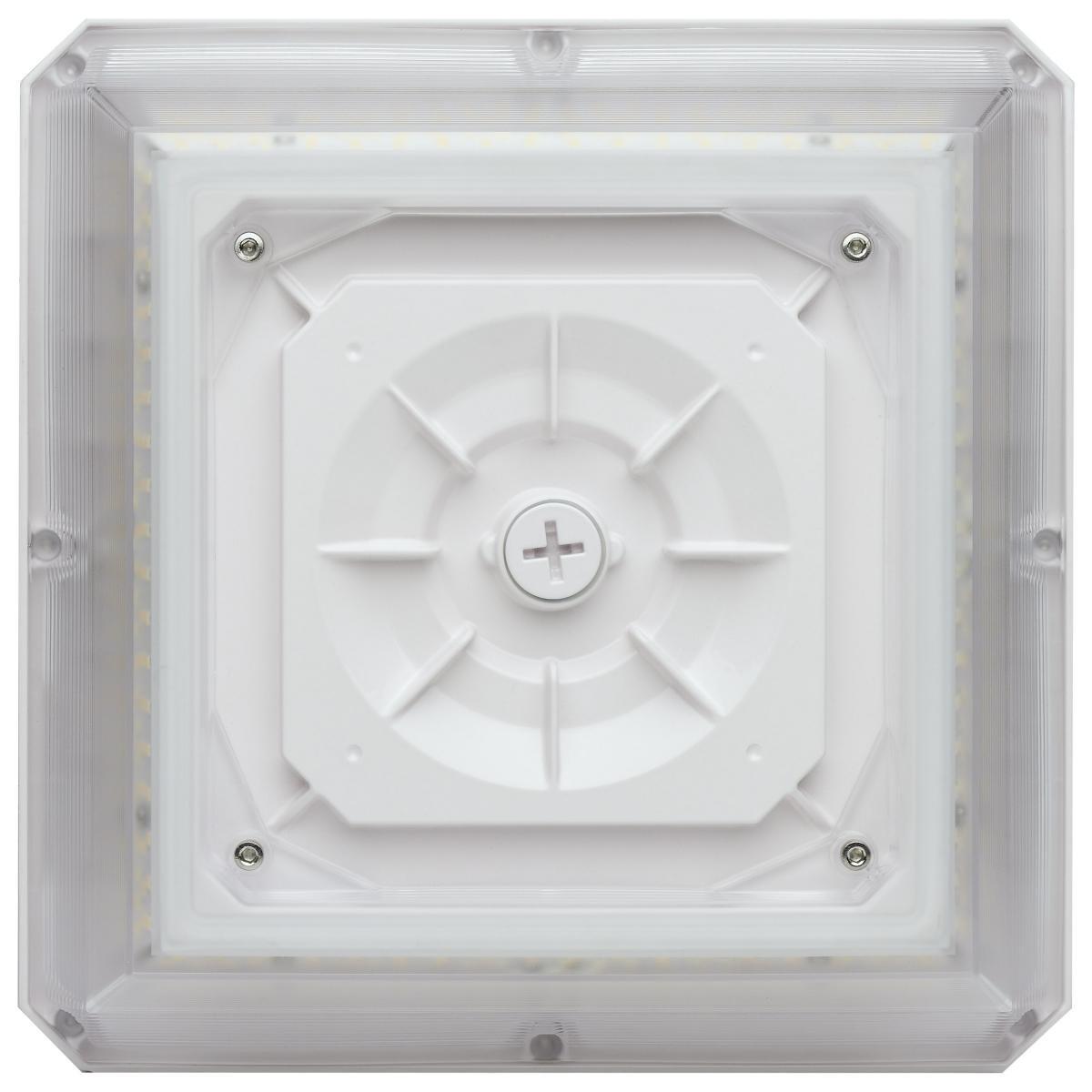

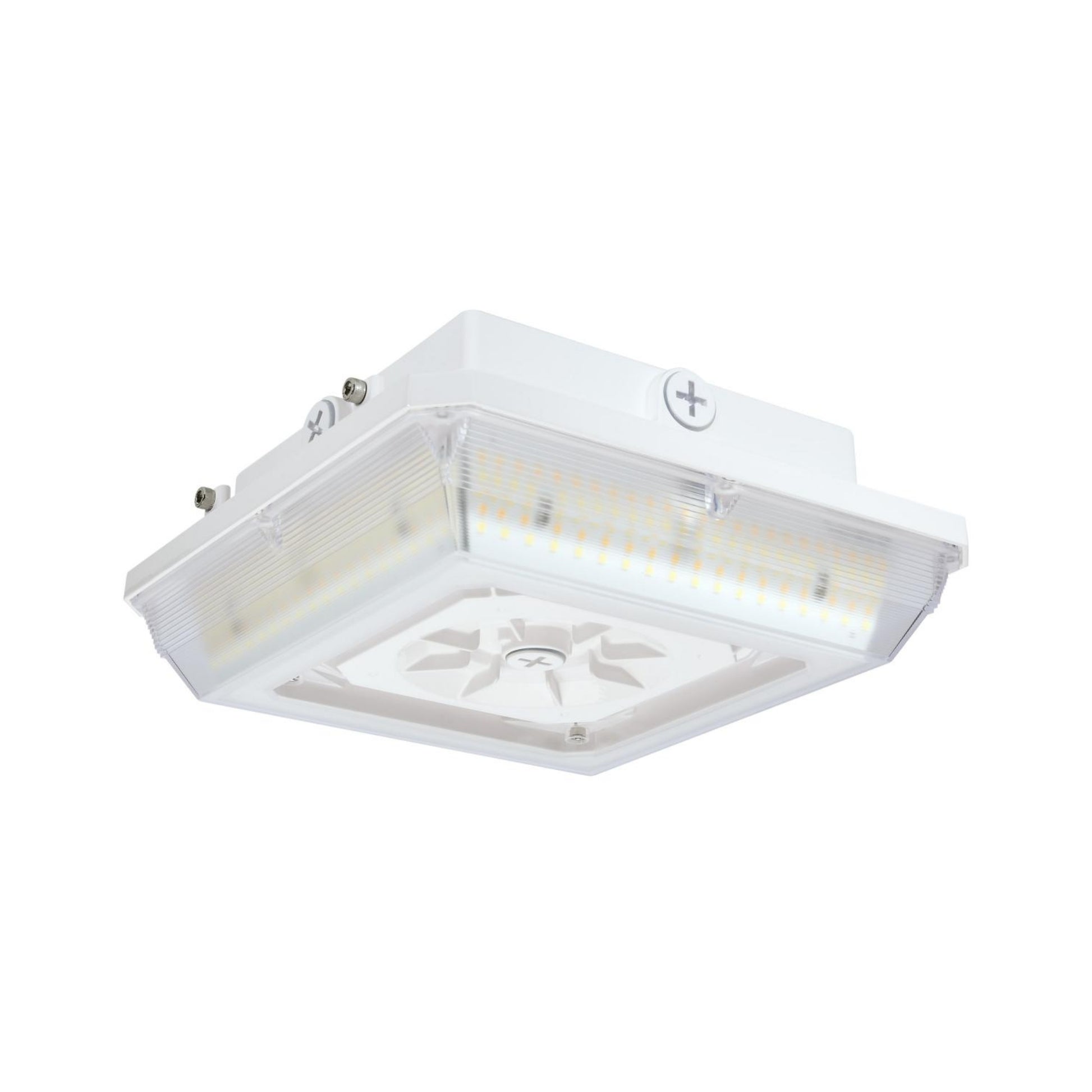

SATCO|NUVO Canopy Light - 45W Selectable Configuration

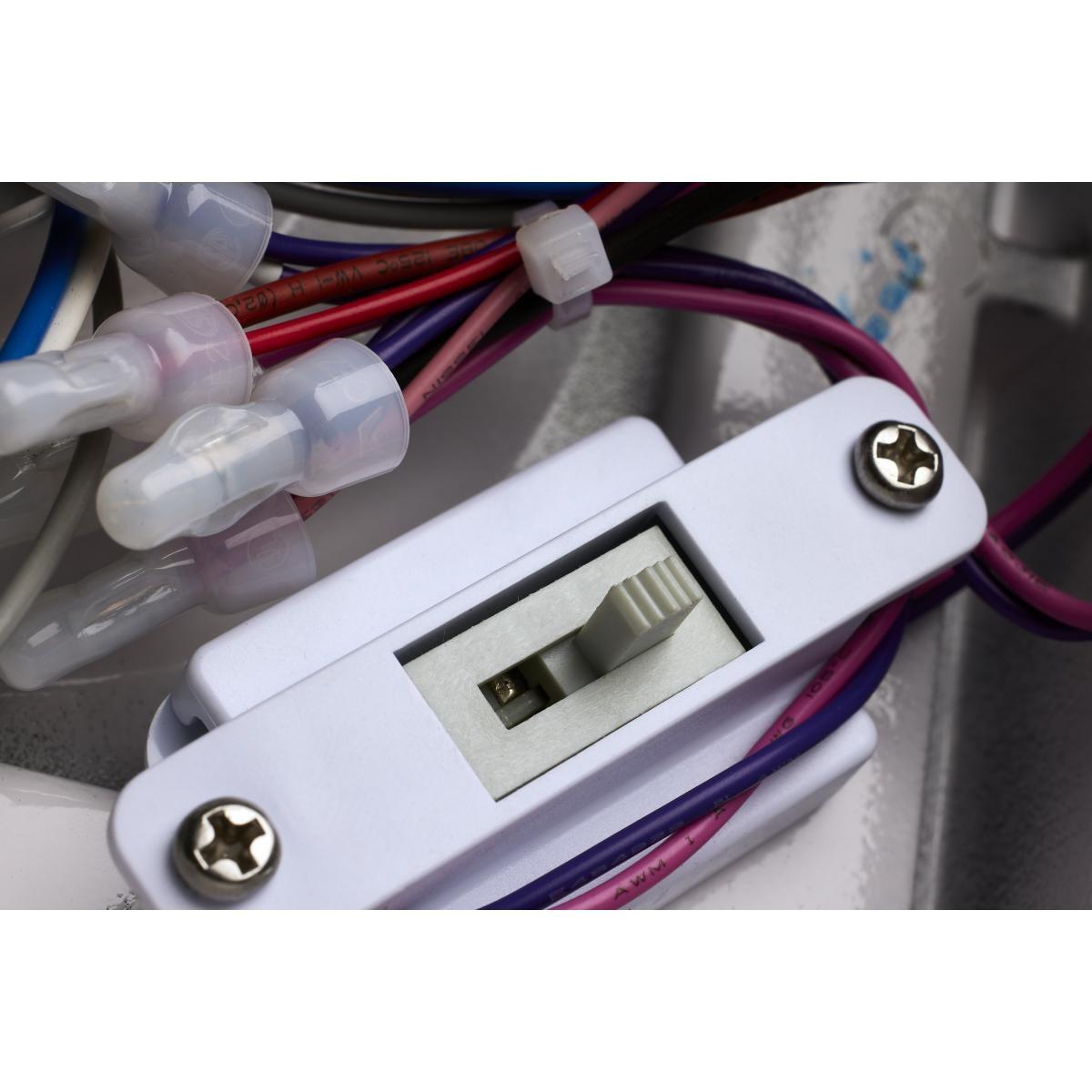

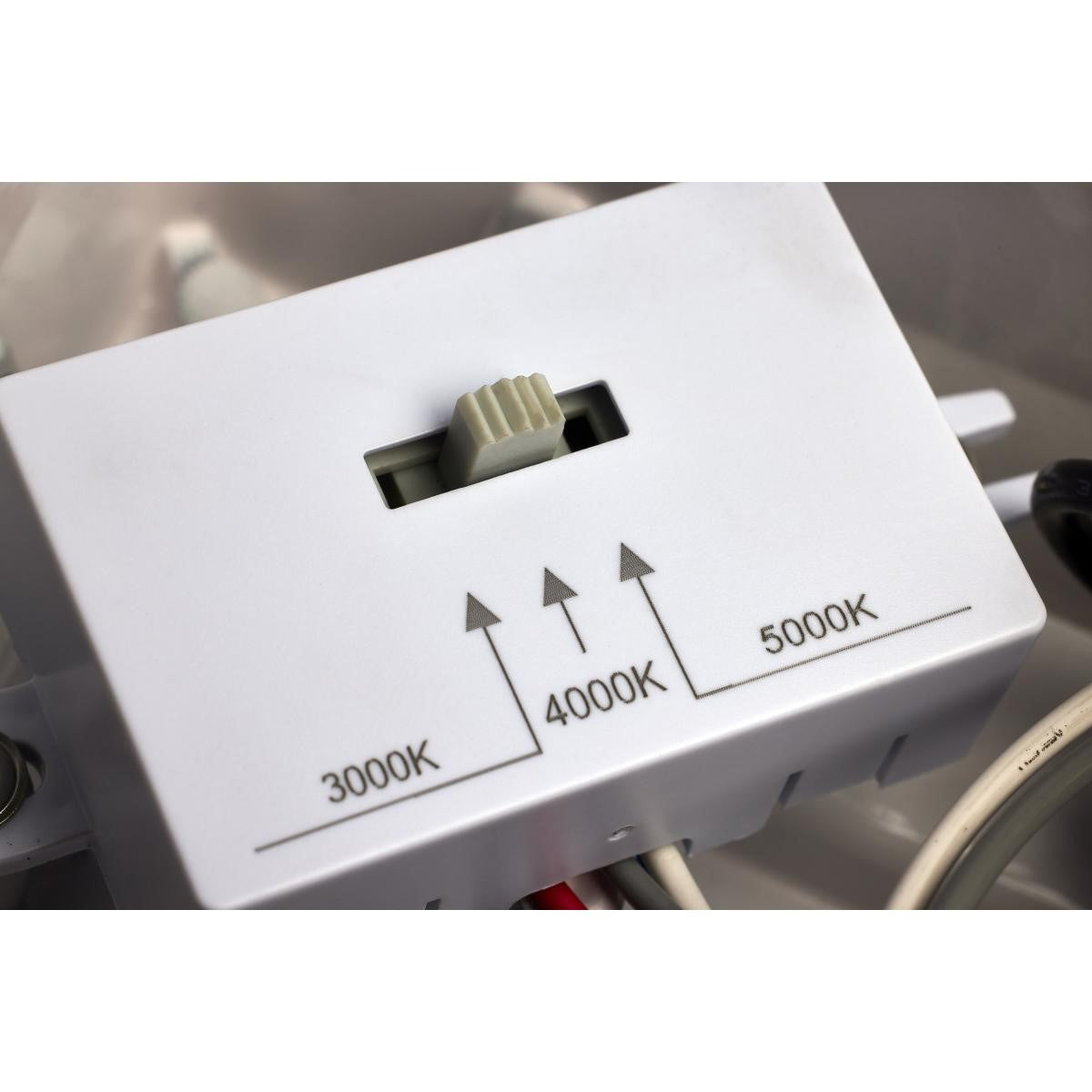

The SATCO|NUVO 65-634 is a versatile LED canopy light offering 45W power, delivering up to 6288 lumens with a selectable CCT range of 3000K, 4000K, and 5000K. It operates on 120-277V and is ideal for outdoor applications requiring robust lighting solutions.

Key Features

• Beam Angle: Wide 190-degree beam angle for extensive coverage.
• Dimming Capability: Supports 0-10V dimming for adjustable light levels.
• Surge Protection: Built-in 2.5KV surge protection ensures reliability.
• Power Factor: High power factor of >0.9 for efficient operation.
• IP Rating: Rated IP65 for protection against dust and water ingress.
• Material: Made from durable die-cast aluminum with a polycarbonate lens.
• Installation: Features a hinged door for easy installation and multiple knockouts for versatile mounting options.

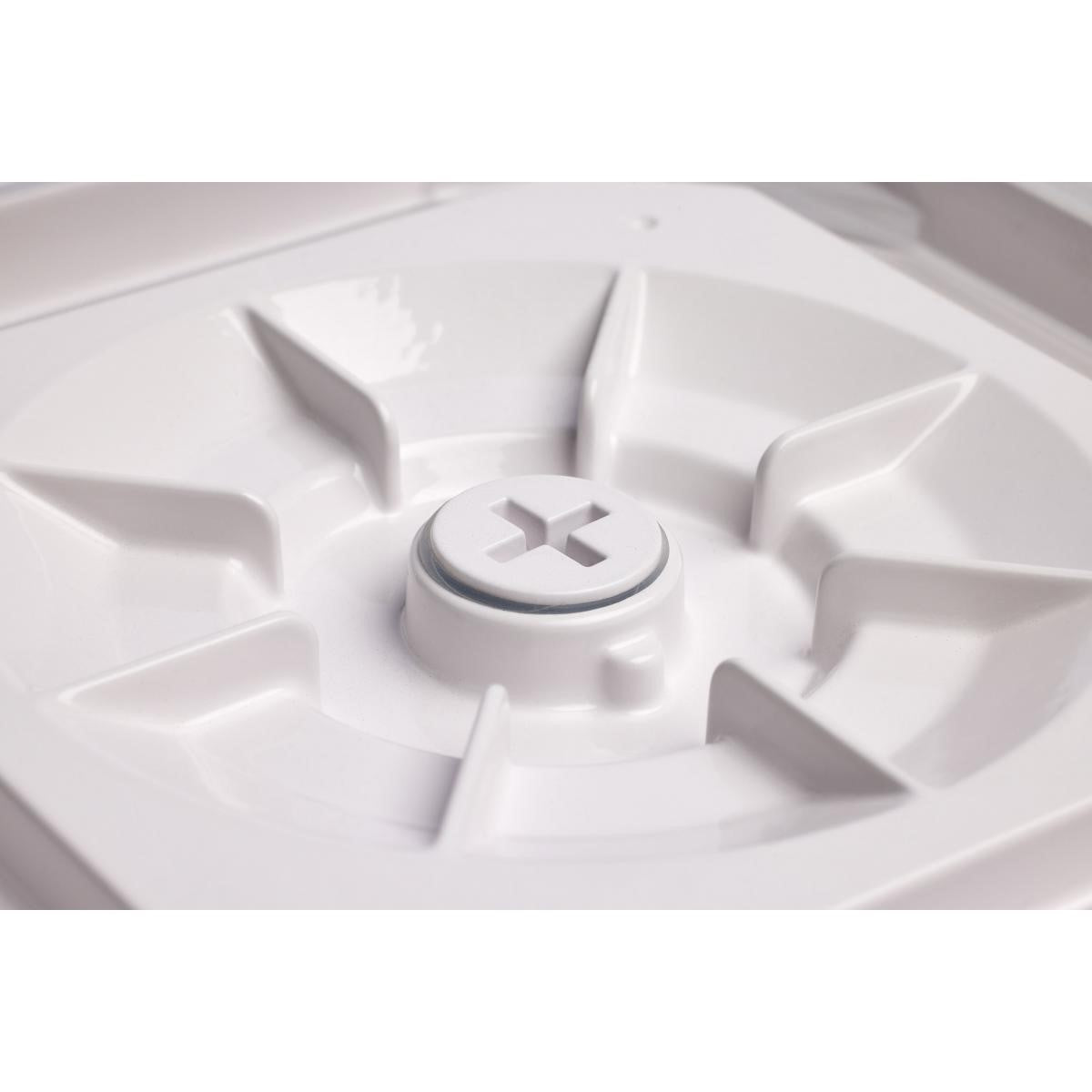

• Optional Photocell: Compatible with optional add-on photocell for automated lighting control.

Typical Applications

• Parking Garages
• Gas Stations
• Loading Docks
• Walkways
• Outdoor Canopies

Performance & Light Output

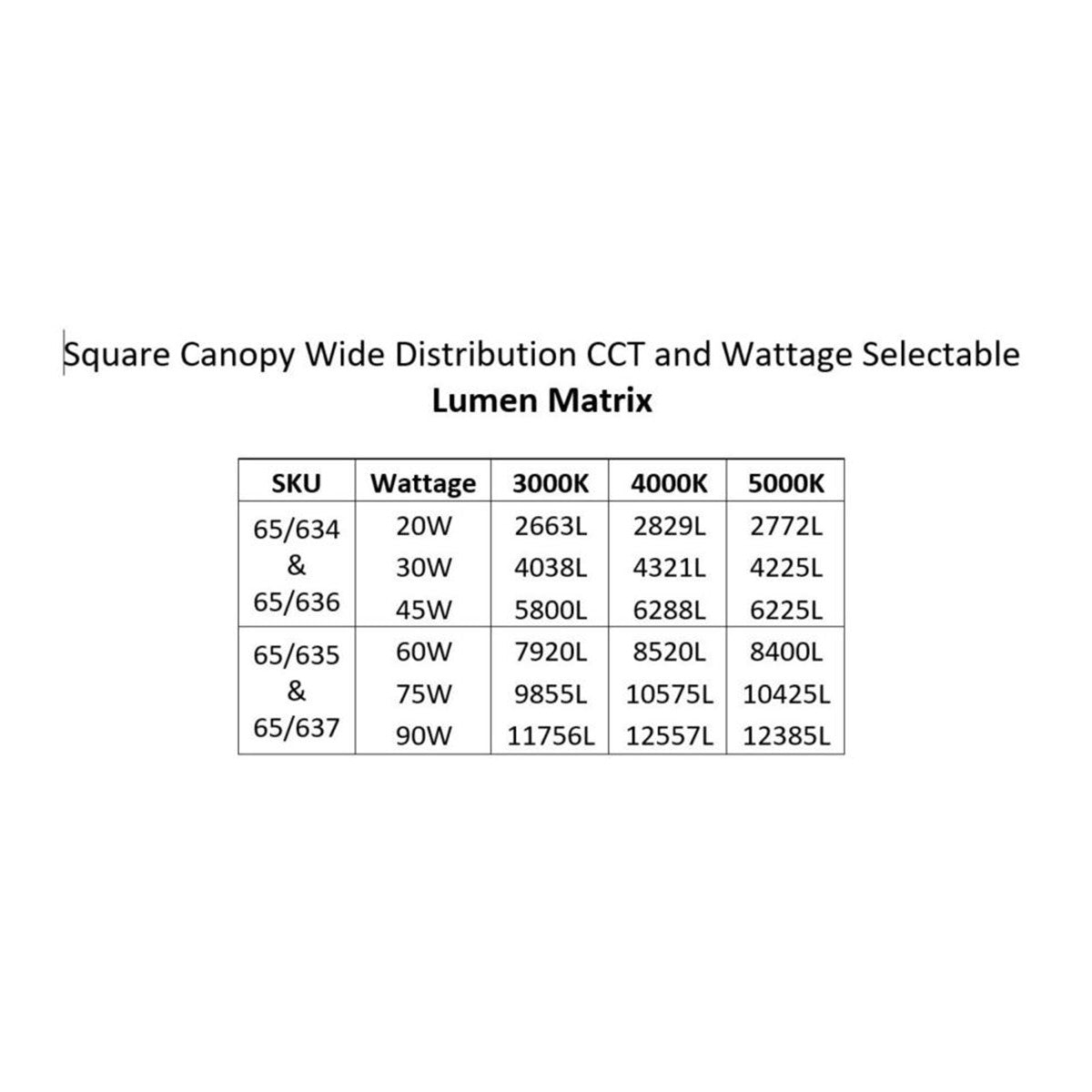

This fixture provides a high lumen output of up to 6288 lumens with an efficacy that ensures energy efficiency. It features a CRI of 80+ and a long lifespan of 50,000 hours.

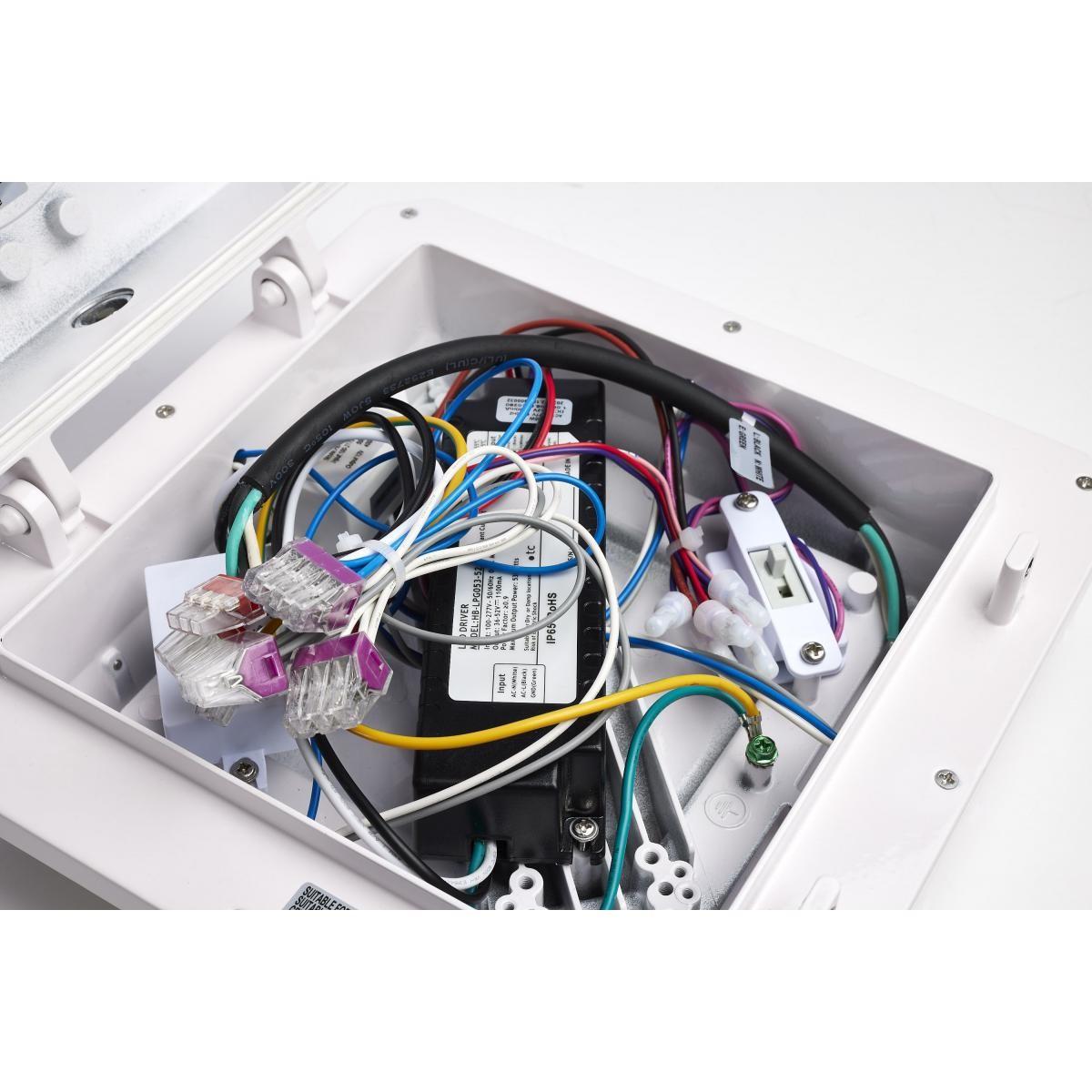

Electrical & Controls

Operates on 120-277V with a 0-10V dimming capability. It includes built-in surge protection and maintains a power factor greater than 0.9.

Construction & Durability

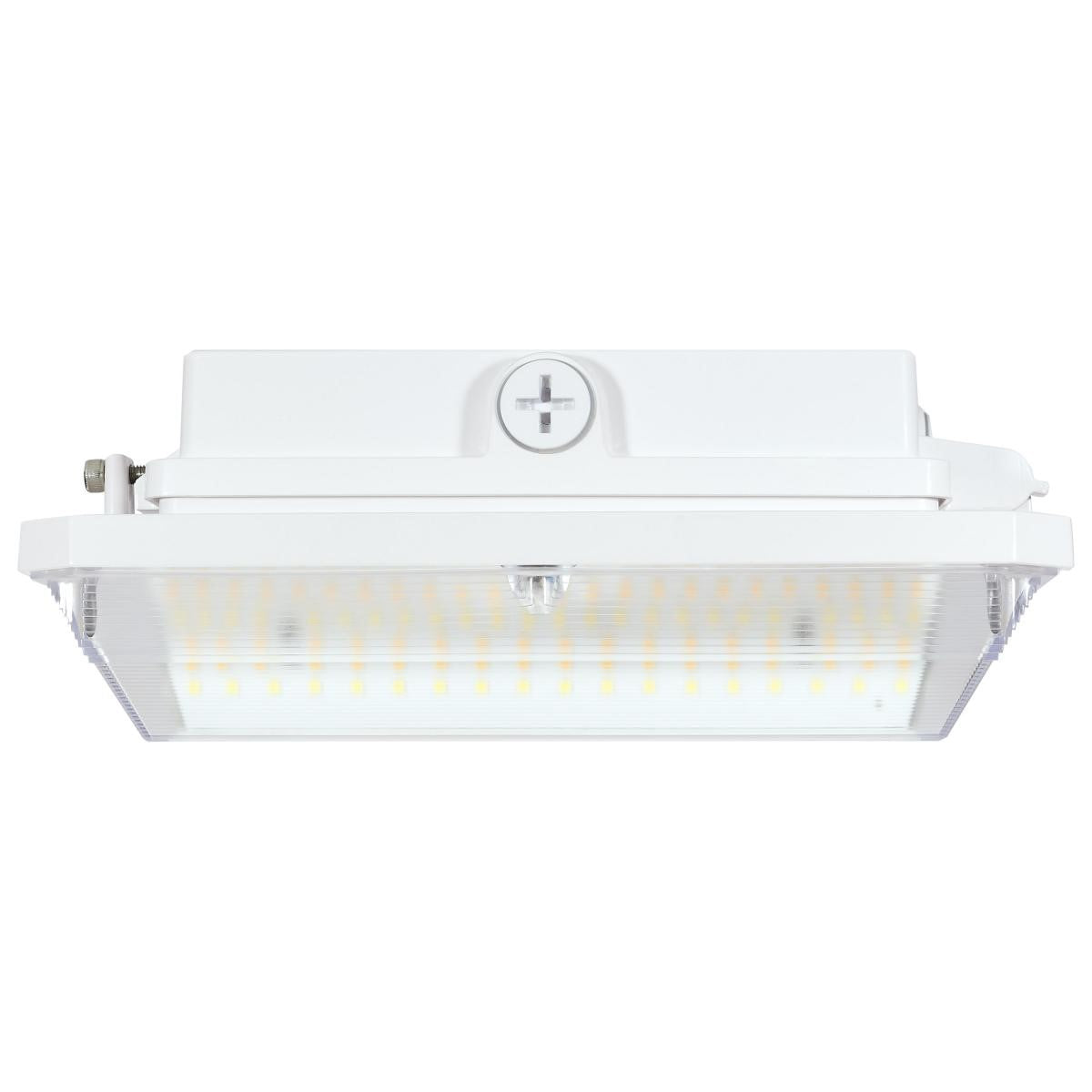

Constructed with a die-cast aluminum housing and a polycarbonate lens, the fixture is IP65 rated for wet locations, ensuring durability in harsh environments.

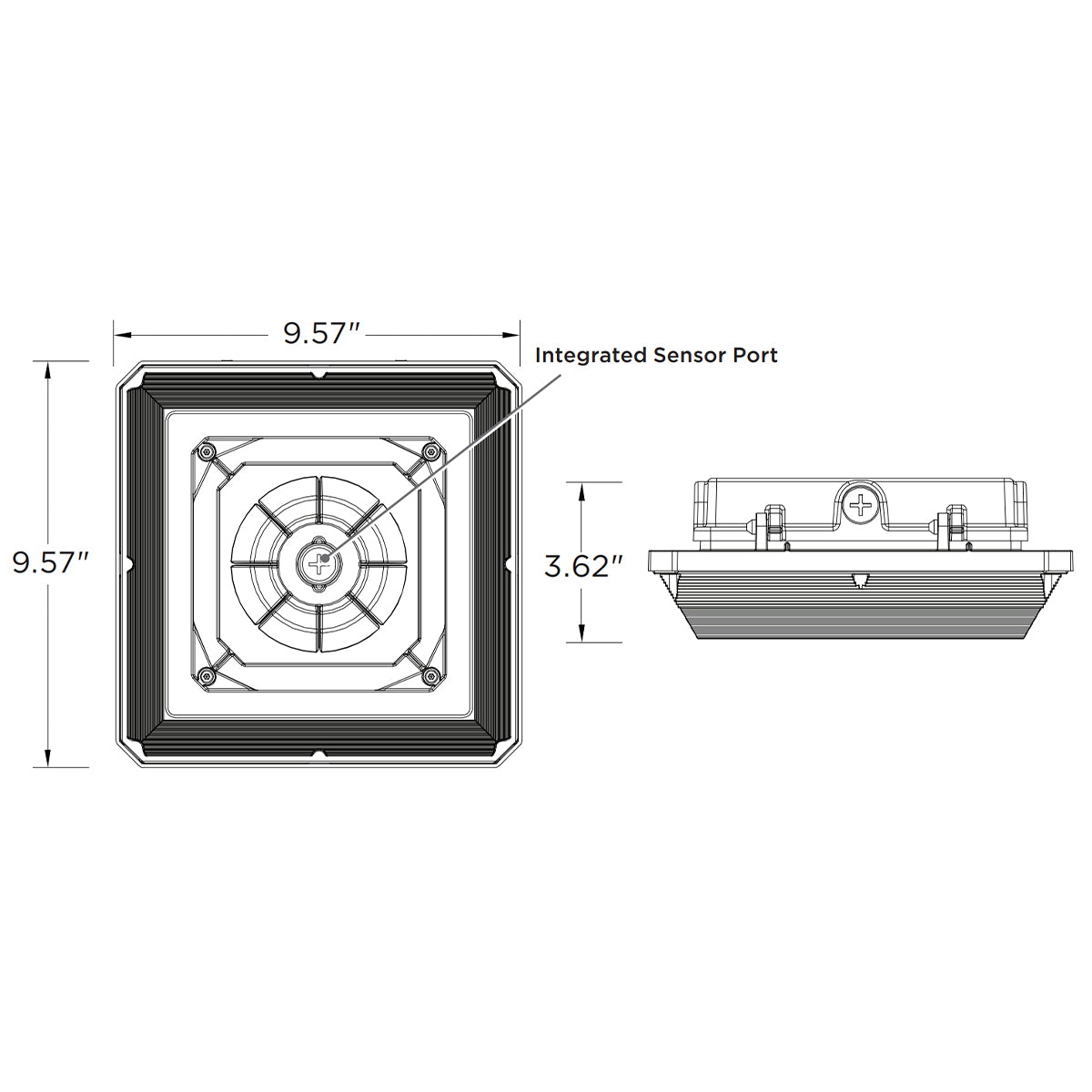

Installation & Mounting

Designed for easy installation with a hinged door and multiple knockouts for various mounting options, including pendant applications.

What's Included

• Integrated LED Canopy Light
