Satco 65-551 Adjustable Wall/Ceiling Mount Vapor Tight — 20W — Red/Green/Blue (RGB) Selectable — Gray
Available in stock (347)
About this item
About this item
- Selectable RGB Output: 20W LED engine delivering 500 lumens (Red), 1,000 lumens (Green), or 200 lumens (Blue) across a 50,000-hour rated life.
- 90° Adjustable Vapor Tight: Durable die-cast aluminum body, protective steel cage, frosted glass globe, and a 90° adjustable arm for wall or ceiling mounting.
- Red/Green/Blue Switchable: Onboard RGB selector switch enables instant color selection for locational designation and safety indication applications.
- Universal Commercial Voltage: Operates on 120–277V AC electrical systems with integrated 2kV surge protection for commercial reliability.
- Wet Location & Ingress Defense: cETLus listed for wet locations, IP65 sealed against dust and water jets, and RoHS compliant.
Description
Description

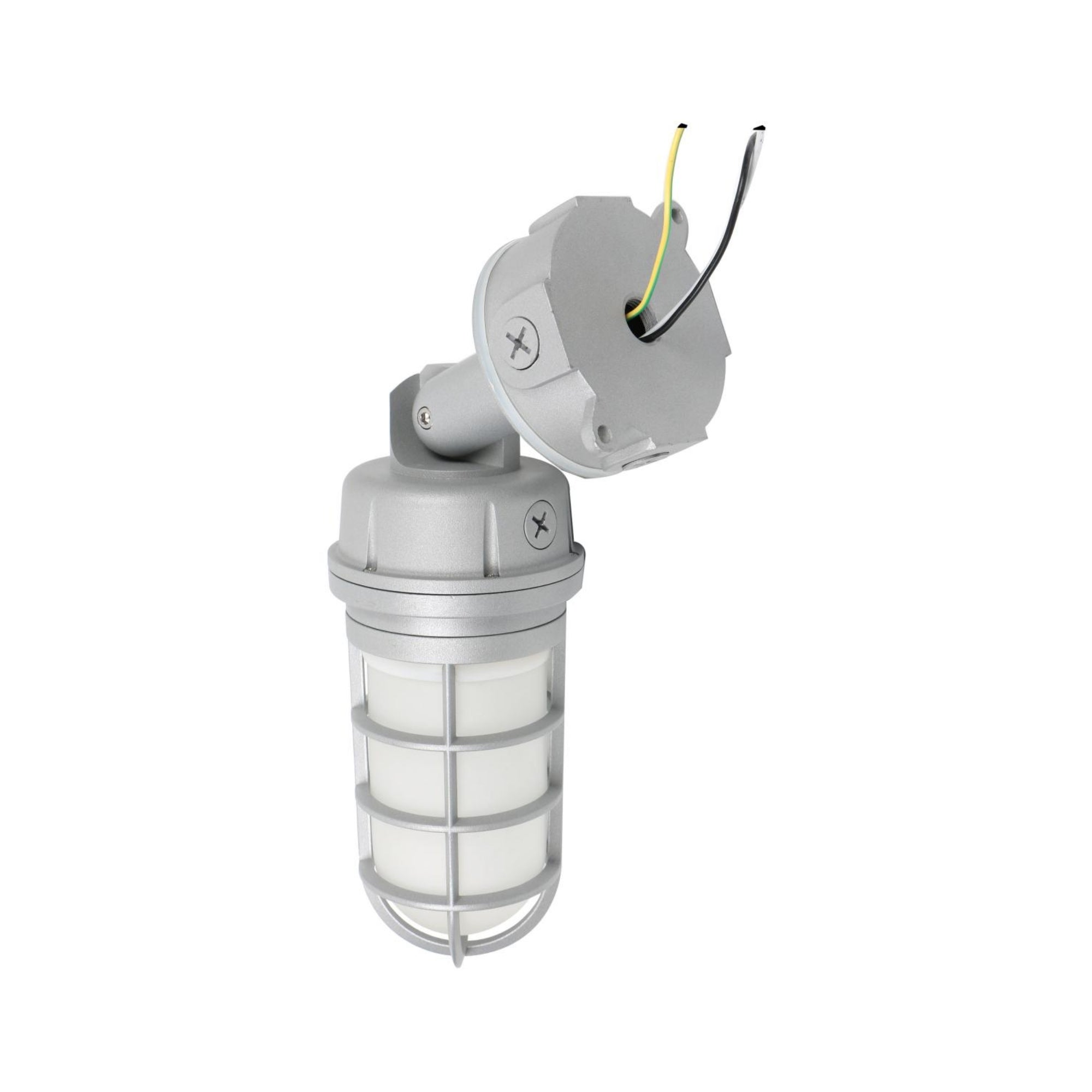

Satco 65-551 Adjustable Wall/Ceiling Mount Vapor Tight — 20W — Red/Green/Blue (RGB) Selectable — Gray/Frosted Glass
The Satco 65-551 is a commercial Wall or Ceiling Mount Vapor Tight luminaire engineered to deliver selectable Red (500 lumens), Green (1,000 lumens), or Blue (200 lumens) output at 20W for locational designation and safety indication applications. Operating on 120–277V electrical systems, this luminaire features a 90° adjustable arm that adapts to both wall and ceiling installations across commercial and industrial facilities. Built with a cETLus Wet Location rating, it features an IP65-sealed durable die-cast aluminum body, protective steel cage, and frosted glass globe sharing the exact footprint of the Satco 65-550 white CCT model.
Key Features
- Wattage: 20W fixed output
- Lumen Output by Color: Red: 500 lm / Green: 1,000 lm / Blue: 200 lm
- Peak Efficacy: Up to 50 lm/W (Green: 50 lm/W, Red: 25 lm/W, Blue: 10 lm/W)
- CRI: 80 CRI series rating

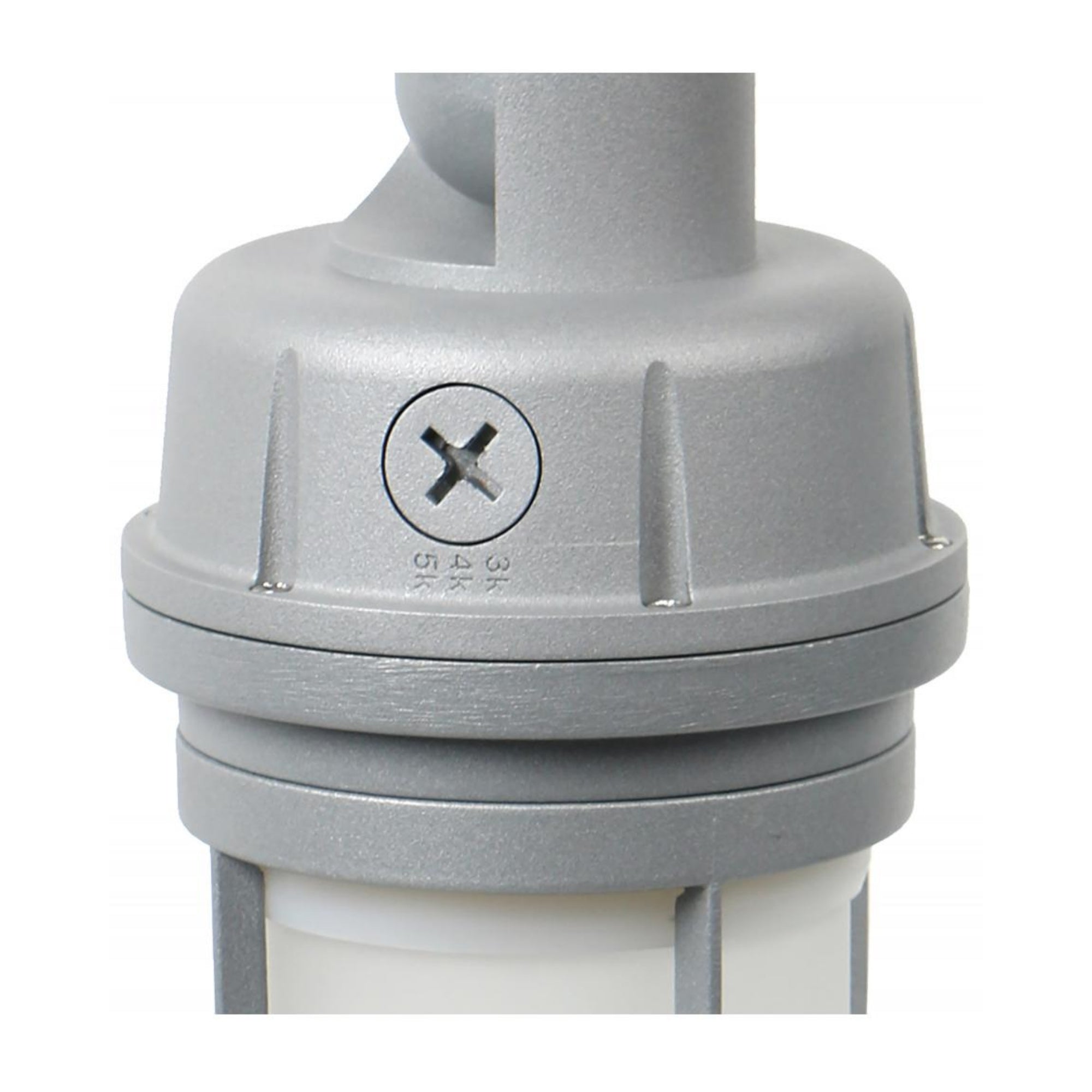

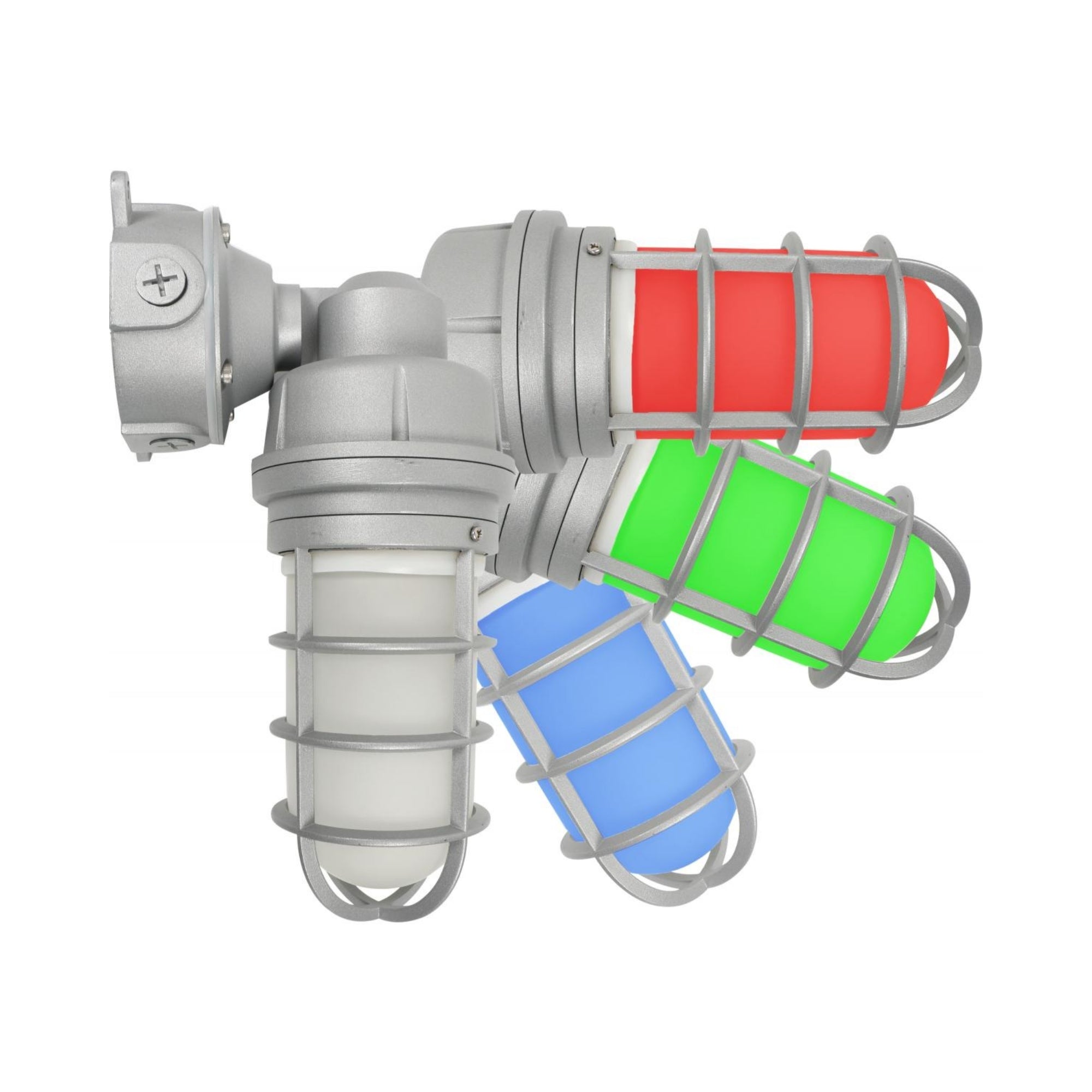

- Selectable Color: Red / Green / Blue (RGB) selectable via onboard switch
- Lens & Optics: Frosted glass globe with protective steel cage for uniform, low-glare colored illumination
- Voltage: Universal 120–277V AC driver with 2kV surge protection
- Location Rating: cETLus Listed for wet locations; IP65 rated
- Certifications: cETLus Listed, IP65, RoHS Compliant
- Rated Life: 50,000 hours per Satco commercial specification
- Warranty: 5-year limited warranty — Satco

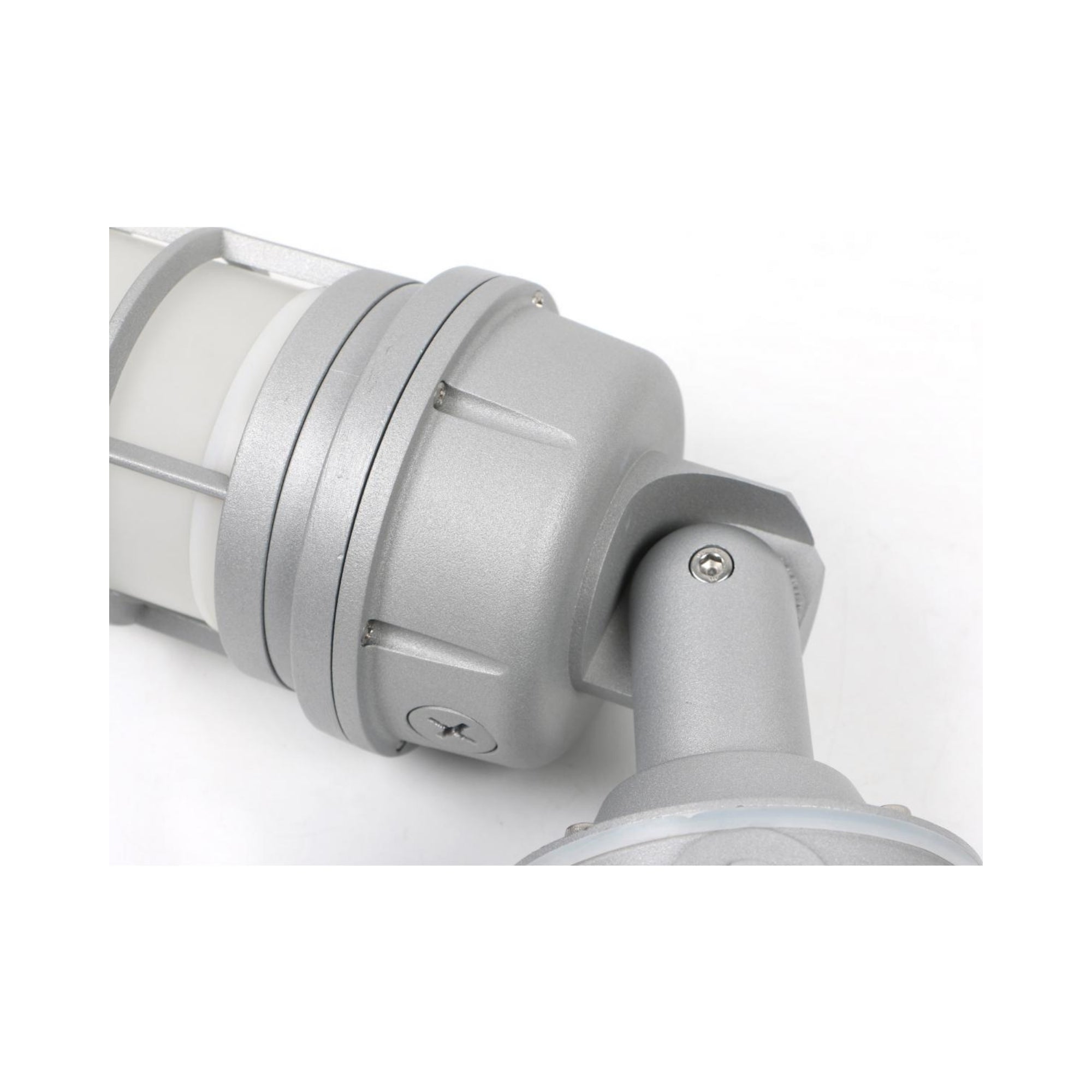

- Form Factor & Design: 90° adjustable arm pivots in multiple increments for wall or ceiling mounting
Performance & Light Output
At 20W: 500 lm (Red / 25 lm/W), 1,000 lm (Green / 50 lm/W), 200 lm (Blue / 10 lm/W).
CRI 80 series rating. Rated life 50,000 hours.
Electrical
Powered by a universal 120–277V AC driver operating at 20W. Integrated 2kV surge protection shields internal LED components against transient voltage spikes on commercial branch circuits.
Construction
Durability & Impact Protection: Durable die-cast aluminum body and protective steel cage engineered for physical protection in commercial and industrial utility environments. Features a 90° adjustable arm that pivots in multiple increments for wall or ceiling orientation.
Ingress Protection: IP65 rated and cETLus wet location listed for complete protection against airborne dust and water jets.
Lens & Optics: Frosted glass globe for diffused, glare-controlled colored illumination.
Finish: Gray finish formulated for high resistance against corrosion and surface wear.

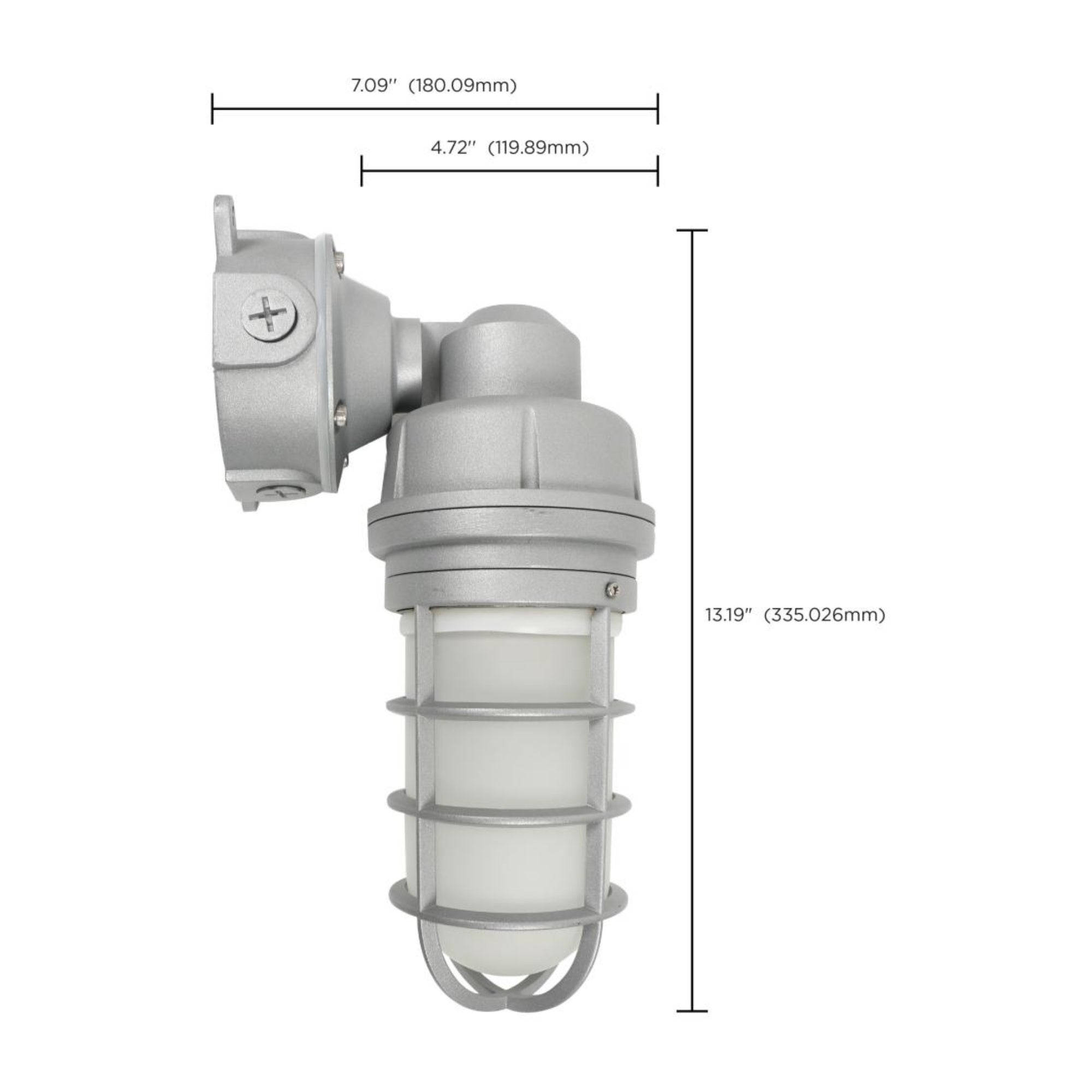

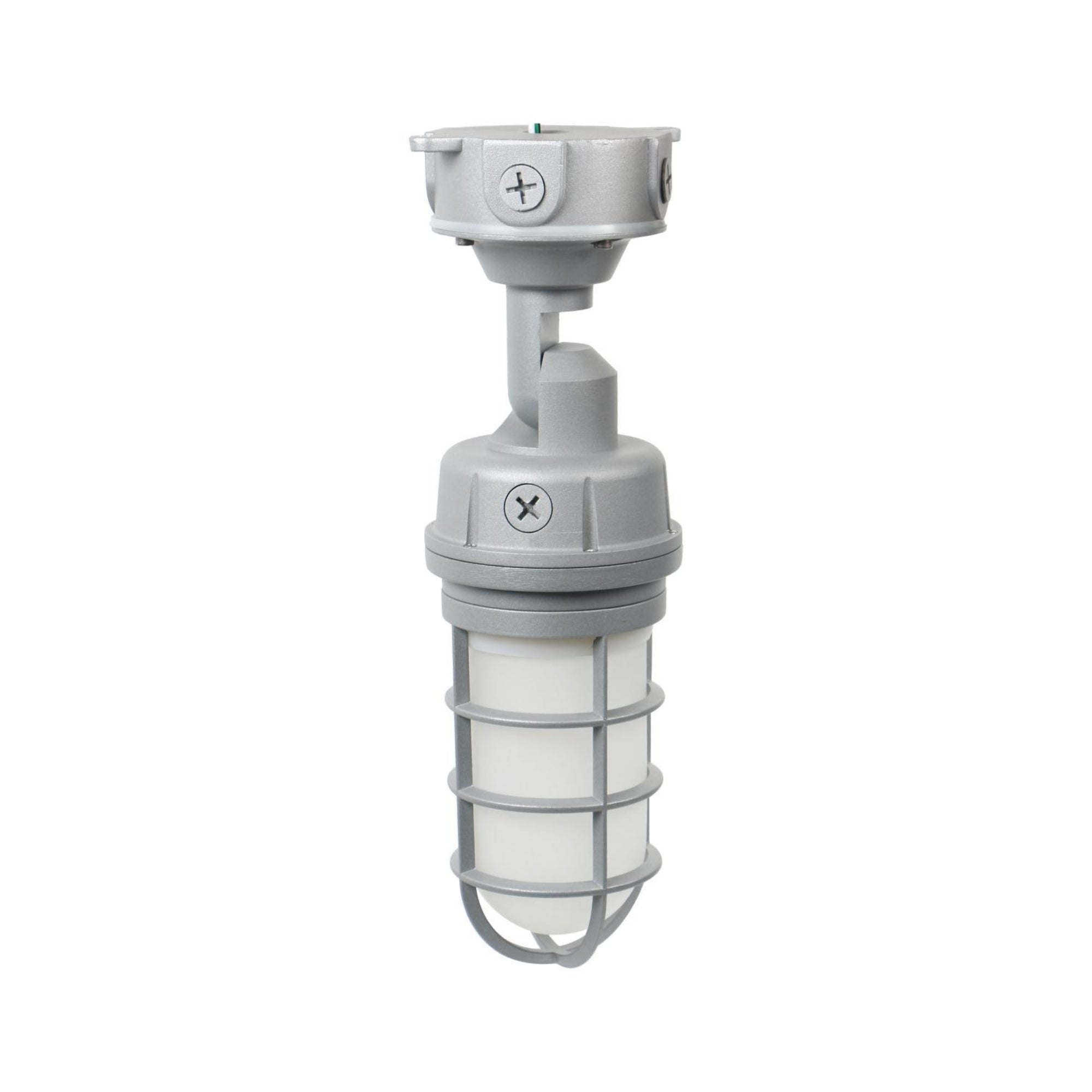

Dimensions & Weight: 13.19" H × 7.06" D × 4.75" W (13 3/16" / 335mm H × 7 1/16" / 180mm D × 4 3/4" / 120mm W in wall-mount position; 16.00" / 406mm H × 4.75" / 120mm W in ceiling-mount position).
Installation & Mounting
Standard Mounting: Integrated 90° adjustable mounting arm adjusts in multiple increments for direct wall or ceiling surface installation.
Certifications & Rebates
- cETLus Listed: Certified for wet locations.
- IP65 Rated: Sealed against dust ingress and low-pressure water jets.
- RoHS Compliant: Engineered free of toxic lead, mercury, and hazardous substances.
Typical Applications
- Loading Docks & Freight Bays — Red and Green selectable settings provide high-visibility dock status and safety signaling in wet outdoor bays.
- Emergency Call Stations & Safety Zones — Blue selectable setting (200 lumens) designates security call boxes, eyewash stations, and first-aid locations.
- Industrial Plants & Process Walkways — Durable die-cast aluminum body, steel cage, and IP65 sealing protect directional indicator lighting in harsh zones.
- Tunnels, Mines & Utility Corridors — 90° adjustable arm mounts directly to walls or ceilings for clear locational marking along passageways.
- Multi-Zone Commercial Facilities — Shares the exact housing footprint of the Satco 65-550 CCT model for uniform aesthetics across general and safety lighting.
What's Included
- Satco 65-551 RGB Selectable Adjustable Vapor Tight Luminaire — Gray
- Protective steel cage and frosted glass globe
- Installation and operation manual
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How is the Satco 65-551 mounted and adjusted?
How is the Satco 65-551 mounted and adjusted?
How do you select the color output on the Satco 65-551?
How do you select the color output on the Satco 65-551?
What environmental and ingress protection ratings does the 65-551 carry?
What environmental and ingress protection ratings does the 65-551 carry?
What voltage and surge protection are built into the Satco 65-551?
What voltage and surge protection are built into the Satco 65-551?
What is the rated lifespan and warranty of the Satco 65-551?
What is the rated lifespan and warranty of the Satco 65-551?
