Satco 65-550 ColorQuick Adjustable Wall/Ceiling Mount Vapor Tight — 20W — 3000K/4000K/5000K — Gray
Available in stock (2485)
About this item
About this item
- Fixed Output & Efficacy: 20W LED engine delivering 1,700 to 2,000 lumens (up to 100 lm/W efficacy) across a 50,000-hour rated life.
- 90° Adjustable Vapor Tight: Durable die-cast aluminum body, protective steel cage, frosted glass globe, and a 90° adjustable arm for wall or ceiling mounting.

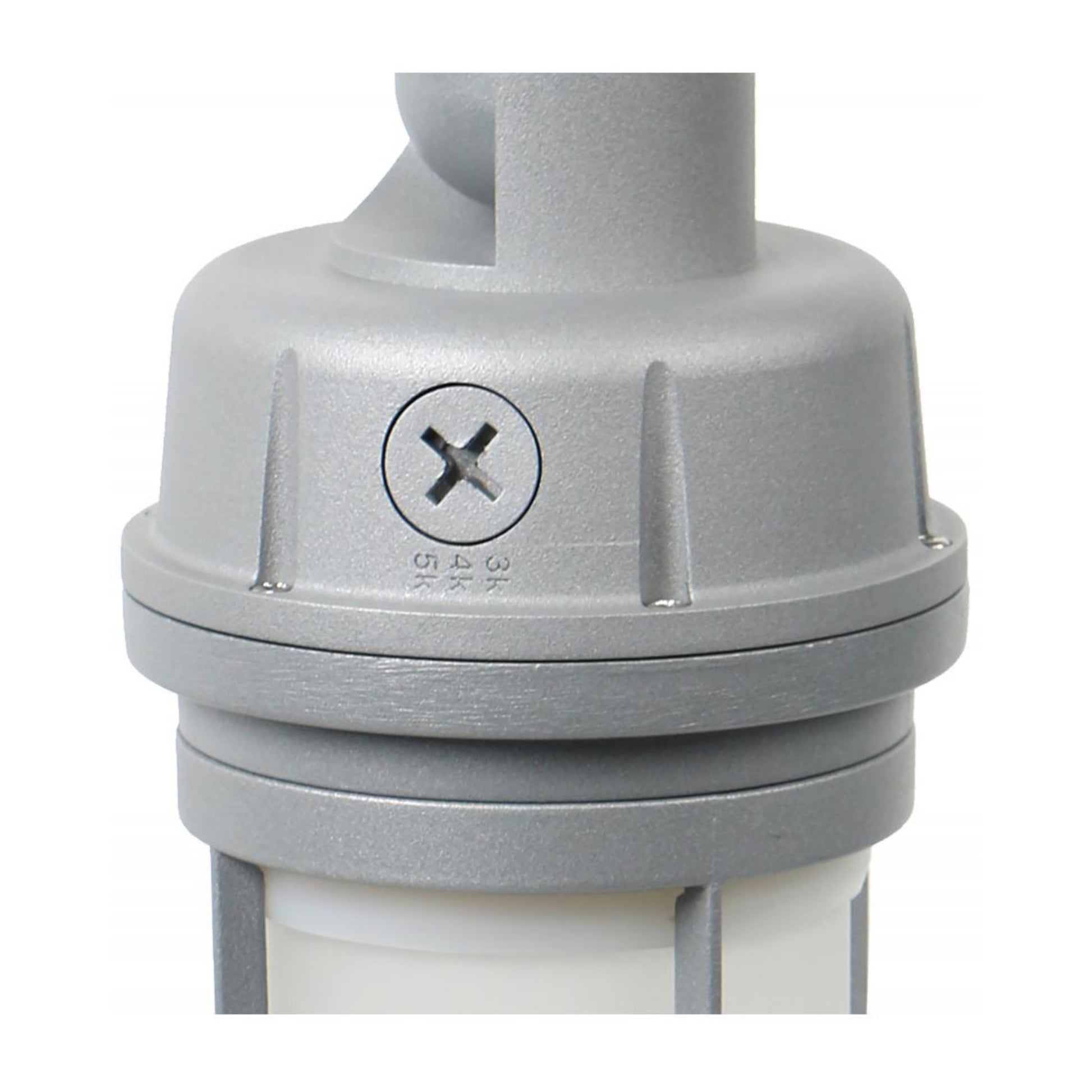

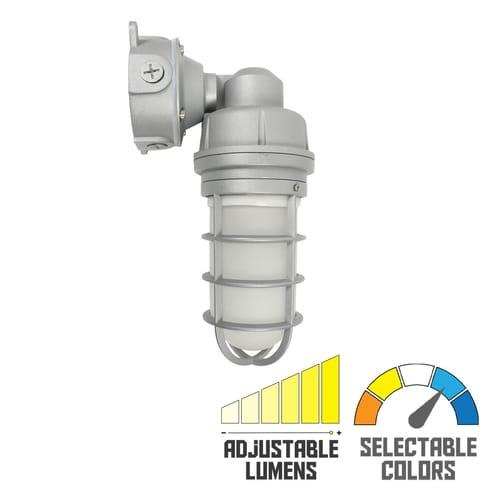

- ColorQuick Selectable CCT: Onboard switch enables instant selection between 3000K, 4000K, and 5000K switchable Kelvin color temperatures.
- Universal Commercial Voltage: Operates on 120–277V AC electrical systems with integrated 2kV surge protection for commercial reliability.
- Certifications & Ingress Defense: ENERGY STAR certified, cETLus listed for wet locations, IP65 sealed against dust and water jets, and RoHS compliant.
Description
Description

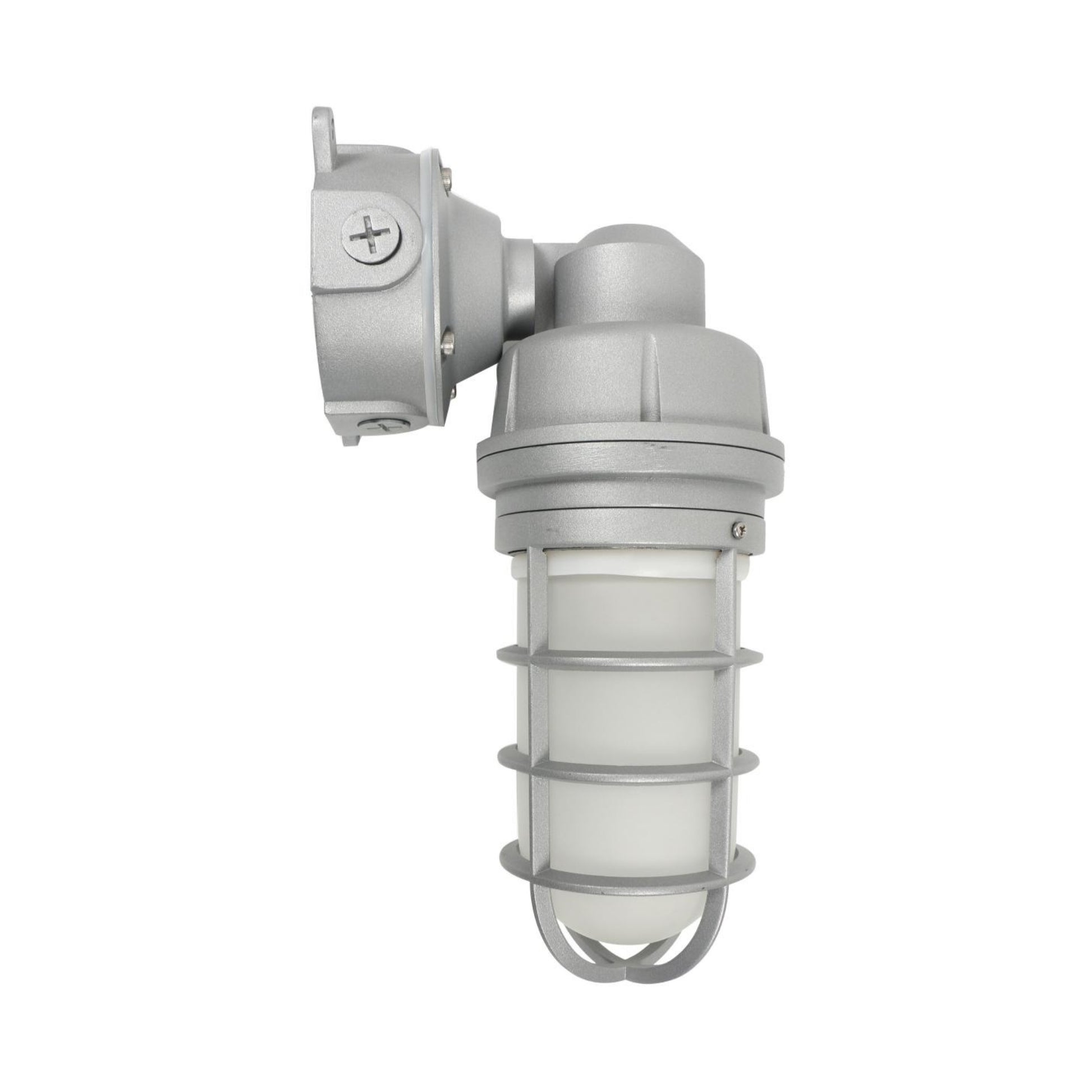

Satco 65-550 ColorQuick Adjustable Wall/Ceiling Mount Vapor Tight — 20W — 3000K/4000K/5000K — Gray/Frosted Glass
The Satco 65-550 is a commercial Wall or Ceiling Mount Vapor Tight luminaire engineered to deliver 1,700–2,000 lumens at 20W with ColorQuick selectable 3000K/4000K/5000K color temperatures. Operating on 120–277V electrical systems, this luminaire features a 90° adjustable arm that adapts to both wall and ceiling installations across commercial and industrial facilities. Built with a cETLus Wet Location rating, it is ENERGY STAR certified and features an IP65-sealed durable die-cast aluminum body, protective steel cage, and frosted glass globe.
Key Features
- Wattage: 20W fixed output
- Lumen Output: 1,700–2,000 lm across selectable CCT settings
- Peak Efficacy: Up to 100 lm/W (85–100 lm/W) for high-efficiency commercial operation
- CRI: 80 CRI color rendering
- Selectable CCT: 3000K / 4000K / 5000K — ColorQuick Selectable Color Technology (field-adjustable CCT for tunable white and switchable Kelvin control)
- Lens & Optics: Frosted glass globe with protective steel cage for uniform, low-glare illumination
- Voltage: Universal 120–277V AC driver with 2kV surge protection
- Location Rating: cETLus Listed for wet locations; IP65 rated
- Certifications: ENERGY STAR Certified, cETLus Listed, IP65, RoHS Compliant
- Rated Life: 50,000 hours per Satco commercial specification
- Warranty: 5-year limited warranty — Satco

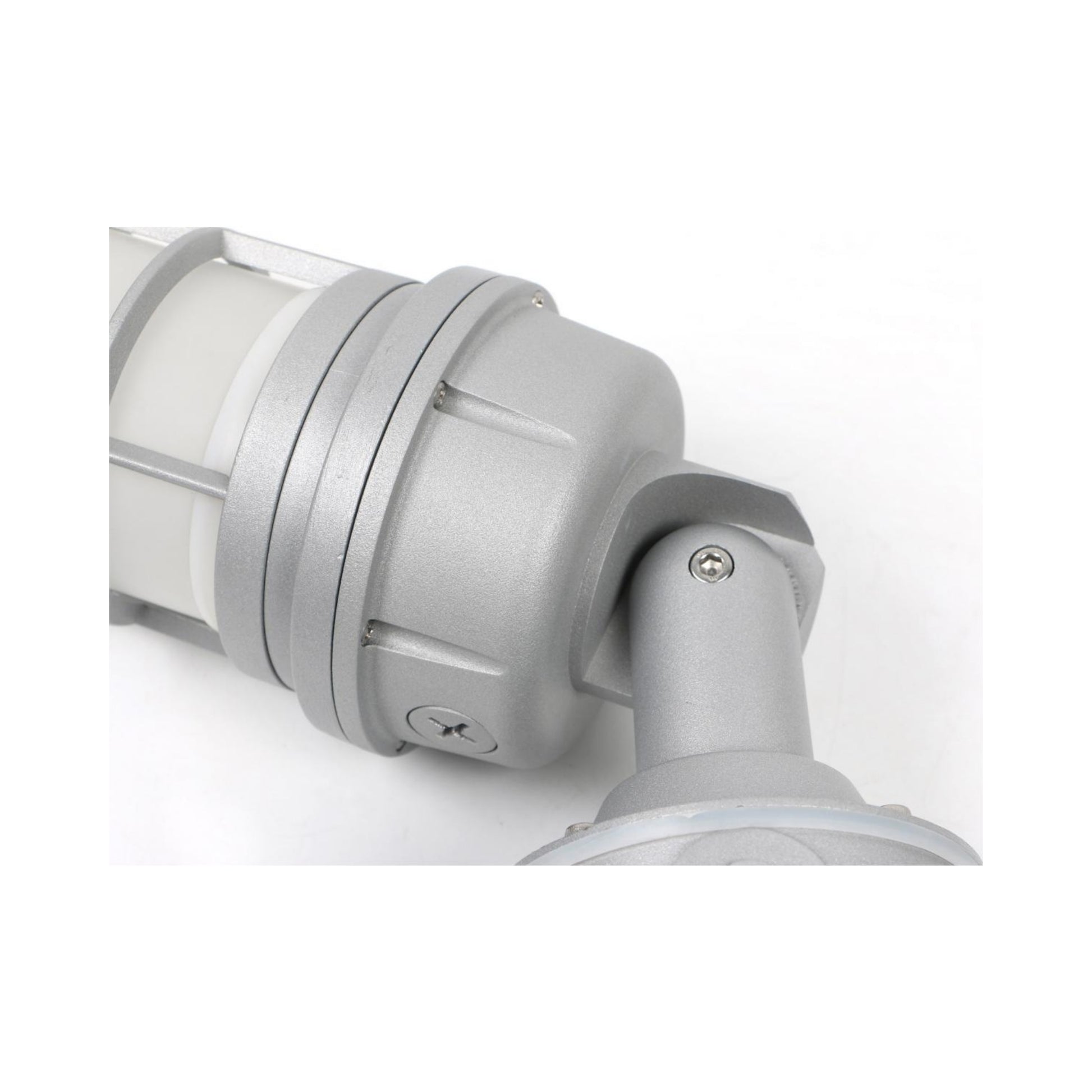

- Form Factor & Design: 90° adjustable arm pivots in multiple increments for wall or ceiling mounting
Performance & Light Output
At 20W, the Satco 65-550 delivers 1,700 to 2,000 lumens (85 to 100 lm/W efficacy) across its selectable 3000K, 4000K, and 5000K ColorQuick settings.
CRI 80 across all configurations. Rated life 50,000 hours.
Electrical
Powered by a universal 120–277V AC driver operating at 20W. Integrated 2kV surge protection shields internal LED components against transient voltage spikes on commercial branch circuits.
Construction
Durability & Impact Protection: Durable die-cast aluminum body and protective steel cage engineered for physical protection in commercial and industrial utility environments. Features a 90° adjustable arm that pivots in multiple increments for wall or ceiling orientation.
Ingress Protection: IP65 rated and cETLus wet location listed for complete protection against airborne dust and water jets.
Lens & Optics: Frosted glass globe for diffused, glare-controlled illumination.
Finish: Gray finish formulated for high resistance against corrosion and surface wear.

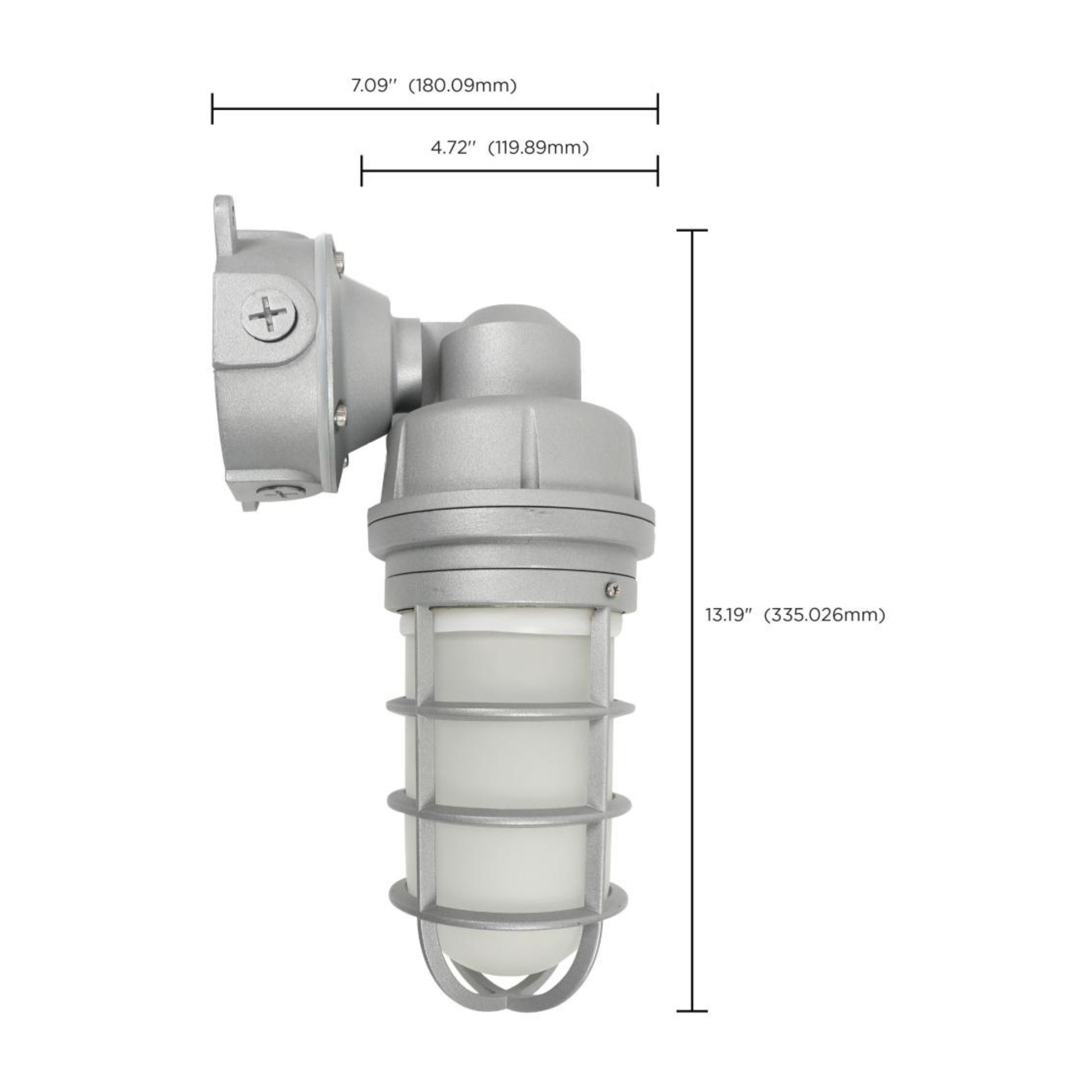

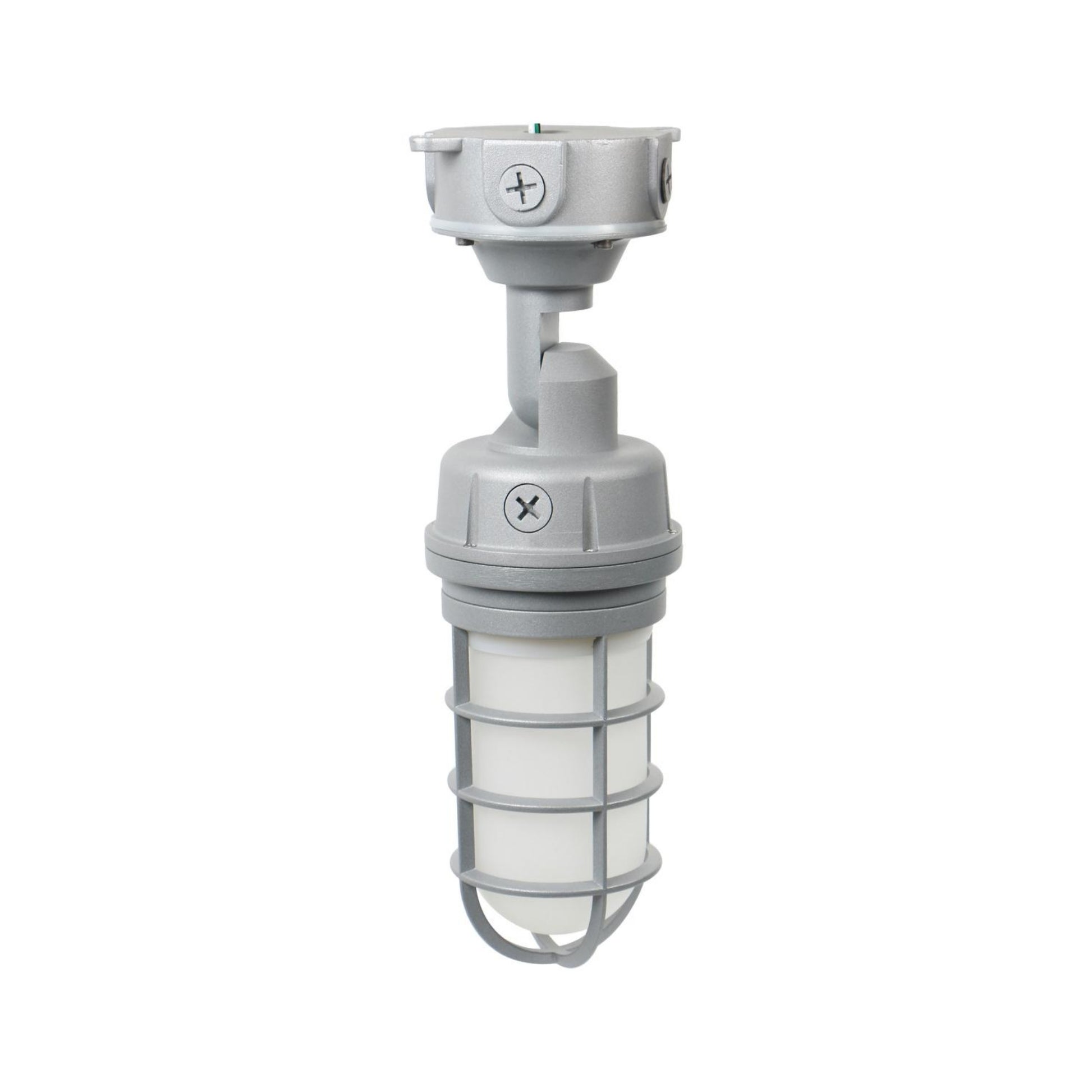

Dimensions & Weight: 13.19" H × 7.06" D × 4.75" W (13 3/16" / 335mm H × 7 1/16" / 180mm D × 4 3/4" / 120mm W in wall-mount position; 16.00" / 406mm H × 4.75" / 120mm W in ceiling-mount position).
Installation & Mounting
Standard Mounting: Integrated 90° adjustable mounting arm adjusts in multiple increments for direct wall or ceiling surface installation.
Certifications & Rebates
- ENERGY STAR Certified: Qualified for commercial utility rebates and energy efficiency programs.
- cETLus Listed: Certified for wet locations.
- IP65 Rated: Sealed against dust ingress and low-pressure water jets.
- RoHS Compliant: Engineered free of toxic lead, mercury, and hazardous substances.
Typical Applications
- Building Entrances & Loading Docks — 90° adjustable arm and wet-location IP65 sealing adapt to wall or overhead canopy mounting at exterior entryways.
- Industrial Walkways & Stairwells — Durable die-cast aluminum body and protective steel cage guard the frosted glass globe in high-traffic corridors.
- Mechanical & Utility Rooms — ColorQuick 3000K/4000K/5000K switchable Kelvin settings allow installers to match existing facility lighting on-site.
- Parking Structures & Breezeways — Universal 120–277V operation with 2kV surge protection ensures reliable performance on commercial electrical panels.
- Cold Storage & Wet Process Perimeters — Matches the exact footprint of the Satco 65-551 RGB model for unified general and safety indicator lighting across a project.
What's Included
- Satco 65-550 Adjustable Vapor Tight Luminaire — Gray
- Protective steel cage and frosted glass globe
- Installation and operation manual
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How is the Satco 65-550 mounted and adjusted?
How is the Satco 65-550 mounted and adjusted?
How do you select the color temperature on the Satco 65-550?
How do you select the color temperature on the Satco 65-550?
What environmental and ingress protection ratings does the 65-550 carry?
What environmental and ingress protection ratings does the 65-550 carry?
What voltage and surge protection are built into the Satco 65-550?
What voltage and surge protection are built into the Satco 65-550?
Is the Satco 65-550 ENERGY STAR certified and what is its rated lifespan?
Is the Satco 65-550 ENERGY STAR certified and what is its rated lifespan?
