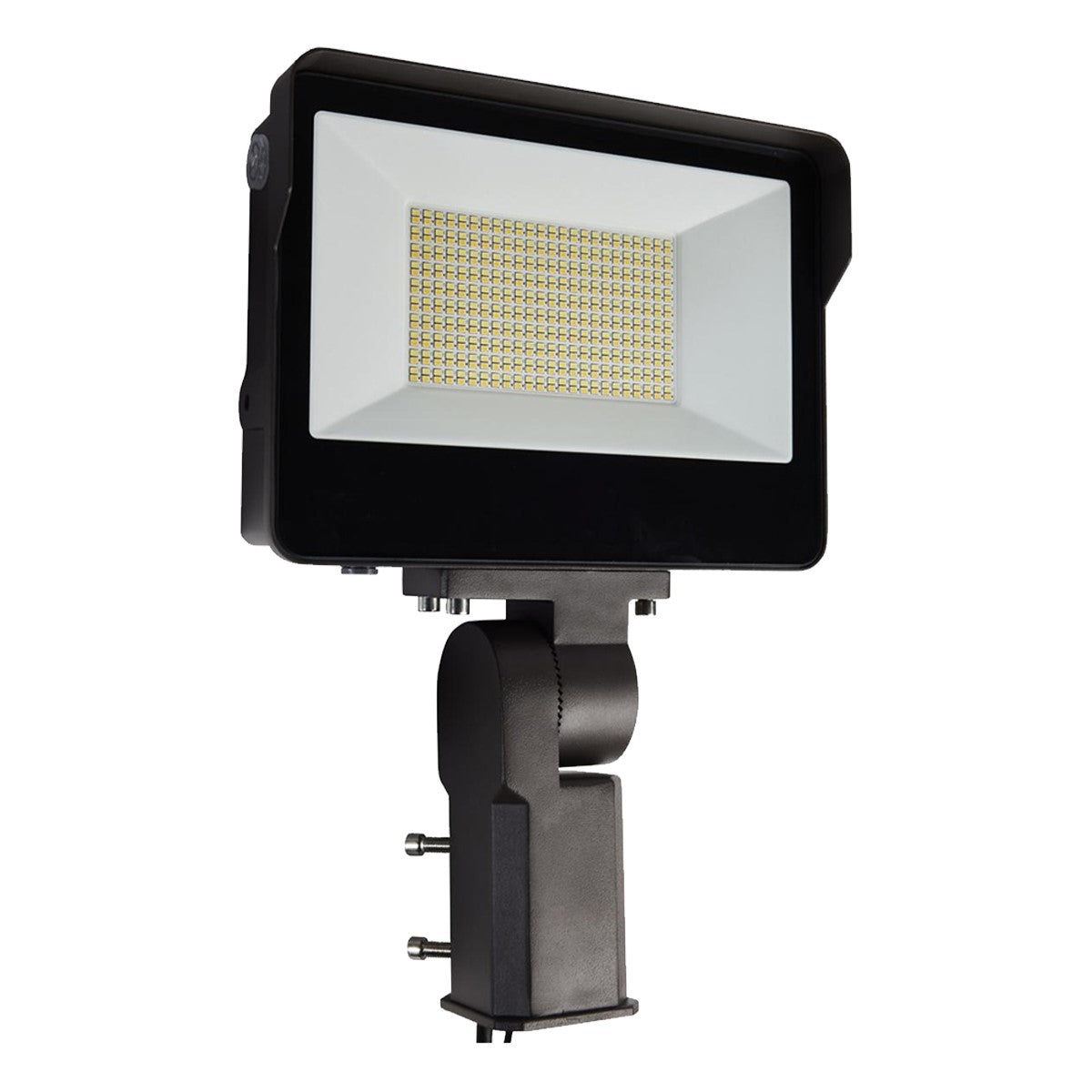

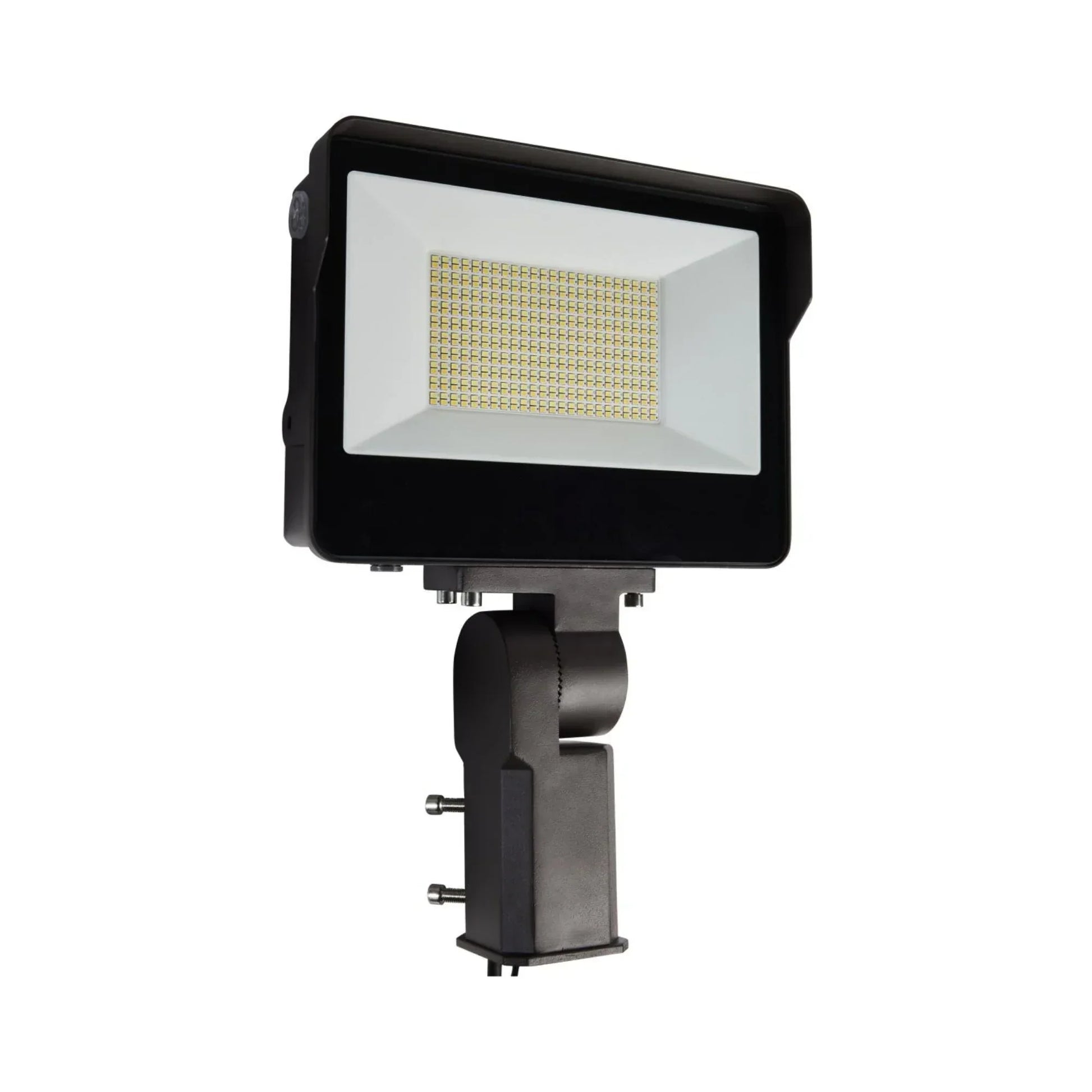

Satco|Nuvo 65-543 LED Floodlight — 150W, Selectable CCT & Power, Slipfitter Mount, Photocell, 120-347V, Bronze

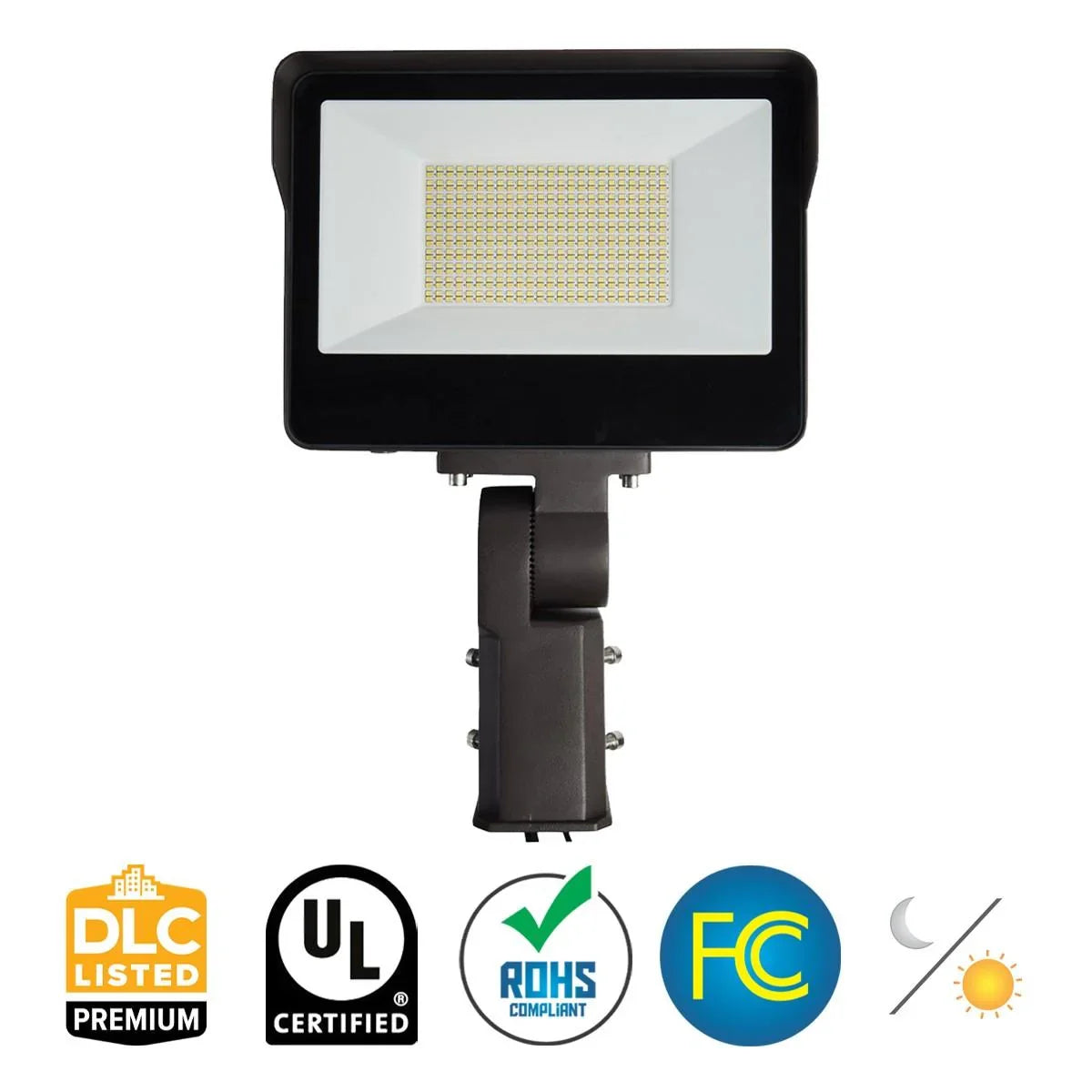

The Satco|Nuvo 65-543 is an industrial-grade, dual-selectable LED flood light designed to deliver massive illumination with incredible on-site versatility. This powerful luminaire produces up to 21,000 lumens and allows installers to easily toggle between three high-output wattage levels (150W, 125W, 100W) and three color temperatures (3000K, 4000K, 5000K) directly in the field using Satco's PowerQuick and ColorQuick technology. It features a durable tempered glass lens and a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for expansive spaces like large building facades, parking lots, and sports fields. Operating on a versatile 120-347V driver, this model comes fully equipped with an integrated bypassable photocell for automated dusk-to-dawn energy savings, allowing manual control if preferred. Built for longevity, the 65-543 is housed in a rugged die-cast aluminum body and earns an IP66 rating for superior durability against the elements. With a 5-year warranty, DLC listing, and standard 0-10V dimming, it efficiently replaces 300W-450W HID fixtures and serves as the ultimate professional choice for high-lumen exterior lighting.

Key Features

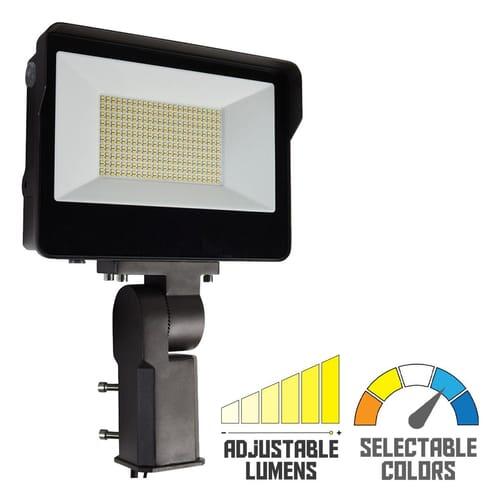

• Wattage: Field adjustable to 150W, 125W, or 100W.

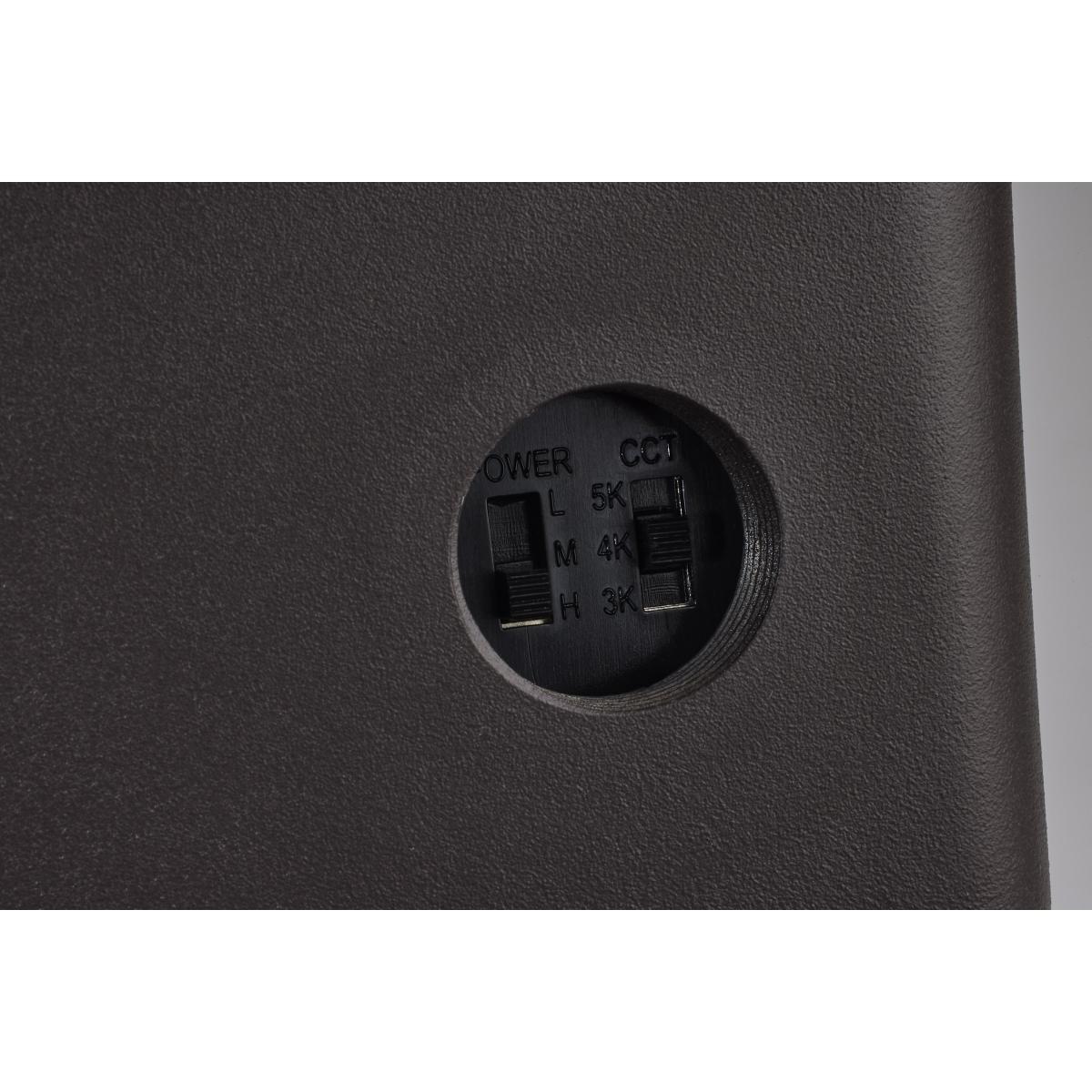

• Selectable CCT: Field adjustable between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight).
• Dimming: Integrated 0-10V dimming capabilities.

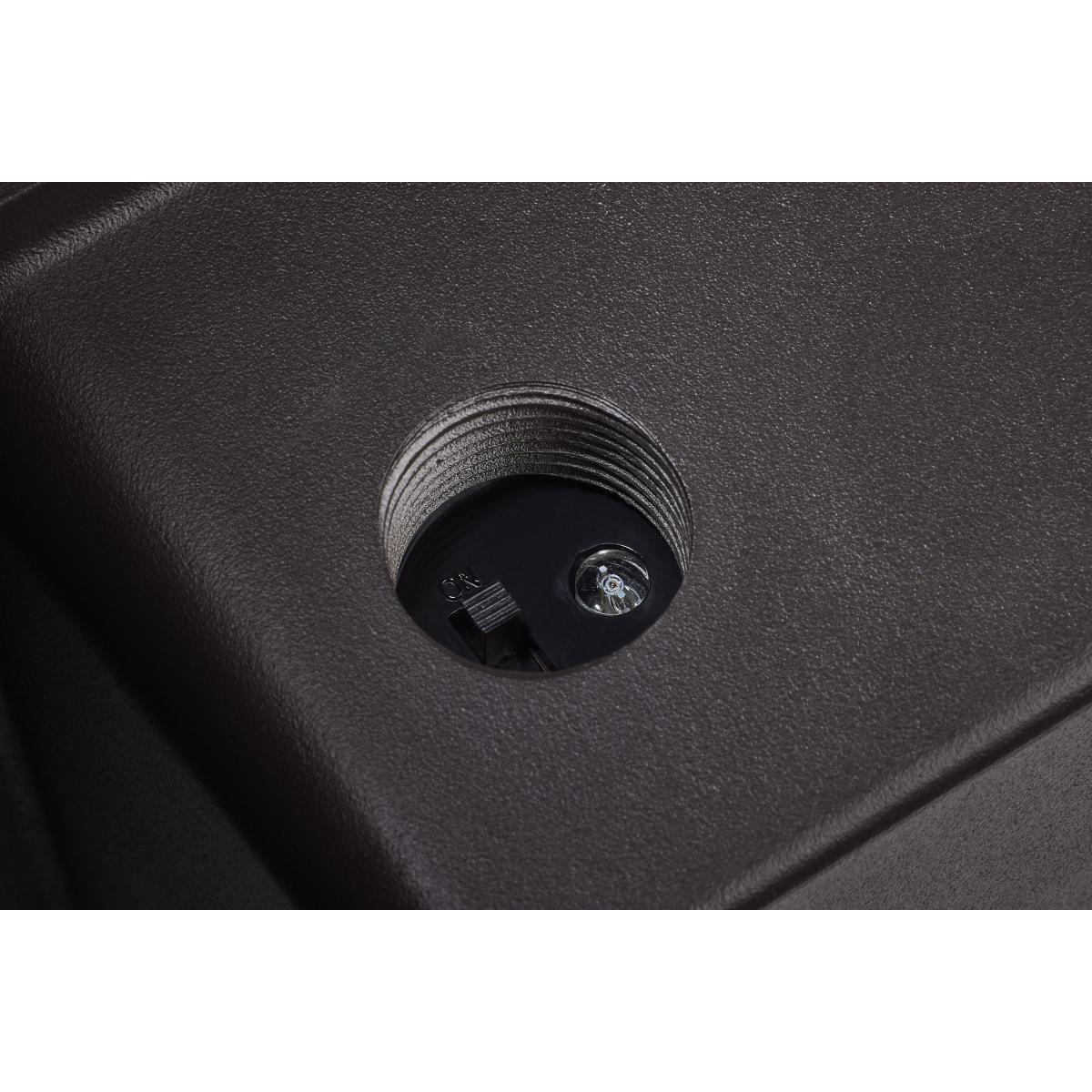

• Photocell: Integrated bypassable photocell included for automatic dusk-to-dawn operation.
• NEMA Type: Wide NEMA 7H x 7V beam spread.
• Mounting Type: Slipfitter mount.
• Delivered Lumens: Up to 21,000 lumens at the highest 150W setting.
• Environmental Ratings: IP66 rated for dust and water; cULus Listed for wet locations.
• Warranty: 5-Year Manufacturer Warranty.

Typical Applications

• Large building perimeters and expansive facade illumination
• Commercial parking lots, car dealerships, and wide area lighting
• Sports courts and large architectural accents
• General high-security exterior area lighting

Performance & Light Output

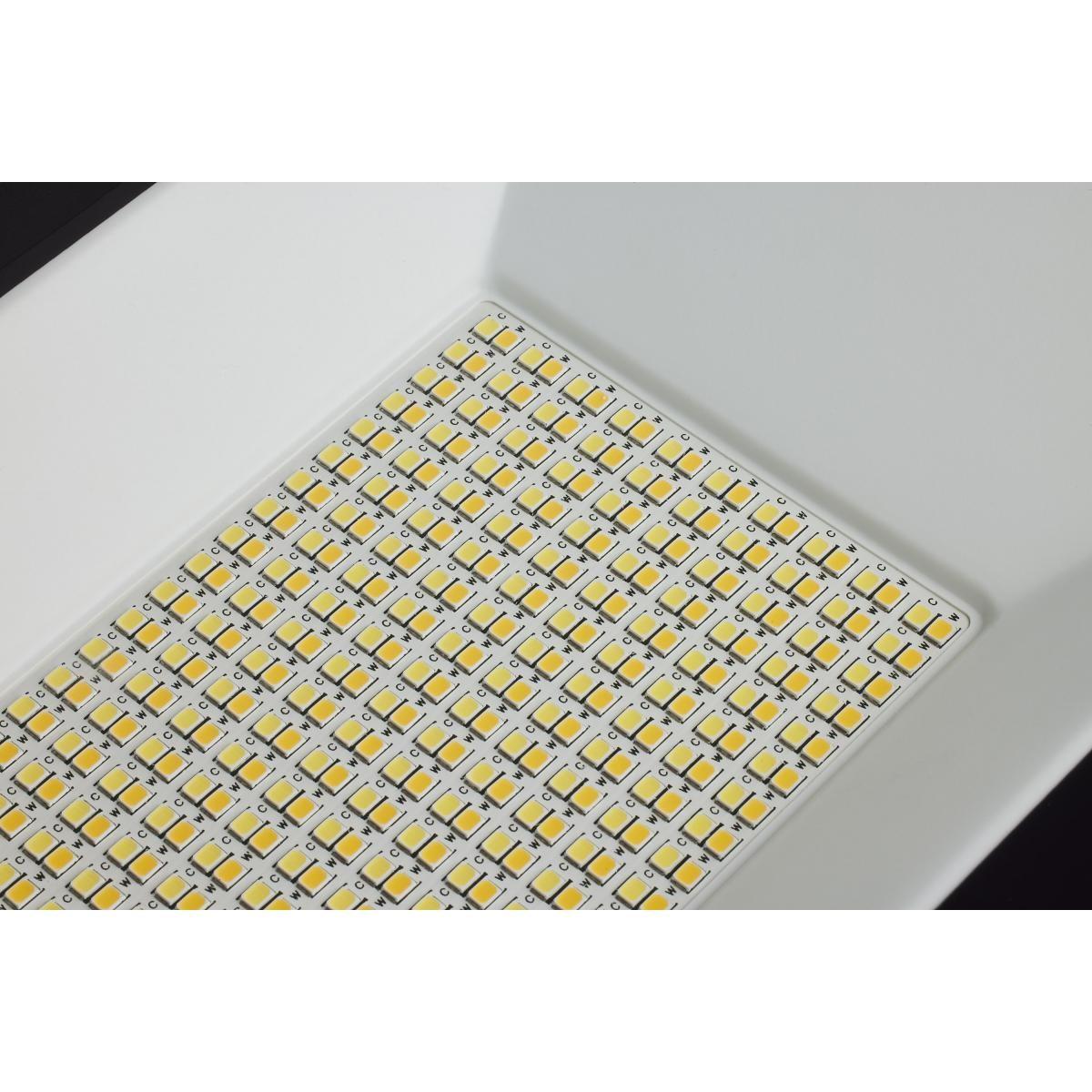

The Satco 65-543 provides high-intensity, uniform light with a massive output of 21,000 lumens. Its advanced optical design ensures excellent color consistency (80+ CRI) through a high-impact clear tempered glass lens. With long-life LEDs rated for 50,000 hours, this fixture significantly reduces maintenance and energy costs over time, acting as a highly efficient replacement for up to 450W HID fixtures.

Electrical & Controls

Equipped with a highly flexible driver and robust 6kV built-in surge protection, the 65-543 is built for exceptionally stable performance across a wide 120-347VAC voltage range. It supports standard 0-10V dimming for integration with motion sensors or advanced building control systems and relies on the integrated bypassable photocell to automate daylight operation.

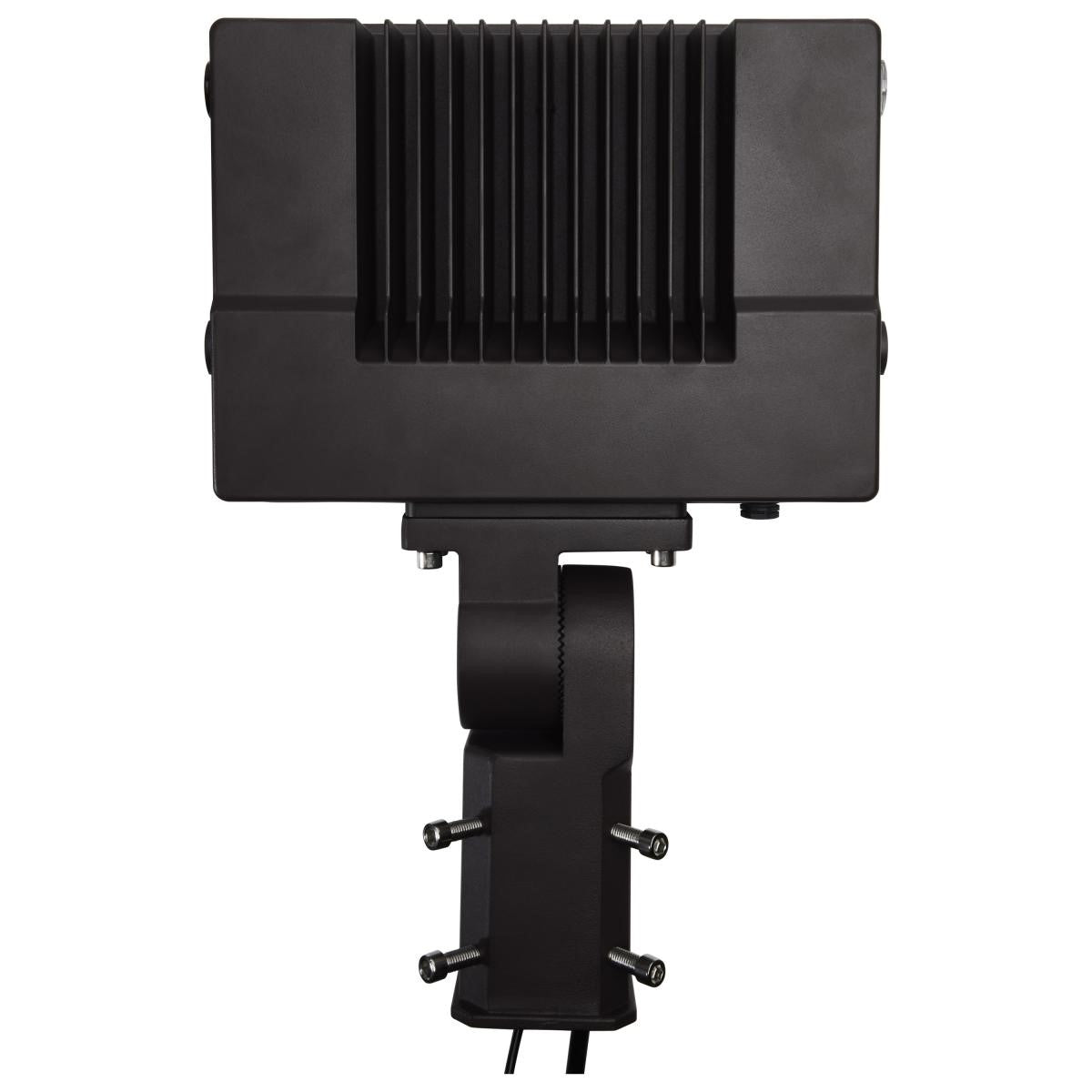

Construction & Durability

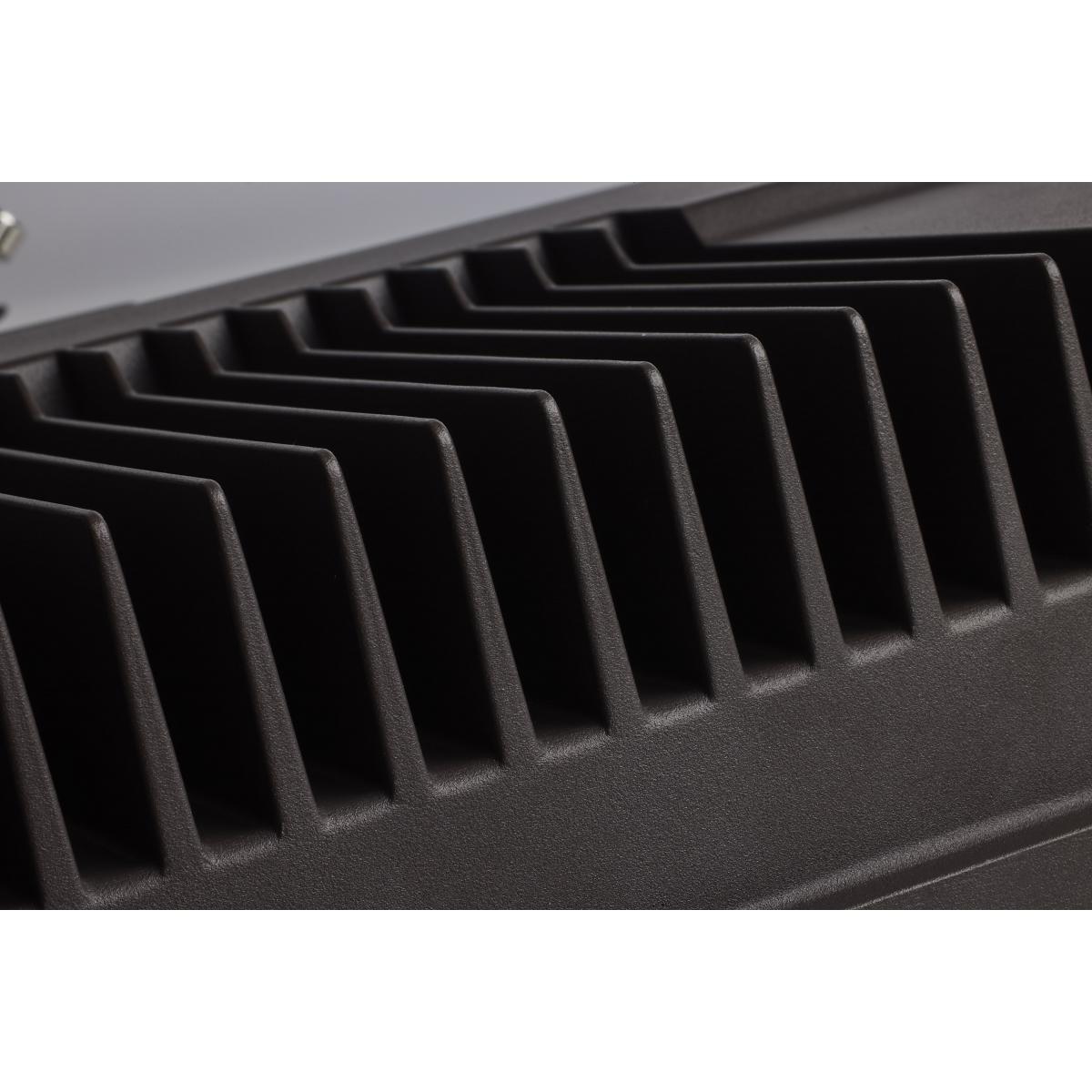

The fixture features a rugged die-cast aluminum housing finished in bronze. Its IP66 rating confirms total protection against dust and water jets, safely operating in extreme ambient temperatures ranging from -22°F (-30°C) up to 113°F (45°C).

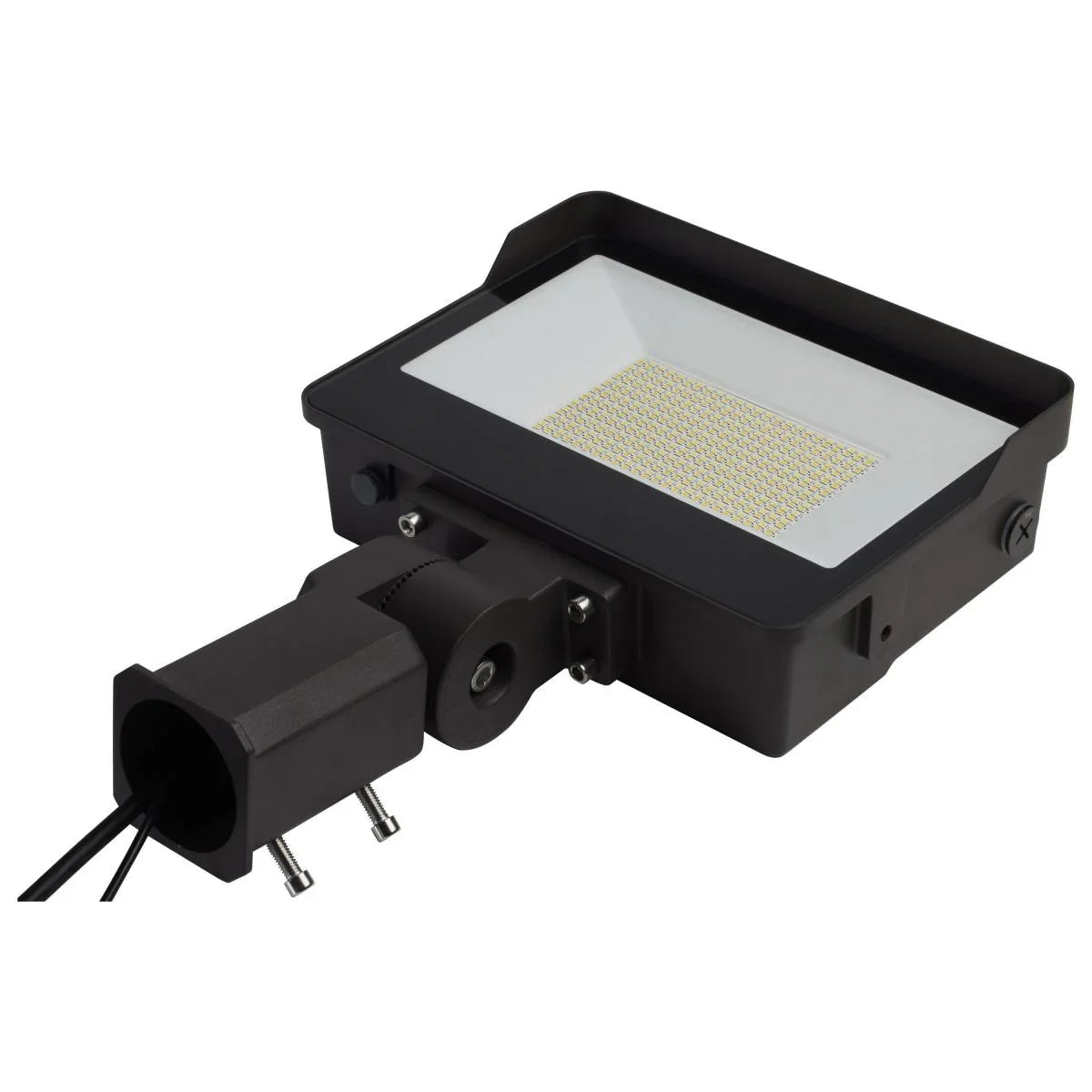

Installation & Mounting

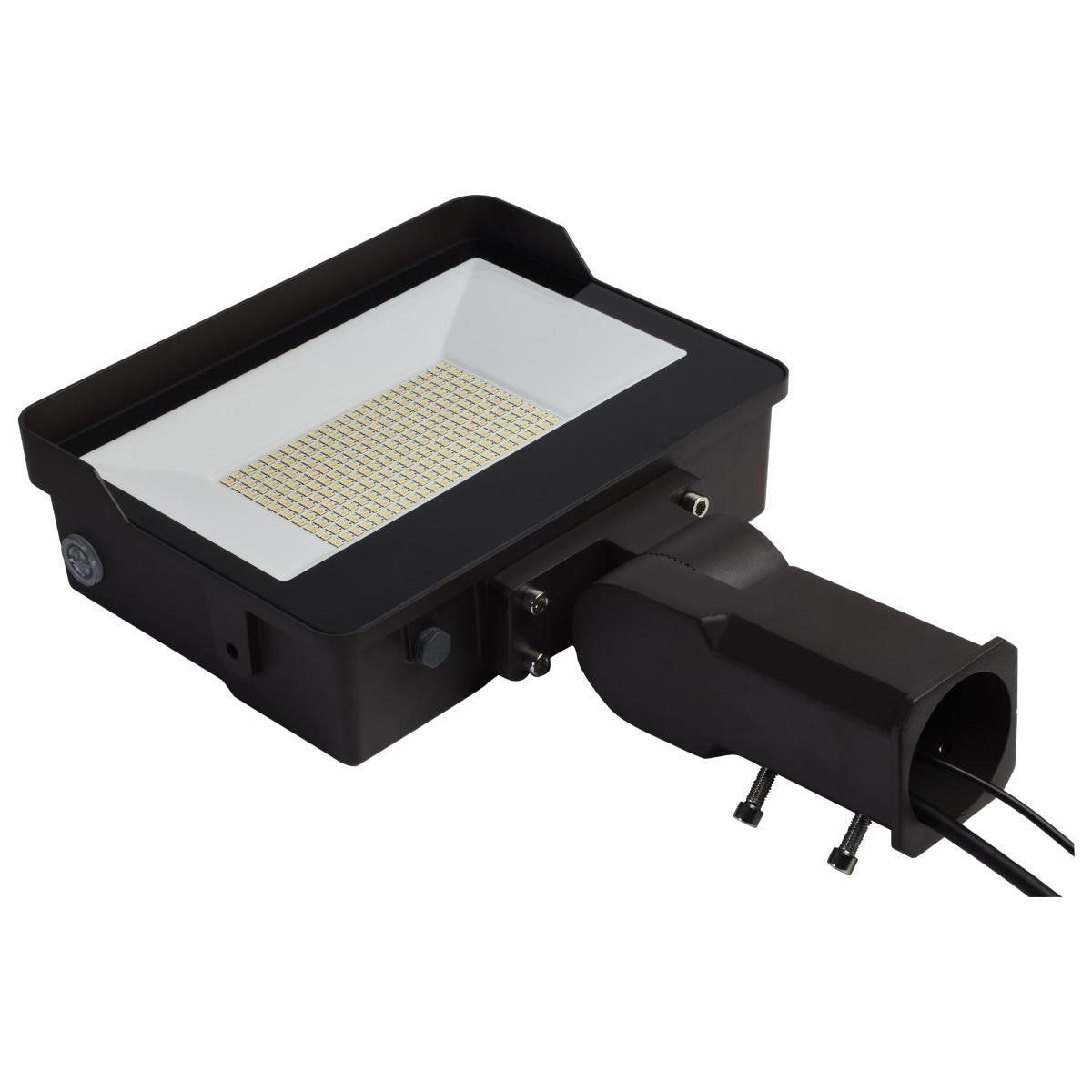

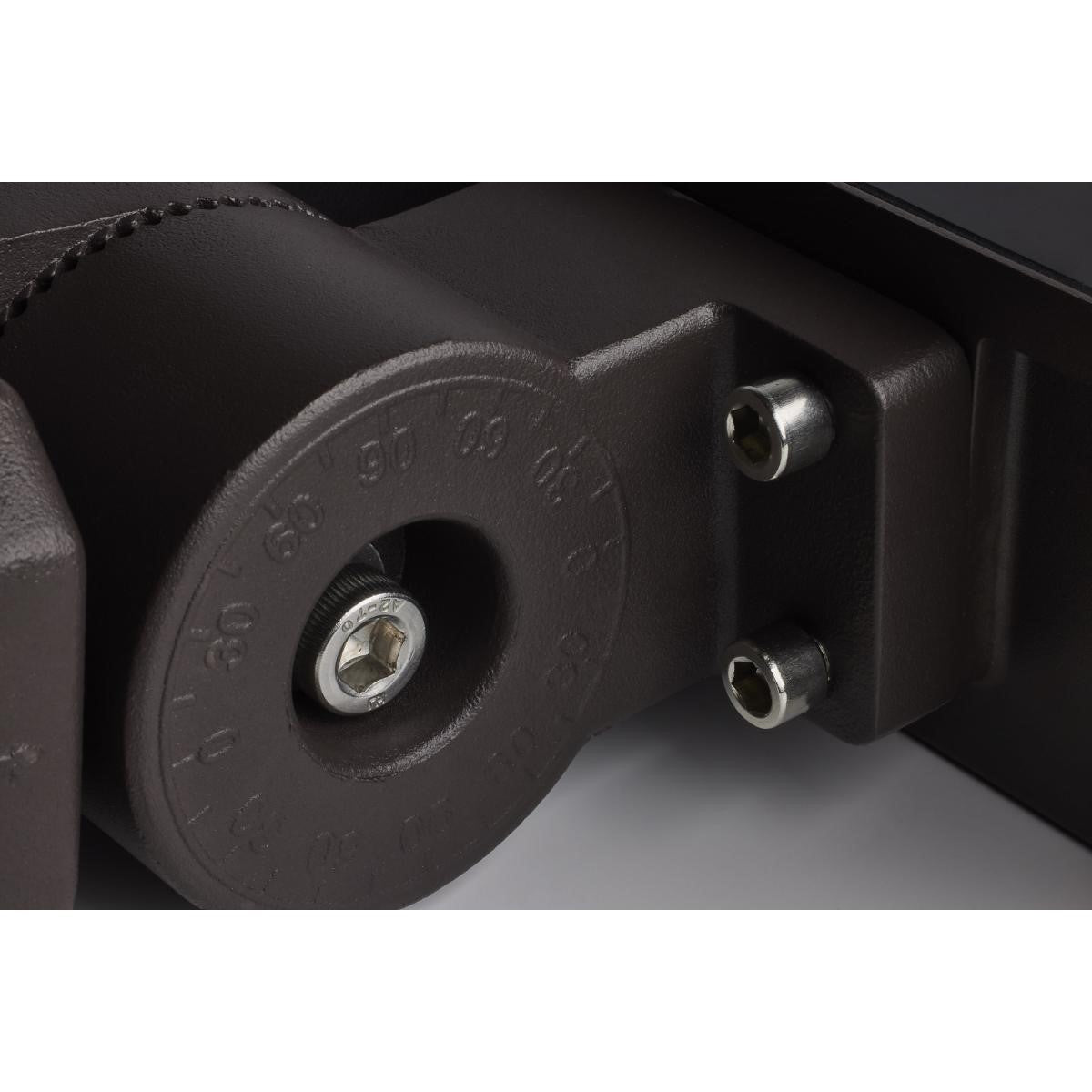

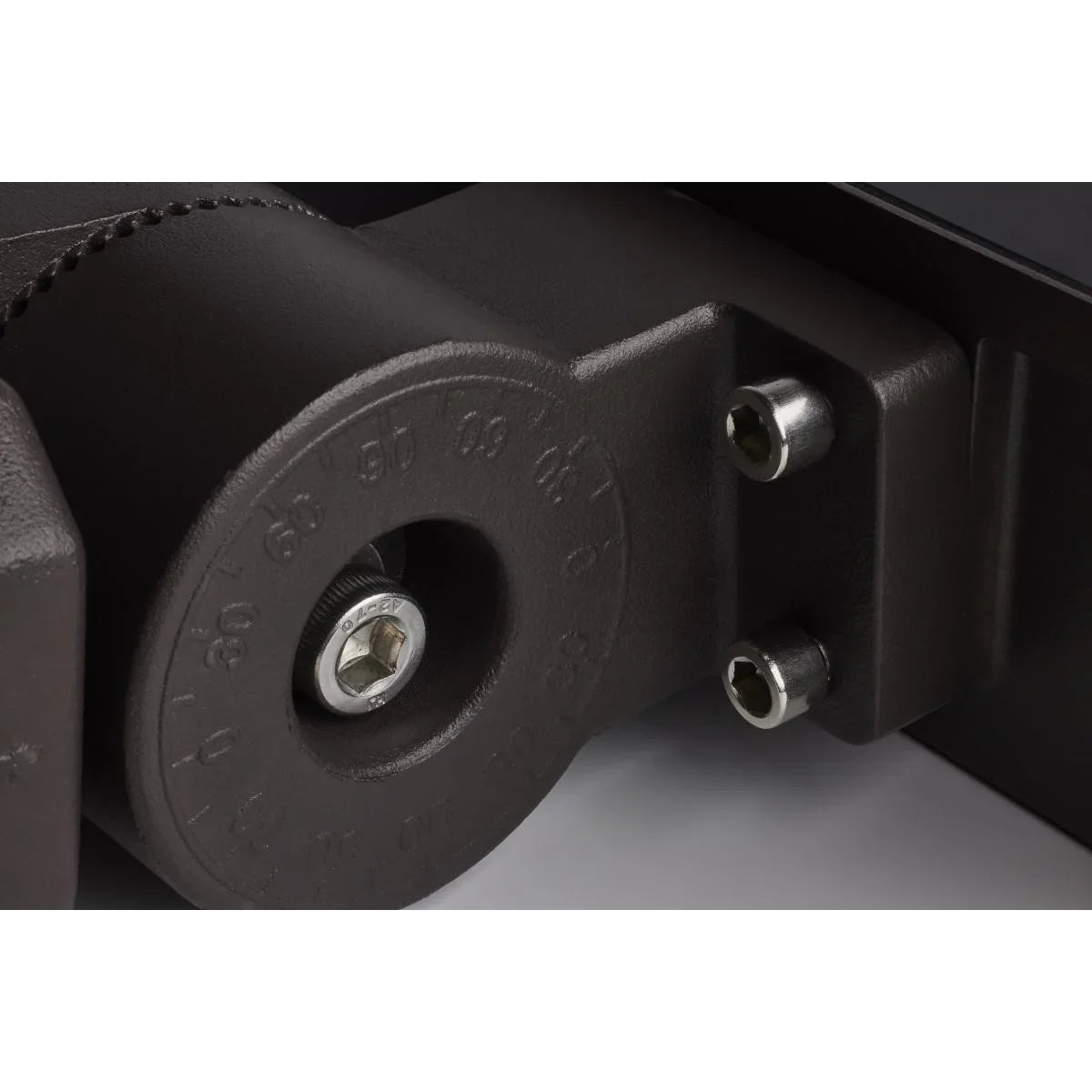

This model provides excellent installation flexibility for high-wattage fixtures. The fixture comes standard with a heavy-duty slipfitter mount, making it perfectly suited for secure installation on round poles or 2 3/8" tenons.

What's Included

• Satco|Nuvo 65-543 LED Selectable Floodlight (Bronze)
• Integrated Slipfitter Mount
• Integrated Bypassable Photocell
• 5-Year Manufacturer Warranty
