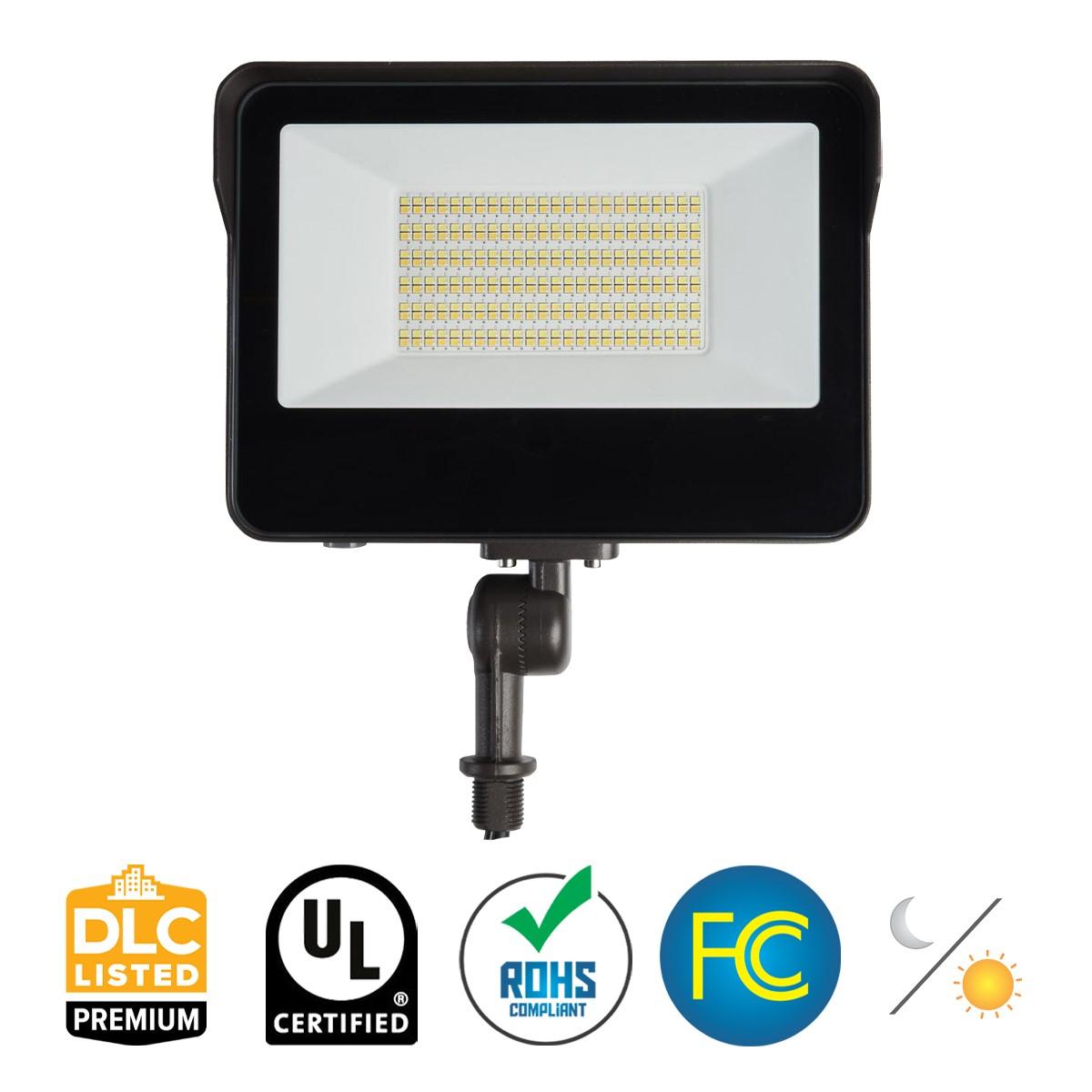

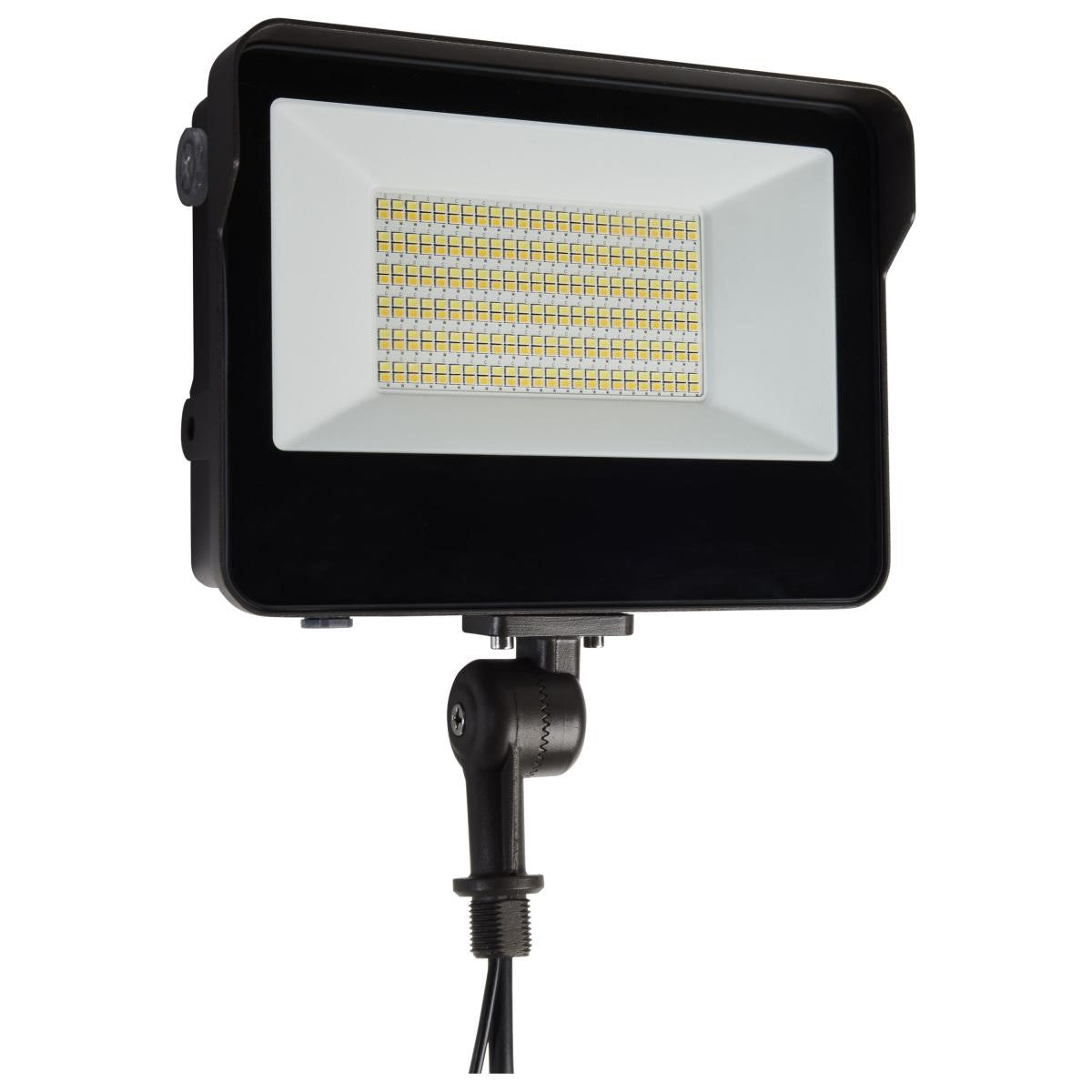

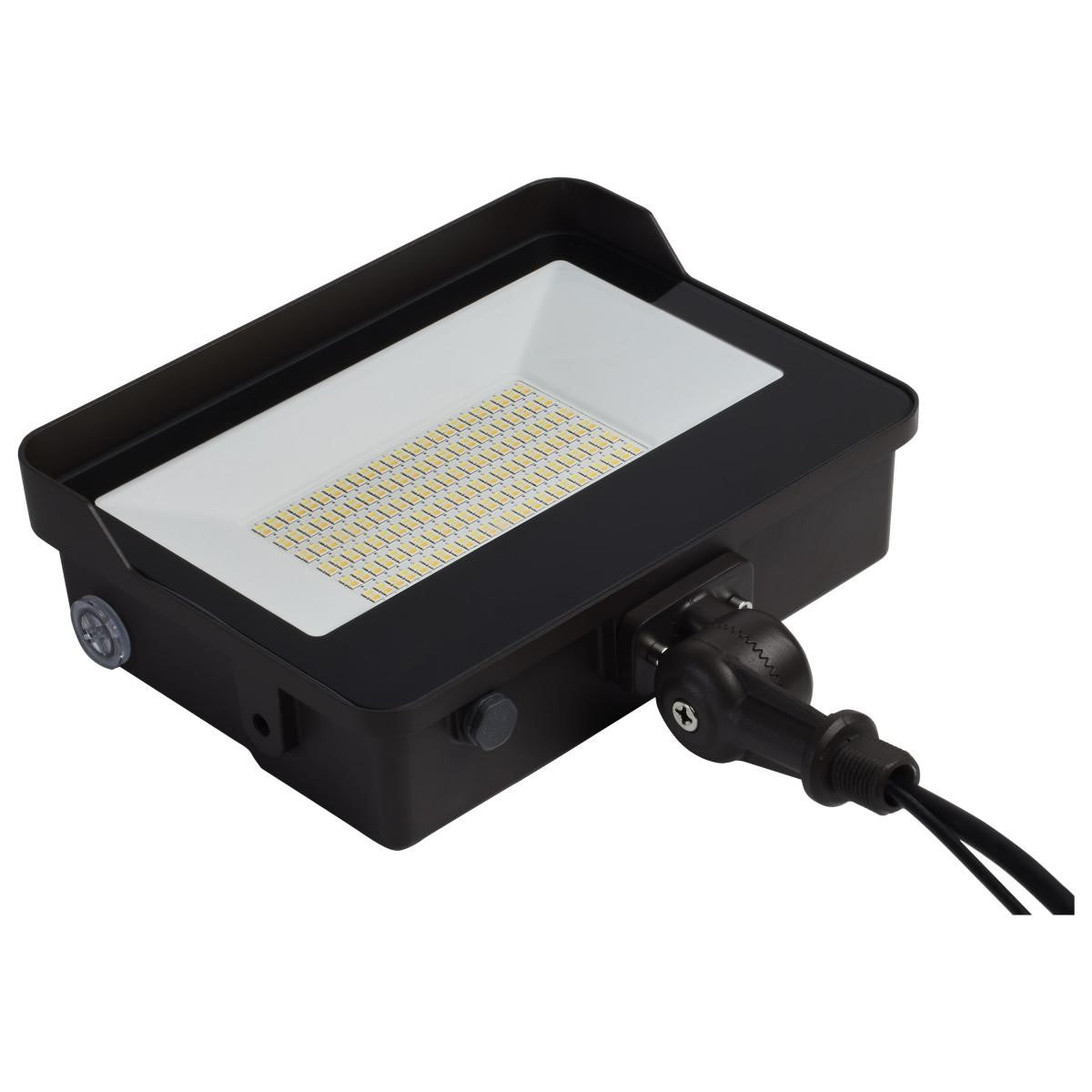

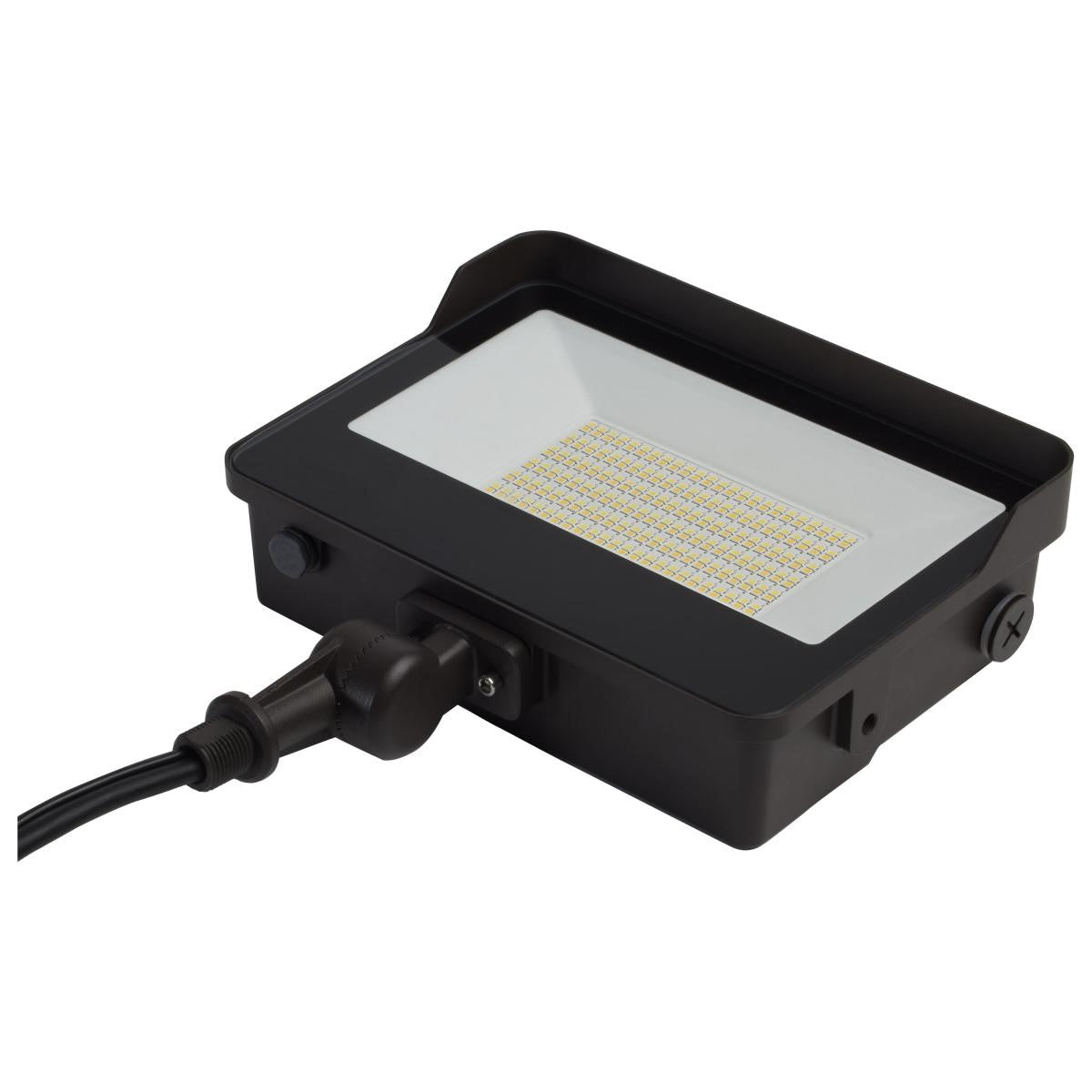

Satco|Nuvo 65-542 LED Floodlight — 80W, Selectable CCT & Power, Knuckle Mount, Photocell, 120-347V, Bronze

The Satco|Nuvo 65-542 is a high-performance, dual-selectable LED flood light designed to deliver bright illumination with incredible on-site versatility. This powerful luminaire produces up to 11,200 lumens and allows installers to easily toggle between three wattage levels (80W, 60W, 45W) and three color temperatures (3000K, 4000K, 5000K) directly in the field using Satco's PowerQuick and ColorQuick technology. It features a durable tempered glass lens and a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, parking lots, and architectural accents. Operating on a versatile 120-347V driver, this model comes fully equipped with an integrated bypassable photocell for automated dusk-to-dawn energy savings, allowing manual control if preferred. Built for longevity, the 65-542 is housed in a rugged die-cast aluminum body and earns an IP66 rating for superior durability against the elements. With a 5-year warranty, DLC listing, and standard 0-10V dimming, it efficiently replaces 150W-250W HID fixtures and serves as a perfect solution for professional-grade exterior lighting.

Key Features

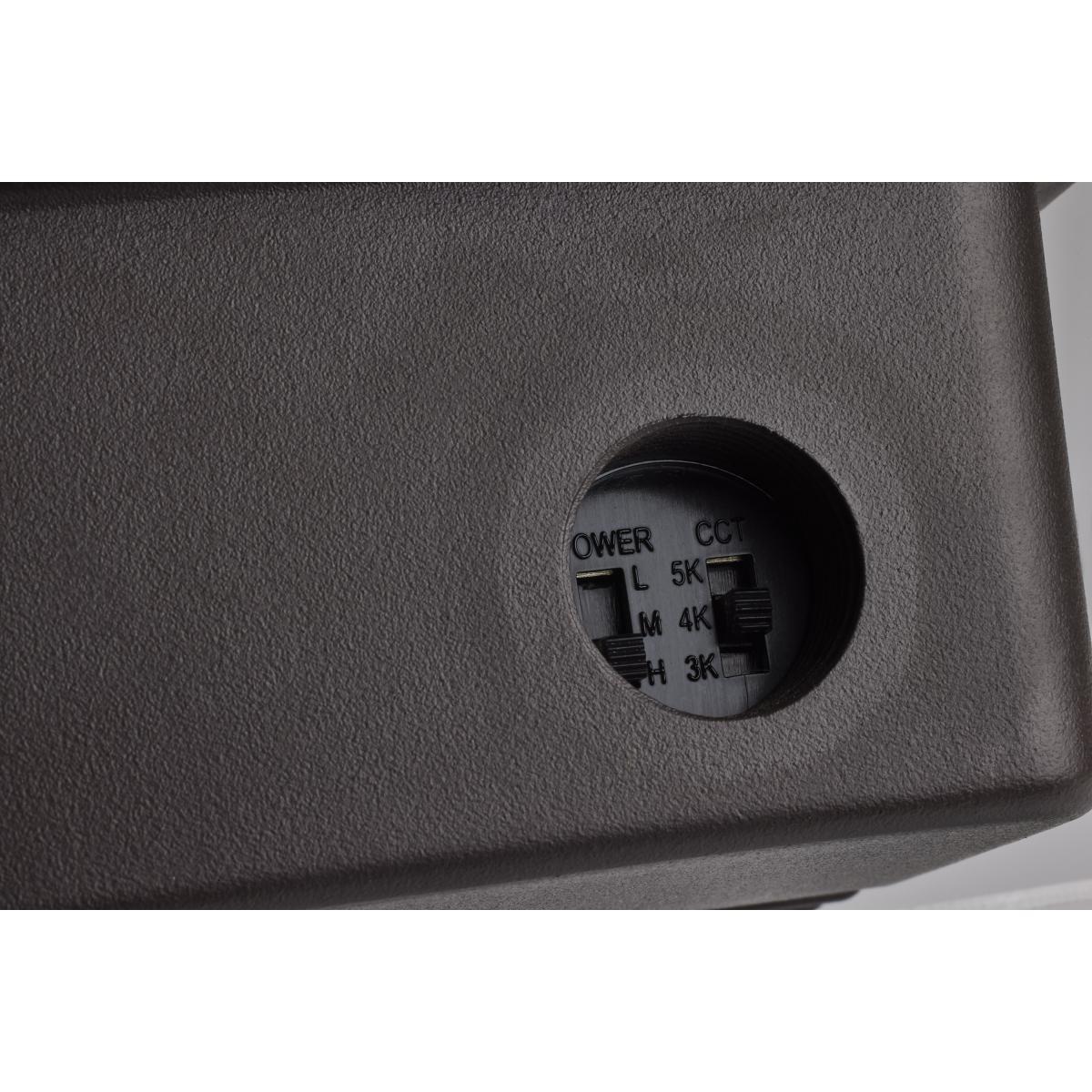

• Wattage: Field adjustable to 80W, 60W, or 45W.
• Selectable CCT: Field adjustable between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight).
• Dimming: Integrated 0-10V dimming capabilities.

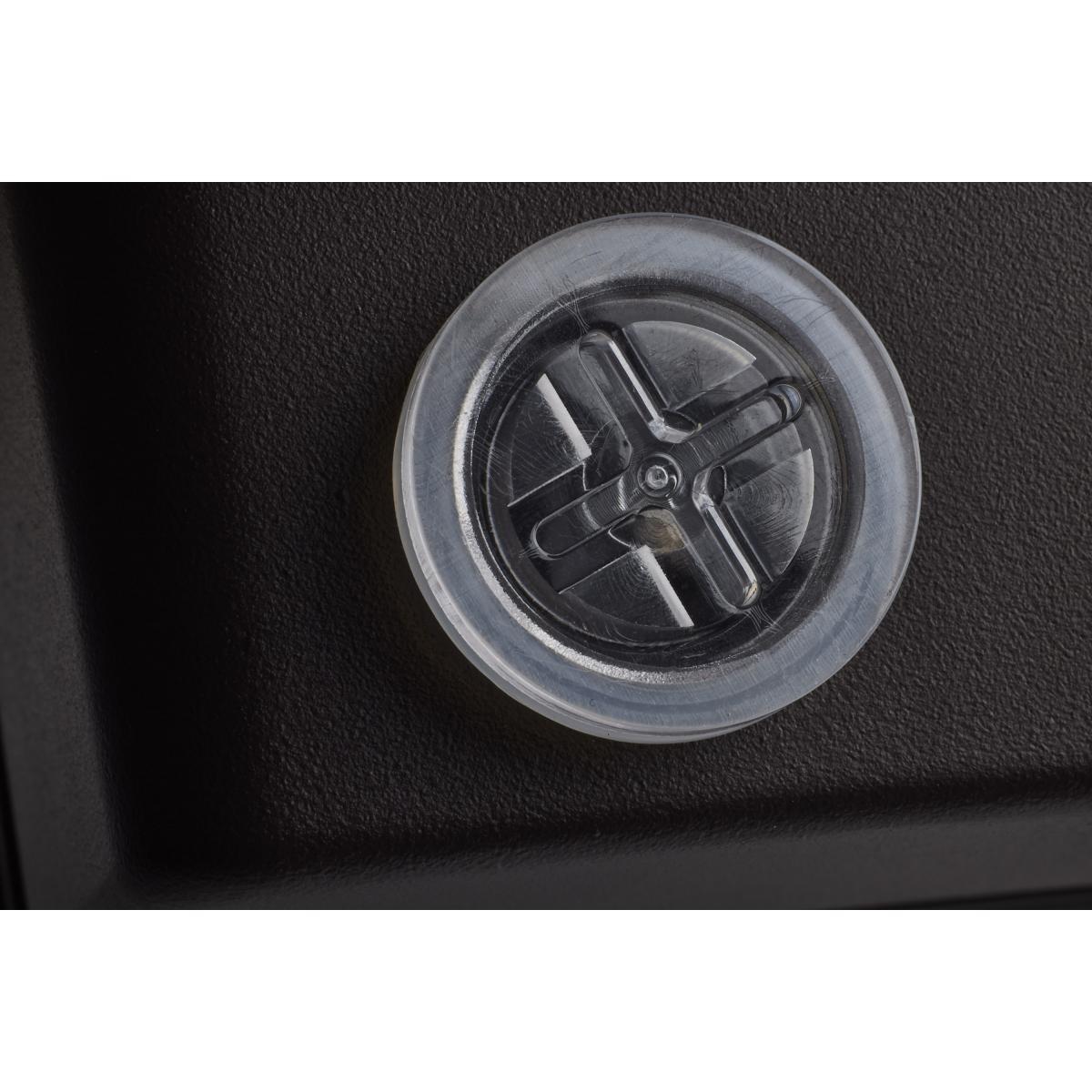

• Photocell: Integrated bypassable photocell included for automatic dusk-to-dawn operation.
• NEMA Type: Wide NEMA 7H x 7V beam spread.
• Mounting Type: Knuckle mount.
• Delivered Lumens: Up to 11,200 lumens at the highest 80W setting.
• Environmental Ratings: IP66 rated for dust and water; cULus Listed for wet locations.
• Warranty: 5-Year Manufacturer Warranty.

Typical Applications

• Building perimeters and facade illumination
• Landscape, sports courts, and parking areas
• Commercial signage and architectural accents
• General exterior area and security lighting

Performance & Light Output

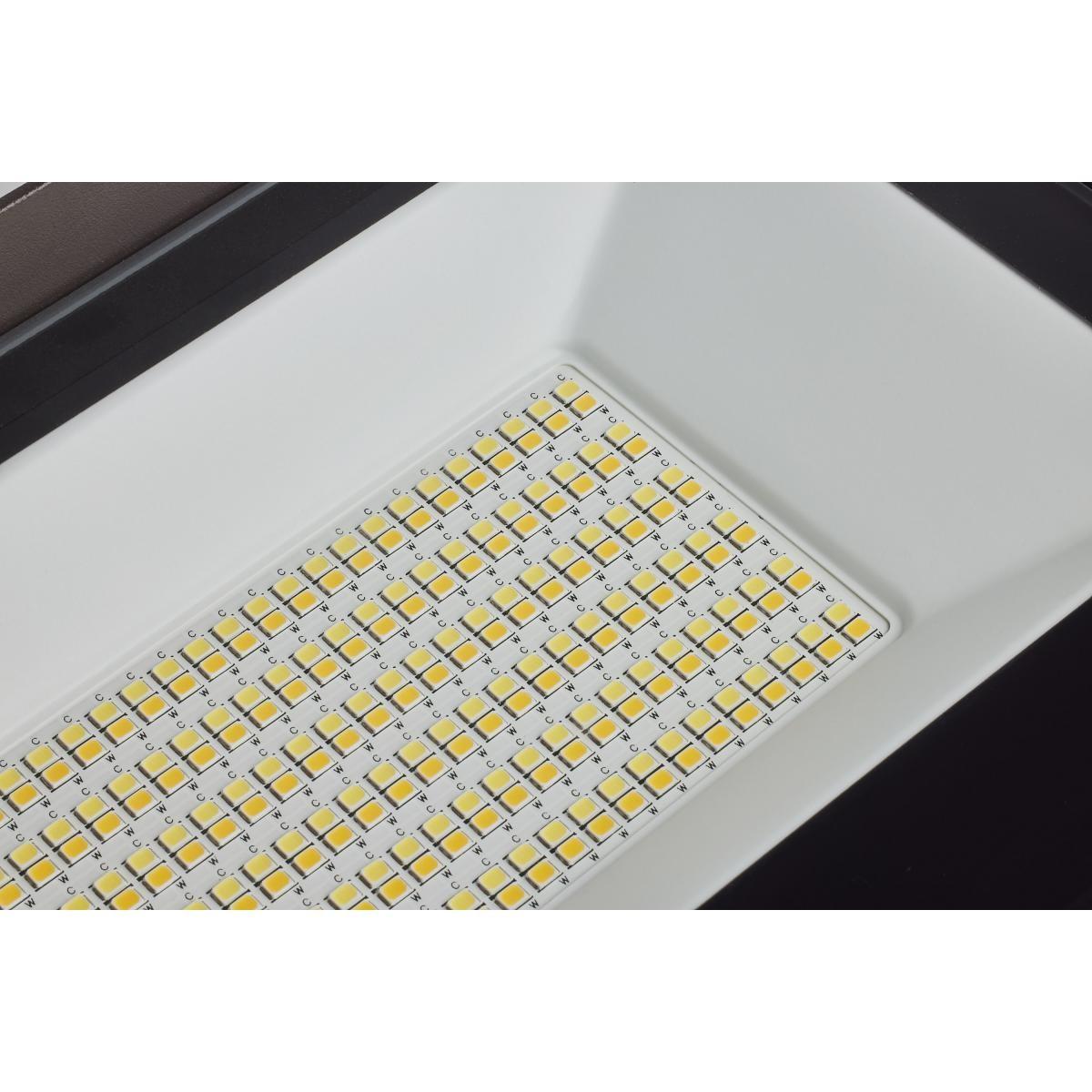

The Satco 65-542 provides high-intensity, uniform light with a maximum output of 11,200 lumens. Its advanced optical design ensures excellent color consistency (80+ CRI) through a clear tempered glass lens. With long-life LEDs rated for 50,000 hours, this fixture significantly reduces maintenance and energy costs over time, acting as a highly efficient replacement for 150W-250W HID fixtures.

Electrical & Controls

Equipped with a highly flexible driver and robust 6kV built-in surge protection, the 65-542 is built for exceptionally stable performance across a wide 120-347VAC voltage range. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated bypassable photocell to automate daylight operation.

Construction & Durability

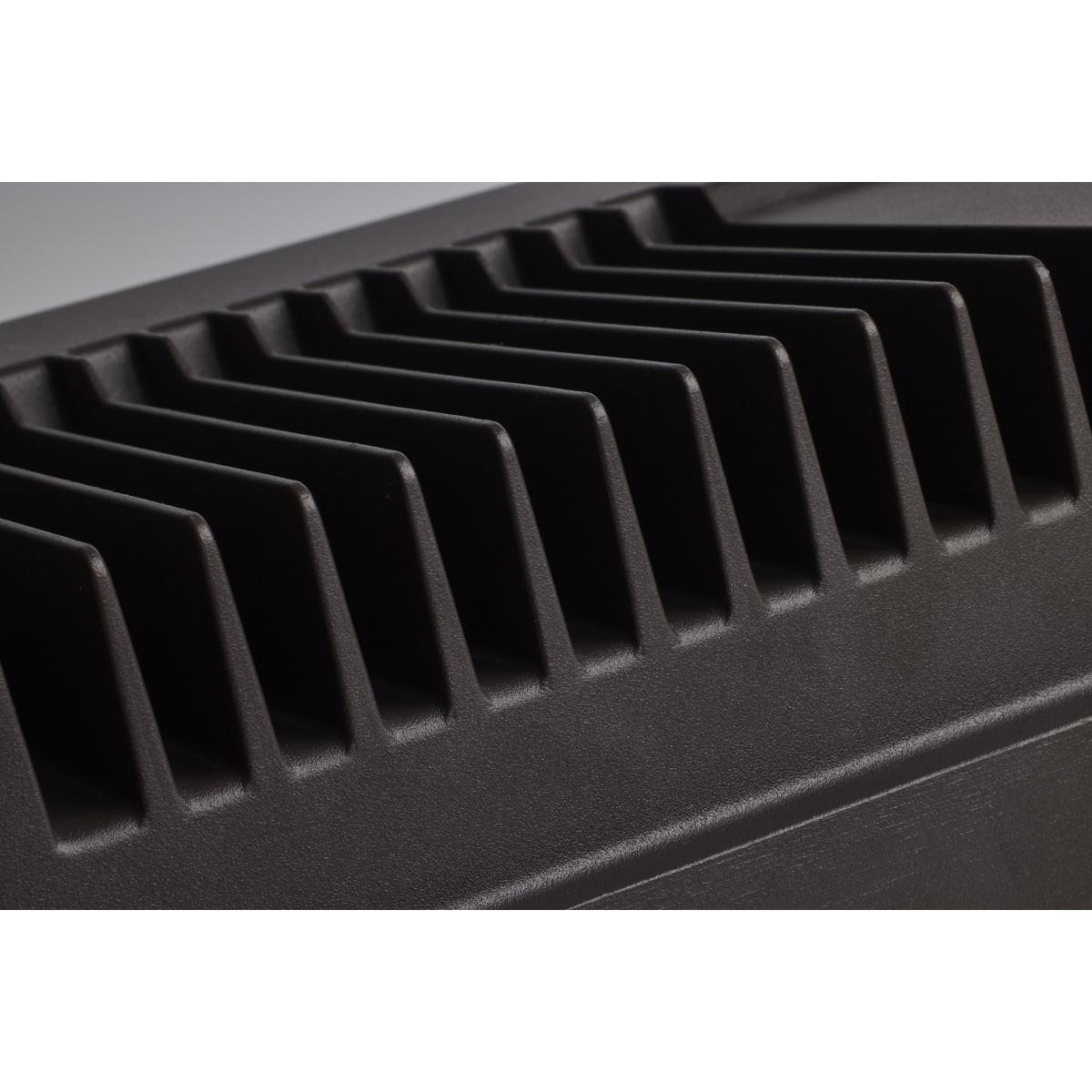

The fixture features a rugged die-cast aluminum housing finished in bronze. Its IP66 rating confirms total protection against dust and water jets, safely operating in extreme ambient temperatures ranging from -22°F (-30°C) up to 113°F (45°C).

Installation & Mounting

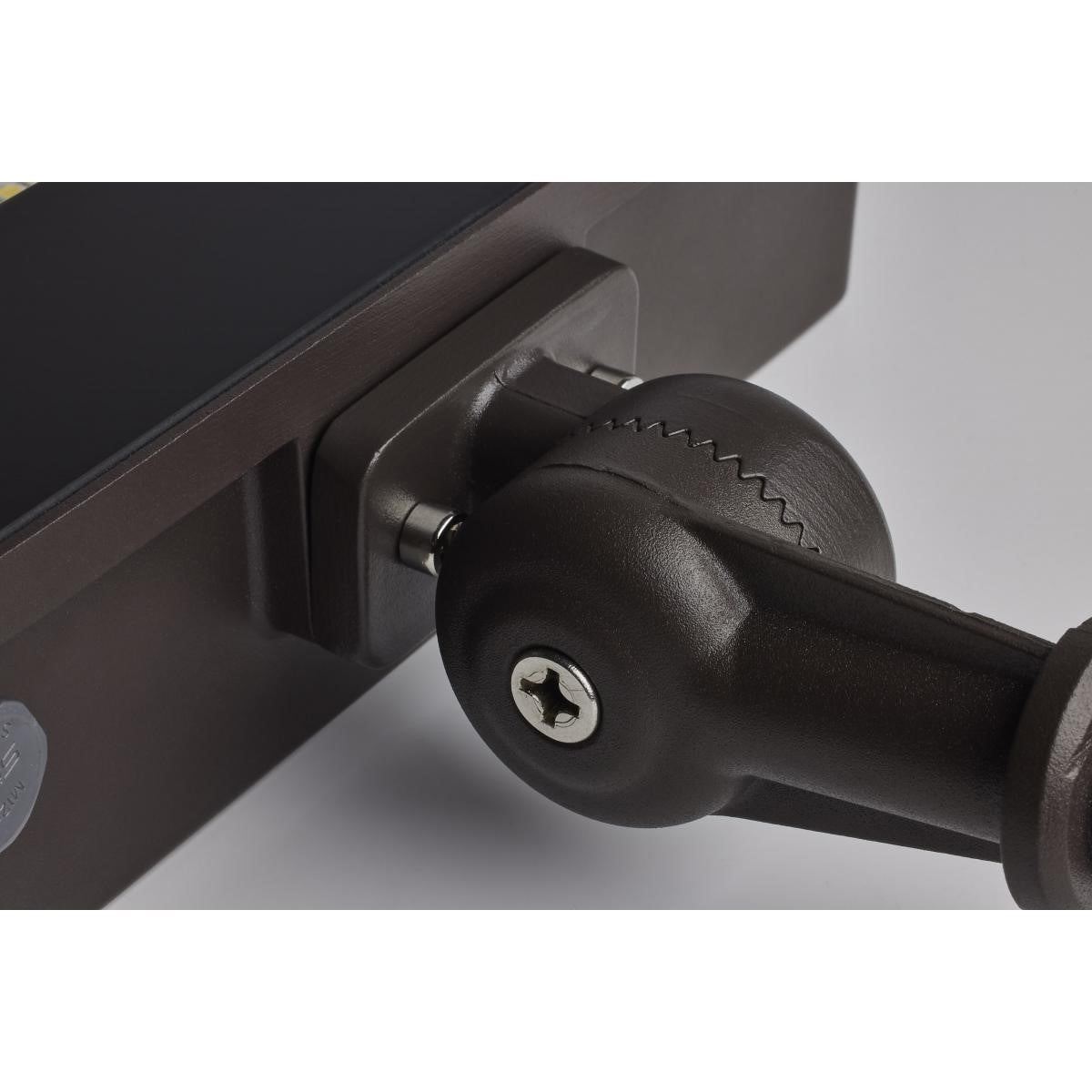

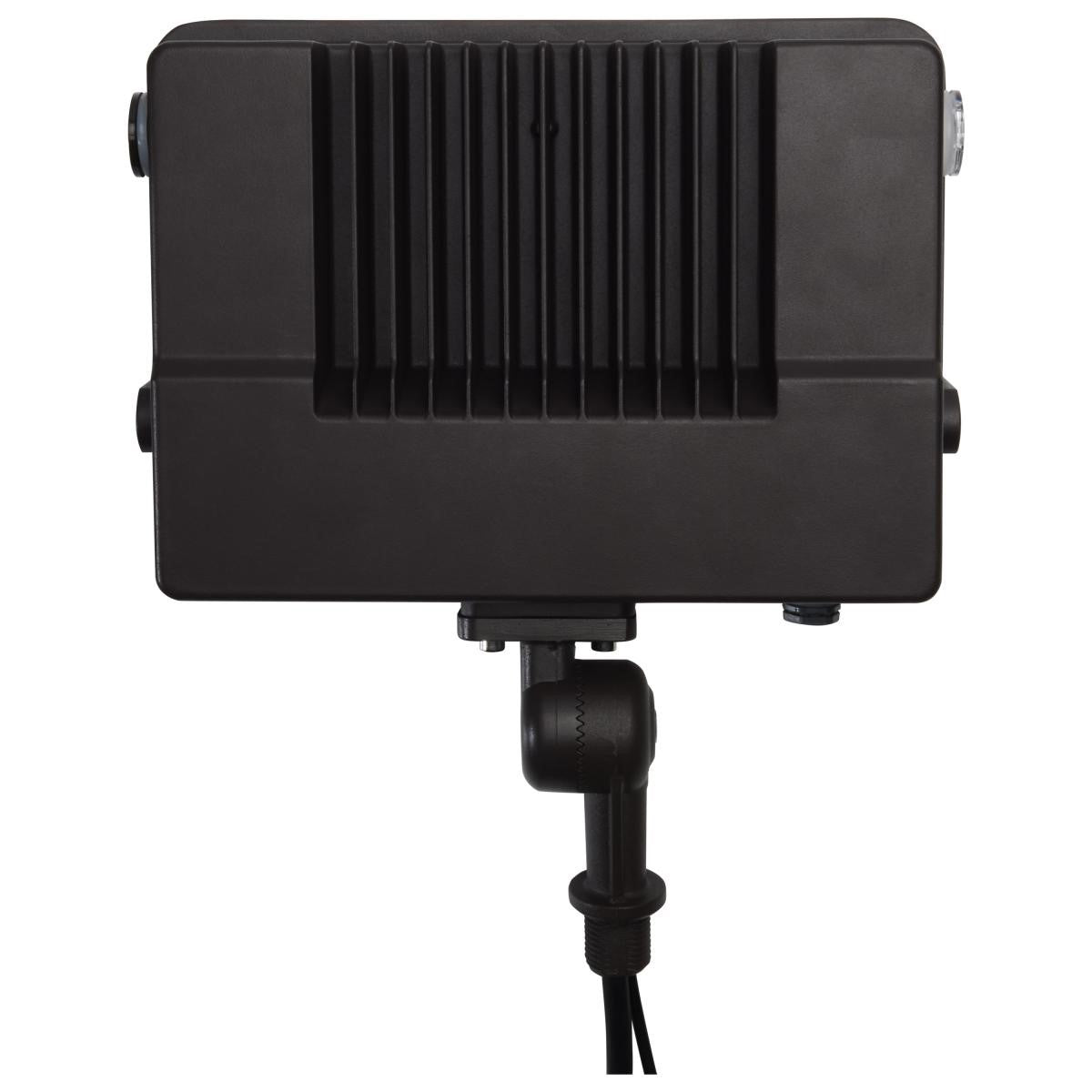

This model provides excellent installation flexibility. The fixture comes with a knuckle mount that allows for versatile rotation and aiming on standard junction boxes or landscape posts.

What's Included

• Satco|Nuvo 65-542 LED Selectable Floodlight (Bronze)
• Integrated Knuckle Mount
• Integrated Bypassable Photocell
• 5-Year Manufacturer Warranty
