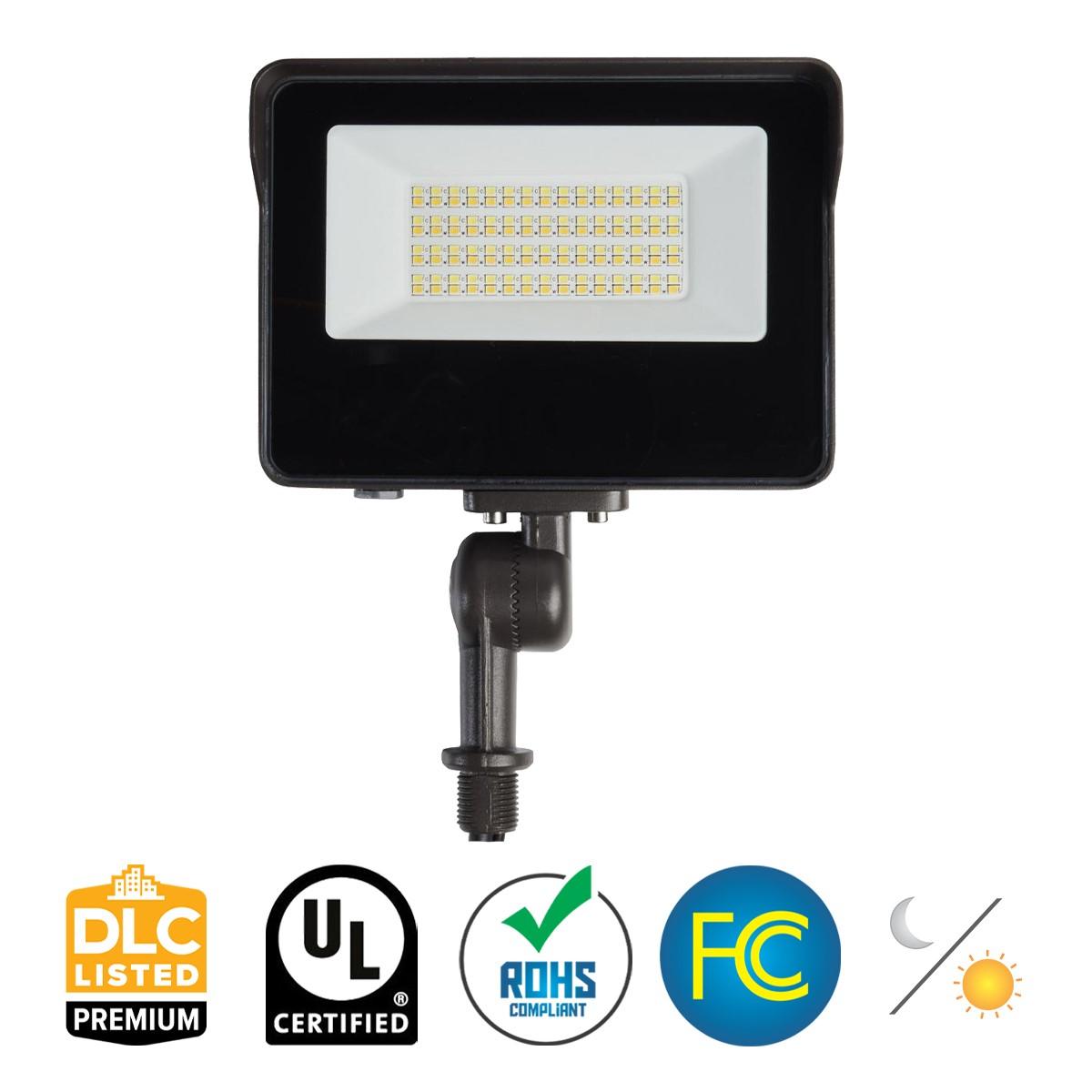

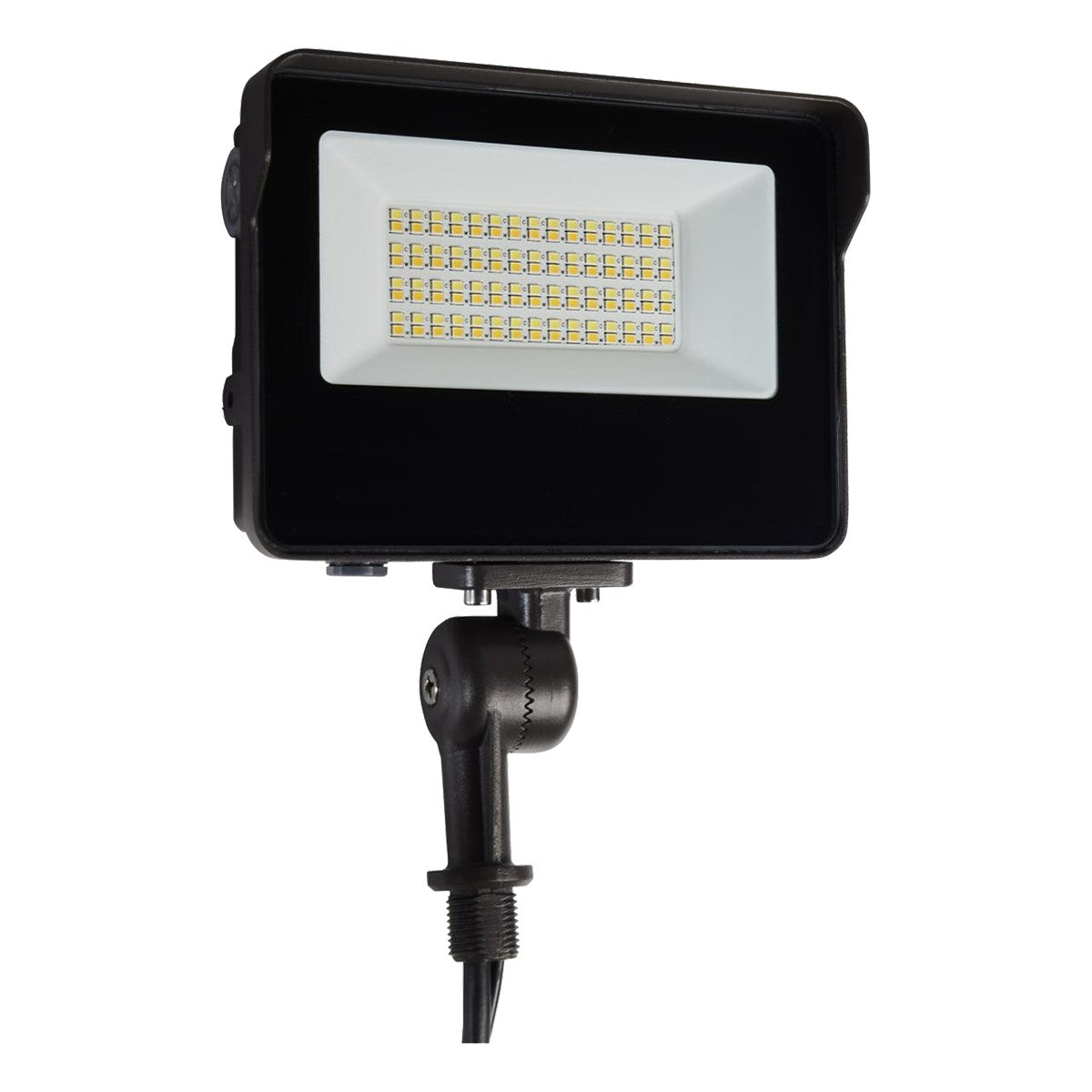

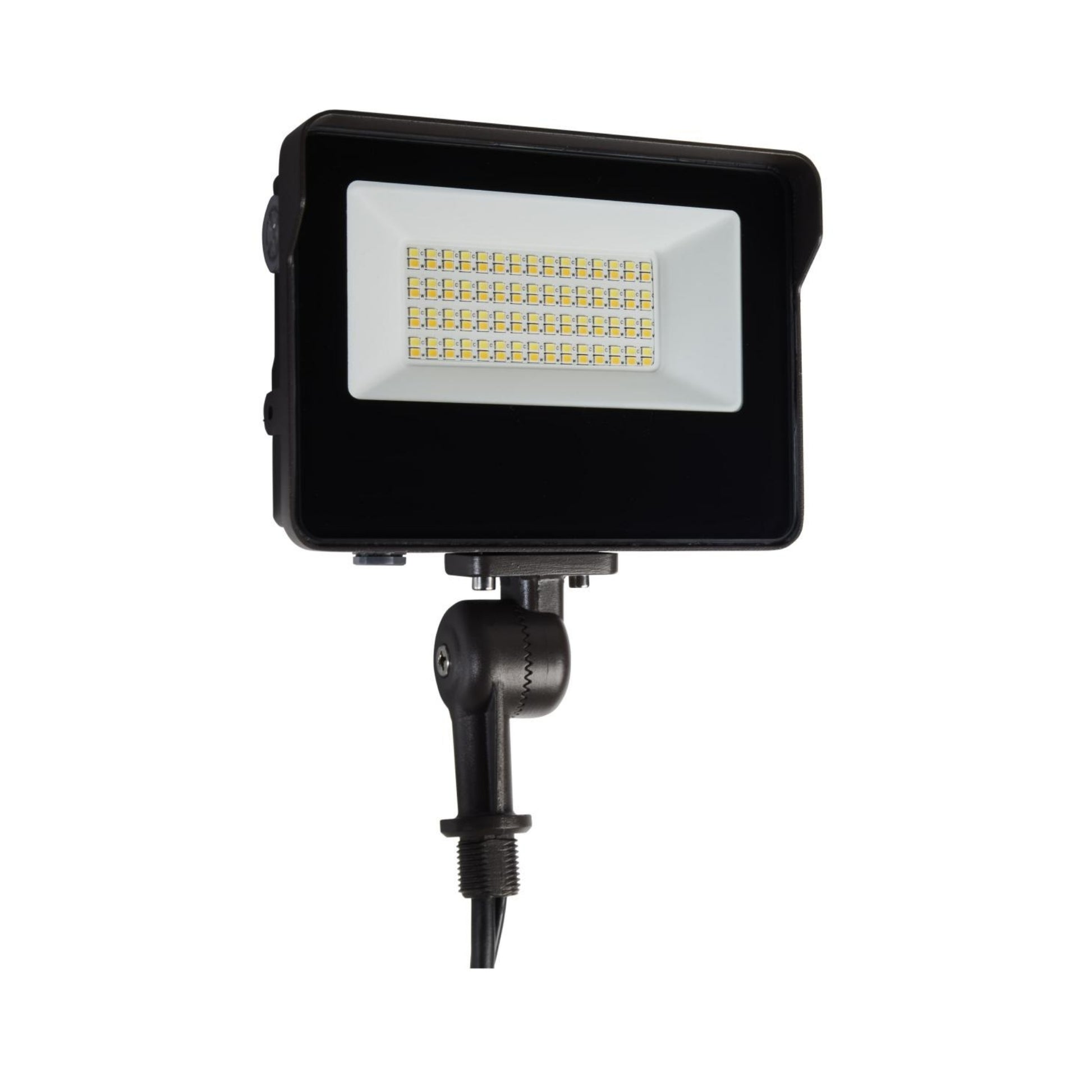

Satco|Nuvo 65-541 LED Floodlight — 35W, Selectable CCT & Power, Knuckle Mount, Photocell, 120-347V, Bronze

The Satco|Nuvo 65-541 is a high-performance, dual-selectable LED flood light designed to deliver bright illumination with incredible on-site versatility. This powerful luminaire produces up to 4,900 lumens and allows installers to easily toggle between three wattage levels (35W, 25W, 15W) and three color temperatures (3000K, 4000K, 5000K) directly in the field using Satco's PowerQuick and ColorQuick technology. It features a durable tempered glass lens and a wide NEMA 7H x 7V beam spread, providing a broad, powerful wash of light ideal for building perimeters, signs, gardens, and architectural accents. Operating on a versatile 120-347V driver, this model comes fully equipped with an integrated bypassable photocell for automated dusk-to-dawn energy savings, allowing manual control if preferred. Built for longevity, the 65-541 is housed in a rugged die-cast aluminum body and earns an IP66 rating for superior durability against the elements. With a 5-year warranty, DLC listing, and standard 0-10V dimming, it is a perfect solution for professional-grade exterior lighting.

Key Features

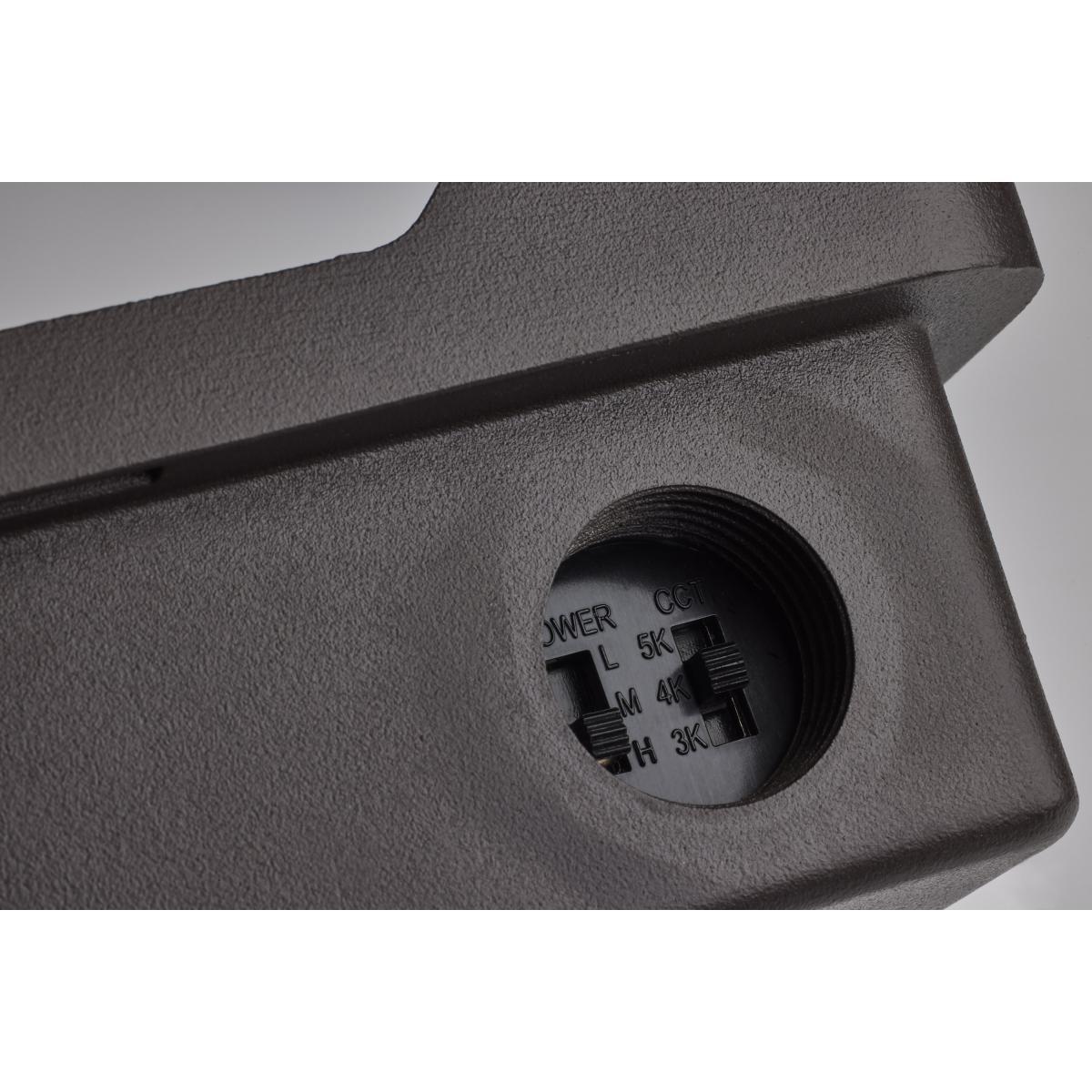

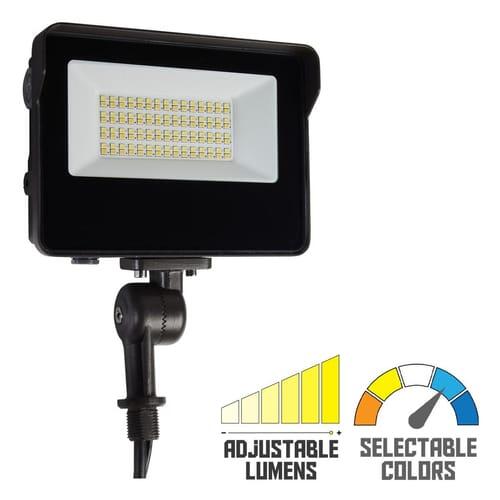

• Wattage: Field adjustable to 35W, 25W, or 15W.
• Selectable CCT: Field adjustable between 3000K (Warm White), 4000K (Cool White), and 5000K (Daylight).
• Dimming: Integrated 0-10V dimming capabilities.

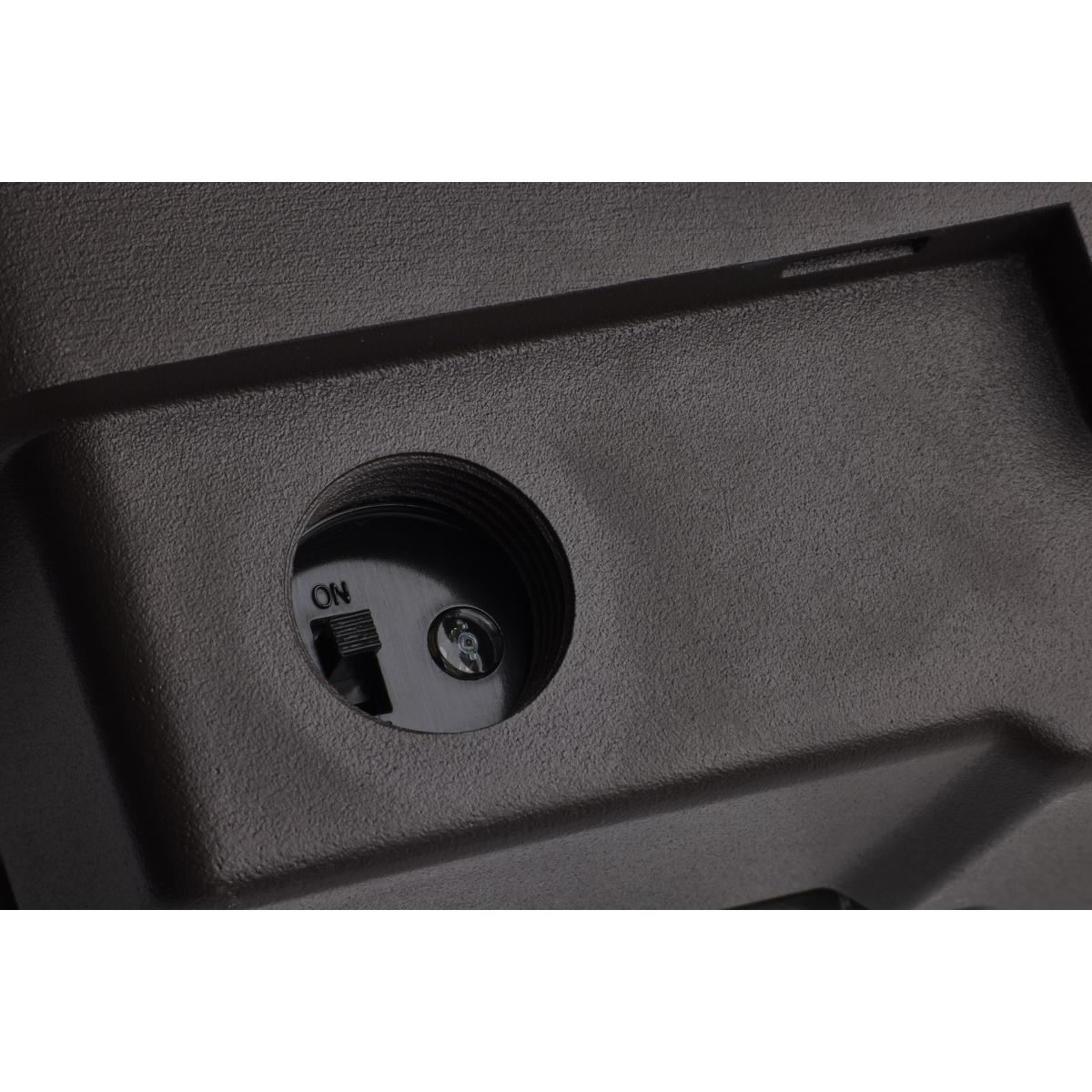

• Photocell: Integrated bypassable photocell included for automatic dusk-to-dawn operation.
• NEMA Type: Wide NEMA 7H x 7V beam spread.
• Mounting Type: Knuckle mount with included mounting plate.
• Delivered Lumens: Up to 4,900 lumens at the highest 35W setting.
• Environmental Ratings: IP66 rated for dust and water; cULus Listed for wet locations.
• Warranty: 5-Year Manufacturer Warranty.

Typical Applications

• Building perimeters and facade illumination
• Landscape, pathway, and driveway lighting
• Commercial signage and architectural accents
• General exterior area and security lighting

Performance & Light Output

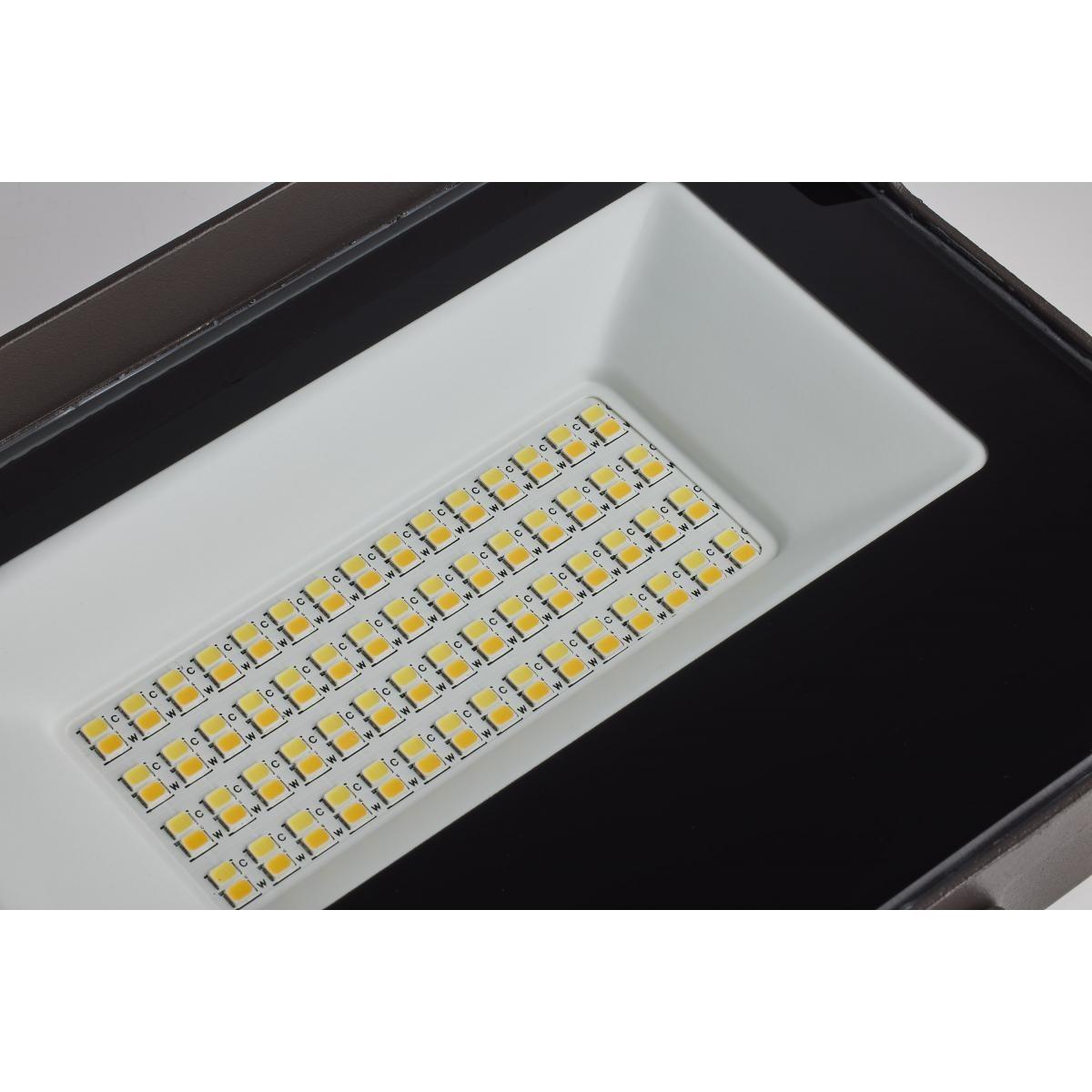

The Satco 65-541 provides high-intensity, uniform light with a maximum output of 4,900 lumens. Its advanced optical design ensures excellent color consistency (80+ CRI) through a clear tempered glass lens. With long-life LEDs rated for 50,000 hours, this fixture significantly reduces maintenance and energy costs over time, acting as a highly efficient replacement for 100W-150W HID fixtures.

Electrical & Controls

Equipped with a highly flexible driver and robust 4kV built-in surge protection, the 65-541 is built for exceptionally stable performance across a wide 120-347VAC voltage range. It supports standard 0-10V dimming for integration with motion sensors or building control systems and relies on the integrated bypassable photocell to automate daylight operation.

Construction & Durability

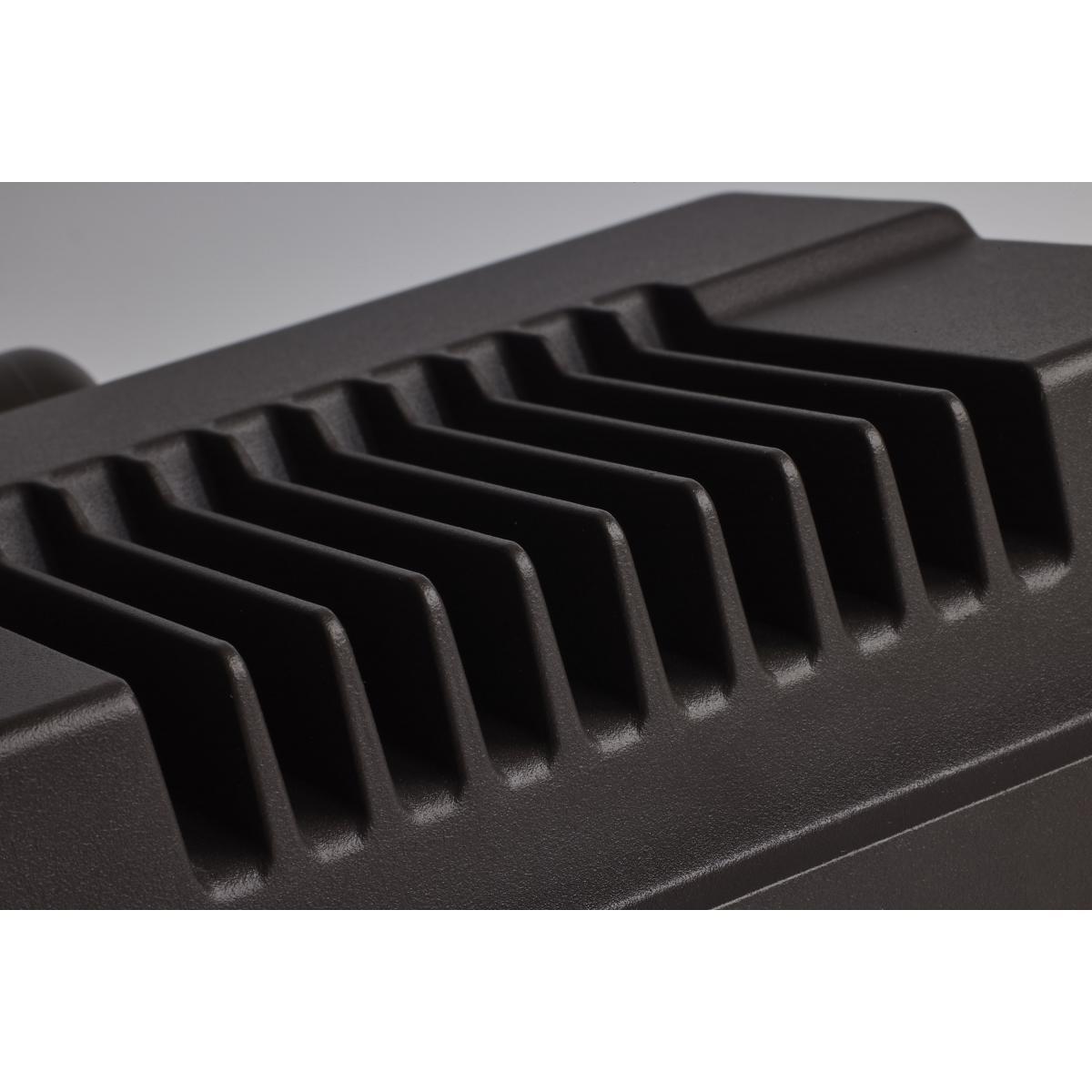

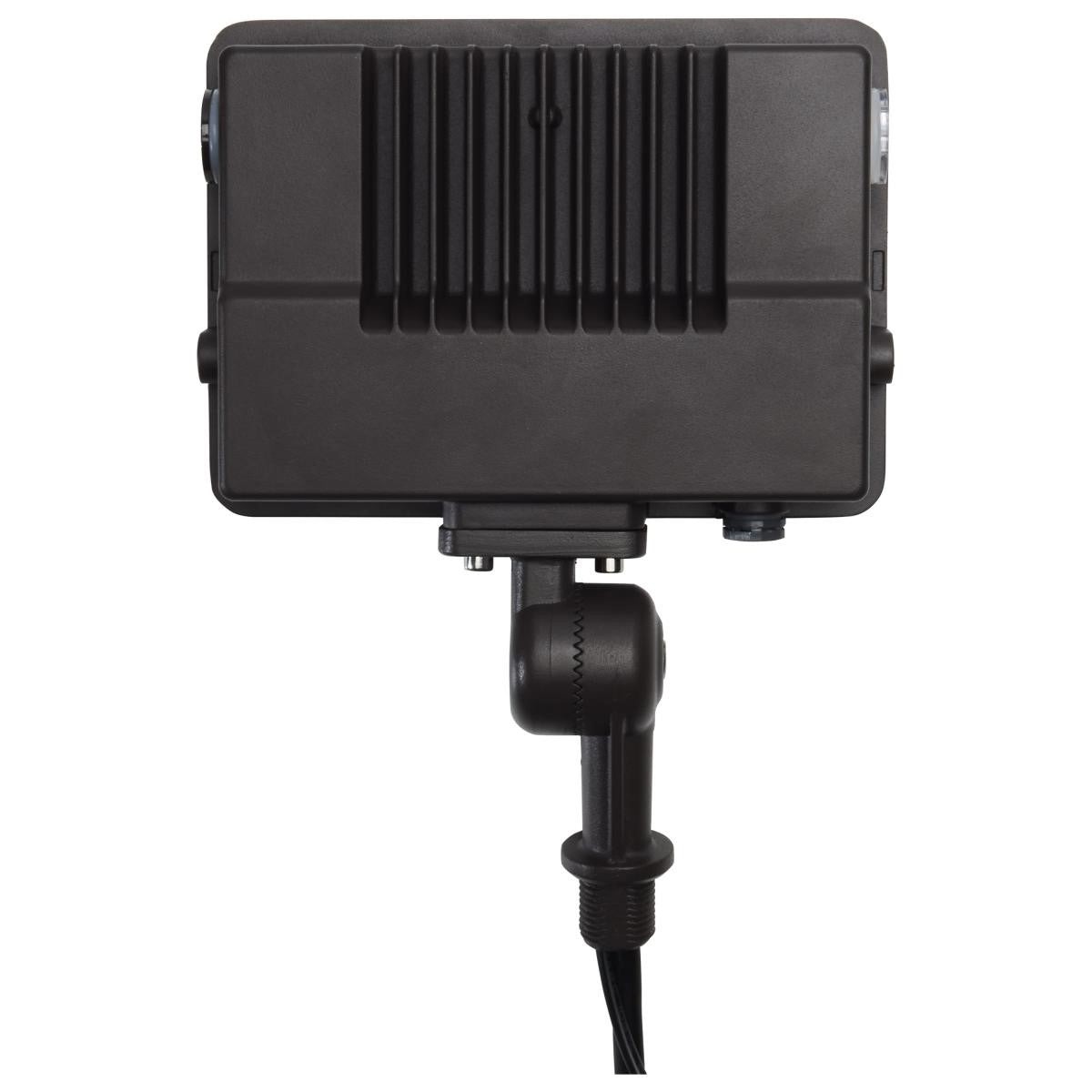

The fixture features a rugged die-cast aluminum housing finished in bronze. Its IP66 rating confirms total protection against dust and water jets, safely operating in extreme ambient temperatures ranging from -22°F (-30°C) up to 113°F (45°C).

Installation & Mounting

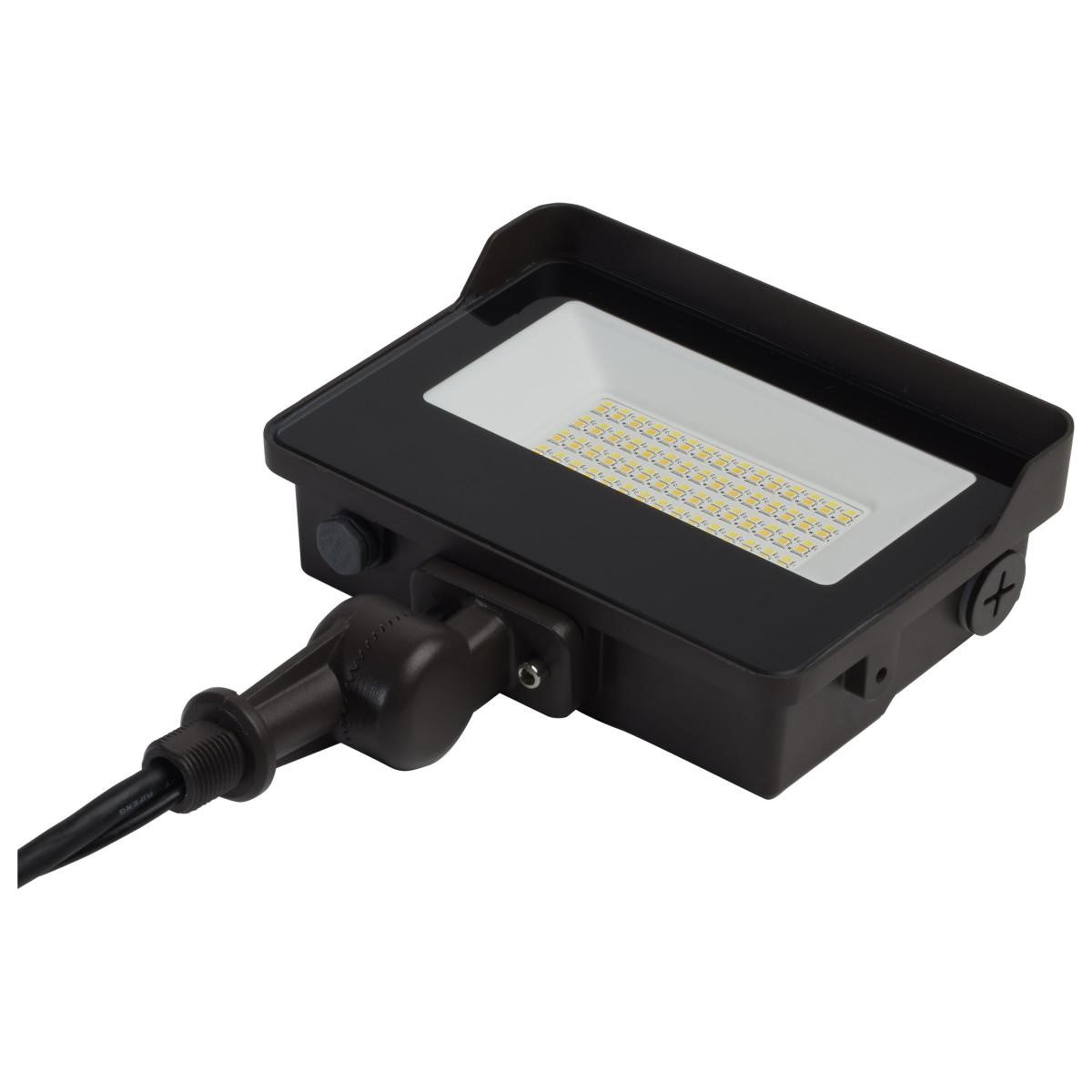

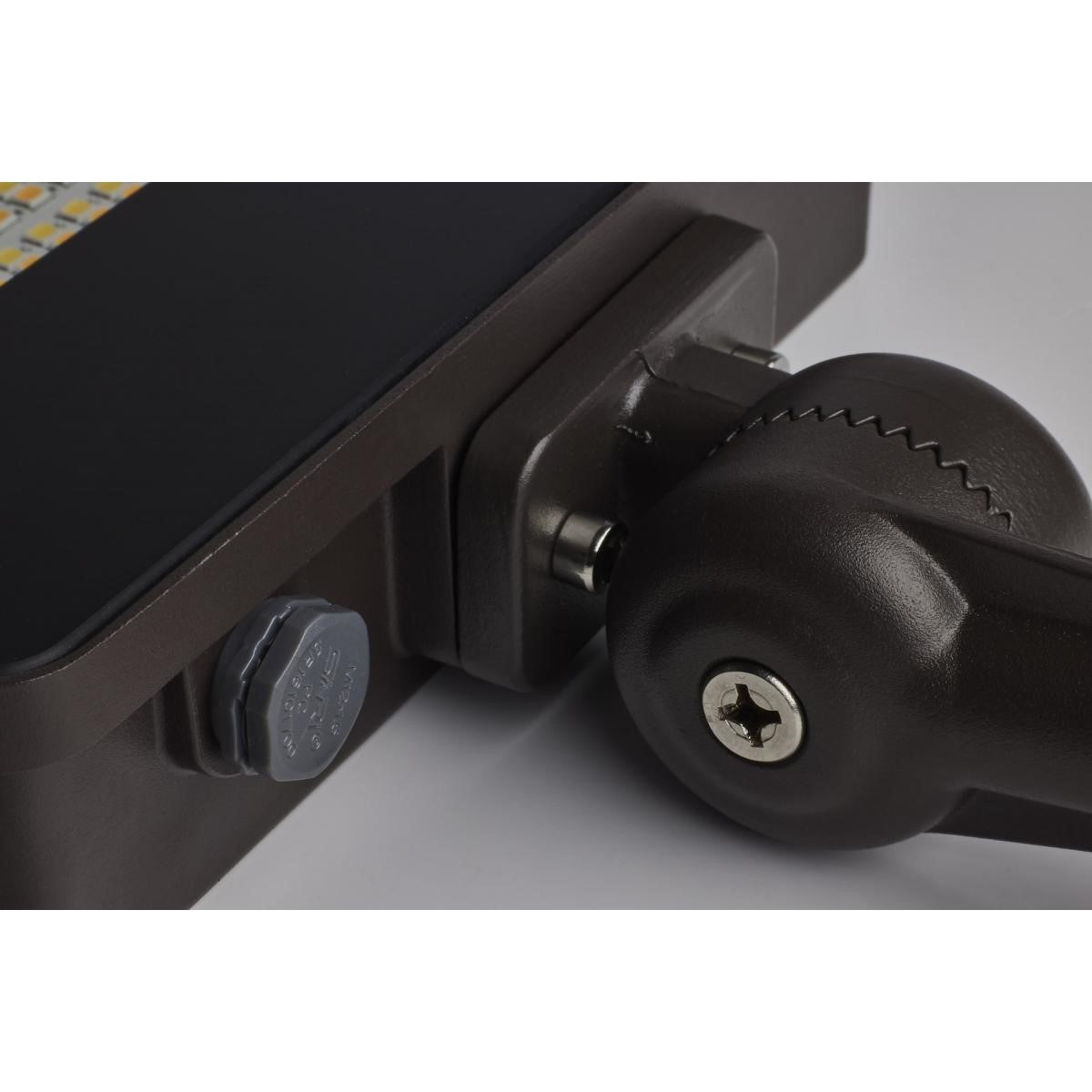

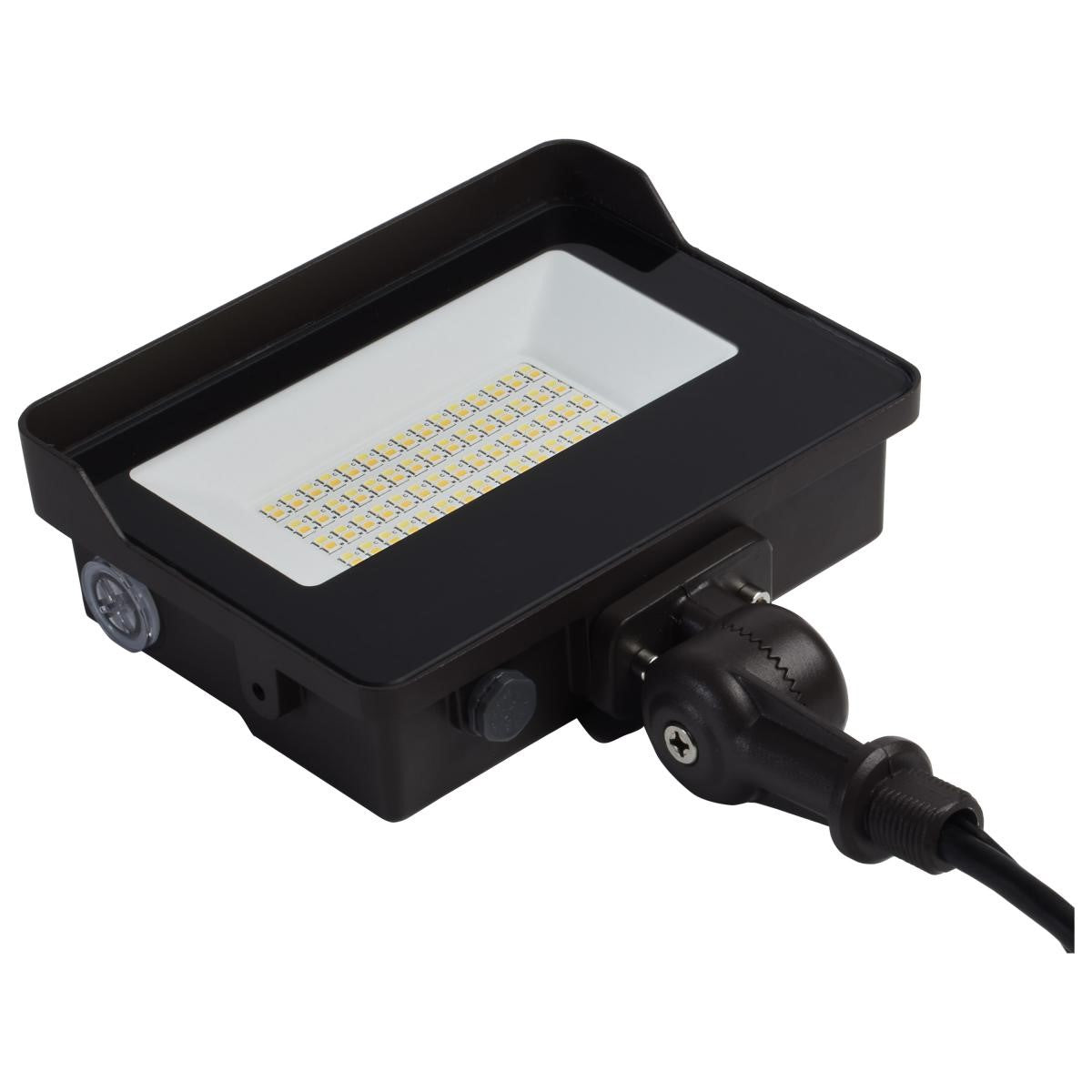

This model provides excellent installation flexibility. The fixture comes with a knuckle arm that allows for 180° rotation and a 1/2" threaded connection. A mounting plate is also included for securing the fixture directly to standard junction boxes or landscape posts.

What's Included

• Satco|Nuvo 65-541 LED Selectable Floodlight (Bronze)
• Integrated Knuckle Mount with Mounting Plate
• Integrated Bypassable Photocell
• 5-Year Manufacturer Warranty
