Satco 65-1212 ColorQuick 2ft LED Wrap — 20W — 2700K/3000K/3500K/4000K/5000K — 120V — Pull Chain — White
Out of stock
About this item
About this item
- High-CRI 90 Output: Delivers up to 1,650 lumens at 20W (up to 87 lm/W efficacy) with 90 CRI color rendering to replace legacy 2-foot linear utility and closet fixtures.
- Closed-Structure Glare Control: Durable steel housing with a closed-structure white polycarbonate lens eliminates glare and mounts to ceilings or walls.
- 5-CCT ColorQuick Selectable: Onboard selector switch lets installers choose between 2700K, 3000K, 3500K, 4000K, and 5000K white color temperatures.
- Integrated Pull Chain: Built-in end-mounted pull chain switch enables convenient manual on/off control in closets, garages, laundry rooms, and utility spaces.
- Closet & Damp Location Rated: Complies with NEC 410.16(A)(3) and NEC 410.16(C)(5) for clothes closets, cETLus damp rated, and NLB Trusted 5-year warranty.
Description
Description

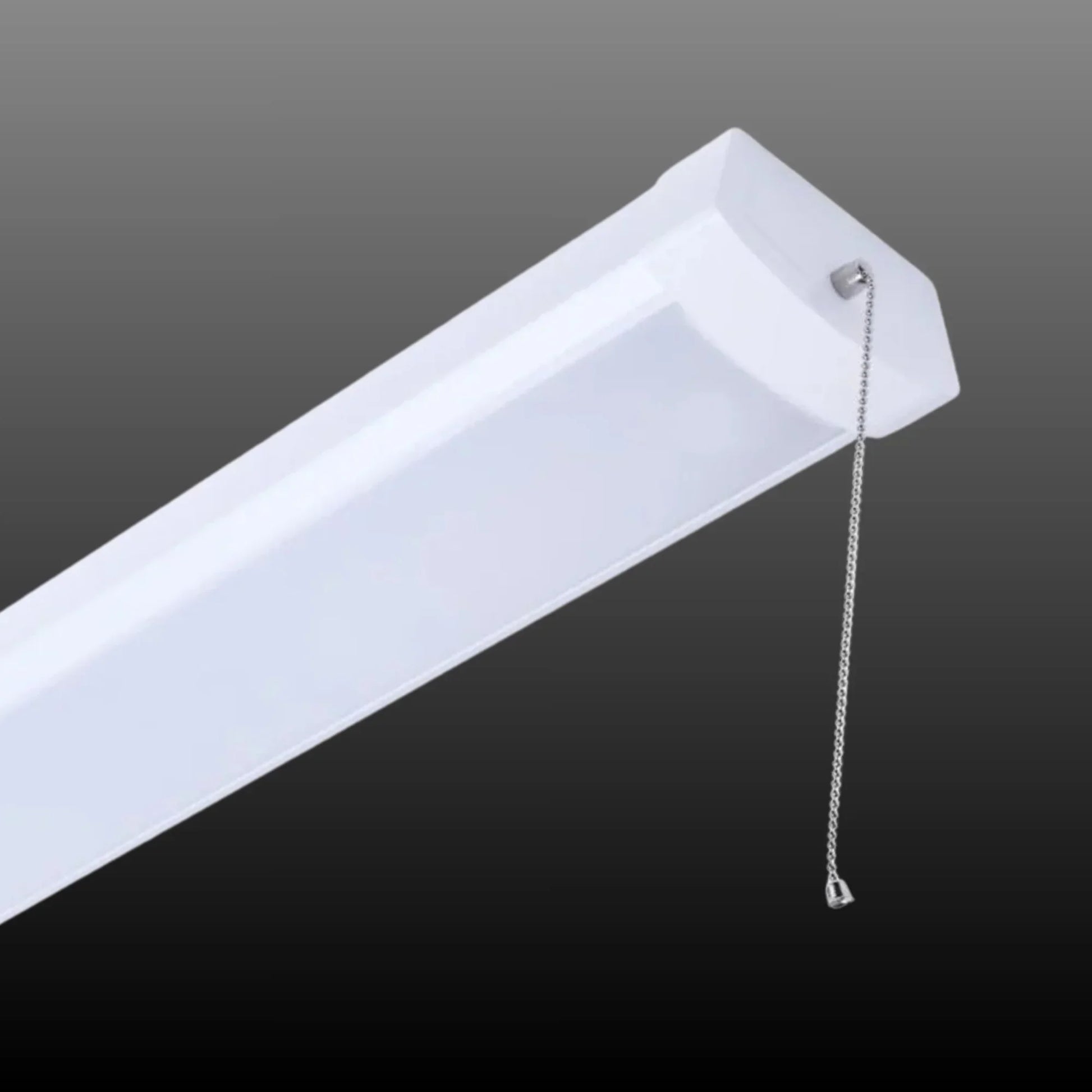

Satco 65-1212 ColorQuick 5-CCT Selectable 2ft LED Wrap — 20W — 2700K/3000K/3500K/4000K/5000K — 120V — Pull Chain — White
The Satco 65-1212 is a commercial and utility 2ft LED Ceiling Wrap Fixture engineered to deliver up to 1,650 lumens at 20W with ColorQuick® switchable 2700K/3000K/3500K/4000K/5000K color temperatures and high 90 CRI color accuracy. Operating on 120V (60Hz) electrical systems with an integrated pull chain switch for manual on/off operation, this luminaire provides reliable energy-saving illumination for closets, utility rooms, corridors, and workspaces. Built with a cETLus Listed damp location rating and NEC 410.16(A)(3) & (C)(5) clothes closet compliance, it is backed by the NLB Trusted Warranty Program and features a built-in end-mounted pull chain switch and a closed-structure polycarbonate lens that delivers glare-free illumination.
Key Features
- Wattage: 20W fixed power consumption
- Maximum Lumen Output: 1,650 lm
- Peak Efficacy: Up to 87 lm/W
- CRI: 90 CRI for enhanced color rendering accuracy
- Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K — field-adjustable via onboard ColorQuick® selector switch
- Lens & Optics: Closed-structure white polycarbonate lens eliminates glare for uniform light distribution
- Dimming: Non-dimmable
- Voltage: 120V AC, 60Hz (0.17A input current)
- Location & Closet Rating: cETLus Listed for damp locations; complies with NEC 410.16(A)(3) & NEC 410.16(C)(5) for clothes closets
- Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
- Certifications: cETLus Listed, NEC 410.16 Compliant, FCC Part 15 Compliant, RoHS Compliant, NLB Trusted Warranty Program
- Rated Life: 50,000 hours functional life
- Warranty: 5-year limited warranty — Satco (NLB Trusted Warranty Program)
- Integrated Control: Built-in pull chain switch for localized manual on/off control
Performance & Light Output
At 20W: Delivers up to 1,650 lumens (up to 87 lm/W efficacy) across 5 selectable ColorQuick® color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K).
CRI 90 across all configurations. Rated functional life 50,000 hours.
Smart & Control Features
The Satco 65-1212 is equipped with a factory-installed pull chain switch mounted directly on the fixture endcap, allowing instant manual on/off operation in closets, utility rooms, laundry spaces, and garages without requiring a dedicated wall switch.
Electrical
Powered by a non-dimmable driver operating on 120V AC at 60Hz with an input current of 0.17A and a Power Factor of 0.9. Integrated 2.5kV surge protection safeguards internal electronics against transient voltage spikes.
Construction
Housing & Build: White steel housing engineered for ceiling or wall surface mounting. Mounts directly to a standard junction box or can be internally wired using the built-in junction box.
Location & Environmental Rating: cETLus Listed for indoor damp locations and NEC 410.16(A)(3) & NEC 410.16(C)(5) rated for clothes closet storage spaces.
Operating Temperature: Operating ambient temperature range of -4°F (-20°C) to 104°F (40°C).
Lens & Optics: Closed-structure white polycarbonate wraparound lens engineered for optimal illumination without glare.
Finish: Clean white finish formulated for long-lasting durability.
Dimensions & Weight: 24.77" L × 5.50" W × 2.56" H. Fixture weight: 2.34 lbs.
Installation & Mounting
Standard Mounting: Surface mounts directly to ceiling or wall surfaces. Can be mounted directly over a junction box or internally wired using the fixture's built-in junction box.
Certifications & Rebates
- cETLus Listed: Certified for indoor damp locations (Model 65-1212).
- NEC 410.16 Closet Rated: Complies with NEC 410.16(A)(3) and NEC 410.16(C)(5) requirements for safe installation inside clothes closets.
- FCC Part 15: Complies with Part 15 of the FCC Rules for electromagnetic interference.
- RoHS Compliant: Engineered free of hazardous substances.
- NLB Trusted: Verified under the National Lighting Bureau (NLB) Trusted Warranty Program.
Typical Applications
- Clothes Closets & Storage Rooms — NEC 410.16(A)(3) & (C)(5) compliance and closed-structure polycarbonate lens allow safe, code-compliant closet installation.
- Utility & Laundry Rooms — cETLus damp-location rating and 2.5kV surge protection handle humid indoor service environments.
- Garages & Workspaces — High 90 CRI output and 5-CCT ColorQuick® selection (2700K to 5000K) provide accurate task visibility.
- Kitchens & Hospitality Support Areas — Glare-free closed lens and ceiling/wall surface-mount versatility suit back-of-house and residential spaces.
- Hallways & Corridors — 50,000-hour functional life and NLB Trusted 5-year warranty reduce maintenance in light commercial passages.
What's Included
- Satco 65-1212 ColorQuick 2ft LED Ceiling Wrap Fixture with Pull Chain — White
- Built-in junction box and mounting hardware
- Installation instructions
Specifications
Specifications
Dimensions
Documents
Style & Materials
Characteristics & Features
Electrical Information
Item Details
Warranty & Certifications
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.
Frequently Asked Questions
How is the Satco 65-1212 LED wrap installed, and can it be mounted on walls?
How is the Satco 65-1212 LED wrap installed, and can it be mounted on walls?
How do you change the color temperature on the Satco 65-1212, and what is its lumen output?
How do you change the color temperature on the Satco 65-1212, and what is its lumen output?
What voltage and circuit amperage does the Satco 65-1212 require, and is it closet rated?
What voltage and circuit amperage does the Satco 65-1212 require, and is it closet rated?
Is the Satco 65-1212 dimmable, and what control features are included?
Is the Satco 65-1212 dimmable, and what control features are included?
What warranty and certifications cover the Satco 65-1212 LED wrap fixture?
What warranty and certifications cover the Satco 65-1212 LED wrap fixture?

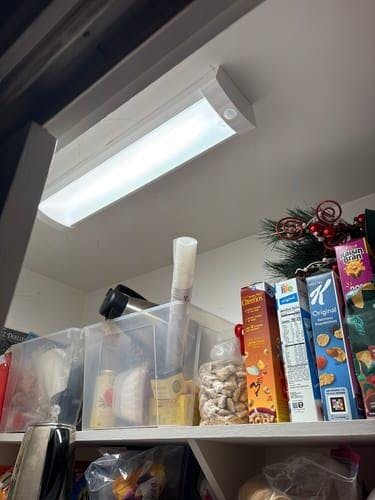

I bought four of these lights to replace the old 18 inch fluorescent lights that were installed back in the 90's. These light up the closet much better and allow us to see.
