Description

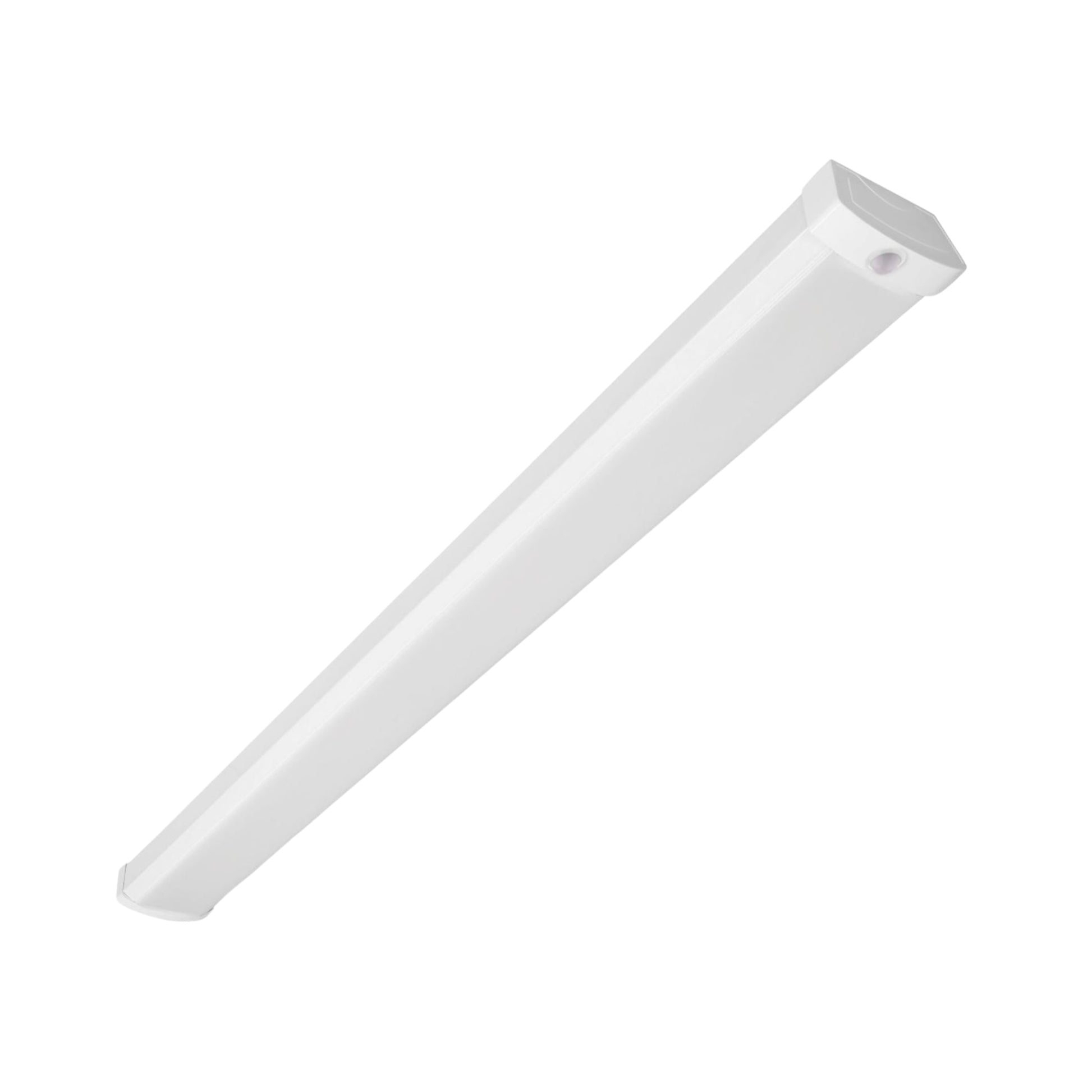

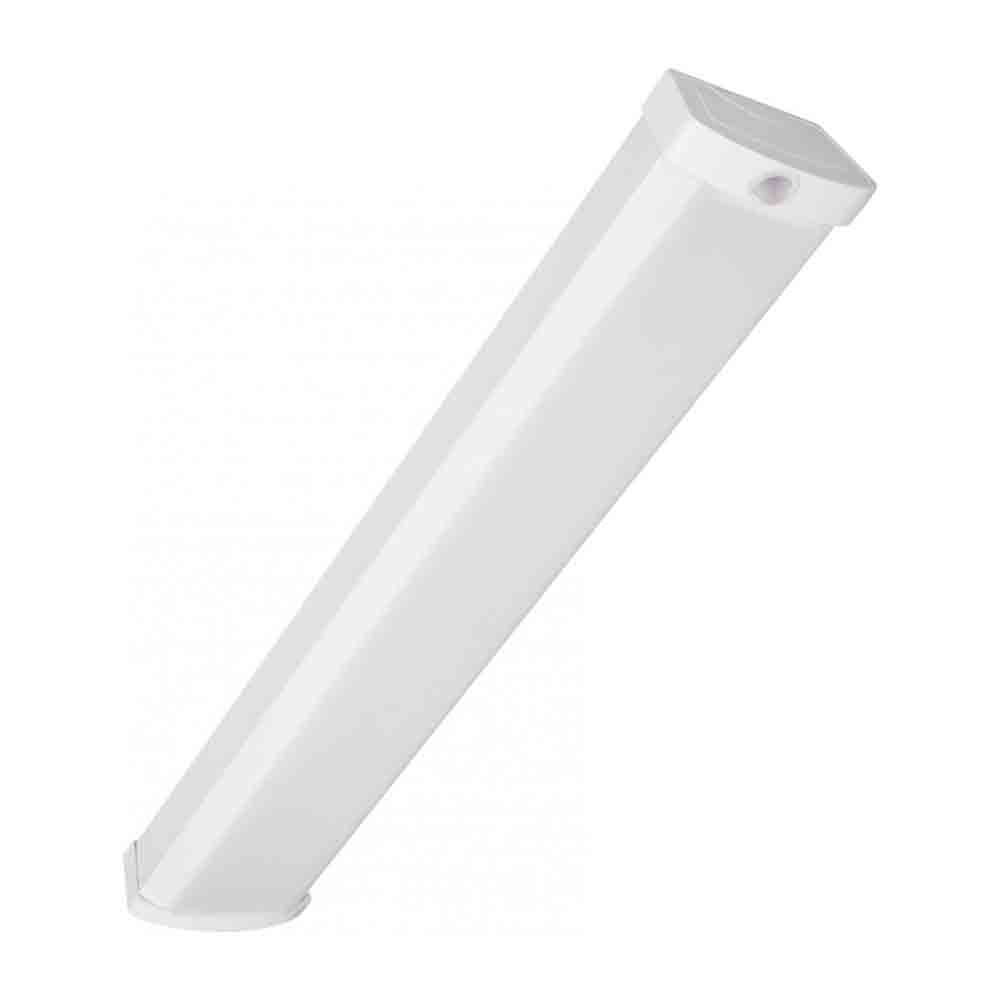

Satco 65-1096 4ft Ceiling LED Wrap — 40W — 3000K — 100–277V — Integrated PIR Motion Sensor — White

The Satco 65-1096 is a commercial and utility 4ft LED Ceiling Wrap Fixture engineered to deliver 3,200 lumens at 40W (80 lm/W) in a dedicated 3000K warm white color temperature with 90+ CRI color rendering. Operating on 100–277V (120–277V) (50/60Hz) electrical systems with an integrated PIR motion sensor for automated occupancy control, this luminaire provides an energy-efficient replacement for legacy 175W incandescent utility fixtures. Built with a cETLus Listed damp location rating and NEC 410.16(A)(3) & 410.16(C)(5) clothes closet certification, it features a factory-installed passive infrared (PIR) occupancy sensor (70-second auto shut-off) and a slim steel housing with an integrated junction box.

Key Features

  • Wattage: 40W fixed output
  • Wattage Equivalency: Replaces 175W incandescent fixtures
  • Maximum Lumen Output: 3,200 lm at 40W (3000K)
  • Peak Efficacy: 80 lm/W
  • CRI: 90+ CRI for high-accuracy color rendering
  • Color Temperature: 3000K (Warm White)
  • Dimming: Non-dimmable
  • Voltage & Current: 100–277V (120–277V) AC, 50/60Hz (0.333A–0.144A, Power Factor 0.93)
  • Location & Closet Rating: cETLus Listed for damp locations; NEC Clothes Closet Certified per Reg. 410.16(A)(3) and 410.16(C)(5)
  • Operating Temperature: -4°F (-20°C) to 104°F (40°C) ambient range
  • Certifications: cETLus Listed, NEC 410.16 Certified, FCC Compliant, RoHS Compliant, California Title 20 Exempt
  • Rated Life: 50,000 hours
  • Warranty: 5-year limited warranty — Satco
  • Integrated Motion Sensor: Factory-installed PIR motion sensor (7–13 ft ceiling height, 13–20 ft detection distance, 70-second shut-off delay)

Performance & Light Output

At 40W: Delivers 3,200 lumens at 3000K (Warm White) with an efficacy of 80 lm/W, replacing legacy 175W incandescent fixtures.

CRI 90+ across operation. Rated life 50,000 hours.

Smart & Control Features

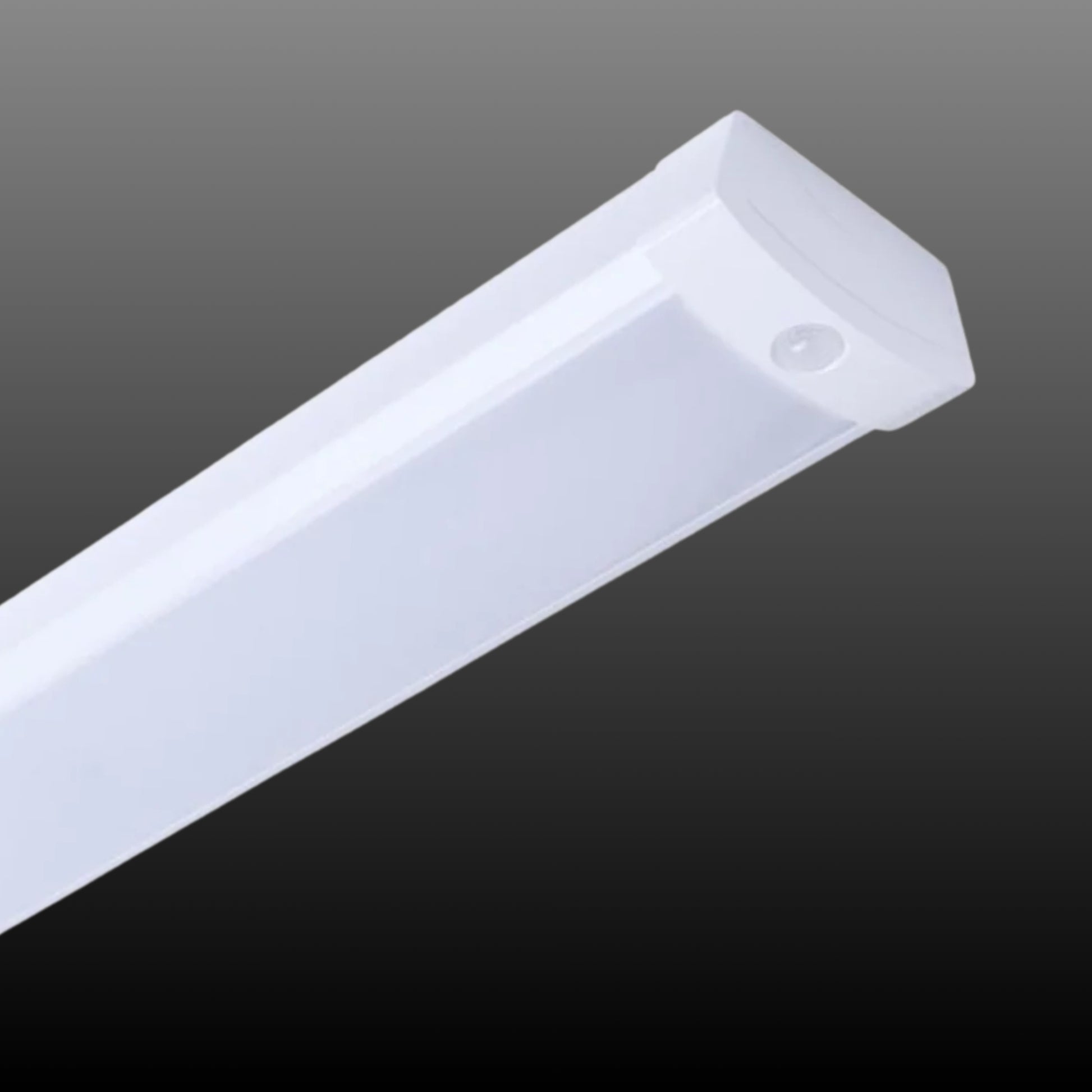

The Satco 65-1096 features a factory-integrated passive infrared (PIR) motion sensor for automated energy savings:

  • Ceiling Mounting Height: Engineered for ceiling-mounted installations at 7 ft to 13 ft (2.2m to 4m).
  • Detection Distance: Detects occupant movement across a 13 ft to 20 ft (4m to 6m) range.
  • Auto Shut-Off Delay: Automatically turns the luminaire off after 70 seconds of no motion detection.

Electrical

Powered by a direct-wired non-dimmable driver operating on 100–277V (120–277V) AC at 50/60Hz with a Power Factor of 0.93 and operating current of 0.333A–0.144A.

Operating current and amp draw for branch circuit and breaker loading calculations:

Wattage Operating Current (Amps)
40W 0.333A–0.144A ( across 120V–277V )

Construction

Housing & Build: Slim white steel housing with an integrated built-in junction box that mounts directly to an external junction box or wires internally.

Location & Environmental Rating: cETLus Listed for indoor damp locations and Clothes Closet Certified under NEC 410.16(A)(3) and 410.16(C)(5).

Operating Temperature: Operating ambient temperature range of -4°F (-20°C) to 104°F (40°C).

Lens & Optics: Wraparound diffuser engineered for even, maintenance-free light distribution with no bulbs to change.

Finish: White finish formulated for clean indoor ceiling or wall integration.

Dimensions & Weight: 47.50" L × 5.50" W × 2.64" H (EA: 48.20" × 5.51" × 2.76"). Fixture weight: 4.96 lbs.

Installation & Mounting

Standard Mounting: Ceiling Surface Mount (7–13 ft / 2.2–4m mounting height). Mounts directly to a standard junction box or can be internally wired using the built-in junction box.

Certifications & Rebates

  • cETLus Listed: Certified for indoor damp locations (Item 65-1096, UPC 045923670961).
  • NEC 410.16 Closet Certified: Complies with NEC 410.16(A)(3) and 410.16(C)(5) clothes closet regulations.
  • California Title 20: Title 20 Exempt — lawful for sale in California.
  • FCC Compliant: Meets FCC electromagnetic interference standards.
  • RoHS Compliant: Engineered free of hazardous substances.

Typical Applications

  • Clothes Closets & Storage Areas — NEC 410.16(A)(3) & (C)(5) certification ensures code-compliant installation in enclosed closet spaces.
  • Kitchens & Laundry Rooms — 90+ CRI color accuracy and cETLus damp rating provide crisp, reliable task lighting in humid rooms.
  • Work Areas & Utility Rooms — Built-in junction box and direct-wire design simplify surface installation over workbenches.
  • Hallways & Corridors — Slim low-profile wraparound diffuser delivers even pathway illumination across 50,000 rated hours.
  • Multi-Family & Light Commercial Retrofits — Replaces legacy 100W–175W incandescent utility fixtures with a maintenance-free integrated LED design.

What's Included

  • Satco 65-1096 4ft 40W 3000K LED Ceiling Wrap Fixture with Motion Sensor — White
  • Built-in junction box
  • Installation instructions

Specifications

Dimensions

Length/Depth
47.5 in
Width/Diameter
5.5 in
Height
1.63 in

Style & Materials

Finish
White
Material
Steel

Characteristics & Features

Bulb Included
Yes
Number of Lights
1
Lamp Color
3000K
Color Rendering
90 CRI
Delivered Lumens
3200

Electrical Information

Voltage
120-277V
Total Wattage
40W
Bulb Wattage
40W

Item Details

MPN
65/1096
Brand
SATCO|NUVO
Family
SATCO|NUVO LED Ceiling Wraps
UPC
045923670961

Warranty & Certifications

Product Warranty
5 Year Limited - Fixtures
Lamp Life
50000 hours
Product Rating
Damp Rated

Shipping & Returns

Shipping: Enjoy free standard shipping on most orders over $99. Exclusions apply for oversized & commercial items. We ship to the contiguous 48 United States.

Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. Exclusions: Special orders, clearance, and custom items.

See Full Shipping Policy | See Full Return Policy

Frequently Asked Questions

How is the Satco 65-1096 LED ceiling wrap mounted and wired?

The Satco 65-1096 is a direct-wired indoor ceiling wrap fixture engineered for surface mounting at 7 to 13 feet. It mounts directly over a standard junction box or wires internally using the fixture's built-in junction box. Its white steel housing measures 47.50" L × 5.50" W × 2.64" H and weighs 4.96 lbs.

What are the wattage, lumen output, and color temperature specifications of the Satco 65-1096?

The Satco 65-1096 operates at a fixed 40W power setting and delivers 3,200 lumens at an efficacy of 80 lm/W. It features a dedicated 3000K (warm white) color temperature with 90+ CRI color rendering accuracy. Note that wattage and color temperature are fixed on this model and are not field-selectable.

What voltage and circuit amperage does the Satco 65-1096 require, and is it closet rated?

The Satco 65-1096 operates on 100–277V (120–277V) AC (50/60Hz) electrical systems, drawing 0.333A–0.144A with a 0.93 power factor. It is cETLus Listed for indoor damp locations (-4°F (-20°C) to 104°F (40°C) ambient) and is Clothes Closet Certified under NEC 410.16(A)(3) and 410.16(C)(5) regulations.

Is the Satco 65-1096 dimmable, and does it include a pull chain or motion sensor?

The Satco 65-1096 is a non-dimmable fixture equipped with a factory-installed passive infrared (PIR) motion sensor for automated on/off control. Designed for ceiling mounting heights of 7 to 13 feet (2.2–4m), the sensor provides a 13 to 20-foot (4–6m) detection distance and automatically shuts off after 70 seconds of no motion.

What legacy fixture does the Satco 65-1096 replace, and what warranty covers it?

The 40W Satco 65-1096 is engineered to replace legacy 175W incandescent utility and closet fixtures while providing a maintenance-free 50,000-hour rated LED lifespan. It is cETLus damp-location listed, FCC and RoHS compliant, California Title 20 exempt, and backed by Satco's 5-year limited warranty.
