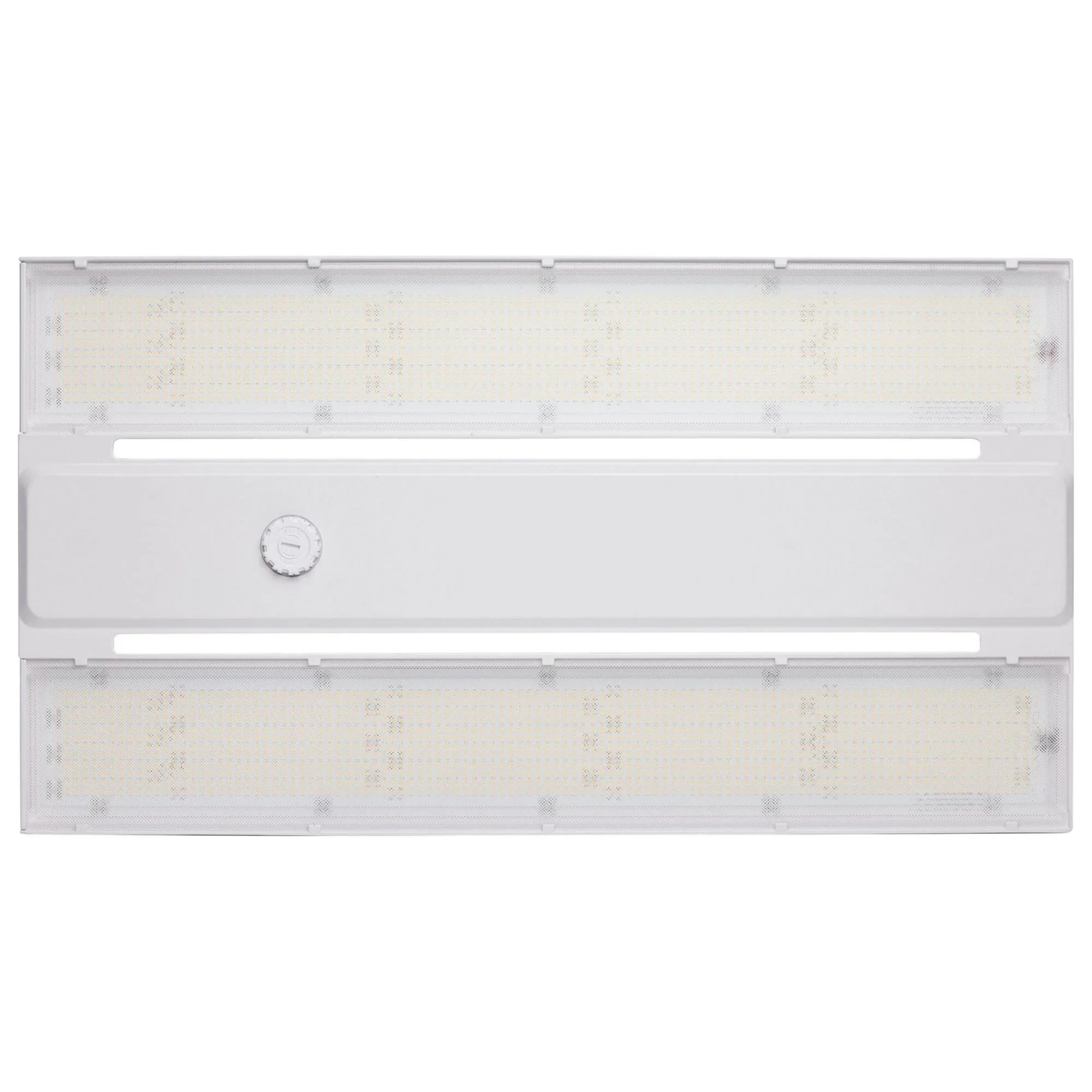

Satco|Nuvo 65-1013 LED Linear High Bay 45,598 Lumens 275/300/320W Selectable 3000K/4000K/5000K 120-277V White

Satco|Nuvo 65-1013 LED Linear High Bay Light — Field Selectable 275/300/320W

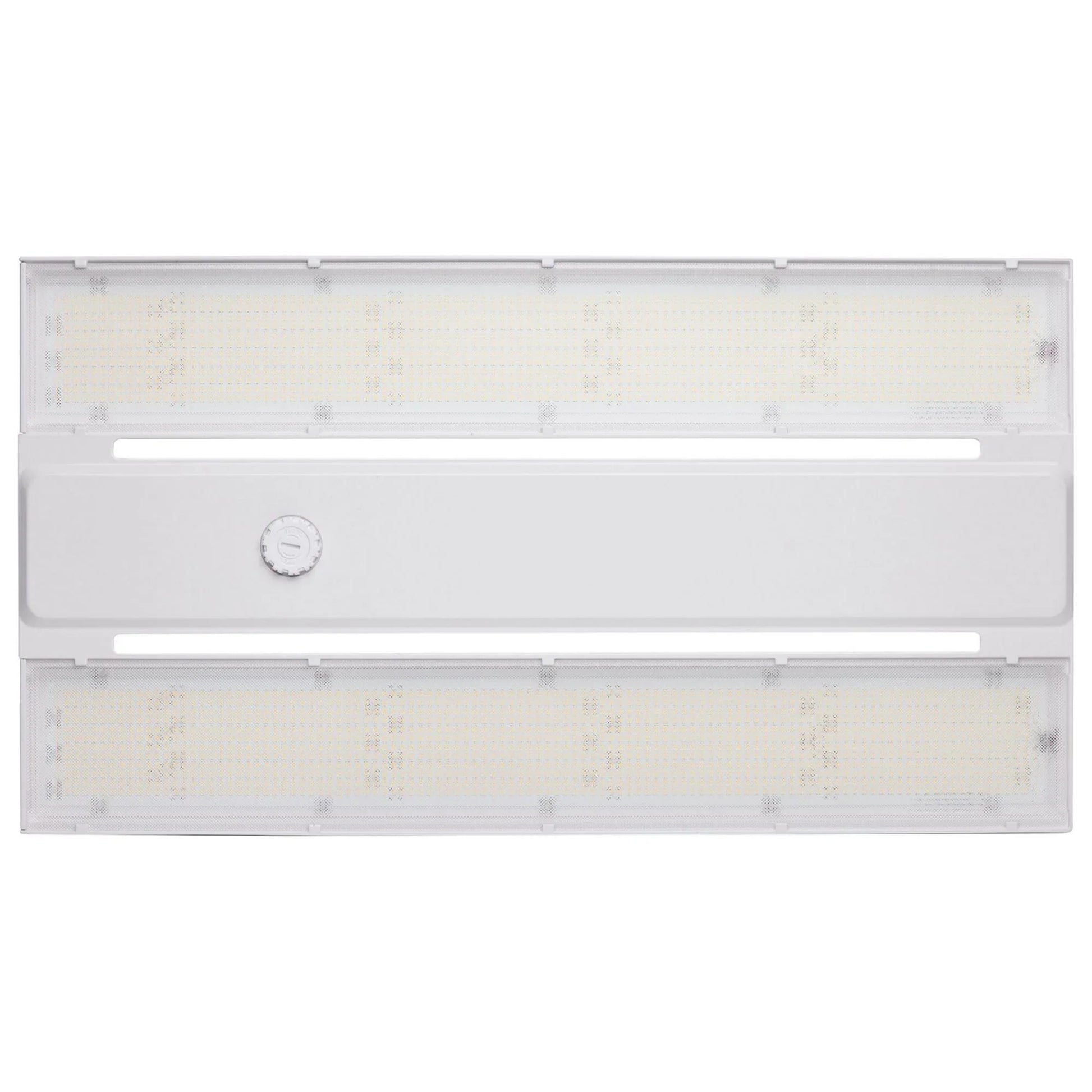

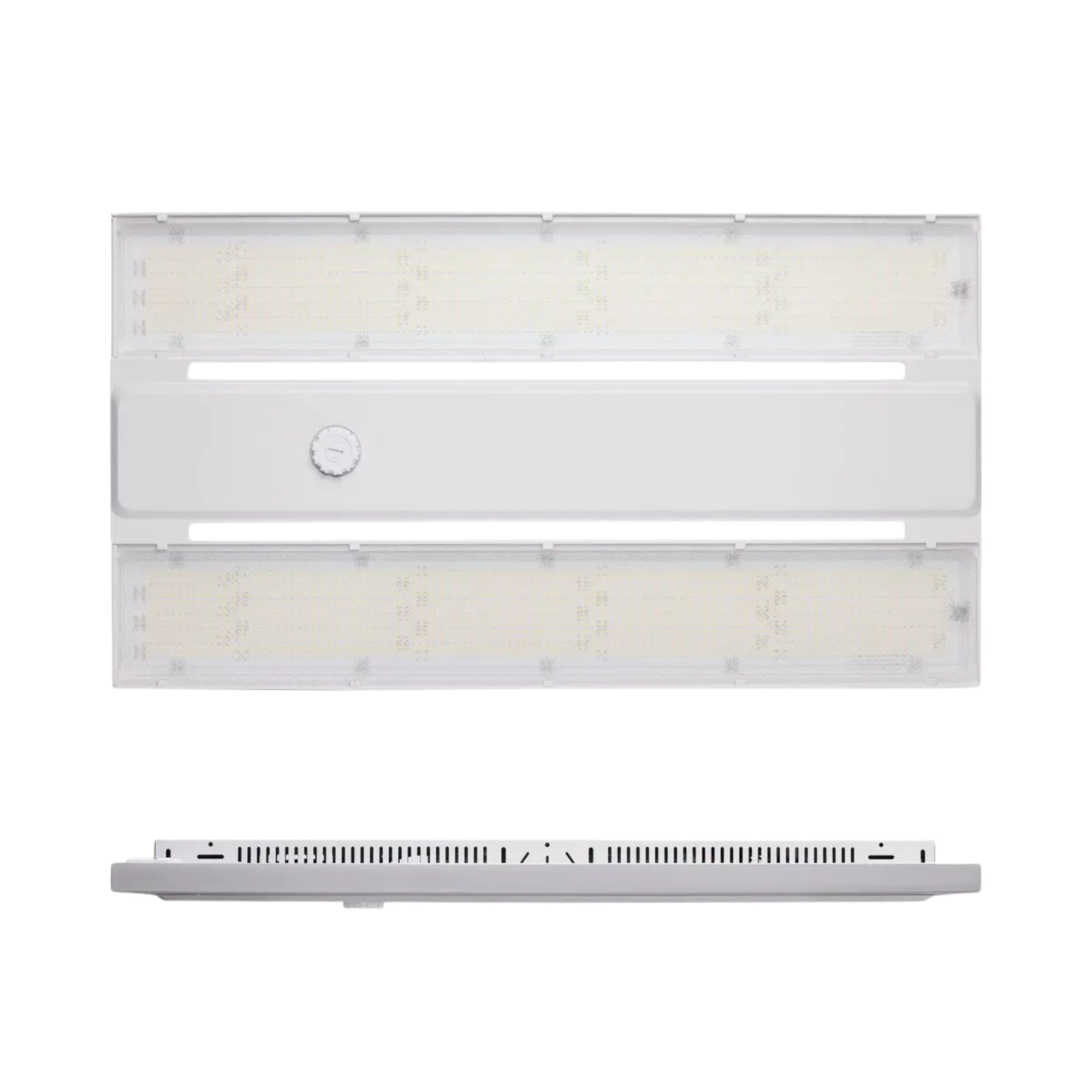

The Satco|Nuvo 65-1013 is a field-selectable LED linear high bay designed for commercial and industrial environments. It offers selectable wattage (275W / 300W / 320W) and selectable CCT (3000K / 4000K / 5000K) on a universal 120-277V platform, enabling installers to tailor light output and color temperature to project requirements.

Key Features:

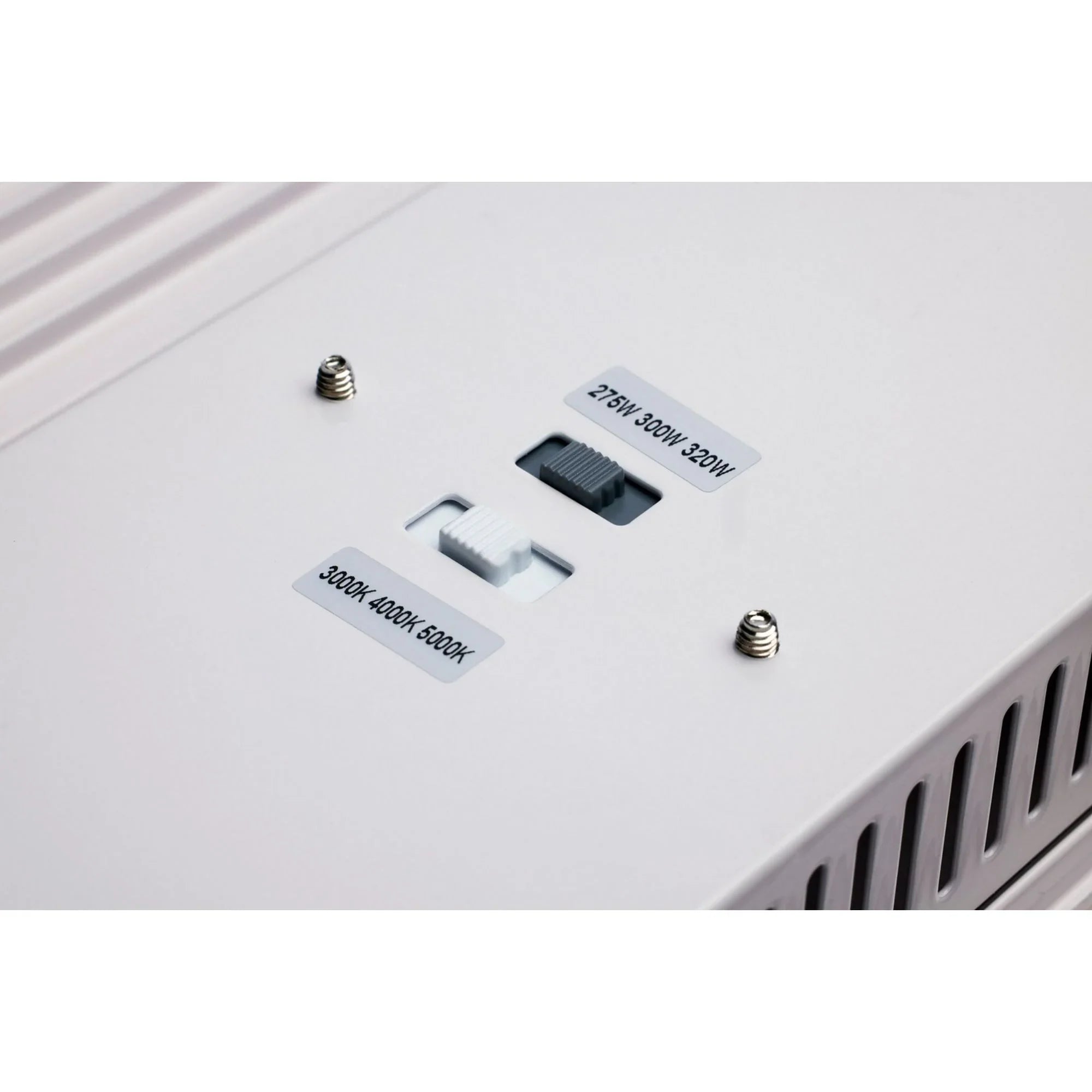

• Selectable Wattage: 275W / 300W / 320W
• Selectable CCT: 3000K / 4000K / 5000K
• Universal Voltage: 120-277V input
• Dimming: 0-10V dimmable driver
• Light Output: Up to 45,598 lumens
• Rated Life: 50,000 hours (L70)

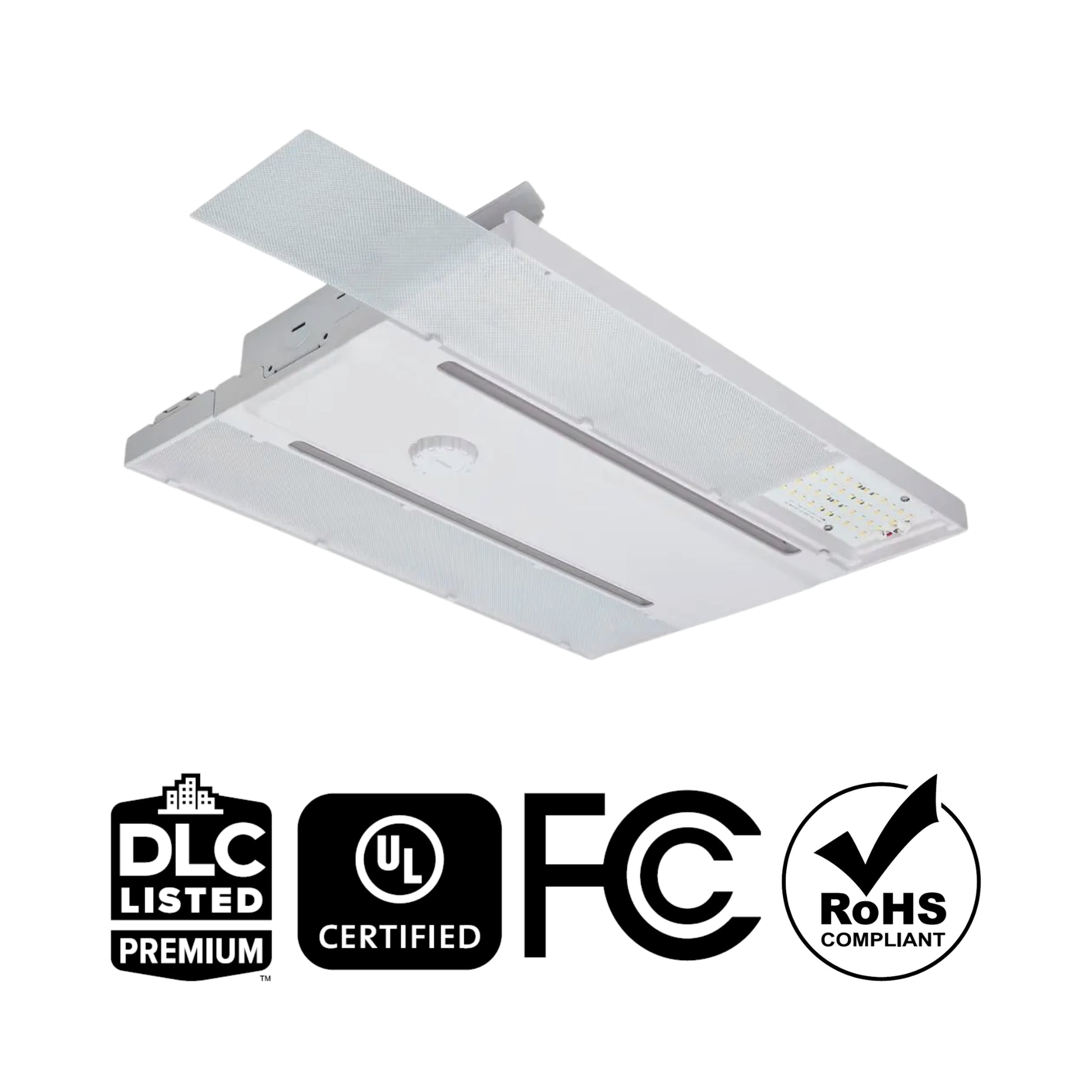

• Certifications: DLC Listed, cULus Certified, RoHS, FCC compliant
• Mounting: Includes 41-inch suspension kit

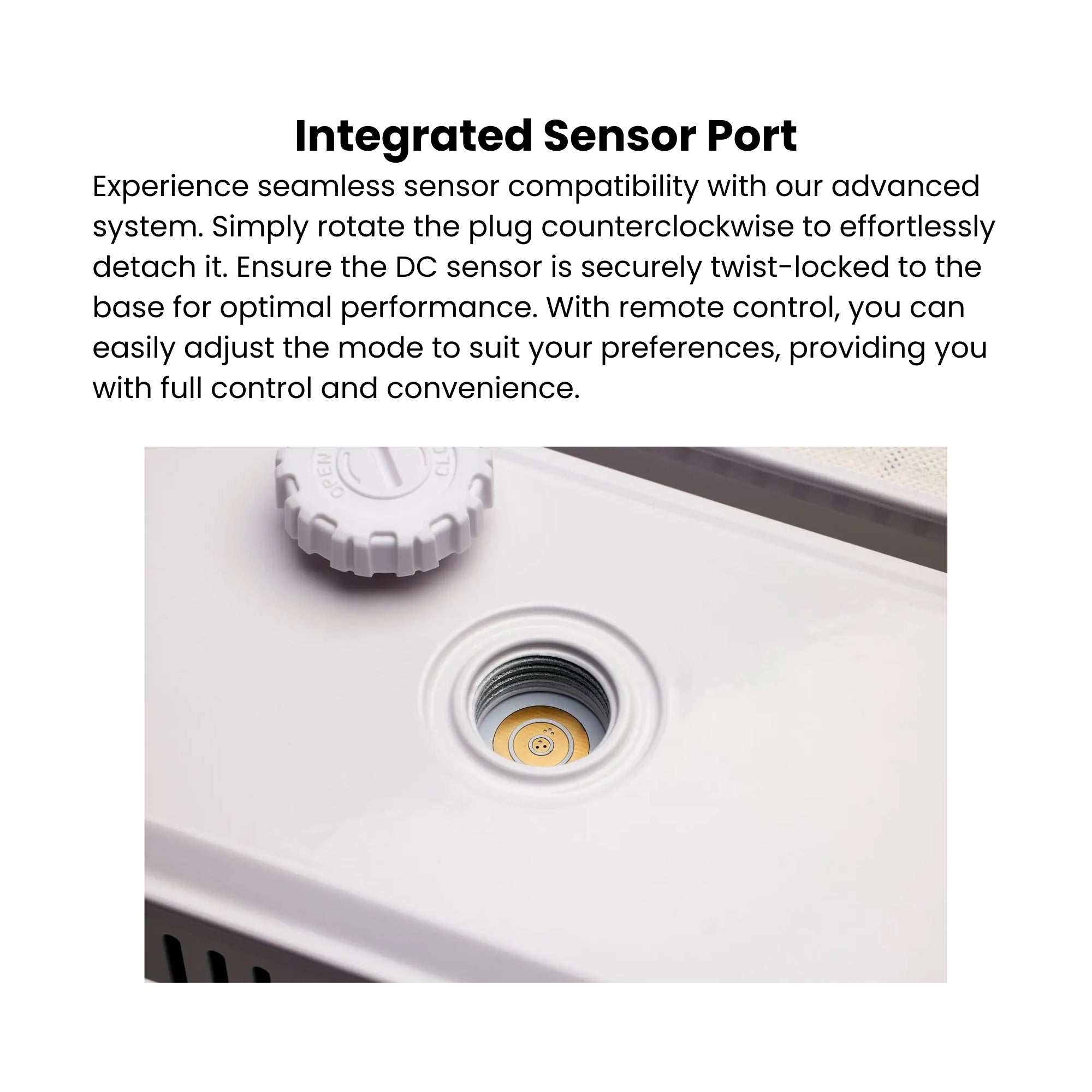

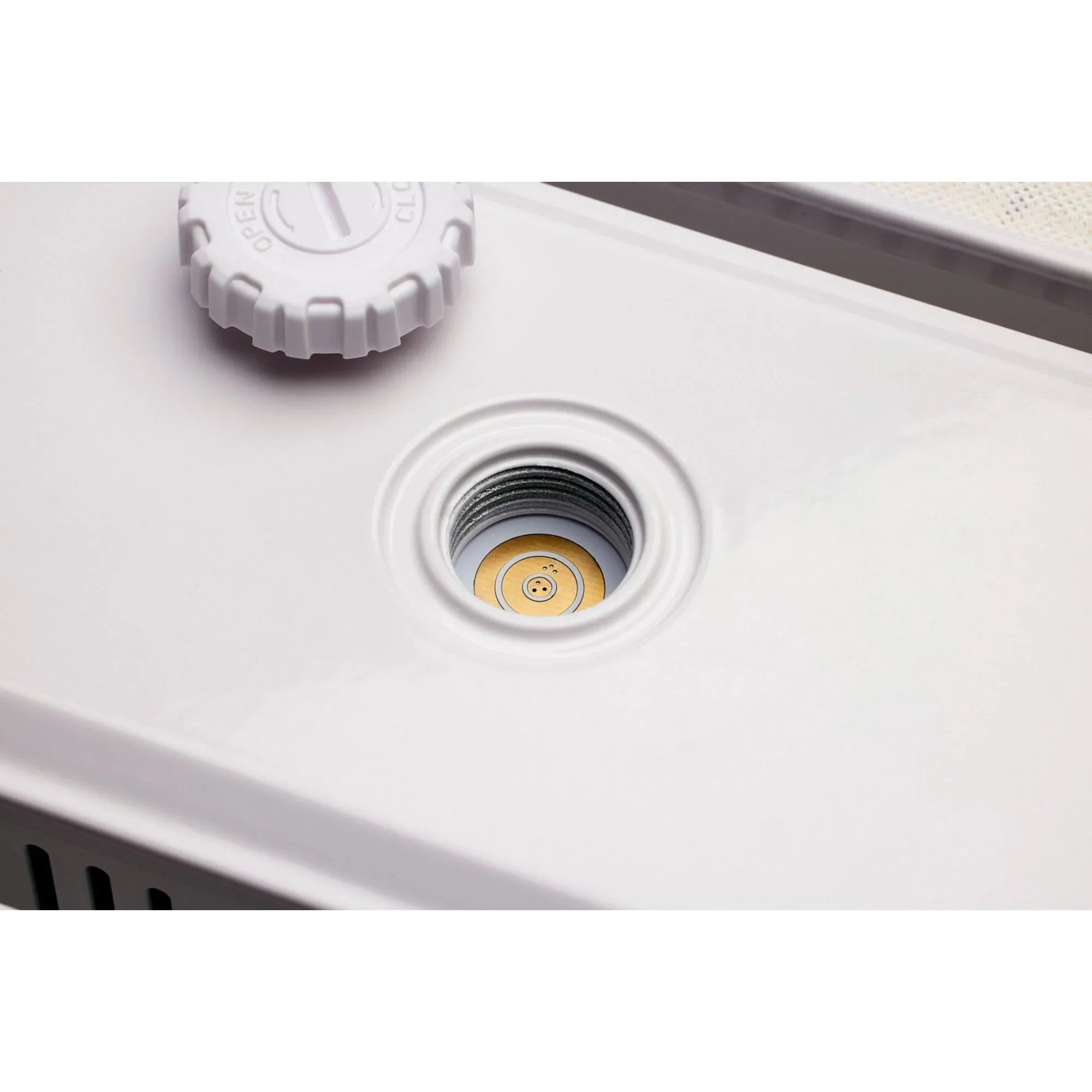

• Controls Compatibility: Integrated sensor port for optional PIR/microwave sensors
• Surge Protection: 6kV integrated surge protection

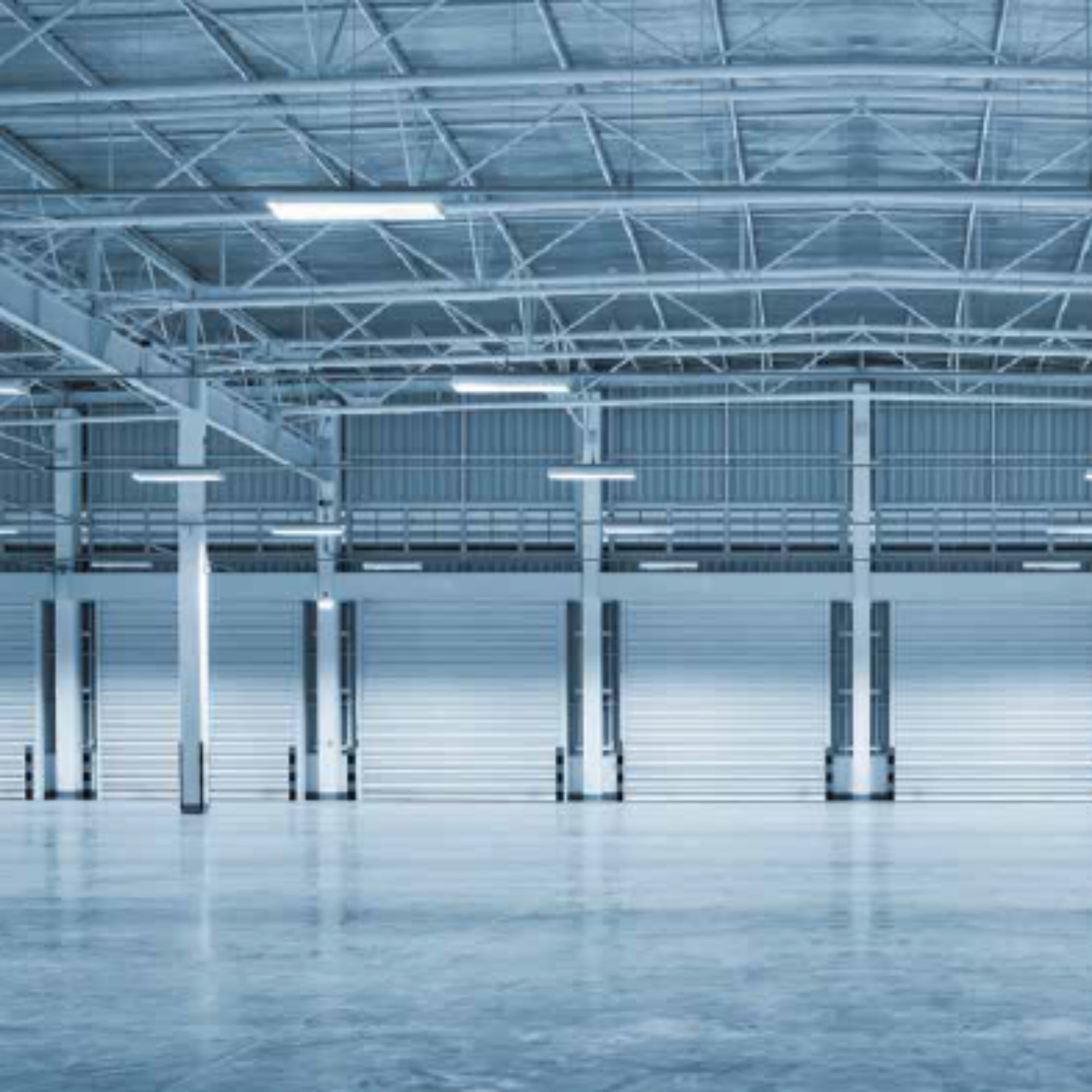

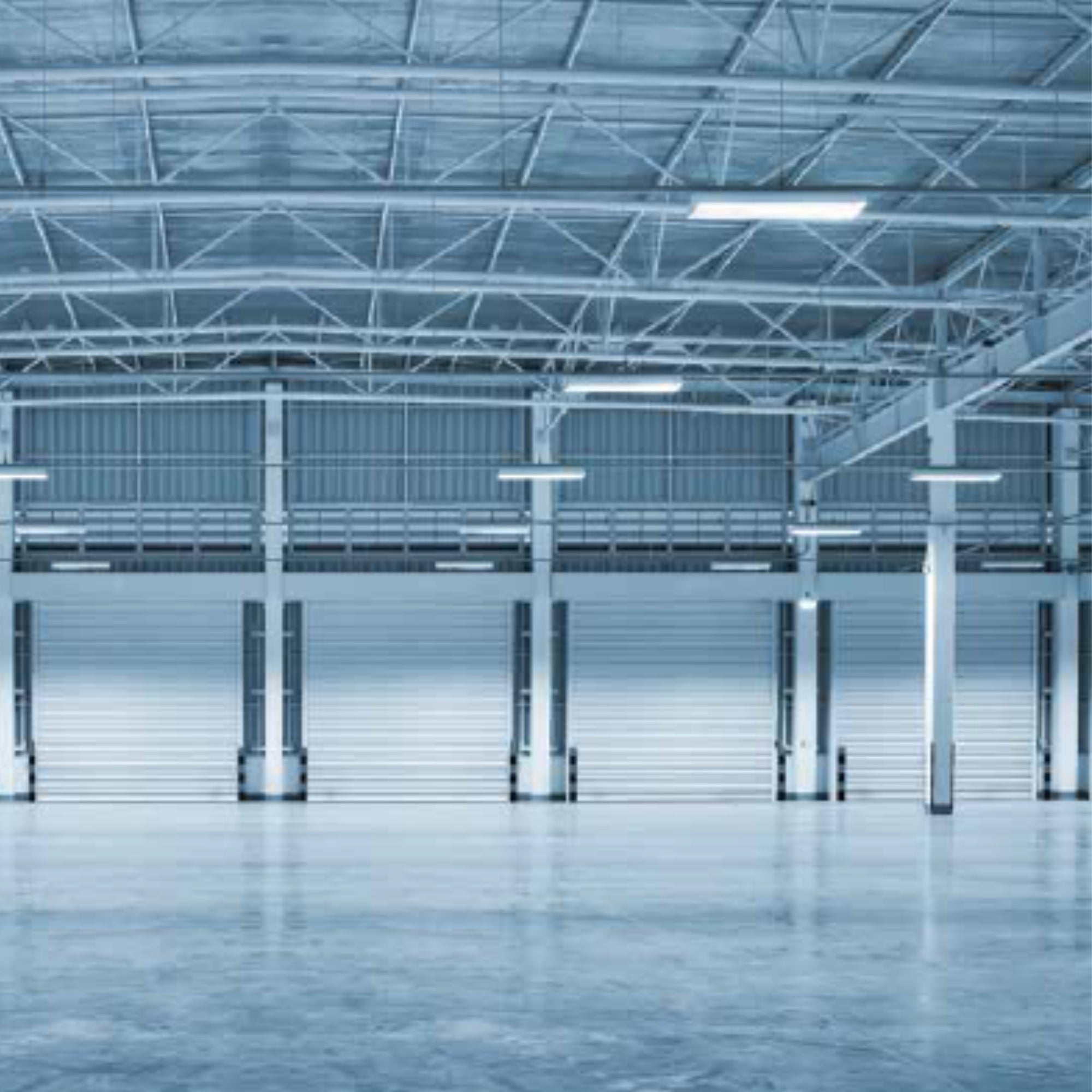

Typical Applications:

• Warehouses
• Distribution centers
• Manufacturing facilities
• Commercial garages
• Industrial work areas

Performance & Light Output:

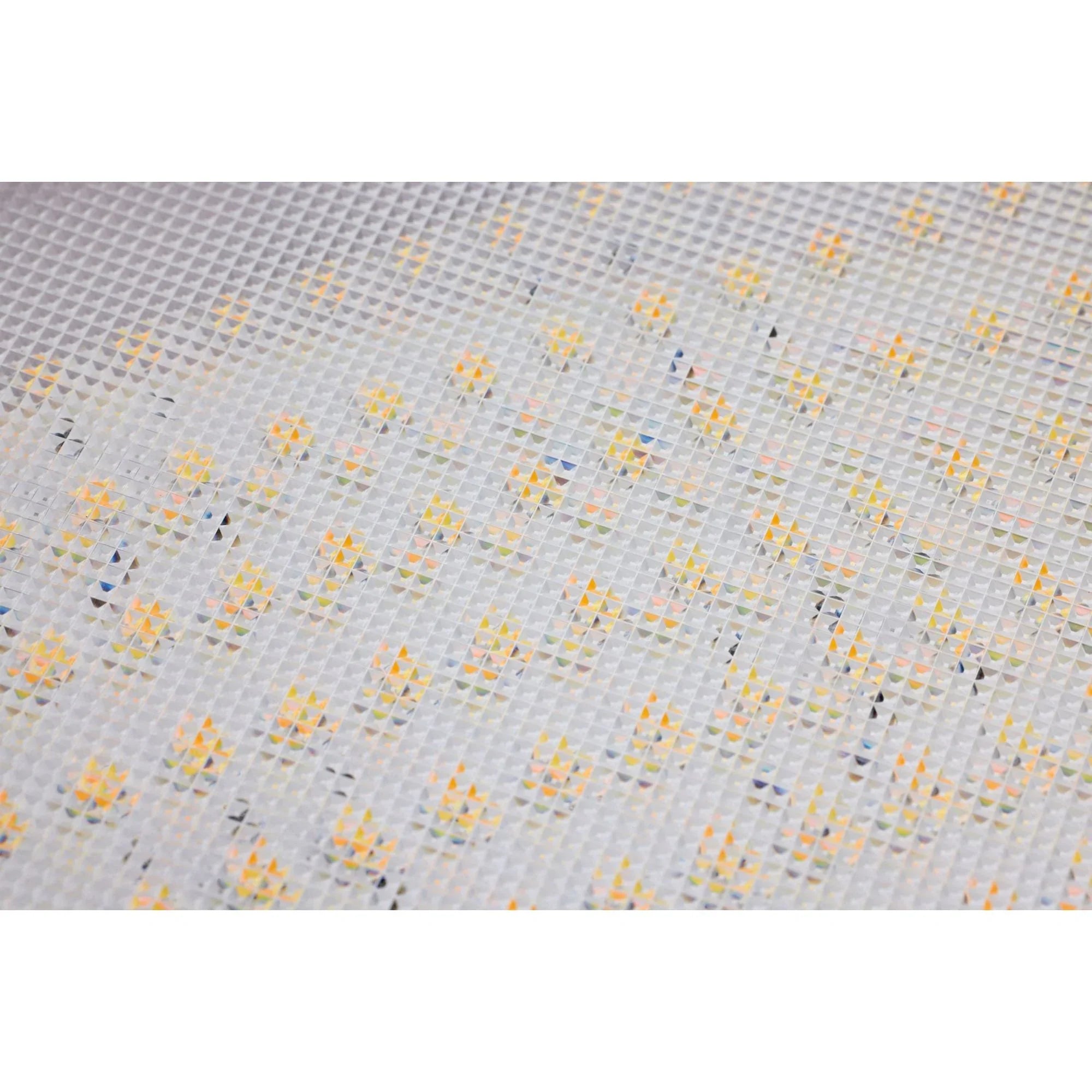

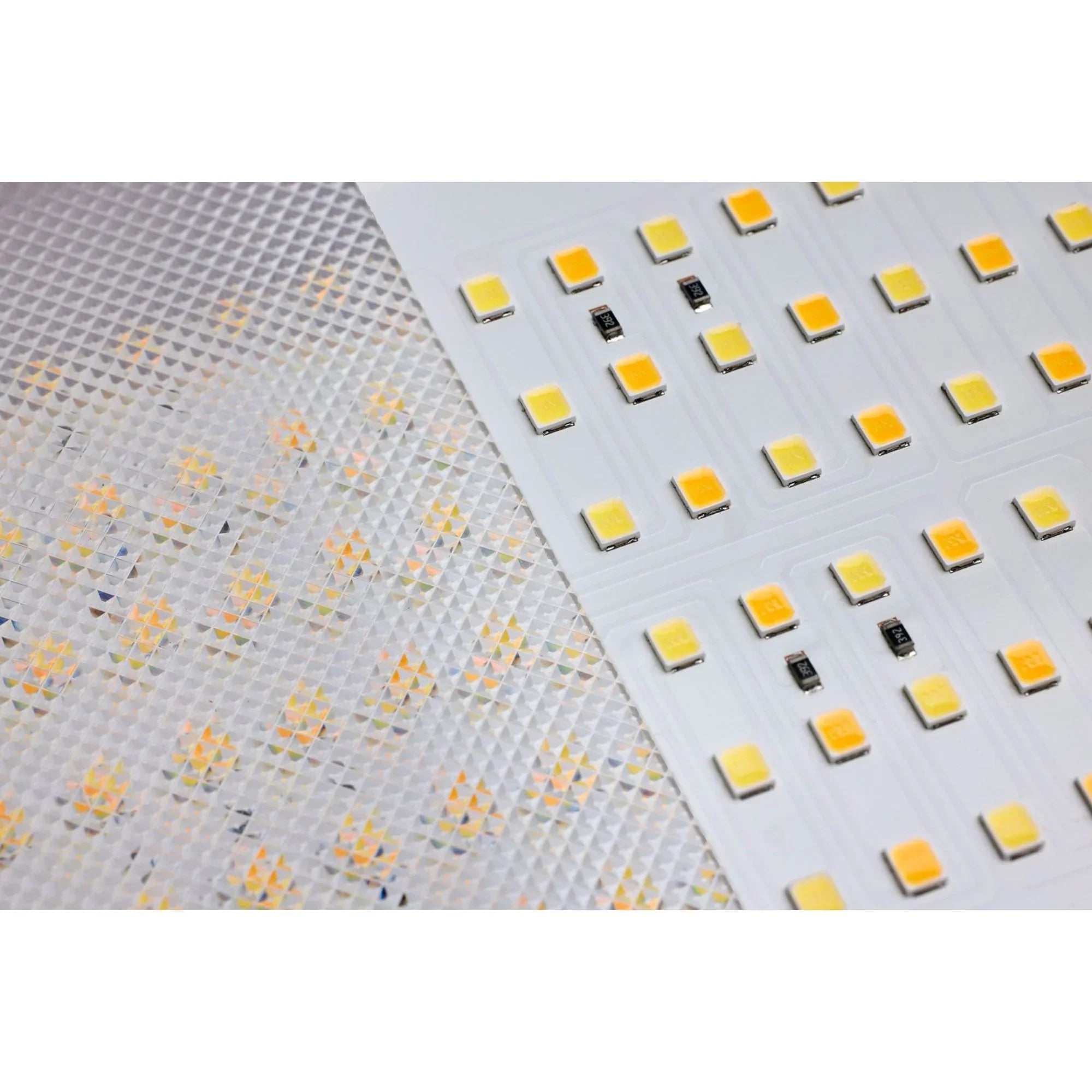

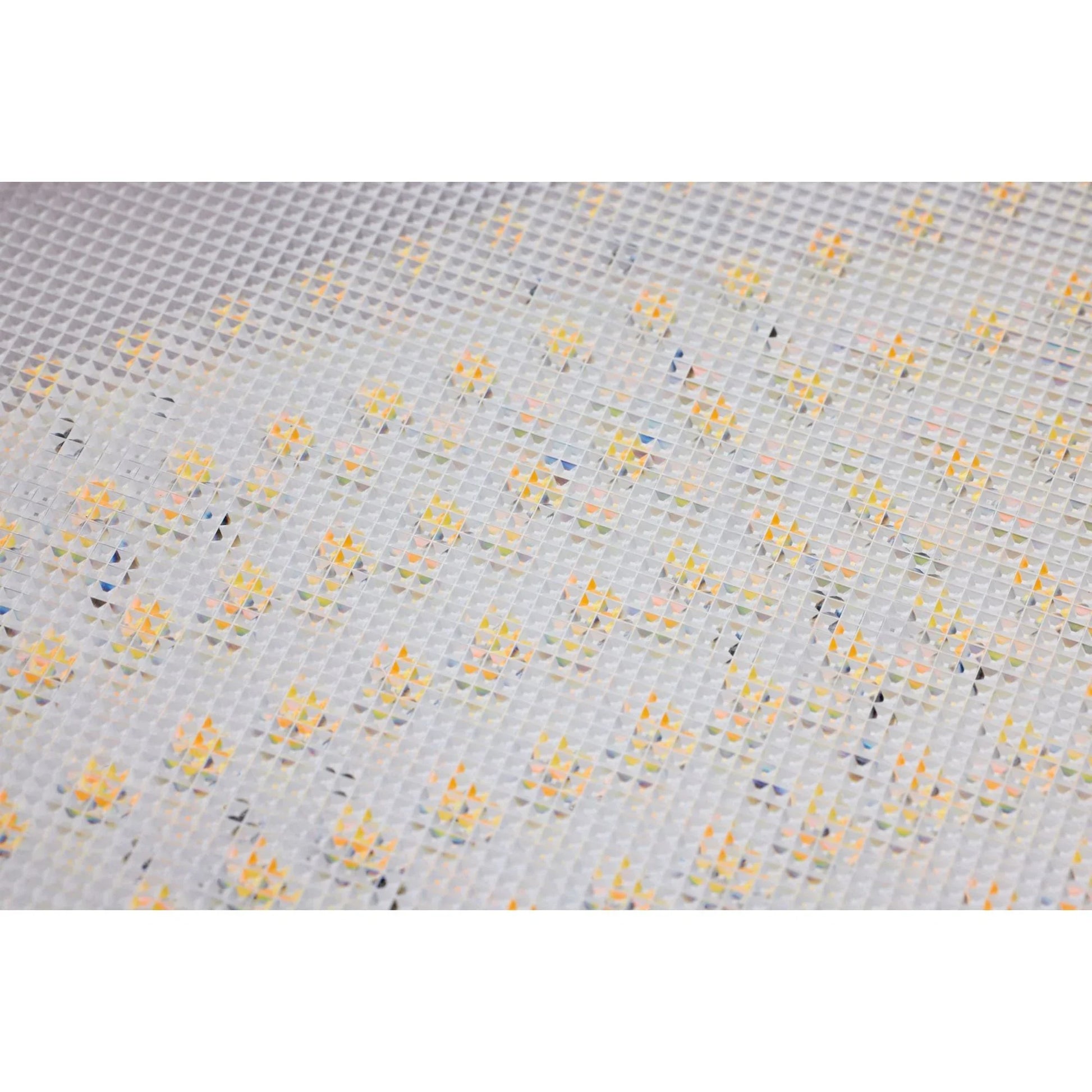

Delivers between approximately 38,037 and 45,598 lumens depending on the selected wattage. CRI is 80+ for solid color rendering. The standard interchangeable 90° x 90° optical lens provides broad, uniform distribution suitable for general industrial and commercial spaces.

Electrical & Controls:
Operates on universal 120-277V AC with a 0-10V dimmable driver for smooth light control. Integrated 6kV surge protection enhances electrical reliability, and the built-in sensor port supports field-installed motion or daylight sensors for enhanced energy control.

Construction & Durability:

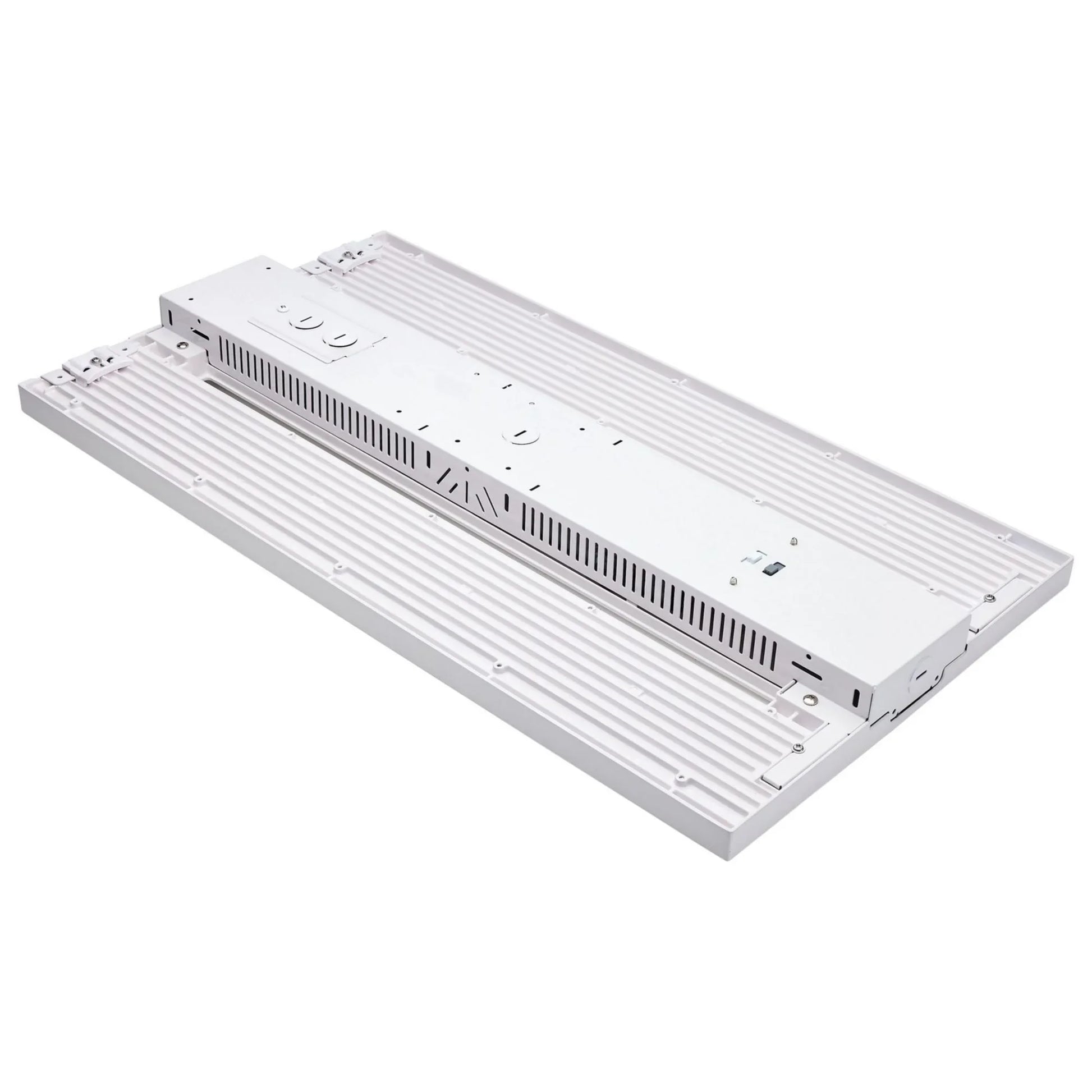

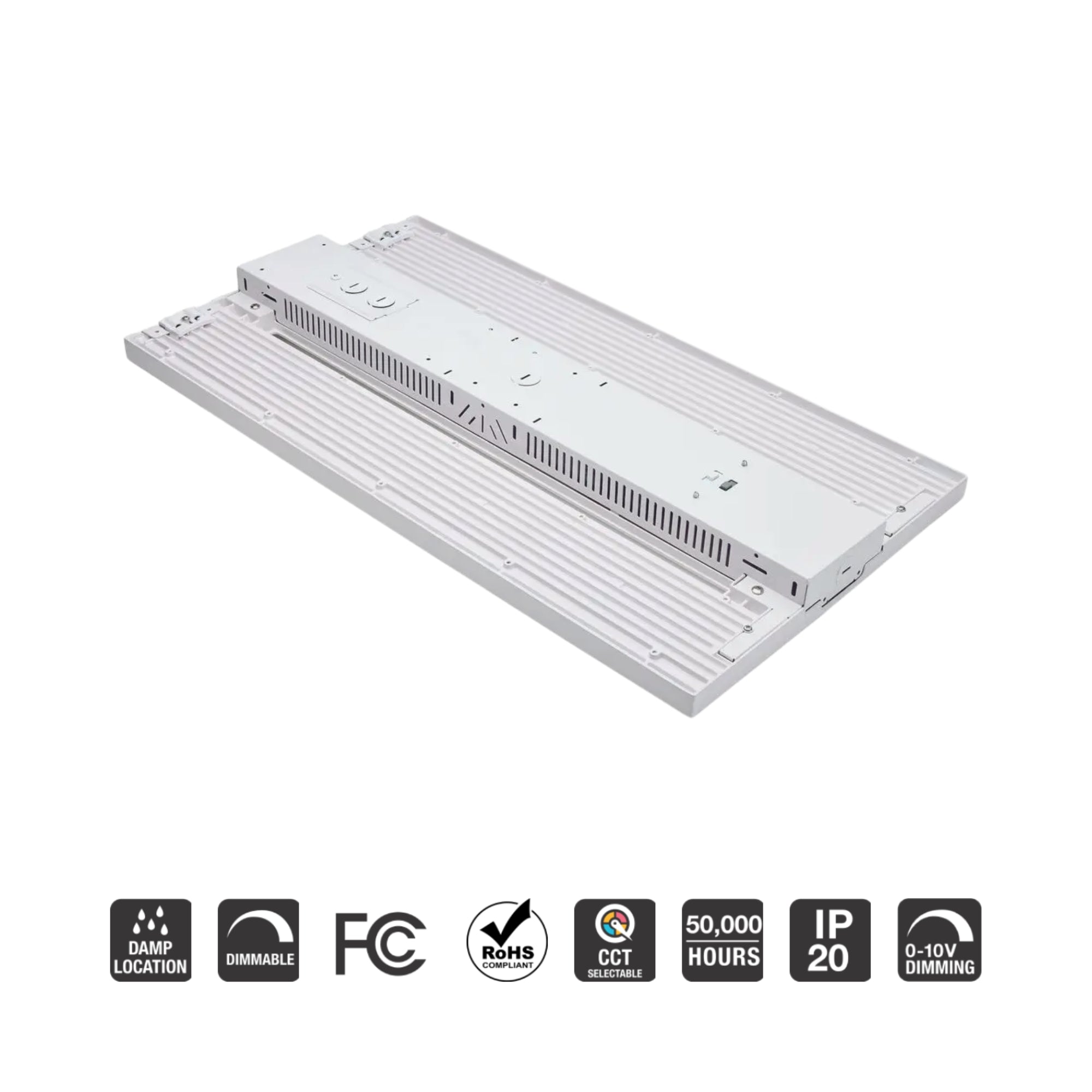

Die-cast aluminum housing with polycarbonate lens for durability and glare control. Rated IP20 for indoor/damp locations with an operating temperature range from -40°F to +131°F.

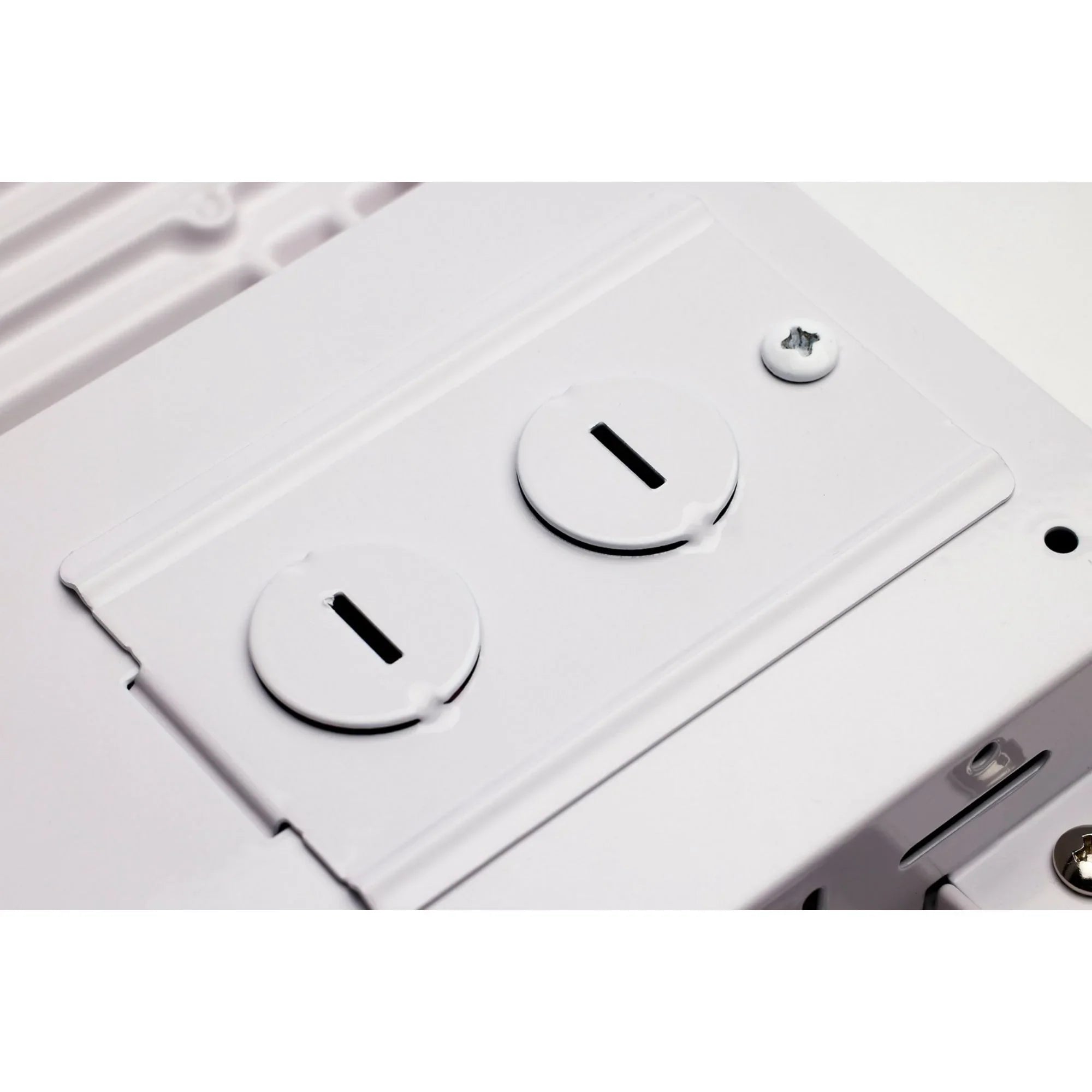

Installation & Mounting:
Includes a 41-inch suspension kit for overhead mounting. Compatible with pendant and surface mount configurations as needed.

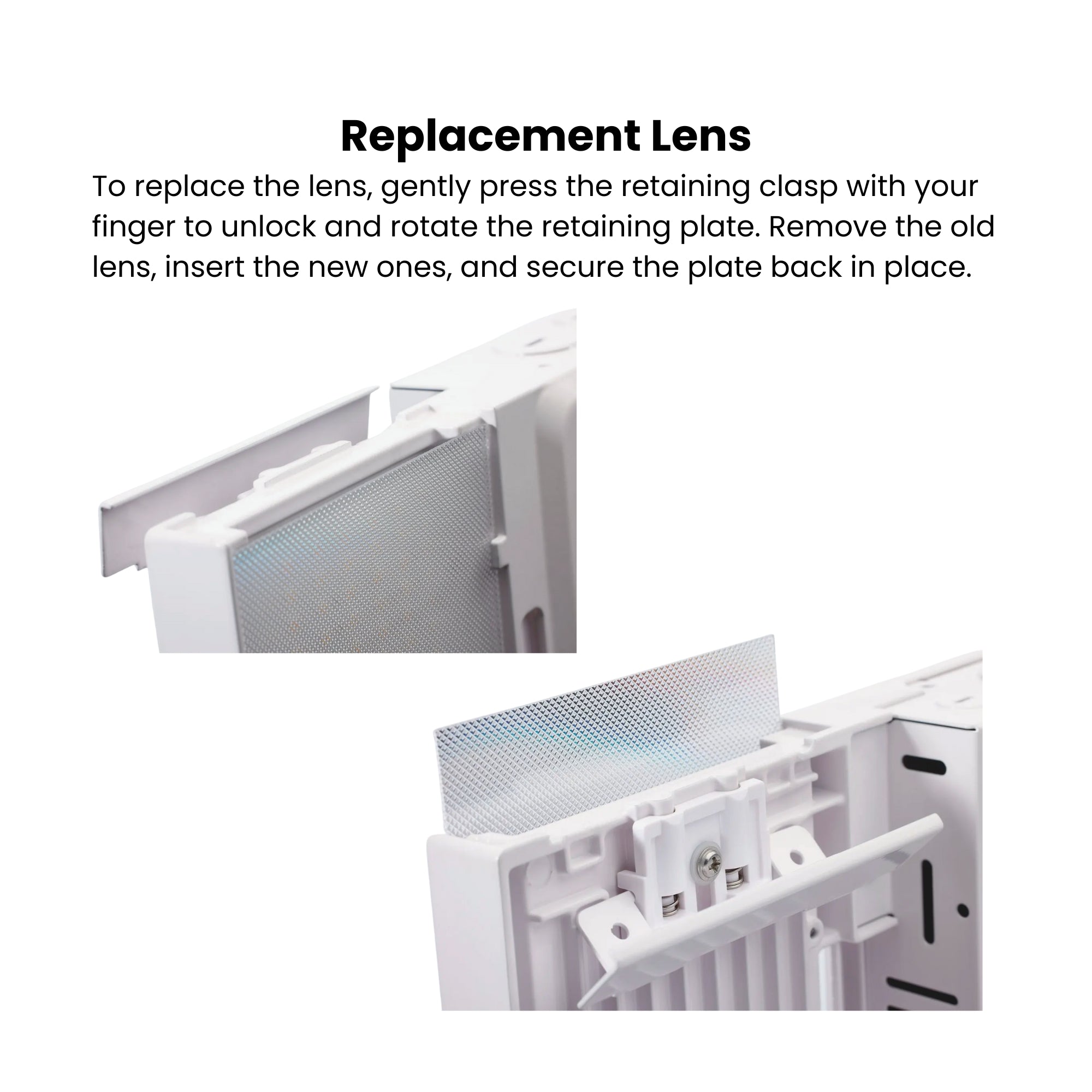

Accessories:
Optional accessories include alternate optical lenses, wire guards, surface and pendant mounting kits, and field-installed sensors for additional control functionality.
