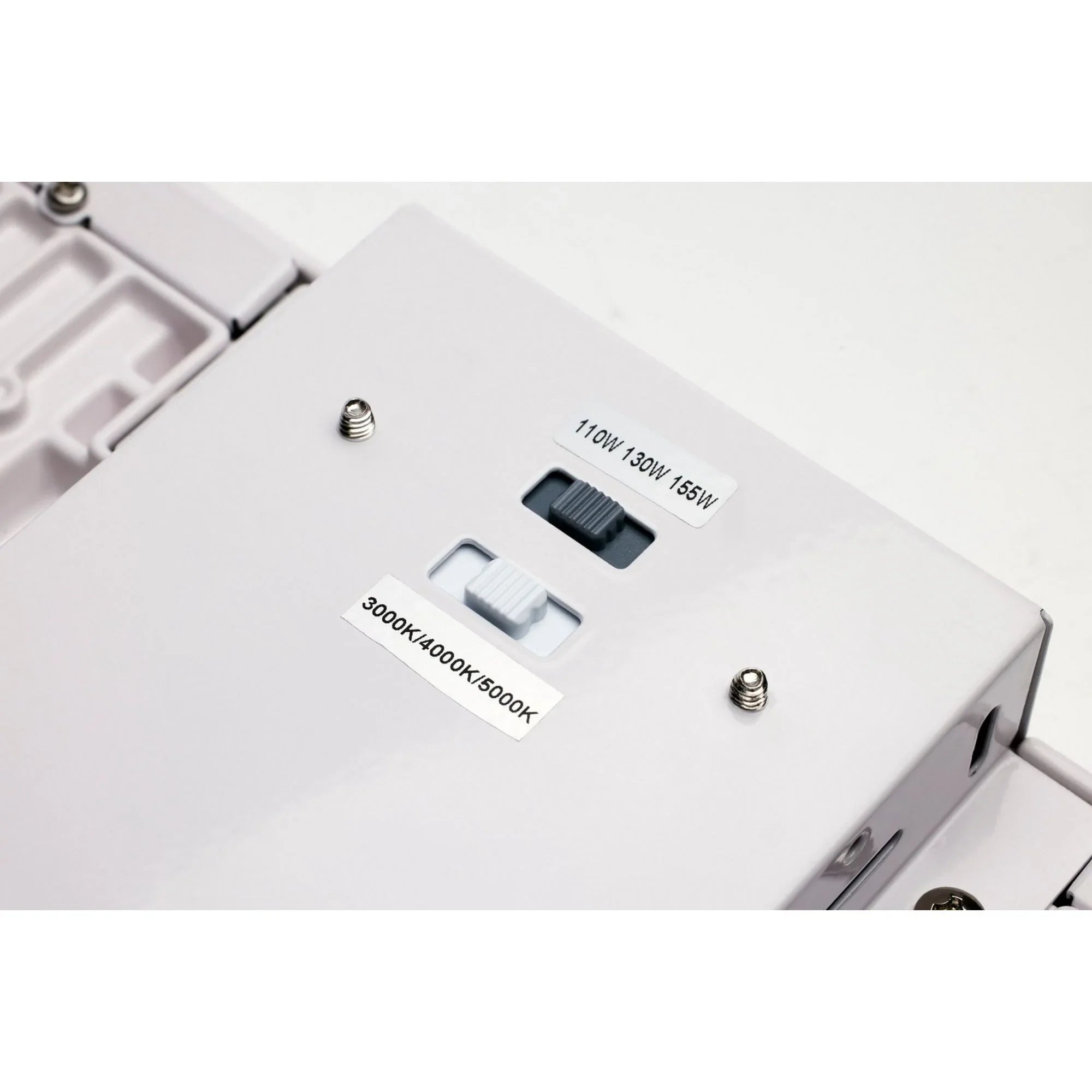

- Field Selectable Output: 110W / 130W / 155W configurations
- Adjustable CCT: 3000K / 4000K / 5000K selectable
- Commercial Electrical: 120-277V with 0-10V dimming

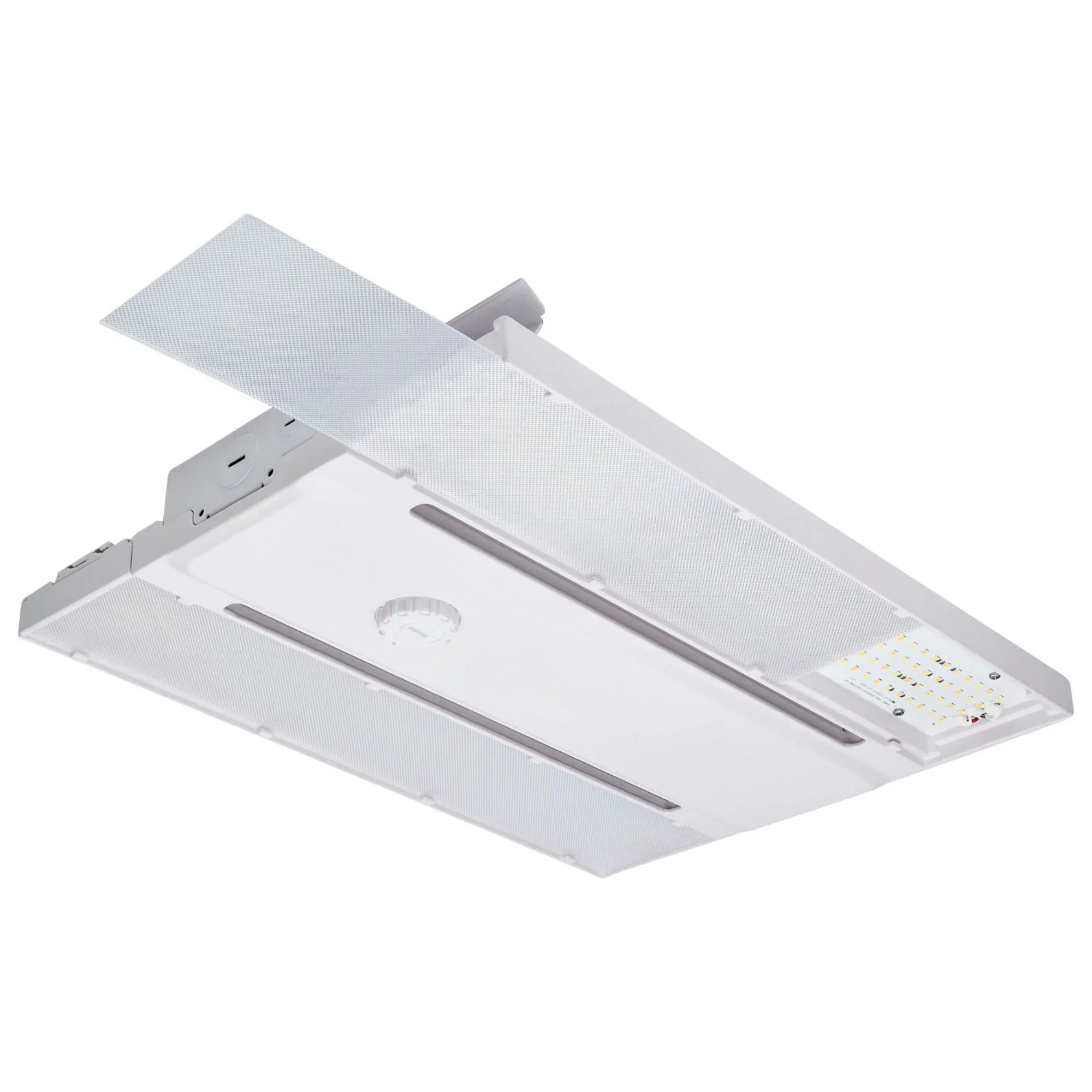

- Interchangeable Optics: Standard 90° x 90° with optional lenses
- Controls Ready: Integrated sensor port for PIR/microwave options
Shipping & Returns
Shipping & Returns
Shipping: Enjoy free standard shipping on most orders over $99. (Exclusions apply for oversized & commercial items). We ship to the contiguous 48 United States.
Returns: We offer a 60-day return window for most items. Products must be in their original, unused condition with all packaging. (Exclusions: Special orders, clearance, and custom items).
We process payments securely and do not store credit card information.
Description
Description

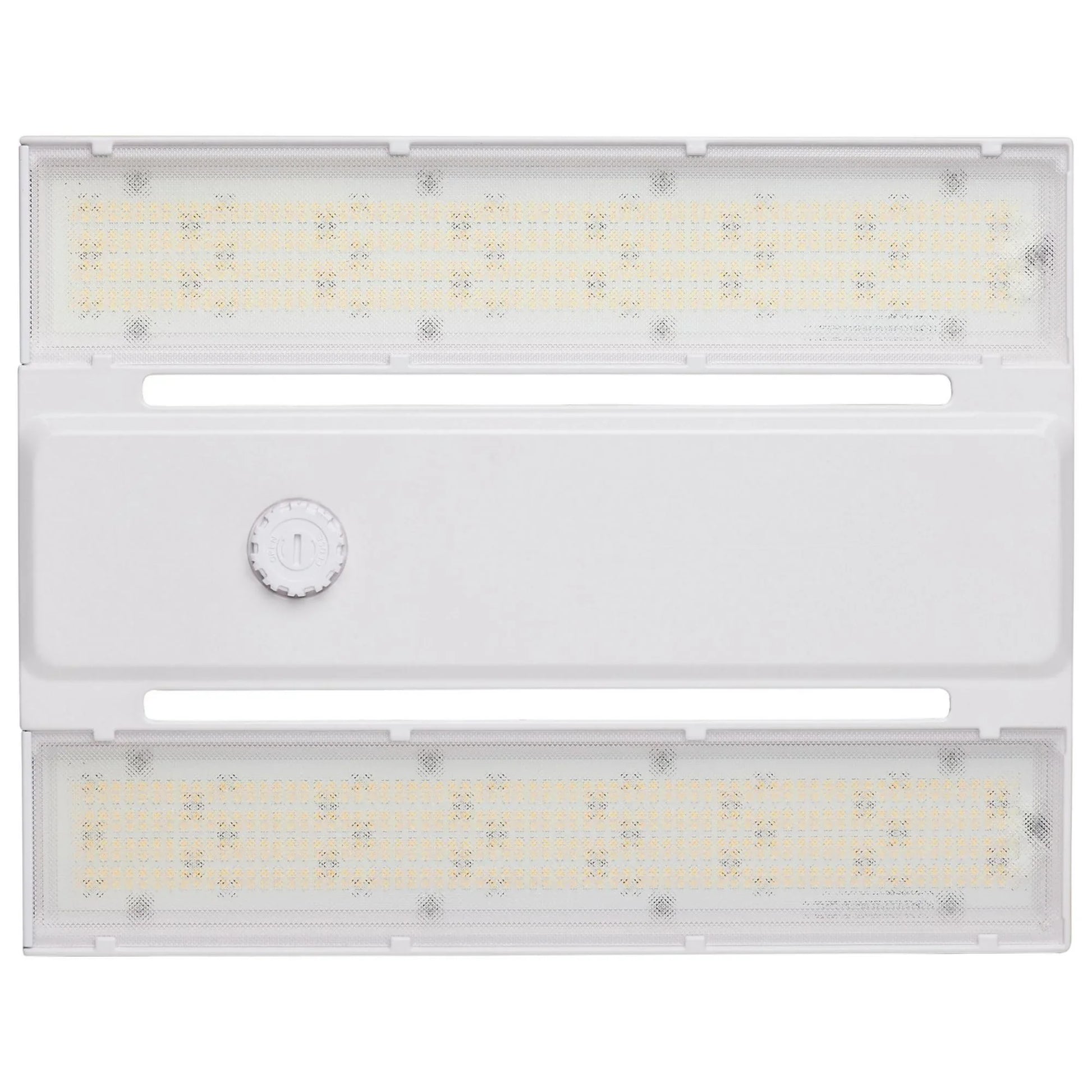

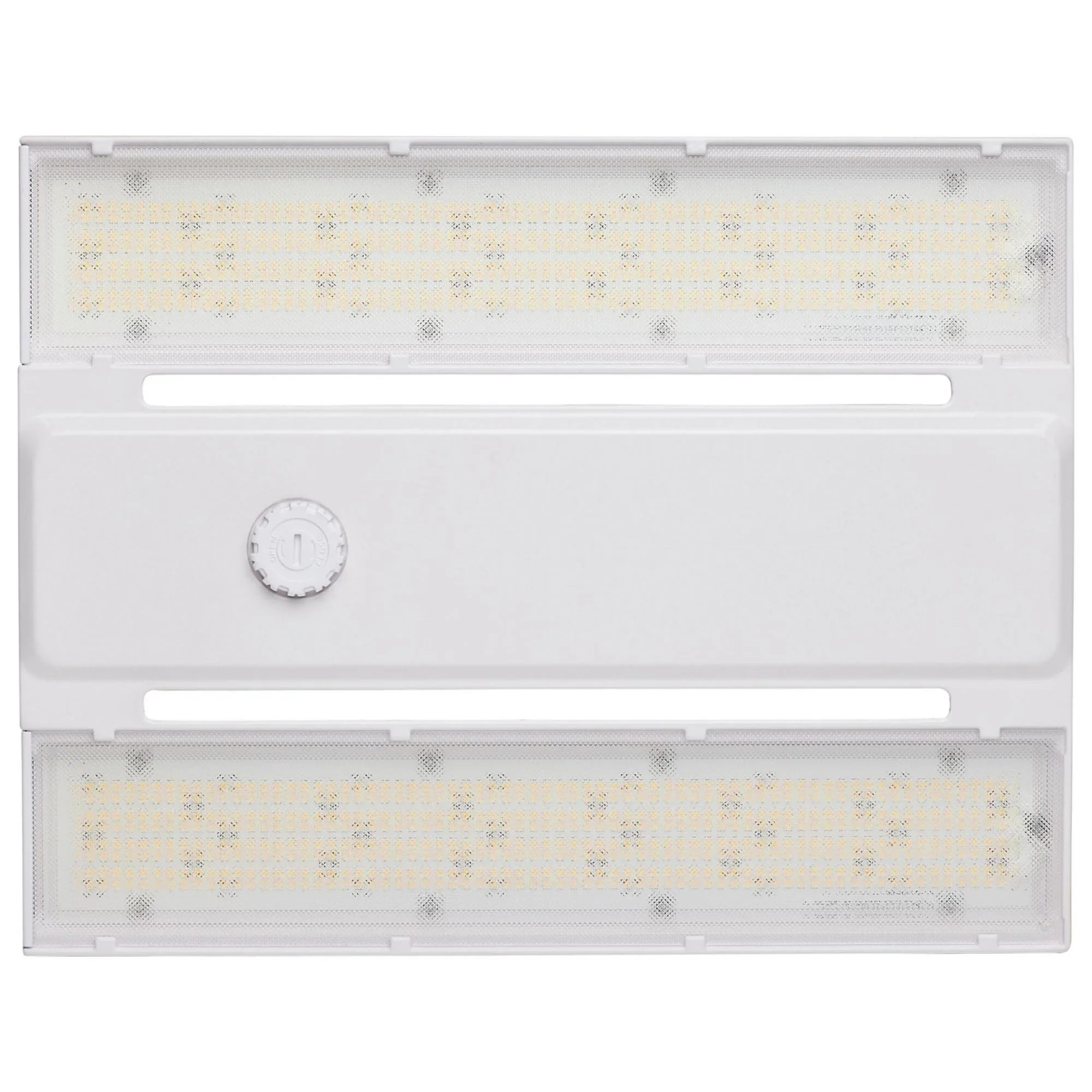

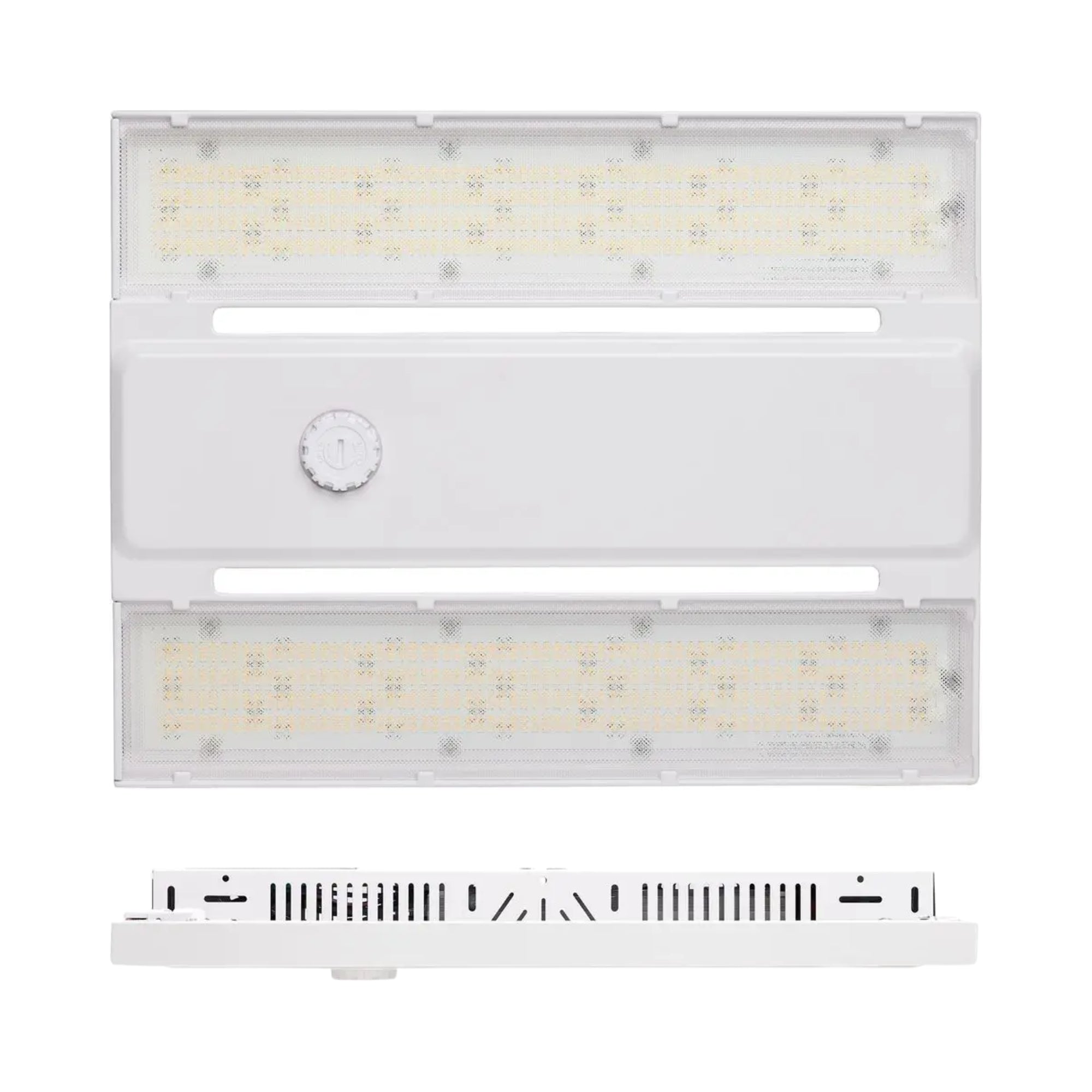

Satco|Nuvo 65-1011 LED Linear High Bay Light — Field Selectable 110/130/155W
The Satco|Nuvo 65-1011 is a field-selectable linear high bay engineered for commercial and industrial environments. It features selectable wattage (110W / 130W / 155W) and selectable CCT (3000K / 4000K / 5000K) on a universal 120-277V platform, offering flexible light output and color temperature options during installation.
Key Features:
- Selectable Wattage: 110W / 130W / 155W
- Selectable CCT: 3000K / 4000K / 5000K
- Universal Voltage: 120-277V input
- Dimming: 0-10V dimmable driver
- Light Output: Up to 21,714 lumens
- Rated Life: 50,000 hours (L70)

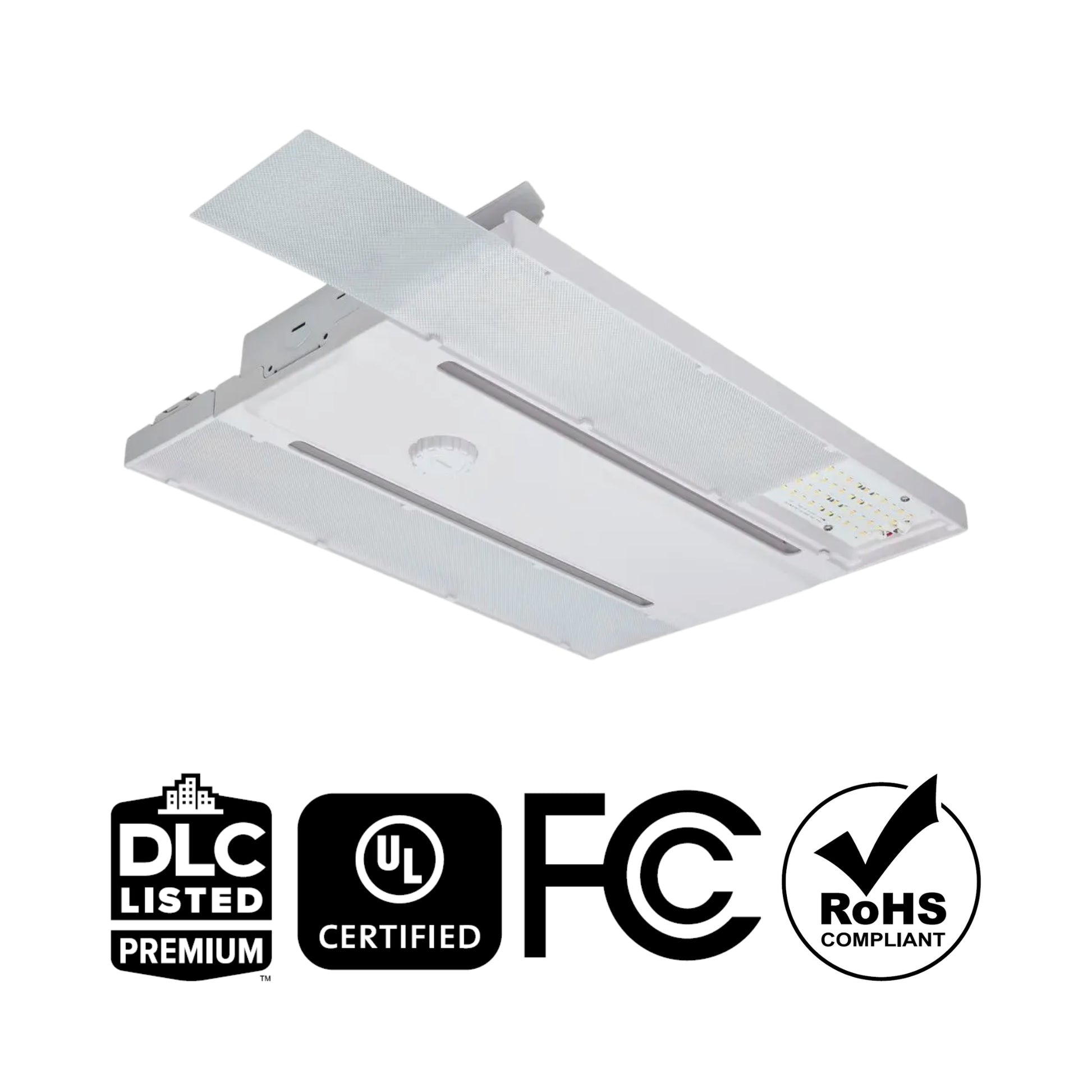

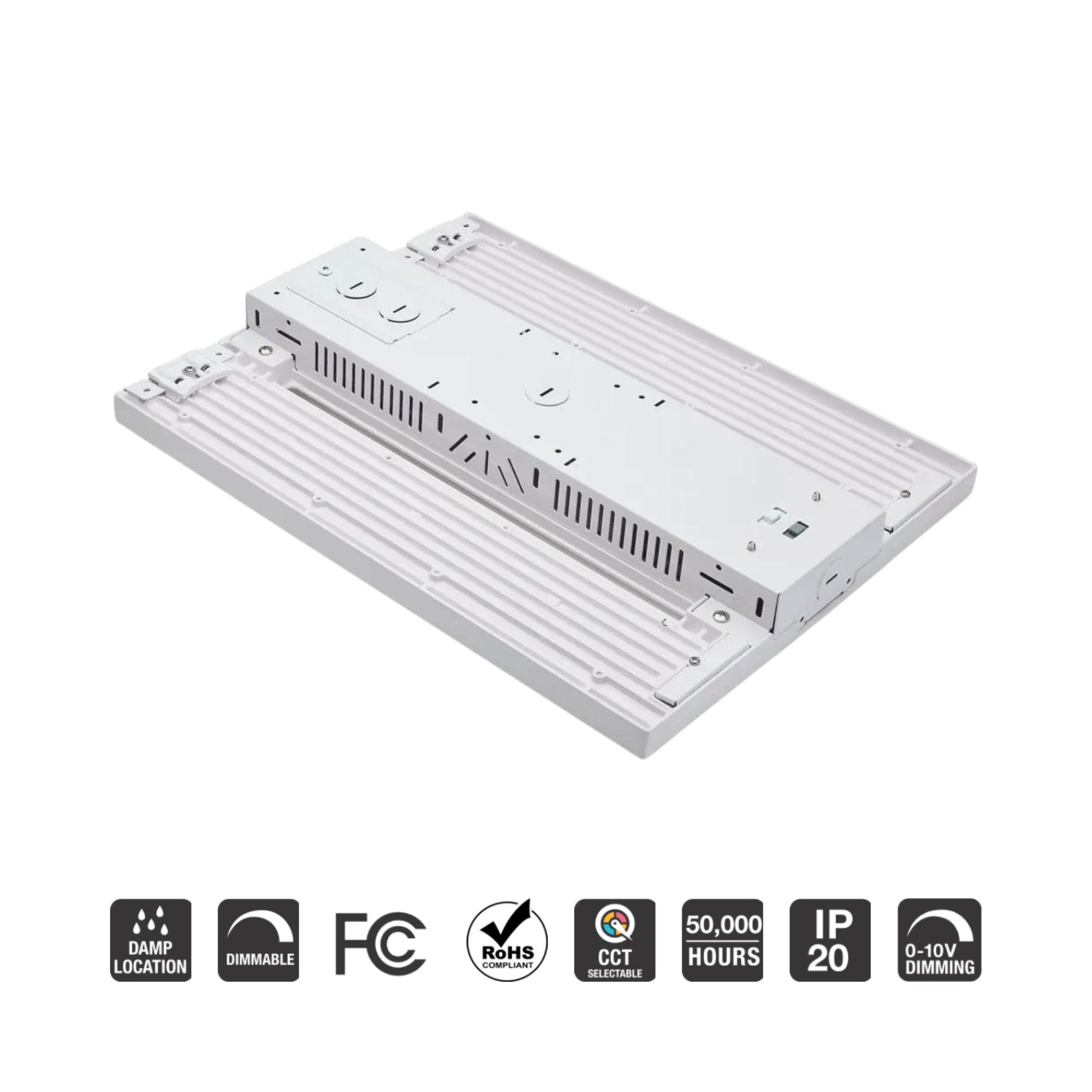

- Certifications: DLC Listed, cULus Certified, RoHS, FCC compliant
- Mounting: Includes 41-inch suspension kit
- Controls Compatibility: Integrated sensor port for optional sensors
- Surge Protection: 6kV integrated surge protection

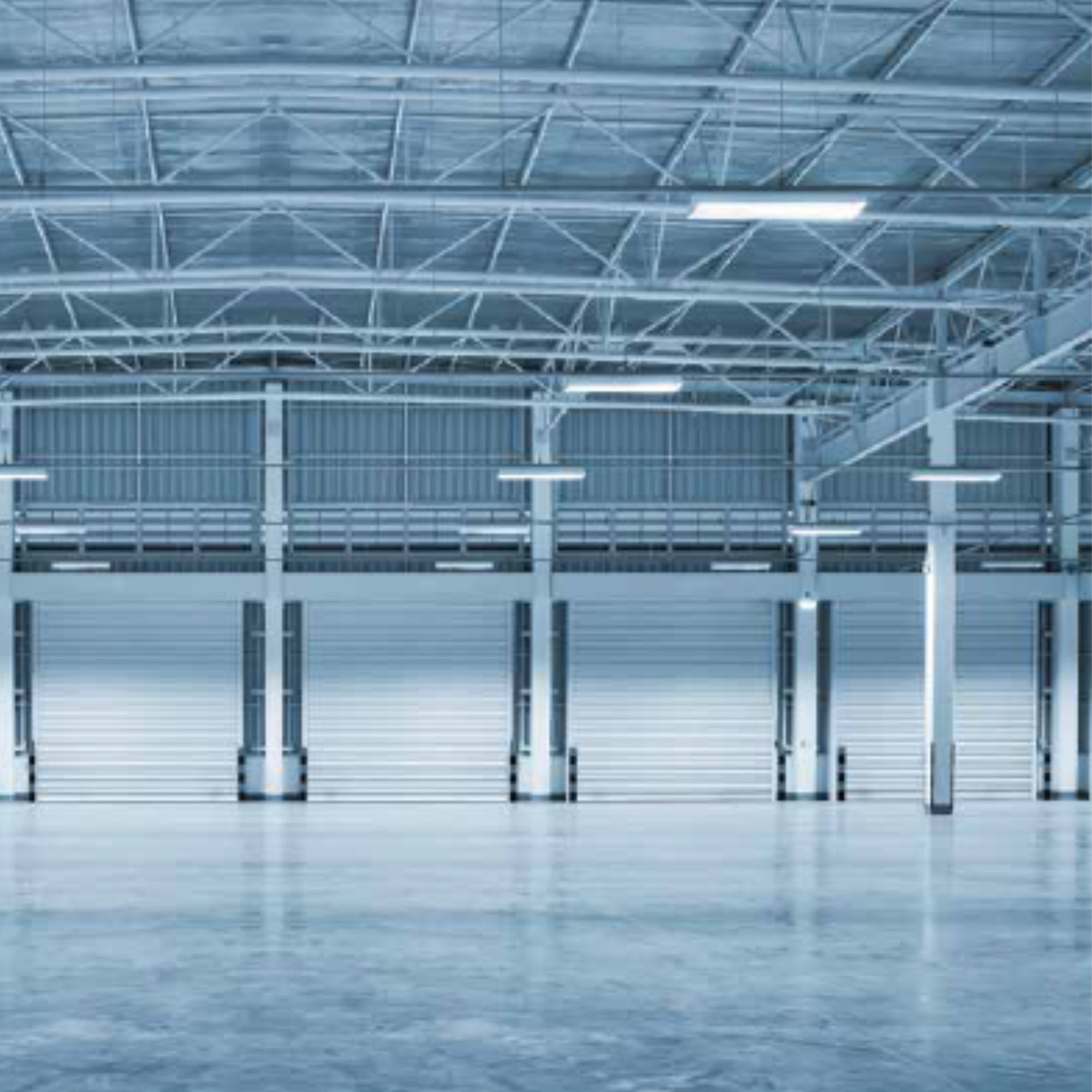

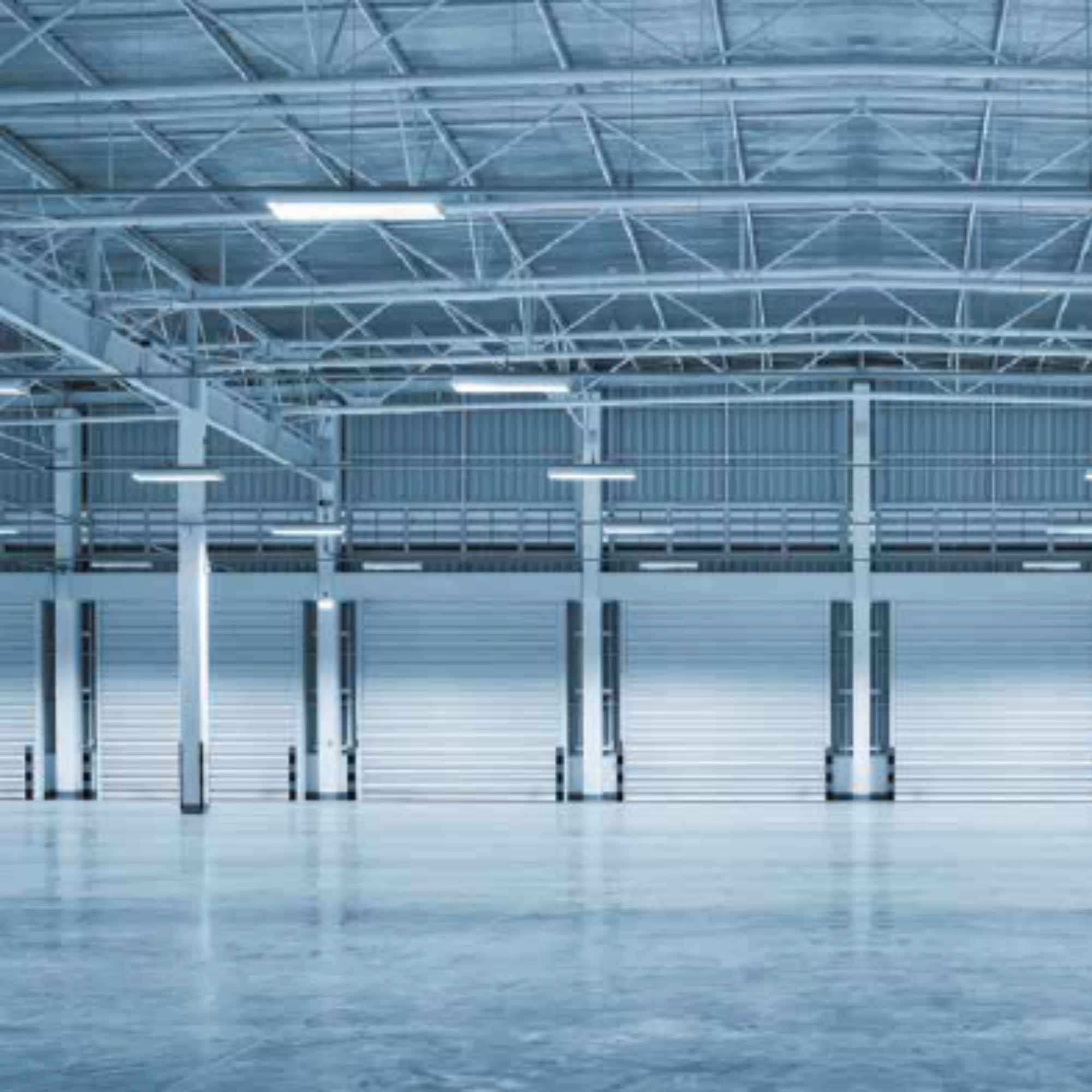

Typical Applications:
- Warehouses
- Distribution centers
- Manufacturing facilities
- Commercial garages
- Industrial work areas
Performance & Light Output:
Delivers up to 21,714 lumens depending on selected wattage. CRI is 80+ for accurate color rendering. The standard 90° x 90° optical distribution provides a broad yet controlled beam suitable for general commercial lighting layouts.
Electrical & Controls:

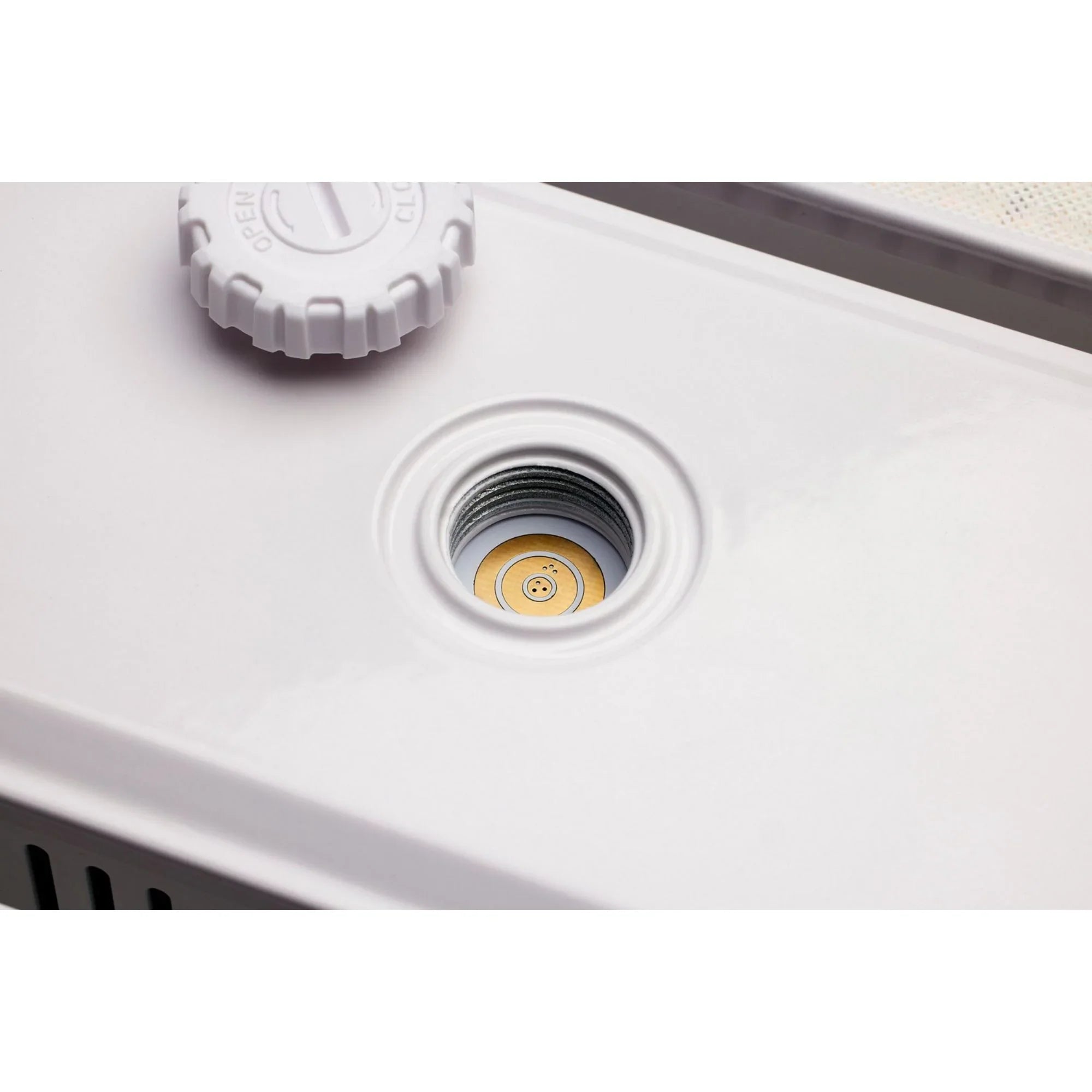

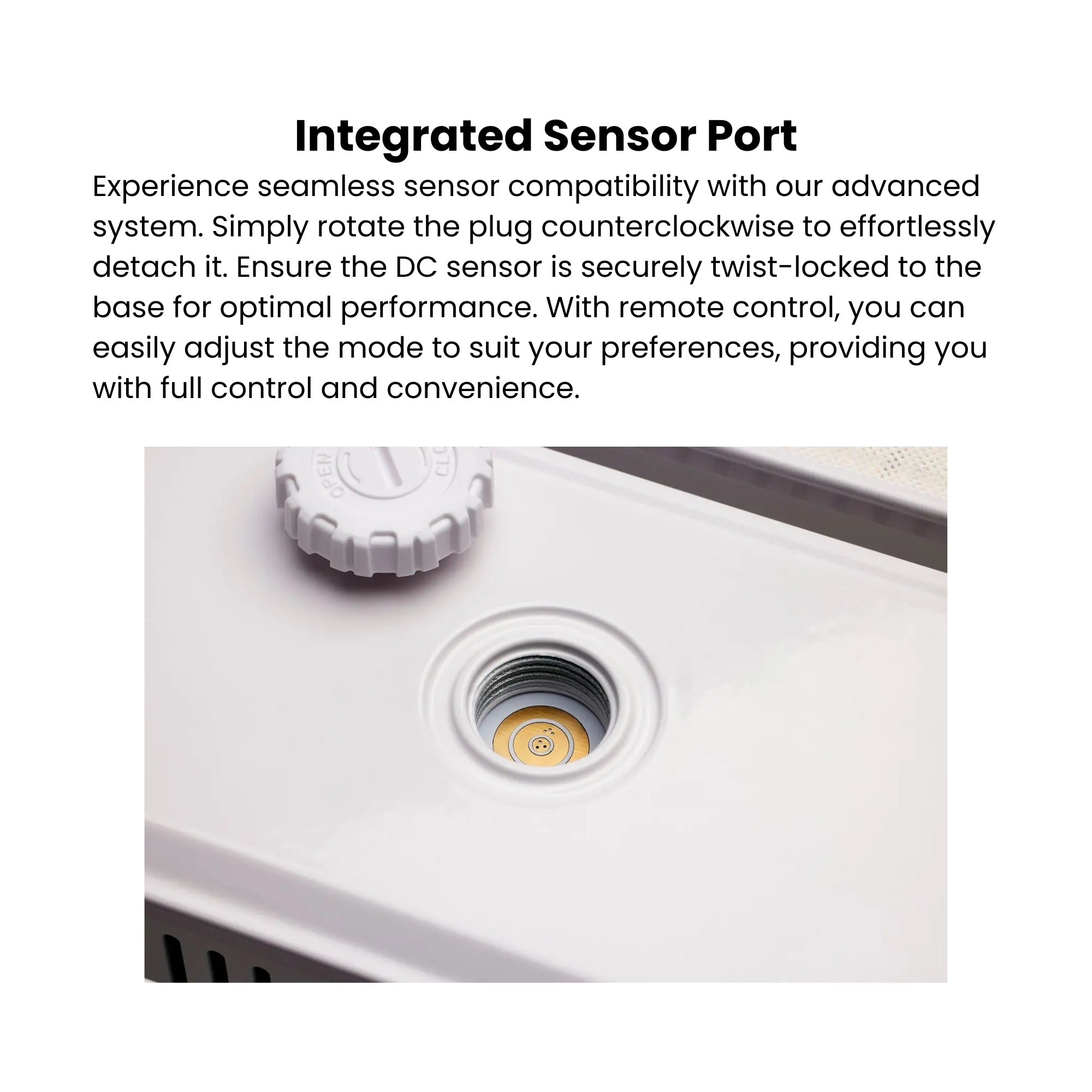

Operates on universal 120-277V AC with 0-10V dimmable driver. Integrated 6kV surge protection enhances electrical reliability. The fixtures include an integrated sensor port for field-installed motion or daylight sensors for energy savings.

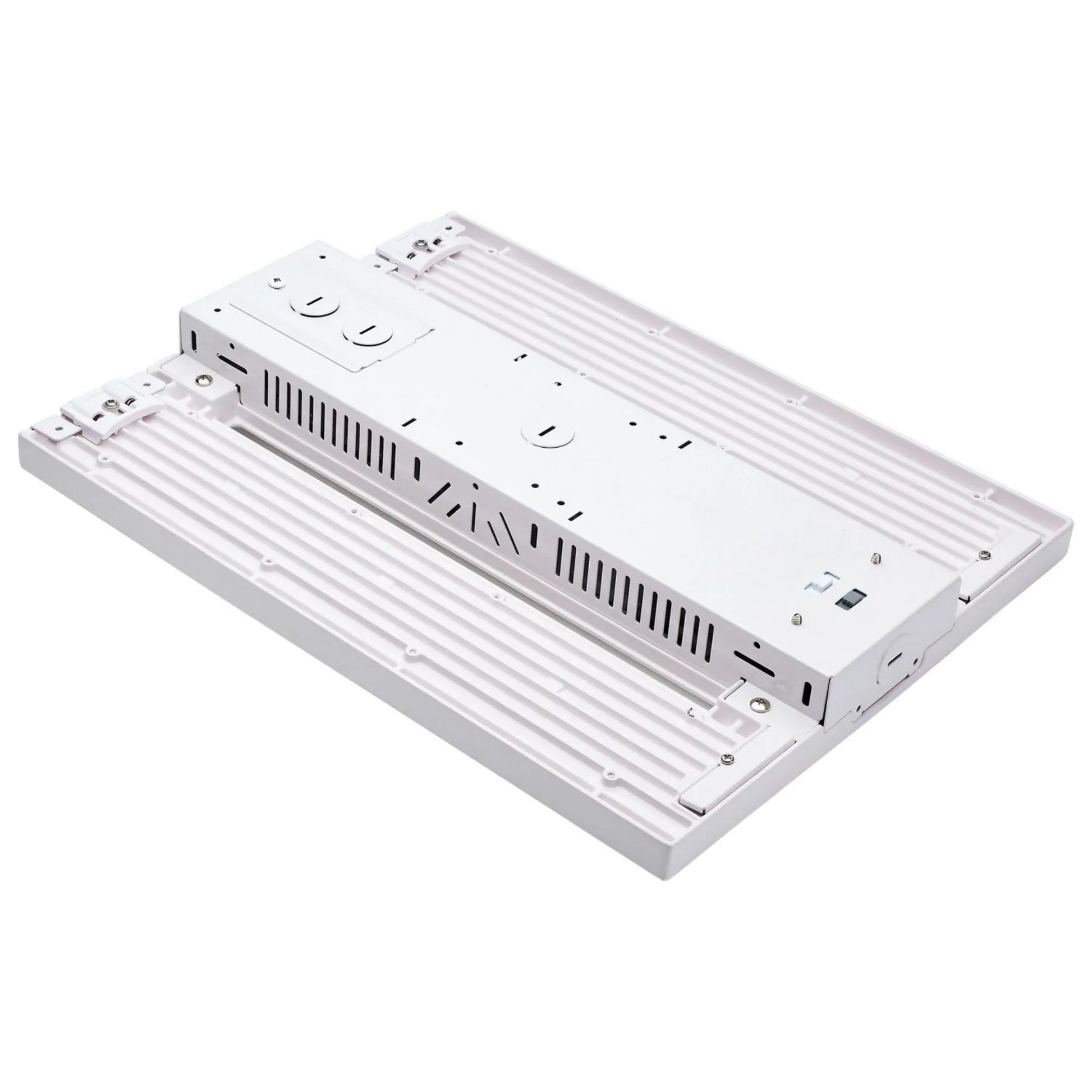

Construction & Durability:

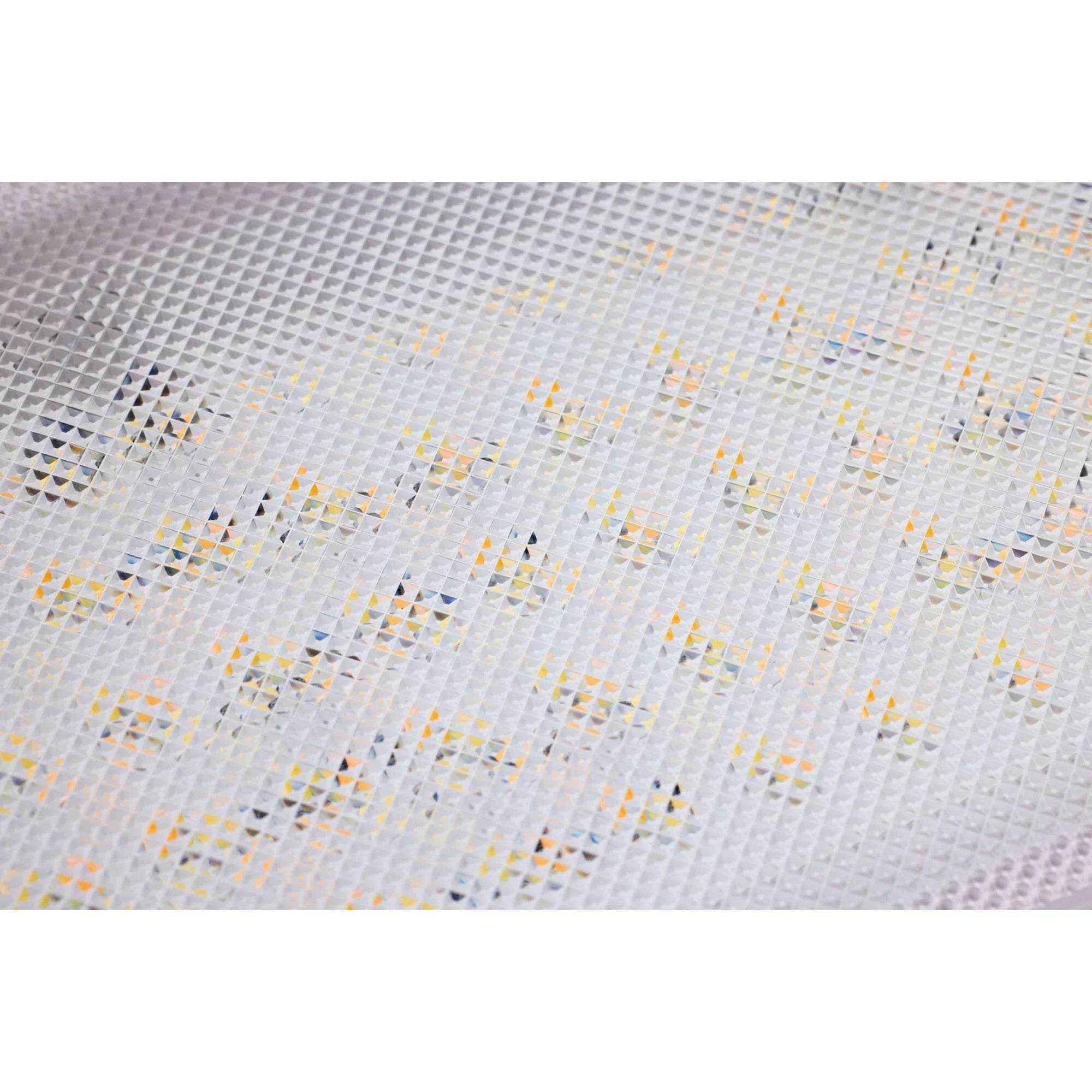

Die-cast aluminum housing and polycarbonate lens provide strength and glare control. Rated IP20 for indoor and damp locations. Operating temperature range is -40°F to +131°F.
Installation & Mounting:
Includes a 41-inch suspension kit for secure overhead installation. Compatible with surface and pendant mounting configurations. Optional accessories are available for enhanced installation flexibility.
Accessories:

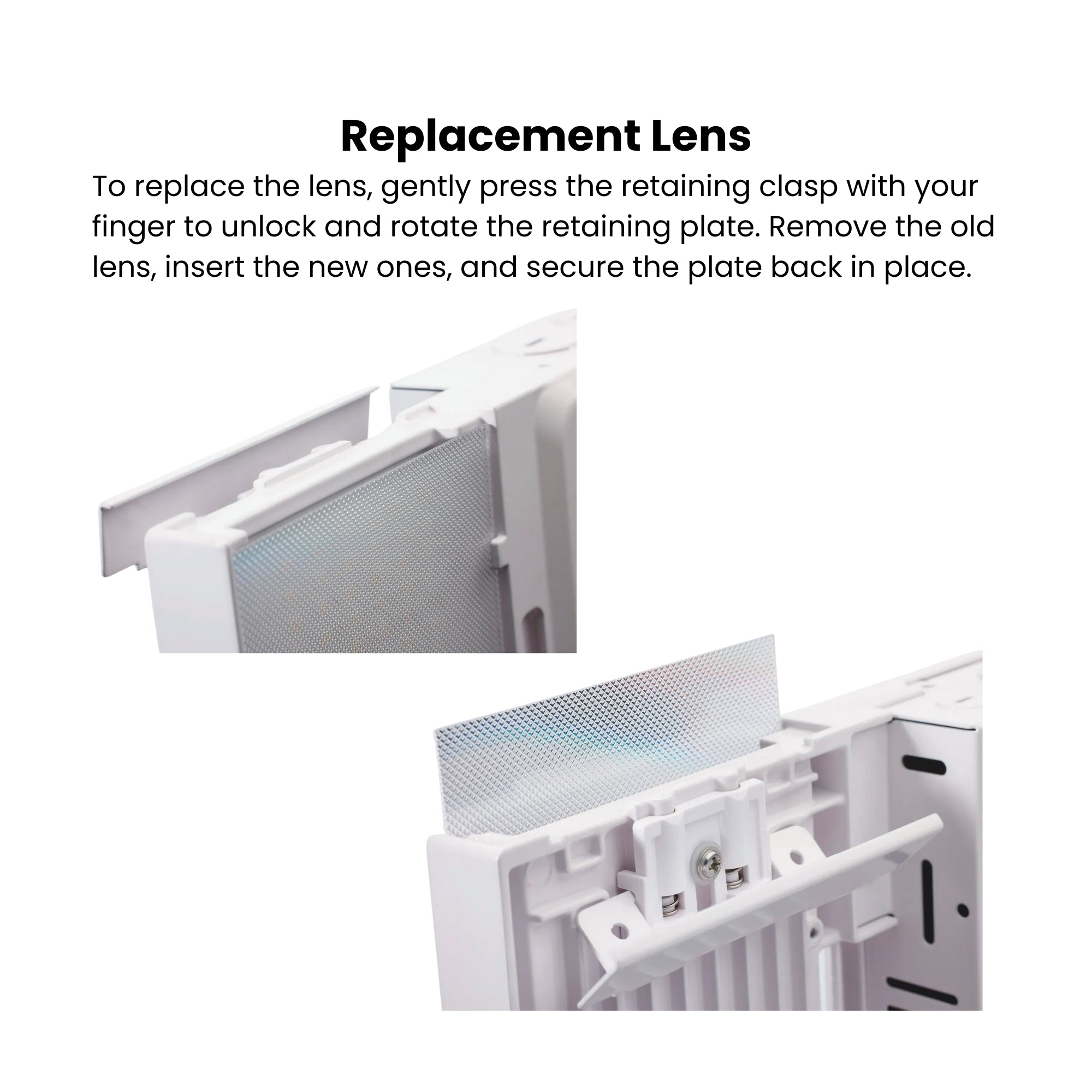

Optional accessories include alternate optics, wire guards, pendant and surface mount kits, PIR or microwave sensors, and mounting hardware.
Specifications
Specifications

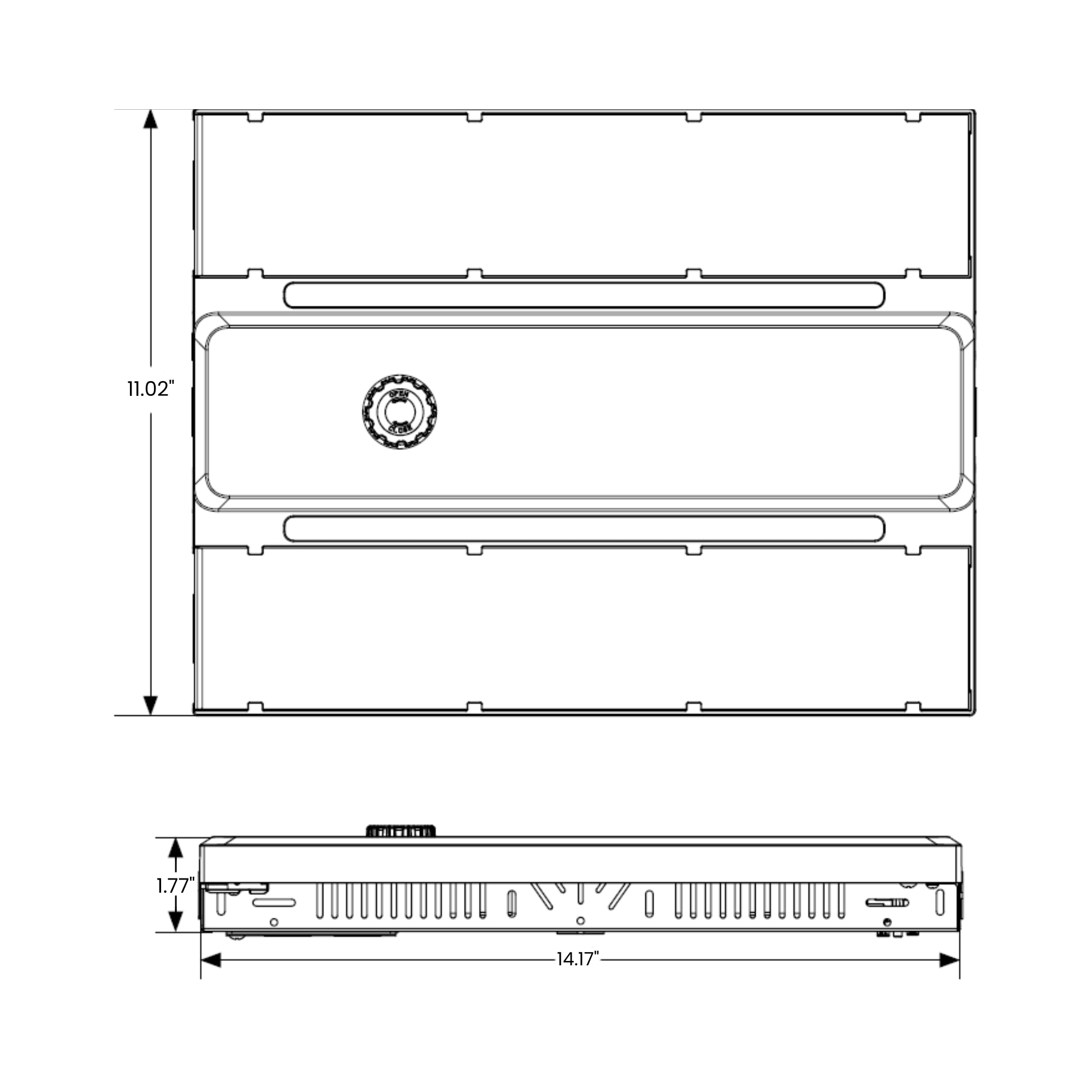

Dimensions
