TORK Outdoor Timer Switch — 1109A-O & 20-75 Minute Scheduling

The TORK 1109A-O is an outdoor timer switch designed for reliable automatic control of lighting, pumps, and other equipment. This timer switch, finished in a durable outdoor enclosure, operates on 120/208-277VAC and supports a 40A load. It features a DPST switch style, making it suitable for various applications.

Key Features

• Voltage Range: Operates on 120/208-277VAC, suitable for various applications.
• Amperage Rating: Supports up to 40A for general, resistive, and tungsten loads.
• Enclosure Type: Metal Indoor/Outdoor NEMA 3R, providing robust protection.
• Manual Override: Allows temporary bypass until the next scheduled operation.
• Scheduling Capability: Minimum ON setting of 20 minutes and OFF setting of 75 minutes, with up to 12 pairs of trippers.
• Timing Accuracy: Based on line frequency for precise operation.
• Operating Temperature: Functions effectively between -40°F and 149°F.
• Power Consumption: Consumes a maximum of 3 watts.
• Terminal Range: Compatible with #8 - #14AWG wire sizes.
• Standards Compliance: UL/CSA 60730 listed for safety and reliability.

Construction & Interface

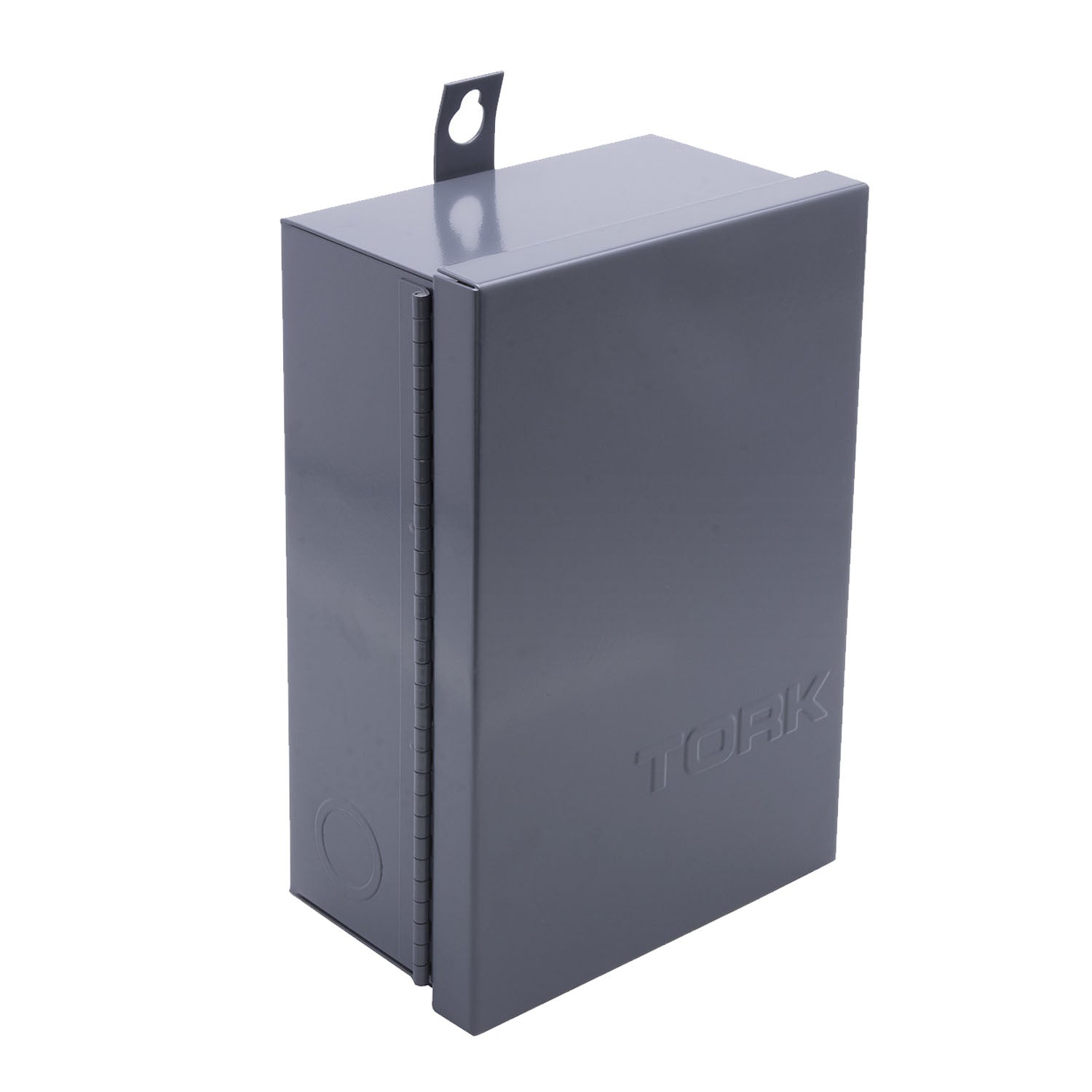

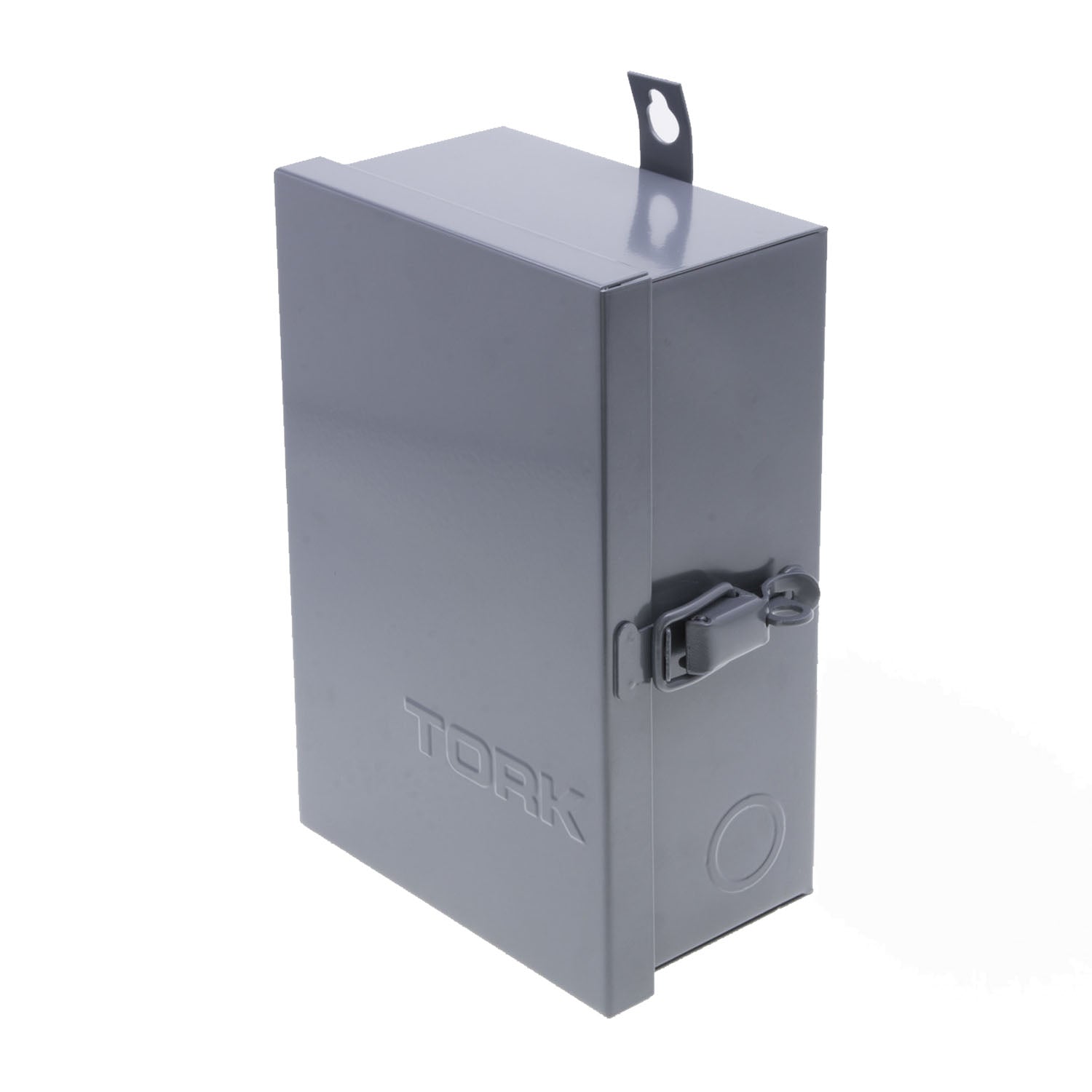

The TORK 1109A-O features a robust metal enclosure suitable for both indoor and outdoor environments, rated NEMA 3R. It includes a lockable hasp for security. The wallplate is sold separately.

Sensor, Smart & Timer Capabilities

This timer switch offers precise scheduling with a minimum ON time of 20 minutes and a minimum OFF time of 75 minutes. It accommodates up to 12 pairs of trippers, allowing for flexible scheduling options.

Wiring & Installation

The TORK 1109A-O requires connection to a 120/208-277VAC power supply. It supports DPST configurations and is compatible with wire sizes ranging from #8 to #14AWG. Ensure proper installation by following the wiring diagram provided.
