Nora Lighting Bravo FROST Under Cabinet Light — White & Selectable CCT

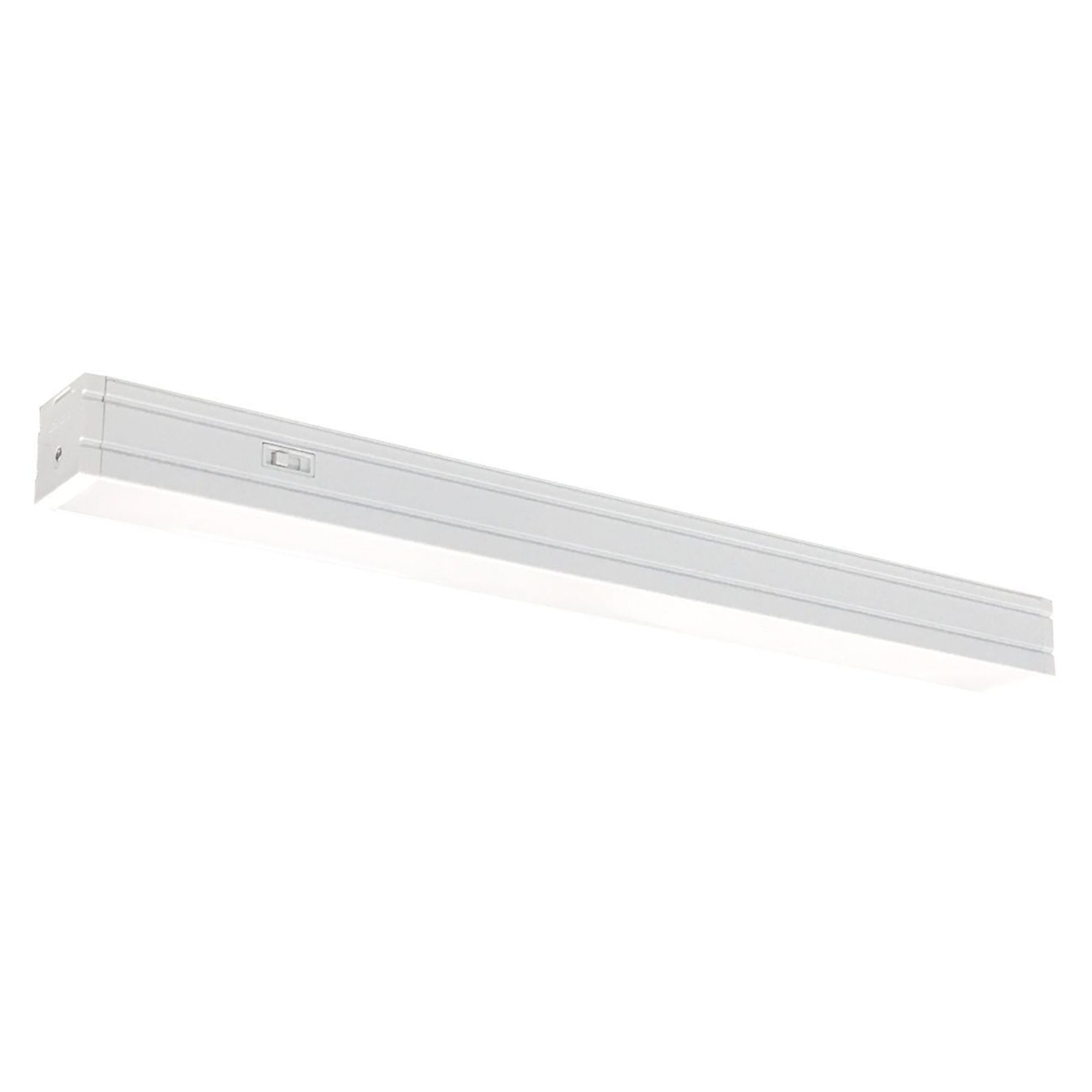

The Nora Lighting NUDTW-9812/W is a white under cabinet light fixture constructed from architectural extruded aluminum. This 12 in. fixture features a frosted lens and provides 850 lumens using a 10W integrated LED. It operates on 120V and offers selectable color temperatures of 3000K, 3500K, and 4000K.

Key Features

• Selectable CCT: Switch between 3000K, 3500K, and 4000K for tailored lighting.
• Lumens & Wattage: Provides 850 lumens at 10 watts per foot.
• CRI: High color rendering index of 90+ for accurate color representation.
• Dimensions: Measures 12 in. in length, 1.13 in. in width, and 0.94 in. in height.
• Dimming: Compatible with Triac and ELV dimmers, down to 15% with Triac.
• Linkability: Linkable up to 270 watts, approximately 27 feet.
• Construction: Durable extruded aluminum with a frosted lens for even light distribution.

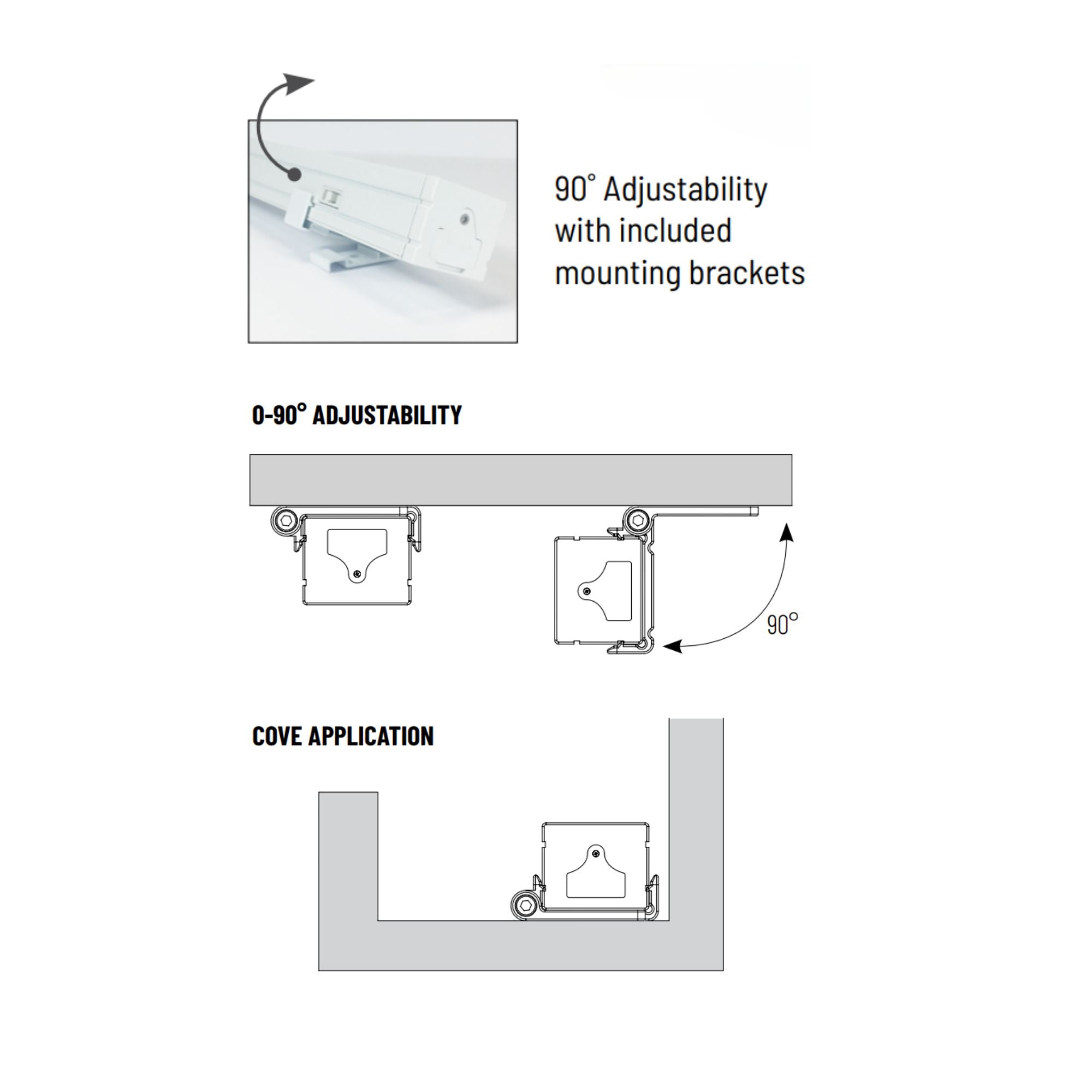

• Mounting: Includes 0° to 90° adjustable mounting brackets.
• Voltage: Operates on 120V with a self-contained dimmable electronic driver.

Core Design & Profile

This fixture features a slim profile with a frosted lens to eliminate LED diode imaging. It is dry rated and comes in a white finish, suitable for various interior designs.

LED Illumination & Performance

With 850 lumens and a 10W LED, this fixture offers a 90+ CRI for excellent color accuracy. The selectable CCT allows for flexible lighting options.

Power, Wiring & Linkability

This fixture is direct wire with a 120V input. It includes adjustable mounting brackets and is linkable up to 270 watts. Optional accessories include hardwire junction boxes and jumper cables for extended runs.

Where This Fixture Works Best

• Kitchen under cabinet lighting
• Office task lighting
• Retail display shelves
• Workshop task areas
• Residential workspaces

What's Included

• (2) Adjustable mounting clips (0° - 90°)
• (1) End-to-End Connector
