Nora E-Series FLIN NEFLINTW-R4345MPW 4 in. Round LED Downlight — 10.5W / Up to 950 lm / Selectable 5CCT / 120VAC

The Nora E-Series FLIN NEFLINTW-R4345MPW is a 4 in. round canless LED downlight for new construction or remodels. Set the desired white tone at the junction-box switch, then secure the recessed fixture in the ceiling with its spring clips for a clean, low-profile installation.

Key Features

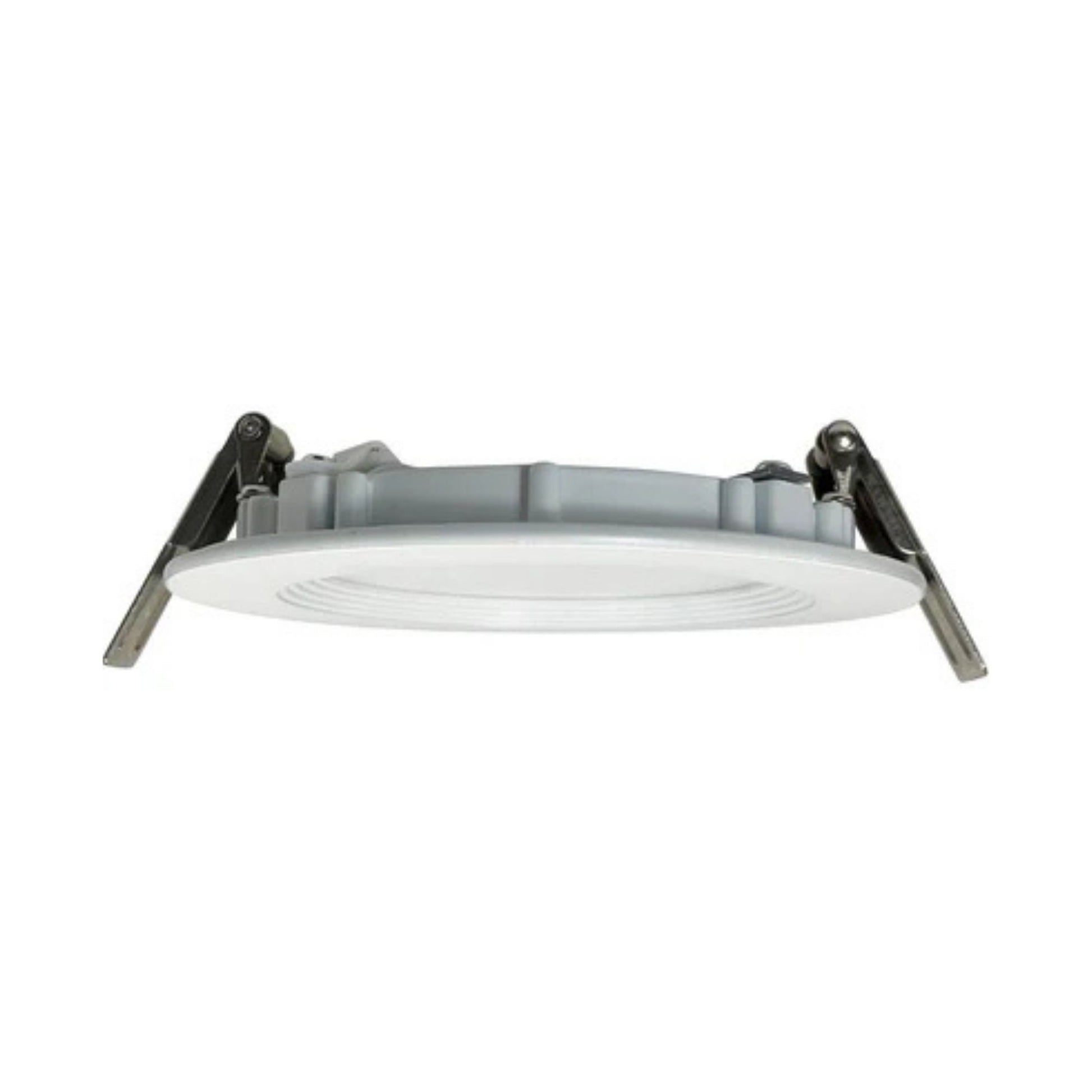

• Canless installation: No recessed housing required; two tension spring clips fit ceiling thicknesses from 3/8 in. to 5/8 in.

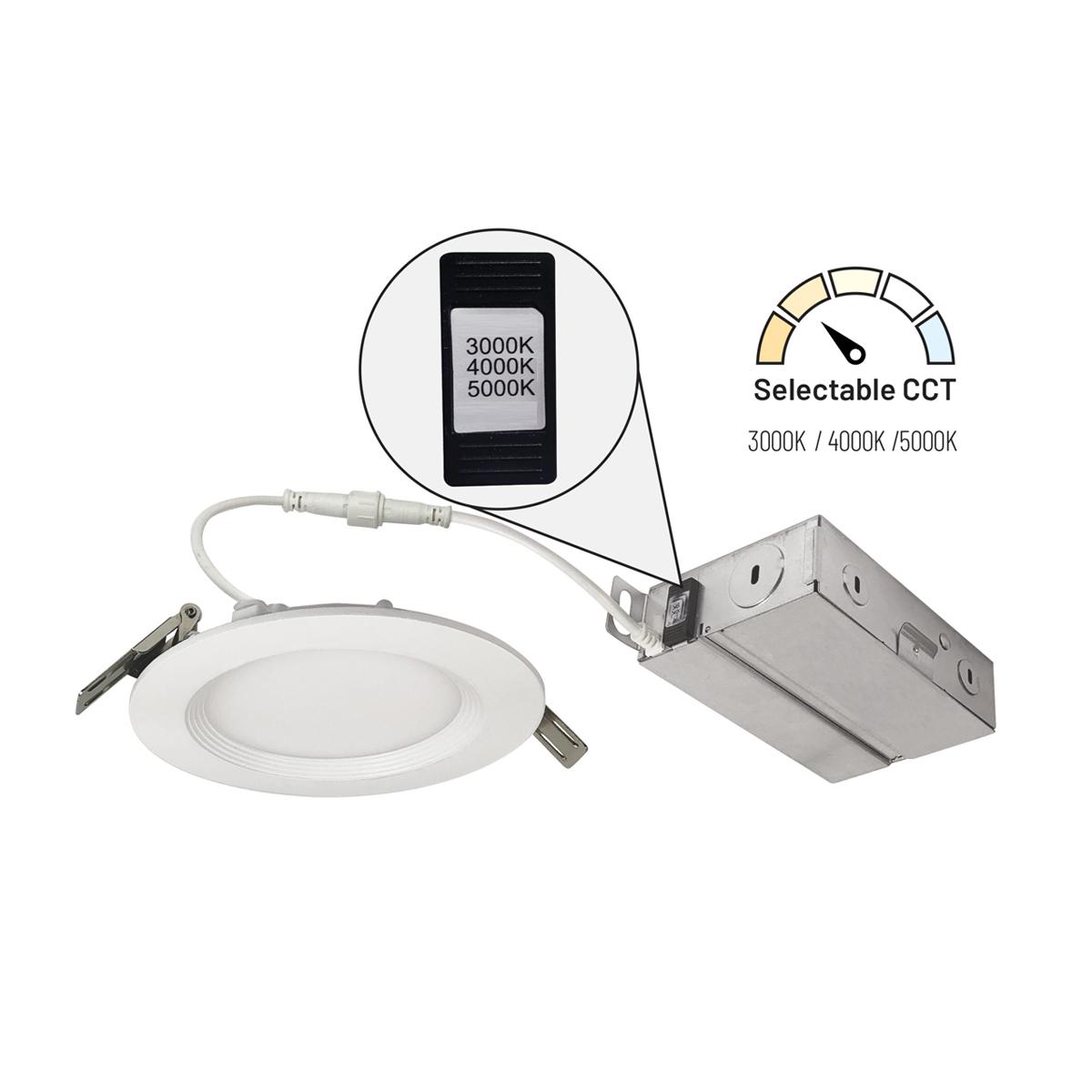

• Selectable CCT: Choose 2700K, 3000K, 3500K, 4000K, or 5000K at the junction box; factory preset is 3000K.
• 10.5W LED source: Up to 950 lumens, a 115° wide-flood beam, and 90+ CRI.
• Regressed optical design: A recessed lens and sharp baffle help control aperture brightness; the special polymer lens is designed to deliver usable light output.
• Dimming: Triac or ELV dimming down to 10% with compatible dimmers.
• Input power: 120VAC for this model.
• Prewired junction box: Includes a Class 2 driver, quick-connect fixture lead, two 1/2 in. and two 3/8 in. trade-size knockouts, and a snap-on cover.
• Branch-circuit capacity: Accepts up to four No. 12 AWG conductors rated for 90°C; fixture wire is 5 in. and junction-box wire is 9 in.
• Air-Tight and wet-location construction: Factory-installed gasket restricts airflow to less than 2 CFM under ASTM E283 requirements; cETLus listed for wet locations.
• Insulation contact: IC rated for direct contact with ceiling insulation; no minimum clearance is required.

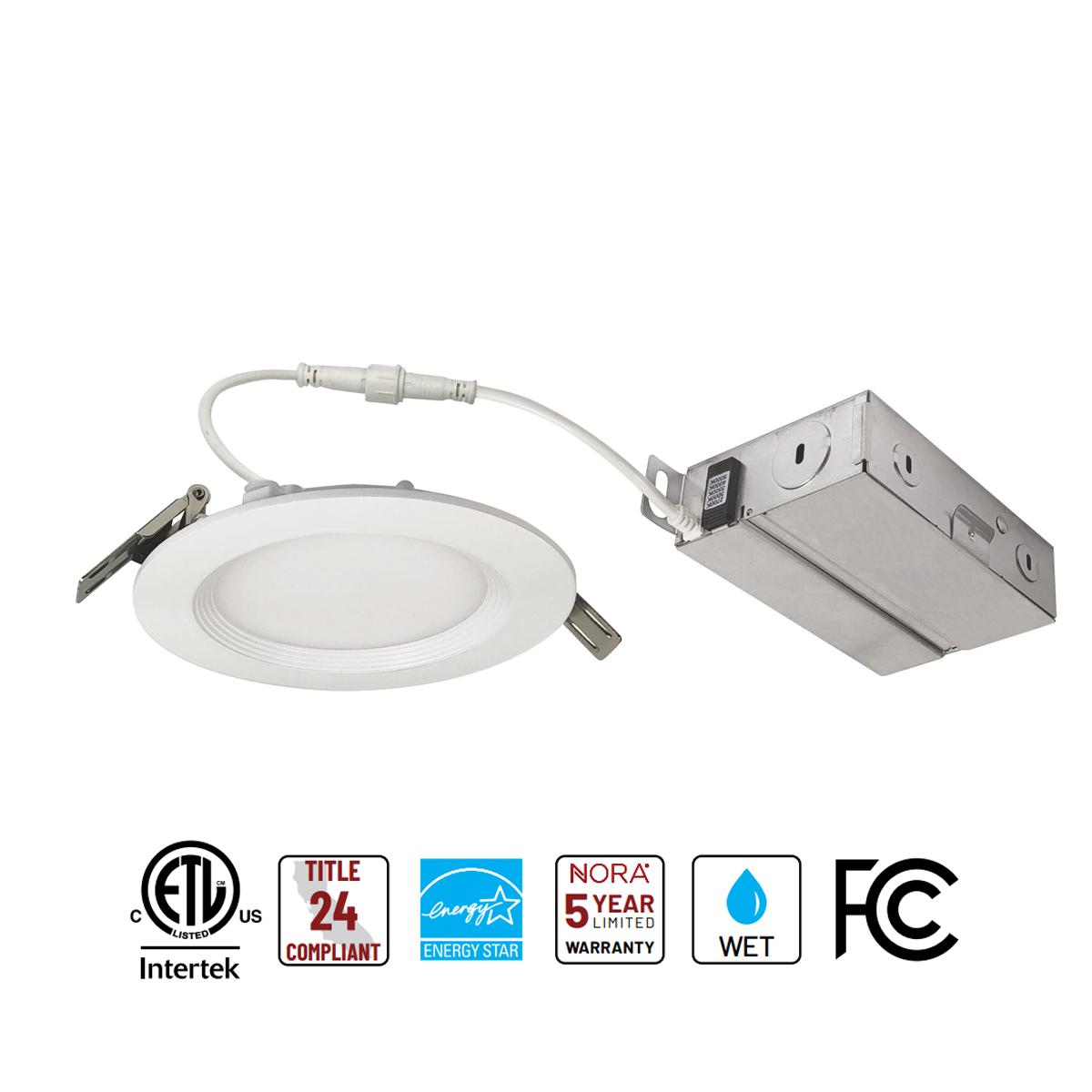

• Listings and warranty: ENERGY STAR certified, California Title 24 JA8-2019 compliant, FCC compliant, and backed by a 5-year limited warranty.
• Rated life and operating range: 50,000 hours at L70; 0°C to 35°C ambient temperature.

Construction & Design

The die-cast aluminum luminaire has a round matte powder white finish, recessed lens, and sharp baffle. Its factory-installed gasket supports Air-Tight and wet-location listings without additional caulking, while the spring clips make housing-free ceiling installation straightforward.

Light Output & Performance

The 10.5W LED source delivers up to 950 lumens with a broad 115° wide-flood distribution and 90+ CRI. Select 2700K, 3000K, 3500K, 4000K, or 5000K at the junction box; the fixture is factory preset to 3000K. Rated life is 50,000 hours at L70.

Electrical & Installation

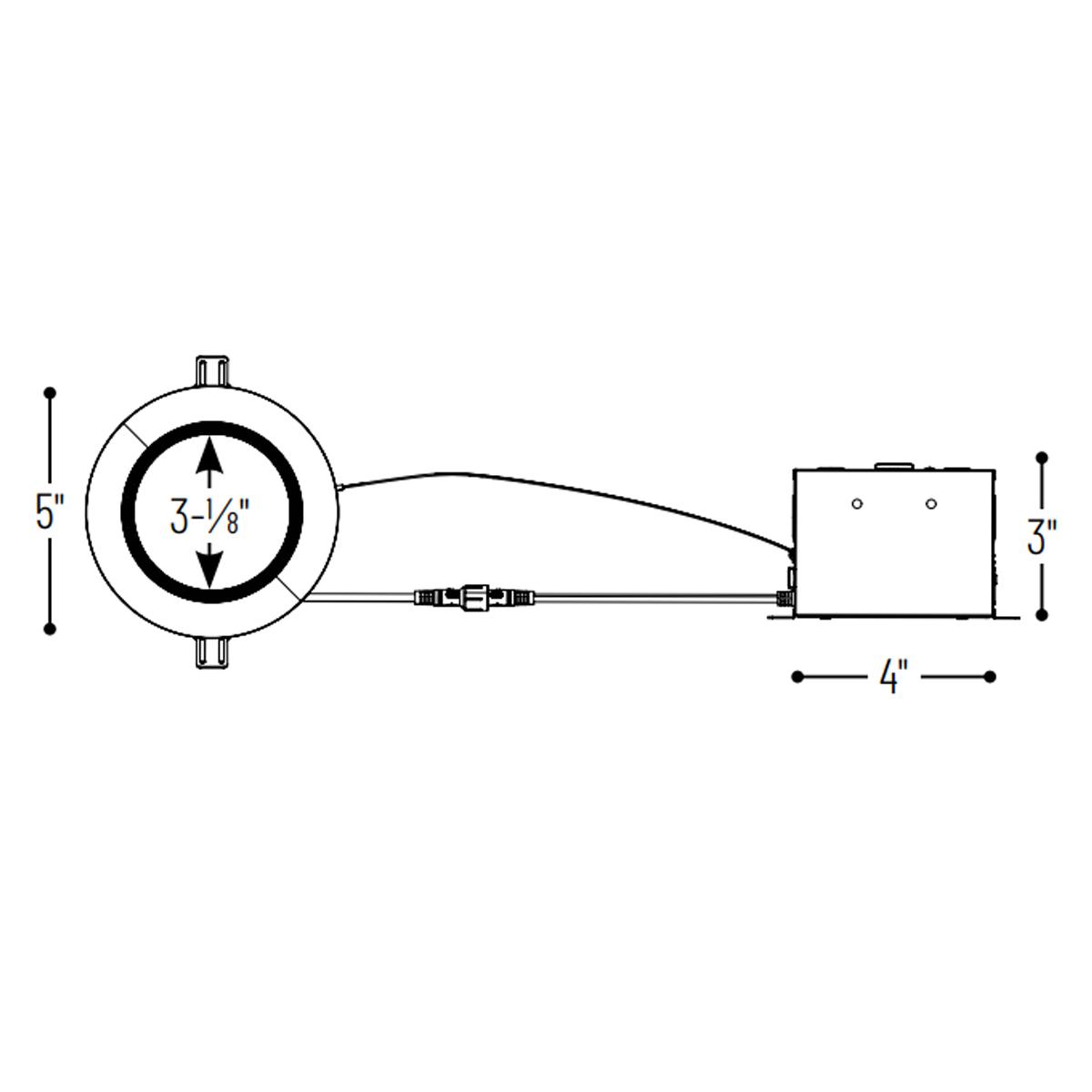

This model uses 120VAC and dims to 10% with compatible Triac or ELV dimmers. No recessed housing is needed. Make a 4 3/4 in. ceiling cutout; the two tension spring clips fit 3/8 in. to 5/8 in. ceilings. The prewired junction box includes a Class 2 driver, quick-connect lead, two 1/2 in. and two 3/8 in. trade-size knockouts, and a snap-on cover. It accepts up to four No. 12 AWG branch-circuit conductors rated for 90°C. Fixture and junction-box leads are 5 in. and 9 in., respectively. The IC rating permits direct insulation contact with no minimum clearance. New-construction framing is optional.

Compatible Accessories — Sold Separately

• NEFLINTW-40R-MPW: Round oversize ring, covers ceiling cutouts up to 5 1/4 in.
• NEFLINTW-EW-4: 4 in. quick-connect extension cable.
• NEFLINTW-EW-20: 20 in. quick-connect extension cable.
• NF-R246: Universal new-construction frame-in.

Typical Applications

Use in new construction or remodel ceilings, including insulated-ceiling and wet-location installations.

What’s Included

One Nora E-Series FLIN 4 in. round LED downlight in matte powder white, with spring clips, factory-installed gasket, selectable-CCT switch, and prewired junction box with Class 2 driver.
