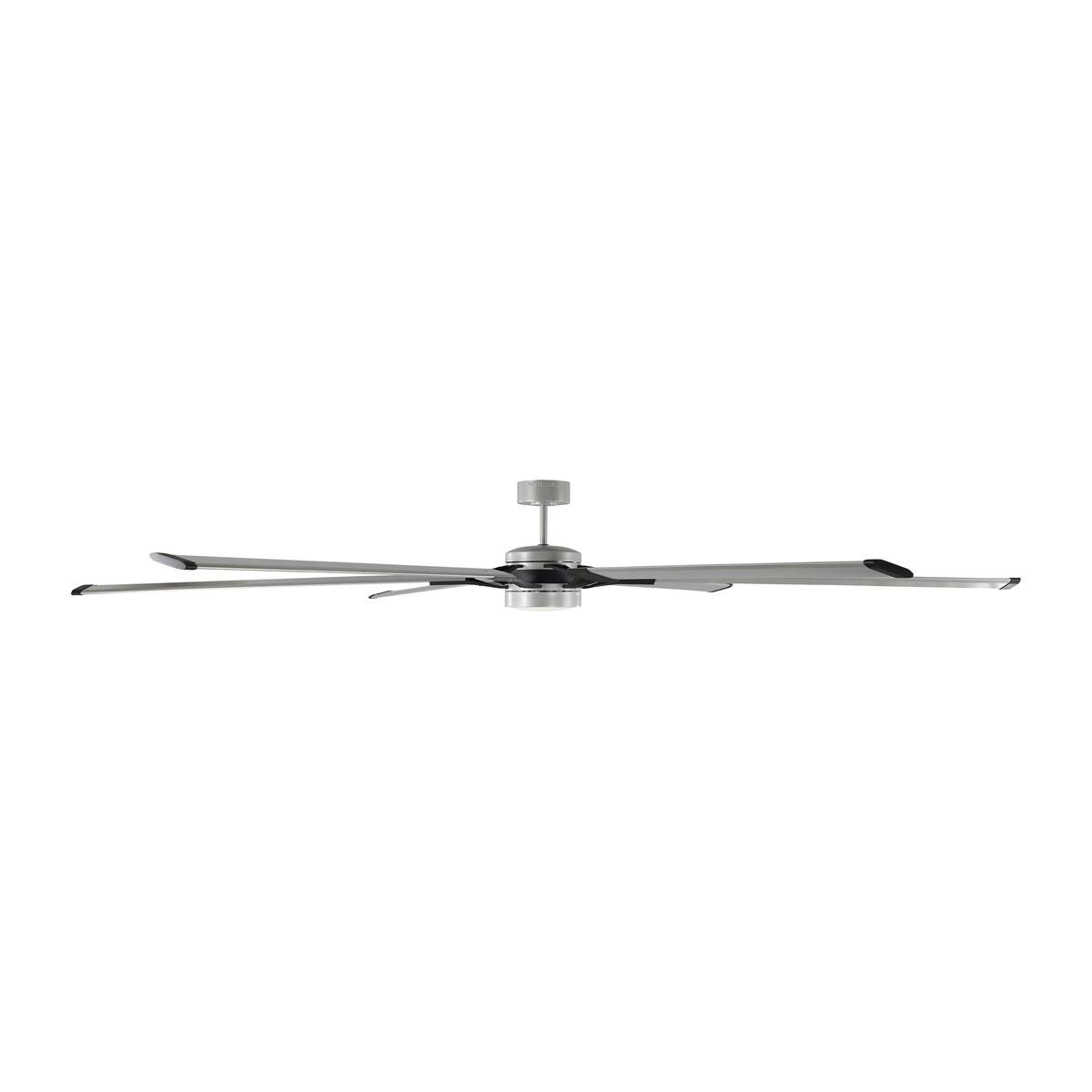

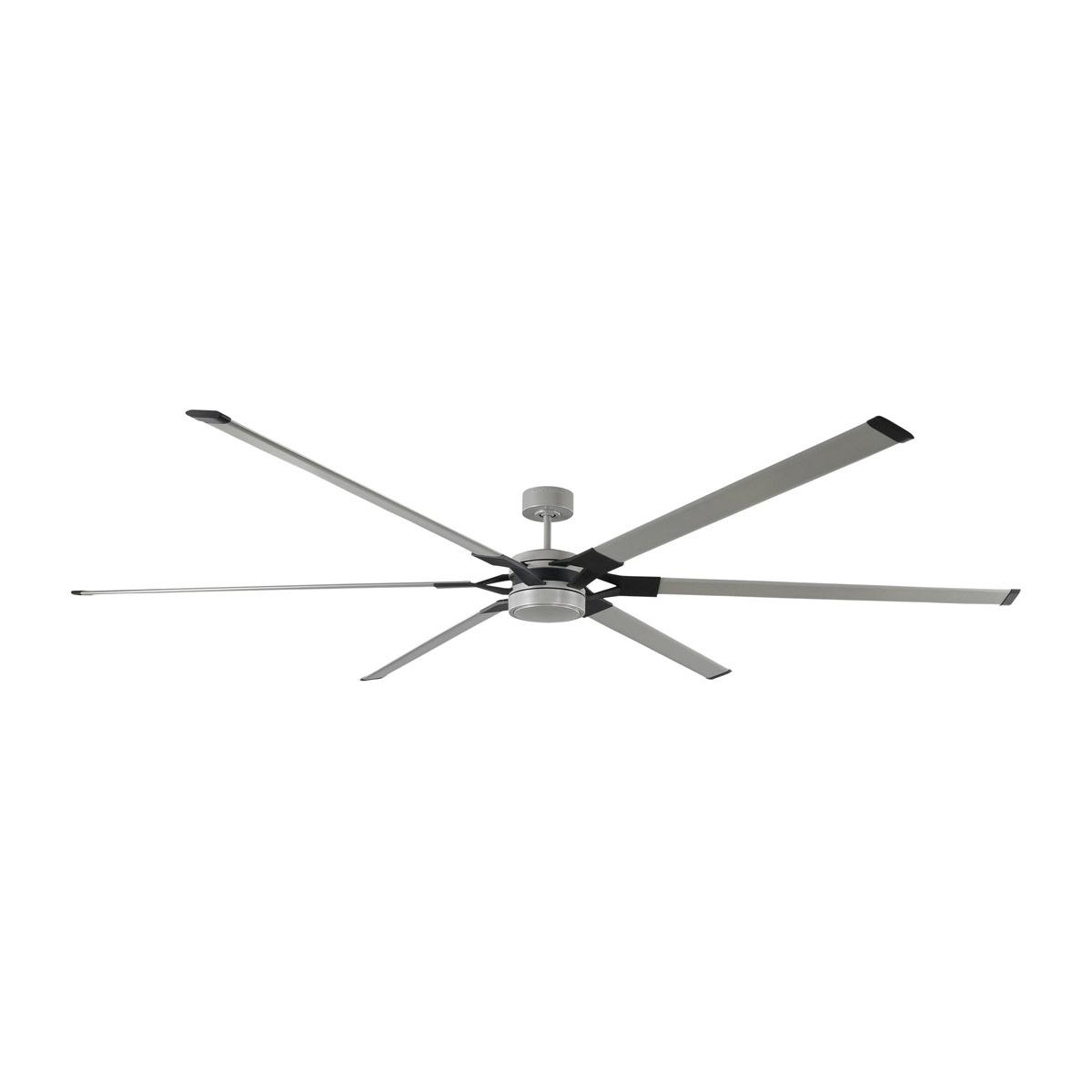

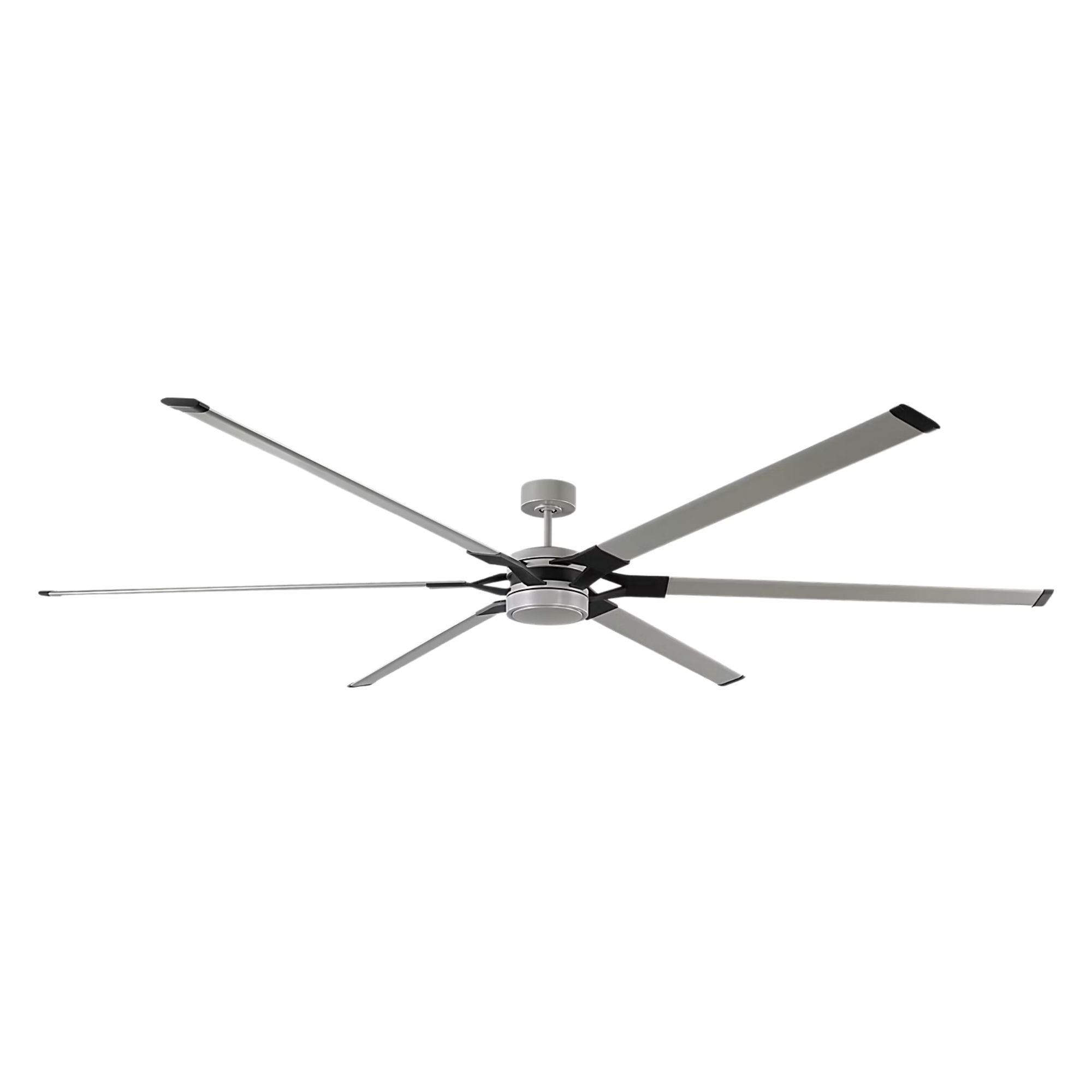

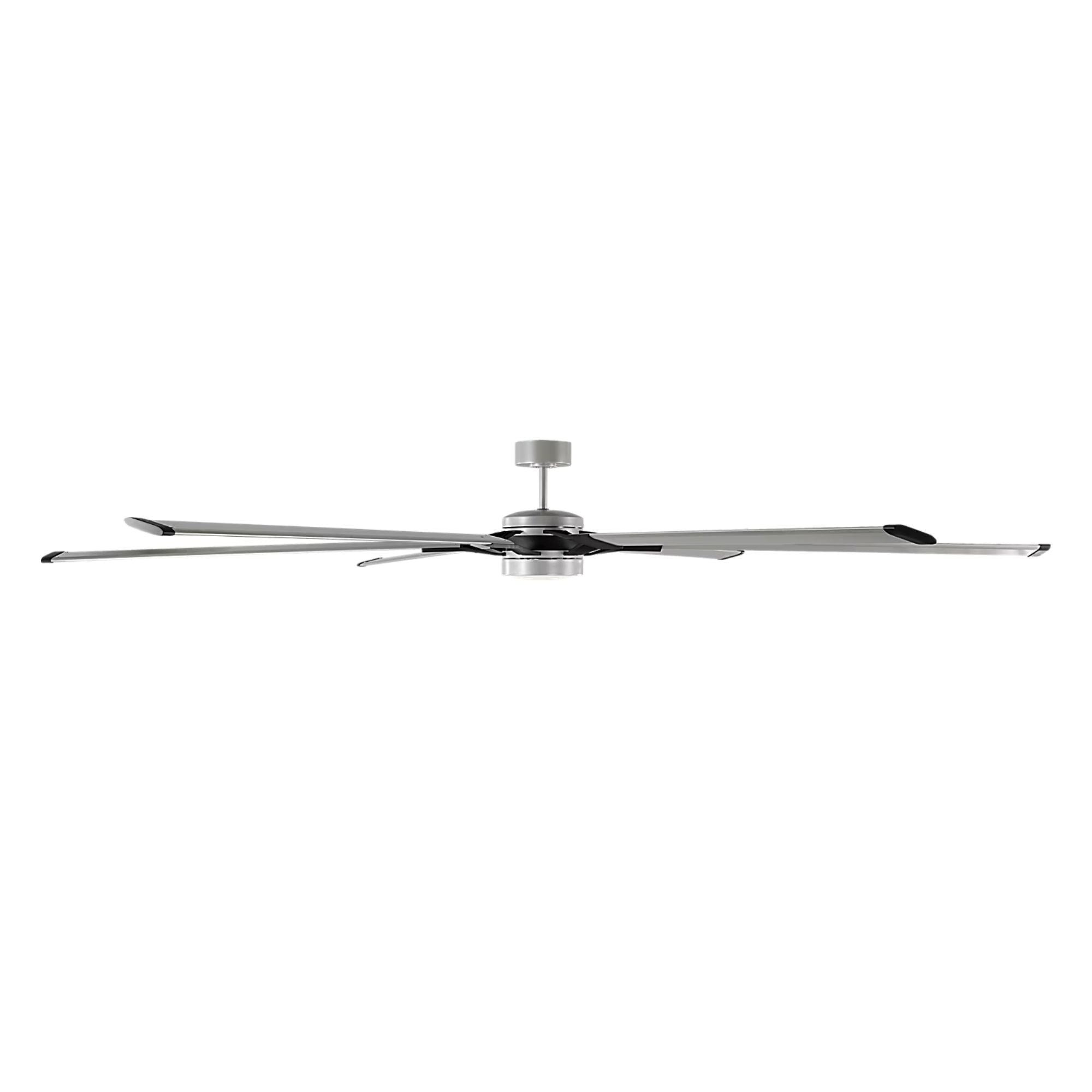

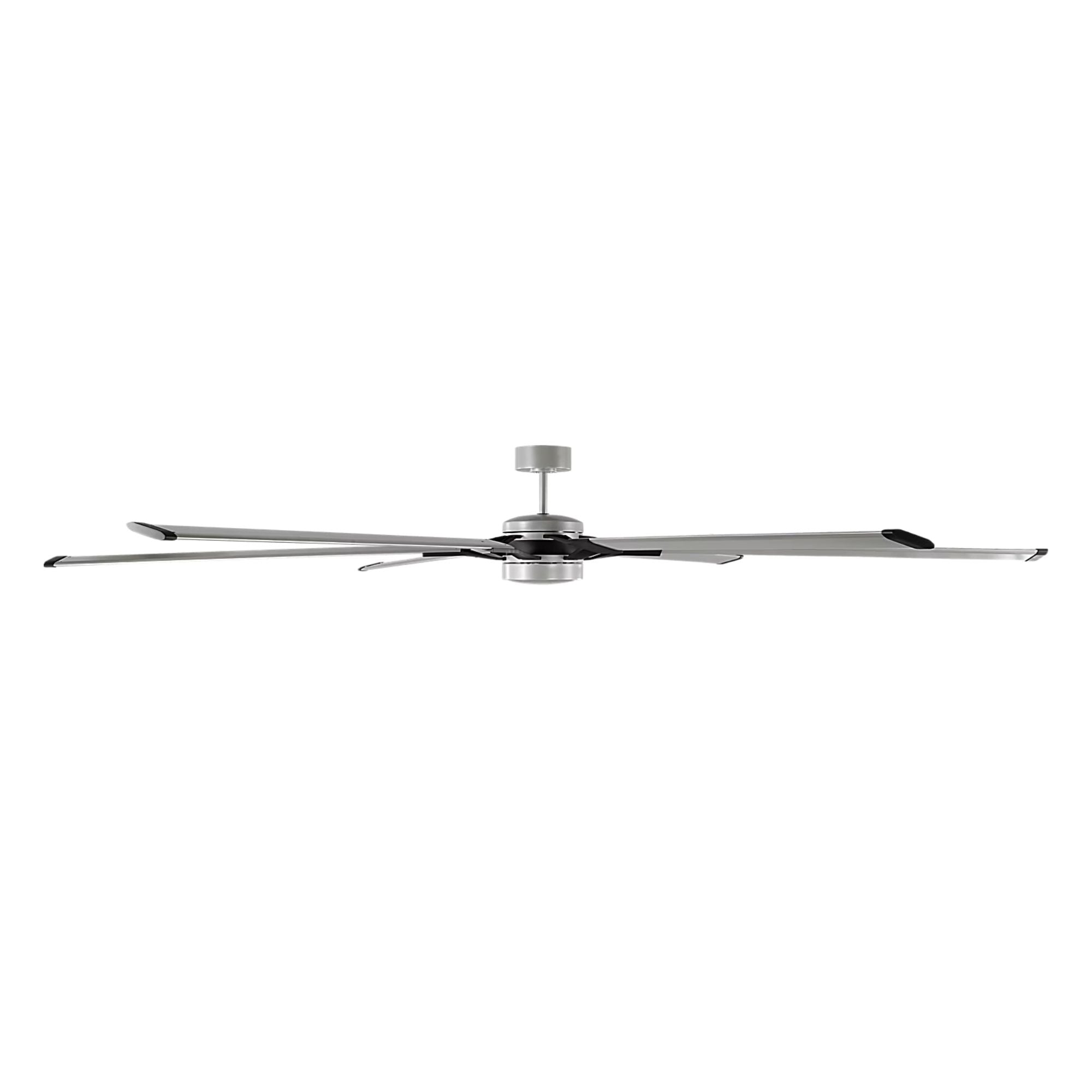

Visual Comfort Fan Loft 96 in Indoor Outdoor LED Ceiling Fan DC — Brushed Steel

Visual Comfort Fan Loft model 6LFR96PBSD is a 96 in six-blade fan powered by a DC motor, delivering 13,634 CFM at high speed and 413 CFM/W efficiency. Its integrated LED provides 1,080 net lumens at 3000K, and it is Damp Rated for indoor and covered outdoor spaces.

Key Features

• Blade Sweep: 96 in with 6 aluminum blades and 13° blade pitch
• Motor: 125 x 25 mm energy-efficient DC motor with 6 speeds and remote-controlled reverse
• Airflow: 13,634 CFM high at 33W, 5,729 CFM low at 3.23W; Energy Guide airflow 9,682 CFM
• Efficiency: 413 CFM/W at high speed and 500 CFM/W weighted Energy Guide average
• Location Rating: Damp Rated for indoor and covered outdoor locations
• Certification: ENERGY STAR Qualified
• Integrated LED: 20W array, 1,080 net lumens, 3000K, CRI 90+
• Controls: Included 6-speed handheld remote with reverse and dimming; optional ESSWC-9 wall control sold separately
• Mounting: Includes 12 in downrod; included hardware supports slopes up to 20°

Advanced Control Features

The included hand-held remote provides 6-speed operation, motor reverse, and dimming for the integrated LED. An optional ESSWC-9 wall control is sold separately.

Construction and Design

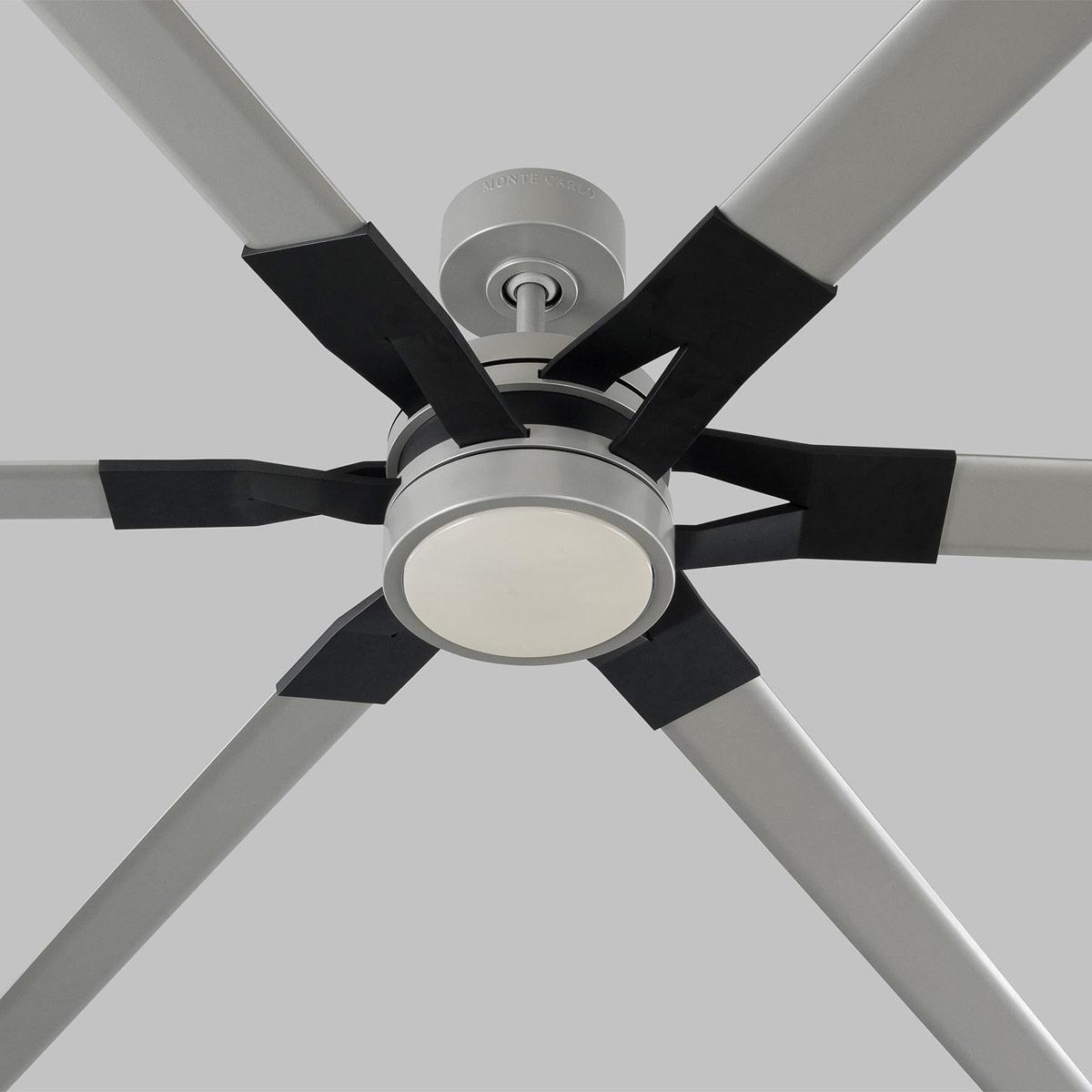

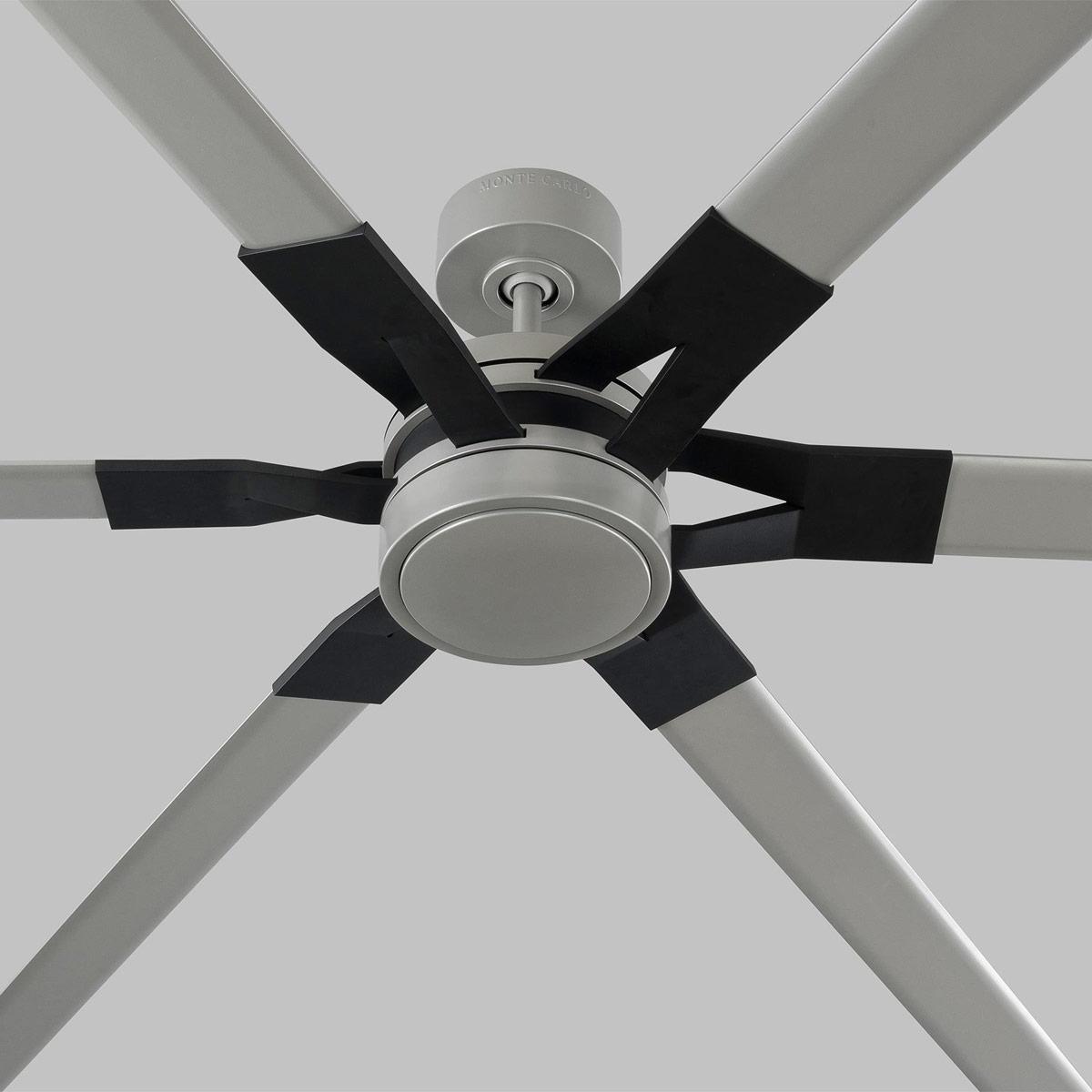

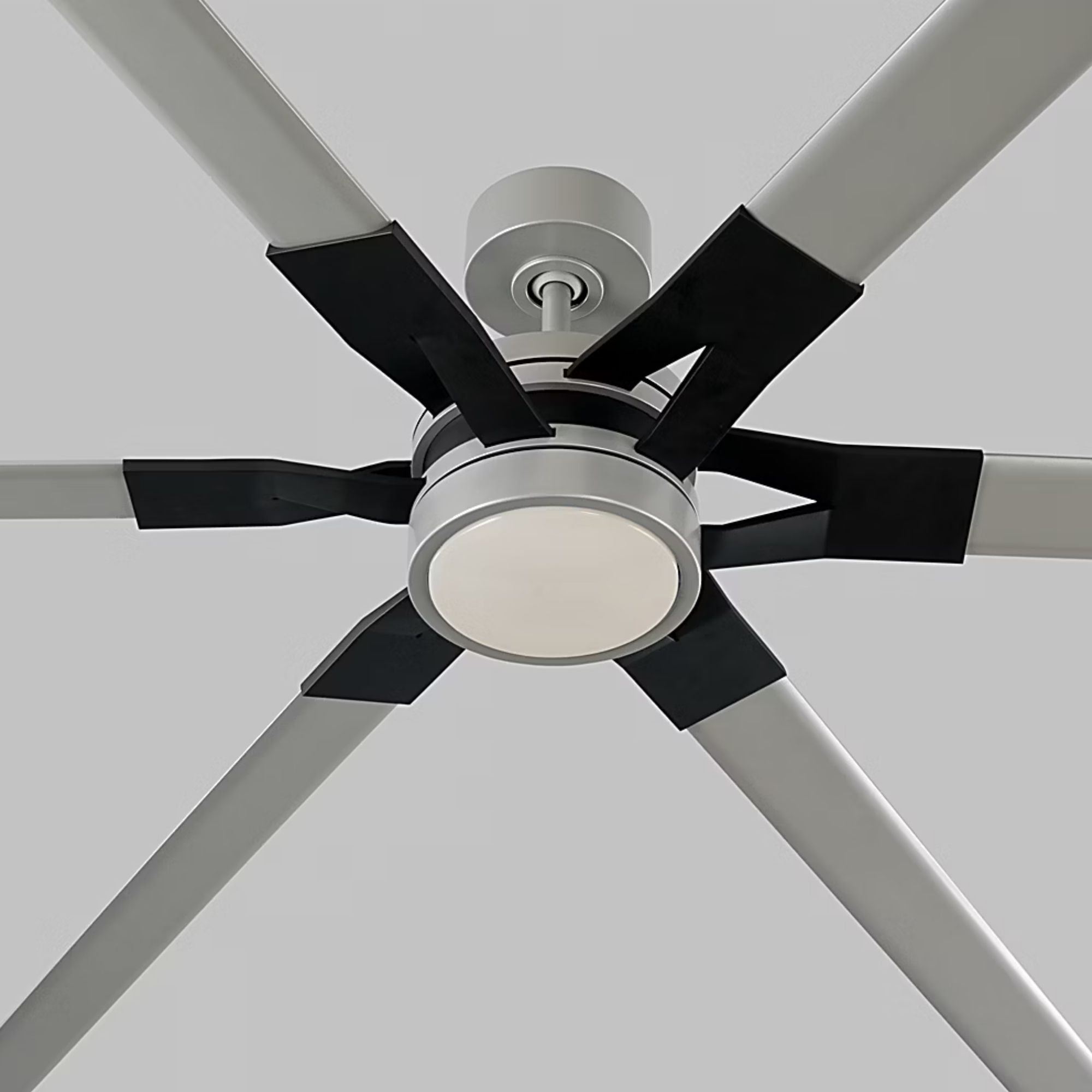

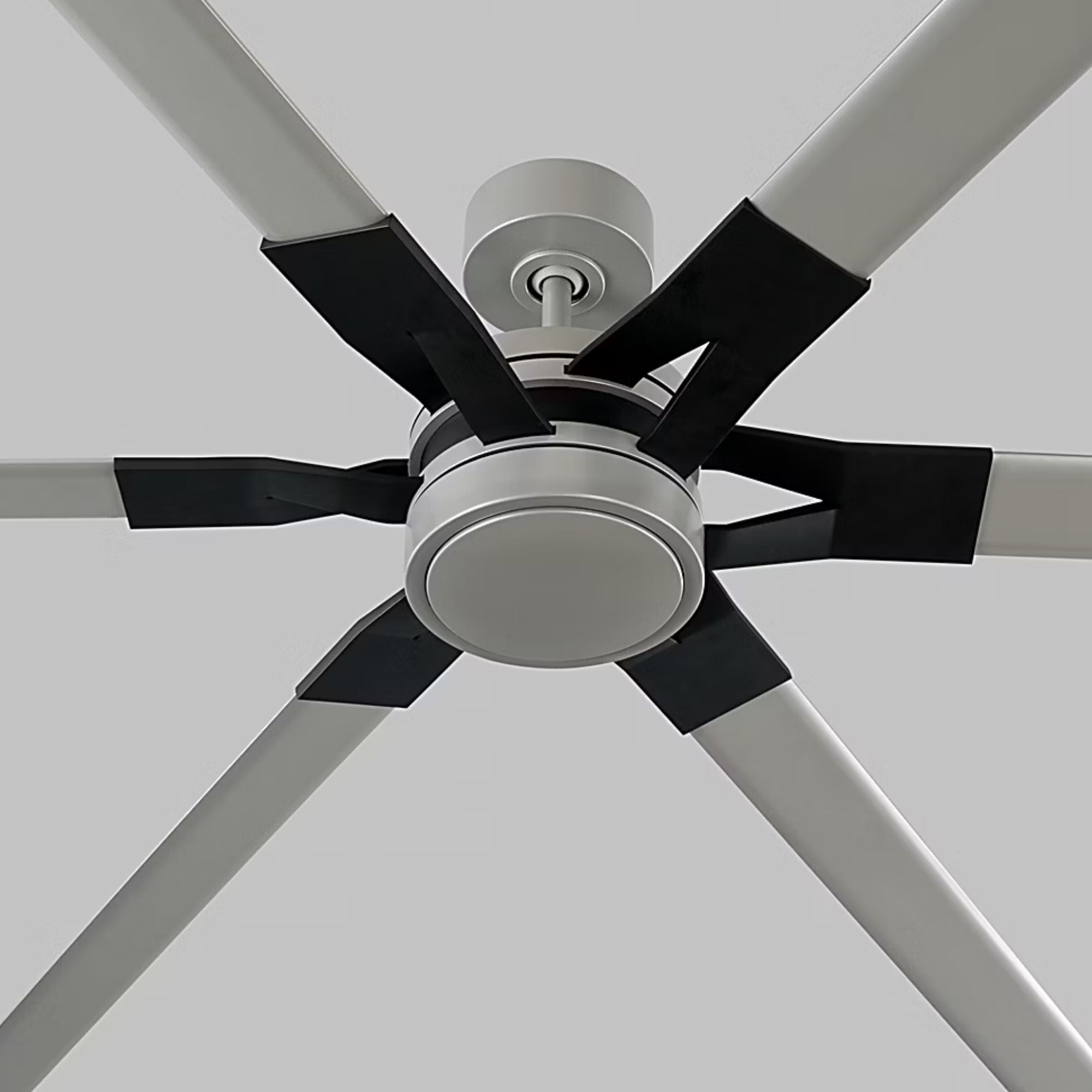

Designed by Sean Lavin, the Loft 96 makes a bold, clean-lined statement with six broad aluminum blades and brushed-steel arms. The steel housing combines Brushed Steel and Midnight Black finishes. The six aluminum blades are finished in Painted Brushed Steel, paired with Midnight Black blade arms. A frosted acrylic lens softens the integrated light, and a finishing cap is included when the light is not needed.

Light Output & Performance

The integrated 20W LED array delivers 1,080 net lumens at 3000K with CRI 90+ and is dimmable from the included remote. For airflow, the fan delivers 13,634 CFM at high speed using 33W and 5,729 CFM at low speed using 3.23W. The Energy Guide lists 9,682 CFM weighted-average airflow, 413 CFM/W at high speed, and a 500 CFM/W weighted-average efficiency.

Electrical & Installation

Designed for 120V power, the fan uses 33W at high speed and 3.23W at low speed, with an integrated LED array rated at 20W maximum. The motor is reversible by remote. It includes a 12 in x 0.5 in downrod, measures 19 in overall drop with a 16 in blade drop, and has a 5.5 in canopy and 78 in lead wire. Included hardware supports sloped ceilings up to 20°. Compatible slope-ceiling canopy kits MC95 and MC93.

Suggested Downrod by Ceiling Height

Ships with a 12 in downrod. Ensure at least 7 ft of clearance between the floor and fan blades.

• 8 ft ceiling: Hugger/flush-mount fans are recommended.
• 8–10 ft ceilings: Close-to-ceiling installation uses a 4–8 in downrod.
• 10 ft and higher: An extended downrod is recommended. Visual Comfort lists 12, 18, 24, 36, 48, 60, and 72 in lengths.

What's Included

• Loft 96 ceiling fan with 6 aluminum blades
• Integrated 20W LED light
• Frosted acrylic lens
• 6-speed handheld remote
• 12 in downrod
• Finishing cap
