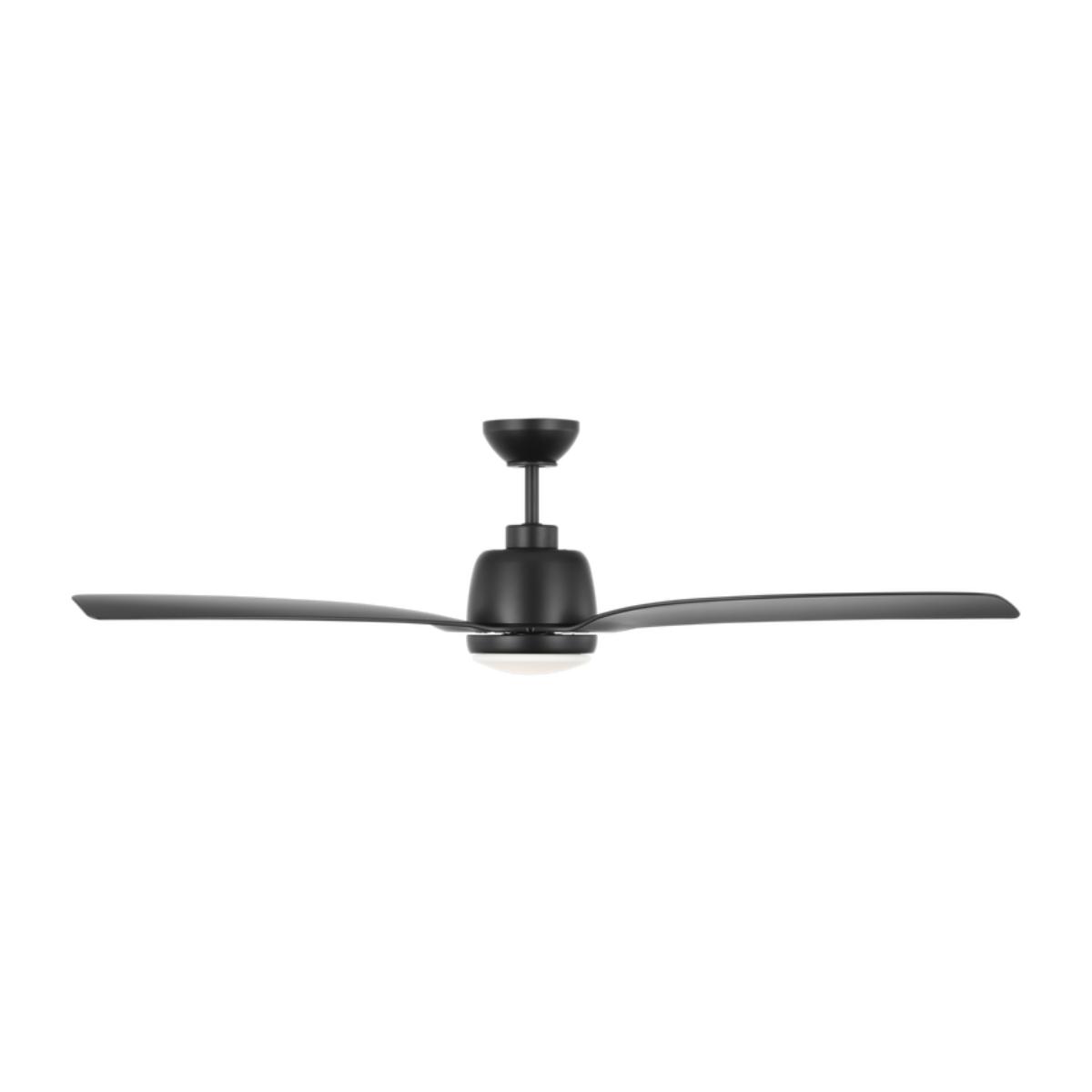

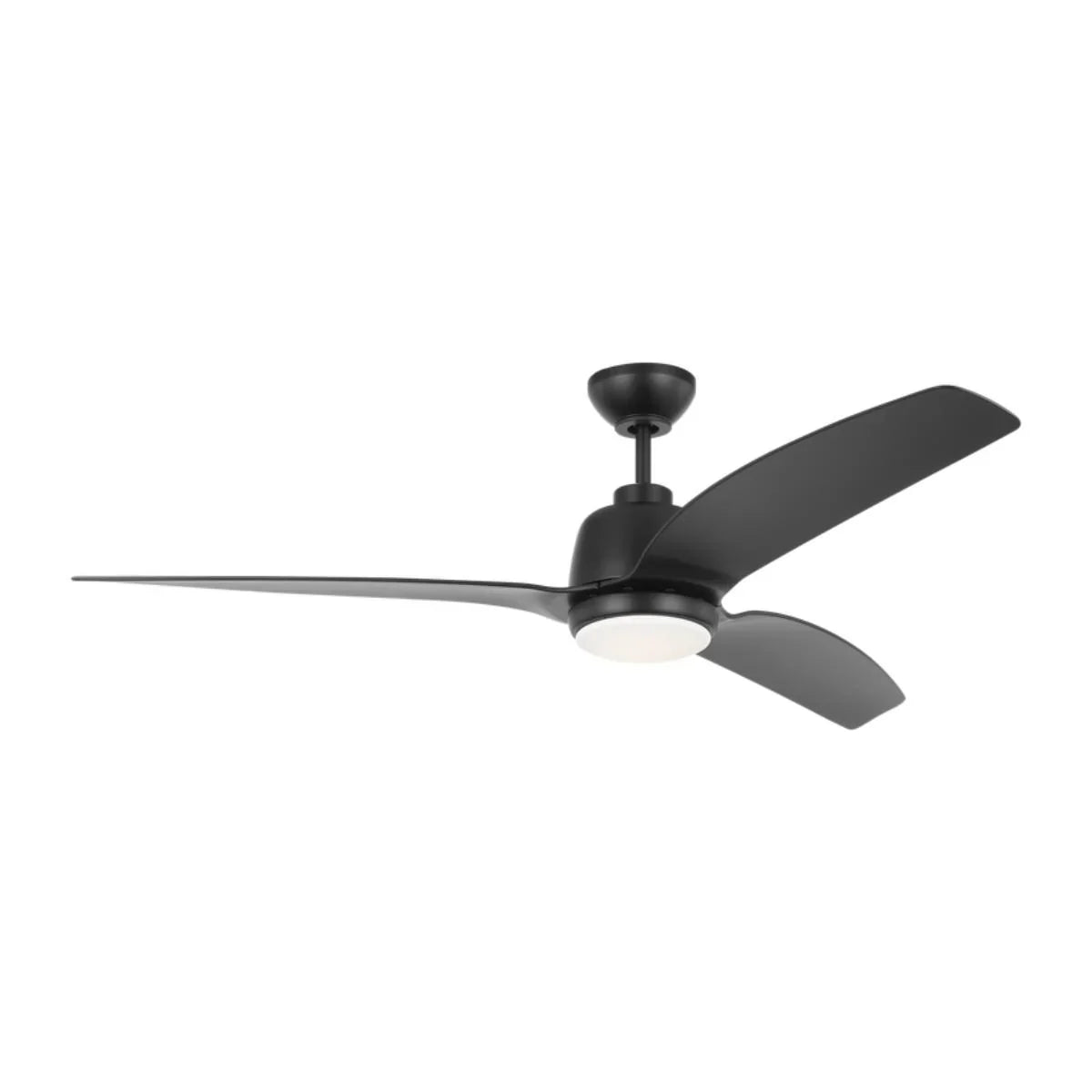

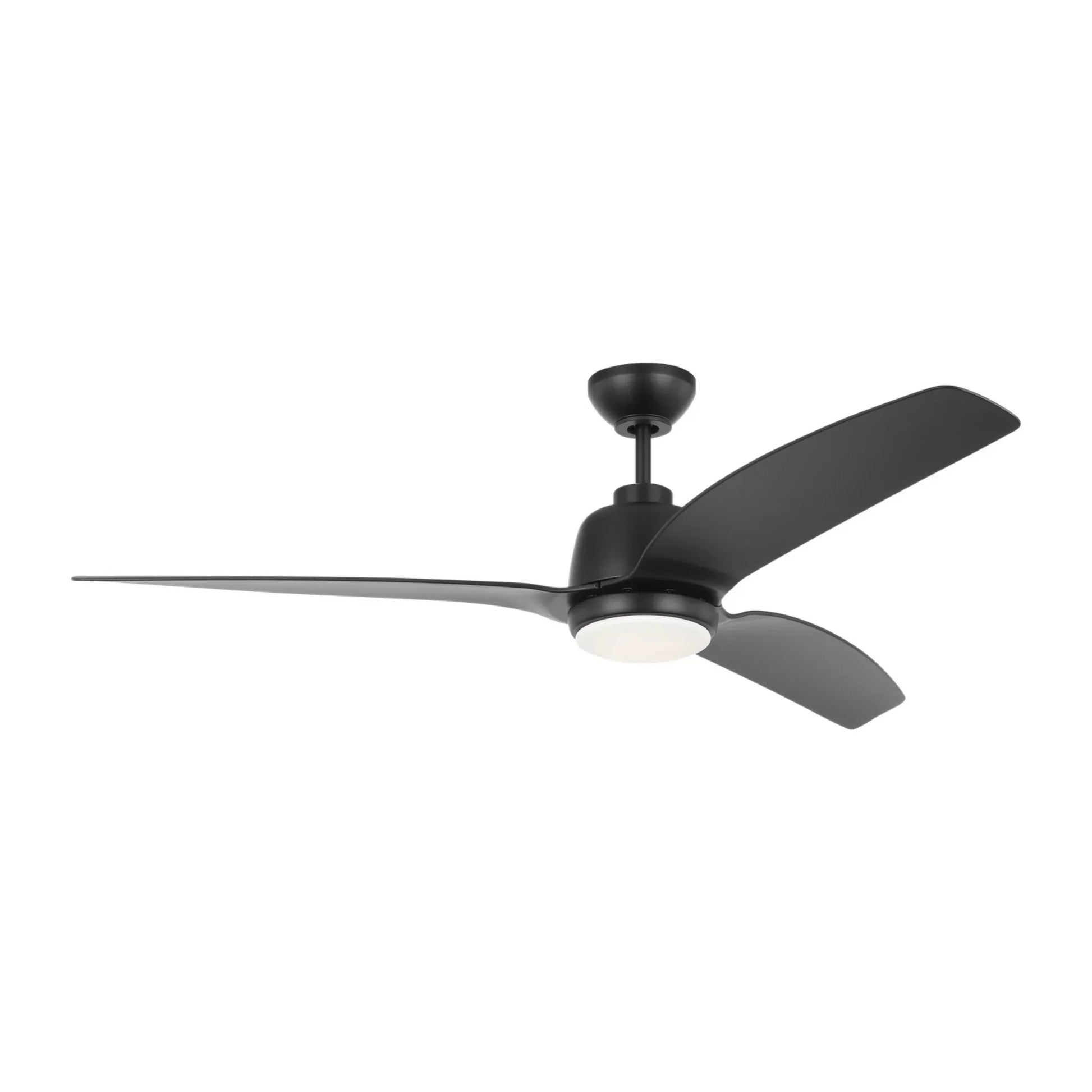

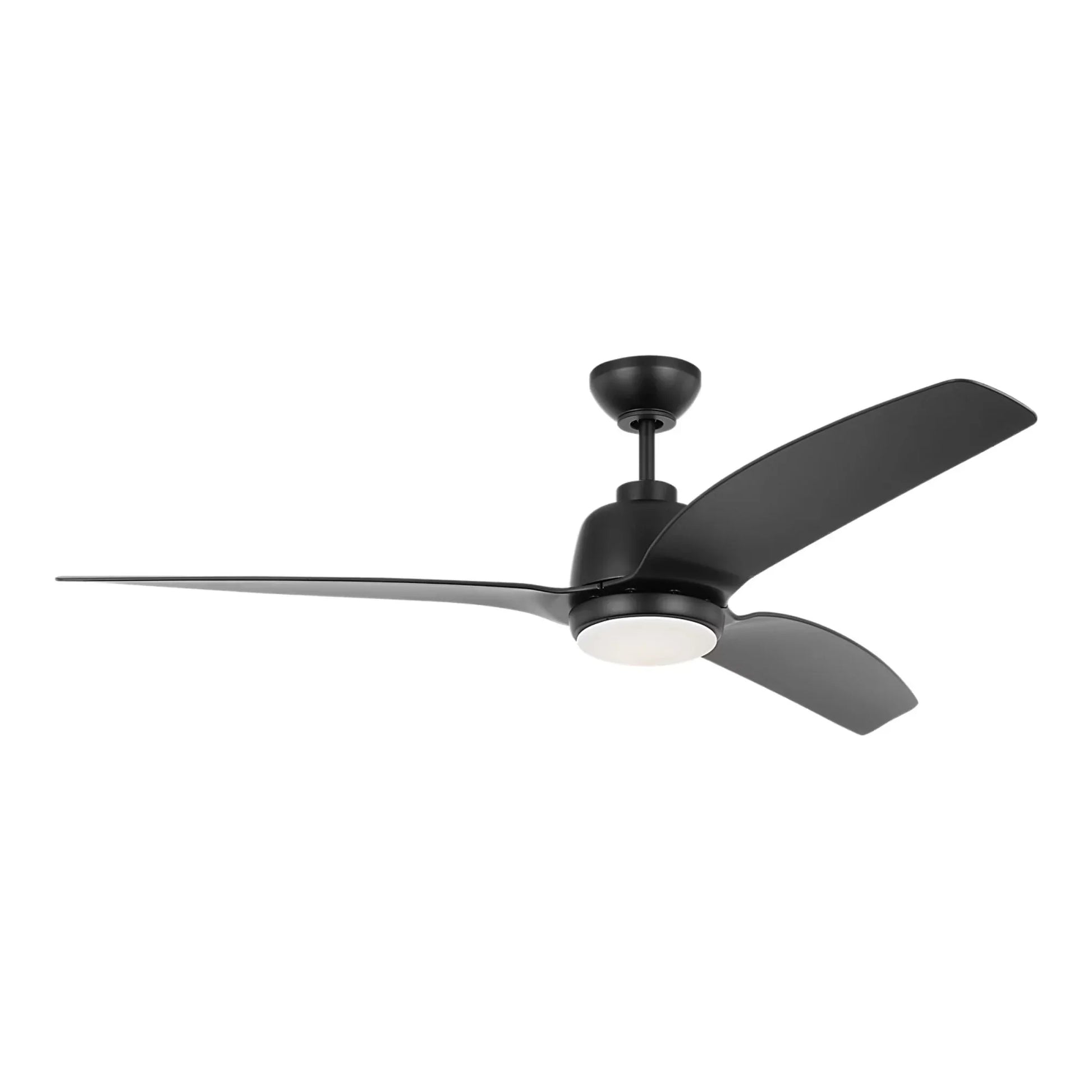

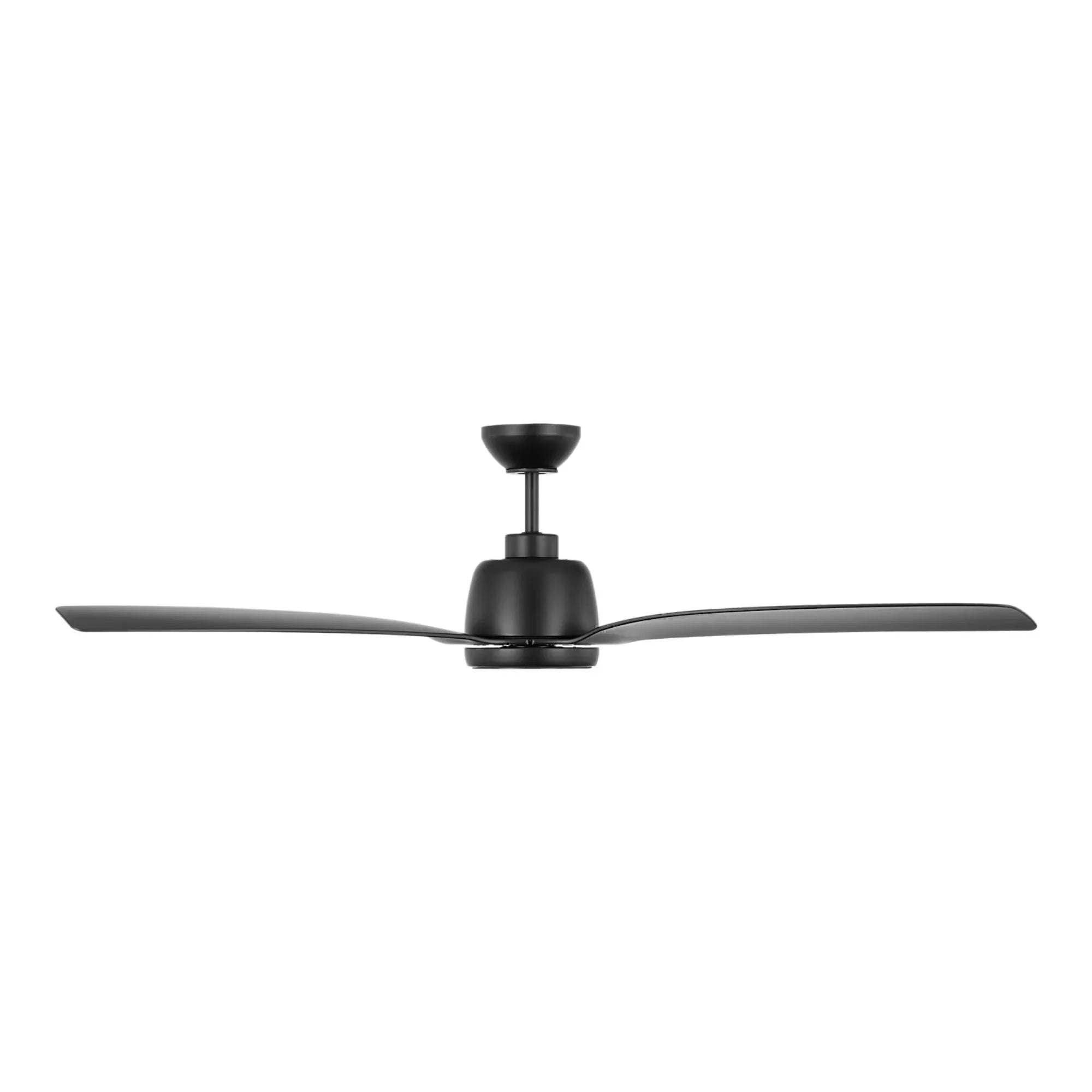

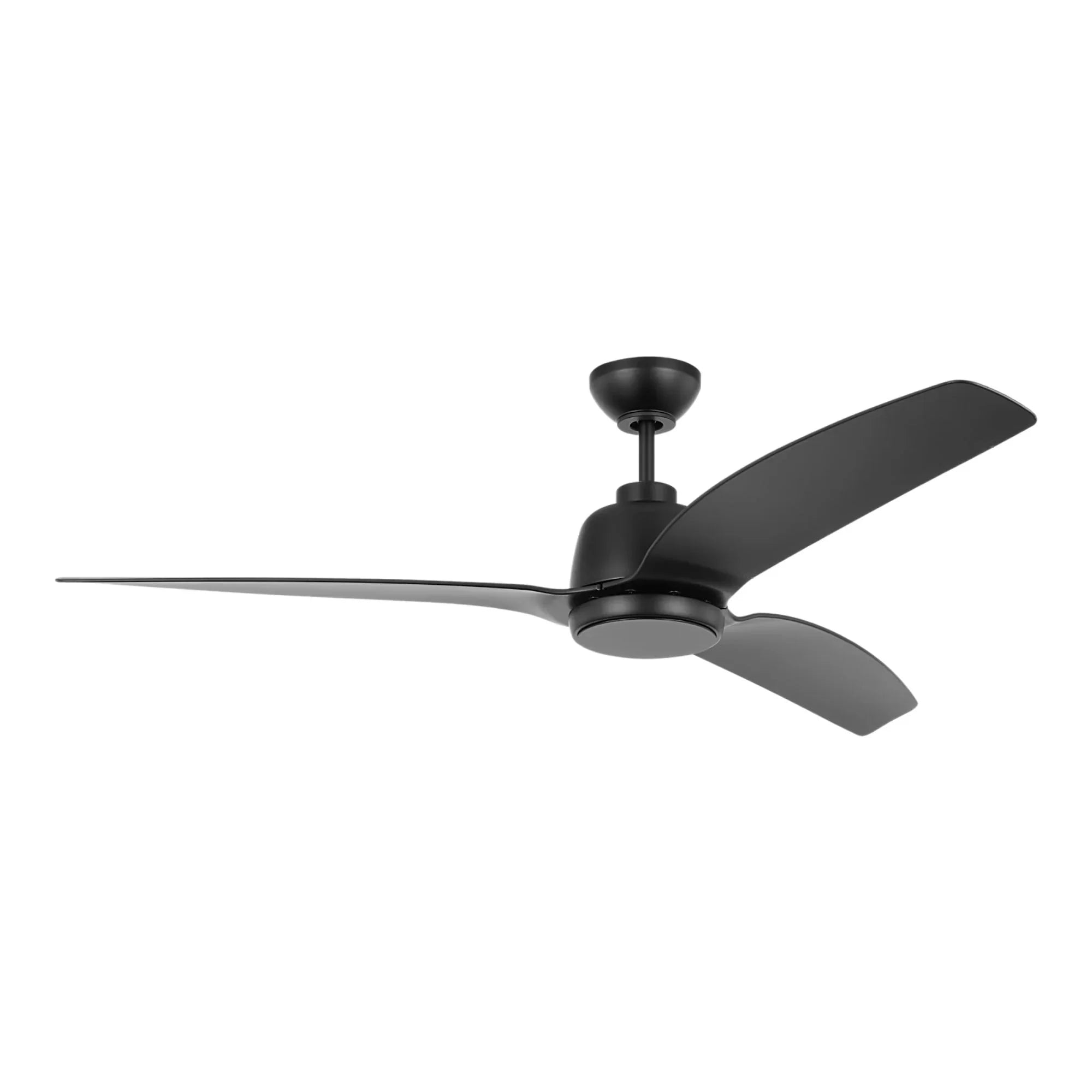

The Visual Comfort Fan Avila Coastal 3AVLCR60MBKD is a three-blade 60 in downrod ceiling fan in Midnight Black marine grade steel with matching Midnight Black ABS blades. Powered by a whisper-quiet DC 155×12mm motor with 6 speeds via the included hand remote, it delivers 6,006 CFM at high speed. Wet rated and Title 24 compliant — built for covered and exposed outdoor spaces.

• Blade Span: 60 in / 3 ABS blades / Midnight Black
• Motor: DC 155×12mm / 6 speeds / reversible (remote controlled)
• Airflow: 6,006 CFM at high / 2,494 CFM at low
• Efficiency: 203.6 CFM/W at high speed
• Wattage: 29.5W at high / 2.9W at low
• Light Kit: 20W integrated LED included — Matte White bowl glass shade / dimmable
• Location Rating: Wet rated — indoor and outdoor use
• Body: Marine Grade Steel
• Mount Type: Downrod — 6 in downrod included / slope compatible
• Blade to Ceiling: 12.8 in / Overall height: 15.4 in / Min ceiling: 8.07 ft
• Weight: 17 lbs
• Certifications: Safety listed for wet locations / Title 24 / California Energy Commission compliant

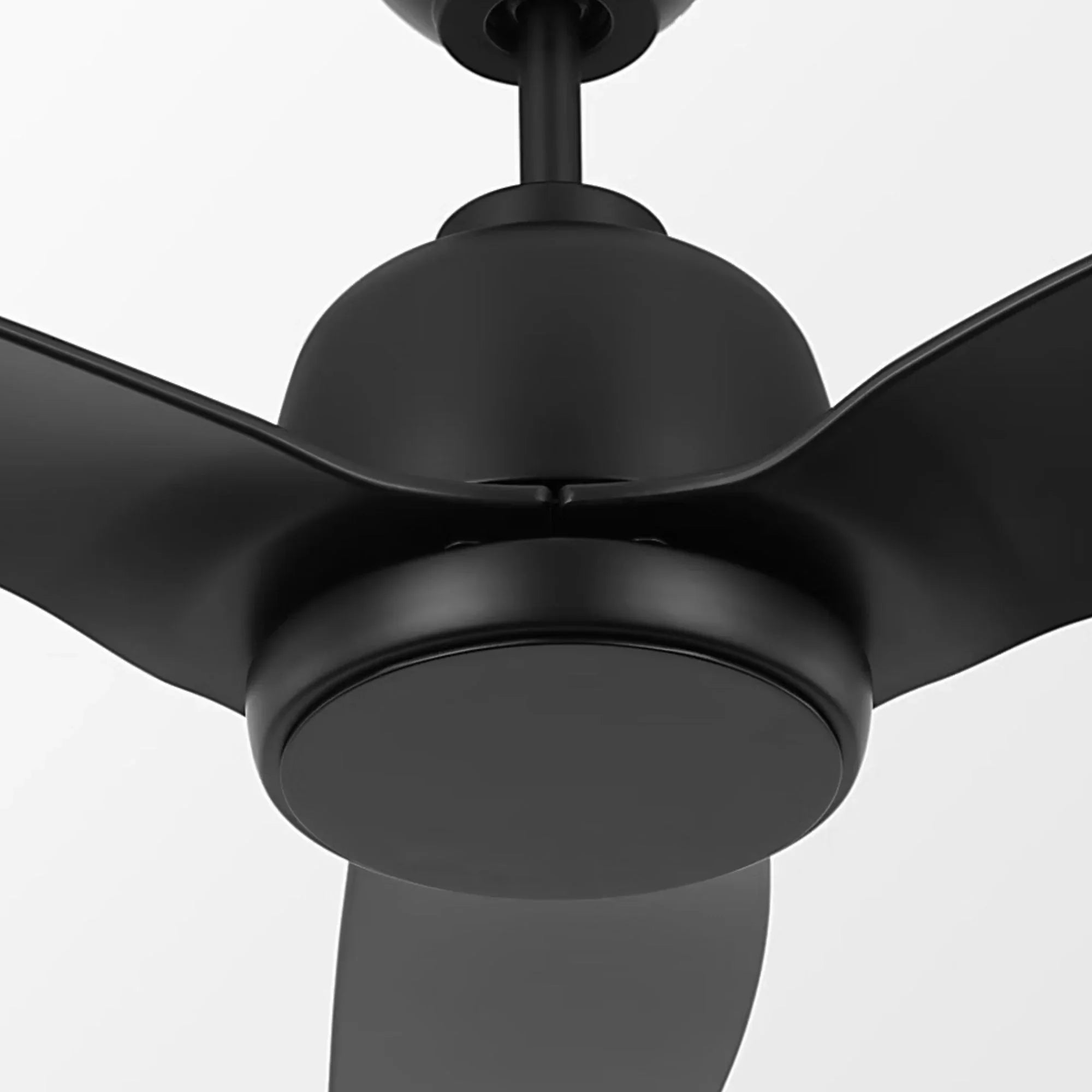

The 3AVLCR60MBKD includes a hand remote control — 6-speed fan control, dimmable light, and remote-controlled reverse. Receiver located in canopy. No wall control included. No integrated smart control. A finishing cap is included if the light kit is unnecessary.

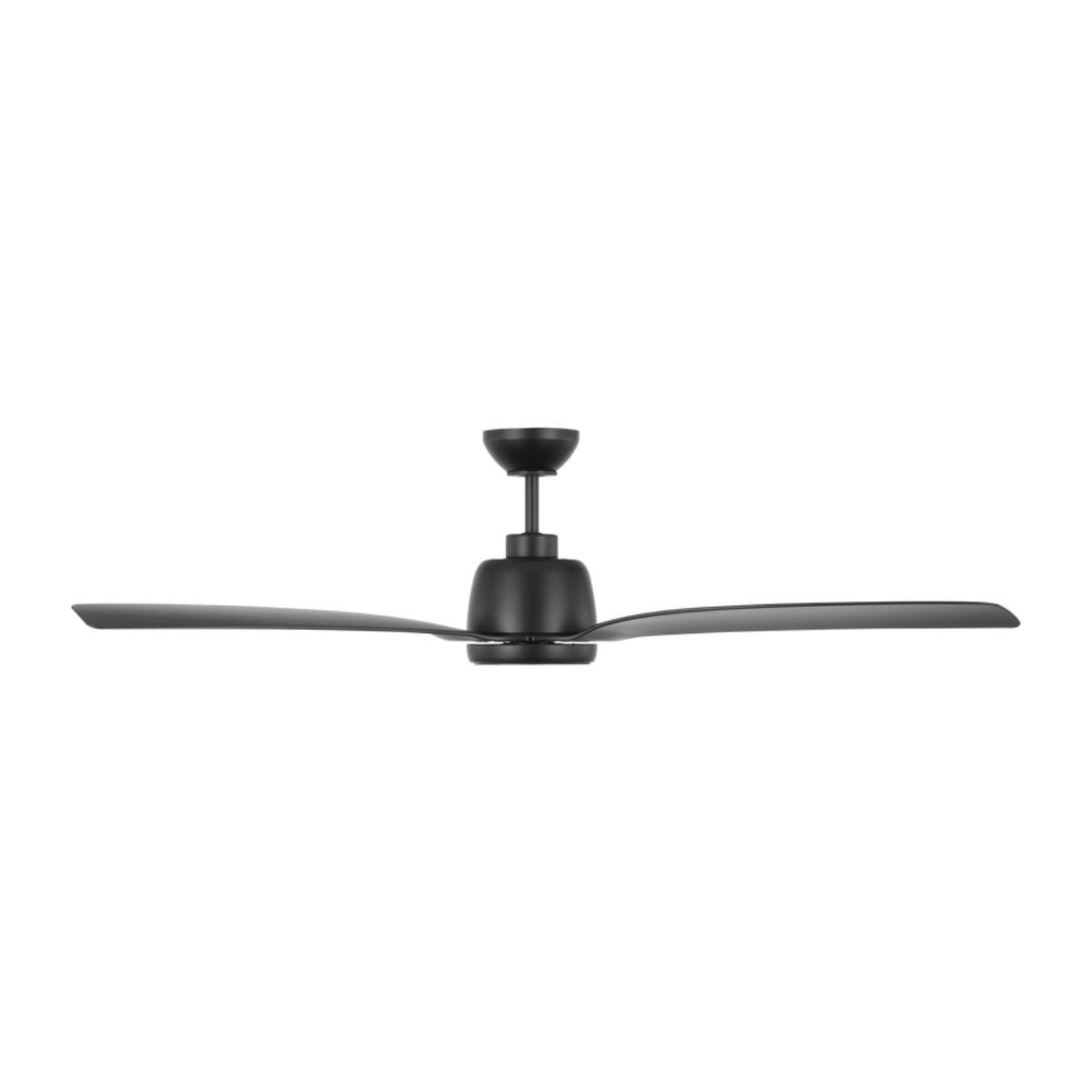

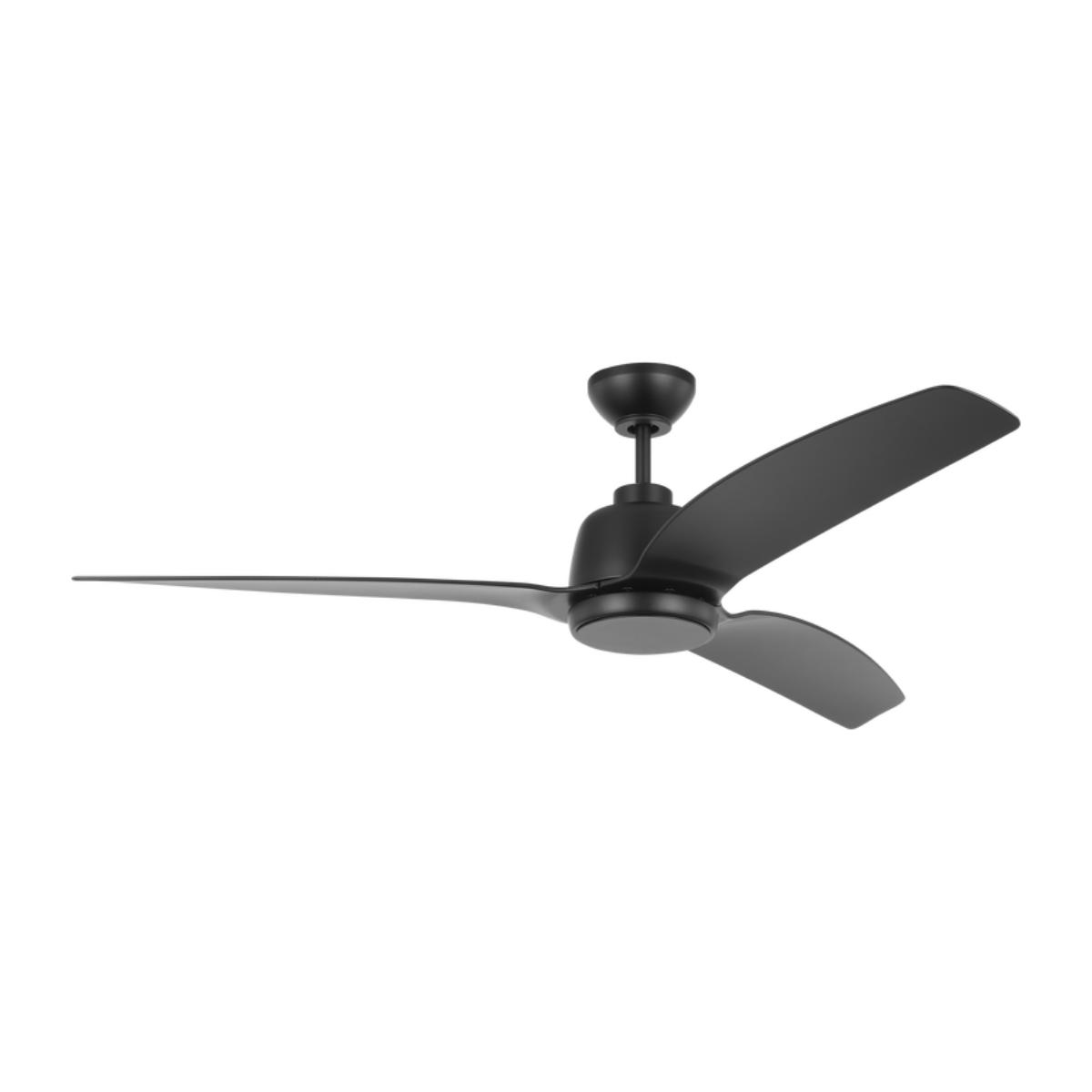

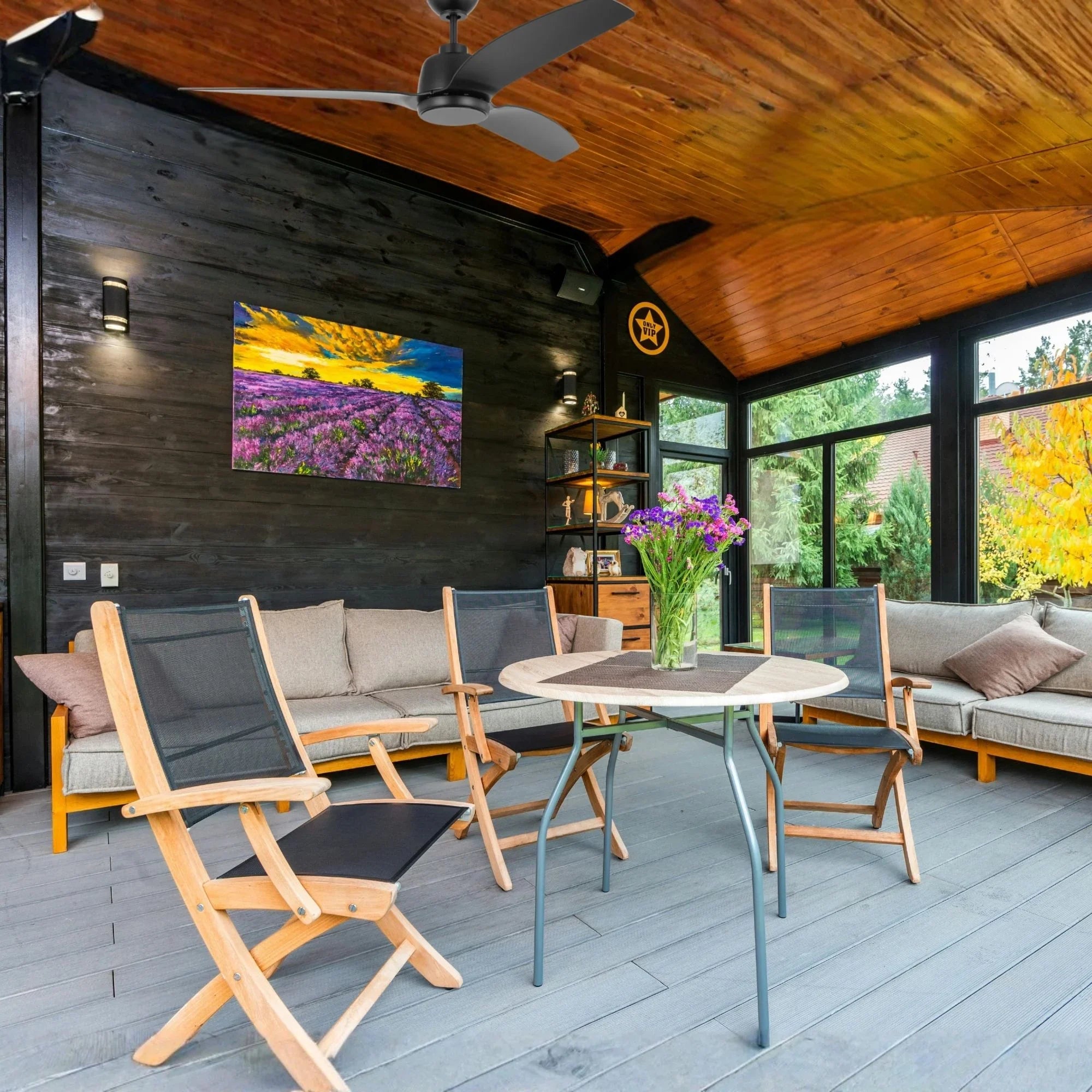

Marine Grade Steel body in Midnight Black with three Midnight Black ABS blades and a Matte White bowl glass shade. Net weight: 17 lbs. The Avila Coastal’s bold 60 in three-blade silhouette in all-Midnight Black commands attention on expansive covered patios, pergolas, and dramatic open-plan interiors.

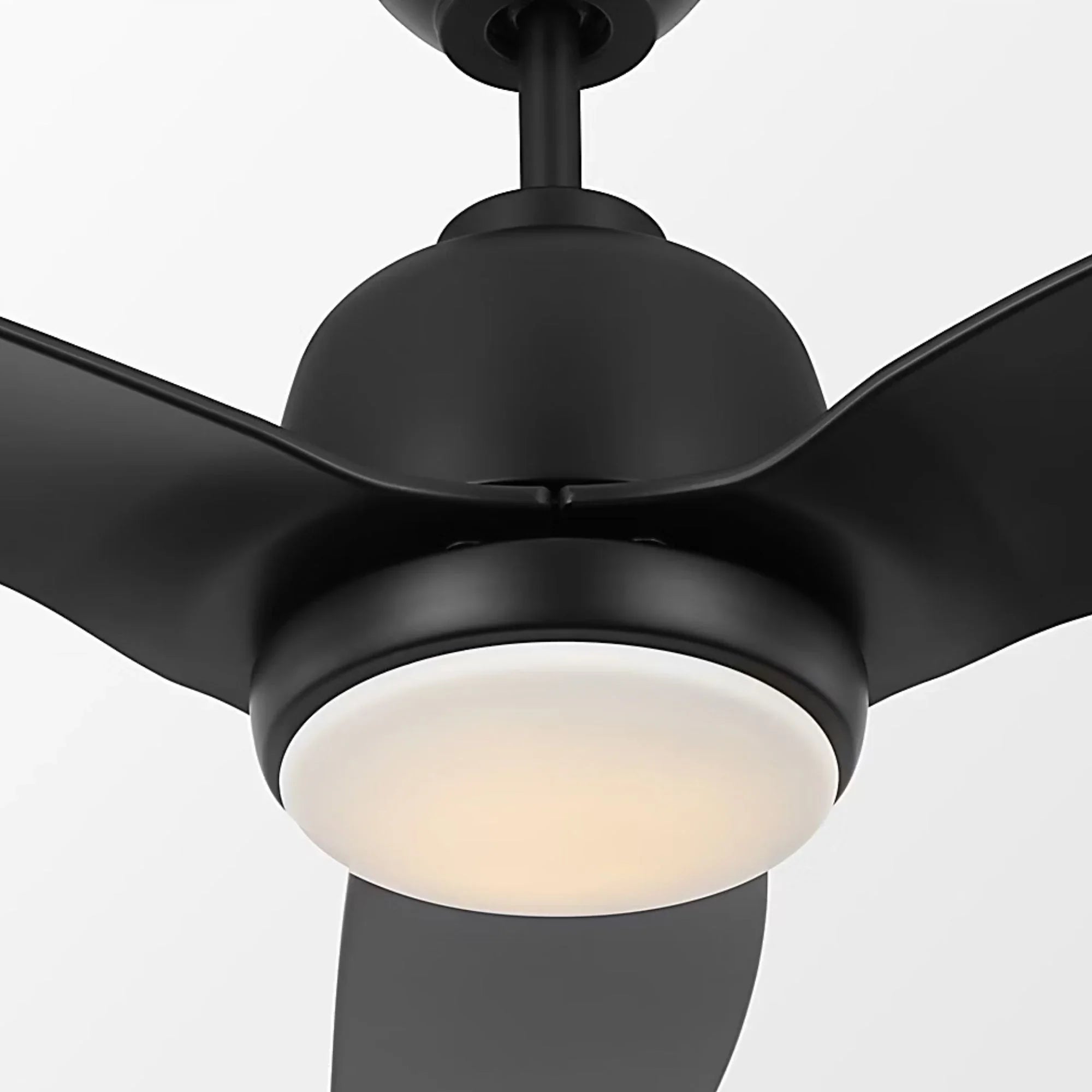

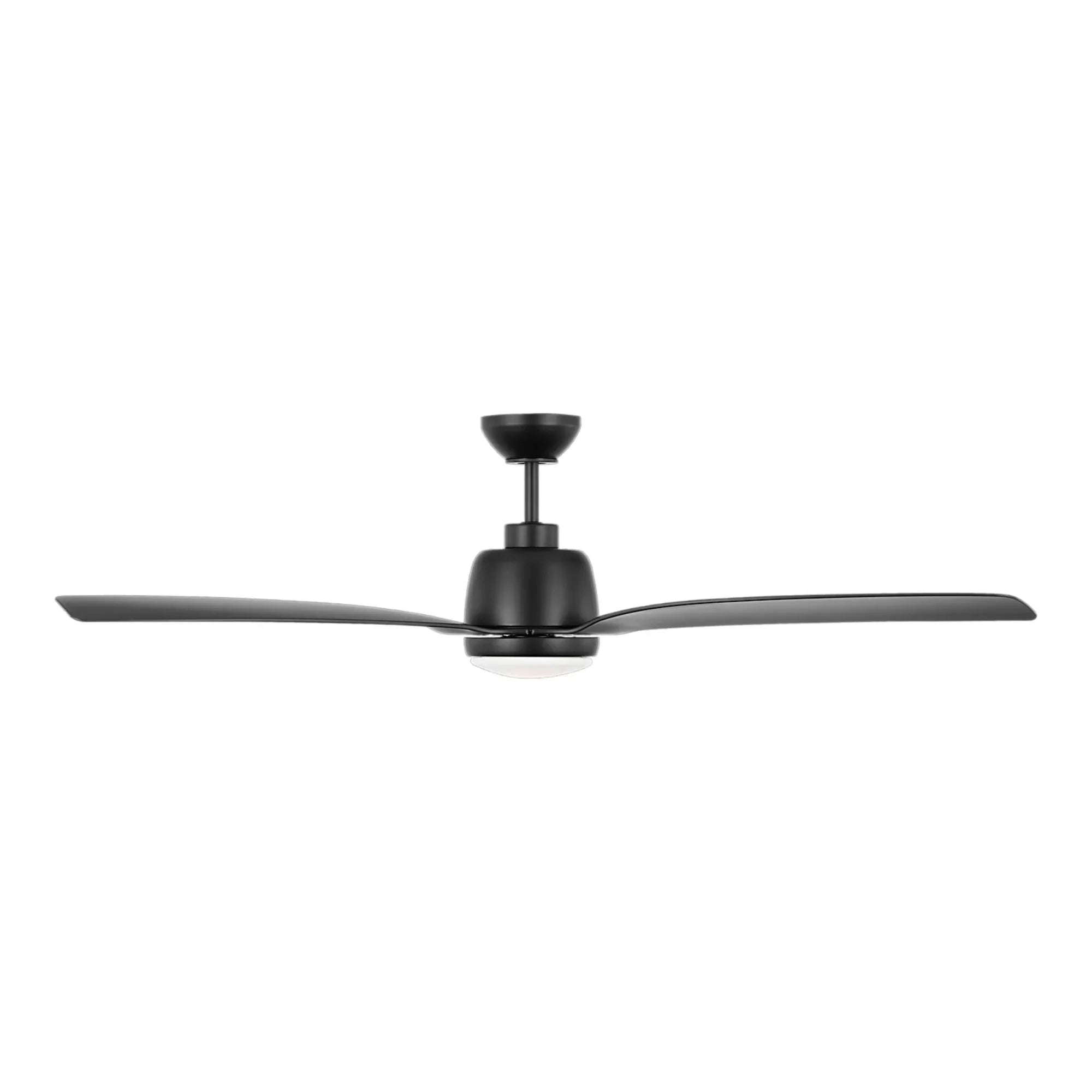

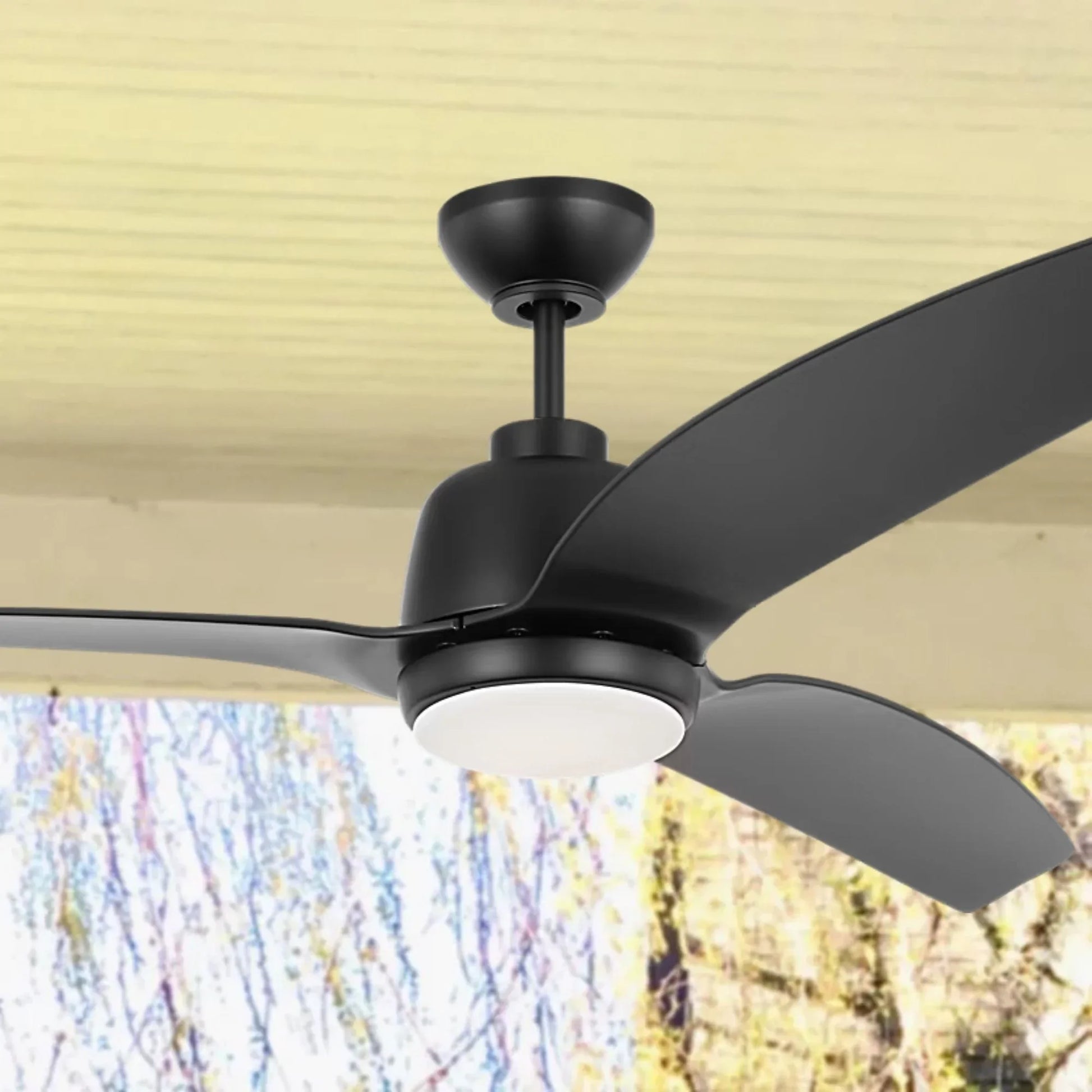

The 3AVLCR60MBKD includes an integrated 20W LED with a Matte White bowl glass shade — dimmable via the included hand remote. Title 24 compliant and listed in the California Energy Commission Appliance database. Delivers 6,006 CFM at high speed (203.6 CFM/W, 29.5W) and 2,494 CFM at low — suited for large outdoor spaces and rooms up to approximately 400 sq ft.

120V AC, 60Hz. Fan draw: 29.5W at high / 2.9W at low. Light: 20W integrated LED. Lead wire: 78 in. Ships with a 6 in downrod (0.5 in diameter). Slope compatible. Canopy: 5.88 in diameter / 2.75 in height. Minimum ceiling height: 8.07 ft to maintain safe blade-to-floor clearance. Fan must be attached to a securely anchored electrical junction box rated for the fan weight.

A 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

• 3AVLCR60MBKD ceiling fan (Midnight Black marine grade steel body + 3 Midnight Black ABS blades + 20W integrated LED + Matte White bowl glass shade)
• Hand remote control
• Finishing cap
• 6 in downrod
• Mounting hardware
