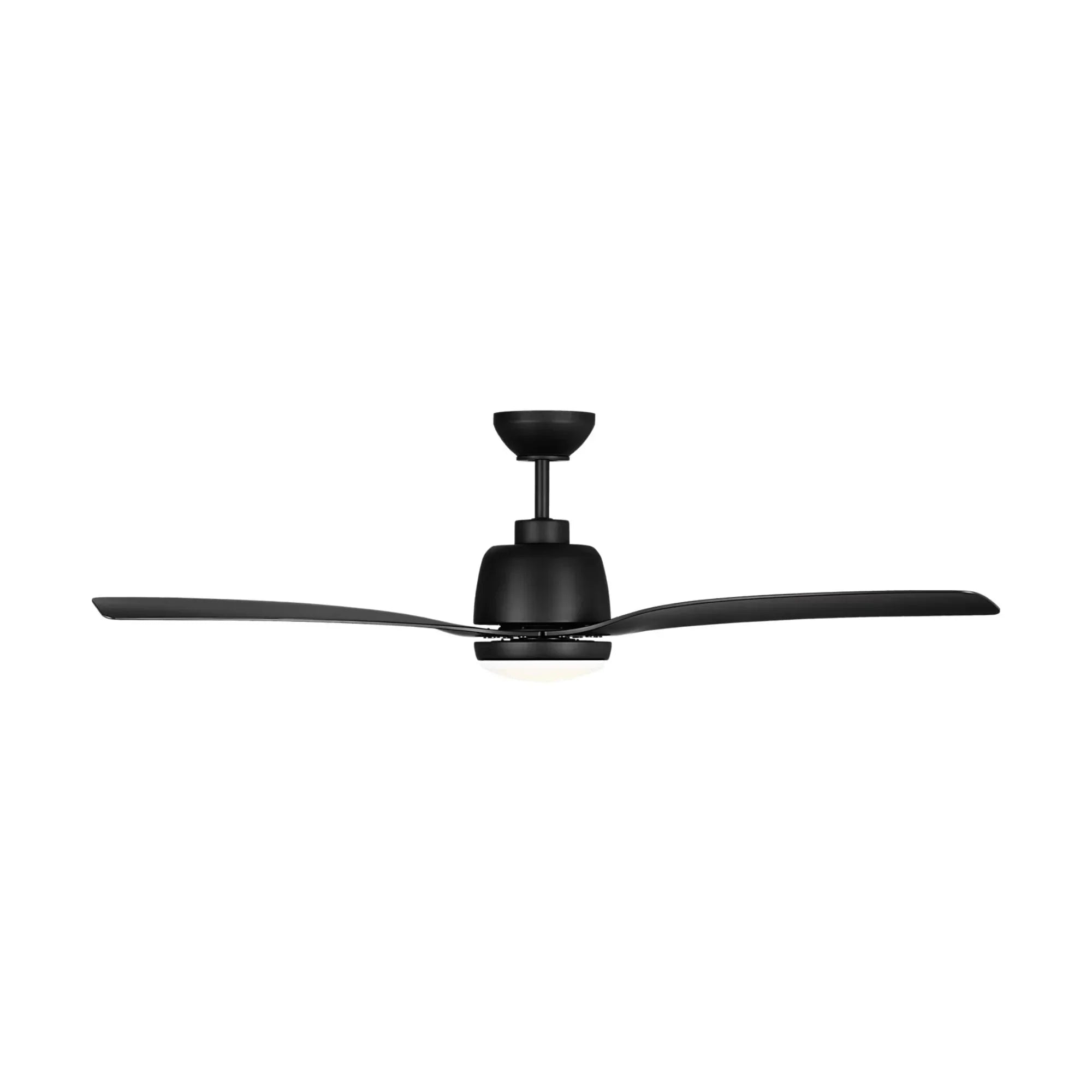

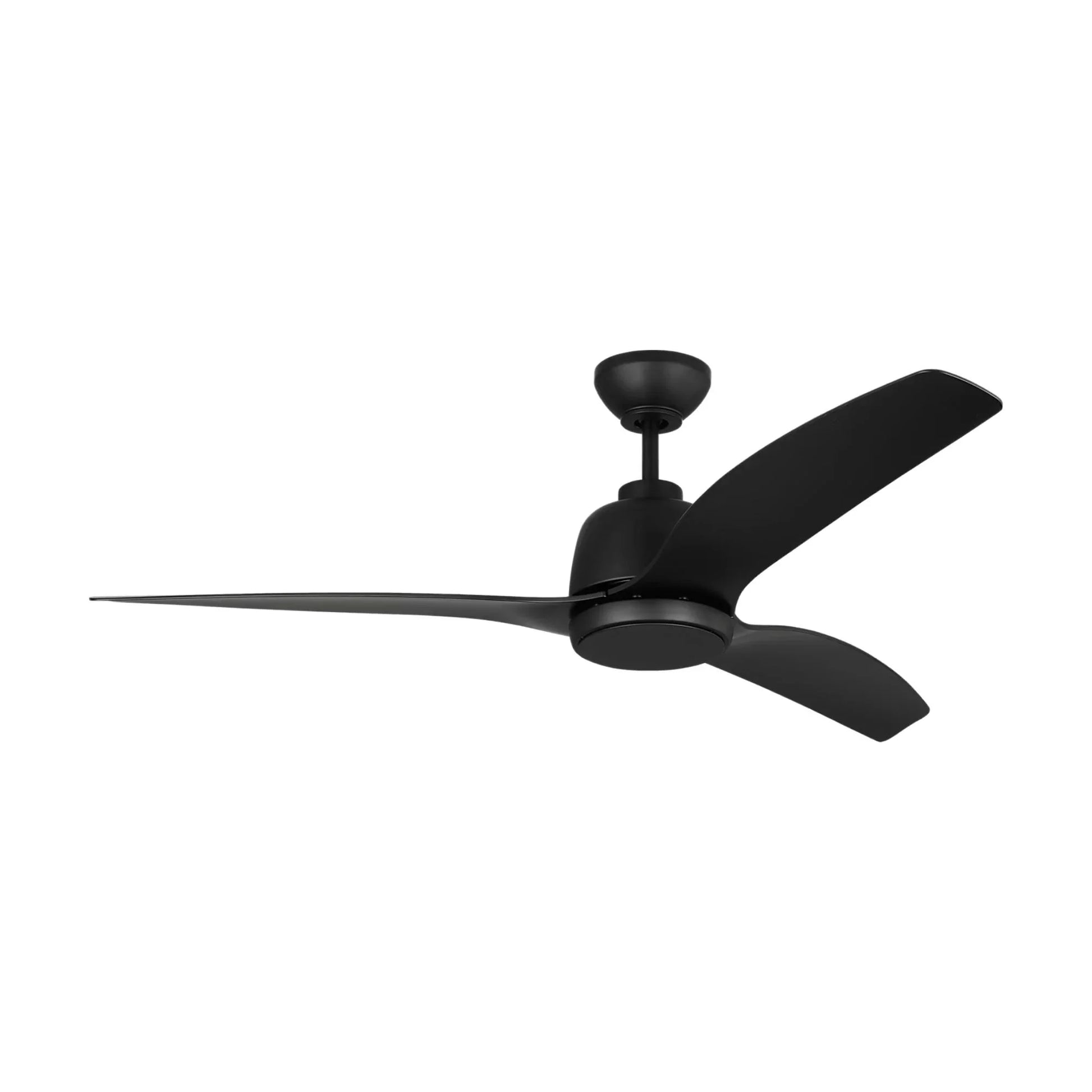

The Visual Comfort Fan Avila Coastal 3AVLCR54MBKD is a three-blade 54 in downrod ceiling fan in Midnight Black steel with matching Midnight Black ABS blades. Powered by a reliable AC 153×18mm motor with 4 speeds via the included handheld remote, it delivers 4,907 CFM at high speed. Wet rated and Title 24 compliant — built for covered and exposed outdoor spaces.

• Blade Span: 54 in / 3 ABS blades / 12° pitch / Midnight Black
• Motor: AC 153×18mm / 4 speeds / reversible (manual reverse via remote)
• Airflow: 4,907 CFM at high / Energy Guide weighted avg: 3,647 CFM
• Efficiency: 85 CFM/W at high speed / 97 CFM/W weighted avg
• Wattage: 58W at high / 38W weighted avg
• Light Kit: 16W integrated LED included — 770 lm net / 3000K / CRI 90+ / dimmable / Matte Opal glass shade
• Location Rating: Wet rated — indoor and outdoor use
• Mount Type: Downrod — 6 in downrod included / slope compatible up to 30°

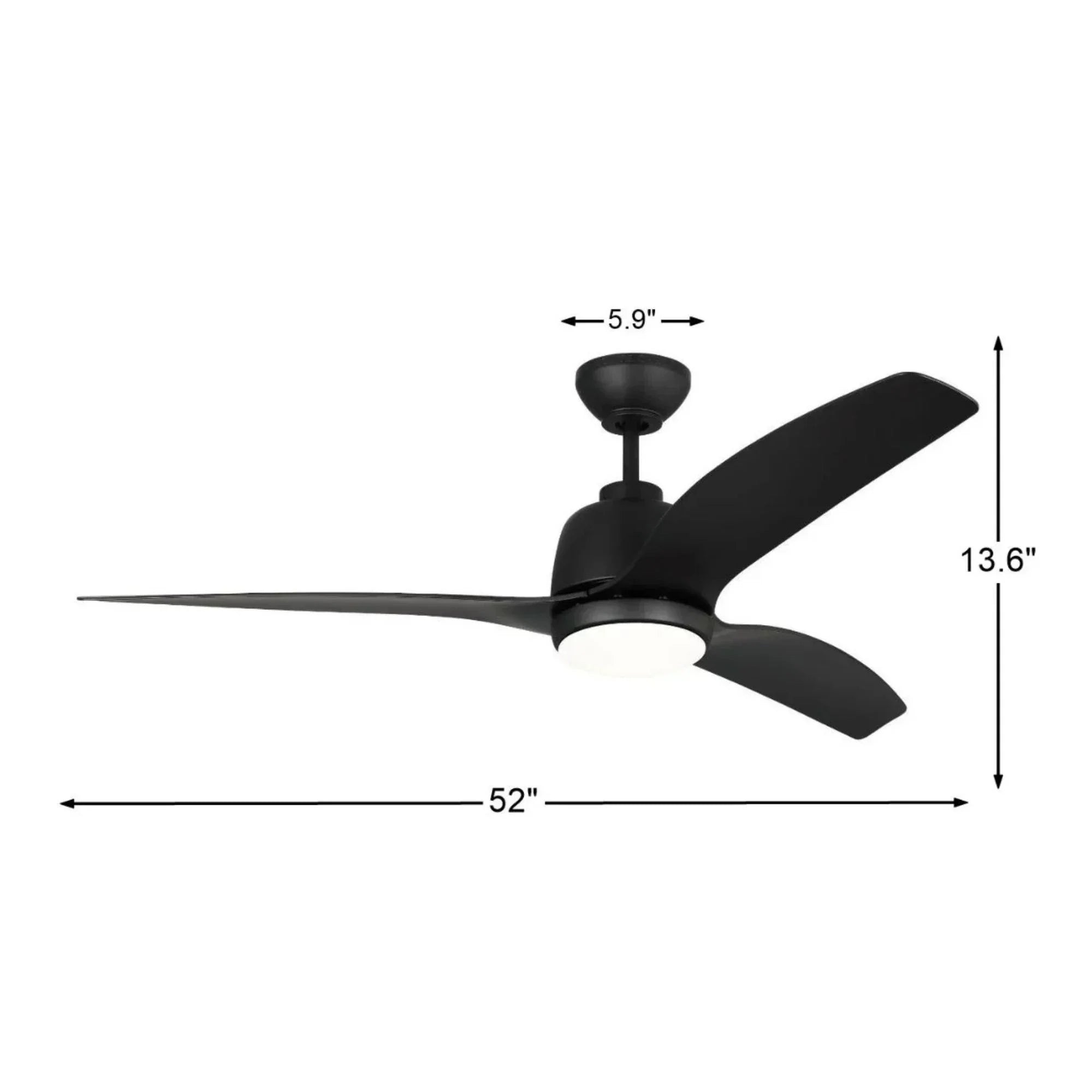

• Fixture Drop: 16.2 in / Blade drop: 13.6 in / Housing width: 7.9 in / Min ceiling: 7.96 ft
• Weight: 17.2 lbs
• Certifications: Safety listed for wet locations / Title 24 / California Energy Commission compliant

The 3AVLCR54MBKD includes a handheld remote control — 4-speed fan control, dimmer, and manual reverse. No wall control included. No integrated smart control. Compatible slope canopy kits: MC95 & MC93 (sold separately).

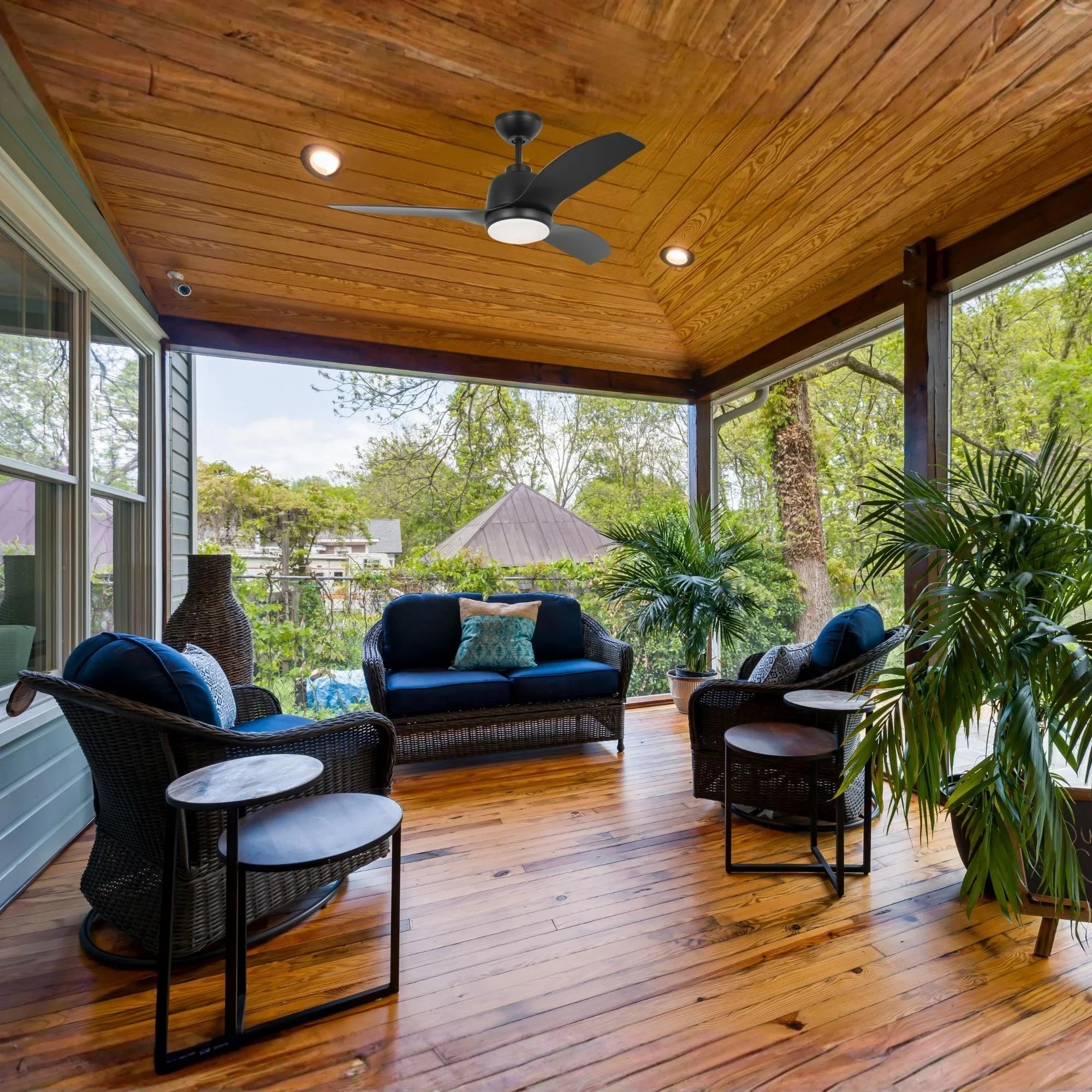

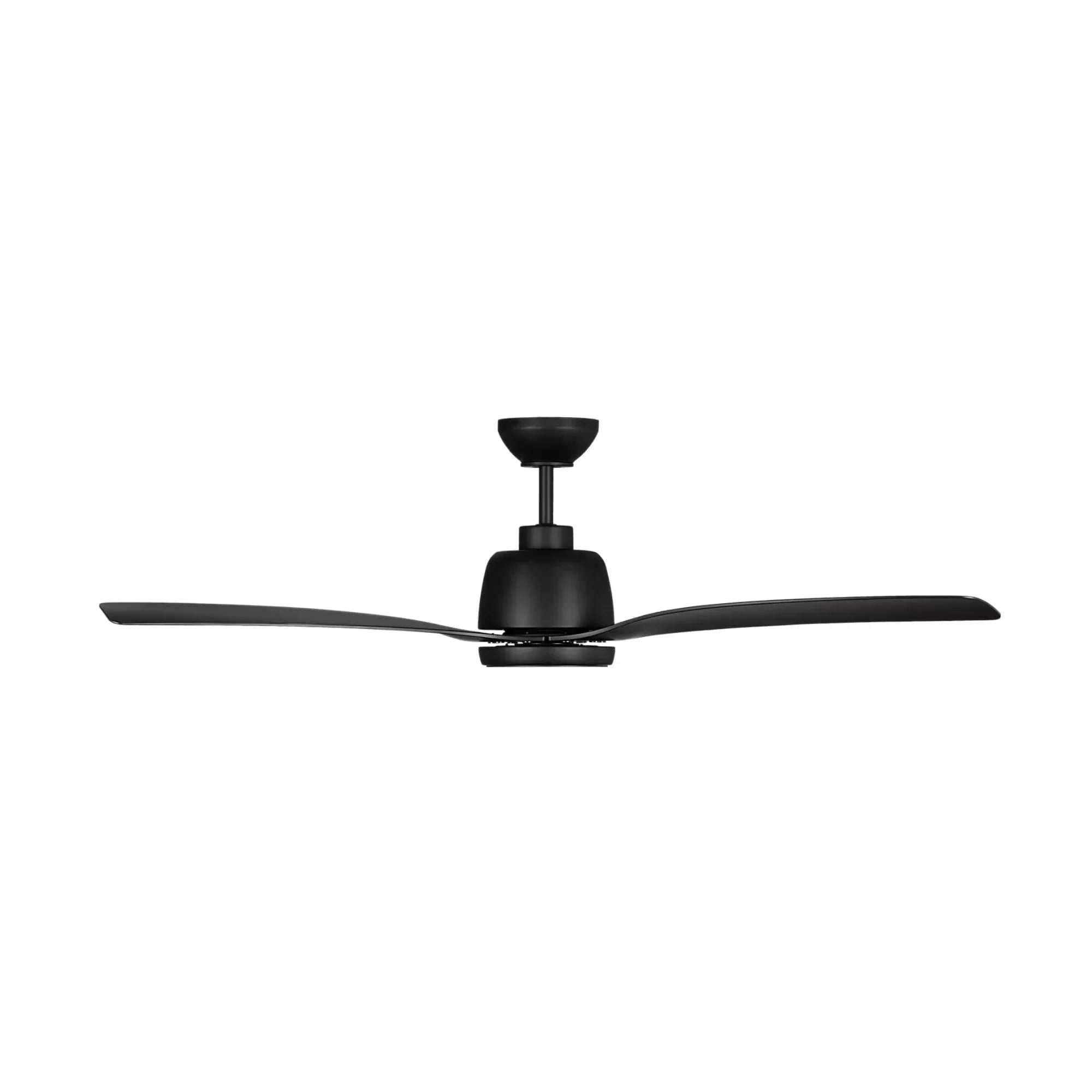

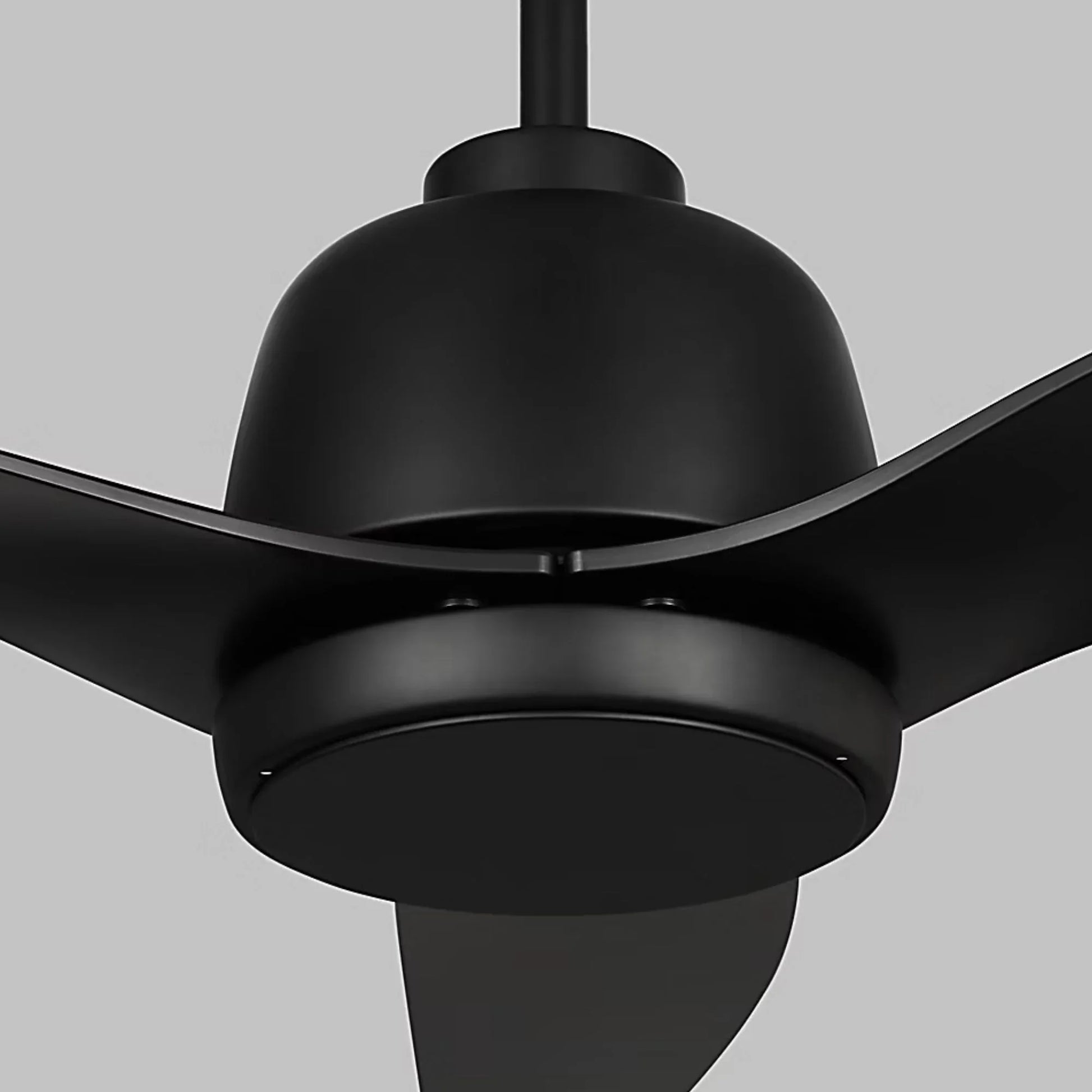

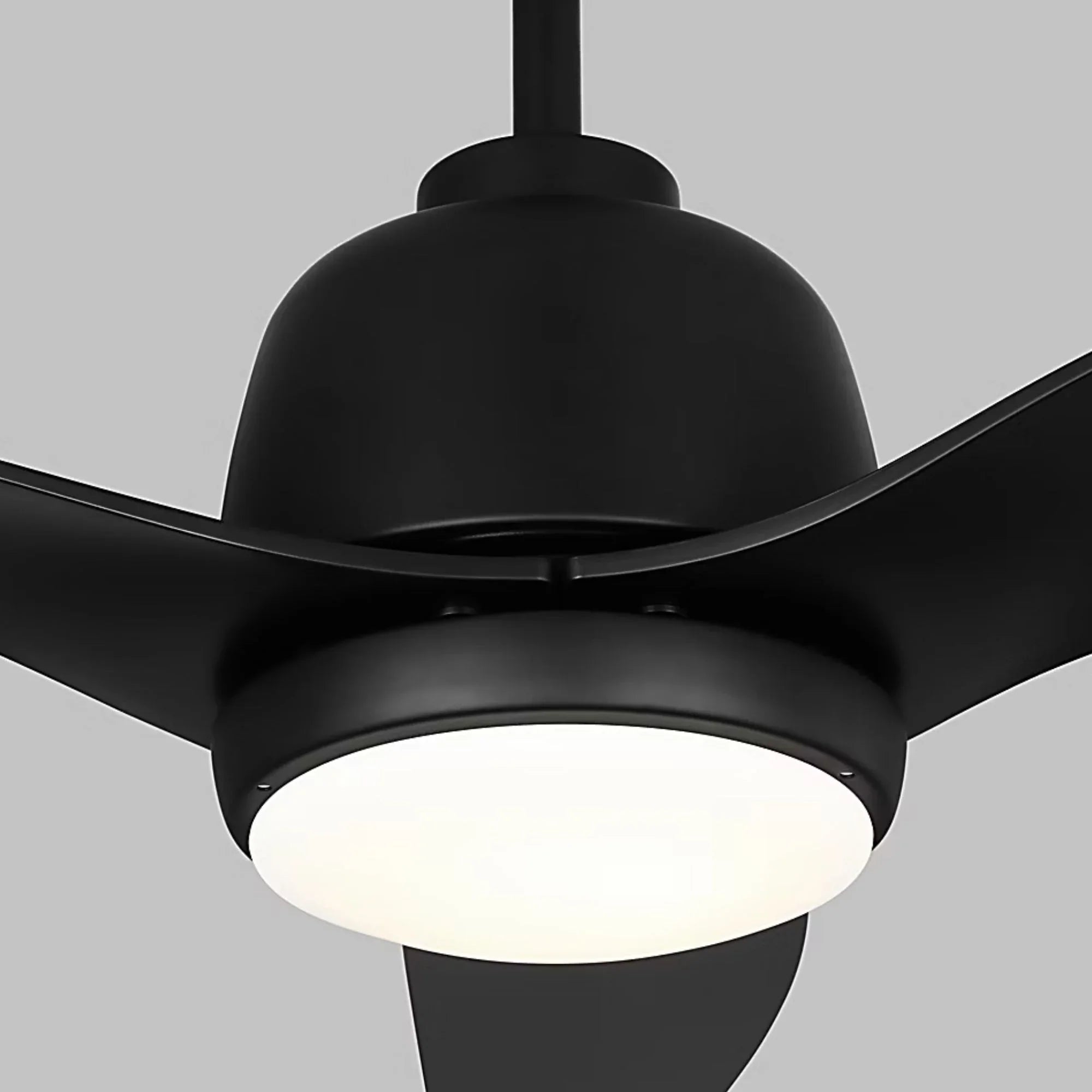

Steel body in Midnight Black with three Midnight Black ABS blades at 12° pitch and a Matte Opal glass shade. Net weight: 17.2 lbs. A finishing cap is included if the light kit is unnecessary. The Avila Coastal’s sleek three-blade silhouette in all-Midnight Black makes a bold statement on covered patios, pergolas, and dramatic open-plan interiors.

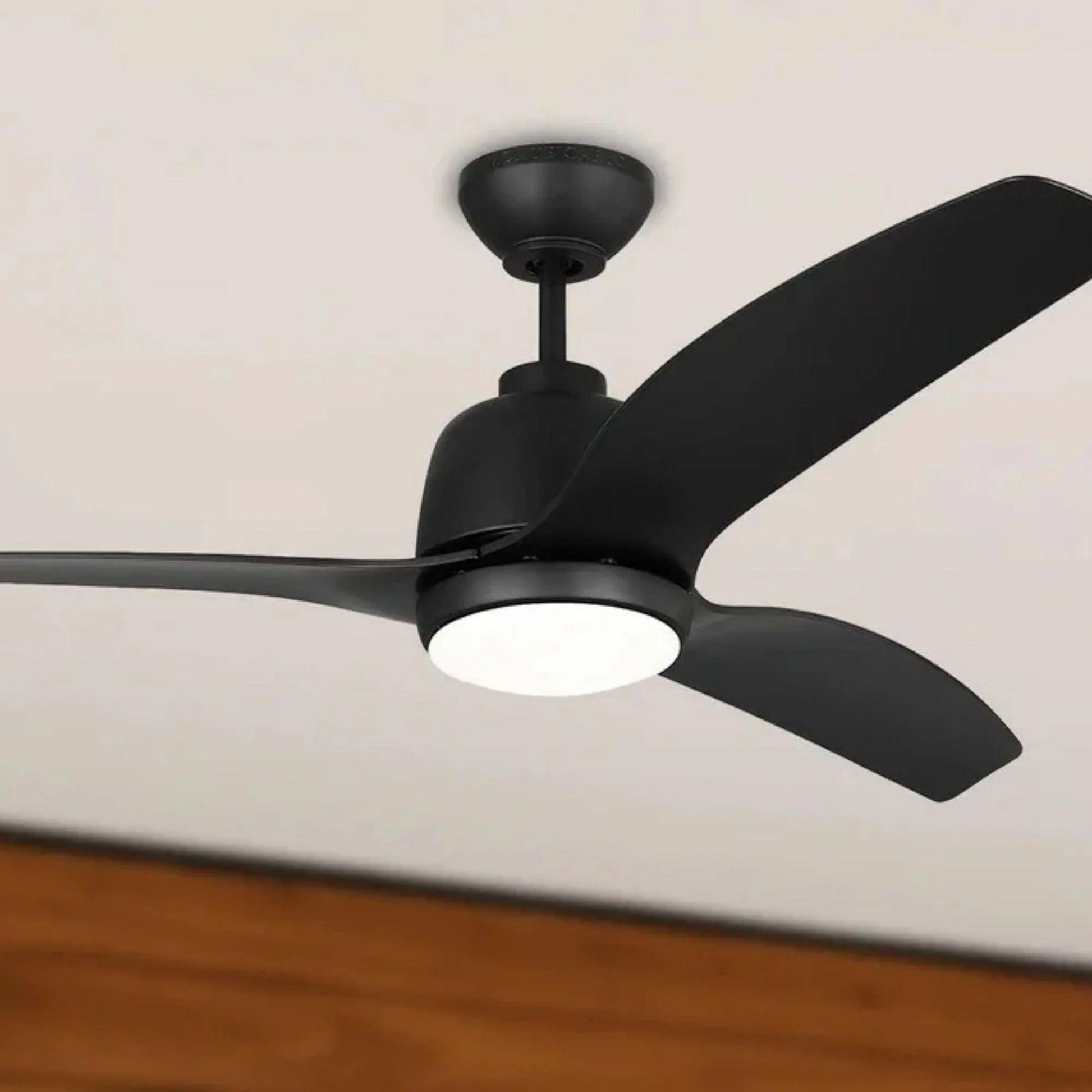

The 3AVLCR54MBKD includes an integrated 16W LED delivering 770 lumens net at 3000K with a CRI of 90+. Fully dimmable via the included handheld remote. Title 24 compliant and listed in the California Energy Commission Appliance database. Delivers 4,907 CFM at high speed (85 CFM/W, 58W) — Energy Guide weighted average: 3,647 CFM at 97 CFM/W. Suited for outdoor spaces and rooms up to approximately 300 sq ft.

120V AC, 60Hz. Fan draw: 58W at high. Light: 16W integrated LED. Lead wire: 78 in. Ships with a 6 in downrod (0.5 in diameter). Slope compatible up to 30° with included hardware; compatible slope canopy kits MC95 & MC93 available separately. Canopy: 5.125 in diameter / 3.3125 in height. Minimum ceiling height: 7.96 ft to maintain safe blade-to-floor clearance. Fan must be attached to a securely anchored electrical junction box rated for the fan weight.

A 6 in downrod is included. Additional downrods available separately. Ideal distance from floor to fan blades is 7 to 9 feet.

• 9 ft ceiling → 12 in downrod
• 10 ft ceiling → 18 in downrod
• 12 ft ceiling → 24 in downrod
• 14 ft ceiling → 36 in downrod
• 16 ft ceiling → 48 in downrod
• 18 ft ceiling → 60 in downrod
• 20 ft ceiling → 72 in downrod

• 3AVLCR54MBKD ceiling fan (Midnight Black steel body + 3 Midnight Black ABS blades + 16W integrated LED + Matte Opal glass shade)
• Handheld remote control
• Finishing cap
• 6 in downrod
• Mounting hardware
