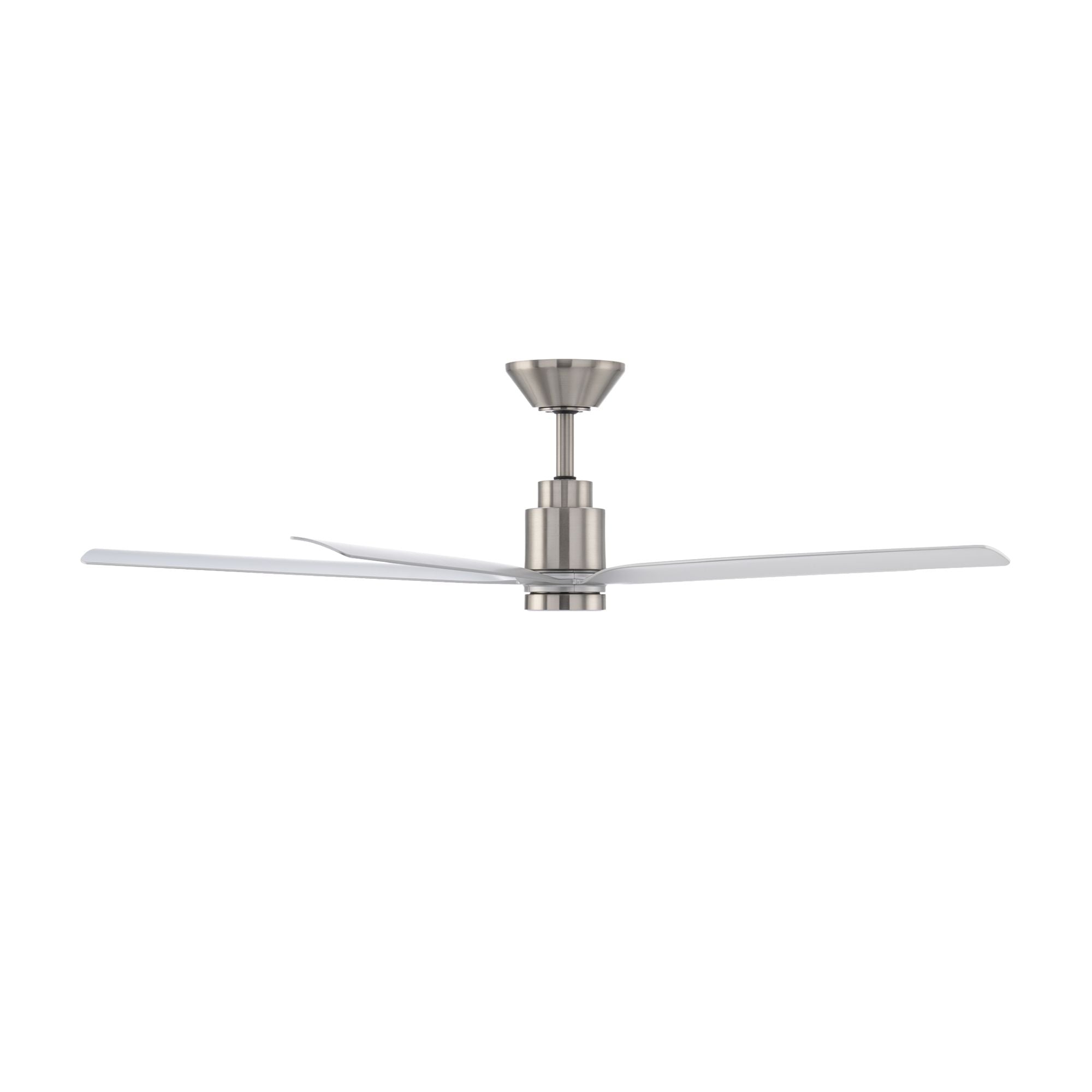

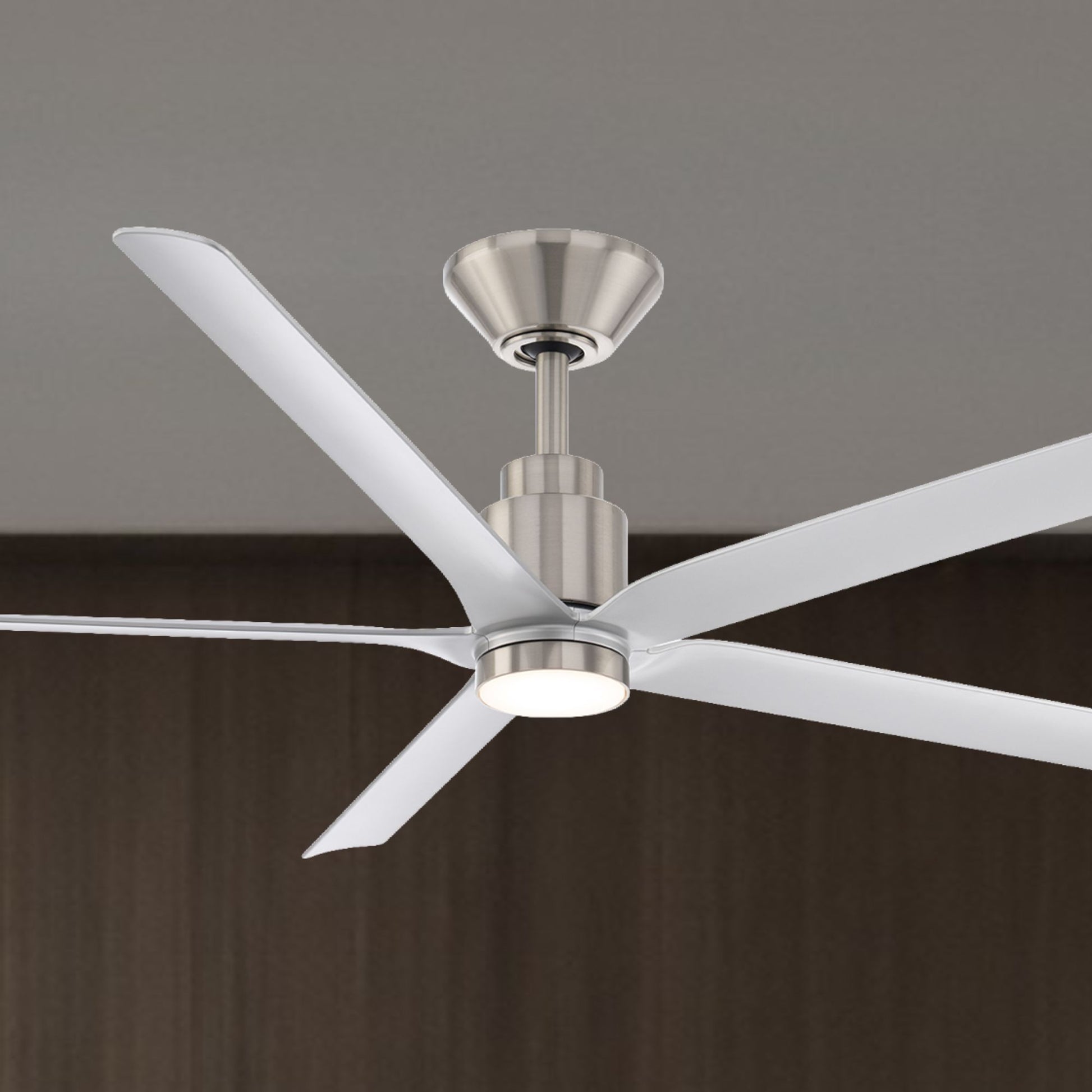

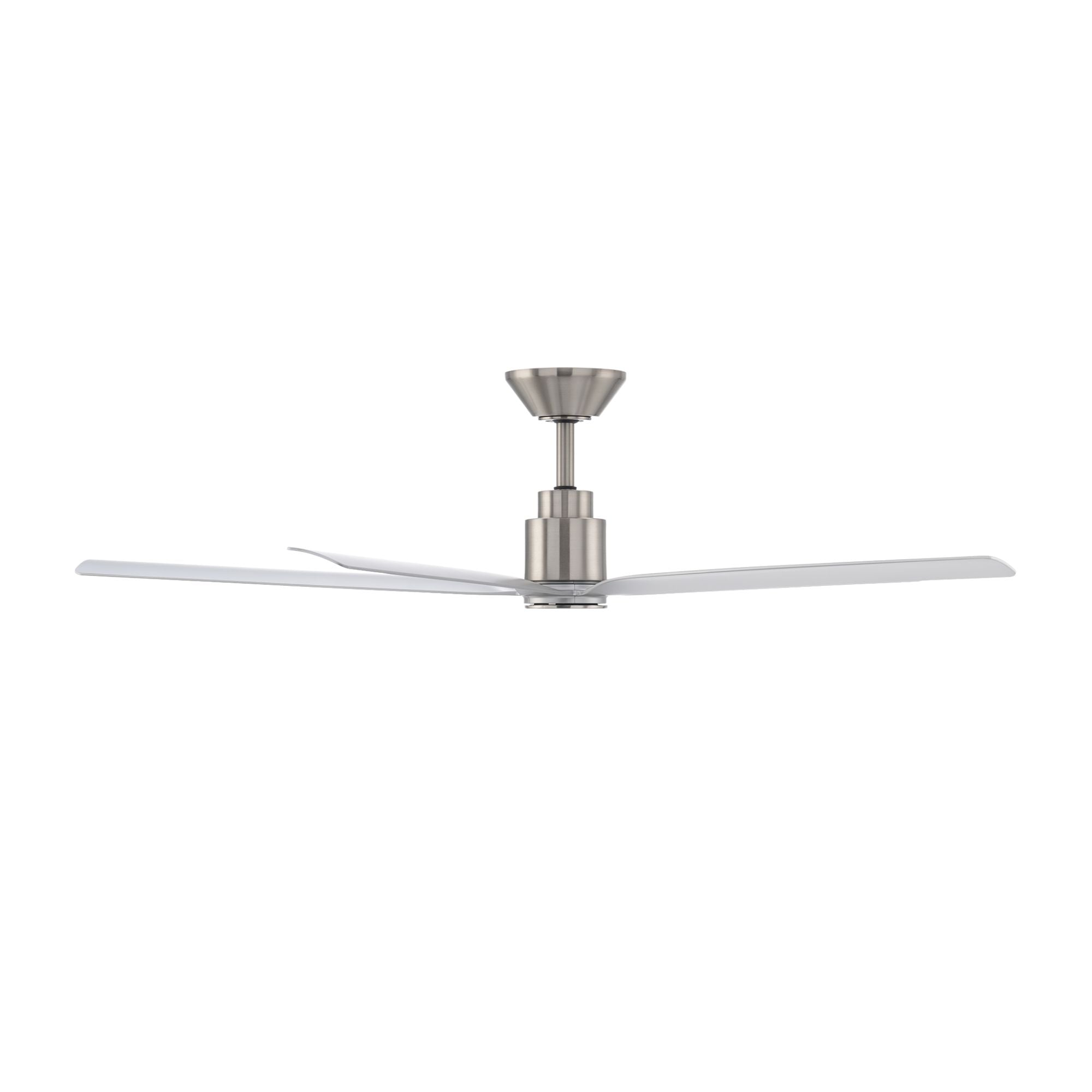

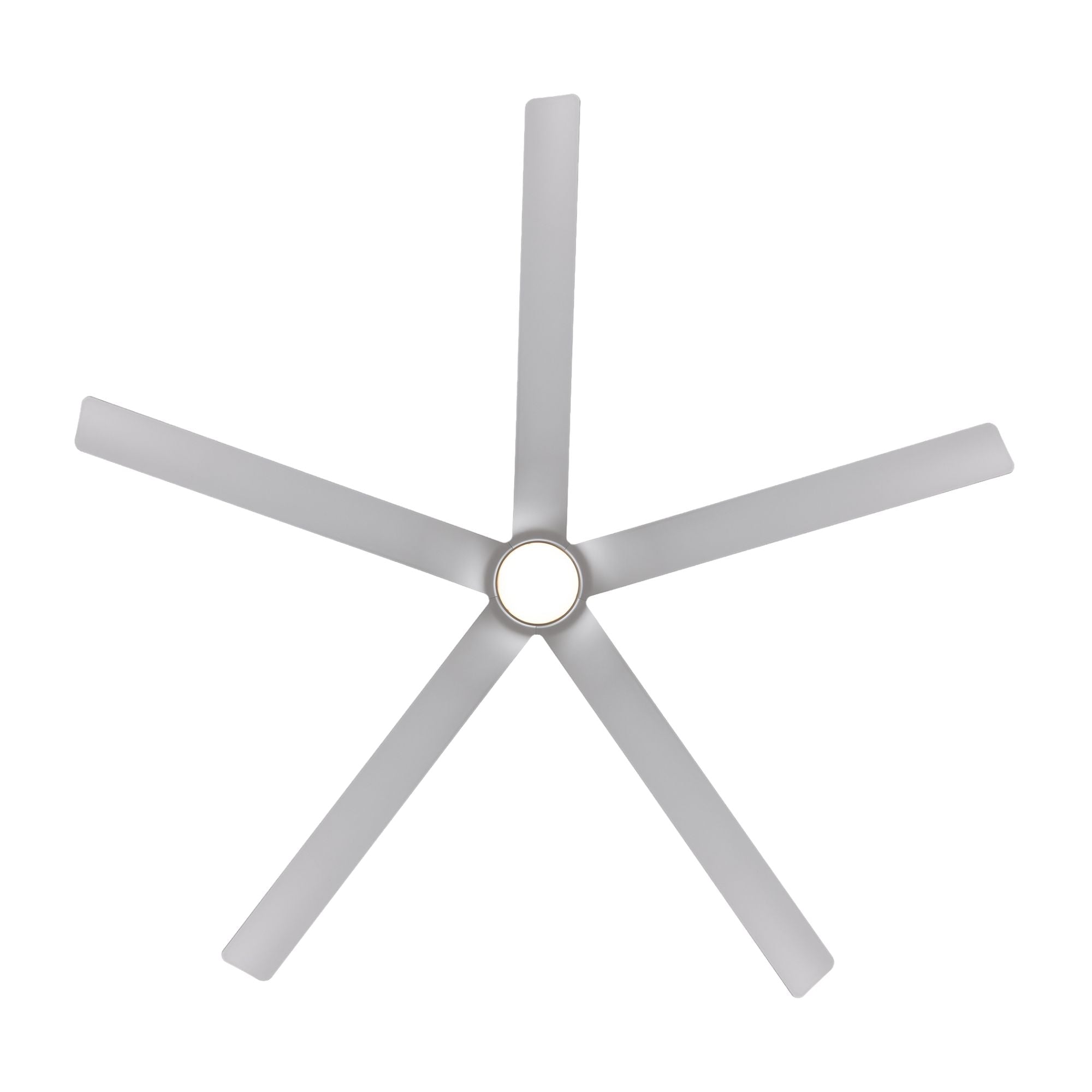

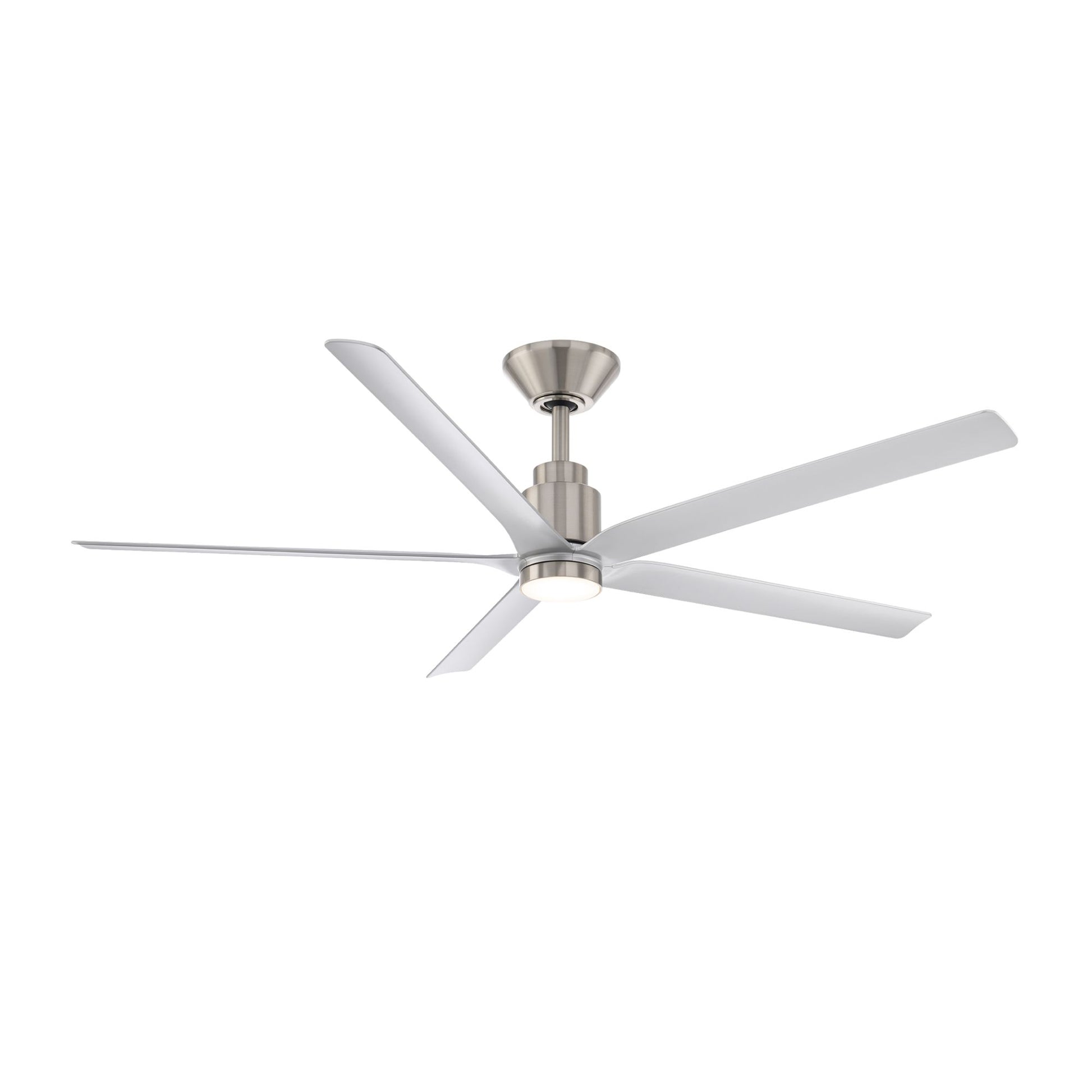

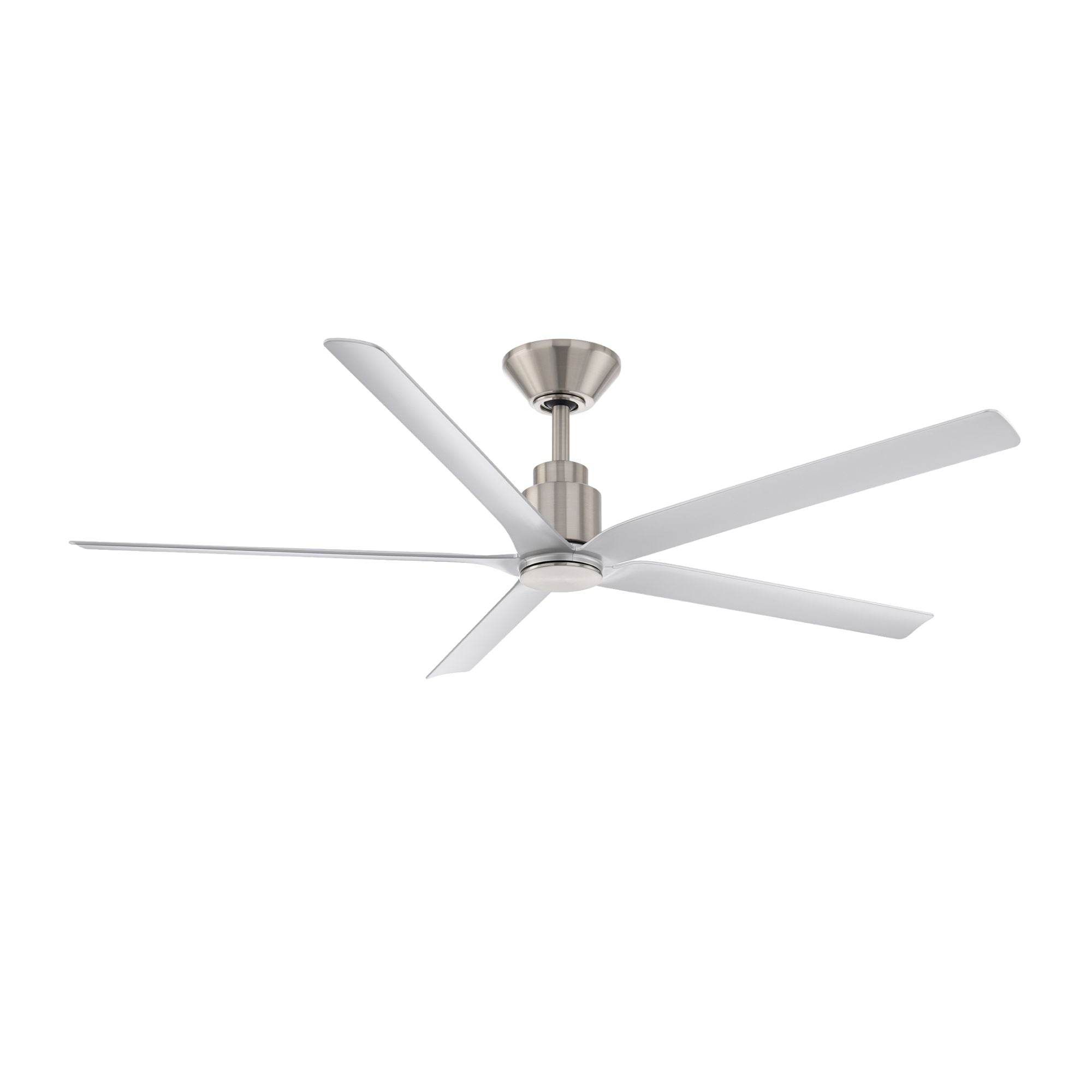

The Modern Forms Smooth 5 FR-W2601-56L-BN/SL is a 56 in wet-rated smart ceiling fan that elevates minimalist design with a five-blade silhouette. Each ABS blade features a gracefully curved detail where it connects to the housing, creating a seamless 56 in sweep that exudes continuity and elegance. At 6,544 CFM through a silent sensorless DC motor, the Smooth 5 delivers exceptional airflow — backed by the full Modern Forms smart ecosystem including WiFi, Bluetooth, Alexa, Google, SmartThings, Control4, JOSH, and Ecobee. The Brushed Nickel housing paired with Silver blades brings a polished, contemporary edge. Note: Brushed Nickel finish is not intended for coastal environments. Ships uni-pack.

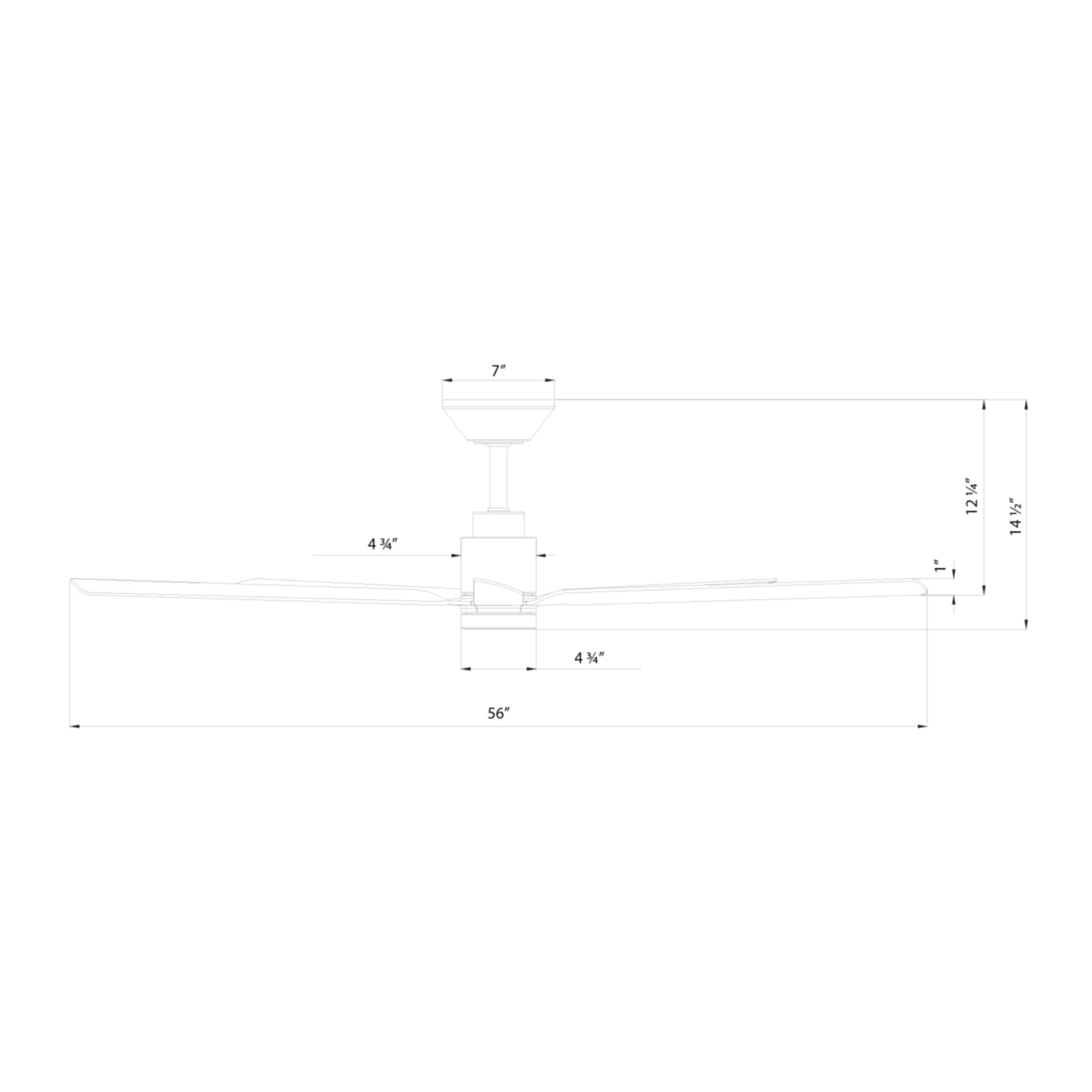

• Blade Span: 56 in, 5 blades — ideal for large rooms 325–475 sq ft
• Mount Type: Downrod — 0.75 in ID × 6 in H included

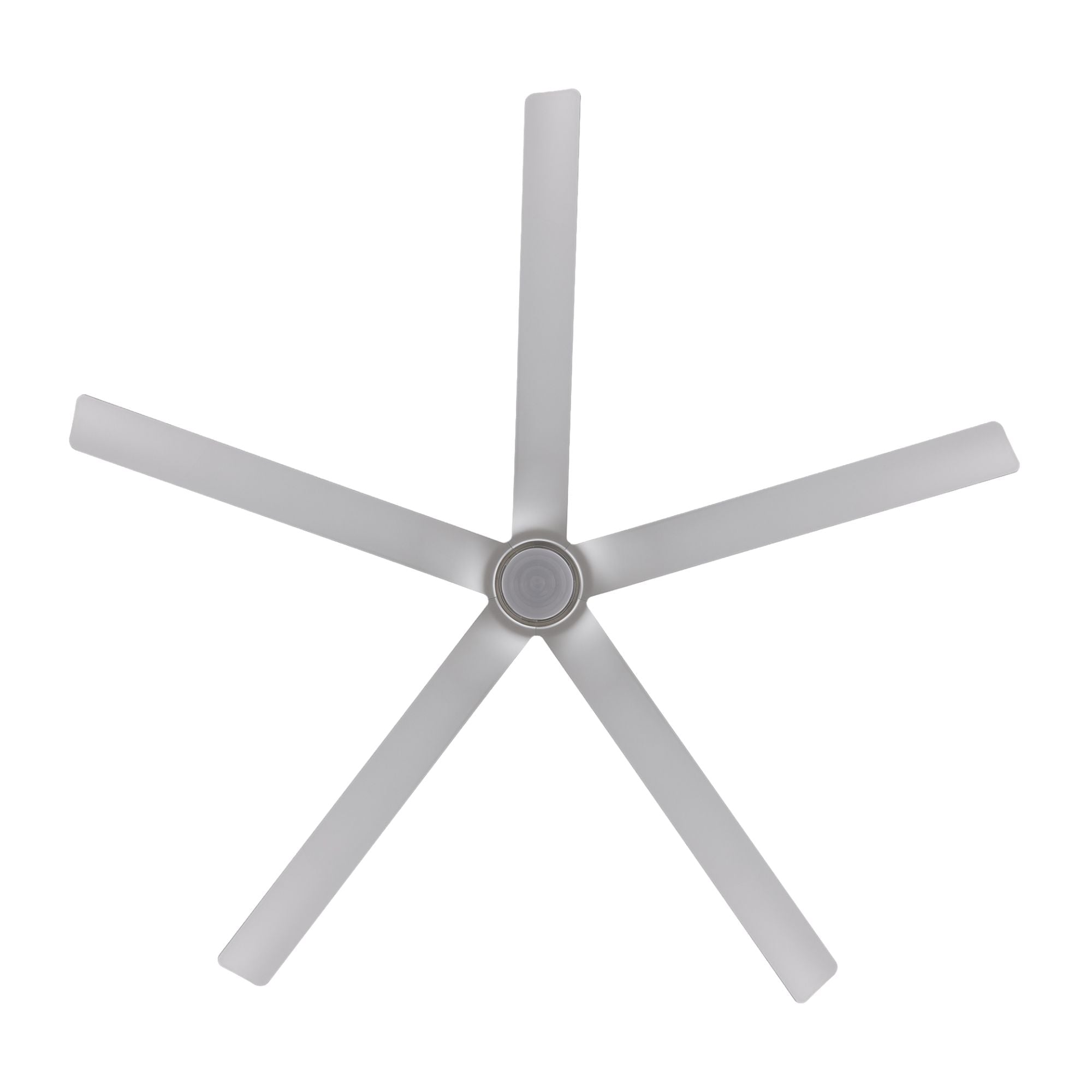

• Blades: 5 ABS blades, 16° pitch — Silver, included
• Motor: Sensorless DC, 6-speed, silent, Summer & Winter modes
• Airflow: 6,544 CFM high / 4,182 CFM weighted average
• Efficiency: 211 CFM/W high — ENERGY STAR® / Title 20 rated
• Wattage: 31W high / 22W weighted average
• Light: 16W LED, 1,497–1,606 lm, CRI 90, CCT 2700K–5000K selectable, dimmable, 50,000 hr
• Location: Wet rated — UL/cUL, ENERGY STAR® — not intended for coastal environments
• Slope: Up to 30° standard / 45° with optional XF-SCK kit
• Wire: 80 in / Weight: 12.8 lbs

Native WiFi + Bluetooth (150 ft). Modern Forms app, Alexa, Google Assistant, SmartThings, Control4, JOSH, Ecobee. Every fan is factory-balanced and sound tested — guaranteed never to wobble, rattle, or click. Includes F-RCBT-WT remote — 6-speed, dimmer, Summer/Winter mode. Optional wall control F-WCBT-WT sold separately for 3- or 4-way setup.

Brushed Nickel aluminum/ABS housing. 5 Silver ABS blades, 16° pitch, with gracefully curved blade-to-housing connection. Luminaire cover included for non-illuminated use. Ships uni-pack — blade color is fixed. Not intended for coastal environments.

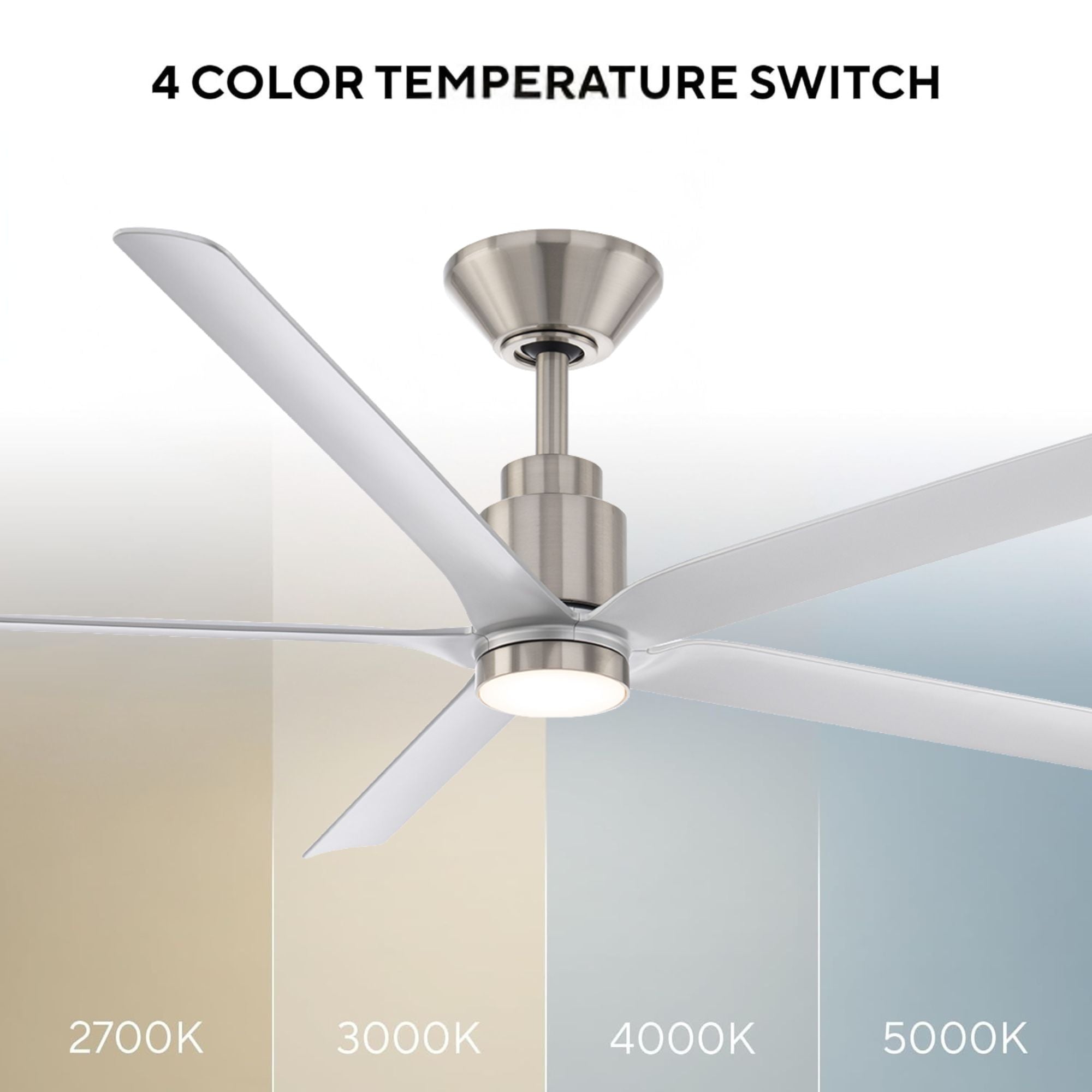

16W LED, up to 1,606 lm, CRI 90, CCT 2700K / 3000K / 4000K / 5000K selectable, fully dimmable, 50,000 hr rated life. Fan: 6,544 CFM at 211 CFM/W high speed. Sized for large rooms 325–475 sq ft.

120V AC/DC, 31W high / 22W avg. Wet rated — UL/cUL, ENERGY STAR®, Title 20. Downrod: 0.75 in ID × 6 in included. Max slope: 30° standard / 45° with XF-SCK. Wire: 80 in. Weight: 12.8 lbs. Warranty: 5 years LED, 2 years finish, lifetime motor, 1 year all other parts.

Ships with 6 in downrod. Maintain 7 ft floor-to-blade clearance. Additional downrods (XF-12-BN through XF-72-BN) available separately. Max recommended: 72 in.

• 9 ft → 12 in
• 10 ft → 18 in
• 11 ft → 24 in
• 12 ft → 36 in
• 13 ft → 48 in
• 14 ft → 60 in
• 15 ft → 72 in

• Modern Forms Smooth 5 56 in fan (motor + 5 Silver blades)
• Integrated LED light kit with opal lens
• Luminaire cover
• Bluetooth remote (F-RCBT-WT)
• 6 in downrod (0.75 in ID)
• Mounting hardware
